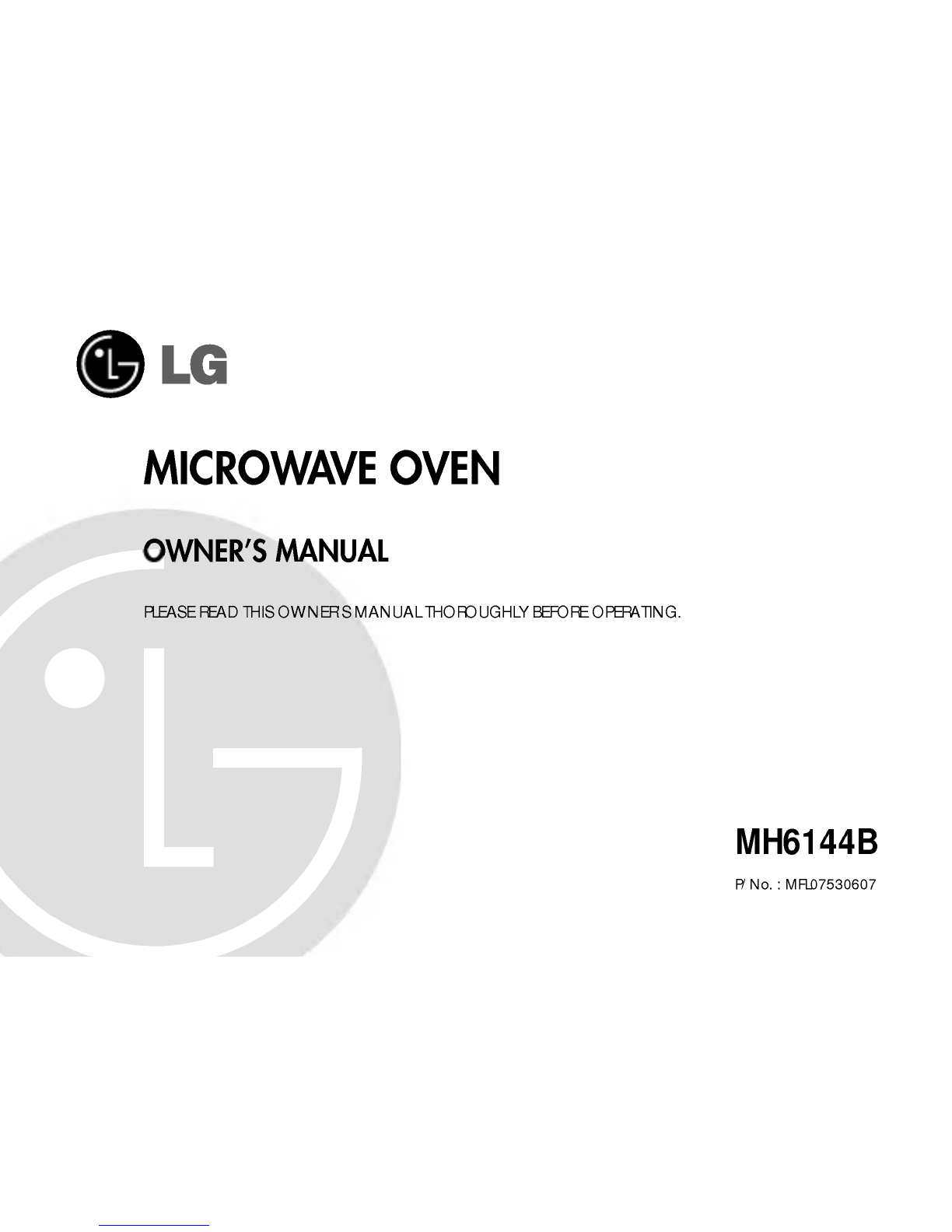

LG MH6144B User manual

MICROWAVE OVEN
OWNER'S MANUAL
PLEASE
READ
THIS OWNER'S MANUAL THOROUGHLY BEFORE OPERATING.
P/No. : MFL07530607
MH6144B

2

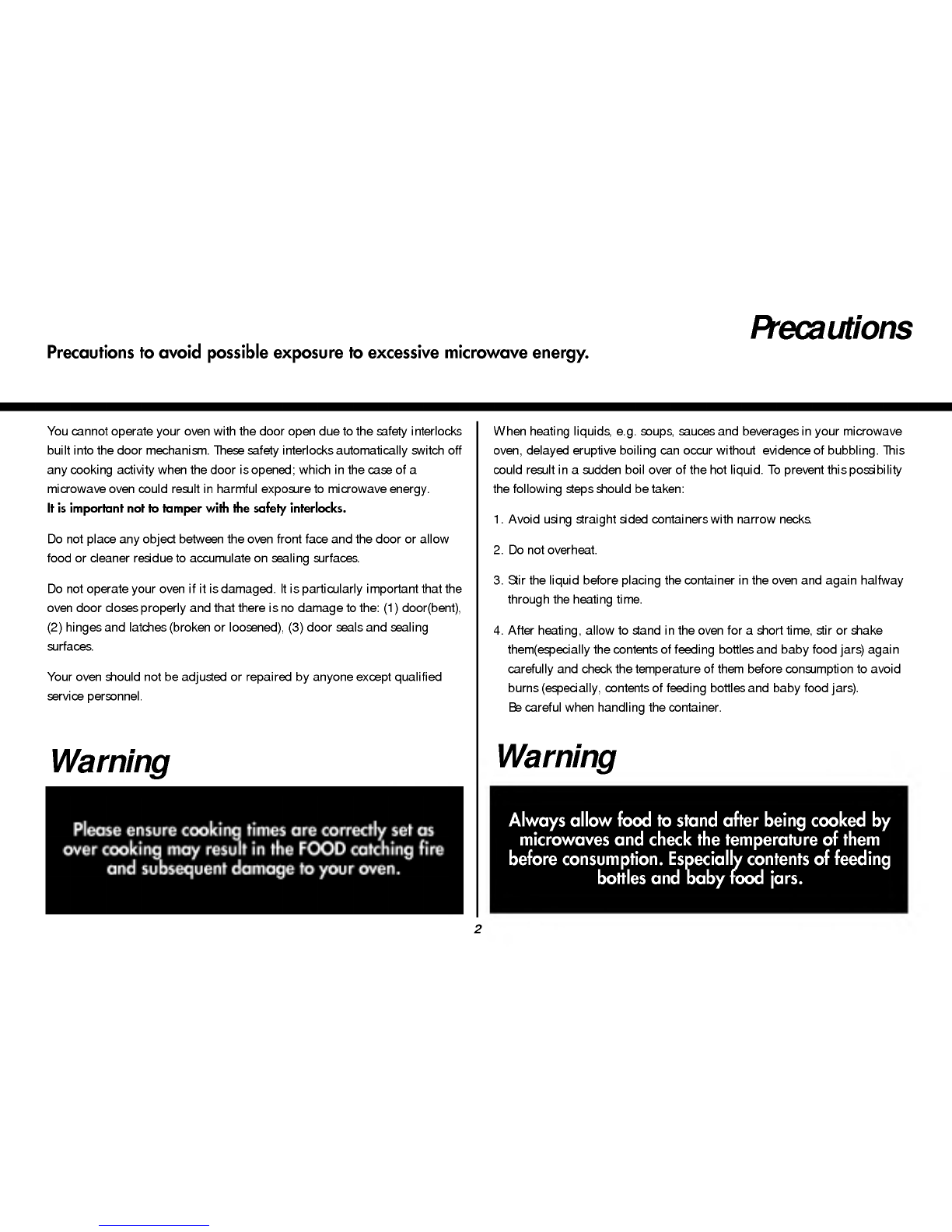

You cannot
operate your
oven with the door
open
due to the
safety
interlocks
built into the door mechanism. These
safety
interlocks
automatically
switch off
any
cooking
activity
when the door is
opened;
which in the case of a
microwave oven could result in harmful
exposure
to microwave
energy.
It is
important
not to
tamper
with the
safety
interlocks.
Do not
place any
object
between the oven front face and the door or allow
food or cleaner residue to accumulate on
sealing
surfaces.
Do not
operate your
oven if it is
damaged.
It is
particularly important
that the
oven door closes
properly
and that there is no
damage
to the:
(1) door(bent),
(2)
hinges
and latches
(broken
or
loosened), (3)
door seals and
sealing
surfaces.
Your oven should not be
adjusted
or
repaired by anyone except qualified
service
personnel.
Warning
Precautions to avoid
possible exposure
to excessive microwave
energy.
Precautions
When
heating
liquids,
e.g.
soups,
sauces and
beverages
in
your
microwave
oven,
delayed eruptive
boiling
can occur without evidence of
bubbling.
This
could result in a sudden boil over of the hot
liquid.
To
prevent
this
possibility
the
following
steps
should be taken:
1. Avoid
using straight
sided containers with narrow necks.
2. Do not overheat.
3. Stir the
liquid
before
placing
the container in the oven and
again
halfway
through
the
heating
time.
4. After
heating,
allow to stand in the oven for a short
time,
stir or shake
them(especially
the contents of
feeding
bottles and
baby
food
jars) again
carefully
and check the
temperature
of them before
consumption
to avoid
burns
(especially,
contents of
feeding
bottles and
baby
food
jars).
Be careful when
handling
the container.
Warning
Always
allow food to stand after
being
cooked
by
microwaves and check the
temperature
of them
before
consumption. Especially
contents of
feeding
bottles and
baby
food
jars.
Please ensure
cooking
times are
correctly
set as
over
cooking may
result
in
the FOOD
catching
fire
and
subsequent damage
to
your
oven.

3
How the Microwave Oven Works
Microwaves are a form of
energy
simila r to radio and television wa ves a nd
ordina
ry daylight.
N orma
lly,
microwa ves
spread
outwa rds a s
they
tra vel
through
the a
tmosphere
a nd disa
ppea
r without effect. Microwa ve
ovens,
however,
ha ve a ma
gnetron
which is
designed
to ma ke use of the
energy
in
microwa ves.
Electricity,
supplied
to the
magnetron
tube,
is used to created
microwa ve
energy.
These microwa ves enter the
cooking
a rea
through openings
inside the oven.
A turntable or
tray
is loca ted a t the bottom of the oven. Microwaves ca nnot
pass
through
metal walls of the
oven,
but
they
can
penetrate
such ma terials
a s
gla
ss,
porcela
in a nd
paper,
the ma terials out of which microwave-safe
cooking
dishes a re constructed.
Microwa ves do not heat cookwa
re,
though cooking
vessels will eventua
lly
get
hot from the heat
genera
ted
by
the food.
A
very
safe
appliance
Contents
Your microwave oven is one of the safest of all
home
appliances.
W hen the door is
opened,
the
oven
automatically
stops producing
microwaves.
Microwave
energy
is converted
completely
to heat
when it enters
food,
leaving
no "left over"
energy
to harm
you
when
you
eat
your
food.
Precautions 2
C ontents 3
Unpa
cking
& Insta
lling
4~5
Setting
the C lock 6
C hild Lock 7
Micro Power C
ooking
8
Micro Power Level 9
Two
Stage Cooking
10

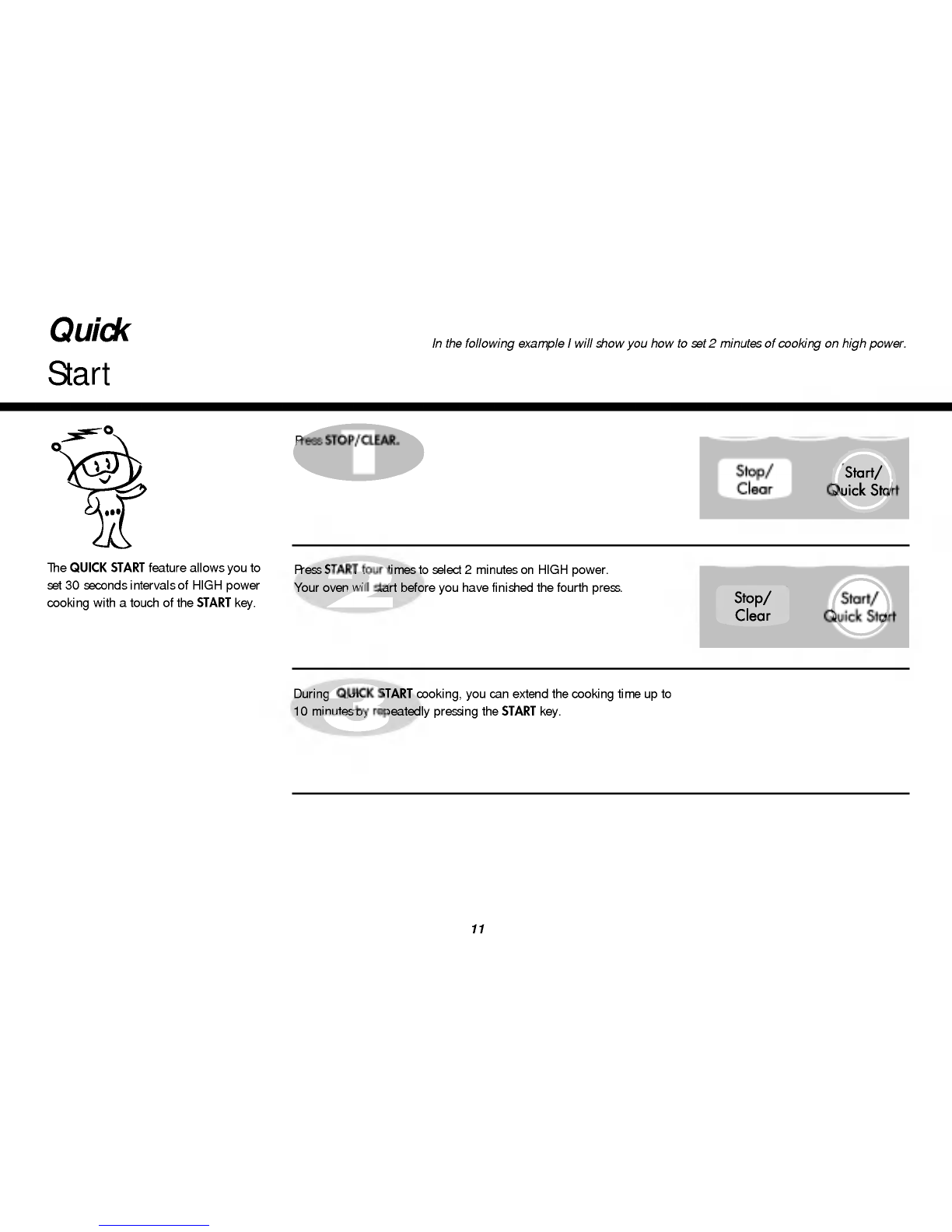

Q
uick Start 11
G rill C
ooking
12
C ombi. C
ooking
13
Q
uick Defrost 14~15
Europea
n menu 16~18
A uto Defrost 22~23
24~26
More or Less C
ooking
27
Safety
precautions
28~29
Microwave
-
safe Utensils 30
Food cha ra cteristics & Microwa ve
cooking
31~32
Q
uestions & Answers 33
Technical
Specification
34
MAFF
Reheating
Cooked Chilled Foods 35

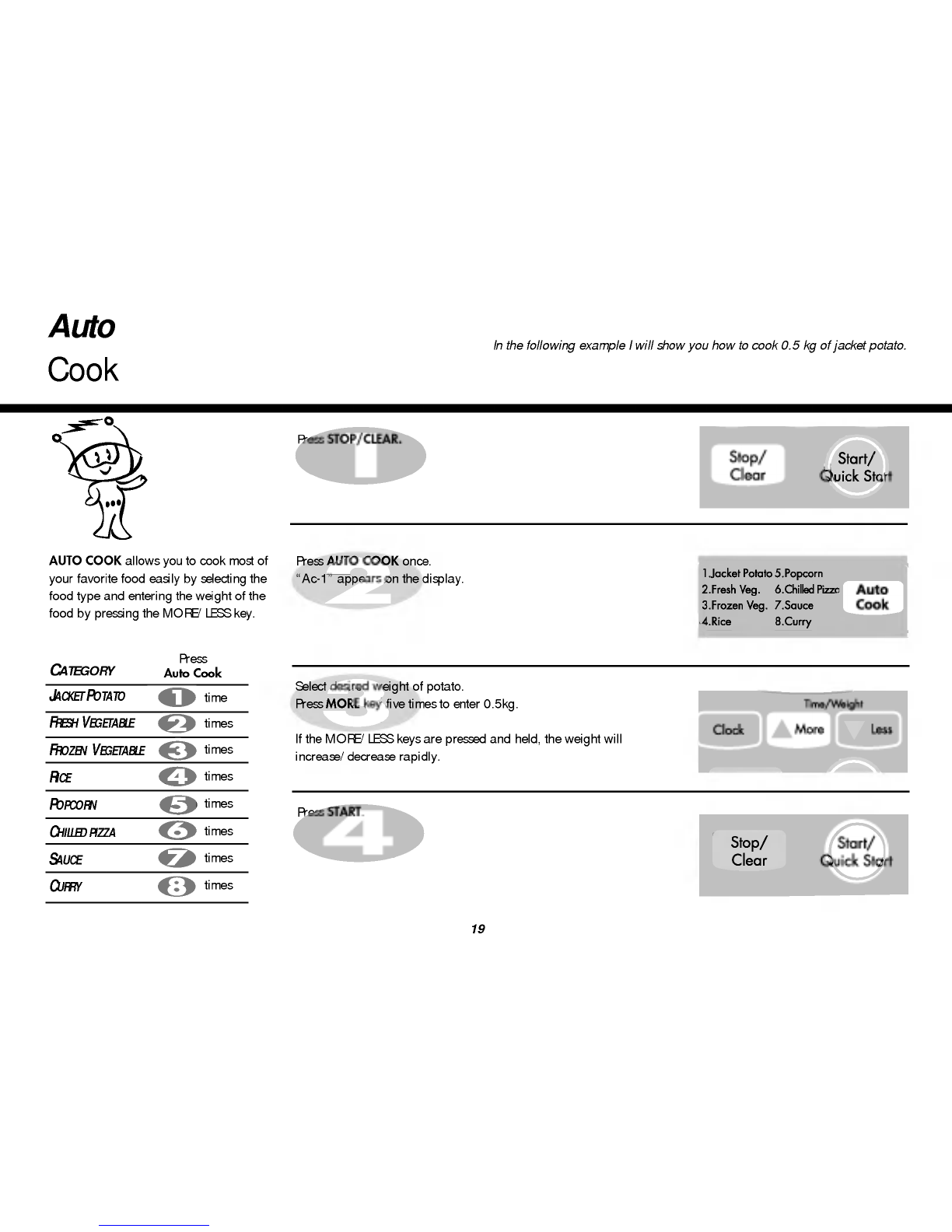

Auto Cook 19~21
GUARANTEE
36
Auto Roast

4

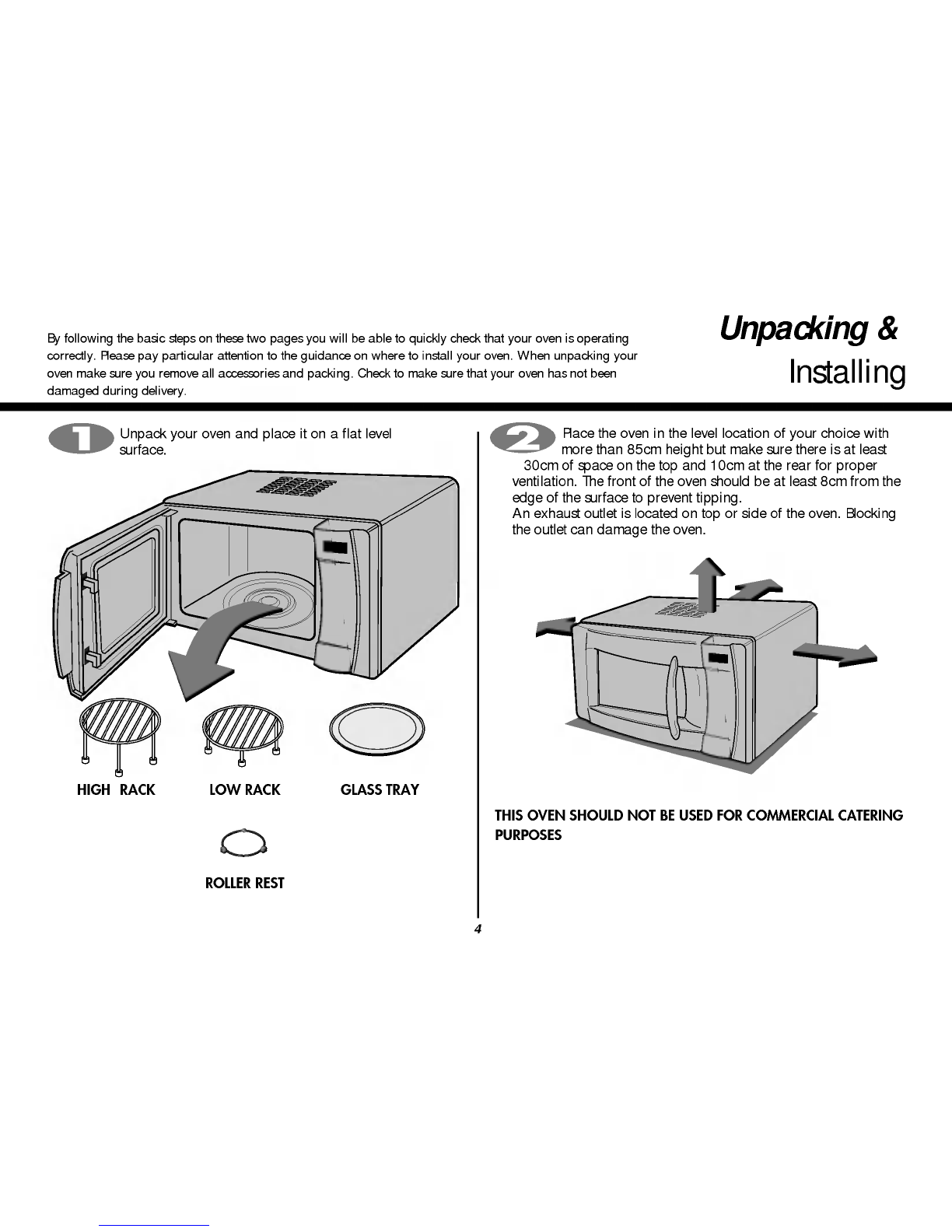

Place the oven in the level location of
your
choice with
more than 85cm
height
but make sure there is at least
30cm of
space
on the
top
and 10cm at the rear for
proper
ventilation. The front of the oven should be at least 8cm from the
edge
of the surface to
prevent tipping.
An exhaust outlet is located on
top
or side of the oven.
Blocking
the outlet can
damage
the oven.
Unpacking
&
Installing
Unpack your
oven and
place
it on a flat level
surface.
By
following
the basic
steps
on these two
pages
you
will be able to
quickly
check that
your
oven is
operating
correctly.
Please
pay particular
attention to the
guidance
on where to install
your
oven. When
unpacking
your
oven make sure
you
remove all accessories and
packing.
Check to make sure that
your
oven has not been
damaged during
delivery.
THIS OVEN SHOULD NOT BE USED FOR COMMERCIAL CATERING
PURPOSES
GLASS TRAY HIGH RACK LOW RACK
ROLLER REST

5

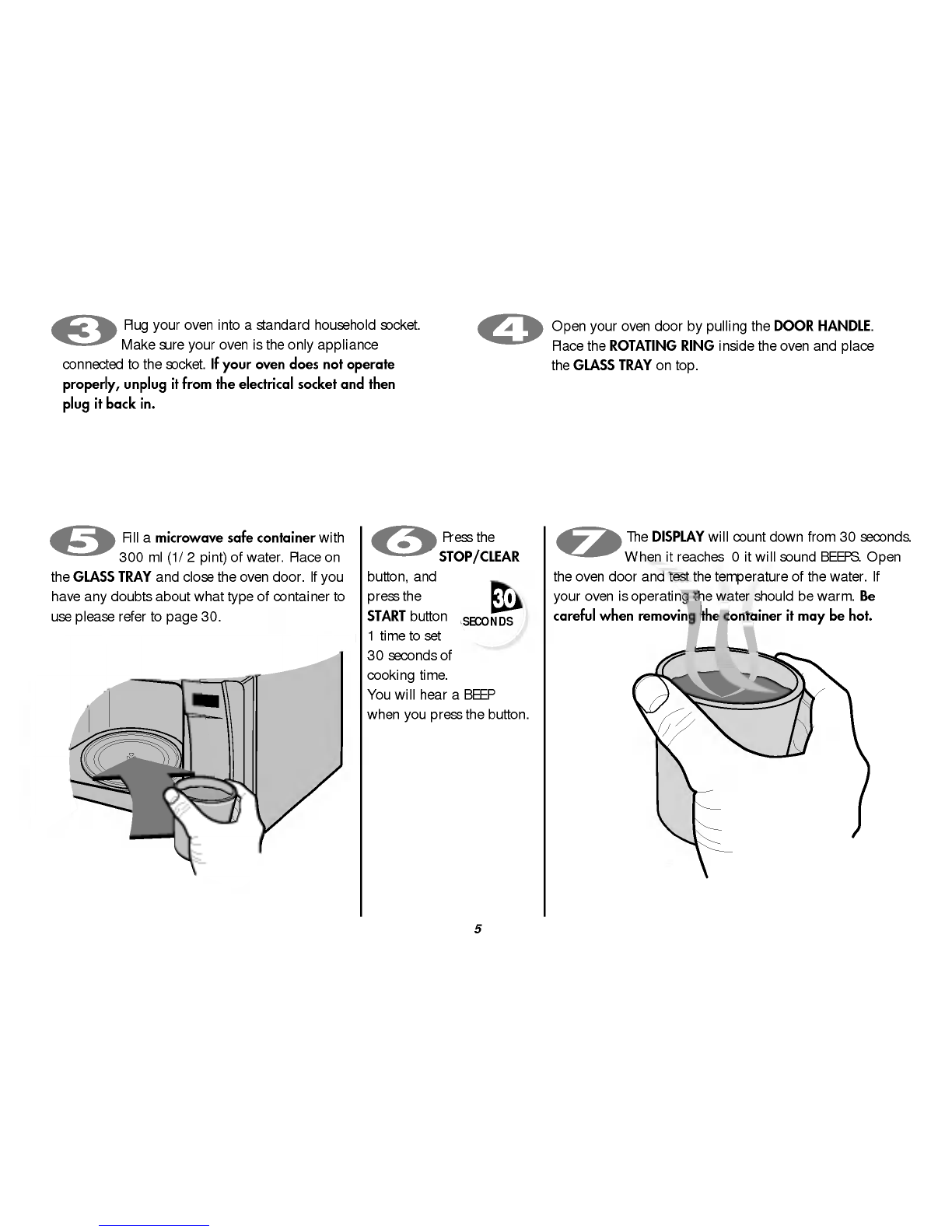

Plug your
oven into a standard household socket.
Make sure
your
oven is the
only appliance
connected to the socket. If
your
oven does not
operate
properly, unplug
it from the electrical socket and then
plug
it back in.
The DISPLAY will count down from 30 seconds.
When it reaches 0 it will sound BEEPS.
Open
the oven door and test the
temperature
of the water. If
your
oven is
operating
the water should be warm. Be
careful when
removing
the container it
may
be hot.
Fill a microwave safe container with
300 ml
(1/2 pint)
of water. Place on
the GLASS TRAY and close the oven door. If
you
have
any
doubts about what
type
of container to
use
please
refer to
page
30.
Press the
STOP/CLEAR
button,
and
press
the
START button
1 time to set
30 seconds of
cooking
time.
You will hear a BEEP
when
you press
the button.
Open your
oven door
by pulling
the DOOR HANDLE.
Place the ROTATING RING inside the oven and
place
the GLASS TRAY on
top.
SECONDS

6
Setting
the
Clock
You can set either 12 hour clock or 24 hour clock .
In the
following
example
I will show
you
how to set the time for 14:35 when
using
the 24 clock.
Make sure that
you
have removed all
packaging
from
your
oven.
When
your
oven is
plugged
in for the
first time or when
power
resumes after a
power
cut,
a '0' will be shown in the
display; you
will have to reset the clock.
If the clock
(or display)
shows
any
strange looking
symbols,
unplug
your
oven from the electrical socket and
plug
it back in and reset the clock.
During
clock
setting
the colon will flash.
After
setting,
the colon will
stop/clear
flashing.
Make sure that
you
have
correctly
installed
your
oven as described earlier
in this book.
Press
STOP/CLEAR
.
Press CLOCK once.
(If you
want to use different
option,
Press CLOCK once.
If
you
want to
change
different
option
after
setting
clock,
you
have to
unplug
and
plug
it back
in.)
Press 10 MIN fifteen times.
Press 1 MIN three times.
Press 10 SEC five times.
If the
key (10
MIN / 1 MIN / 10
SEC)
is
pressed
and
held,
the time will
increase
rapidly.
Press CLOCK or START to set the time.
The clock starts
counting.

7
Child
Lock
Press and hold
STOP/CLEAR
until "L"
appears
in the
display
and BEEP
sounds.
The CHILD LOCK is now set.
The time will
disappear
on the
display
if
you
have set the clock.
"L" remains
displayed
to let
you
know that CHILD LOCK is set.
To cancel CHILD LOCK
press
and hold
STOP/CLEAR
until "L"
disappears.
You will hear BEEP when it's released.
Your oven has a
safety
feature that
prevents
accidental
running
of the oven.
Once the child lock is
set,
you
will be
unable to use
any
functions and no
cooking
can take
place.
However
your
child can still
open
the
oven door!
Press
STOP/CLEAR
.
L

8

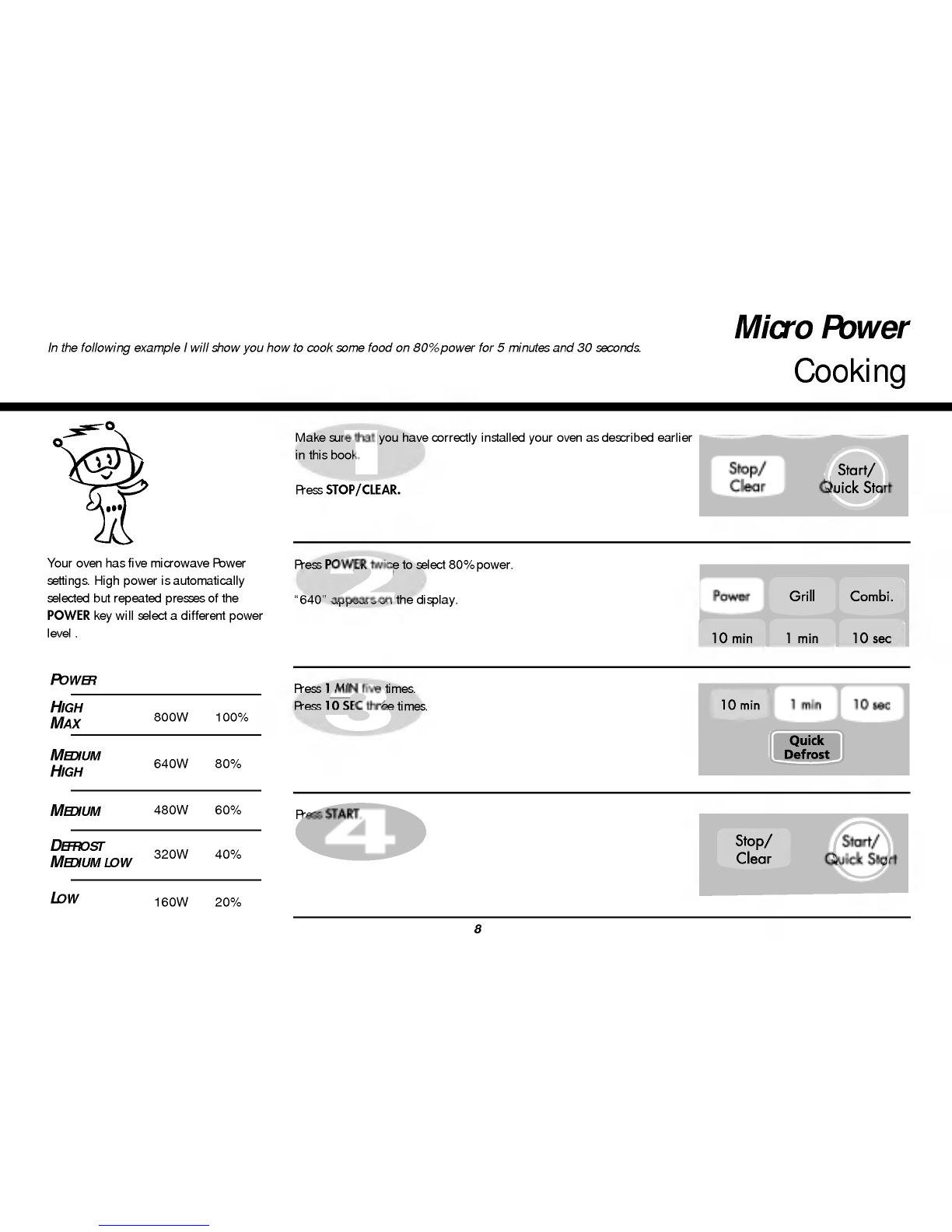

Micro Power
Cooking
POWER
HIGH
MAX
MEDIUM
HIGH
MEDIUM
DEFROST
MEDIUM LOW
LOW
800W
640W
480W
320W
160W
100%
80%
60%
40%
20%
Make sure that
you
have
correctly
installed
your
oven as described earlier
in this book.
Press
STOP/CLEAR.
Press POWER twice to select 80%
power.
"640"
appears
on the
display.
Press 1 MIN five times.
Press 10 SEC three times.
Press START.
Your oven has five microwave Power
settings. High
power
is
automatically
selected but
repeated presses
of the
POWER
key
will select a different
power
level .
In the
following
example
I will show
you
how to cook some food on 80%
power
for 5 minutes and 30 seconds.

9

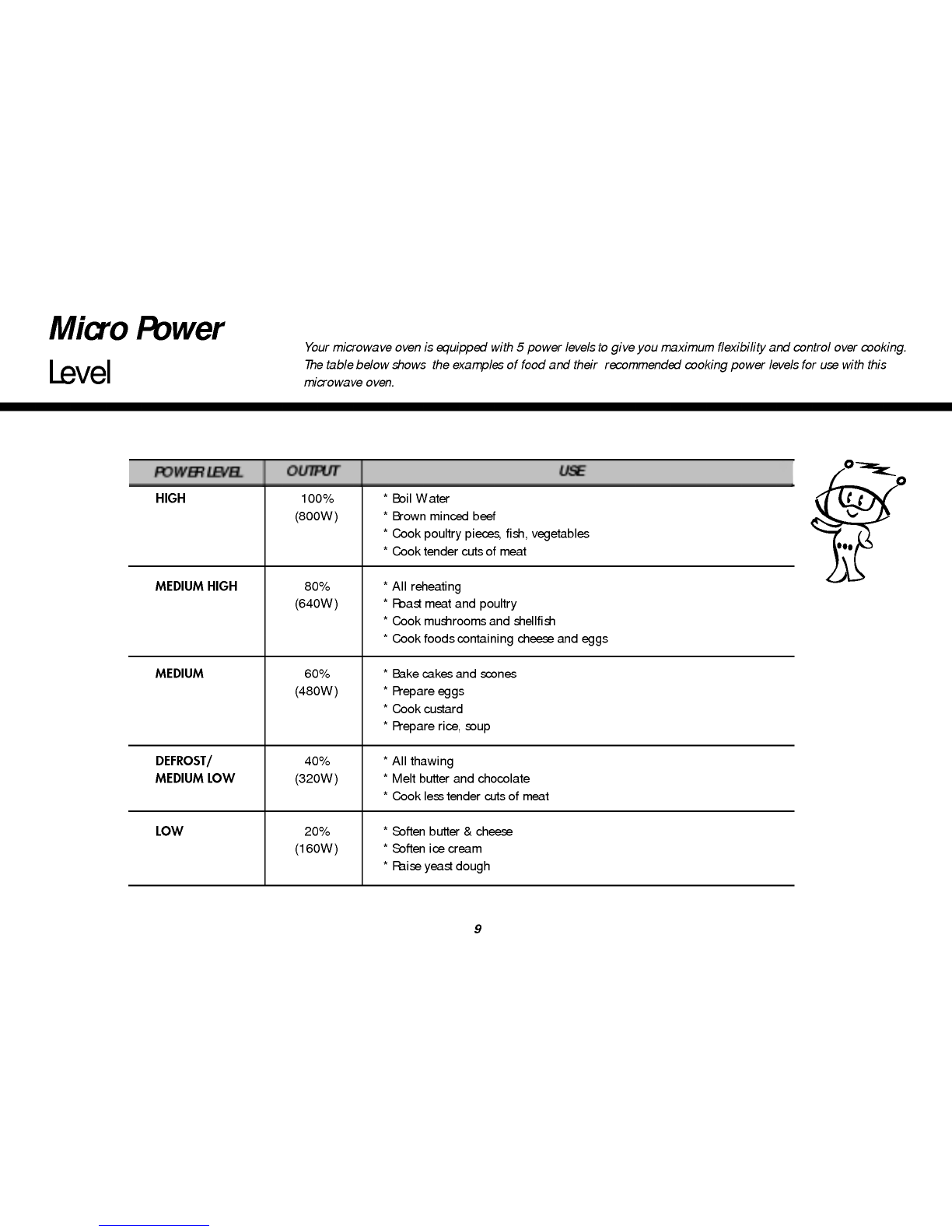

Micro Power
Level
Your microwave oven is
equipped
with 5
power
levels to
give
you
maximum
flexibility
and control over
cooking.
The table below shows the
examples
of food and their recommended
cooking
power
levels for use with this
microwave oven.
POWER LEVEL
HIGH 100%
*
Boil Water
(800W)
*
Brown minced beef
*
Cook
poultry pieces,
fish,
vegetables
*
Cook tender cuts of meat
MEDIUM HIGH 80%
*
All
reheating
(640W)
*
Roast meat and
poultry
*
Cook mushrooms and shellfish
*
Cook foods
containing
cheese and
eggs
MEDIUM 60%
*
Bake cakes and scones
(480W)
*
Prepare
eggs
*
Cook custard
*
Prepare
rice,
soup
DEFROST/
40%
*
All
thawing
MEDIUM LOW
(320W)
*
Melt butter and chocolate
*
Cook less tender cuts of meat
LOW 20%
*
Soften butter & cheese
(160W)
*
Soften ice cream
*
Raise
yeast
dough
OUTPUT USE

10

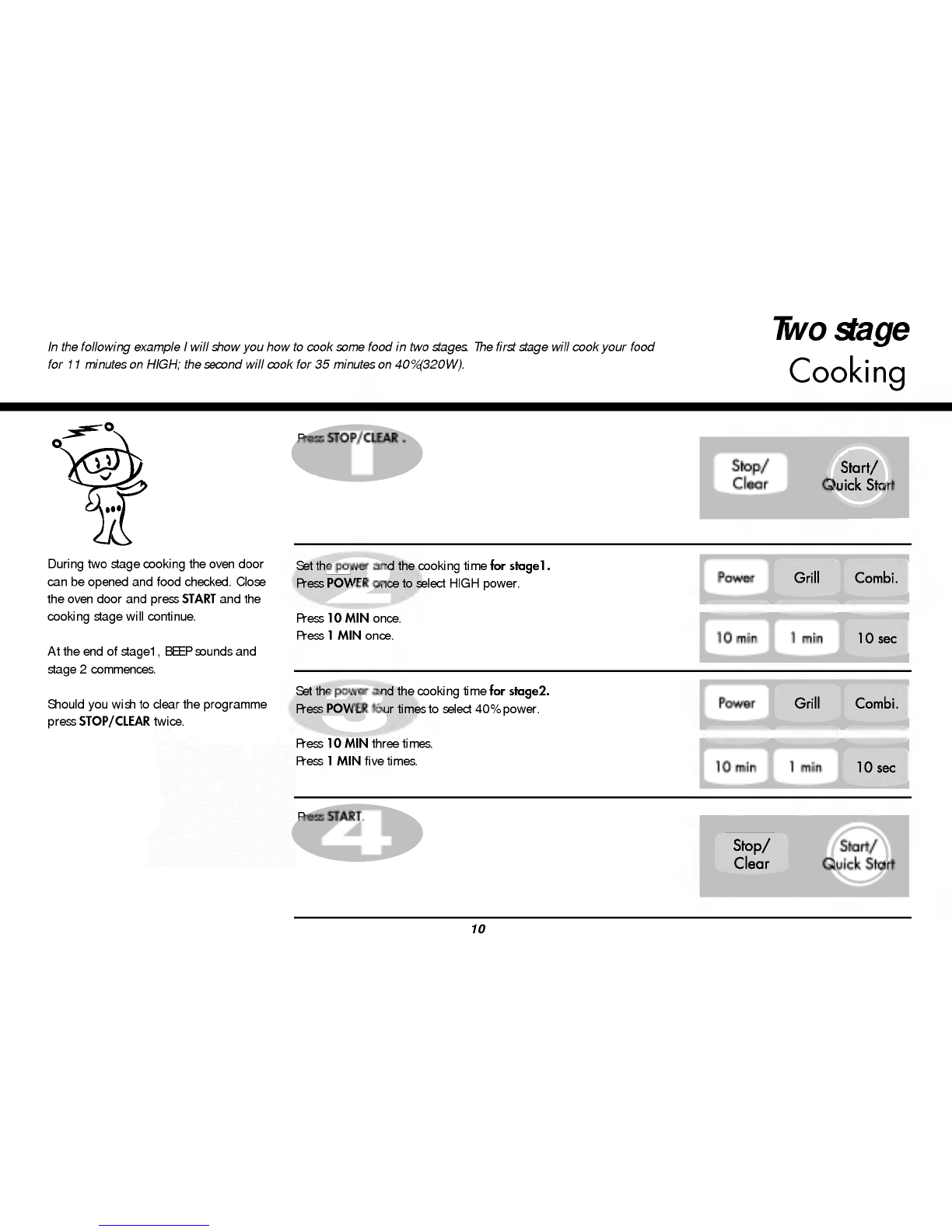

Two
stage
Cooking
Press
STOP/CLEAR
.
Set the
power
and the
cooking
time for
stage1.
Press POWER once to select HIGH
power.
Press 10 MIN once.
Press 1 MIN once.
Set the
power
and the
cooking
time for
stage2.
Press POWER four times to select 40%
power.
Press 10 MIN three times.
Press 1 MIN five times.
Press START.
During
two
stage cooking
the oven door
can be
opened
and food checked. Close
the oven door and
press
START and the
cooking stage
will continue.
At the end of
stage1,
BEEP sounds and
stage
2 commences.
Should
you
wish to clear the
programme
press
STOP/CLEAR
twice.
In the
following
example
I will show
you
how to cook some food in two
stages.
The first
stage
will cook
your
food
for 11 minutes on
HIGH;
the second will cook for 35 minutes on
40%(320W).

11
Quick
Start
Press
STOP/CLEAR.
Press START four times to select 2 minutes on HIGH
power.
Your oven will start before
you
have finished the fourth
press.
During
QUICK
START
cooking,
you
can extend the
cooking
time
up
to
10 minutes
by repeatedly
pressing
the START
key.
The
QUICK
START feature allows
you
to
set 30 seconds intervals of HIGH
power
cooking
with a touch of the START
key.
In the
following
example
I will show
you
how to set 2 minutes of
cooking
on
high
power.

12
Grill
Cooking
Press
STOP/CLEAR.
Press GRILL.
Set the
cooking
time.
Press 10 MIN once.
Press 1 MIN twice.
Press 10 SEC three times.
This model is fitted with a SHEATH
GRILL,
so
preheating
is not needed.
This feature will allow
you
to brown and
crisp
food
quickly.
The
grill
rack can be used in two
positions
-
high
or
low,
depending
on
food
type
and size.
In the
following
example
I will show
you
how to use the
grill
to cook some food for 12 minutes and 30 seconds.
Press START.
GRILL RACK

13

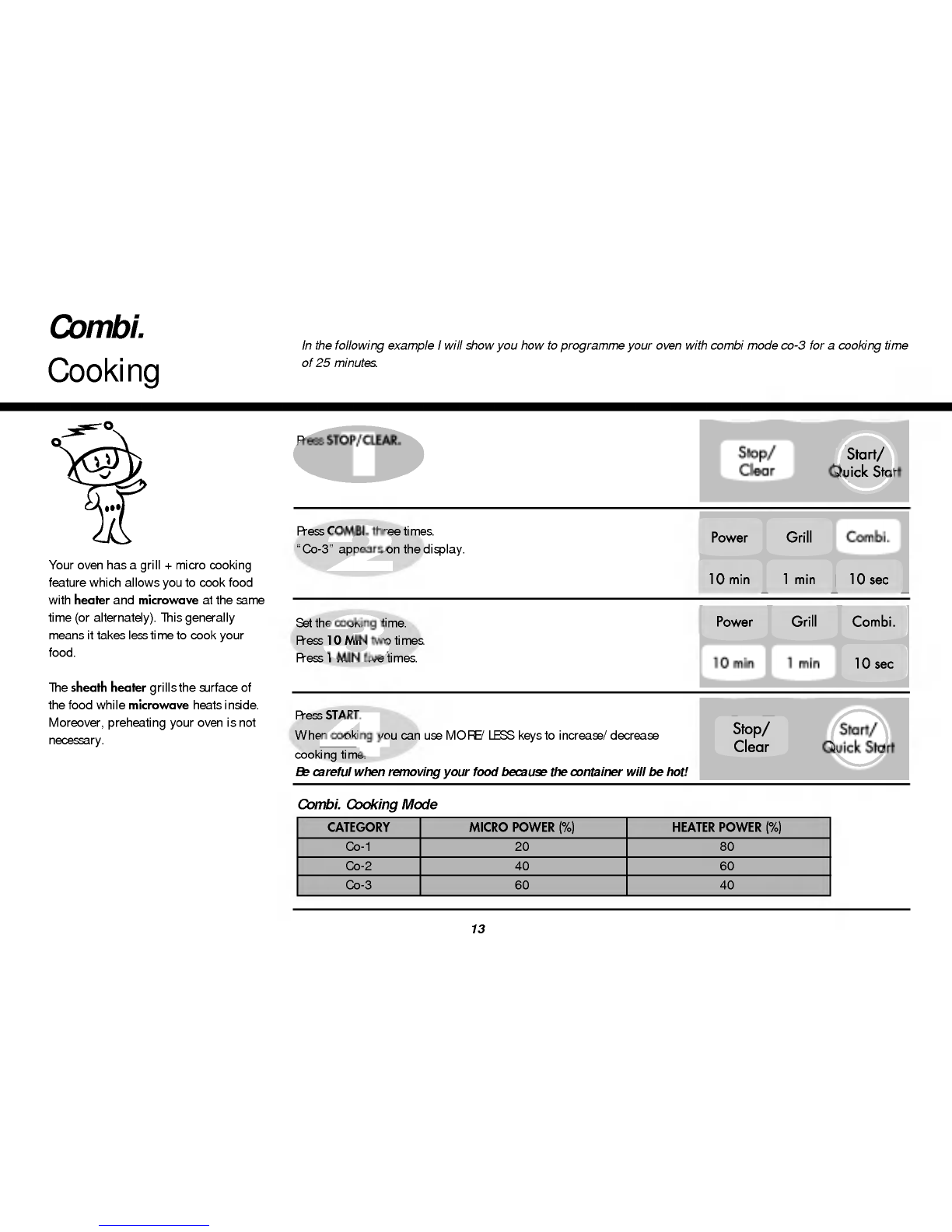

Combi.
Cooking
Your oven has a
grill
+ micro
cooking
feature which allows
you
to cook food
with heater and microwave at the same
time
(or alternately).
This
generally
means it takes less time to cook
your
food.
The sheath heater
grills
the surface of
the food while microwave heats inside.
Moreover,
preheating
your
oven is not
necessary.
In the
following
example
I will show
you
how to
programme
your
oven with combi mode co-3 for a
cooking
time
of 25 minutes.
Combi.
Cooking
Mode
CATEGORY MICRO POWER
(%)
HEATER POWER
(%)
Co-1 20 80
Co-2 40 60
Co-3 60 40
Press COMBI. three times.
"Co-3"
appears
on the
display.
Press
STOP/CLEAR.
Set the
cooking
time.
Press 10 MIN two times.
Press 1 MIN five times.
Press START.
When
cooking
you
can use MORE/LESS
keys
to increase/decrease
cooking
time.
Be
careful
when
removing your
food
because the container
will be
hot!

Quick
Defrost
Use this function to thaw
only
0.5kg
of Minced meat
very quickly.
This will
require
a
standing
time to allow the center to thaw. In the
following
example
will show you how to
defrost
0.5kg
of forzen minced meat.
Press STOP/CLEAR.
Weight
the food that
you
are about to defrost. Be certain to remove
any
metallic ties or
wraps;
then
place
the food in
your
oven and close
the oven door.
Press
QUICK
DEFROST to select the MEAT
defrosting programme.
The oven will starts
automatically.
thawing.
Remove
any
portions
that have thawed or shield them to
help
slow down
thawing.
After
checking
close the oven
door and
press
START/QUICK
START to resume
defrosting.
Your oven will not
stop
defrosting
(even
when the
beep sounded)
unless the door is
opened.
During defrosting
your
oven will
"BEEP",
at which
point open
the oven
door,
turn food over and
separate
to ensure even
14

CATEGORY WEIGHT UTENSIL INSTRUCTIONS
QUICK
DEFROST GUIDE
0.5kg
Microwave ware
(Flat plate)
Minced meat
Turn food over at
beep.
After
defrosting,
let stand for 5-15 minutes.
Use this function to defrost
quickly
for minced meat.
Remove the meat
completely
from it's
wrapping.
Place the mince onto a microwave-safe
plate.
When
BEEP,
at this
point
remove the mince from the microwave
oven,
turn the mince over and return to the microwave oven. Press start to continue. At the end of the
program
remove the mince from the microwave
oven,
cover with foil and allow to stand 5-15 minutes or until
completely
thawed.
Minced Meat
15

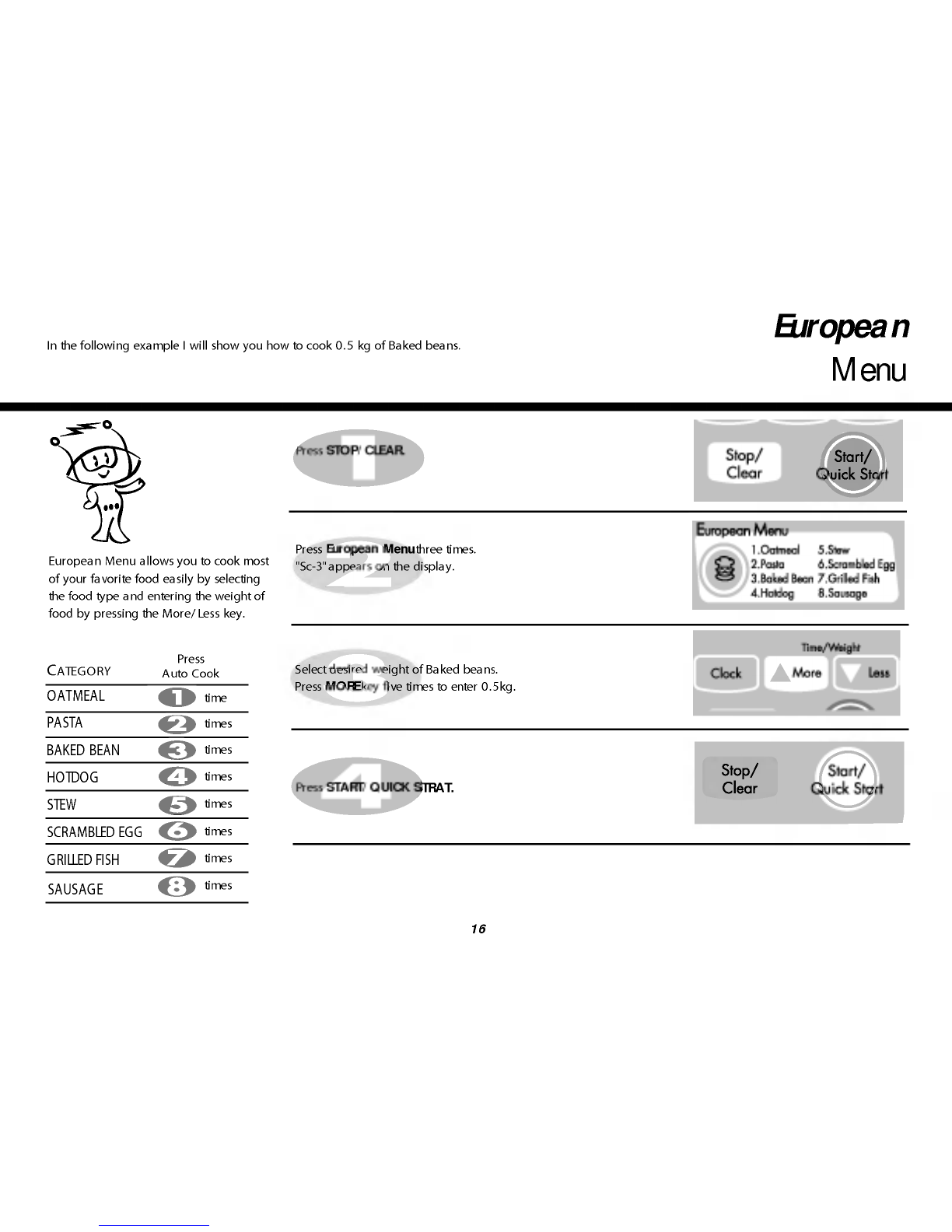

European
Menu
Press STOP/CLEAR.
Press
European
Menu three times.
"Sc-3"
appears
on the
display.
Select desired
weight
of Ba ked bea ns.
Press MORE
key
five times to enter
0.5kg.
Europea
nMenu a llows
you
to cook most
of
your
fa vorite food ea
sily by selecting
the food
type
a nd
entering
the
weight
of
food
by pressing
the
More/
Less
key.
In the
following
example
I will show
you
how to cook 0.5
kg
of Baked beans.
Press
START/QUICK
STRAT.
CATEGORY
OATMEAL
PASTA
BAKED BEAN
HOTDOG
STEW
SCRAMBLED EGG
SAUSAGE
GRILLED FISH
Press
Auto Cook
time
times
times
times
times
times
times
times
16

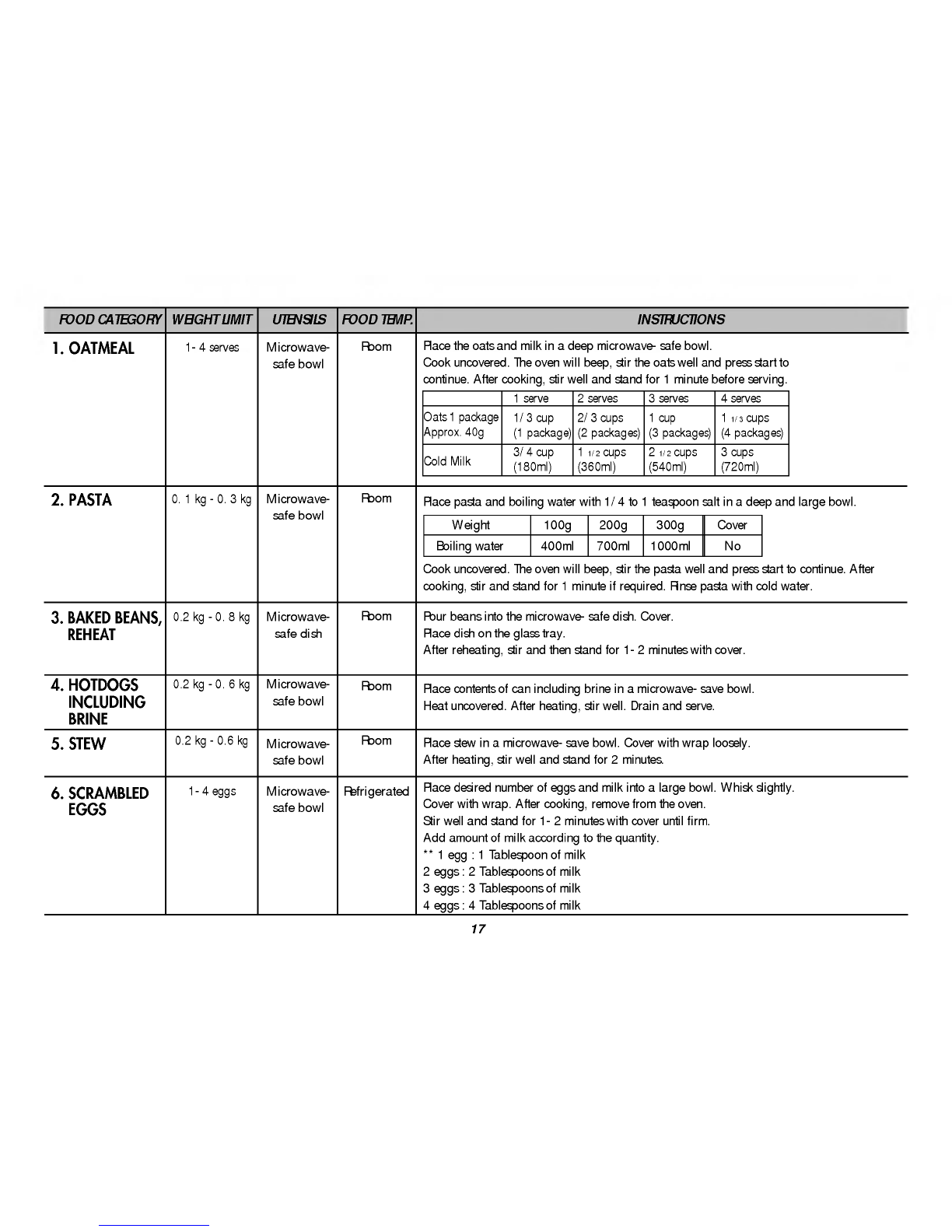

FOOD CATEGORY WEIGHT LIMIT UTENSILS FOOD TEMP. INSTRUCTIONS
1. OATMEAL
2. PASTA
3.
BAKED
BEANS,
REHEAT
4. HOTDOGS
INCLUDING
BRINE
5. STEW
6. SCRAMBLED
EGGS
Room
Room
Room
Room
Room
Refrigerated
Microwave-
safe bowl
Microwave-
safe bowl
Microwave-
safe dish
Microwave-
safe bowl
Microwave-
safe bowl
Microwave-
safe bowl
Place the oats and milk in a
deep
microwave- safe bowl.
Cook uncovered. The oven will
beep,
stir the oats well and
press
start to
continue. After
cooking,
stir well and stand for 1 minute before
serving.
Place
pasta
and
boiling
water with 1/4 to 1
teaspoon
salt in a
deep
and
large
bowl.
Cook uncovered. The oven will
beep,
stir the
pasta
well and
press
start to continue. After
cooking,
stir and stand for 1 minute if
required.
Rinse
pasta
with cold water.
Pour beans into the microwave- safe dish. Cover.
Place dish on the
glass
tray.
After
reheating,
stir and then stand for 1- 2 minutes with cover.
Place contents of can
including
brine in a microwave- save bowl.
Heat uncovered. After
heating,
stir well. Drain and serve.
Place stew in a microwave- save bowl. Cover with
wrap loosely.
After
heating,
stir well and stand for 2 minutes.
Place desired number of
eggs
and milk into a
large
bowl. Whisk
slightly.
Cover with
wrap.
After
cooking,
remove from the oven.
Stir well and stand for 1- 2 minutes with cover until firm.
Add amount of milk
according
to the
quantity.
**
1
egg
: 1
Tablespoon
of milk
2
eggs
: 2
Tablespoons
of milk
3
eggs
: 3
Tablespoons
of milk
4
eggs
: 4
Tablespoons
of milk
1- 4 serves
0.1kg-0.3kg
0.2kg-0.8kg
0.2kg-0.6kg
0.2kg-0.6kg
1- 4
eggs
Oats 1
package
Approx.
40g
Cold Milk
1 serve
1/3
cup
(1
package)
3/4
cup
(180ml)
2 serves
2/3
cups
(2
packages)
1 1/2
cups
(360ml)
3 serves
1
cup
(3
packages)
2 1/2
cups
(540ml)
4 serves
1 1/3
cups
(4
packages)
3
cups
(720ml)
Weight 100g 200g 300g
Cover
Boiling
water 400ml 700ml 1000ml No
17

7.
SAUSAGE
8.
GRILLED FISH
Refrigera
ted
Refigera
ted
High
ra ck
High
rack
Remove
package.
Place on the
high
ra ck.
The oven will
beep,
turn food over a nd
press
sta rt to contiune.
After
cooking,
remove from the oven. A nd serve.
Clean and
dry.
Place on the
high
rack.
0.2-0.6kg
0.1-0.5kg
The oven will
beep,
turn food over a nd
press
sta rt to continue.
A fter
cooking,
remove from the oven. And serve.
FOOD CATEGORY WEIGHT LIMIT UTENSILS FOOD TEMP. INSTRUCTIONS
18

Auto
Cook
Press
STOP/CLEAR.
Press AUTO COOK once.
"Ac-1"
appears
on the
display.
Select desired
weight
of
potato.
Press MORE
key
five times to enter
0.5kg.
If the MORE/LESS
keys
are
pressed
and
held,
the
weight
will
increase/decrease
rapidly.
AUTO COOK allows
you
to cook most of
your
favorite food
easily by
selecting
the
food
type
and
entering
the
weight
of the
food
by
pressing
the MORE/LESS
key.
In the
following
example
I will show
you
how to cook 0.5
kg
of
jacket
potato.
Press START.
CATEGORY
JACKET
POTATO
FRESH VEGETABLE
FROZEN VEGETABLE
RICE
POPCORN
CHILLED
PIZZA
SAUCE
CURRY
Press
Auto Cook
time
times
times
times
times
times
times
times
19
