MIC OWAVE OVEN
SERVICE MANUAL
MODEL: MS-269T/TS
CAUTION
BEFO E SE VICING THE UNIT, EAD THE SAFETY P ECAUTIONS IN THIS MANUAL.
Website: http://www. gservice.com

This device is to be serviced only by properly qualified service personnel.
Consult the service manual for proper service procedures to assure continued safety operation and for precautions to be
taken to avoid possible exposure to excessive microwave energy.
PRECAUTIONS TO BE OBSERVED BEFORE AND
DURING SERVICING TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE ENERGY
A) Do not operate or allow the oven to be operated with the door open.
B) Make the following safety checks on all ovens to be serviced before activating the magnetron or other
microwave source, and make repairs as necessary; (1) interlock operation, (2) proper door closing, (3)
seal and sealing surfaces (arcing, wear, and other damage), (4) damage to or loosening of hinges and
latches, (5) evidence of dropping or abuse.
C) Before turning on microwave power for any service test or inspection within the microwave generating
compartments, check the magnetron, wave guide or transmission line, and cavity for proper alignment,
integrity, and connections.
D) Any defective or misadjusted components in the interlock, monitor, door seal, and microwave generation
and transmission systems shall be repaired, replaced, or adjusted by procedures described in this manual
before the oven is released to the owner.
E) A microwave leakage check to verify compliance with the Federal Performance Standard should be
performed on each oven prior to release to the owner.
SAFETY PRECAUTIONS
CAUTION
MICROWAVE RADIATION
DO NOT BECOME EXPOSED TO ADIATION F OM THE MIC OWAVE GENE ATO
O OTHE PA TS CONDUCTING MIC OWAVE ENE GY.

(Page)
SAFETY PRECAUTIONS --------------------------------------------------------------------- Inside front cover
SPECIFICATIONS
----------------------------------------------------------------------------------------------------- 1-1
CAUTIONS
-------------------------------------------------------------------------------------------------------------- 2-1
INSTALLATIONS
------------------------------------------------------------------------------------------------------ 3-1
OPERATING INSTRUCTIONS
------------------------------------------------------------------------------------ 4-1
FEATU ES ------------------------------------------------------------------------------------------------------------------------ 4-1
CONT OL PANEL --------------------------------------------------------------------------------------------------------------
4-1
OPE ATING SEQUENCE
---------------------------------------------------------------------------------------------------- 4-2
SCHEMATIC DIAG AM ------------------------------------------------------------------------------------------------------ 4-3
CI CUIT DESC IPTION ----------------------------------------------------------------------------------------------------- 4-4
SERVICE INFORMATION ------------------------------------------------------------------------------------------ 5-1
TOOLS AND MEASU ING INST UMENTS ---------------------------------------------------------------------------
5-1
MIC OWAVE LEAKAGE TEST
-------------------------------------------------------------------------------------------- 5-1
MEASU EMENT OF MIC OWAVE POWE OUTPUT ----------------------------------------------------------- 5-3

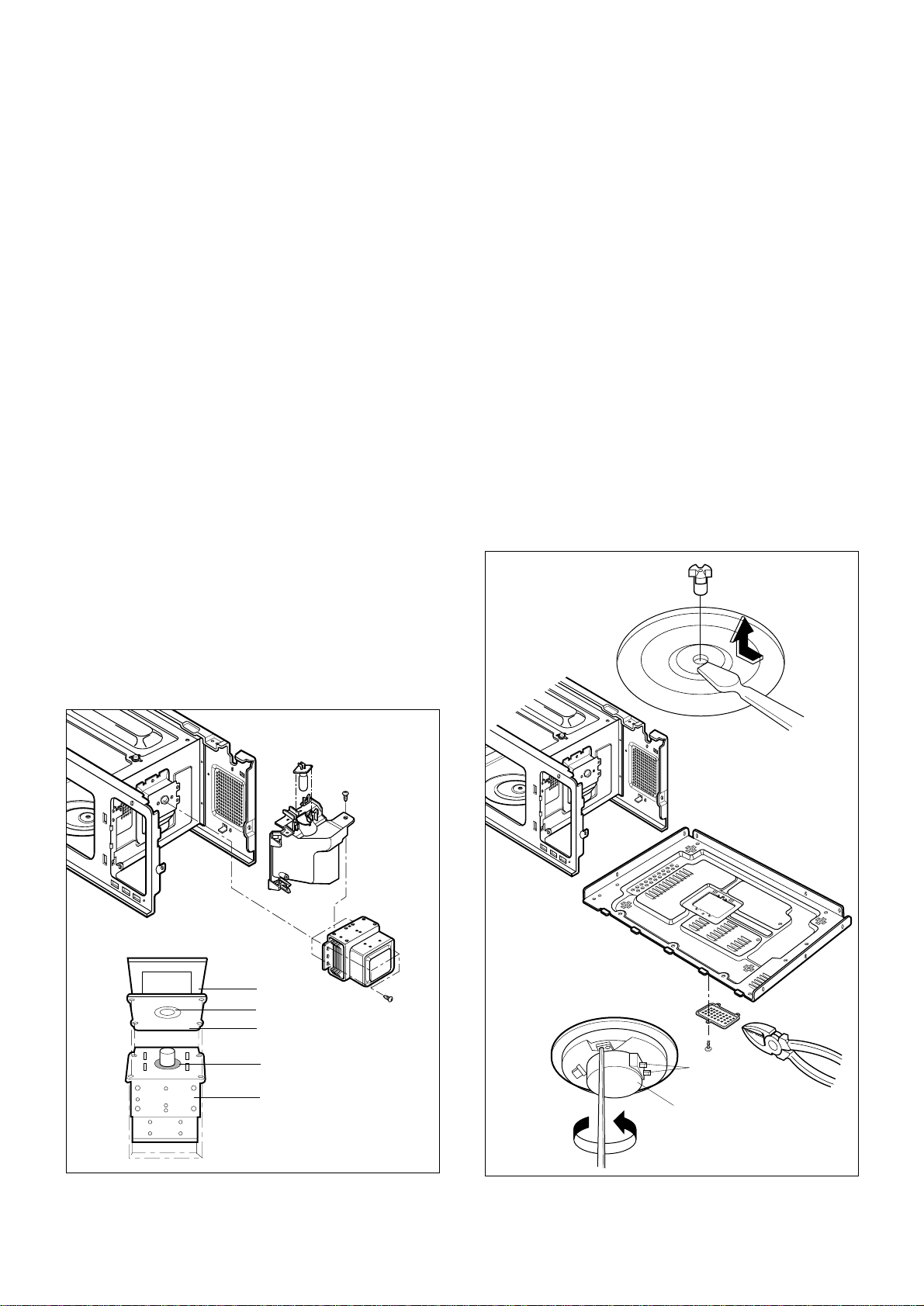

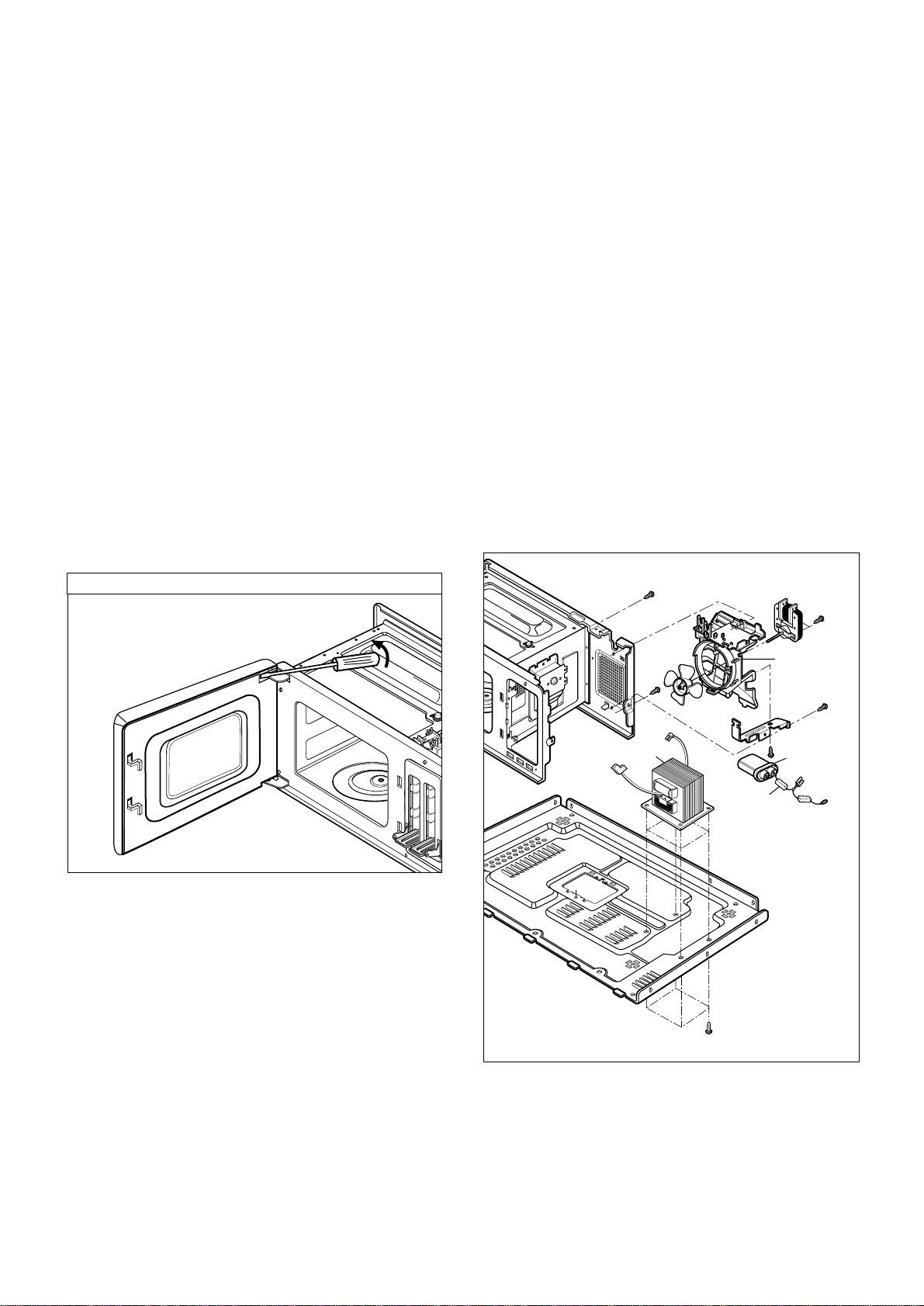

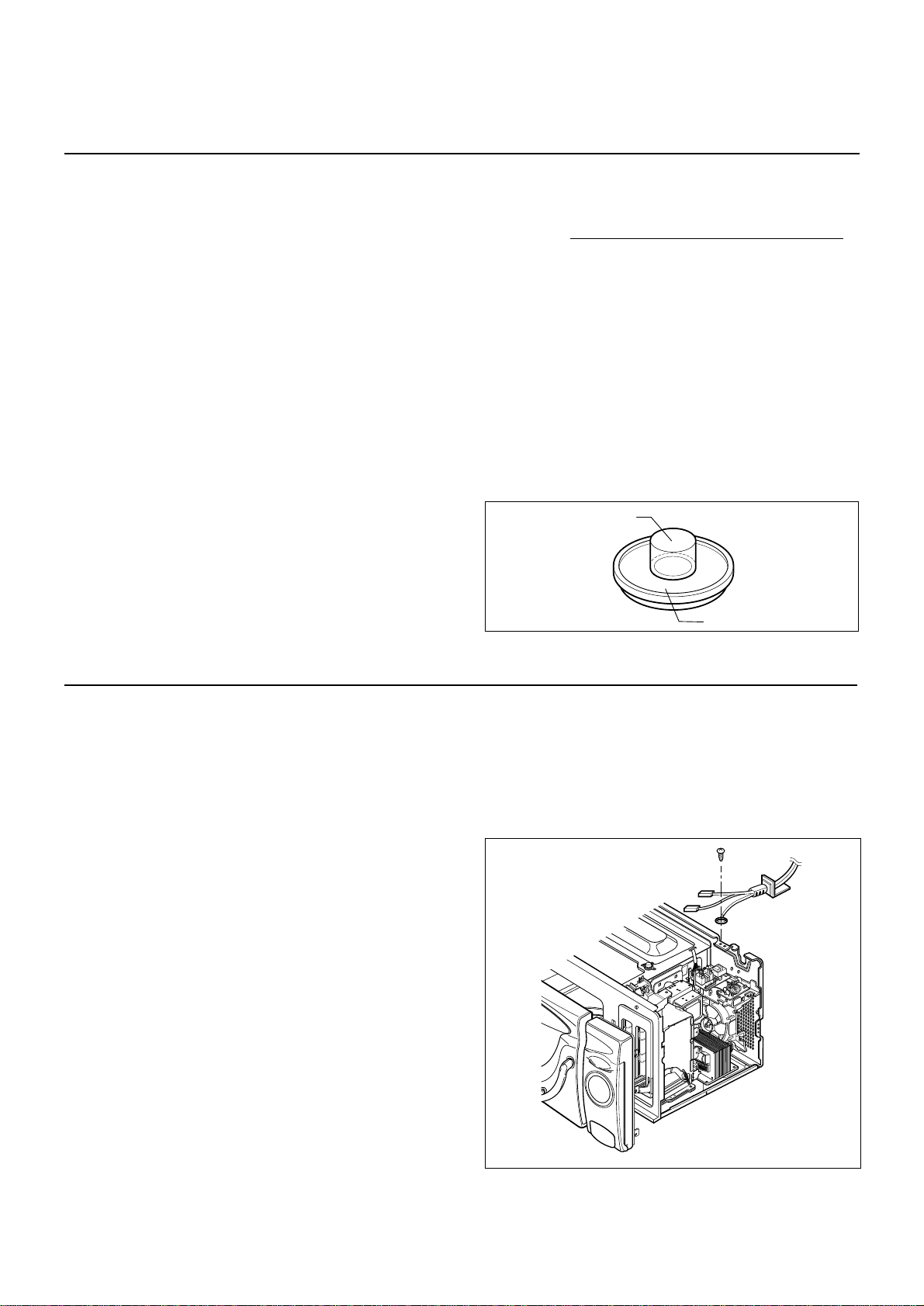

DISASSEMBLY AND ADJUSTMENT -------------------------------------------------------------------------------------
5-3
INTE LOCK CONTINUITY TEST
------------------------------------------------------------------------------------------ 5-7

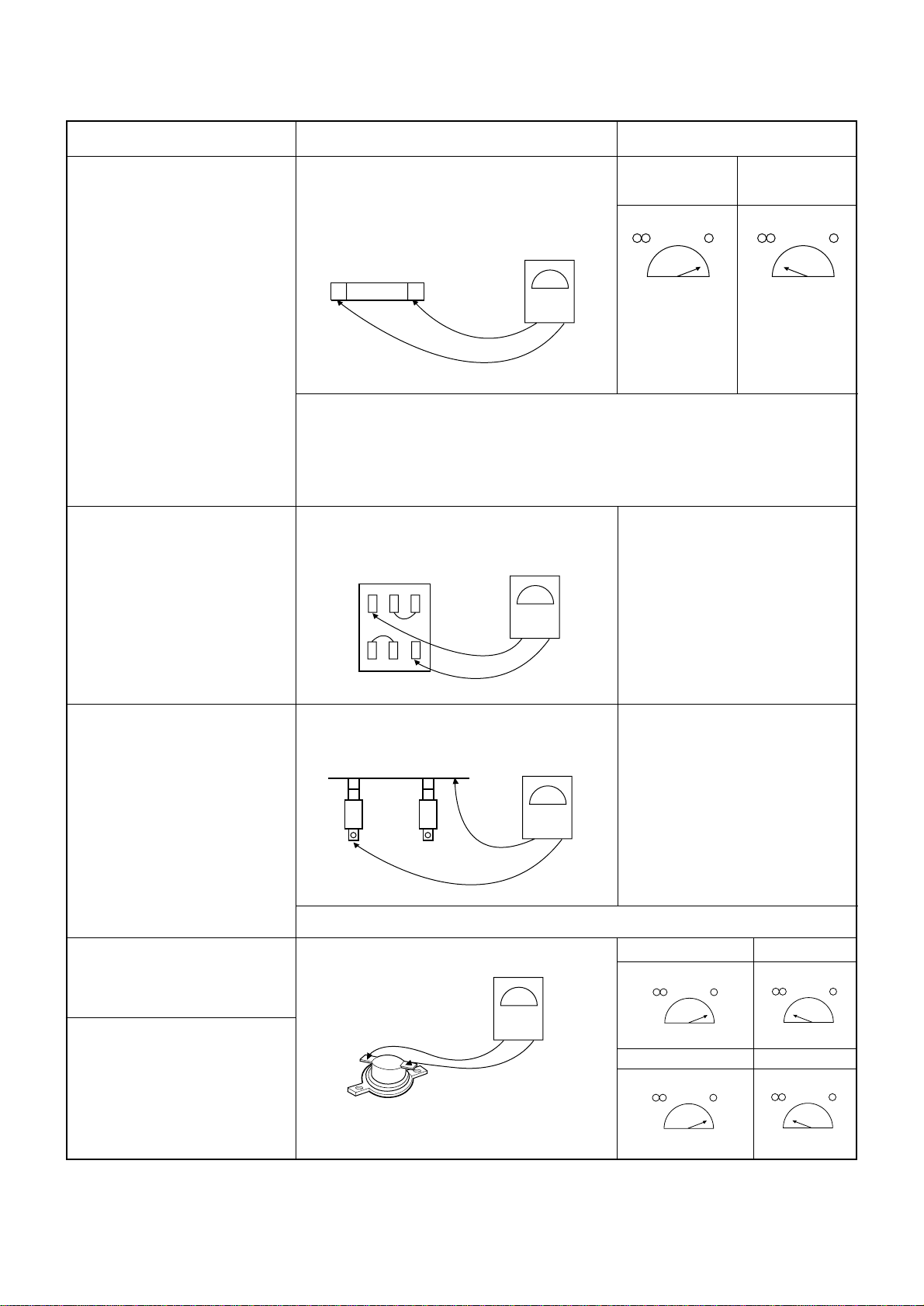

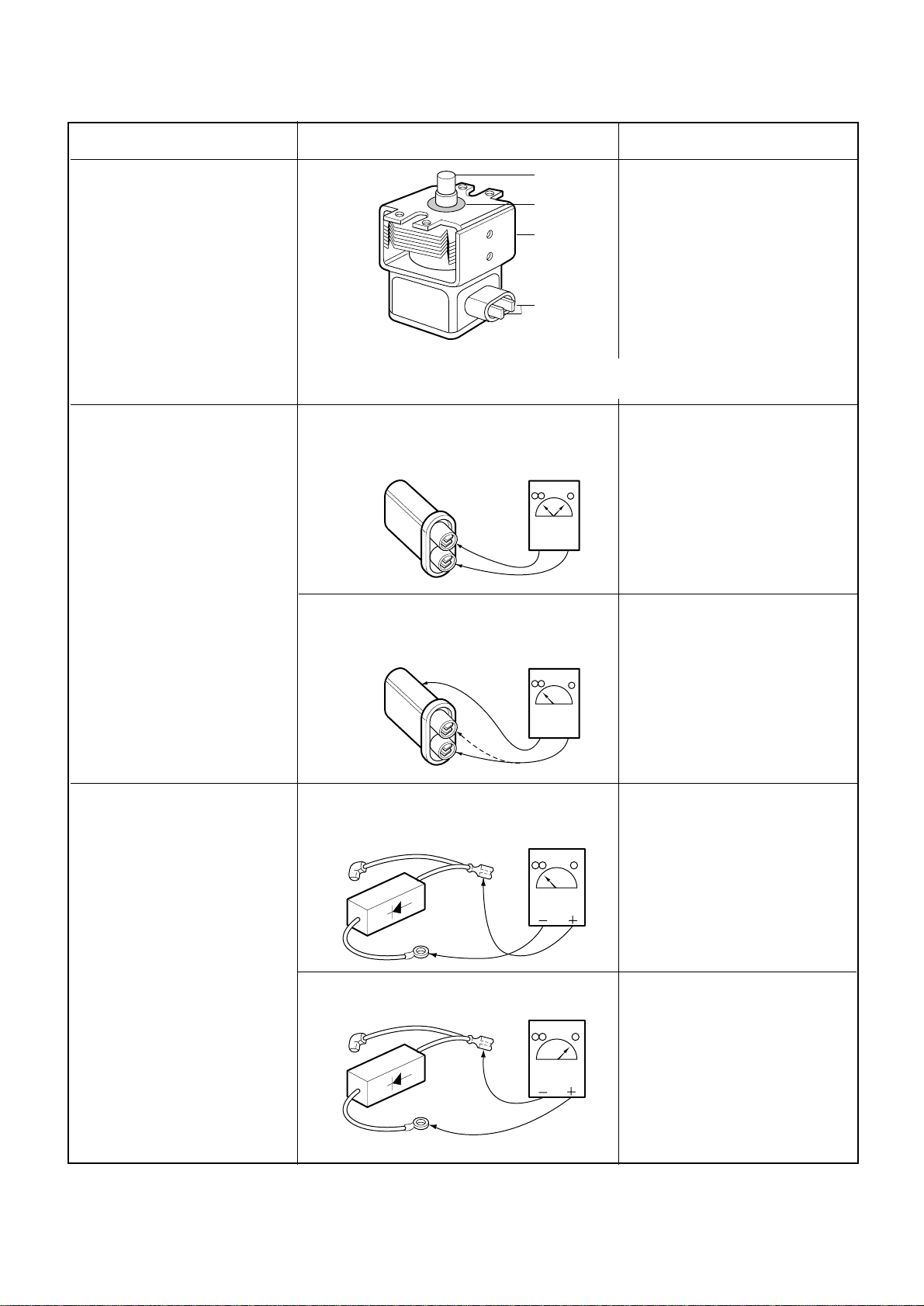

COMPONENT TEST P OCEDU E -------------------------------------------------------------------------------------- 5-8
T OUBLE SHOOTING ------------------------------------------------------------------------------------------------------ 5-12
EXPLODED VIEW ------------------------------------------------------------------------------------------------ 6-1
REPLACEMENT PARTS LIST
------------------------------------------------------------------------------------ 7-1
SCHEMATIC DIAGRAM OF P.C.B.
------------------------------------------------------------------------------ 8-1
P INTED CI CUIT BOA D ------------------------------------------------------------------------------------------------- 8-2
P.C.B. PARTS LIST --------------------------------------------------------------------------------------------------- 9-1
CONTENTS

This microwave oven is designed for household use only.
It is not recommended for commercial purposes.
DESCRIPTION
MS-269T/TS
230 Volts AC 50 Hz
Single phase, 3 wire grounded
Microwave 1,300W
Toast 550W
Combination 1,800W
900 Watts full microwave power (IEC60705)
2,450 MHz
2M214 - 39F
0 ~ 90 min.
512 (W) x 302 (H) x 395 (D) mm
320 (W) x 233 (H) x 347 (D) mm
16.5 kg (approx.)
18 kg (approx.)
Microwave Power for Variable Cooking
Power level
MAX .................................................. Full power throughout the cooking time
MED.-HIGH......................................... approx. 80% of Full power
MEDIUM ............................................. approx. 60% of Full power
DEF OST........................................... approx. 40% of Full power
LOW/WA M........................................ approx. 20% of Full power
TOAST, COMBI
Owner's manual
Glass turntable
otating ring
1-1
ITEM
MODEL
Power equirement
Power Output
Microwave Frequency
Magnetron
Timer
Outside Dimensions
Cavity Dimensions
Net Weight
Shipping weight
Control Complement
Nameplate Location
Accessories
SPECIFICATIONS
Back side

• DO NOT operate on a 2-wire extension cord during
repair and use.
• NEVE TOUCH any oven components or wiring during
operation.
• BEFO E TOUCHING any parts of the oven, always
remove the power plug from the outlet.
• For about 30 seconds after the oven stops, an electric
charge remains in the high voltage capacitor. When
replacing or checking, you must discharge the high
voltage capacitor by shorting across the two terminals
with an insulated screwdriver.
• emove your watches whenever working close to or
replacing the Magnetron.
• NEVE operate the oven with no load.
• NEVE injure the door seal and front plate of the oven
cavity.
• NEVE put iron tools on the magnetron.
• NEVE put anything into the latch hole and the
interlock switches area.
• Proper operation of the microwave oven requires that
the magnetron be assembled to the waveguide and
cavity. Never operate the magnetron unless it is
properly installed.
• Be sure that the magnetron gasket is proper y
insta ed around the dome of the tube whenever
insta ing the magnetron.
2-1
CAUTIONS
Unlike other appliances, the microwave oven is
high-voltage and high-current equipment.
Though it is free from danger in ordinary use,
extreme care should be taken during repair.
THE OVEN IS TO BE SERVICED ONLY
BY PROPERLY QUALIFIED SERVICE
PERSONNEL.
MICROWAVE RADIATION
Personnel should not be exposed to the
microwave energy which may radiate from the
magnetron or other microwave generating
device if it is improperly used or connection.
All input and output microwave connections,
waveguide, flange and gasket must be secure
never operate the device without a microwave
energy absorbing load attached.
Never look into an open waveguide or antenna
while the device is energized.
Gasket
ANTENNA
COOLING FIN
MAGNET ON
CHASSIS G OUND
FILAMENT
TE MINALS
MAGNET ON

INSTALLATIONS
3-1
INSTALLING
1. Empty the microwave oven and clean inside it with
a soft, damp cloth. Check for damage such as
misaligned door, damage around the door or dents
inside the cavity or on the exterior.
2. Put the oven on a counter, table, or shelf that is
strong enough to hold the oven and the food and
utensils you put in it. (The control panel side of the
oven is the heavy side. Use care when handling.)
3. Do not block the vent and the air intake openings.
Blocking vent or air intake openings can cause
damage to the oven and poor cooking results.
Make sure the microwave oven legs are in place to
ensure proper air flow.
4. The oven should not be installed in any area where
heat and steam are generated, because they may
damage the electronic or mechanical parts of the
unit.
Do not install the oven next to a conventional
surface unit or above a conventional wall oven.
5. Use microwave oven in an ambient temperature
less than 104°F(40°C).
6. Place the microwave oven on a sturdy and flat
surface at least 10 cm(4 inches) from the wall.
7. Place the microwave oven as far away as possible
from TV, ADIO, COMPUTE , etc., to prevent
interference.
8. Do not touch the front glass during or after cooking
of the Grill and Combination mode.
This glass is very hot during heater operating.
9. Do not operate the oven at microwave and
combination mode with Grill rack placed in the
cavity when the oven is empty.
EARTHING INSTRUCTIONS
This microwave oven is designed to be used in a fully
earthed condition.
It is imperative, therefore, to make sure it is properly
earthed before servicing
WA NING-
THIS APPLIANCE
MUST BE EA THED
IMPO TANT
As the colors of the wires in the mains lead of this
appliance may not correspond with the colored
markings identifying the terminals in your plug,
proceed as follows.
The wire which is colored green-and-ye ow must be
connected to the terminal in the plug which is marked
with the letter Eor by the earth symbo ( ) or
colored green or green-and-ye ow.
The wire which is colored b ue must be connected to
the terminal in the plug which is marked with the letter
Nor colored b ack.
The wire which is colored brown must be connected
to the terminal in the plug which is marked with the
letter Lor colored red.
BEFORE YOU BEGIN, READ THE FOLLOWING INSTRUCTIONS COMPLETELY AND CAREFULLY.
10cm
The wires in this mains lead are colored in
accordance with the following code:
Green-and-ye ow: Earth
B ue: Neutra
Brown: Live

4-1
OPERATING INSTRUCTIONS

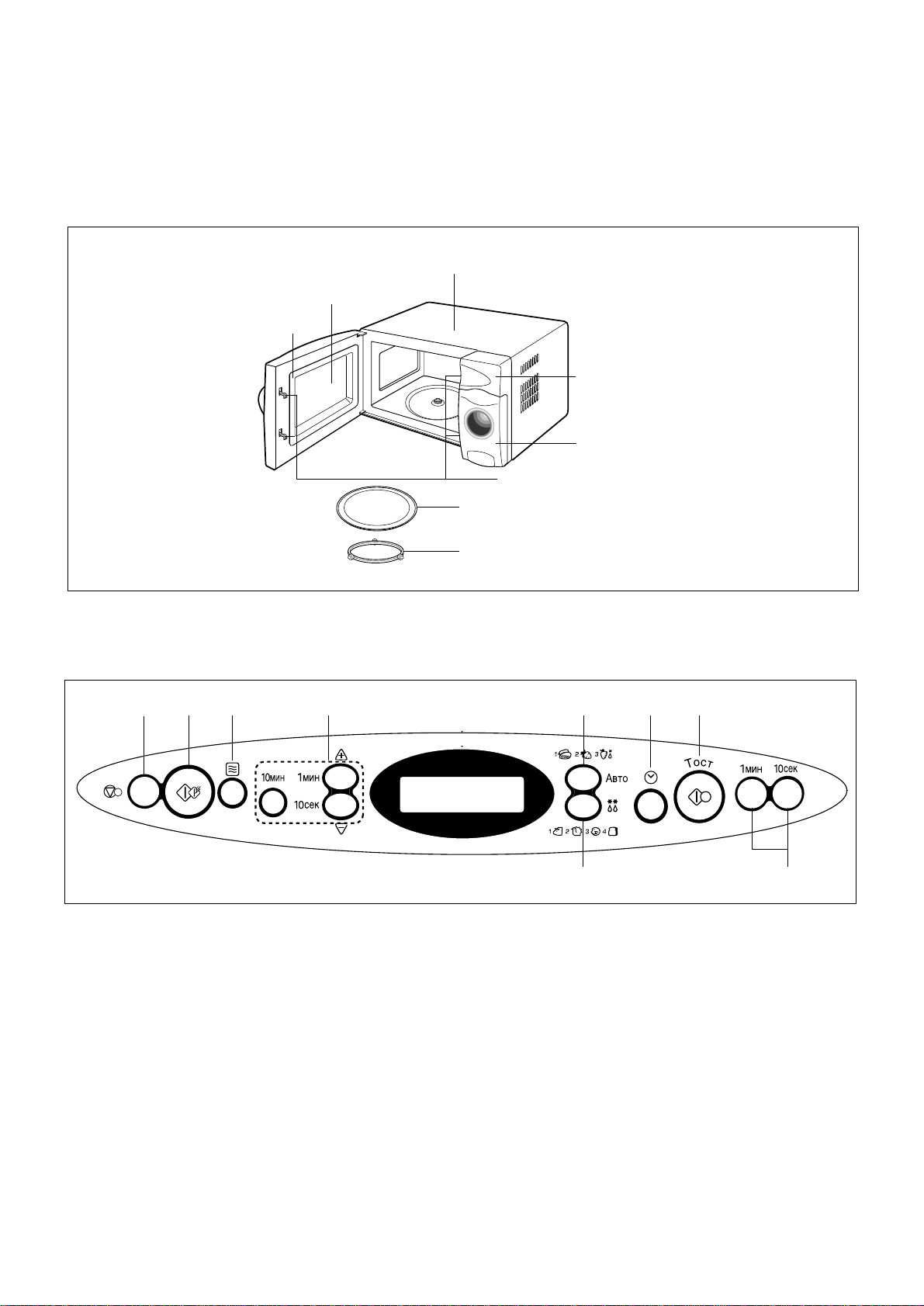

FEATURES
CONTROL PANEL
otating ing
Control Panel
Safety Door Lock System
Turntable
Oven Front Plate
Window Door Screen
Door Seal
Toast
3
671 4
59
28
1. COOK TIME: Used to cook food for a desired time.
2. CLOCK: Used to set the time of day.
3. POWER: Used to select the desired power level for cooking.
4. AUTO COOK: Used to cook the foods listed by one touch.
5. AUTO DEFROST: Used to select the auto weight defrost.
6. STOP/CLEAR: Used to stop over and clear all entries except time of day.
7. START: One tap allows over to begin functioning.
8. TOAST START/STOP: Start or stop for toast.
9. TOAST COOK TIME: Used to set the toast.

4-2
OPERATING SEQUENCE
The following is a description of component functions
during oven operation.
1. SETTING THE CLOCK
NOTE: You can set 12 hour clock or 24 hour clock
optionally.
2. CANCEL FUNCTION
Touch the pad whenever you need to
cancel an entry or a function currently in use.
The display will either return to the last item entered
or to the clock.
3. QUICK START
4. MICROWAVE COOKING
5. TOAST
6. TWO STAGE COOKING
7. AUTO WEIGHT DEFROST
8. AUTO COOK
9. CHILD LOCK
This oven has a CHILD LOCK feature
• TO SET CHILD LOCK
• Touch the pad
• Touch STOP pad L appear in
the display.
• TO CANCEL CHILD LOCK
• Touch the pad
• touch STOP pad L disappears.
Stop Clock Set the hour
Set the
minute Start
Stop Start
STOP
Start
Stop Desired defrost
category Desired
cooking time Start
Stop Desired auto cook
category
Desired
cooking
weight Start
Stop Power Time
Stop Time Start
Stop Power Time
Power Time Start
Start
Stop
Stop

SCHEMATIC DIAGRAM
4-3

CIRCUIT DESCRIPTION
GENERAL DETAILS
• The low voltage transformer supplies the necessary
voltage to the micom controller when power cord is
plugged in.
• When the door is closed, the primary switch is ON, the
secondary switch is ON, and the monitor switch opens
(contact COM and NO).
WHEN SELECTING COOKING OWER
LEVEL AND TIME
• The micom controller memorizes the function you set.
• The time you set appears in the display window.
• Each indicator light turns on to indicate that the stage
has been set.
WHEN TOUCHING THE START AD
• The coil of the relay is energized by the micom
controller.
• Power input is supplied to the high voltage transformer
through the fuse to the primary switch and relay 3.
• Turntable rotates.
• The fan motor rotates and cools the magnetron by
blowing the air (coming from the intake on the
baseplate).
• The air is also directed into the oven to exhaust the
vapor in the oven through the upper plate.
• Cooking time starts counting down.
• 3.2 volts AC is generated from the filament winding of
the high voltage transformer. This 3.2 volts is applied to
the magnetron to heat the magnetron filament through
two noise-preventing choke coils.
• A high voltage of approximately 2100 volts AC is
generated in the secondary of the high voltage
transformer which is increased by the action of the high
voltage diode and charging of the high voltage
capacitor.
• The negative 4,000 Volts DC is applied to the filament
of the magnetron.
WHEN THE OVEN IS SET AT ANY LEVEL
EXCE T MAXIMUM.
• The micom controller controls the ON-OFF time of
relay 3 by the applied signal to vary the average output
power of microwave oven as POWE LEVEL.
(refer to page 1-1)
• One complete cycle of relay 3 is 22 seconds.
WHEN THE DOOR IS O ENED DURING
COOKING
• Both the primary switch and relay 3 are cut off primary
winding voltage of the high voltage transformer.
• ON-OFF of relay 3 is coupled electrically with opening
and closing of the secondary switch.
• When the door is opened, the secondary switch is
opened and when the door is closed, the secondary
switch is closed.
• The cooking time stops counting down.
• elay stops functioning.
• As the door is opened, if the contact of primary switch
fails to open, the fuse opens due to the large current
surge caused by the monitor switch activation, which in
turn stops magnetron oscillation.
WHEN TOUCHING THE START KEY
WITH THE GRILL COOKING FUNCTION
SELECTED
• The contacts of the primary switch and the secondary
switch close the circuit.
• A.C. voltage is applied to the toast heater through toast
thermostat as shown by the solid line.
• Turntable rotates.
• The fan motor rotates.
• The air is also directed into the oven to exhaust the
vapor in the oven through the base plate and upper
plate.
4-4
L
FUSE
H.V.
T ANS-
FO ME
ELAY 3
MICOM CONT OLLE
SECONDA Y
SWITCH
P IMA Y
SWITCH
N
MONITO
SWITCH
L
FUSE
H.V.
T ANS-
FO ME
ELAY 3
MICOM CONT OLLE
SECONDA Y
SWITCH
P IMA Y
SWITCH
N
MONITO
SWITCH
ELAY 4
L
NTOAST
HEATE
L
G -Y
N
E
TOAST
THE MOSTAT

CAUTIONS
• Be sure to check microwave eakage prior to
servicing the oven if the oven is operative prior to
servicing.
• The service personne shou d inform the
manufacture importer, or assemb er of any
certified oven unit found to have a microwave
emission eve in excess of 5 mW/cm2and should
repair any unit found to have excessive emission levels
at no cost to the owner and should ascertain the cause
of the excessive leakage. The service personnel
should instruct the owner not to use the unit until the
oven has been brought into compliance.
• If the oven operates with the door open, the service
personne shou d:
- Te the user not to operate the oven.
- Contact the manufacturer.
• The service personnel should check all surface and
vent openings for microwave leakage.
• Check for microwave leakage after every servicing.
The power density of the microwave radiation leakage
emitted by the microwave oven should not exceed
4 mW/cm2. Always start measuring of an unknown field
to assure safety for operating personnel from radiation
leakage.
MEASURING MICROWAVE ENERGY
LEAKAGE
• Pour 275±15cc of 20±5°C(68±9°F) water in a beaker
which is graduated to 600 cc, and p ace the beaker
on the center of the turntab e.
• Set the energy eakage monitor to 2,450 MHz and
use it fo owing the manufacturer's recommended
test procedure to assure correct resu t.
• When measuring the eakage, a ways use the 2-
inch (5cm) spacer supp ied with the probe.
• Operate the oven at its maximum output.
• Measure the microwave radiation using and
e ectromagnetic radiation monitor by ho ding the
probe perpendicu ar to the surface being measured
Move probe a ong shaded area
Probe scanning speed
Less than 2.5 cm/sec
( 1in/sec)
5-1
SERVICE INFORMATION
TOOLS AND MEASURING INSTRUMENTS
MICROWAVE LEAKAGE TEST
NECESSARY TOOLS
Tools normally used for TV servicing are sufficient.
Standard tools are listed below.
• Diagonal pliers
• Long nose pliers
• Phillips screwdriver
• Flat blade screwdriver
• Wrench (size 5mm)
• Nutdriver (size 5mm)
• Adjustable wrench
• Soldering iron
• Solder
• Vinyl insulation tape
• Polishing cloth
NECESSARY MEASURING INSTRUMENTS
• TESTE (VOLTS-DC, AC., Ohmmeter)
• Microwave survey meter
- Holaday HI-1500
HI-1501
- Narda 8100
8200
• Inch scale
• 600 cc non conductive material beaker (glass or plastic),
inside diameter: approx. 8.5 cm(31/2 in.)
• Cylindrical and made of borosilicate glass vessel.
max. thickness: 3 mm
outside diameter: approx. 190mm
height: approx. 90mm
• Glass thermometer: 100°C or 212°F (1 deg scale)

MEASUREMENT WITH OUTER CASE
REMOVED
• When you replace the magnetron, measure for
microwave energy leakage before the outer case is
installed and after all necessary components are
replaced or adjusted.
Special care should be taken in measuring the
following parts. (Circled area of below Fig.)
- Around the magnetron
- The waveguide
MEASUREMENT WITH A FULLY
ASSEMBLED OVEN
• After all components, including the outer case, are fully
assembled, measure for microwave energy leakage
around the door viewing window, the exhaust opening,
and air inlet openings.
• Microwave energy leakage must not exceed the values
prescribed below.
NOTE: Leakage with the outer case removedless than
5 mW/cm.sq. Leakage for a fully assembled
oven (Before the latch switch (primary) is
interrupted) with the door in a slightly opened
position-less than 2 mW/cm.sq.
NOTES WHEN MEASURING
• Do not exceed meter full scale deflection.
• The test probe must be removed no faster than
1 inch/sec (2.5 cm/sec) along the shaded area,
otherwise a false reading may result.
• The test probe must be held with the grip portion of the
handle.
A false reading may result if the operator's hand is
between the handle and the probe.
• When testing near a corner of the door, keep the probe
perpendicular to the surface making sure the probe
horizontally along the oven surface, this may possibly
cause probe damage.
RECORD KEE ING AND NOTIFICATION
AFTER MEASUREMENT
• After adjustment and repair of any microwave energy
interruption or microwave energy blocking device,
record the measured values for future reference. Also
enter the information on the service invoice.
• The microwave energy leakage should not be more
than 4 mW/cm.sq. after determining that all parts are in
good condition, functioning properly and genuine
replacement parts which are listed in this manual have
been used.
• At least once a year, have the electromagnetic energy
leakage monitor checked for calibration by its
manufacturer.
WARNING : AVOID CONTACTING ANY
HIGH VOLTAGE PARTS
5-2

• Microwave power output measurement is made with
the microwave oven supplied at its rated voltage and
operated at its maximum microwave power setting with
a load of (1000±5) g of potable water.
• The water is contained in a cylindrical borosilicate glass
vessel having a maximum material thickness of 3 mm
and an outside diameter of approximately 190mm.
• The oven and the empty vessel are at ambient
temperature prior to the start of the test.
• The initial temperature (T1) of the water is (10±2)°C It
is measured immediately before the water is added to
the vessel. After addition of the water to the vessel,
the load is immediately placed on the center of the
turntable which is in the lowest position and the
microwave power switched on.
• The time T for the temperature of the water to rise by a
value ∆T of (10±2)°K is measured, where T is the time
in seconds and ∆T is the temperature rise. The initial
and final water temperatures are selected so that the
maximum difference between the final water
temperature and the ambient temperature is 5°K.
• The microwave power output P in watts is calculated
from the following formula :
4187 x (∆T) + 0.55 X (T
2 - T 0 ) X M
T
is measured while the microwave generator is
operating at full power. Magnetron filament heat-up
time is not included. (about 3 sec)
• The water is stirred to equalize temperature throughout
the vessel, prior to measuring the final water
temperature.
• Stirring devices and measuring instruments are
selected in order to minimize addition or removal of
heat.
WATE LOAD
TU NTABLE
MEASUREMENT OF MICROWAVE POWER OUTPUT
P =
• T2: Temperature after heating
• T0: Temperature after bown
• M: Weight of bowl
DISASSEMBLY AND ADJUSTMENT
A. OUTER CASE REMOVAL
1) Disconnect the power supply cord from the outlet.
2) emove the screws from the rear and along side
edges of the case.
The outer case must be moved backward to be lifted
off.
B. OWER SU LY CORD
1) emove the outer case.
2) Disconnect two terminals, and remove one screw of
the earth terminal.
CAUTION: DISCHARGE THE HIGH VOLTAGE
CAPACITOR BEFORE SERVICING
(refer to page 2-1)

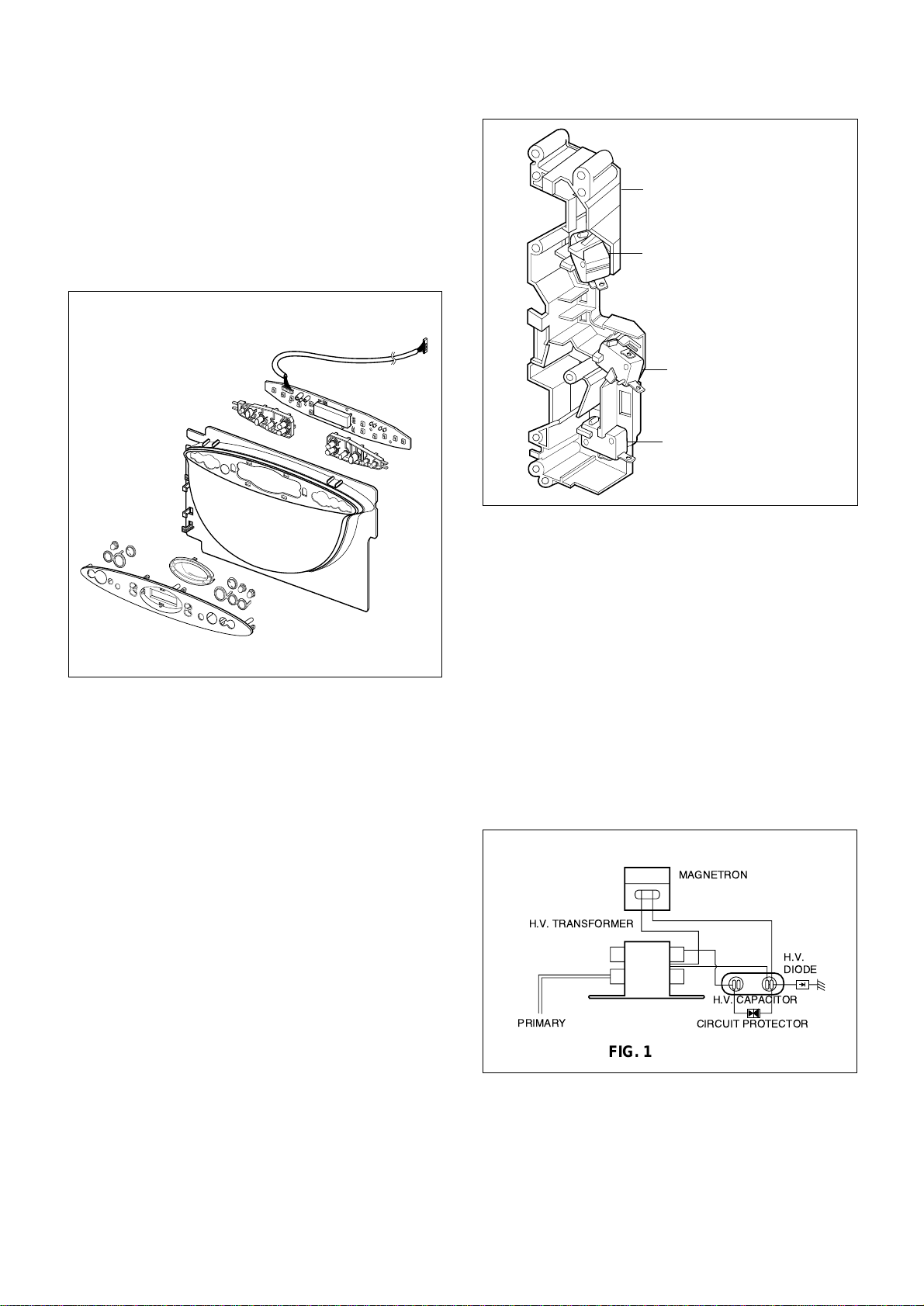

C. CONTROL ANEL ASSEMBLY
1) Disconnect the leadwire from the PCB SUB ASS’Y.
2) emove the screws for the earth and securing the
control panel.
3) Lift control panel ASS’Y from the oven by the tab
unhooked.
5-3

D. DOOR GROSS ASSEMBLY REMOVAL
1) Open the door.
2) emove the choke cover very carefully with a flat-
blade screwdriver.
CAUTION : Be carefu not to damage door sea p ate
by screwdriver.
3) Lift up and push the door.
NOTE:
1. After replacing the door, be sure to check that the
primary switch, monitor switch, and secondary switch
operate normally.
2. After replacing the door, check for microwave energy
leakage with a survey meter. Microwave energy must
be below the limit of 5 mW/cm. (with a 275 ml water
load)
3. When mounting the door assembly to the oven
assembly, be sure to adjust the door assembly parallel
to the chassis. Also adjust so the door has no play
between the inner door surface and oven frame
assembly. If the door assembly is not mounted
properly, microwaves may leak from the clearance
between the door and the oven.
E. HIGH VOLTAGE TRANSFORMER
REMOVAL
1) Discharge the high voltage capacitor.
2) Disconnect the leadwire from magnetron, high voltage
transformer, and capacitor.
3) emove the screw holding the high voltage
transformer to the baseplate.
F. FAN MOTOR ASSEMBLY REMOVAL
1) Discharge the high voltage capacitor.
2) Disconnect the leadwire from fan motor, noise filter
and high voltage capacitor.
3) emove the two screws holding the the suction guide
ASS’Y to the oven cavity and remove the high voltage
diode earth screw.
4) emove the screw of the capacitor bracket.
5) emove the two screws holding the fan motor ASS’Y
to the suction guide ASS’Y.
G. HIGH VOLTAGE CA ACITOR AND
DIODE REMOVAL
1) Discharge the high voltage capacitor.
2) Disconnect the leadwire from fan motor, noise filter
and high voltage capacitor.
3) emove the screw holding the suction guide ASS’Y to
the oven cavity and remove the high voltage diode
earth screw.
4) emove the screw holding the high voltage capacitor
bracket.
emove choke cover
H.V.
Diode
H.V.
Capacitor
Suction
Guide
Fan Motor ASS'Y
H.V.
Transformer
5-4

5-5
H. AIR DUCT ASSEMBLY REMOVAL
1) Disconnect the leadwire from lamp and MGT
thermostat.
2) emove the mounting screw to the magnetron.
I. MAGNETRON REMOVAL
1) Disconnect the leadwire from the high voltage
transformer and high voltage capacitor.
2) Carefully remove the mounting screws holding the
magnetron and the waveguide.
3) emove the magnetron ASS’Y until the tube is
clear from the waveguide.
NOTE:
1. When removing the magnetron, make sure its
dome does not hit any adjacent parts, or it may be
damaged.
2. When replacing the magnetron, be sure to install
the magnetron gasket in the correct position and
be sure that the gasket is in good condition.
3. After replacing the magnetron, check for microwave
leakage with a survey meter around the
magnetron. Microwave energy must be below the
limit of 5 mW/cm2. (With a 275 ml. water load).
Make sure that gasket is rigid y attached to the
magnetron. To prevent microwave leakage,
tighten the mounting screws properly, making sure
there is no gap between the waveguide and the
magnetron.
J. REMOVING THE TURNTABLE MOTOR
1) emove the turntable.
2) emove the turntable shaft VE Y CA EFULLY
with a slotted screwdriver.
3) Lay the unit down on its back.
4) emove the turntable motor cover.
The turntable base cover is easily removed by
pinching the six parts with a wire cutting.
5) Disconnect the leadwire from the turntable motor
terminals.
6) emove the screw securing the turntable motor to
the oven cavity ASS’Y
7) After repairing the motor, rotate the removed
turntable motor cover.
8) Fit the turntable motor cover’s projecting part to the
base plate slit.
NOTE:
1. emove the wire lead from the turntable motor
VE Y CA EFULLY.
2. Be sure to grasp the connector, not the wires, when
removing.
Waveguide
Magnetron
Air Duct
Lamp
Magnetron
Gasket
Magnetron
Dome
Waveguide
Bracket
Wire Leads
Turntable Motor

K. CB ASSEMBLY REMOVAL
1) emove the control panel assembly from the
cavity. ( efer to control panel assembly removal
on previous page.)
2) emove screws which hold the PCB SUB ASS’Y to
the control panel.
3) Disconnect the flat cable from the PCB SUB
ASS’Y and take off the PCB SUB ASS’Y.
L. INTERLOCK SYSTEM
1) INTE LOCK MECHANISM
The door lock mechanism is a device which has
been specially designed to eliminate completely
microwave activity when the door is opened during
cooking and thus to prevent the danger resulting
from the microwave leakage.
2) MOUNTING OF THE P IMA Y/MONITO /
SECONDA Y SWITCHES TO THE LATCH
BOA D
3) INSTALLATION AND ADJUSTMENT OF THE
LATCH BOA D TO THE OVEN ASSEMBLY
• Mount the latch board to the oven assembly.
• Adjust the latch board in the arrow direction so that
oven door will not have any play in it when the door
is closed.
• Tighten the mounting screw.
• Check for p ay in the door by pushing the door
re ease button. Door movement shou d be ess
than 0.5 mm. (1/64 inch)
Don't push the door release button while making
adjustment. Make sure that the latch moves
smoothly after adjustment are completed and that
the screws are tight. Make sure the primary, monitor,
and secondary switches operate properly by
following the continuity test procedure.
5-6
Latch Board
Secondary Interlock Switch
Interlock Monitor Switch
Primary Interlock Switch
CAUTION: CHECK THE CORRECT POSITION
MAGNETRON
H.V. TRANSFORMER
PRIMARY CIRCUIT PROTECTOR
H.V. CAPACITOR
H.V.
DIODE
FIG. 1

A. RIMARY INTERLOCK SWITCH TEST
When the door release button is depressed slowly
with the door closed, an audible c ick should be
heard at the same time or successively at
intervals. When the button is released slowly, the
latches should activate the switches with an
audible c ick.
If the latches do not activate the switches when
the door is closed, the switches should be a
adjusted in accordance with the adjustment
procedure. Disconnect the wire lead from the
primary switch. Connect the ohmmeter leads to
the common (COM) and normally open (NO)
terminal of the switch. The meter should indicate
an open circuit in the door open condition.
When the door is closed, the meter should
indicate a closed circuit.
When the primary switch operation is abnormal,
make the necessary adjustment or replace the
switch only with the same type of switch.
B. SECONDARY INTERLOCK SWITCH TEST
Disconnect the wire lead from the secondary
switch.
Connect the ohmmeter leads to the common
(COM) and normally open (NO) terminals of the
switch. The meter should indicate a open circuit in
the door open condition. When the door is closed,
meter should indicate an closed circuit. When the
secondary switch operation is abnormal, make the
necessary adjustment or replace the switch only
with the same type of switch.
C. MONITOR SWITCH TEST
Disconnect the wire lead from the monitor switch.
Connect the ohmmeter leads to the common
(COM) and normally closed (NC) terminals of the
switch. The meter should indicate closed circuit in
the door open condition. When the door is closed,
meter should indicate an open circuit. When the
monitor switch operation is abnormal, replace with
the same type of switch.
NOTE: After repairing the door or the inter ock
system, it is necessary to do this continuity
test before operating the oven.
5-7
WARNING : FOR CONTINUED PROTECTION AGAINST EXCESSIVE RADIATION
EMISSION, REPLACE ONLY WITH IDENTICAL REPLACEMENT PARTS.
TYPE NO. SZM-V 16-FA-63 O VP-533A-OF FO P IMA Y SWITCH
TYPE NO. SZM-V 16-FA-61 O VP-531A-OF FO MONITO SWITCH
TYPE NO. SZM-V 16-FA-63 O VP-533A-OF FO SECONDA Y SWITCH
COMPONENTS TEST PROCEDURE RESULTS
SWITCHES Check for continuity of the Door Door
(Wire leads removed) switch with an Ohm-meter open closed
Primary
Switch
Monitor
Switch
NOTE : After checking for the continuity of switches, make sure that are
connected correctly.
NO
COM
NC
COM
COM NO
NO
COM
INTERLOCK CONTINUITY TEST
Secondary
Switch

5-8
CAUTIONS
1. DISCONNECT THE POWE SUPPLY CO D F OM THE OUTLET WHENEVE EMOVING THE
OUTE CASE F OM THE UNIT. P OCEED WITH THE TEST ONLY AFTE DISCHA GING THE HIGH
VOLTAGE CAPACITO AND EMOVING THE WI E LEADS F OM THE P IMA Y WINDING OF THE
HIGH VOLTAGE T ANSFO ME . (SEE PAGE 2-1)
2. ALL OPE ATIONAL CHECKS WITH MIC OWAVE ENE GY MUST BE DONE WITH A LOAD (1 LITE
OF WATE IN CONTAINE ) IN THE OVEN.
COMPONENTS TEST PROCEDURE RESULTS
HIGH VOLTAGE
T ANSFO ME
(Wire leads removed)
MAGNET ON
(Wire leads removed)
1. Measure the resistance.
(Ohm-meter scale: x1 and x100)
• Primary winding
• Secondary winding
• Filament winding
2. Measure the resistance.
(Ohm-meter scale: x1000)
• Primary winding to ground
• Filament winding to ground
1. Measure the resistance.
(Ohm-meter scale: x1)
• Filament terminal
2. Measure the resistance.
(Ohm-meter scale: x1000)
• Filament to chassis
Approx.: 1.4 ohm
Approx.: 90 ohm
Less than: 1 ohm
Normal: Infinite
Normal: Infinite
Normal: Less than 1 ohm
Normal: Infinite
PRIMARY
TERMINAL
SECONDARY
WINDING
FILAMENT
WINDING
TERMINAL
COMPONENT TEST PROCEDURE

5-9
COMPONENTS TEST PROCEDURE RESULTS
HIGH VOLTAGE
CAPACITO
HIGH VOLTAGE
DIODE
NOTE :
Some inexpensive meters
may indicate infinite
resistance in both direction.
Measure the resistance.
(Ohm-meter scale: x1000)
• Terminal to terminal.
Measure the resistance.
(Ohm-meter scale: x1000)
• Terminal to case.
Measure the continuity (Forward).
(Ohm-meter scale: x10000)
Measure the continuity ( everse).
(Ohm-meter scale: x10000)
Normal: Momentarily indicates
several ohms, and then
gradually returns to
infinite.
Normal: Infinite.
Normal: Continuity.
Abnormal: Infinite.
Normal: Infinite.
Abnormal: Continuity.
NOTE: When testing the magnetron, be sure to install the magnetron gasket
in the correct position and be sure that the gasket is in good condition.
Antenna
Gasket
Chassis
Filament

5-10
COMPONENTS TEST PROCEDURE RESULTS
FUSE
HEATE ELEMENT
(Wire leads removed.)
TOAST THE MOSTAT
OVEN THE MOSTAT
MAGNET ON
THE MOSTAT
Check for continuity of the fuse with an
multi-meter.
NOTE: If the fuse is blown, check the primary, the secondary, and the monitor
switches, H.V.D. and H.V.C. before replacing the fuse.
If the fuse is blown by improper switch operation replace the defective switch
and the fuse at the same time. eplace just the fuse if the switches operate
normally.
NOTE: Make sure heater is fully cooled when tested.
Measure the resistance.
(Multi-meter scale: x1) Normal:
*Toast heater
Approx. 95 ohm
(at 20 ~ 30oC)
Normal: more than 0.5 Mohm
Normal Abnormal
Measure the resistance with 500V-100M ohm
insulation resistance meter.
0 ° C~Approx.90 ° C Approx.90 ° C
0 ° C~Approx.145 ° C Approx.145 ° C
