LG OLED55B9PUA User manual

P/NO : MFL71409504 (1903-REV00)
CHASSIS : EA92B
MODEL : OLED55B9PUA
MODEL : OLED65B9PUA
OLED TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CONFIDENTIAL
Any reproduction, duplication, distribution (including by way of email, facsimile or other electronic means),
publication, modification, copying or transmission of this Service Manual is STRICTLY PROHIBITED unless you
have obtained the prior written consent of the LG Electronics entity from which you received this Service Manual.
The material covered by this prohibition includes, without limitation, any text, graphics or logos in this Service
Manual.
Copyright © 2019 LG Electronics Inc. All rights reserved. Only training and service purposes.

- 2 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ........................................................................ 3
SERVICING PRECAUTIONS ................................................................... 4
SPECIFICATION .......................................................................................6
SOFTWARE UPDATE .............................................................................. 9
BLOCK DIAGRAM ................................................................................. 10
EXPLODED VIEW .................................................................................. 17
DISASSEMBLY GUIDE .......................................................................... 18
TROUBLE SHOOTING GUIDE ................................................ APPENDIX

- 3 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩand 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
IMPORTANT SAFETY NOTICE
SAFETY PRECAUTIONS

- 4 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conict between the
following servicing precautions and any of the safety precautions
on page 3 of this publication, always follow the safety precautions.
Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board mod-
ule or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug or
other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an explo-
sion hazard.
2. Test high voltage only by measuring it with an appropriate
high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specied otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10 % (by volume) Acetone and 90 %
(by volume) isopropyl alcohol (90 % - 99 % strength)
CAUTION: This is a ammable mixture.
Unless specied otherwise in this service manual, lubrication of
contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test xtures specied in this
service manual.
CAUTION: Do not connect the test xture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged eas-
ily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some eld-effect transistors
and semiconductor “chip” components. The following techniques
should be used to help reduce the incidence of component dam-
age caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground. Alter-
natively, obtain and wear a commercially available discharging
wrist strap device, which should be removed to prevent poten-
tial shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or expo-
sure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an anti-static type solder removal device. Some solder
removal devices not classied as “anti-static” can generate
electrical charges sufcient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufcient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads electri-
cally shorted together by conductive foam, aluminum foil or
comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replace-
ment ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your
foot from a carpeted oor can generate static electricity suf-
cient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500 °F to 600 °F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500 °F to 600 °F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500 °F to 600 °F)
b. First, hold the soldering iron tip and solder the strand against
the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder ows onto and around both the compo-
nent lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.

- 5 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent at against the cir-
cuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as the
solder melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing
the IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close
as possible to the component body.
2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as pos-
sible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC connec-
tions).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the
good copper pattern. Solder the overlapped area and clip off
any excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly con-
nected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

- 6 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement .
1. Application range
This specification is applied to the OLED TV used EA92B
chassis.
2. Test condition
Each part is tested as below without special appointment.
(1) Temperature : 25 ºC ± 5 ºC(77 ± 9 ºF) , CST : 40 ºC ± 5 ºC
(2) Relative Humidity: 65 % ± 10 %
(3) Power Voltage
: Standard input voltage (AC 100-240 V~, 50/60 Hz)
* Standard Voltage of each products is marked by models.
(4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
(5) The receiver must be operated for about 5 minutes prior to
the adjustment.
3. Test method
(1) Performance: LGE TV test method followed
(2) Demanded other specification
- Safety : UL, CSA, CE, IEC specification
- EMC : FCC, ICES, CE, IEC specification
4. General Specification
No Item Specication Remark
1 Market North America
2 Broadcasting system ATSC / NTSC-M, 64 & 256 QAM
3 Available Channel VHF : 02~13
UHF : 14~69
DTV : 02-69
CATV : 01~135
CADTV : 01~135
4 Receiving system Digital : ATSC, 64 & 256 QAM
Analog : NTSC-M
5 Video Input NTSC-M Rear gender(1EA)
6 HDMI Input HDMI 1 PC / DTV format Support 6Gbps
HDMI 2 PC / DTV format Support 6Gbps, Support ARC
HDMI 3 PC / DTV format Support 6Gbps
HDMI 4 PC / DTV format Support 6Gbps
7 Audio Input AV Audio / DVI Audio Rear(AV Gender), Except Korea model
L/R Input : Rear
AV and DVI use same jack
8 Audio out SPDIF(1EA) Optical Audio out Rear(1EA)
HeadPhone(1EA) HeadPhone out Rear(1EA)
9 USB Input(3EA) EMF, DivX HD, For SVC (download) JPEG, MP3, DivX HD
10 Ethernet Connect (1EA) Ethernet Connect

- 7 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
5. External Input Support Format
5.1. HDMI Input (PC/DTV)
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks
HDMI-PC
1 640*350 31.46 70.09 25.17 EGA
2 720*400 31.46 70.08 28.32 DOS
3 640*480 31.46 59.94 25.17 VESA(VGA)
4 800*600 37.87 60.31 40 VESA(SVGA)
5 1024*768 48.36 60 65 VESA(XGA)
6 1360*768 47.71 60.01 84.75 VESA(WXGA)
7 1152*864 54.34 60.05 80 VESA
8 1280*1024 63.98 60.02 109 SXGA Support to HDMI-PC
9 1920*1080 67.5 60 158.4 WUXGA
(Reduced Blank-
ing)
10 1920*1080 135 120 297
11 3840*2160 54 24 297 UDTV 2160P
12 3840*2160 56.25 25 297 UDTV 2160P
13 3840*2160 67.5 30 297 UDTV 2160P
14 3840*2160 112.5 50 594 UDTV 2160P When HDMI1,2,3,4
UHD DEEP COLOUR ON
15 3840*2160 135 60 594 UDTV 2160P
16 3840*2160 225 100 1188 UDTV 2160P When HDMI1,2,3,4
UHD DEEP COLOUR ON,
HDMI SWITCH model
17 3840*2160 270 120 1188 UDTV 2160P
18 4096*2160 53.95 23.97 296.7 UDTV 2160P
19 4096*2160 54 24 297 UDTV 2160P
20 4096*2160 56.25 25 297 UDTV 2160P When HDMI1,2,3,4
UHD DEEP COLOUR ON
21 4096*2160 67.5 30 297 UDTV 2160P
22 4096*2160 112.5 50 594 UDTV 2160P
23 4096*2160 135 60 594 UDTV 2160P
24 4096*2160 225 100 1188 UDTV 2160P When HDMI1,2,3,4
UHD DEEP COLOUR ON,
HDMI SWITCH model
25 4096*2160 270 120 1188 UDTV 2160P
26 2560*1440 88.78 60 241.5 3K When HDMI1,2,3,4
UHD DEEP COLOUR ON
27 2560*1440 183 120 497.7 3K
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks
DTV
1 640*480 31.46 59.94 25.12 SDTV 480P
2 640*480 31.5 60 25.12 SDTV 480P
3 720*480 15.73 59.94 13.5 SDTV, DVD 480I(525I) Spec. out but display
4 720*480 15.75 60 13.51 SDTV, DVD 480I(525I)
5 720*576 15.62 50 13.5 SDTV, DVD 576I(625I)
50Hz
6 720*480 31.47 59.94 27 SDTV 480P
7 720*480 31.5 60 27.02 SDTV 480P
8 720*576 31.25 50 27 SDTV 576P

- 8 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks
9 1280*720 44.96 59.94 74.17 HDTV 720P
10 1280*720 45 60 74.25 HDTV 720P
11 1280*720 37.5 50 74.25 HDTV 720P
12 1920*1080 28.12 50 74.25 HDTV 1080I
13 1920*1080 33.72 59.94 74.17 HDTV 1080I
14 1920*1080 33.75 60 74.25 HDTV 1080I
15 1920*1080 26.97 23.97 63.29 HDTV 1080P
16 1920*1080 27 24 63.36 HDTV 1080P
17 1920*1080 33.71 29.97 79.12 HDTV 1080P
18 1920*1080 33.75 30 79.2 HDTV 1080P
19 1920*1080 56.25 50 148.5 HDTV 1080P
20 1920*1080 67.43 59.94 148.35 HDTV 1080P
21 1920*1080 67.5 60 148.5 HDTV 1080P
22 1920*1080 112.5 100 297 HDTV 1080P
23 1920*1080 134.86 119.88 296.7 HDTV 1080P
24 1920*1080 135 120 297 HDTV 1080P
25 3840*2160 53.95 23.98 296.7 UDTV 2160P
26 3840*2160 54 24 297 UDTV 2160P
27 3840*2160 56.25 25 297 UDTV 2160P
28 3840*2160 61.43 29.97 296.7 UDTV 2160P
29 3840*2160 67.5 30 297 UDTV 2160P
30 3840*2160 112.5 50 594 UDTV 2160P When HDMI1,2,3,4
UHD DEEP COLOUR ON
31 3840*2160 134.86 59.94 593.4 UDTV 2160P
32 3840*2160 135 60 594 UDTV 2160P
33 3840*2160 225 100 1188 UDTV 2160P When HDMI1,2,3,4
UHD DEEP COLOUR ON,
HDMI SWITCH Model
34 3840*2160 270 120 1188 UDTV 2160P
35 4096*2160 53.95 23.98 296.7 UDTV 2160P
36 4096*2160 54 24 297 UDTV 2160P
37 4096*2160 56.25 25 297 UDTV 2160P
38 4096*2160 61.43 29.97 296.7 UDTV 2160P
39 4096*2160 67.5 30 297 UDTV 2160P
40 4096*2160 112.5 50 594 UDTV 2160P
41 4096*2160 134.86 59.94 593.4 UDTV 2160P
42 4096*2160 135 60 594 UDTV 2160P
43 4096*2160 225 100 1188 UDTV 2160P
44 4096*2160 270 120 1188 UDTV 2160P
45 2560*1440 88.78 60 241.5 3K
46 2560*1440 183 120 497.7 3K

- 9 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.

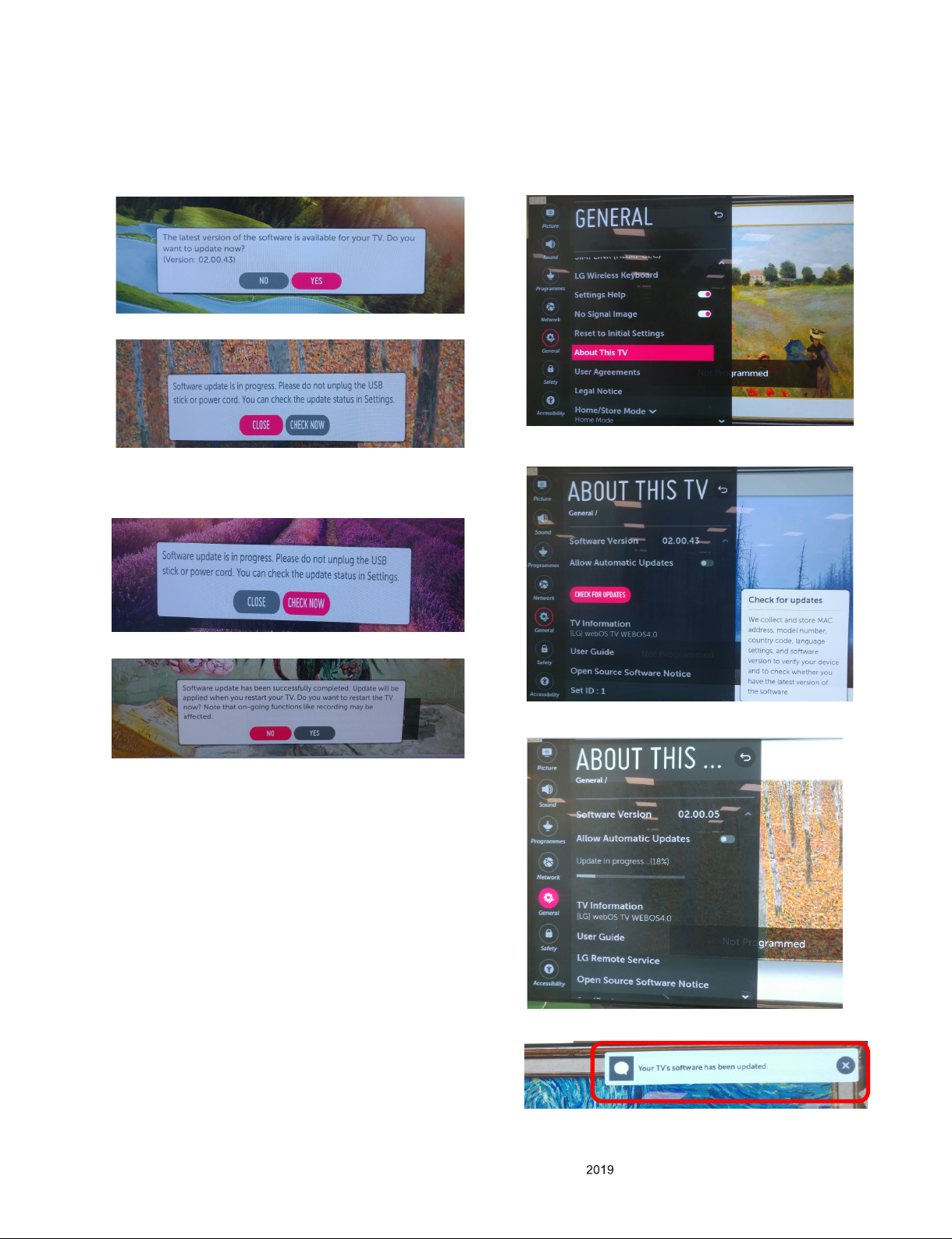

SOFTWARE UPDATE
1. USB
(1) Insert the USB memory Stick to the USB port
(2) Automatically detect the SW Version and show the below
message
(3) Click [YES]: initiate the download and install of the update.
(4) Click [Check Now]: move to “About This TV” page for
update
(5) TV is updating
(6) After finished the update, below Pop-up appear
(7) Click [Yes] : TV will be DC OFF -> ON
(8) After TV turned on, Check the updated SW Version and
Tool Option
2. NSU
(This Function is needed to connect to the internet)
(1) Menu -> All Settings -> General -> About This TV
(2) Click [CHEK FOR UPDATES] : system check newest
version
(3) Click [DOWNLOAD AND INSTALL]
(4) TV is updating
(5) After finished the update, below Pop-up appear
(6) Turn OFF the TV and On. Check the updated SW Version
and Tool Option

- 10 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.

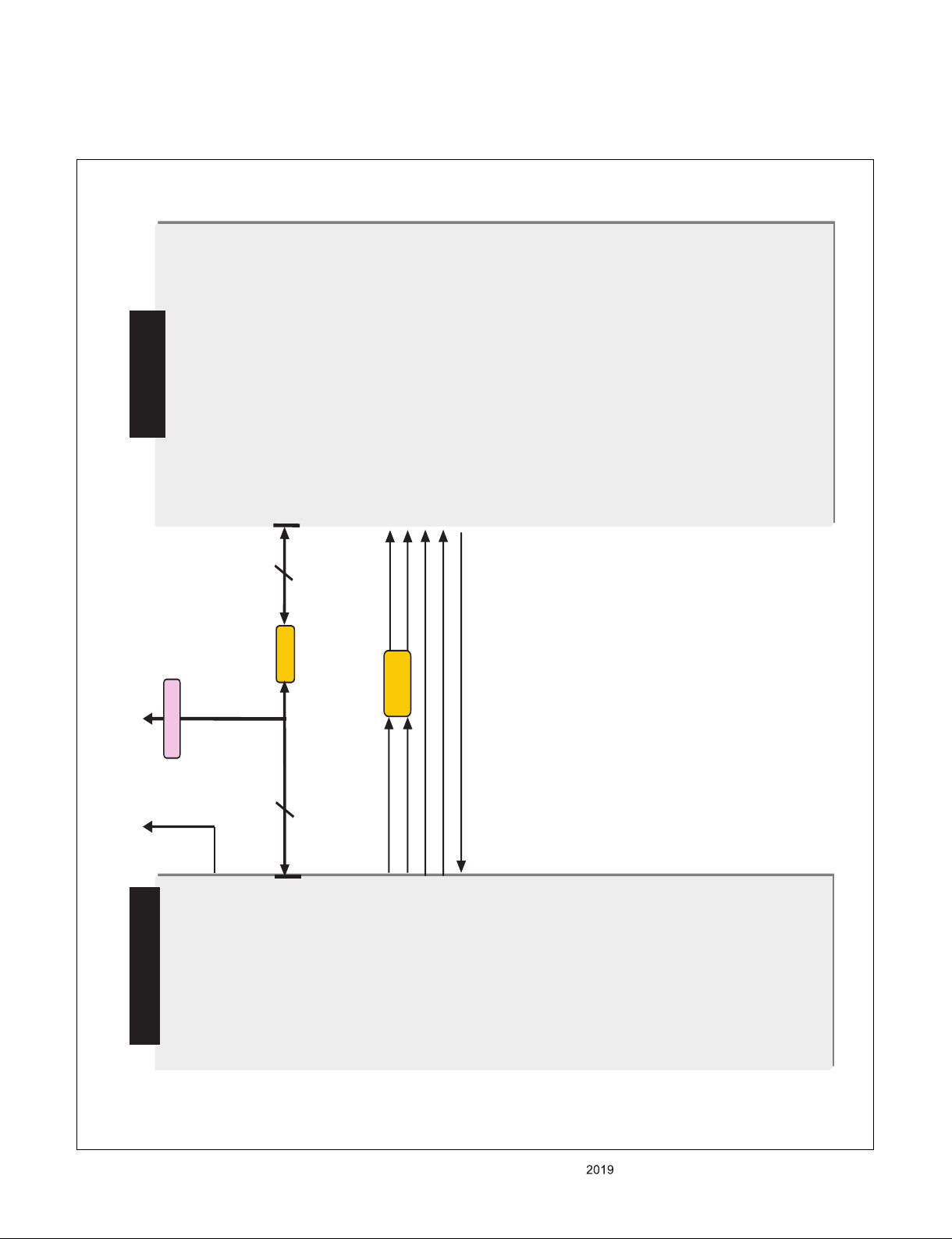

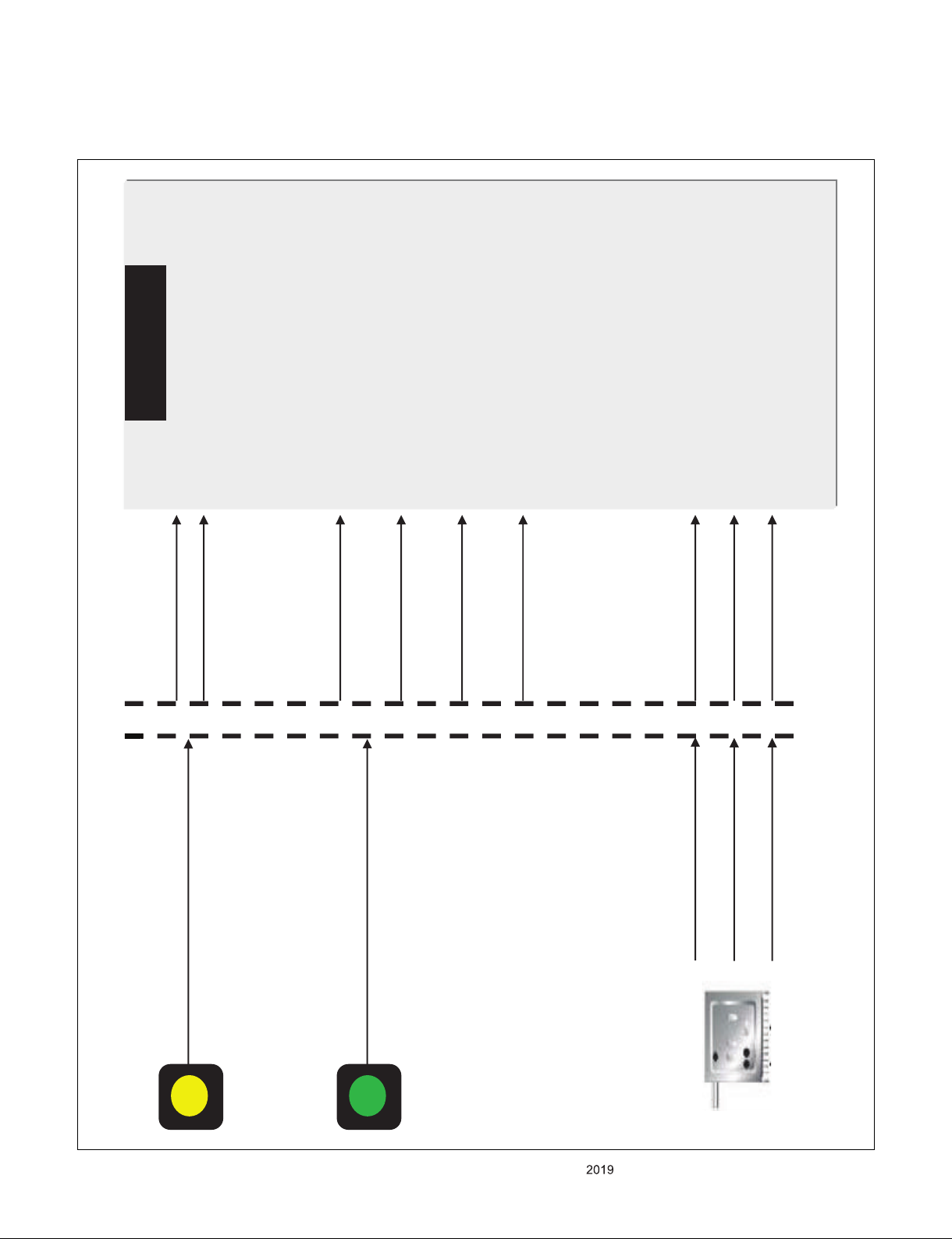

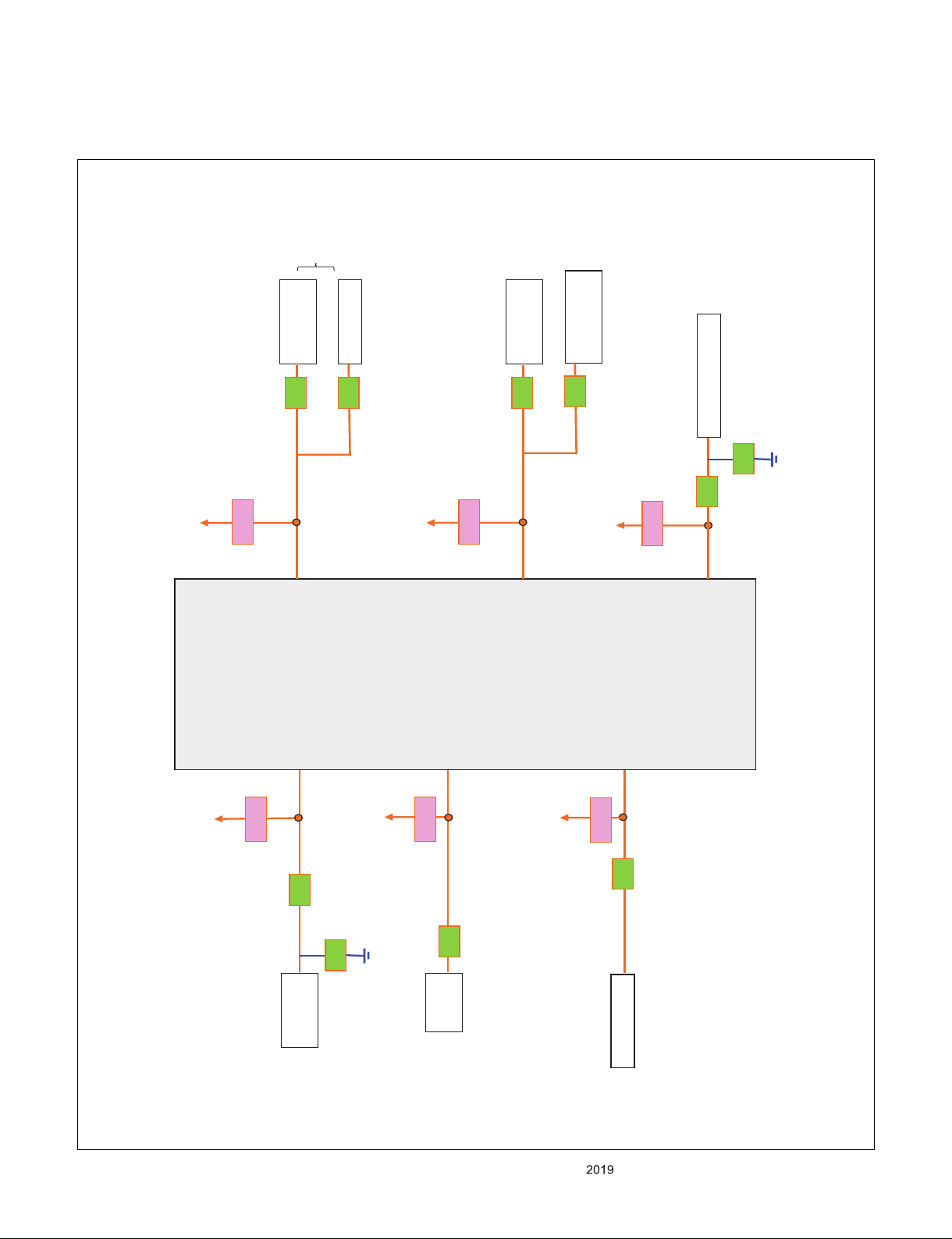

BLOCK DIAGRAM
MAIN Audio AMP
(NTP7519)
Main IC
IF+, IF-
OPTIC
LAN
HDMI1 HDMI 2.1
EEPROM(NVRAM)
(256Kb)
PHY3_RX0N
Air/
Cable TUNER
(Air/Cable)
Satellite TUNER
(S/S2)
USB1 (2.0)
eMMC
(8GB)
Sub Micom
(RENESAS
R5F100GEAFB)
P_TS(Korea / Japan / China)
X_TAL
24MHz
X_TAL
32.768KHz
I2S Out
I2C 0
I2C 4
R
E A
R
YPbPr
SPDIF OUT
ETHERNET I2C 1
SUB
ASSY
IR / KEY
WIFI/BT Combo
USB_WIFI
CVBS
HDMI3 HDMI 2.1
USB2 (2.0)
RS232C/HP
HDMI2(ARC) HDMI 2.1
AV
Vx1
OCP OCP
USB2_0
USB2_2
PHY2_RX0N
PHY1_RX0N
I2C 2
SIF
HDMI4 HDMI 2.1 PHY0_RX0N
OLED T-
Con
CVBS/COMP
M0 M1
DDR3 1066
512MB
DDR3 1066
512MB
DDR3 1066
512MB
DDR3 1066
512MB
I2C 3/5
USB3 (2.0) OCP USB2_1
Depend on Region
Side
Rear
Depend on Region
Depend on Region
Side
Rear
I_P, I_N, Q_P, Q_N
EU/CIS/AJJA
US / BR
HAWK2
HDMI
2.1
Switch
1. Main

- 11 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
SCL0 SDA0
100Ω
3.3KΩ
Main IC
+3.3V_NORMAL
3.3KΩ
33Ω IC102
NVRAM
+3.3V_NORMAL
IC5300
NTP7519
SCL2 SDA2
TUNER
SCL4
SDA4
33pF
SCL5 SDA5
1.2KΩ
SCL1 SDA1
IC3000
MICOM 33Ω
3.3KΩ
+3.3V_NORMAL
3.3KΩ
+3.3V_NORMAL
IC3600
MSB3100
33Ω
OLED T-con
33Ω
47pF
+3.3V_TU
2.7KΩ
33Ω IC7001
LNB
+3.3V_NORMAL
SCL3 SDA3
TUNER(JAPAN)
33Ω
Depend on Region
33Ω
2. I2C

- 12 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
SCL5 SDA5 DMD_TADC_INP
DMD_TADC_INN
AAD_ADC_SIF
Tuner
[IF_P] 8
[IF_N] 7
+3.3V_TU
[SCL_RF] 1
[SDA_RF] 2
[SIF] 6
[CVBS] 4
[IF_AGC] 5
FILTER
33 ȳ
IF_P_TU
IF_N_TU
TU_CVBS
IF_AGC
TADC_I_INP
TADC_I_INN
CVBS_IN1 IFAGC
+3.3V_TU
1.8Kȳ
Main IC
B1[+3.3V_RF]3
TU_SIF
3. Tuner

- 13 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Main IC
CVBS_IN2
Tuner
Jack Side SoC Side
JK3401
AV_CVBS_IN / AV_L_IN / AV_R_IN
COMP1_Y / COMP_Pb / COMP_Pr
AV1_CVBS_IN_SOC
COMP1_Pb_IN_SOC
COMP1_Pr_IN_SOC
AUAD_L_CH2_IN
AUAD_L_CH2_IN
AUAD_R_CH2_IN
TU_CVBS_TU TU_SIF_TU, IF_P/N_TU
CVBS_IN1
AAD_ADC_SIF, DMD_TADC_INP, DMD_TADC_INN
TU_CVBS
TU_SIF, TADC_I_INN/INP
I_N/P_TU, Q_N/P_TU SADC_I/Q_INN/INP DMD_SADC_INN/INP_I, DMD_SADC_INN/INP_Q
AUAD_R_CH2_IN PB1_IN PR1_IN
Y1_IN
COMP1_Y_IN_SOC
JK3402
4. Video & Audio IN

- 14 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
5. Audio OUT
Main IC
CVBS_IN2
Tuner
Jack Side SoC Side
JK3401
AV_CVBS_IN / AV_L_IN / AV_R_IN
COMP1_Y / COMP_Pb / COMP_Pr
AV1_CVBS_IN_SOC
COMP1_Pb_IN_SOC
COMP1_Pr_IN_SOC
AUAD_L_CH2_IN
AUAD_L_CH2_IN
AUAD_R_CH2_IN
TU_CVBS_TU TU_SIF_TU, IF_P/N_TU
CVBS_IN1
AAD_ADC_SIF, DMD_TADC_INP, DMD_TADC_INN
TU_CVBS
TU_SIF, TADC_I_INN/INP
I_N/P_TU, Q_N/P_TU SADC_I/Q_INN/INP DMD_SADC_INN/INP_I, DMD_SADC_INN/INP_Q
AUAD_R_CH2_IN PB1_IN PR1_IN
Y1_IN
COMP1_Y_IN_SOC
JK3402

- 15 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
HDMI4 (SIDE)
HDMI 2.1
HDMI2 (SIDE) with ARC
HDMI 2.1
CEC_REMOTE
RENESAS
MICOM(IC3000)
Main IC
HDMI_ARC
X-Tal(X3000)
32.768kHz
HDMI1 (SIDE)
HDMI2.1
DDC_SCL_1
DDC_SDA_1
TMDS Link
DDC_SCL_2
DDC_SDA_2
TMDS Link
DDC_SCL_4
DDC_SDA_4
TMDS Link
HDMI_CEC_MICOM
Q3001
DDC_SCL_1
DDC_SDA_1
JK3104
JK3102
JK3101
J
J
J
J
J
J
J
J
J
J
J
K
K
K
K
K
K
K
K
K
K
K
K
K
1
31
31
31
31
31
31
3
3
3
31
31
0
0
0
0
0
0
0
0
0
0
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
HDMI3
(SIDE)
HDMI2.1
JK3103
DDC_SCL_3
DDC_SDA_3
TMDS Link
DDC_SCL_2
DDC_SDA_2
PHY0_ARC_OUT
DDC_SCL_3
DDC_SDA_3
DDC_SCL_4
DDC_SDA_4
HDMI 2.1 S/W
IC3800
HAWK2
6. HDMI

- 16 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
USB1(SIDE)
USB2.0_1_DM0
USB2.0_1_DP0
USB2(SIDE)
IC1600
SYVL86A
5V / 6A
+5V_USB_1 +5V_USB_2
/USB_OCD2
USB_CTL2
USB_CTL2 /USB_OCD2
WIFI_DM
WIFI_DP
USB2_2_DM0 USB2_2_DP0
RENESAS MICOM(IC3000)
UART0_TXD/GPIO105
UART0_RXD/GPIO106
SOC_TX
SOC_RX IC7200
MAX3232CDR
USB2.0
WIFI Combo
BT_RESET BT_WAKEUP_DEVICE BT_WAKEUP_HOST
OCP
IC4700
BD2242G
OCP
IC4501
BD2242G
+5V_NORMAL
+5V_NORMAL
JK4400
JK4200
USB2.0
Main IC
USB2.0_2_DM1
USB2.0_2_DP1
OCP
IC4700
BD2242G
+5V_NORMAL
USB3(Rear) +5V_USB_3
USB_CTL2 /USB_OCD2 JK4600
USB2.0_3_DM0
USB2.0_3_DP0
USB2.0
7. USB / Wi-Fi / M-Remote / UART

- 17 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE
A10 700
AR2
200
530
540 521
810
121
120
500 570
571
400
920
710 900
800
LV1 LV2
HW1
HS1
HP1
200T
811

- 18 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
DISASSEMBLY GUIDE
Total Screw No. : 33ea
1. Remove screw 1ea, disassemble power cord from back cover.
* Push the latch, separate the stand cover to the top.
Latch : 2 EA
1
2. Remove screw 4ea, disassemble stand from back cover.
* Push the latch, separate the stand cover to the top.
1 1
1
1 1
1
Screw : 4 EA
1

- 19 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
3. Remove screw 1ea, disassemble power cord from back cover
`
1
Screw : 1 EA
1
4. Remove screw 4 EA, disassemble back cover from module.
* Put hand on the marked area( ), separate the back cover to the top.
11
11
2
2 2 2 2 2 2
2
2
2
2
2
Screw : 4 EA
1
Latch : 12ea
2

- 20 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
5. Remove screw 1ea, disassemble Wi/Jog assy.
Screw : 1ea
1
6. Remove the latch 2ea, disassemble IR assy.
Latch : 2ea
2
1
22
Slide
