LG OLED65C6P Quick start guide

P/No: MFL69383606 (1605-REV02)
OLED TV
OLED55C6P
OLED65C6P
www.lg.com
ENGLISH
Easy Setup Guide
Please read this manual carefully before operating your set and retain it for future reference.
ESPAÑOL
Guía Rápida de Confi guración
Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
FRANÇAIS
Guide de confi guration rapide
Avant d’utiliser l’appareil, veuillez lire attentivement ce guide et conservez-le pour pouvoir vous y reporter ultérieurement.

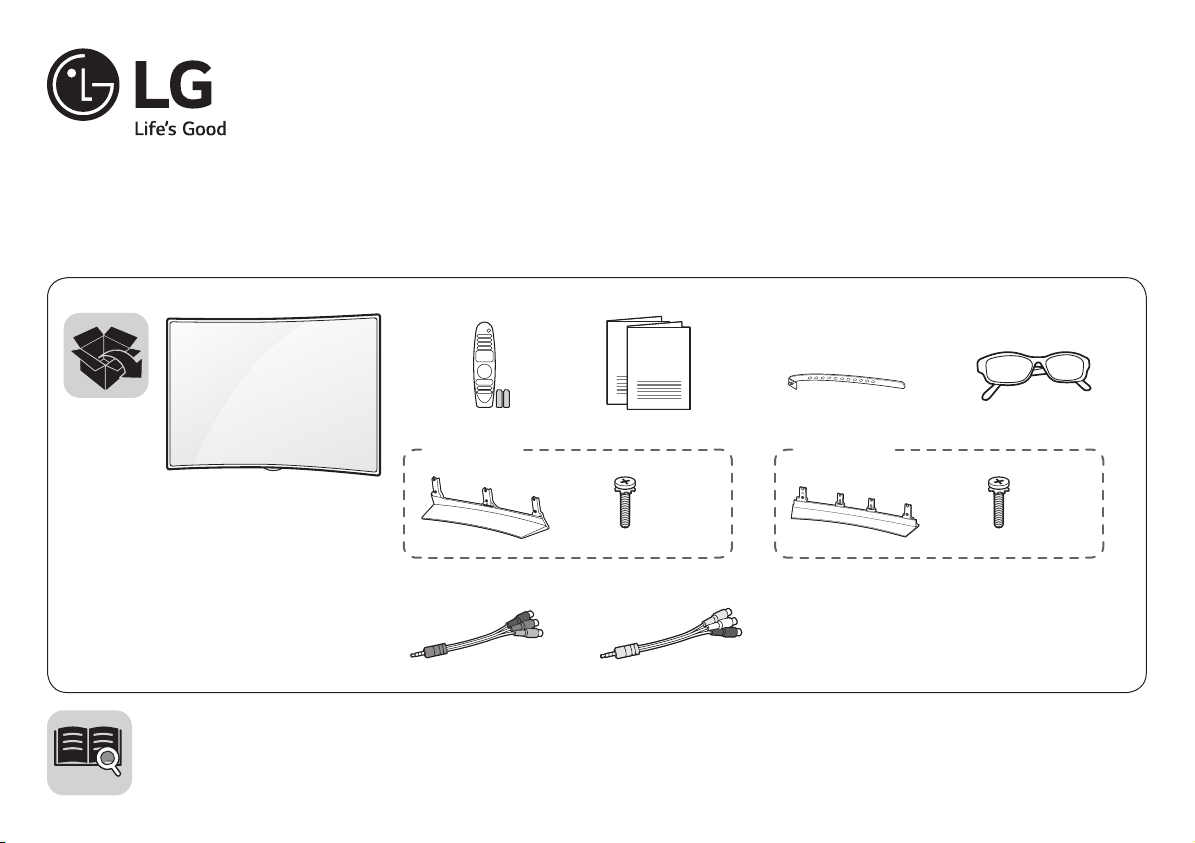

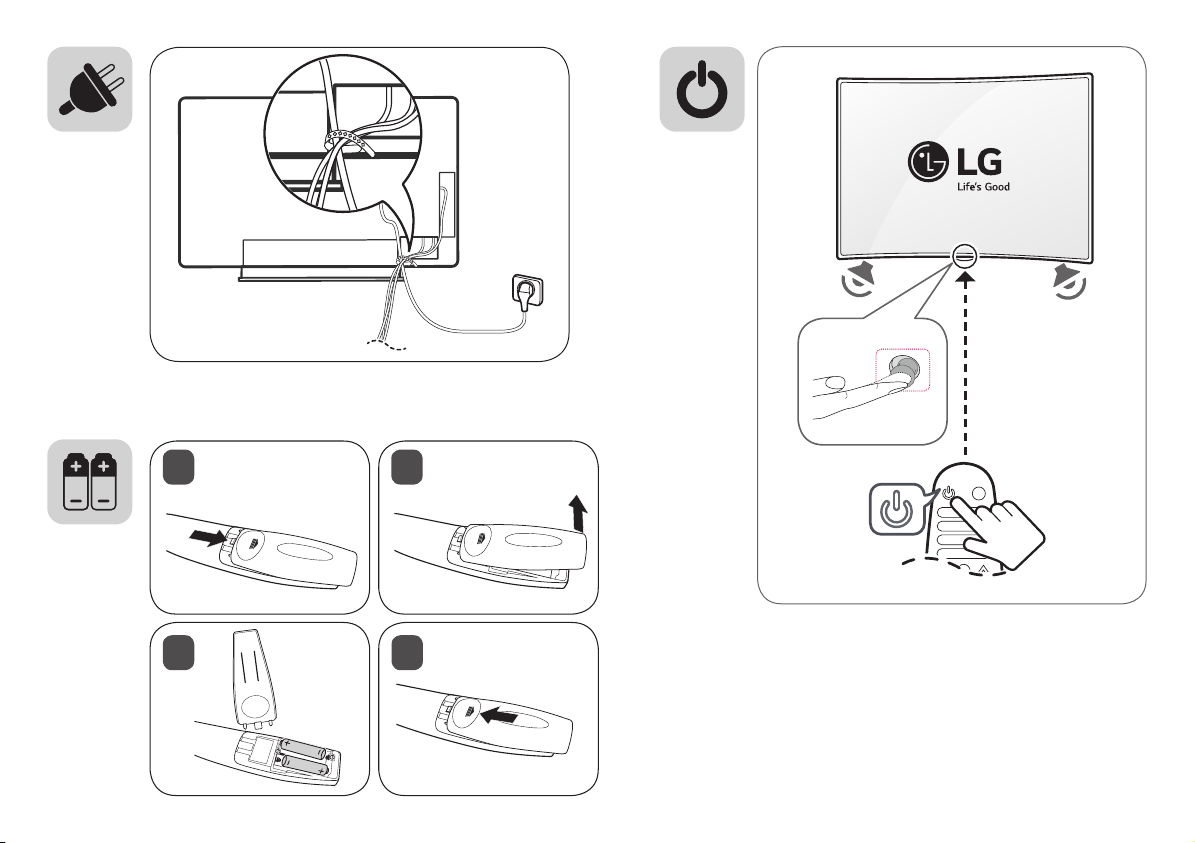

AA
X 5
(M4 x L20)
X 8
(M4 x L20)
OLED55C6P OLED65C6P

Read Safety and Reference.
Leer Seguridad y Consultas.
Lisez Sécurité et références.
ENGLISH
ESPAÑOL
FRANÇAIS

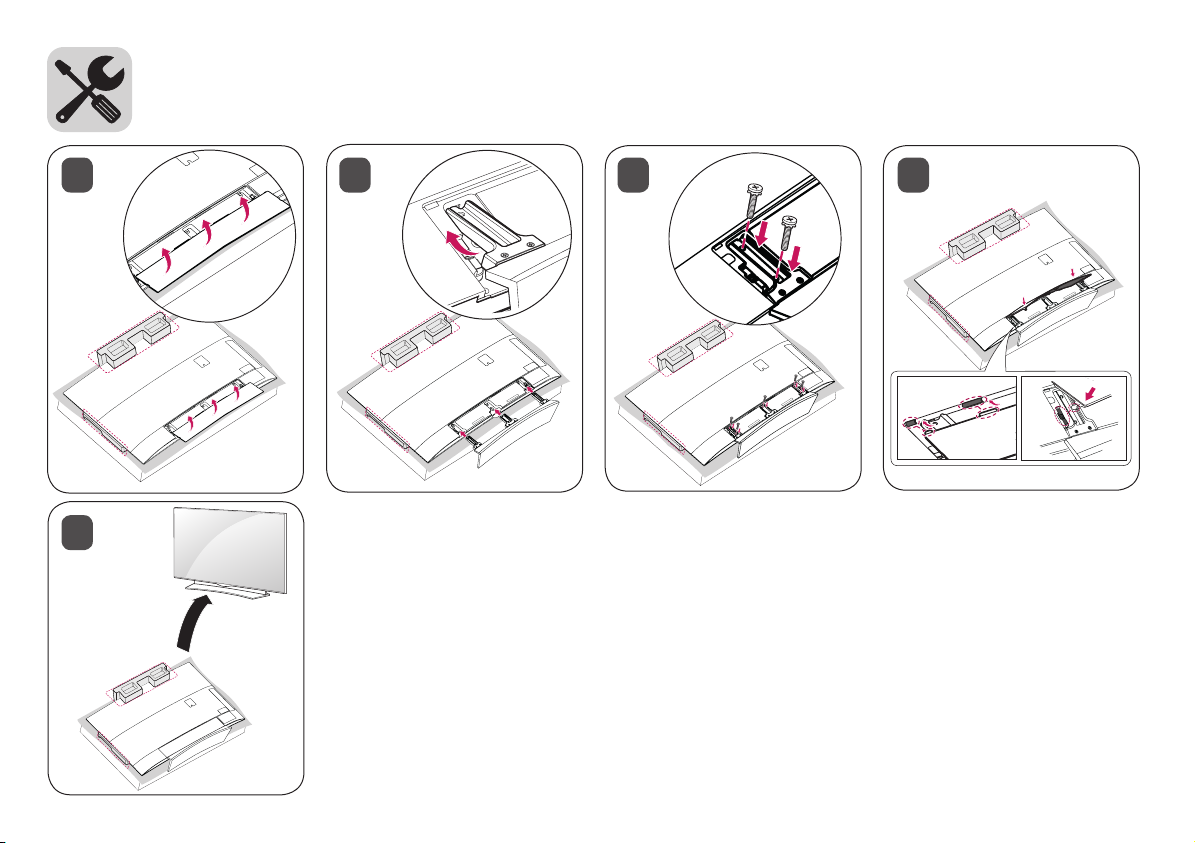

OLED55C6P
1
5
2 3 4

OLED65C6P
1
5
2 3 4

1
3 4
2

*MFL69383606*
12
0
ESPAÑOL
FRANÇAIS
MODELS OLED55C6P
(OLED55C6P-U)
OLED65C6P
(OLED65C6P-U)
Dimensions
W x H x T (D)
With stand 1,225 x 762 x 191 (mm) 1,446 x 883 x 237 (mm)
48.2 x 30 x 7.5 (inches) 56.9 x 34.7 x 9.3 (inches)
Without stand 1,225 x 714 x 48.9 (87.3) (mm) 1,446 x 838 x 48.9 (101.2) (mm)
48.2 x 28.1 x 1.9 (3.4) (inches) 56.9 x 32.9 x 1.9 (3.9) (inches)
Weight With stand 16.5 kg (36.3 lbs) 23.8 kg (52.4 lbs)
Without stand 13.2 kg (29.1 lbs) 18.6 kg (41.0 lbs)
Current value / Power consumption
For USA and Canada 2.8 A / 280 W 3.5 A / 350 W
For Mexico 3.7 A / 370 W 4.6 A / 460 W
Power requirement AC 120 V ~ 50 / 60 Hz
MODELOS OLED55C6P
(OLED55C6P-U)
OLED65C6P
(OLED65C6P-U)
MODÈLES
Dimensiones
Ancho x altura x grosor (profundidad)
Con base 1 225 x 762 x 191 (mm) 1 446 x 883 x 237 (mm)
Avec support 48,2 x 30 x 7,5 (pulgadas / po) 56,9 x 34,7 x 9,3 (pulgadas / po)
Dimensions
L x H x E (P)
Sin base 1 225 x 714 x 48,9 (87,3) (mm) 1 446 x 838 x 48,9 (101,2) (mm)
Sans support 48,2 x 28,1 x 1,9 (3,4) (pulgadas / po) 56,9 x 32,9 x 1,9 (3,9) (pulgadas / po)
Peso Con base 16,5 kg (36,3 libras / lb) 23,8 kg (52,4 libras / lb)
Avec support
Poids Sin base 13,2 kg (29,1 libras / lb) 18,6 kg (41,0 libras / lb)
Sans support
Corriente de consumo / Consumo de potencia Para Estados Unidos y Canadá 2,8 A / 280 W 3,5 A / 350 W
Para México 3,7 A / 370 W 4,6 A / 460 W
Valeur courante / Consommation électrique Pour les États-Unis et le Canada 2,8 A / 280 W 3,5 A / 350 W
Pour le Mexique 3,7 A / 370 W 4,6 A / 460 W
Alimentación requerida AC 120 V ~ 50 / 60 Hz
Alimentation
Thickness / Grosor / Épaisseur Depth / Profundidad / Profondeur
ENGLISH

www.lg.com
OLED55B6P
OLED65B6P
OLED55C6P
OLED65C6P
OLED55E6P
OLED65E6P
Please read this manual carefully before operating your set and retain it for
future reference.
Safety and Reference
P/NO : MFL69383602 (1606-REV02)
*MFL69383602*

2
ENGLISH
Important Safety Instructions
Always comply with the following precautions
to avoid dangerous situations and ensure peak
performance of your product.
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER TO
QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the presence of
uninsulated dangerous voltage within the
product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock
to persons.
The exclamation point within an
equilateral triangle is intended to alert the
user to the presence of important operating
and maintenance (servicing) instructions in the
literature accompanying the device.
WARNING/CAUTION
- TO REDUCE THE RISK OF FIRE AND ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
WARNING
If you ignore the warning message, you may
be seriously injured or there is a possibility of
accident or death.
CAUTION
If you ignore the caution message, you may
be slightly injured or the product may be
damaged.
NOTE
The note helps you understand and use the
product safely. Please read the note carefully
before using the product.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
•Do not use this apparatus near water.
•Clean only with dry cloth.
•Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
•Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
•Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade or
the third prong are provided for your safety. If
the provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
•Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
WARNING: This product contains chemicals known
to the State of California to cause cancer and birth
defects or other reproductive harm.
Wash hands
after handling.

3
ENGLISH
•Only use attachments/accessories specified by
the manufacturer.
•Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
•Unplug this apparatus during lightning storms
or when unused for long periods of time.
•Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
•Do not press strongly upon the panel with a
hand or a sharp object such as a nail, pencil, or
pen, or make a scratch on it.
•Do not stick metal objects or any other
conductive material into the power cord. Do
not touch the end of the power cord while it is
plugged in.
•Keep the packing anti-moisture material or
vinyl packing out of the reach of children.
Anti-moisture material is harmful if swallowed.
If swallowed, induce vomiting and go to the
nearest hospital. Additionally, vinyl packing can
cause suffocation. Keep it out of the reach of
children.
•CAUTION concerning the Power Cord
(Can differ by country):
Check the specification page of this owner’s
manual to be certain concerning current
requirements. Do not connect too many
devices to the same AC power outlet as this
could result in fire or electric shock. Do not
overload wall outlets. Overloaded wall outlets,
loose or damaged wall outlets, extension cords,
frayed power cords, or damaged or cracked
wire insulation are dangerous. Any of these
conditions could result in electric shock or fire.
Periodically examine the cord of your device,
and if its appearance indicates damage or
deterioration, unplug it, discontinue use of
the device, and have the cord replaced with
an exact replacement part by an authorized
servicer. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the device. Do not
move the TV with the power cord plugged in. Do
not use a damaged or loose power cord. Be sure
do grasp the plug when unplugging the power
cord. Do not pull on the power cord to unplug
the TV.
•Warning - To reduce the risk of fire or electrical
shock, do not expose this product to rain,
moisture or other liquids. Do not touch the TV
with wet hands. Do not install this product near
flammable objects such as gasoline or candles,
or expose the TV to direct air conditioning.
•Do not expose to dripping or splashing and
do not place objects filled with liquids, such as
vases, cups, etc. on or over the apparatus (e.g.,
on shelves above the unit).

4
ENGLISH
•Grounding
(Except for devices which are not grounded.)
Ensure that you connect the earth ground wire
to prevent possible electric shock (i.e., a TV
with a three-prong grounded AC plug must
be connected to a three-prong grounded AC
outlet).
If grounding methods are not possible, have
a qualified electrician install a separate circuit
breaker. Do not try to ground the unit by
connecting it to telephone wires, lightning rods,
or gas pipes.
Circuit
Breaker
Power
Supply
•As long as this unit is connected to the AC wall
outlet, it is not disconnected from the AC power
source even if the unit is turned off.
•Do not attempt to modify this product in any
way without written authorization from LG
Electronics. Unauthorized modification could
void the user’s authority to operate this product.
•Outdoor Antenna Grounding
(Can differ by country):
If an outdoor antenna is installed, follow the
precautions below. An outdoor antenna system
should not be located in the vicinity of overhead
power lines or other electric light or power
circuits, or where it can come in contact with
such power lines or circuits as death or serious
injury can occur. Be sure the antenna system is
grounded to provide some protection against
voltage surges and built-up static charges.
Section 810 of the National Electrical Code (NEC)
in the U.S.A. provides information with respect
to proper grounding of the mast and supporting
structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding
conductors, location of antenna discharge
unit, connection to grounding electrodes, and
requirements for the grounding electrode.
Antenna grounding according to the National
Electrical Code, ANSI/NFPA 70
Ground Clamp
Grounding Conductor
(NEC Section 810-21)
Antenna Lead in Wire
Electric Service
Equipment
Antenna Discharge Unit
(NEC Section 810-20)
Ground Clamp Power Service Grounding
Electrode System
(NEC Art 250, Part H)
NEC: National Electrical Code
•Cleaning
When cleaning, unplug the power cord and wipe
gently with a soft cloth to prevent scratching. Do
not spray water or other liquids directly on the
TV as electric shock may occur. Do not clean with
chemicals such as alcohol, thinners, or benzene.
•Moving
Make sure the product is turned off, unplugged,
and all cables have been removed. It may take 2
or more people to carry larger TVs. Do not press
or put stress on the front panel of the TV.
•Ventilation
Install your TV where there is proper ventilation.
Do not install in a confined space such as a
bookcase. Do not cover the product with cloth or
other materials while plugged in. Do not install
in excessively dusty places.
•If you smell smoke or other odors coming from
the TV, unplug the power cord and contact an
authorized service center.
•Keep the product away from direct sunlight.
•Never touch this apparatus or antenna during a
lightning storm.
•When mounting a TV on the wall, make sure not
to install the TV by hanging the power and signal
cables on the back of the TV.
•Do not allow an impact shock or any objects to
fall into the product, and do not drop anything
onto the screen.
•DISCONNECTING THE DEVICE FROM THE MAIN
POWER
The power plug is the disconnecting device.
In case of an emergency, the power plug must
remain readily accessible.
•Make sure the power cord is connected securely
to the power plug on the TV. (Depending upon
model)
•Batteries
Store the accessories (battery, etc.) in a safe
location out of the reach of children.
•This apparatus uses batteries. In your community
there might be regulations that require you
to dispose of these batteries properly due to
environmental considerations. Please contact
your local authorities for disposal or recycling
information.

5
ENGLISH
Viewing 3D Imaging
(For 3D models)
CAUTION
•Guardians should not leave children
unsupervised who are watching a 3D video.
Guardians should make children stop watching
the video and take a rest if they experience eye
fatigue, headache, or dizziness.
•When viewing a 3D video, some may experience
discomfort such as a headache, dizziness,
fatigue, or blurred vision. In this case, stop
watching the 3D video and take a rest.
•If you watch a 3D video for a long time, you
may experience eye fatigue. In this case, stop
watching the 3D video and take a rest.
•Only use LG 3D glasses. Otherwise, you may not
be able to view 3D videos properly.
•Do not use 3D glasses instead of your normal
glasses, sunglasses, or protective goggles. Place
the 3D glasses over your normal eye ware.
•Do not keep your 3D glasses in extremely high or
low temperatures. It will cause deformation.
•Do not use the 3D glasses while walking or
moving around. It may cause an accident or
injury.
•Be careful not to poke your eye with the frames
of the 3D glasses.
•Do not watch 3D content if you have
photosensitive seizures, epilepsy, or heart
disease.
•Do not dispose of batteries in a fire.
•Do not short circuit, disassemble, or allow the
batteries to overheat.
•Do not use high voltage electrical equipment
near the TV, (e.g., a bug zapper).
This may result in product malfunction.
•Dot Defect
This panel is an advanced product that contains
millions of pixels. In a very few cases, you could
see fine dots on the screen while you’re viewing
the TV. Those dots are deactivated pixels and
do not affect the performance and reliability of
the TV.
•Generated Sound
Cracking noise A cracking noise that occurs
when watching or turning off the TV is
generated by plastic thermal contraction due to
temperature and humidity. This noise is common
for products where thermal deformation is
required.
Electrical circuit humming/panel buzzing
A low level noise is generated from a high-
speed switching circuit, which supplies a large
amount of current to operate a product. It varies
depending upon the product. This generated
sound does not affect the performance and
reliability of the product.
•Take care not to touch the ventilation openings.
When watching the TV for a long period, the
ventilation openings may become hot. This does
not affect the performance of the product or
cause defects in the product.
•Do not install this product on a wall if it could be
exposed to oil or oil mist. This may damage the
product and cause it to fall.
•If the TV feels cold to the touch, there may
be a small flicker when it is turned on. This is
normal; there is nothing wrong with TV. Some
minute dot defects may be visible on the screen,
appearing as tiny red, green, or blue spots.
However, they have no adverse effect on the
TV’s performance. Avoid touching the screen or
holding your finger(s) against it for long periods
of time. Doing so may produce some temporary
distortion effects on the screen.
•Displaying a still image for a prolonged period of
time may cause an image sticking.
Avoid displaying a fixed image on the TV screen
for a extended length of time.
•Some horizontal lines may appear when the
Clear Panel Noise feature is performed. It is
normal and there is no need to be concerned.

6
ENGLISH
Preparing
NOTE
•When the TV is turned on for the first time after
being shipped from the factory, initialization of
the TV may take approximately one minute.
•Image shown may differ from your TV.
•Your TV’s OSD (On Screen Display) may differ
slightly from that shown in this manual.
•The available menus and options may differ from
the input source or product model that you are
using.
•New features may be added to this TV in the
future.
•The items supplied with your product may vary
depending upon the model.
•Product specifications or contents of this manual
may be changed without prior notice due to
upgrade of product functions.
•For an optimal connection, HDMI cables and
USB devices should have bezels less than 10 mm
(0.39 inches) thick and 18 mm (0.7 inches) width.
•Use an extension cable that supports USB 2.0 if
the USB cable or USB flash drive does not fit into
your TV’s USB port.
•Use a certified cable with the HDMI logo
attached. If you do not use a certified HDMI
cable, the screen may not display or a
connection error may occur.
•Recommended HDMI cable types (3 m or less)
- High-Speed HDMI®/TM cable
- High-Speed HDMI ®/TM cable with Ethernet
B
AA
B
*A 10 mm (0.39 inches)
*B 18 mm (0.7 inches)
CAUTION
•Do not use any unapproved items to ensure the
safety and product’s lifespan.
•Any damages or injuries by using unapproved
items are not covered by the warranty.
•Some models appear to have a thin film on the
screen. It is actually part of the screen; do not
remove it.
•When attaching the stand to the TV set, place
the screen facing down on a cushioned table or
flat surface to protect the screen from scratches.
•Make sure that the screws are fastened tightly.
(If they are not fastened securely enough, the TV
may tilt forward after being installed.)
•Do not fasten the screws with excessive force;
otherwise, they may be worn out and become
loose.
•Make sure to wring any excess water or cleaner
from the cloth.
•Do not spray water or cleaner directly onto the
TV screen.
•Make sure to spray just enough of water or
cleaner onto a dry cloth to wipe the screen.
Optional Extras
Optional extras can be changed or modified for
quality improvement without any notification.
Contact your dealer for buying these items.
These devices work only with certain models.
The model name or design may be changed due to
the manufacturer’s circumstances or policies.
(Depending upon model)
AG-F***
Cinema 3D Glasses
AG-F***DP
Dual Play Glasses
AN-MR650
Magic Remote
AN-VC550
Smart Camera

7
ENGLISH
Lifting and Moving the TV
When moving or lifting the TV, read the following
to prevent the TV from being scratched or
damaged and for safe transportation regardless of
its type and size.
•It is recommended to move the TV in the box or
packing material that the TV originally came in.
•Before moving or lifting the TV, disconnect the
power cord and all cables.
•When holding the TV, the screen
should face away from you to
avoid damage.
•Hold the top and bottom of the TV frame firmly.
Make sure not to hold the transparent part,
speaker, or speaker grille area.
•Use at least two people to move
a large TV.
•When transporting the TV by
hand, hold the TV as shown in the
following illustration.
•When transporting the TV, do not expose the TV
to jolts or excessive vibration.
•When transporting the TV, keep the TV upright;
never turn the TV on its side or tilt towards the
left or right.
•When handling the TV, be careful not to damage
the protruding buttons.
CAUTION
•Avoid touching the screen at all times, as this
may result in damage to the screen.
•Do not place the product on the floor with its
front facing down without padding. Failure to do
so may result in damage to the screen.
•Do not move the TV by holding the cable
holders, as the cable holders may break, and
injuries and damage to the TV may occur.
(Depending upon model)
Using the Button
(Depending upon model)
You can simply operate the TV functions, pressing
or moving the button.
[A type]
Joystick Button
[B type]
Joystick Button
Basic Functions
Power On (Press)
Power Off (Press and Hold)
1
Volume Control
Channels Control
1 A ll running apps will close.
Adjusting the Menu
When the TV is turned on, press button one time.
You can adjust the Menu items pressing or moving
the buttons.
Turns the power off.
Accesses the setting menu.
Clears on-screen displays and returns to TV
viewing.
Changes the input source.

8
ENGLISH
Mounting on a Table
1 Lift and tilt the TV into its upright position on a
table.
- Leave a 10 cm (4 inches) (minimum) space from
the wall for proper ventilation.
10 cm
10 cm
10 cm
10 cm
(4 inches)
10 cm
2 Connect the power cord to a wall outlet.
CAUTION
•Do not place the TV near or on sources of heat,
as this may result in fire or other damage.
Securing the TV to a Wall (optional)
(Depending upon model)
1 Insert and tighten the eye-bolts, or TV brackets
and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2 Mount the wall brackets with the bolts to the
wall. Match the location of the wall bracket and
the eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly
with a sturdy rope or cable. Make sure to keep
the rope parallel to the flat surface.
CAUTION
•Make sure that children do not climb on or hang
on the TV.
NOTE
•Use a platform or cabinet that is strong and large
enough to support the TV securely.
•Brackets, bolts, and ropes are optional. You can
obtain additional accessories from your local
dealer.
Mounting on a Wall
An optional wall mount can be used with your
LG Television. Consult with your local dealer for
a wall mount that supports the VESA standard
used by your TV model. Carefully attach the wall
mount bracket at the rear of the TV. Install the wall
mount bracket on a solid wall perpendicular to the
floor. If you are attaching the TV to other building
materials, please contact qualified personnel to
install the wall mount. Detailed instructions will
be included with the wall mount. We recommend
that you use an LG brand wall mount. The LG wall
mount is easy to adjust or to connect the cables.
When you do not use LG’s wall mount bracket,
use a wall mount bracket where the device is
adequately secured to the wall with enough space
to allow connectivity to external devices. If you are
using a non-adjustable mount, attach the mount
to the wall. Attach the cables to the TV first, then
attach the TV to the mount.
10 cm
10 cm
10 cm
10 cm
(4 inches)
Make sure to use screws and wall mounts that
meet the VESA standard. Standard dimensions for
the wall mount kits are described in the following
table.
Model OLED55/65B6P OLED55/65C6P,
OLED55/65E6P
VESA (A x B) 300 x 200 400 x 200
Standard screw M6
Number of
screws 4
Wall mount
bracket
(optional)
OTW420B
A
B

9
ENGLISH
CAUTION
•Remove the stand before installing the TV on a
wall mount by performing the stand attachment
in reverse.
NOTE
•To remove the stand, hold the top and bottom
of stand, then pull it out while also lowering it as
shown in the following illustration.
(For OLED55/65E6P)
1
2
1
2
•To install the wall mount, use the stand
assembly screws to attach the wall mount cover
to the bottom of the product as shown in the
following illustration. (For OLED55/65E6P)
Provided Item
Wall mount
cover X 2
Connections (Notifications)
You can connect various external devices to the TV.
Supported external devices are: HD receivers, DVD
players, VCRs, audio systems, USB storage devices,
PC, gaming devices, and other external devices.
For more information on an external device’s
connection, refer to the manual provided with
each device.
NOTE
•If you record a TV program on a DVD recorder or
VCR, make sure to connect the TV signal input
cable to the TV through a DVD recorder or VCR.
For more information about recording, refer to
the manual provided with the connected device.
•The external device connections shown may
differ slightly from illustrations in a manual.
•Connect external devices to the TV regardless
about the order of the TV port.
•If you connect a gaming device to the TV, use the
cable supplied with the gaming device.
•Refer to the external equipment’s manual for
operating instructions.
•In PC mode, there may be noise associated
with the resolution, vertical pattern, contrast,
or brightness. If noise is present, change the PC
output to another resolution, change the refresh
rate to another rate, or adjust the brightness and
contrast on the PICTURE menu until the picture
is clear.
•Depending upon the graphics card, some
resolution settings may not allow the image to
be positioned on the screen properly.
•Some USB Hubs may not work. If a USB device
connected through a USB Hub is not detected,
connect it directly to the USB port on the TV.
•The TV may be capable of operating without a
set-top from a multichannel video programming
distributor (MVPD).
Connecting to an Antenna or Cable
Connect an antenna, cable, or cable box to watch
TV. The illustrations may differ from the actual
items and an RF cable is optional.
CAUTION
•Make sure not to bend the copper wire of the RF
cable.
Copper wire
•Complete all connections between devices, and
then connect the power cord to the power outlet
to prevent damage to your TV.
NOTE
•Use a signal splitter to use 2 TVs or more.
•DTV Audio Supported Codec: MPEG,
Dolby Digital.
•Direct ULTRA HD broadcast is unavailable in
areas without an ULTRA HD signal.
•This TV cannot receive ULTRA HD (3840 x 2160
pixels) broadcasts directly because the related
standards have not been confirmed.
(Depending upon model)

10
ENGLISH
Other Connections
Connect your TV to external devices. For the best
picture and audio quality, connect the external
device and the TV with the HDMI cable. Depending
upon the model, a cable may not be provided.
NOTE
•> > > General >
HDMI ULTRA HD Deep Color:
- On : Support 4K @ 60 Hz (4:4:4, 4:2:2, 4:2:0)
- Off : Support 4K @ 60 Hz 8bit (4:2:0)
•If the device connected to Input Port also
supports ULTRA HD Deep Color, your picture
may be clearer. However, if the device doesn’t
support it, it may not work properly. In that case,
connect the device to a different HDMI port or
change the TV’s HDMI ULTRA HD Deep Color
setting to Off.
- This feature is available only on certain models
which support HDMI ULTRA HD Deep Color.
•HDMI Audio Supported Format:
DTS (44.1 kHz / 48 kHz),
AC3 (32 kHz / 44.1 kHz / 48 kHz),
PCM (32 kHz / 44.1 kHz / 48 kHz / 96 kHz /
192 kHz) (Depending upon model)
Slim Remote Control
(Depending upon model)
The descriptions in this manual are based on
the buttons on the remote control. Please read
this manual carefully and use the TV correctly.
To replace coin batteries, turn the battery cover
counterclockwise by using a coin. Then, take the
battery cover. Insert and fix the battery (CR2032)
with the facing forward. And, Put the battery
cover on the remote control and turn it clockwise
to close. To remove the coin batteries, perform
the installation actions in reverse. When in use,
it should be pointed in the direction of the TV’s
remote sensor.
A
B
A
(POWER) Turns the TV on or off.
You can turn your set-top box on or off
by adding the set-top box to the universal remote
control for your TV.
Adjusts the volume level.
(MUTE) Mutes all sounds.
* Video descriptions function will be enabled.
•SAP (Secondary Audio Program) Feature can also
be enabled by pressing the key.
Scrolls through the saved channels.
B
Returns to the previous screen.
* Clears all on-screen displays and returns to
TV viewing.
(Home) Accesses the Home menu.
INPUT Changes the input source.
* Pressing and holding the INPUT button
displays all the lists of external inputs.
Navigation buttons) Scrolls through
menus or options. (up/down/left/right)
Selects menus or options and confirms your
input.
* : To use the button, press and hold for more than
3 seconds.

11
ENGLISH
Battery Installation
WARNING
DO NOT INGEST BATTERY. CHEMICAL BURN
HAZARD.
CAUTION
•The battery used in this device may present a
fire or chemical burn hazard if mistreated. Do
not recharge, disassemble, incinerate, or heat
above 100 °C (212 °F). Replace the battery part
no. CR2032 only. Use of another battery may
present a risk of fire or explosion. Dispose of
used battery. Keep battery away from children.
Do not disassemble or dispose of in fire.
•[The remote control supplied with] This product
contains a coin/button cell battery. If the coin/
button cell battery is swallowed, it can cause
severe internal burns in just 2 hours and can lead
to death. Keep new and used batteries away
from children. If the battery compartment does
not close securely, stop using the product and
keep it away from children. If you think batteries
might have been swallowed or placed inside
any part of the body, seek immediate medical
attention.
•If you have long nails, do not open the battery
cover by using your finger. Or else, your nail
could break.
Magic Remote Functions
(Depending upon model)
When the message
Magic remote battery is low.
Change the battery. is displayed, replace the
battery. To install batteries, open the battery cover,
replace batteries (1.5 V AA) matching and
ends to the label inside the compartment, and
close the battery cover. Failure to match the correct
polarities of the battery may cause the battery to
burst or leak, resulting in fire, personal injury, or
ambient pollution. Be sure to point the remote
control at the remote control sensor on the TV.
To remove the batteries, perform the installation
actions in reverse.
This remote uses infrared light. When in use, it
should be pointed in the direction of the TV’s
remote sensor.
B
C
A
A
(POWER) Turns the TV on or off.
/ You can turn your set-top box on
or off by adding the set-top box to the universal
remote control for your TV.
Number button Enters numbers.
- (Dash) Inserts a dash between numbers such as
2-1 and 2-2.
Accesses the saved channel list.
(Screen Remote) Displays the Screen Remote.
•Accesses the Universal Control Menu in some
regions.

12
ENGLISH
B
Adjusts the volume level.
(MUTE) Mutes all sounds.
* Video descriptions function will be enabled.
•SAP (Secondary Audio Program) Feature can also
be enabled by pressing the key.
Scrolls through the saved channels.
(Home) Accesses the Home menu.
* Shows the previous history.
(Search) Search for content such as channels,
movies and other videos, or perform a web search
by entering your search terms in the search box.
(Voice recognition) * Network connection is
required to use the voice recognition function.
1 Press the (Voice recognition) button.
2 Speak when the voice display window appears
on the TV screen.
Displays the set-top box Home menu.
(When you are not watching with a set-top box:
the set-top box screen is displayed.)
C
/ Navigation buttons) Press the
up, down, left or right button to scroll the menu.
(up/down/left/right)
If you press / buttons while the
pointer is in use, the pointer will disappear from
the screen and Magic Remote will operate like a
general remote control. To display the pointer on
the screen again, shake Magic Remote to the left
and right.
(Wheel) (OK) Press the center of the Wheel
button to select a menu. You can change channels
by using the Wheel button.
Returns to the previous screen.
* Clears all on-screen displays and returns to
TV viewing.
Used for viewing 3D video. (For 3D models)
INPUT Changes the input source.
* Pressing and holding the INPUT button
displays all the lists of external inputs.
Activates or deactivates the subtitles.
Displays the program event according to
time scheduler. (Depending upon model)
(Q. Settings) Accesses the quick settings.
* Pressing and holding the (Q. Settings) button
displays the All Settings menu.
Color buttons These access special functions in
some menus.
(Red, Green, Yellow, Blue)
, /, , , Control buttons for media
contents (Depending upon model)
You can zoom in on the area where the
remote control is pointed.
* By zooming in on the selected area,
you can view it in full screen.
* : To use the button, press and hold for more than
3 seconds.
Registering Magic Remote
How to Register the Magic Remote
To use the Magic Remote, first pair it with your TV.
1 Put batteries into the Magic Remote and turn the
TV on.
2 Point the Magic Remote at your TV and press the
(Wheel) (OK) on the remote control.
•If the TV fails to register the Magic Remote, try
again after turning the TV off and back on.
How to Deregister the Magic Remote
Press the /and (Home) buttons
at the same time, for five seconds, to unpair the
Magic Remote with your TV.
•Pressing and holding the button will
let you cancel and re-register Magic Remote at
once.
Licenses
Supported licenses may differ by model.
For more information about licenses,
visit www.lg.com .
