Electrical Connections
2
The wires in this mains lead are coloured in accordance
with the following code:
GREEN AND YELLOW:EARTH
BLUE:NEUTRAL
BROWN:LIVE
This appliance must be earthed
As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured
markings identifying the terminals in your plug, proceed
as follows:
The wire which is coloured Green and Yellow must be
connected to the terminal in the plug which is marked
with the letter E or by the earth symbol(b) or coloured
Green or Green and Yellow.
The wire which is coloured Blue must be connected to
the terminal which is marked with the letter N or
coloured Black.
The wire which is coloured Brown must be connected to
the terminal which is marked with the letter L or coloured
Red.
If a 13 amp(BS 1363) plug is used, fit a 13 amp BS 1362
fuse.
(In the UK Only)
Important
Fuse
Cord
grip
Green and Yellow(Earth)
Brown(Live)
Blue(Neutral)
3828JD8178C(O/M)¿ ‡»` 02.3.154:46PM ˘`2

3
Registration
Important Safety Instruction
Identification of Parts
Installation
Starting
Temperature Control
Quick Freeze
Vacation
Self Test
Door Alarm
Ice Making
Defrosting
Storing Food
General Information
Lamp Replacement
Cleaning
Trouble Shooting
Table of Contents
Introduction
Installation
Operation
Suggestion On
Food storage
Care and
Maintenance
Trouble Shooting
4
4
6
7
7
8
8
9
9
9
9
9
10
11
11
12
13
3828JD8178C(O/M)¿ ‡»` 02.3.154:46PM ˘`3

Introduction
4
The model and serial number are found on the rear of
this unit. This number is unique to this unit and not
available to others. You should record requested
information here and retain this guide as a permanent
record of your purchase. Staple your receipt here.
Date of Purchase :
Dealer Purchased From :
Dealer Address :
Dealer Phone No. :
Model No. :
Serial No. :
Important Safety Instruction
This fridge-freezer must be properly installed and
located in accordance with the Installation
Instruction before it is used.
Never unplug your fridge-freezer by pulling on the
power cord. Always grip plug firmly and pull straight out
from the outlet.
When moving your appliance away from the wall,
be careful not to roll over or damage the power
cord.
After your fridge-freezer is in operation, do not
touch the cold surfaces in the freezer compartment,
particularly when hands are damp or wet. Skin may
adhere to these extremely cold surfaces.
Registration
Introduction
Precaution
3828JD8178C(O/M)¿‡»` 02.3.154:46PM ˘` 4

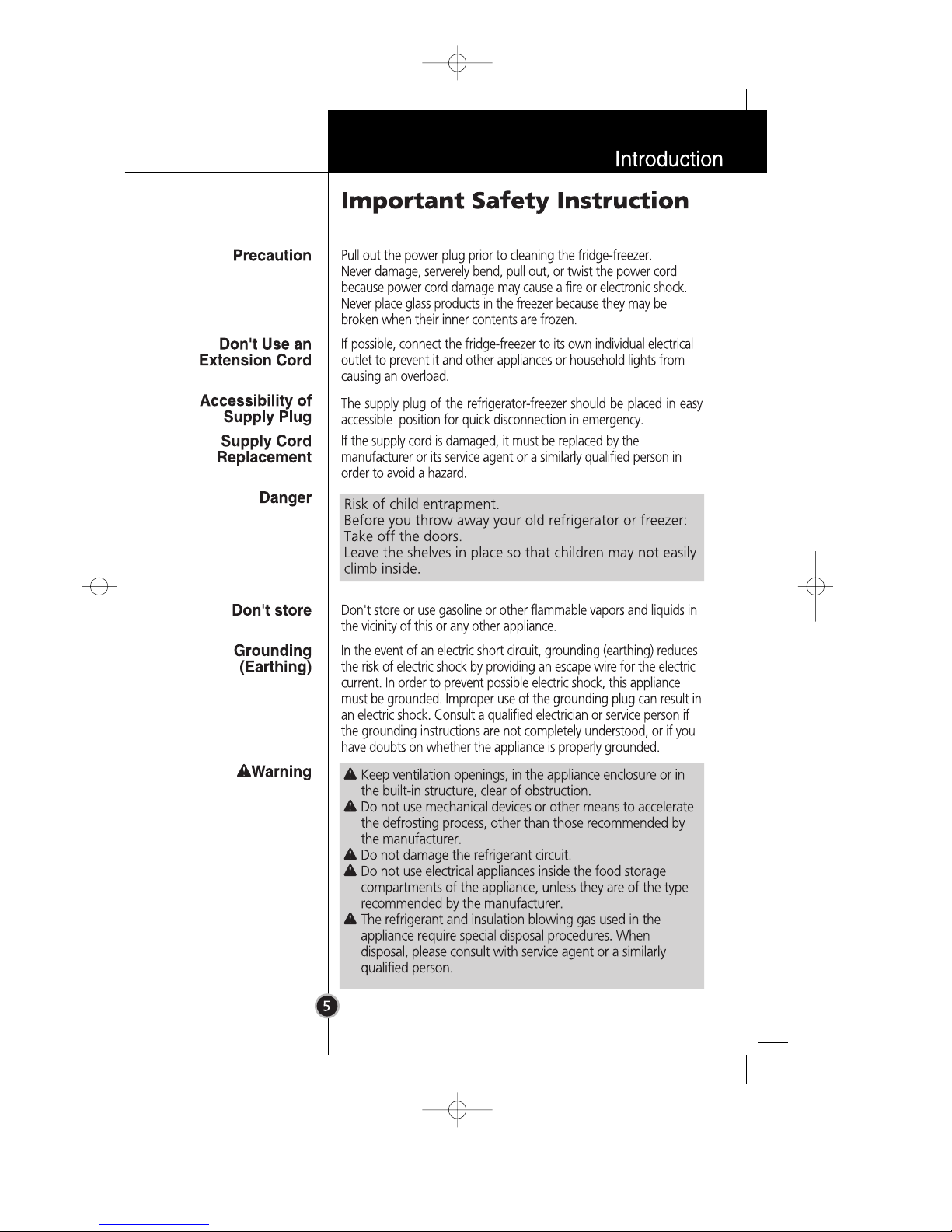

This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure that they do not play
with the appliance.
CAUTION

3828JD8178C(O/M)¿ ‡»` 02.3.154:46PM ˘`5

Introduction
6

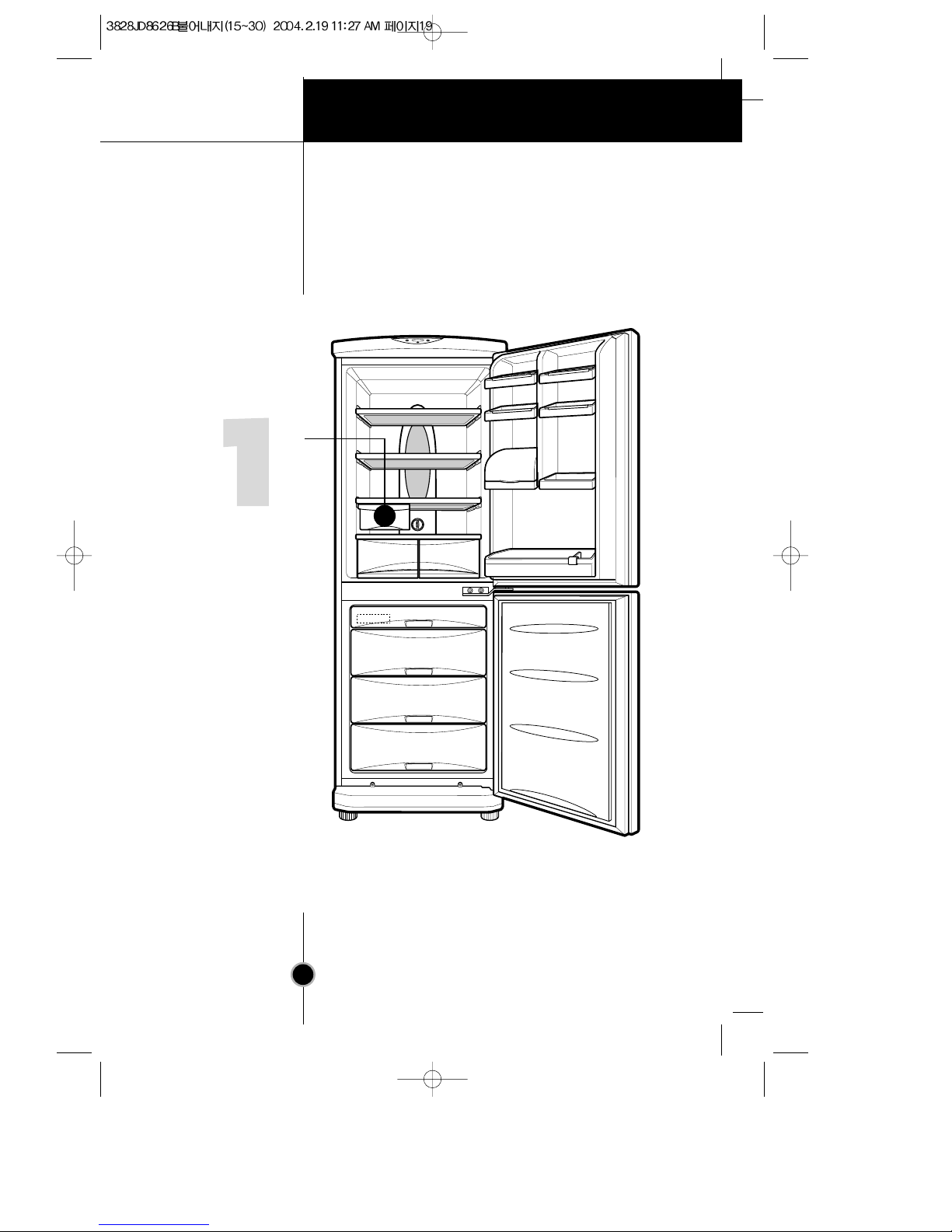

Identification of Parts
If you found some parts missing from your unit,
they may be parts only used in other models.
Note
3828JD8178C(O/M)¿ ‡»` 02.3.154:46PM ˘`6
Egg Tray(1 or 2)
Freezer Temperature
Control
Removable
Glass Shelf(2 or 3)
Lamp
Multi-air Flow Duct
Fresh Zone
(optional)
Fridge Temperature
Control
Vegetable Drawer
Used to keep fruits
and Vegetable, etc
fresh and crisp.
Ice Cube Tray
Storage
Drawer
Removable
Plinth
Rotatable
Door Basket
Utility Corner
(movable)
Bottle Holder
2 Bottle
Door Basket
Leveling Screw

Installation
7
1. Select a good location.
Place your fridge-freezer where it is easy to use.
2. Avoid placing the unit near heat sources,
direct sunlight or moisture.
3. There must be proper air circulation around your
fridge-freezer to keep it operating efficiently.
4. To avoid vibration, the unit must be leveled.
If required, adjust the leveling screws to compensate
for the uneven floor.
The front should be slightly higher than the rear to aid
in door closing.
Leveling screws can be turned easily by tipping the
cabinet slightly.
Turn the leveling screws counterclockwise( ) to
raise the unit, clockwise( ) to lower it.
5. Clean your fridge-freezer thoroughly and wipe off all
dust accumulated during shipping.
6. Install accessories such as ice cube box, etc., in their
proper places.They are packed together to prevent
possible damage during shipment.
7. Connect the power supply cord (or plug) to the outlet.
Don't double up with other appliances on the same
outlet.
When your fridge-freezer is installed, allow it 2-3 hours to
stabilize at normal operating temperature prior to filling
it with fresh or frozen foods.
If power plug is disconnected, allow 5 minutes delay
before restarting.
Your fridge-freezer is now ready for use.
Installation
Starting
3828JD8178C(O/M)¿ ‡»` 02.3.154:46PM ˘ ` 7
To ensure proper air circulation around the fridge-freezer,
please maintain sufficient space on both the sides as well
as top and maintain at least 2 inches (5 cm) from the
rear wall.
8.

Operation
8
Your fridge-freezer has two controls that let you regulate
the temperature in the fridge and freezer compartments.
• Initially set the TEMP. CONTROL
at "4". Then adjust the
compartment temperature
according to your desire.
• If you want an inside temperature
slightly less cold or colder, turn the
knob towards COLD or WARM, respectively.
When the surrounding temperature is low, adjust the
TEMP. CONTROL 'WARM'.
• Freezer temperature control is on the top of the fridge-
freezer. Initially set the Freeze Temp at mid-point. By
pressing the Freezer Temp button, you can adjust the
temperature of the Freezer as indicated by the numbers
of lamps lit.(the setting is composed of five steps,
5 lamps lit indicates coldest.)
• When you starting the Fridge-Freezer or connecting the
power plug to the outlet, temperature setting is
automatically set to the mid-point.
• This function is used when
you want to freeze the foods
quickly. Press the 'QUICK
FREEZE' button once, and
then the quick freeze
operation starts with the
lamp lit.
The quick freeze operation
takes about 3 hours.
When its operation ends,
it automatically returns to the normal state.
If you want to stop the quick freeze operation, press
the 'QUICK FREEZE' button once more, the lamp goes
out, and the quick freeze operation stops and the
refrigerator returns to the normal state.
Temperature Control
Fridge
Freezer
Quick Freeze
TEMP. CONTROL
7
COLD
WARM
1
6
5
42
3
FREEZE TEMP
VACATION QUICK FREEZE
QUICK FREEZE
3828JD8178C(O/M)¿ ‡»` 02.3.154:47PM ˘ ` 8

Operation
9
This function makes the fridge-freezer
work in a power saving mode which is
useful for when you are away on
holiday, by reducing energey
consumption as much as possible.
Pressing 'VACATION' starts operation
with lamp ON and pressing it again
stops the operation.
For better functioning, you should set
the TEMP. CONTROL to "WARM".
This function allows you to check for operational
problems. If you think you have a problem with your
fridge-freezer, then press the temperature control button:
- If the indicate lights move up or down, then there is no
problem with your fridge-freezer.
- If the indicate lights do not move up or down, then
please leave the power connected and call your nearest
service agent.
When the door of the fridge is left opened for a while,
the alarm sounds.

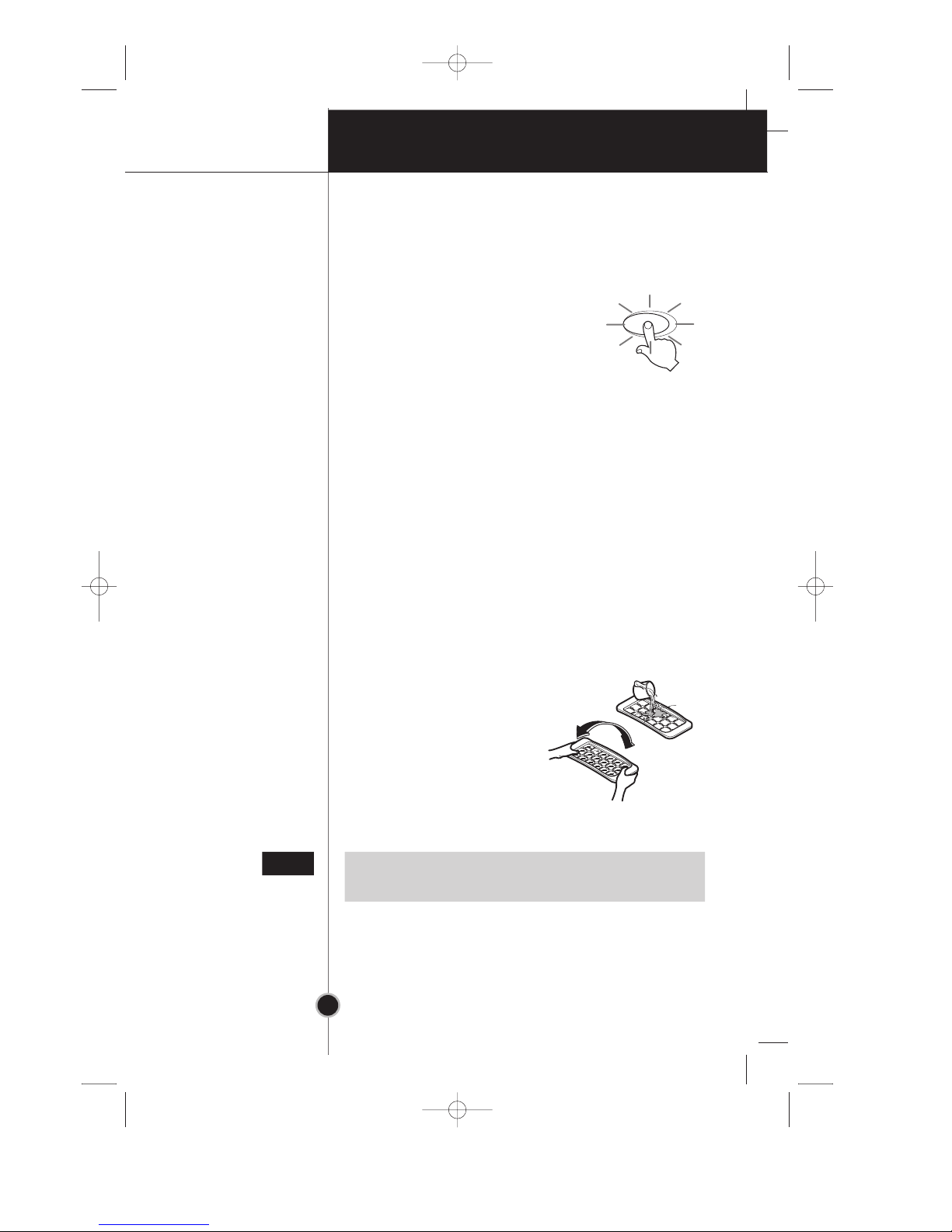

• To make ice cubes, fill the
ice tray to the water level
and place it in the freezer.
• If ice cubes are required
fast, press the 'QUICK
FREEZE' button.
• To remove ice cubes,
hold the tray at its ends and twist gently.
Defrosting takes place automatically.
The defrosting water flows down to the evaporating tray
and is evaporated automatically.
Vacation
Self Test
Door Alarm
Ice Making
Defrosting
VACATION
To remove ice cubes easily, run water on the tray
before twisting.
Tip
3828JD8178C(O/M)¿ ‡»` 02.3.154:47PM ˘ ` 9

3828JD8178C(O/M)¿ ‡»` 02.3.154:47PM ˘`10
SUGGESTIONS ON FOOD STORAGE
10
• Do not store food which goes bad easily at low
temperature, such as banana, and melon.
• Allow hot food to cool prior to storing. Placing hot food
in the fridge-freezer could spoil other food, and lead to
higher electric bills.
• When storing the food, use a container with a lid. This
prevents moisture from evaporating, and helps food to
keep its taste and nutrients.
• Do not block air vents with food. Smooth circulation of
cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets
warm air enter the fridge-freezer, and cause
temperature to rise.
• To adjust the temperature control easily, do not store
food near the temperature control dial.
• Never keep too many foods in door rack, as this may
stop the door from fully closing.
• Do not store bottles in the freezer compartment - they
may break when frozen.
• Do not refreeze food that has been thawed. This causes
loss of taste and nutrition.
Storing Food
Note
If you keep the fridge-freezer in a hot, and humid place,
frequently open its door or put a lot of vegetables in it,
dew may form in it, which has no effect on its
performance.
Remove the dew with dust cloth free from care.

11
Care and Maintenance
• 1~2 hour power failure does no harm to the foods
stores. Try to avoid opening and closing the door too
frequently.
• Take out foods from the fridge-freezer and firmly fix the
loose items with tape.
• Turn the leveling screws until they stop before moving
the fridge-freezer. Otherwise the screw may scratch the
floor or the fridge-freezer cannot move.
• The Anti-Condensation pipe
is installed around the front
side of fridge-freezer as well
as on the partition between
fridge compartment and
freezer compartment to
prevent dewing.
• Especially after installation or
when ambient temperature is high, the fridge-freezer
may feel hot, which is quite normal.
Lamp Replacement

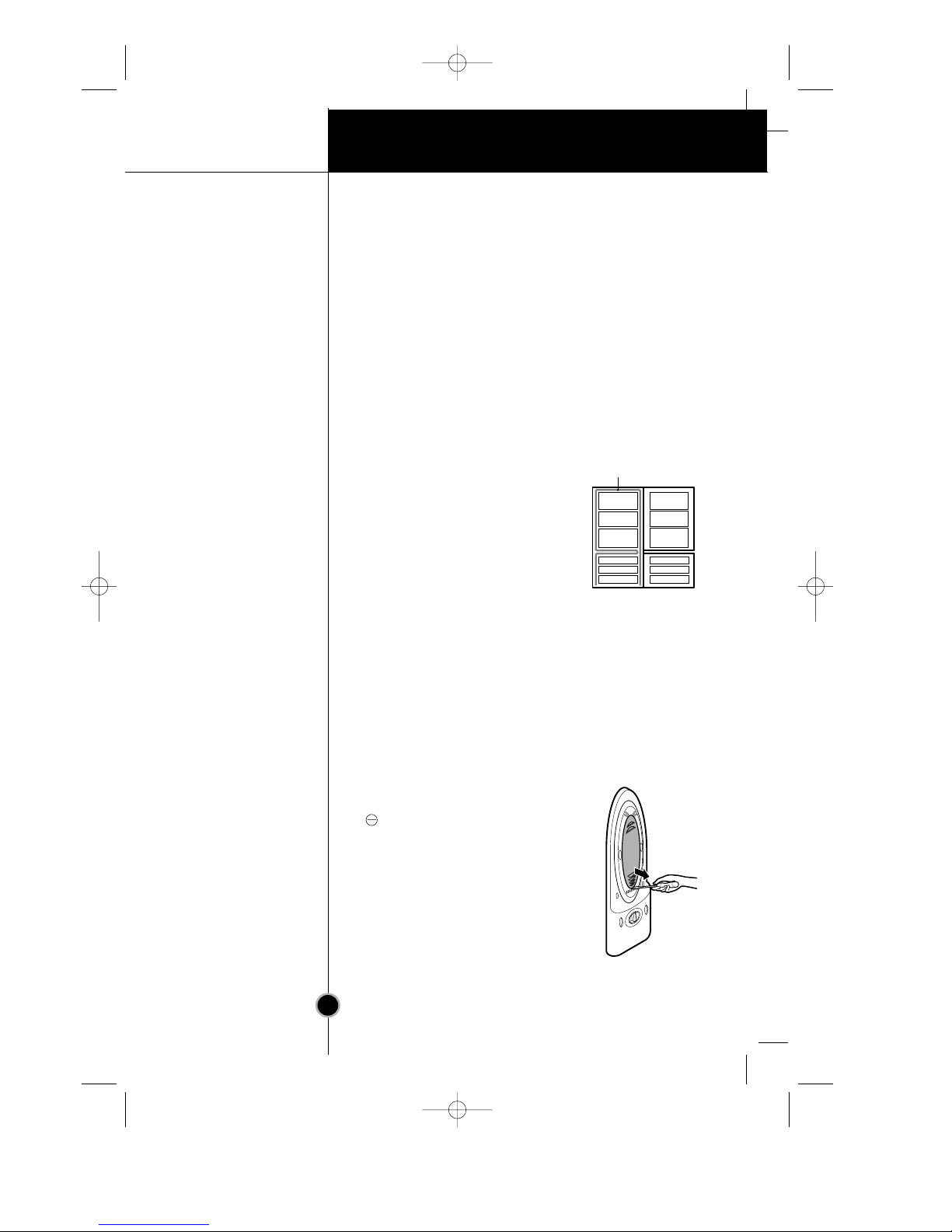

1. Unplug the power cord from the outlet.
2. Remove fridge shelves.
3. To remove the lamp cover, insert
type driver in the underside of
the lamp cover and pull it out
forwards.
4. Turn the lamp counterclockwise.
5. Assemble in reverse order of
disassembly.
Replacement lamp must be the
same specification as original.
General Information
Power Failure
If You Move
Anti Condensation
Pipe
Anti-Condensation
Pipe
3828JD8178C(O/M)¿ ‡»` 02.3.154:47PM ˘`11

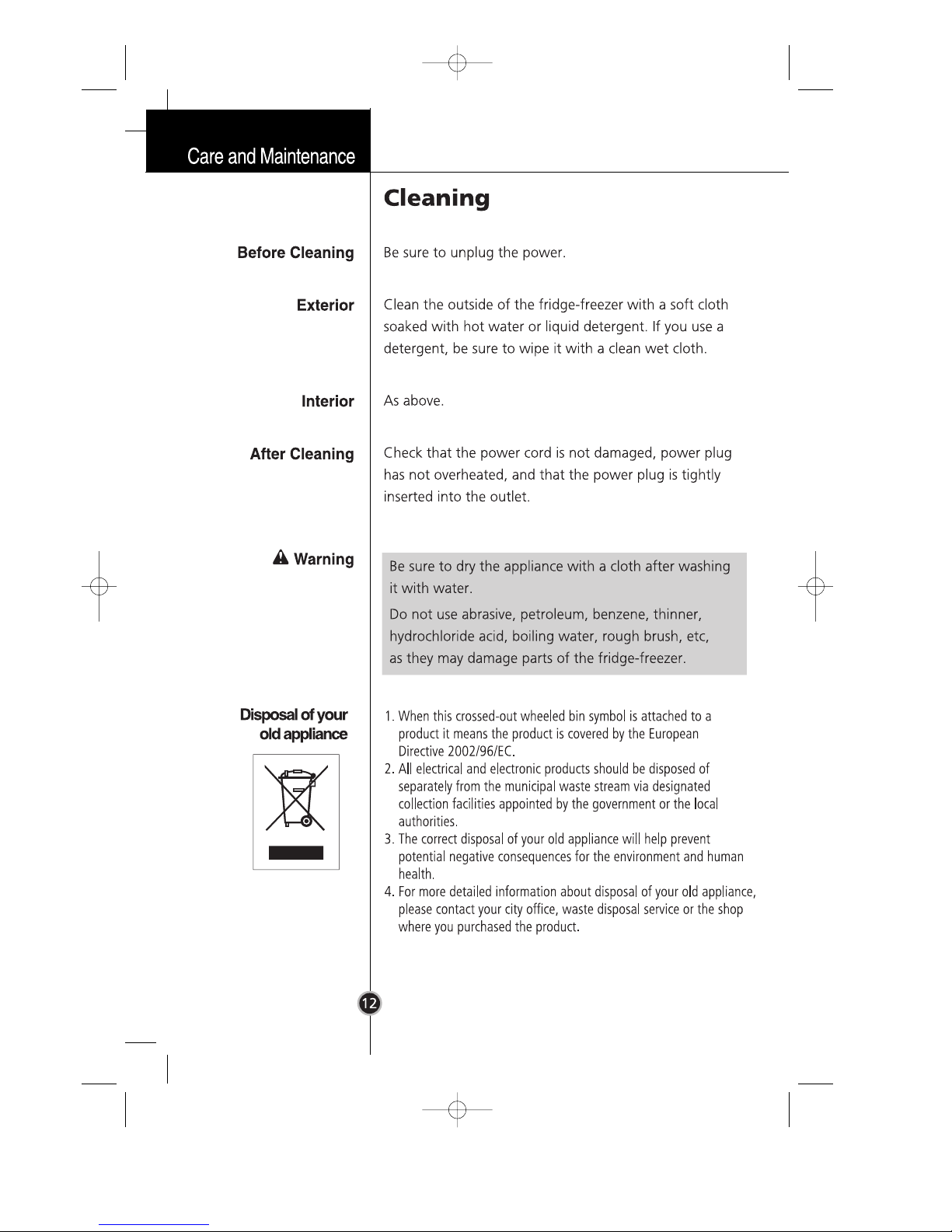

3828JD8178C(O/M)¿ ‡»` 02.3.154:47PM ˘`12

Trouble Shooting
13
Possible Causes
• Power plug may be unplugged from the electric
outlet.
Plug it in securely.
• House fuse has blown or circuit breaker has
tripped.
Check and/or replace fuse and reset circuit breaker.
• Power cut.
Check house lights.
• Temperature control not set on proper position.
Refer to Temperature Control section.
• Appliance is placed close to heat source.
• Warm weather-frequent door openings.
• Door left open for a long time.
• Package holding door open or blocking air duct in
freezer compartment.
• The floor on which the fridge-freezer is installed
may be uneven or the fridge-freezer may be
unstable.
Make it even by rotating the leveling screw.
• Unnecessary objects placed in the back side of the
fridge-freezer.
• Door may have been left ajar or package holding
door open.
• Too frequent or too long door openings.
• Frost within package is normal.
• This phenomenon is likely to occur in a wet space.
Wipe it with a dry towel.
Before calling for service, check this list.
It may save you both time and expense.
This list includes common occurrences that are not
the result of defective workmanship or materials in
this appliance.
Problem
Fridge-Freezer
does not operate
Fridge or Freezer
Compartment
Temperature too
warm
Vibration or
Rattling or
Abnormal Noise
Frost or Ice
Crystals on frozen
Food
Moisture forms on
Cabinet Surface
3828JD8178C(O/M)¿ ‡»` 02.3.154:47PM ˘`13

Trouble Shooting
14
Possible Causes
• Too frequent or too long door openings.
• In humid weather, air carries moisture into fridge when
doors are opened.
• Foods with strong odors should be tightly covered or
wrapped.
• Check for spoiled food.
• Interior needs cleaning.
Refer to CLEANING section
• Food package is keeping door open.
Move packages that keep door from closing.
• Fridge-freezer is not level.
Adjust the leveling screws.
• The floor on which the fridge-freezer is installed
may be uneven or the fridge-freezer may be
unstable.
Slightly raise the front side with the leveling screw.
• No power at outlet.
• Light lamp needs replacing.
Refer to the Lamp Replacement section
Problem
Moisture collects
inside
Fridge has odor
Door not closing
properly
Interior light does
not work
3828JD8178C(O/M)¿ ‡»` 02.3.154:47PM ˘`14

15
Enregistrement
Importantes instructions pour la sécurité
Identification des pièces
Installation
Mise en marche
Contrôle de la Température
Congélation rapide
Vacation
Self Test
Alerte de la porte
Faire les glaçons
Dégivrage
Conservation des aliments
Informations Générales
Remplacement Lampe
Nettoyage
Trouver les pannes
Thermomètre
Table des matières
Introduction
Installation
Opération
Suggestion sur la
Conservation des
Aliments
Soin et Entretien
Trouver les Pannes
Thermomètre
16
16
18
20
20
21
21
22
22
22
22
22
23
24
24
25
26
28

Introduction
16
Le modèle et le numéro de série se trouvent à l’arrière de
l’unité. Ce numéro est unique pour l’unité et ne se trouve
pas sur d’autres. Vous pouvez enregistrer ici les
informations nécessaires et conserver ce manuel comme
un enregistrement permanent de votre achat. Mettez ici
votre reçu.
Date d’achat :
Acheté auprès du vendeur :
Adresse du vendeur :
Numéro de téléphone du vendeur :
Modèle No. :
Série No. :
Importantes Instructions de
Sécurité
Ce réfrigérateur-congélateur doit être installé
correctement et placé selon les Instructions
d’installation avant d’être utilisé.
Ne débranchez jamais votre réfrigérateur
congélateur en tirant sur le câble d’alimentation.
Prenez fortement la fiche pour l’enlever de la prise.
Quand vous déplacez votre appareil, faites attention
à ne pas passer sur le câble d’alimentation et à ne
pas l’endommager.
Quand votre réfrigérateur-congélateur est en
marche, ne touchez pas les surfaces froides du
compartiment congélateur, surtout avec les mains
humides ou mouillées. La peau pourrait se coller à
ces surfaces extrêmement froides.
Enregistrement
Introduction
Précautions
3828JD8178W(O/M)”‡»` 02.3.195:5 PM ˘` 3
AVERTISSEMENT
Cet appareil ne doit pas être utilisé par des personnes (y
compris des enfants) souffrant de capacités physiques,
sensorielles ou mentales réduites, ou manquant d’expérience
et de connaissances, sauf sous la surveillance d’une personne
responsable de leur sécurité leur ayant indiqué comment
utiliser l’appareil.
Surveillez les enfants : ils ne doivent pas jouer avec l’appareil.

Introduction
17
Débranchez la fiche d’alimentation avant de nettoyer le
réfrigérateur-congélateur.
N’endommagez pas, ne pliez pas, ne tirez pas, ne tordes pas le câble
d’alimentation car un câble d’alimentation endommagé peut causer
un incendie ou une décharge électrique.
Ne mettez jamais des produits en verre dans le congélateur parce
qu’ils pourraient se casser quand leur contenu est congelé.
Si possible, branchez seulement le réfrigérateur-congélateur à une
prise électrique pour le protéger et pour protéger d’autres appareils
ou des lampes d’une surcharge.
Le réfrigérateur-congélateur doit être positioné pour que la prise
d'alimentation est accessible pour la déconnexion en cas d'accident.
Si la corde d'alimentation est endommagée, elle doit remplacée par
le fabricant ou par l'agent de service ou par quelqu'un qualifié
similaire pour éviter le hasard.
N’emmagasinez pas ou n’utilisez pas de l’essence ou d’autres produits
inflammables en proximité de cet appareil ou d’autres appareils.
Dans le cas d’un court-circuit électrique, la mise à terre réduit le risque de chocs
électriques en fournissant un câble de fuite au courant électrique. Pour prévenir
tout choc électrique, l’appareil doit être mis à terre.
Une utilisation impropre de la fiche de terre peut provoquer un choc électrique.
Consultez un électricien qualifié si vous n’avez bien compris les instructions de
mise à terre ou si vous avez quelques doutes sur le fait que l’appareil a été
correctement mis à terre.
Importantes Instructions de
Sécurité
Précautions
Ne pas Utiliser une
Rallonge
L'accessibilité de la
Prise d'alimentation
Remplacement de
la Corde
d'Alimentation
Danger
Ne pas Conserver
Mise à Terre
wwAvertissement
Risque d’enfermer un enfant.
Avant de jeter votre vieux réfrigérateur ou congélateur :
Enlevez les portes.
Laissez les étagères en place pour que les enfants ne
puissent pas se glisser facilement à l’intérieur.
wwGardez la ventilation ouverte, dans la clôture l'appareil ou
dans la structure encastrée évitant de l'obstruction.
wwN'utilisez pas les appareils mécaniques ou d'autres moyens
pour accélérer le procédé décongelant autre que ceux
recommandés par le fabricant.
wwN'endommagez pas le circuit réfrigérant.
wwN'utilisez pas les appareils électriques dans les
compartiments de l'emmagasinage d'aliment de l'appareil, à
moins qu'ils sont du type recommandé par le fabricant.
wwLe gaz soufflant de réfrigérant et d'insulation utilisé dans
l'appareil exige les procédés disponibles spéciaux. Lors de la
disposition, veuillez conférer avec l'agent de service ou une
personne qualifiée de même.

Introduction
18
Identification des Pièces
• Si vous avez trouvé quelques pièces pour votre
appareil, celles-ci pourraient être des pièces
utilisées sur d’autres modèles.
Tournant
Panier porte
Coin utile
(mobile)
Porte-
bouteilles
Bouteilles 2
Panier porte
Vis de
nivellement
Récipient
pour les oeufs
(1 ou 2)
Température congélateur
Contrôle
Amovible
Etagère pour verres
(2 ou 3)
Lampe
Conduit courant Multi-air
Zone fraîche
(Optionnel)
Réfrigérateur
Contrôle Température
Bac àlégumes
Utilisé pour conserver
fruits et légumes, etc.
frais et croustillants.
Barquette àglaçons
Congélateur
Compartiment
Amovible
Plinthe
Note

Introduction
19
1
ZONE FROIDE
Recommander à
maintenir moins de
MAX 4°C.
Votre réfrigérateur
n’est pas un simple
placard
Il existe UNE(1) ZONE DE FROID. En réglant
correctement votre réfrigérateur, vous pouvez obtenir les
zones de températures suivantes :
