LG 21FS2CLX User manual

P/NO : MFL31616408 b
COLOR TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : CW62B
MODEL: 21FS2CLX/21FS2BLX
MODEL: 21FS2CLX-ZV/21FS2BLX-ZV
website:http://biz.lgservice.com
Oct, 2006
Printed in China

- 2 -
CONTENTS
Contents ....................................................................................................2
Safety Precautions....................................................................................3
Control Descriptions ................................................................................4
Specifications............................................................................................7
Adjustment Instructions...........................................................................8

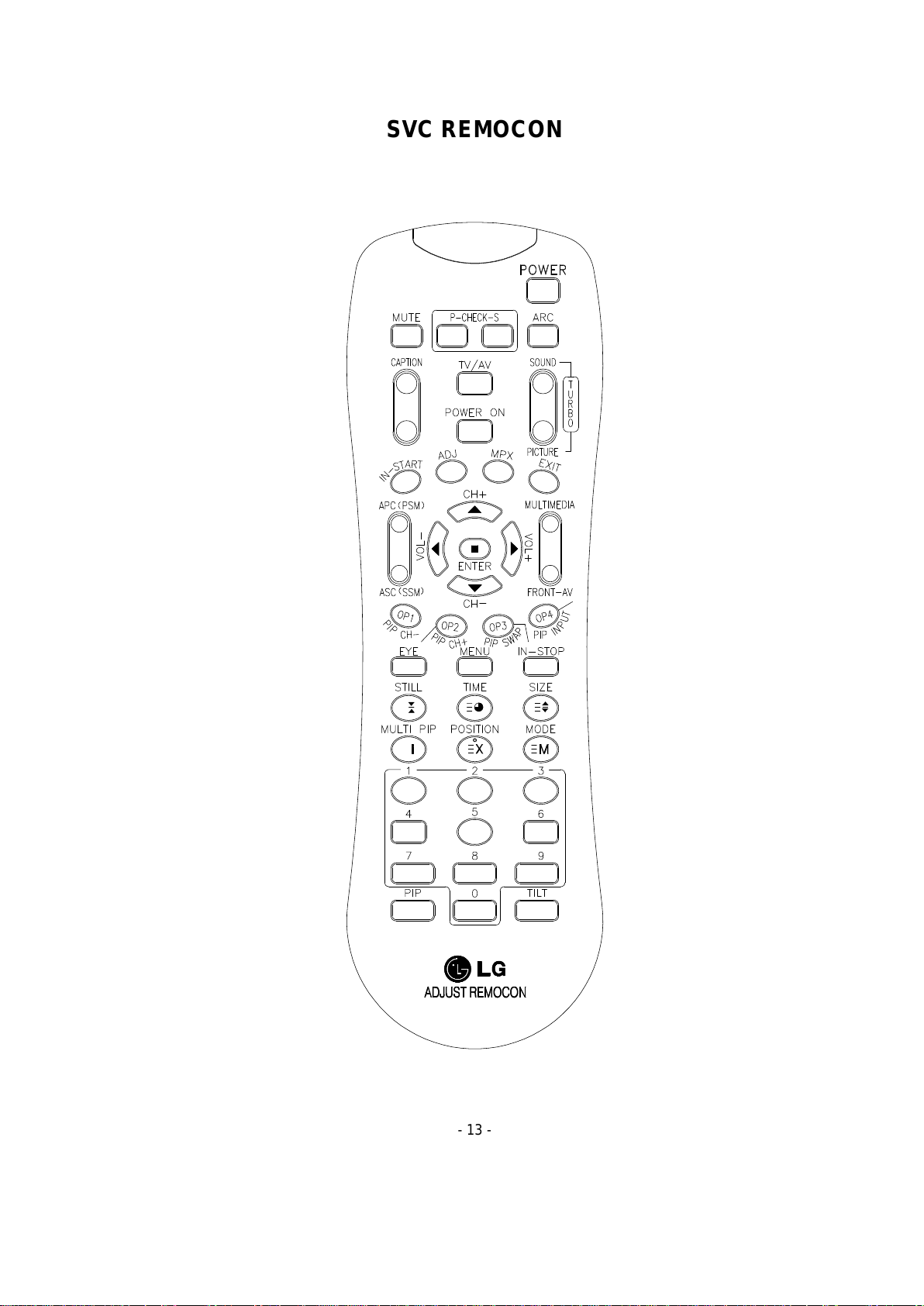

SVC Remocon.........................................................................................13
Trouble Shooting ....................................................................................14
Printed circuit board...............................................................................17
Block Diagram.........................................................................................19
Exploded View.........................................................................................19
Exploded View Parts List.......................................................................21
Replacement Parts List..........................................................................22
SVC. Sheet...................................................................................................

- 3 -
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Replacement Parts List.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Due to high vacuum and large surface area of picture tube,
extreme care should be used in handling the Picture Tube. Do not
lift the Picture tube by it's Neck.
X-RAY Radiation
Warning:
To determine the presence of high voltage, use an accurate high
impedance HV meter.
Adjust brightness, color, contrast controls to minimum.
Measure the high voltage.
The meter reading should indicate
23.5 ± 1.5KV: 14-19 inch, 26 ± 1.5KV: 19-21 inch,
29.0 ± 1.5KV: 25-29 inch, 30.0 ± 1.5KV: 32 inch
If the meter indication is out of tolerance, immediate service and
correction is required to prevent the possibility of premature
component failure.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩand 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
The source of X-RAY RADIATION in this TV receiver is the High
Voltage Section and the Picture Tube.
For continued X-RAY RADIATION protection, the replacement
tube must be the same type tube as specified in the
Replacement Parts List.
1.5 Kohm/10W
To Instrument’s
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF

- 4 -
All the functions can be controlled with the remote control handset.
Some functions can also be adjusted with the buttons on the front
panel of the set.
Remote control handset
Before you use the remote control handset, please install the bat-
teries. See the next page.
1. POWER
switches the set on from standby or off to standby.
2. NUMBER BUTTONS
Switches the set on from standby or directly select a number.
3. MENU
selects a menu.
4. D / E(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
scans programmes automatically.
F / G (Volume Up/Down)
adjusts the volume.
adjusts menu settings.
OK
accepts your selection or displays the current mode.
5. TELETEXT BUTTONS (option)
These buttons are used for teletext.
For further details, see the ‘Teletext’ section.
6. SLEEP
sets the sleep timer.
7. PIP BUTTONS (option)
PIP
switches the sub picture on or off.
PR +/-
selects a programme for the sub picture.
SWAP
alternates between main and sub picture.
INPUT
selects the input mode for the sub picture.
SIZE
adjusts the sub picture size.
STILL
freezes motion of the sub picture.
POSITION
relocates the sub picture in clockwise direction.
(With TELETEXT / PIP)
PR
PR
OK
VOL VOL
1
2
3
4
6
5
13
7
8
10
11
12
14
PR
PR
OK
VOL VOL
Q.VIEW LIST
UPDATE/ HOLD/
(With TELETEXT / Without PIP)
5
9
DESCRIPTION OF CONTROLS

- 5 -
8. FAVOURITE
selects a favorite programme.
9. EYE/*(option)
switches the eye function on or off.
10. MUTE
switches the sound on or off.
11. TV/AV
selects TV or AV mode.
switches the set on from standby.
exits the Teletext mode (option) .
12. I/II/*
selects the language during dual language broadcast.
selects the sound output (option).
13. Q.VIEW (or SWAP)
returns to the previously viewed programme.
14. LIST (or INPUT)
displays the programme table.
*: No function
COLOURED BUTTONS : These buttons are used for teletext (only
TELETEXT models) or programme edit.
(Without TELETEXT / PIP)
PR
PR
OK
VOL VOL
(With PIP / Without TELETEXT)
PR
PR
OK
VOL VOL
Q.VIEW LIST
1
2
3
4
13
6
9
10
11
8
14
7
12

- 6 -

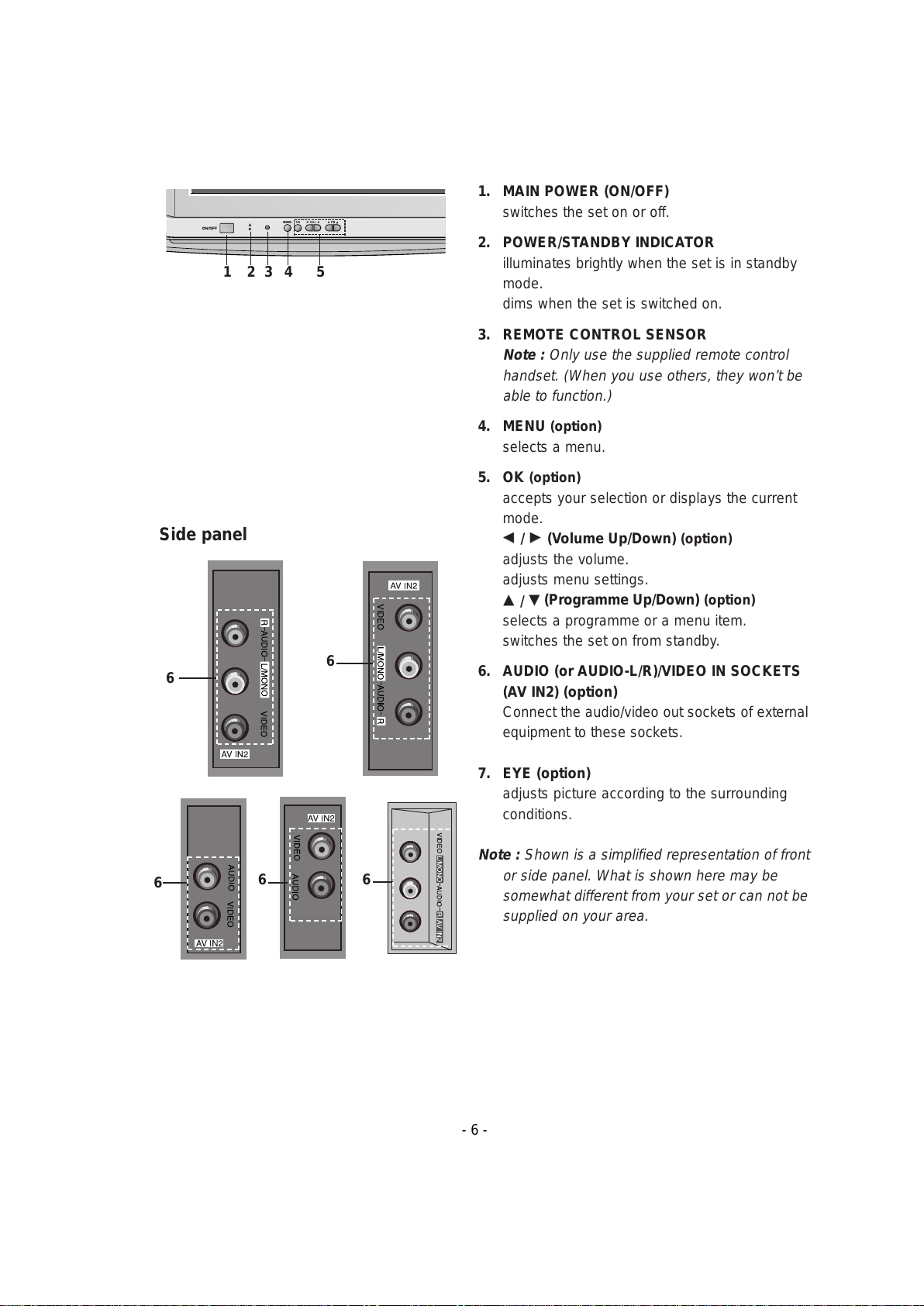

1. MAIN POWER (ON/OFF)
switches the set on or off.
2. POWER/STANDBY INDICATOR
illuminates brightly when the set is in standby
mode.
dims when the set is switched on.
3. REMOTE CONTROL SENSOR
Note : Only use the supplied remote control
handset. (When you use others, they won’t be
able to function.)
4. MENU (option)
selects a menu.
5. OK (option)
accepts your selection or displays the current
mode.
FF/ GG(Volume Up/Down) (option)
adjusts the volume.
adjusts menu settings.
DD/ EE(Programme Up/Down) (option)
selects a programme or a menu item.
switches the set on from standby.
6. AUDIO (or AUDIO-L/R)/VIDEO IN SOCKETS
(AV IN2) (option)
Connect the audio/video out sockets of external
equipment to these sockets.
7. EYE (option)
adjusts picture according to the surrounding
conditions.
Note : Shown is a simplified representation of front
or side panel. What is shown here may be
somewhat different from your set or can not be
supplied on your area.
Side panel
66
66
6
1 2 3 4 5

- 7 -

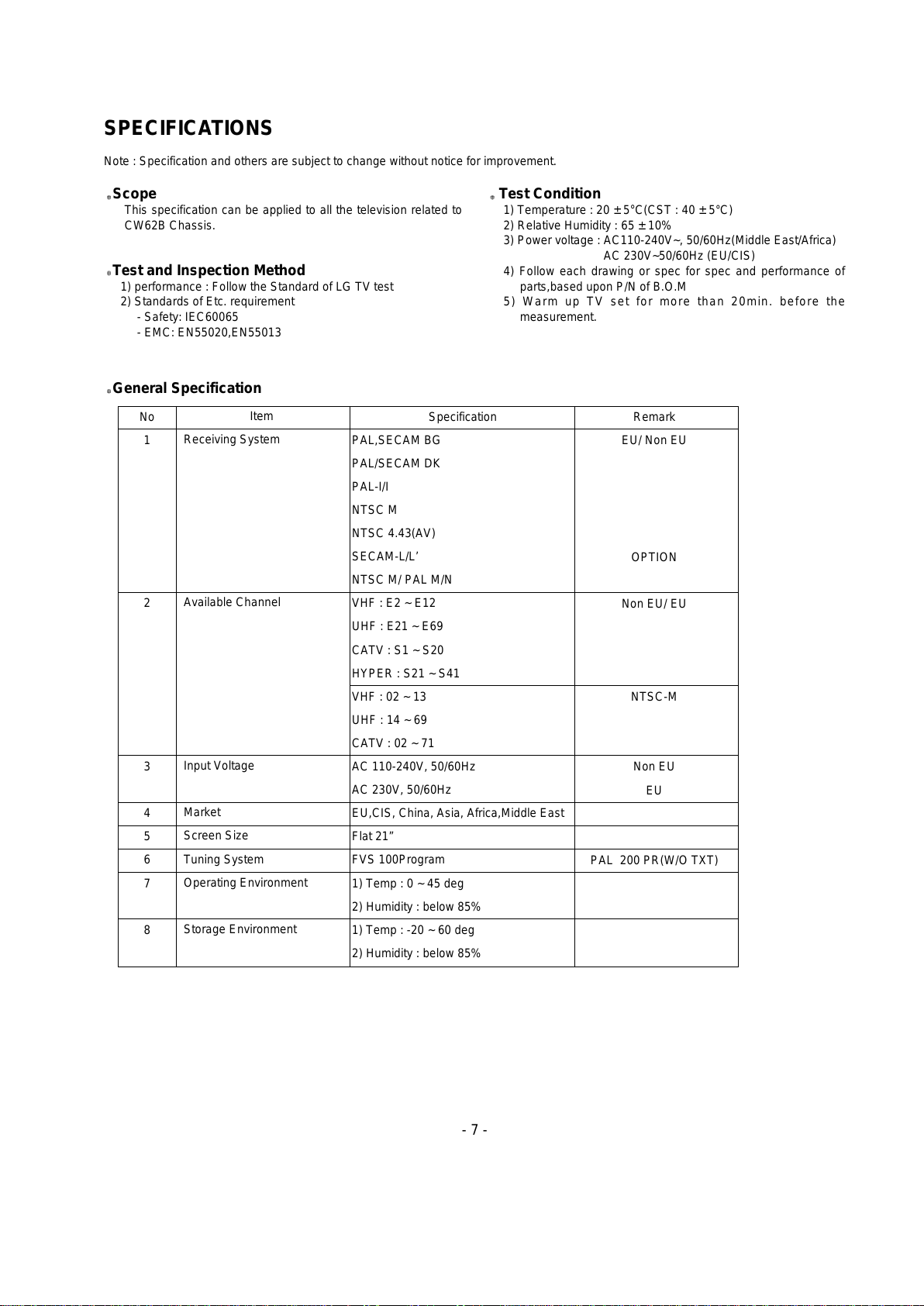

SPECIFICATIONS
Note : Specification and others are subject to change without notice for improvement.
O2@@6Khe
W2@@@@@@6Xh
7@@@@@@@@1h
?J@@@@@@@@@@L?g
?7@@@@@@@@@@1?g
?@@@@@@@@@@@@?g
?@@@@@@@@@@@@?g
?3@@@@@@@@@@5?g
?N@@@@@@@@@@H?g
3@@@@@@@@5h
V4@@@@@@0Yh
I4@@0Mhe
Scope
This specification can be applied to all the television related to
CW62B Chassis.
O2@@6Khe
W2@@@@@@6Xh
7@@@@@@@@1h
?J@@@@@@@@@@L?g
?7@@@@@@@@@@1?g
?@@@@@@@@@@@@?g
?@@@@@@@@@@@@?g
?3@@@@@@@@@@5?g
?N@@@@@@@@@@H?g
3@@@@@@@@5h
V4@@@@@@0Yh
I4@@0Mhe
Test and Inspection Method
1) performance : Follow the Standard of LG TV test
2) Standards of Etc. requirement
- Safety: IEC60065
- EMC: EN55020,EN55013
O2@@6Khe
W2@@@@@@6Xh
7@@@@@@@@1h
?J@@@@@@@@@@L?g
?7@@@@@@@@@@1?g
?@@@@@@@@@@@@?g
?@@@@@@@@@@@@?g
?3@@@@@@@@@@5?g
?N@@@@@@@@@@H?g
3@@@@@@@@5h
V4@@@@@@0Yh
I4@@0Mhe
Test Condition
1) Temperature : 20 ±5°C(CST : 40 ±5°C)
2) Relative Humidity : 65 ±10%
3) Power voltage : AC110-240V~, 50/60Hz(Middle East/Africa)
AC 230V~50/60Hz (EU/CIS)
4) Follow each drawing or spec for spec and performance of
parts,based upon P/N of B.O.M
5) Warm up TV set for more than 20min. before the
measurement.
No
1
2
3
4
5
6
7
8
Item
Receiving System
Available Channel
Input Voltage
Market
Screen Size
Tuning System
Operating Environment
Storage Environment
Remark
EU/ Non EU
OPTION
Non EU/ EU
NTSC-M
Non EU
EU
PAL 200 PR(W/O TXT)
Specification
PAL,SECAM BG
PAL/SECAM DK
PAL-I/I
NTSC M
NTSC 4.43(AV)
SECAM-L/L’
NTSC M/ PAL M/N
VHF : E2 ~ E12
UHF : E21 ~ E69
CATV : S1 ~ S20
HYPER : S21 ~ S41
VHF : 02 ~ 13
UHF : 14 ~ 69
CATV : 02 ~ 71
AC 110-240V, 50/60Hz
AC 230V, 50/60Hz
EU,CIS, China, Asia, Africa,Middle East
Flat 21”
FVS 100Program
1) Temp : 0 ~ 45 deg
2) Humidity : below 85%
1) Temp : -20 ~ 60 deg
2) Humidity : below 85%
O2@@6Khe
W2@@@@@@6Xh
7@@@@@@@@1h
?J@@@@@@@@@@L?g
?7@@@@@@@@@@1?g
?@@@@@@@@@@@@?g
?@@@@@@@@@@@@?g
?3@@@@@@@@@@5?g
?N@@@@@@@@@@H?g
3@@@@@@@@5h
V4@@@@@@0Yh
I4@@0Mhe
General Specification

1. Application Object
These instructions are applied to all of the color TV, CW62B.
2. Notes
(1) Because this is not a hot chassis, it is not necessary to use
an isolation transformer. However, the use of isolation
transformer will help protect test instrument.
(2) Adjustment must be done in the correct order.But the
adjustment can be changed by consideration of mass
production.
(3) The adjustment must be performed in the circumstance of
25±5°C of temperature and 65±10% of relative humidity if
there is no specific designation.
(4) The input AC voltage of the receiver must keep rating
voltage in adjusting.
(5) The receiver must be operated for about 20 minutes prior
to the adjustment.
(6) Signal: Received, the standard color signal.(65dB±1dB uV)
LG standard signal means the digital pattern
(PAL_EU 05CH,NTSC_US 13CH).
3. Focus adjustment
(1) Receive the Cross-Hatch Pattern(Fig 1).
(2) Set the picture condition on “DYNAMIC(CLEAR)” mode.
(3) Adjust the Focus volume of FBT,made the focus of the 1/4
part vertical line is best.
4. Purity & Convergence adjustment
Adjustment should be operated when using the CPT(without
ITC from CPT manufacturing place)
This adjustment must be done in the order of the following
flowchart.
4.1. Color purity adjustment
(1) It makes CPT or CABINET enough to demagnetization.
(2) Receive the signal of red raster.
(3) Unfasten DY and push DY to FUNNEL direction.
(4) Make R-Land be centered as cross Purity Magnet. That
time, 4 & 6 pole magnet should keep free gauss status.
(5) Make uniform RED Raster as moving DY,Check there is
purity problem or not on R/G/B,white Raster. Then fix screw
of DY.
(At this time, be careful about inclination and DY should be
fixed keeping horizontality.)
(6) Check the TV set in direction of EAST, WEST, SOUTH,
NORTH. Adjust with supporing MAGNET when adjustment
is not operated.
4.2. Convergence adjustment
These adjustments should be operaed at the best condition of
focus after finished purity adjustment.
(1) Receive the signal of cross hatch that BACK RASTER is
black.
(2) Adjust brightness so that there are 9 ~12 dots.
- 8 -
ADJUSTMENT INSTRUCTIONS
AB
<Fig. 1> Cross-Hatch Pattern (NTSC : US 09CH, PAL : E-7CH)
Assembling DY to
CPT
CPT Assembling
As preparatory operations before
assembling CPT, wind cotton Tape for
protecting to CPT NECK and DY, CPT
connection parts. At this moment, end
of tape should be over-lapped and
wound in direct route to the NECK.
Let the screen Standard condition.
Operate Heat-Run at least 15
minutes.
Torque is to be 9-11 kg f.cm when
fixing DY.
Fix the Magnet to the position as
shown picture below. Be careful not to
make CPT neck shadow while
adjusting DY.
HEAT RUN
Degaussing
STC Pre-Adjustment
PURITY Adjustment
DY Fixing
SCREEN Voltage adj.
W/B Fixing
FOCUS not yet ADJ.
STC not yet ADJ.
DYC not yet ADJ.
Convergence Magnet
15 ~ 20mm
¢‚
¢‚
6Pole 42

(3) Widen two tabs of 4pole Magnet with equal angles and
accord red,blue vertical lines at the center of screen.
(4) With keeping angle of "c.clause",rotate tab and accord
red/blue,green vertical lines at the center of screen.
(5) Widen two tabs of 6pole Magnet with equal angles and
accord red,bllue vertical lines at the center of screen.
(6) With keeping angle of "e.clause",repeat the adjustment
from c to e keeping in mind the movement of
red,blue,green when the horizontal lines are twisted.
(7) Move the DY up,down,left,right and make the convergence
to be optimal condition and stick rubber wedge to CPT so
that the DY not to move.
5. Screen voltage adjustment
SCREEN manual adjust method(Used the remote controller)
(1) RF Mode,input the PAL or SECAM(NTSC)singal,every
channel is OK.
(2) First LINE SVC MODE(IN-START KEY) and push the ADJ
KEY change to the SCREEN adjustment MODE.
(3) Adjust the SCREEN VOL of the FBT,then TV picture will
be have a horizontal line,manual adjust the FBT SCREEN
VOL,when the horizontal line just disappear is OK
(Press the TV/AV button to exit SVC mode)
6. White balance adjustment
(1) Receive 100% white pattern.
(2) From the initial data,adjust BLO-R(R CUT),BLO-G(G CUT)
keep X,Y coordinate settle for the below list,adjust the
LOW LIGHT(4.5FL).
(3) From the initial data:BG(B-DRIVE) is 32,adjust RG(R-
DRIVE),GG(G-DRIVE) keep X,Y coordinate settle for the
below list,adjust the HIGH LIGHT(35FL).
?
?
?
?
?
?
?
?
?
?
?
?W&?he?
?'6Xe?*@?eW2(?f?
?V')X??V'??W&(Y?f?
V')XfW&(Yg?
?V')X??W&(Y?g?
V')KO&(Yh?
W-X??V'@@(Y??W-Xf?
&@)?e?@@?e?&@)f?
?W&@@)X?h?
W&(MI')Xh?
?W&(Y??V')X?g?
W&(YfV')Xg?
?W&(Y??W&??V')X?f?
?&0Ye?*@?eV4)?f?
?V'?he?
?
?
?
?
?
?
?
HIGH LIGHT,LOW LIGHT adjust reiterative.
?
?
?
?
?
?
?
?
?
?
?
?W&?he?
?'6Xe?*@?eW2(?f?
?V')X??V'??W&(Y?f?
V')XfW&(Yg?
?V')X??W&(Y?g?
V')KO&(Yh?
W-X??V'@@(Y??W-Xf?
&@)?e?@@?e?&@)f?
?W&@@)X?h?
W&(MI')Xh?
?W&(Y??V')X?g?
W&(YfV')Xg?
?W&(Y??W&??V')X?f?
?&0Ye?*@?eV4)?f?
?V'?he?
?
?
?
?
?
?
?
W/B adjust initial data maybe difference by different
model,so please refer to the model adjust TABLE.
7. Deflection setting Data Adjustment
7.1 Adjustment preparation
(1) TV set to receive an Digital pattern(PAL:E5ch.,NTSC: US-
12).
(2) Deflection data setting used remote.
(3) press the LINE SVC MODE(IN-START KEY) into
SERVICE MENU,Choice SERVICE2 to adjustment mode.
(4) Press CH+,CH- KEY chooice adjust item.
(5) Press VOL+,VOL - KEY increase or decrease DATA.
7.2 Adjustment
(1) First,adjust deflection at 50Hz,of PAL signal.
then,adjust deflection at 60Hz, of NTSC signal.
(2) Korea Model only used the N60Hz,adjustment .
Adjust vertical inclination of screen.
(3) Central or South America Model first N60Hz adjustment
and then N50(PAL-N) adjustment.
(4) when finish the adjustment and press"ENTER" KEY,save
data andexit adjustment Mode.
?
?
?
?
?
?
?
?
?
?
?
?W&?he?
?'6Xe?*@?eW2(?f?
?V')X??V'??W&(Y?f?
V')XfW&(Yg?
?V')X??W&(Y?g?
V')KO&(Yh?
W-X??V'@@(Y??W-Xf?
&@)?e?@@?e?&@)f?
?W&@@)X?h?
W&(MI')Xh?
?W&(Y??V')X?g?
W&(YfV')Xg?
?W&(Y??W&??V')X?f?
?&0Ye?*@?eV4)?f?
?V'?he?
?
?
?
?
?
?
?
Deflection adjustment small item
(1) V SLOPE
The cutting part(below) of picture transfer to Blanking.
Adjust the geometric vertical center of the CPT is in accord
lower blanking.
(2) VS (Vertical Shift)
Adjust so that the horizontal center line of a digital circle
pattern is in accord with geometric horizontal center of the
CPT.
2. White balance IIC Parameter(Address)
Program
Sub Add
Start Bit
Stop Bit
Offset
Polarity
EP_Rom_S
B(R)_Amp
Win31_wb TWB
20
5
0
0
1
36
B(R)_Cut
Win31_wb TWB
17
5
0
0
1
33
G_Amp
Win31_wb TWB
21
5
0
0
0
37
- 9 -
Item EU N-EU
X
Y
Chroma
288
295
9000
268
273
13000
<Table 1> White Balance Coordinate(By market)
Menu
BLO-R(R CUT)
BLO-G(G CUT)
BLO-B(B CUT)
RG(R DRIVE)
GG(G DRIVE)
BG (B DRIVE)
LOW LIGHT
HIGH LIGHT
0 ~ 63
0 ~ 63
0 ~ 63
0 ~ 63
0 ~ 63
0 ~ 63
32
32
32
32
32
32
Range DATA
<Table 2> White Balance Initial Data
<Table 3> White Balance Initial Data
1. IC PARAMETER
VCD IC
EP_ROM 0 0 0 0
Name Maker Algorithm
Program
Vcd Slave
Win31_wb TWB
8A Eeprom_Slave
Win31_wb TWB
A0
Speed
1
Delay
30
G_Cut
Win31_wb TWB
18
5
0
0
0
34
Speed/ Plus 2 2 2 2
PAL
Menu NTSC
32
32
32
32
32
32

(3) VL (Vertical Linearity)
Adjust so that the boundary line between upper and lower
half is in accord with geometric horizontal center of the
CPT(PAL : E5ch., NTSC : US-13.).
(4) VA (Vertical Amplitude)
Adjust so that the circle of a digital circle pattern may be
located within the effective screen of the CPT.
?
?
?
?
?
?
?
?
?
?
?
?W&?he?
?'6Xe?*@?eW2(?f?
?V')X??V'??W&(Y?f?
V')XfW&(Yg?
?V')X??W&(Y?g?
V')KO&(Yh?
W-X??V'@@(Y??W-Xf?
&@)?e?@@?e?&@)f?
?W&@@)X?h?
W&(MI')Xh?
?W&(Y??V')X?g?
W&(YfV')Xg?
?W&(Y??W&??V')X?f?
?&0Ye?*@?eV4)?f?
?V'?he?
?
?
?
?
?
?
?
NTSC signal : Adjust NTSC 13CH circle as an inscribed
circle of vertical outer boundary of the effective screen of
the CPT.
(5) HS (Horizontal Shift)
Adjust so that the vertical center line of a digital circle
pattern is in accord with geometric vertical center of the
CPT
?@@?
?@@?
(6) EW (Horizontal Width)
Adjust to that a digital circle pattern looks like exact
circle.(PAL:0~25%,NTSC: 2.5~3.0)
(7) EP (East-west Parabolar)
Adjust so that middle portion of the outermost left and right
vertical line looks like parallel with vertical lines of the CPT.
(8) ET (East-west Trapezium)
Adjust to make the length of top horizontal line same with it
of the bottom horizontal line.
(9) EW UPCOR & EW LOCOR
Adjust until symmetrize upper&lower coner of the screen.
(10) BOW
Adjust the left and right crooked line on upper and lower
side.
(11) H ANGLE
Adjust the vertical slope
(12) S CORRECT (S CORRECTION)
Adjust the receive Patter, keep the lattice's range
same(Top/Center/Bottom)
?
?
?
?
?
?
?
?
?
?
?
?W&?he?
?'6Xe?*@?eW2(?f?
?V')X??V'??W&(Y?f?
V')XfW&(Yg?
?V')X??W&(Y?g?
V')KO&(Yh?
W-X??V'@@(Y??W-Xf?
&@)?e?@@?e?&@)f?
?W&@@)X?h?
W&(MI')Xh?
?W&(Y??V')X?g?
W&(YfV')Xg?
?W&(Y??W&??V')X?f?
?&0Ye?*@?eV4)?f?
?V'?he?
?
?
?
?
?
?
?
This decided by DY data,so according to the CPT's Default
data(Initial data) Setting.
(13) V SCROLL
Adjust the center vertical line of the geometrical with the
CPT center vertical line same.
(14) V ZOOM (fixed) : VERTICAL ZOOM.
(15) WBR (fixed) : Timing of wide Blanking
(16) WBF (fixed) : Timing of wide Blanking
(17) V SYNSLI (fixed) : Vertical slicing level
(18) OVRVOLIN (fixed) : Over voltage input mode
(19)V GUARD (fixed) : Vertical guard mode
8. initial data for deflection
<Table 4> Initial data for deflection by model (SERVICE 2)-PAL
?
?
?
?
?
?
?
?
?
?
?
?
?
O2@6K?h?
W2@@@@@6X?g?
7@@@@@@@1?g?
?J@@@@@@@@@Lg?
?7@@@@@@@@@1g?
?@@@@@@@@@@@g?
?3@@@@@@@@@5g?
?N@@@@@@@@@Hg?
3@@@@@@@5?g?
V4@@@@@0Y?g?
I4@0M?h?
?
?
?
?
?
?
?
?
?
After PAL50Hz adjustment for Pal mode,NTSC60Hz apply
deflection redress data,but you need confirm the
adjustment condition in NTSC System again,if it is no
good,you need readjust it in NTSC mode.
- 10 -

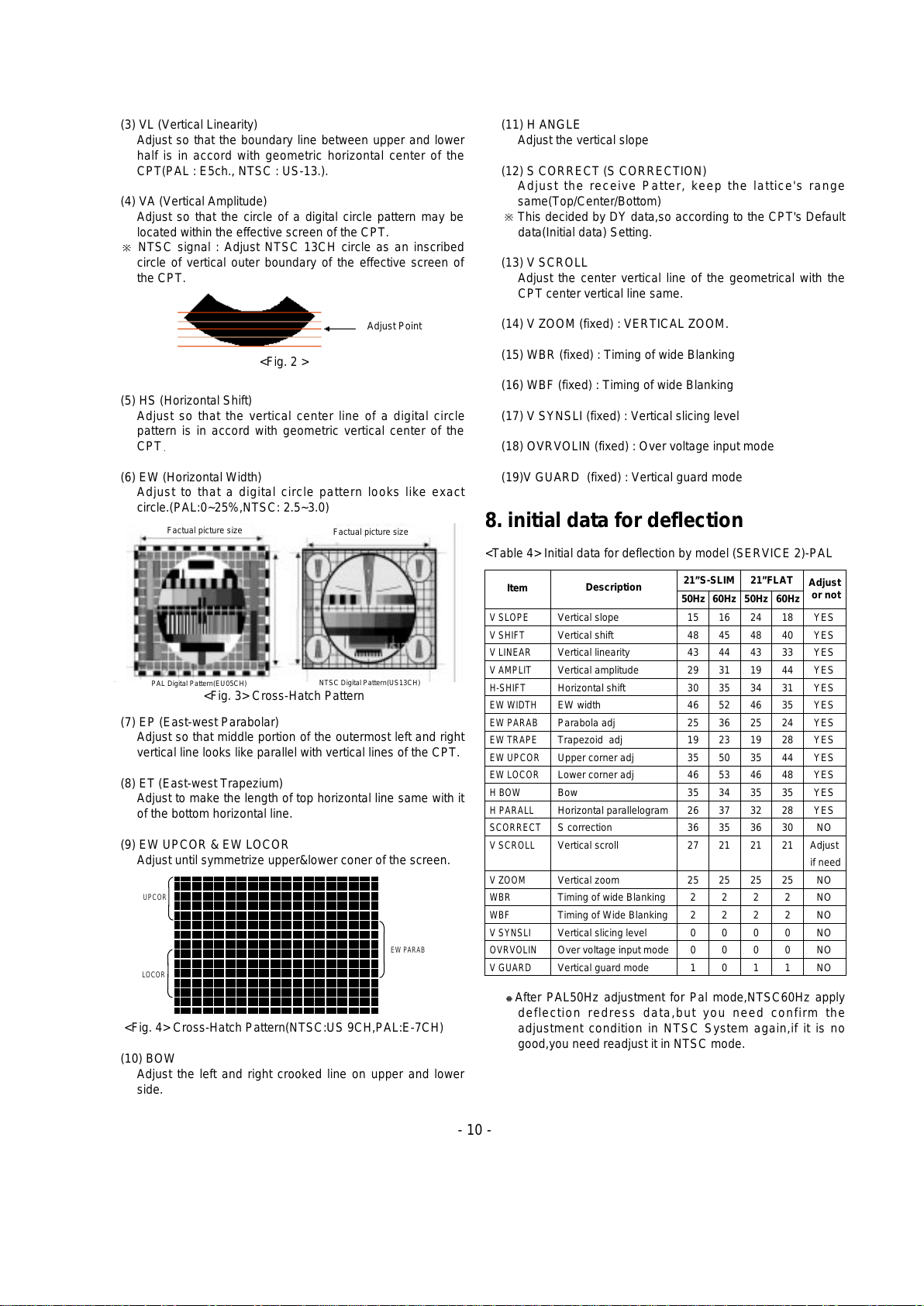

<Fig. 2 >
<Fig. 4> Cross-Hatch Pattern(NTSC:US 9CH,PAL:E-7CH)
UPCOR
LOCOR
EW PARAB
<Fig. 3> Cross-Hatch Pattern
Adjust Point
50Hz 60Hz
Item
V SLOPE
V SHIFT
V LINEAR
V AMPLIT
H-SHIFT
EW WIDTH
EW PARAB
EW TRAPE
EW UPCOR
EW LOCOR
H BOW
H PARALL
SCORRECT
V SCROLL
V ZOOM
WBR
WBF
V SYNSLI
OVRVOLIN
V GUARD
Vertical slope
Vertical shift
Vertical linearity
Vertical amplitude
Horizontal shift
EW width
Parabola adj
Trapezoid adj
Upper corner adj
Lower corner adj
Bow
Horizontal parallelogram
S correction
Vertical scroll
Vertical zoom
Timing of wide Blanking
Timing of Wide Blanking
Vertical slicing level
Over voltage input mode
Vertical guard mode
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
NO
Adjust
if need
NO
NO
NO
NO
NO
NO
Description 21”S-SLIM Adjust
or not
15
48
43
29
30
46
25
19
35
46
35
26
36
27
25
2
2
0
0
1
16
45
44
31
35
52
36
23
50
53
34
37
35
21
25
2
2
0
0
0
50Hz 60Hz
21”FLAT
24
48
43
19
34
46
25
19
35
46
35
32
36
21
25
2
2
0
0
1
18
40
33
44
31
35
24
28
44
48
35
28
30
21
25
2
2
0
0
1
Factual picture size
Factual picture size
PAL Digital Pattern(EU05CH) NTSC Digital Pattern(US13CH)

9. SVC DEFAULT DATA
(manage DATA by EEPROM MASTER)
[Table 5] SERVICE 1
[Table 6] SERVICE 3
[Table 7] SERVICE 4
[Table 8] option 1,2,3,4
- 11 -
OPTION1
OPTION2
OPTION3
OPTION4
OPTION5
ITEM
INCH
SYSTEM
200PR
TOP
ACMS
CH-AU
BOOSTER
SOUND
PIP
RESERVED
VOL CURVE
A2 STEREO
I/II SAVE
HIDEVIAT
SCART
DVD
XWAVE
EYE
4KEY
TILT
DEGAUSS
OSD LANG
TXT LANG
REMOCON
HOTEL
TURBOSCH
TURBOP/S
BLUEBACK
TEXT
Description
Flat/slim/ultra/Conventional
BG/DK/I/M - no EU, BG/DK/I/L - EU
W/O TXT=>200PR,W/TXT=>100PR
FLOF - other Nation
TOP - Germany, Swiss, Austria, Italy
Off - Australia only/ On - other Area
China & Australia Frequency table
Booster off/on
RF stereo / AV stereo / Mono Dual
PIP option
Reserved option
Eu low curve/ Non EU high Curve
Nicam check & FM stereo/ Dual act or not
Dual soung setting save or not
Sound high deviation apply
countermeasure or not SCART option
DVD option
FM TX option
EYE option
4 Key option
TILT option
Degaussing option
Refer to the next page(table.8)
Refer to the next page(table.8)
Large type Remocon / Small type Remocon
HOTEL option
Turbo search
Turbo picture/ sound
Blue back option
Teletext option
ITEM
WS
BKS
BSD
DSK
COR
PF
RPO
RPA
PWLDAC
IFOFF
CHSE
ACL
CLPDEL50
CLPDEL60
CLPLEN
CLMPID
PIP H
N-EU
1
1
0
1
2
2
2
2
8
37
1
1
18
18
3
3
10
EU
1
1
0
1
2
0
2
2
8
37
1
1
-
-
-
-
-
Refer
PIP data
Description
WHITE STRETCH
BLACK STRETCH
BLACK STRATCH DEPTH
DYNAMIC SKIN CONTROL
VIDEO DEPENDENT CORING
PEAKING FREQUENCY DELAY
RATION POSITIVE/
NEGATIVE PEAKS
RATION PRE/AFTER SHOOT
PEAK WHITE LIMITER DAC
IF DEMODULATIOR
CHROMA SENSITIVITY
AUTO COLOR LIMITING
Clamping delay 50
Clamping delay 60
Clamping Pulse Length
Clamping Duration
PIP H position
25
32
32
32
32
32
8
2
13
27
AGC
RG
GG
BG
BLO-R
BLO-G
CDL
L-DLY PA
L-DLY SE
RGB-BRI
ITEM DESCRIPTION
ACG take over
Red Gain
Green Gain
Blue Gain
Black level offset Red
Black level offset Green
Cathode Drive Level
Luminance delay time for PAL
Luminance delay time for secam
OSD/TEXT BRIGHTNESS
CW62B
25
32
32
32
32
32
8
2
13
27
N-EU EU
OVMADAPT
OVMTHR
ADC LEV
DEC LEV
MONO LEV
NICAMLEV
FILTBW
BAMA FC
AUX3 VOL
FMWINDOW
BOOSTVAL
MAX VOL
DCXO VAL
DCXOA
TEXT-V
TEXT-H
ITEM DESCRIPTION
OVER MODULATION ADAPT
OVER MODULATION
THRESHOLD
ADC LEVEL(-16~15)-ADCLEV
DEC LEVEL(-16~15)-DECLEV
MONO LEVEL
(-16~-15)MONLEV
NICAM LEVEL(-16~15)-NICEV
FILTER BANDWIDTH
BAMA FC
AUX3 VOL
(SCART1 RF SOUND OUT)
FM WINDOW FILTER(FMWS)
BOOSTER
MAX VOLUME
DCXO
DCXO
TEXT V POSITION
TEXT H POSITION
CW62B
1
1
16
18
18
22
0
60
84
1
0
100
50
0
40
4
1
1
16
18
18
22
0
60
89
1
0
100
50
0
40
4
FM pre-scaler
(stereo L/R)
FM pre-scaler
(Mono)
NICAM pre-scaler
Scart pre-scaler
EU NEU Remark

- 12 -

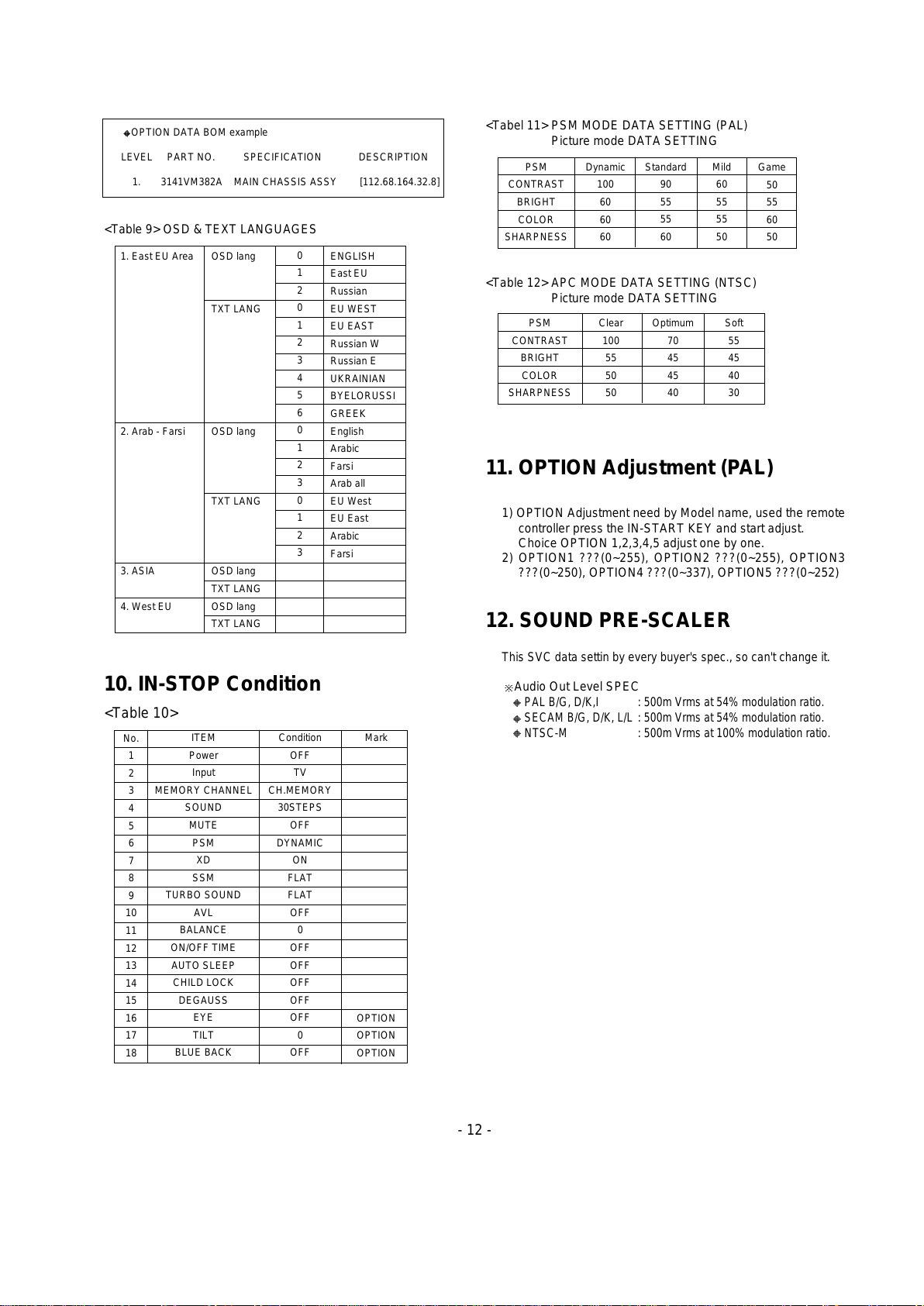

<Table 9> OSD & TEXT LANGUAGES
OSD lang
TXT LANG
OSD lang
TXT LANG
OSD lang
TXT LANG
OSD lang
TXT LANG
0
1
2
0
1
2
3
4
5
6
0
1
2
3
0
1
2
3
ENGLISH
East EU
Russian
EU WEST
EU EAST
Russian W
Russian E
UKRAINIAN
BYELORUSSI
GREEK
English
Arabic
Farsi
Arab all
EU West
EU East
Arabic
Farsi
1. East EU Area
2. Arab - Farsi
3. ASIA
4. West EU
10. IN-STOP Condition
<Table 10>
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
ITEM
Power
Input
MEMORY CHANNEL
SOUND
MUTE
PSM
XD
SSM
TURBO SOUND
AVL
BALANCE
ON/OFF TIME
AUTO SLEEP
CHILD LOCK
DEGAUSS
EYE
TILT
BLUE BACK
Condition
OFF
TV
CH.MEMORY
30STEPS
OFF
DYNAMIC
ON
FLAT
FLAT
OFF
0
OFF
OFF
OFF
OFF
OFF
0
OFF
Mark
OPTION
OPTION
OPTION
?
?
?
?
?
?
?
?
?
?
?
?
?
?W&?he?
W&@Lhe?
?W&@@)X?h?
W&@@@@)Xh?
?W&@@@@@@)X?g?
W&@@@@@@@@)Xg?
?O&@@@@@@@@@@)K?f?
'@@@@@@@@@@@@@@(f?
V'@@@@@@@@@@@@(Yf?
?V'@@@@@@@@@@(Y?f?
V'@@@@@@@@(Yg?
?V'@@@@@@(Y?g?
V'@@@@(Yh?
?V'@@(Y?h?
V'@Hhe?
?V'?he?
?
?
?
?
OPTION DATA BOM example
LEVEL PART NO. SPECIFICATION DESCRIPTION
1. 3141VM382A MAIN CHASSIS ASSY [112.68.164.32.8] PSM
CONTRAST
BRIGHT
COLOR
SHARPNESS
Dynamic
100
60
60
60
Standard
90
55
55
60
Mild
60
55
55
50
Game
50
55
60
50
11. OPTION Adjustment (PAL)
1) OPTION Adjustment need by Model name, used the remote
controller press the IN-START KEY and start adjust.
Choice OPTION 1,2,3,4,5 adjust one by one.
2) OPTION1 ???(0~255), OPTION2 ???(0~255), OPTION3
???(0~250), OPTION4 ???(0~337), OPTION5 ???(0~252)
12. SOUND PRE-SCALER
This SVC data settin by every buyer's spec., so can't change it.
?
?
?
?
?
?
?
?
?
?
?
?W&?he?
?'6Xe?*@?eW2(?f?
?V')X??V'??W&(Y?f?
V')XfW&(Yg?
?V')X??W&(Y?g?
V')KO&(Yh?
W-X??V'@@(Y??W-Xf?
&@)?e?@@?e?&@)f?
?W&@@)X?h?
W&(MI')Xh?
?W&(Y??V')X?g?
W&(YfV')Xg?
?W&(Y??W&??V')X?f?
?&0Ye?*@?eV4)?f?
?V'?he?
?
?
?
?
?
?
?
Audio Out Level SPEC
?
?
?
?
?
?
?
?
?
?
?
W&he?
?W&@L?h?
W&@@)Xh?
?W&@@@@)X?g?
W&@@@@@@)Xg?
?W&@@@@@@@@)X?f?
W&@@@@@@@@@@)Kf?
7@@@@@@@@@@@@@(?e?
3@@@@@@@@@@@@(Y?e?
V'@@@@@@@@@@(Yf?
?V'@@@@@@@@(Y?f?
V'@@@@@@(Yg?
?V'@@@@(Y?g?
V'@@(Yh?
?V'@H?h?
V'he?
?
?
?
?
?
?
PAL B/G, D/K,I : 500m Vrms at 54% modulation ratio.
?
?
?
?
?
?
?
?
?
?
?
W&he?
?W&@L?h?
W&@@)Xh?
?W&@@@@)X?g?
W&@@@@@@)Xg?
?W&@@@@@@@@)X?f?
W&@@@@@@@@@@)Kf?
7@@@@@@@@@@@@@(?e?
3@@@@@@@@@@@@(Y?e?
V'@@@@@@@@@@(Yf?
?V'@@@@@@@@(Y?f?
V'@@@@@@(Yg?
?V'@@@@(Y?g?
V'@@(Yh?
?V'@H?h?
V'he?
?
?
?
?
?
?
SECAM B/G, D/K, L/L : 500m Vrms at 54% modulation ratio.
?
?
?
?
?
?
?
?
?
?
?
W&he?
?W&@L?h?
W&@@)Xh?
?W&@@@@)X?g?
W&@@@@@@)Xg?
?W&@@@@@@@@)X?f?
W&@@@@@@@@@@)Kf?
7@@@@@@@@@@@@@(?e?
3@@@@@@@@@@@@(Y?e?
V'@@@@@@@@@@(Yf?
?V'@@@@@@@@(Y?f?
V'@@@@@@(Yg?
?V'@@@@(Y?g?
V'@@(Yh?
?V'@H?h?
V'he?
?
?
?
?
?
?
NTSC-M : 500m Vrms at 100% modulation ratio.
<Tabel 11> PSM MODE DATA SETTING (PAL)
Picture mode DATA SETTING
<Table 12> APC MODE DATA SETTING (NTSC)
Picture mode DATA SETTING
PSM
CONTRAST
BRIGHT
COLOR
SHARPNESS
Clear
100
55
50
50
Optimum
70
45
45
40
Soft
55
45
40
30

- 13 -
SVC REMOCON

TROUBLE SHOOTING
- 14 -
1. RF-STEREO MODEL
1) PICTURE OK / NO SOUND
Check/ Replace TU101 or Input signal
NO
OK
Selected correct system in menu
Check the waveform IF 1 of TU101
Check the voltage at pin 3, 9, 16, 43,
86, 88, 90 of UOCIII
NO Check/ Replace IC11
NO
Check the voltage at pin 57, 58 of
UOCIII
NO
OK
Check the waveform at pin 4, 5 of IC11
OK
Check the waveform at pin 4, 12 of
IC601
Check/ Replace Q603
NO
OK
Check the waveform at pin 6 of IC601
Check/ Replace IC601
NO
OK
Check the waveform at pin 1, 2, 14, 15
of IC601
Check/ Replace R823, D826
Check the Heater voltage of
CPT(6~6.4 Vrms)
Check R, G, B out of CPT board
Check IC901,
P402A
Check 190V line of CPT Board &
if no problem check and Replace
Check the Heater pulse of FBT T402
Check RF901, P903C,
P903B, FR401 Check FBT T402
Check HV, Screen voltage of CPT
Check FBT T402
NO
OK
Check the waveform at pin 3, 13 of
IC601
2) No Raster / Sound OK(1/2)

- 15 -
3) No Raster (2/2)

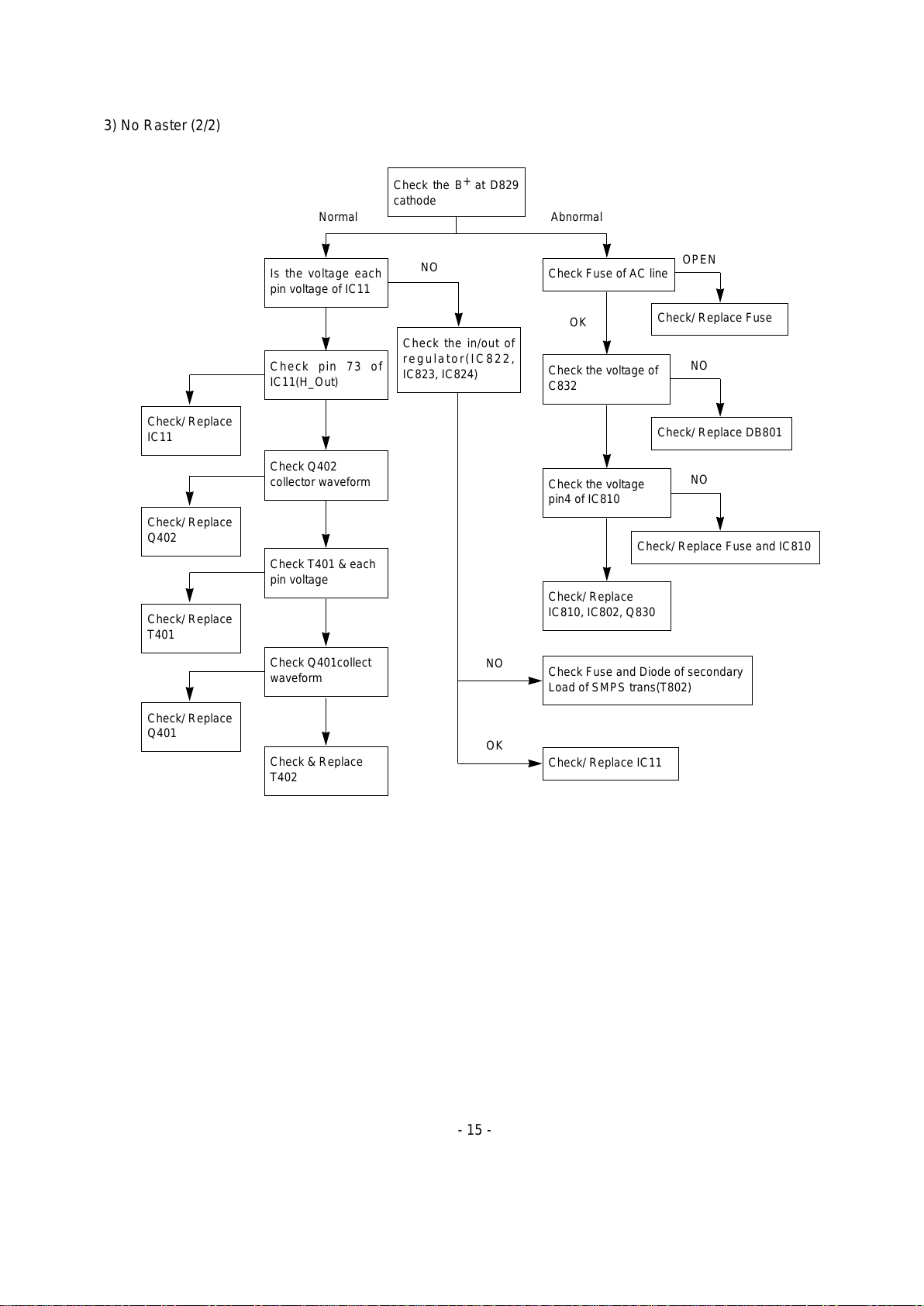

Check the in/out of
regulator(IC822,
IC823, IC824)
Check pin 73 of
IC11(H_Out) Check the voltage of
C832
Check/ Replace Fuse
Is the voltage each
pin voltage of IC11 Check Fuse of AC line
Check/ Replace
IC11
Check T401 & each
pin voltage
Check Q401collect
waveform
Check & Replace
T402
Check the voltage
pin4 of IC810
Check/ Replace
IC810, IC802, Q830
Check Fuse and Diode of secondary
Load of SMPS trans(T802)
Check the B+at D829
cathode
OPEN
Check/ Replace DB801
NO
Check/ Replace Fuse and IC810
NO
OK
NO
Normal Abnormal
Check/ Replace
Q402
Check/ Replace
T401
Check/ Replace
Q401
Check Q402
collector waveform
Check/ Replace IC11
NO
OK

- 16 -

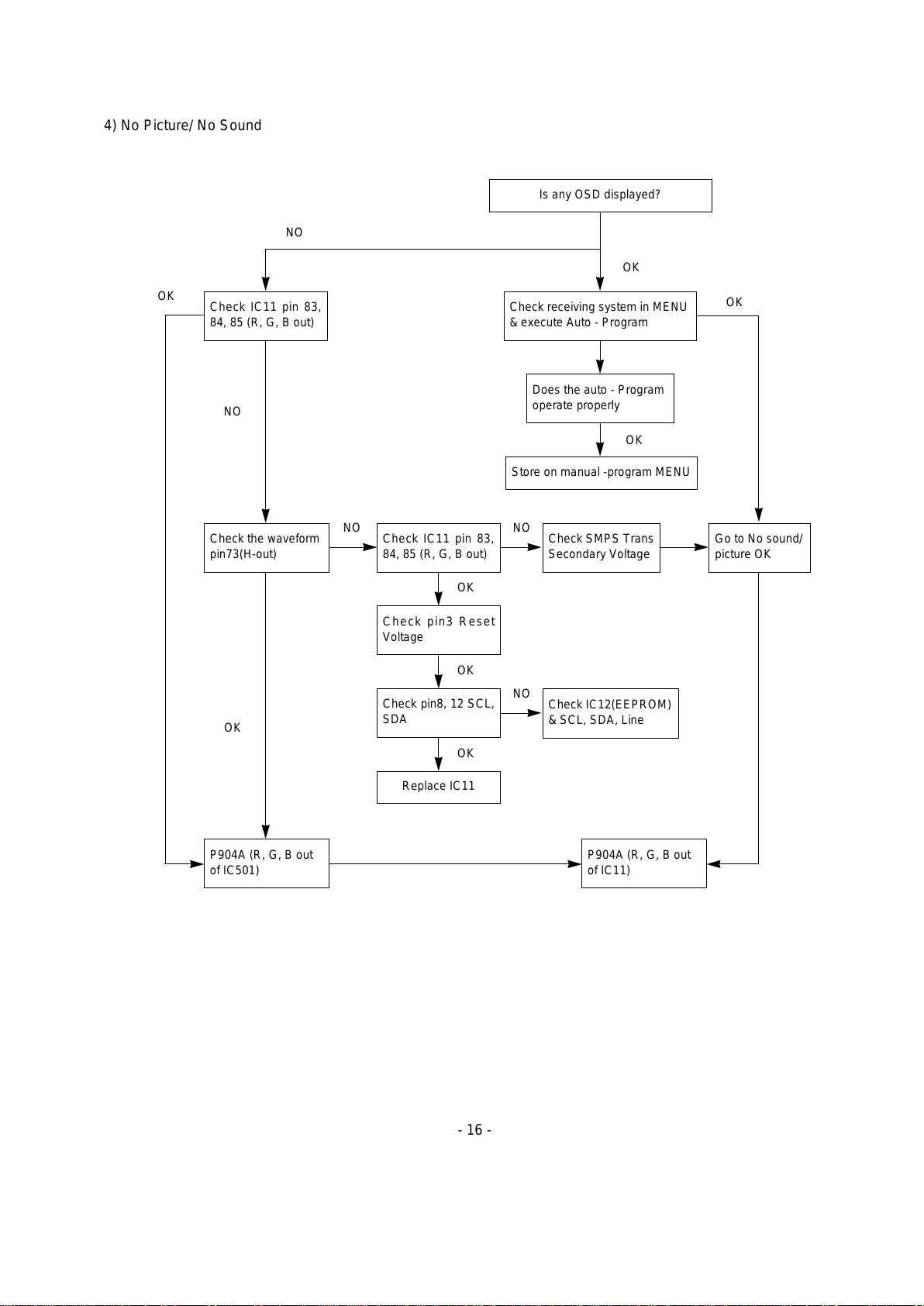

4) No Picture/ No Sound
Is any OSD displayed?
OK
NO
NO
OK
OK
NO NO
OK
OK
NO
OK
OK
OK
P904A (R, G, B out
of IC501) P904A (R, G, B out of IC11)
Replace IC11
Check pin8, 12 SCL,
SDA Check IC12(EEPROM)
& SCL, SDA, Line
Check pin3 Reset
Voltage
Check IC11 pin 83,
84, 85 (R, G, B out) Check SMPS Trans Secondary Voltage Go to No sound/ picture OK
Check the waveform
pin73(H-out)
Check IC11 pin 83,
84, 85 (R, G, B out) Check receiving system in MENU & execute Auto - Program
Does the auto - Program
operate properly
Store on manual -program MENU

- 17 -

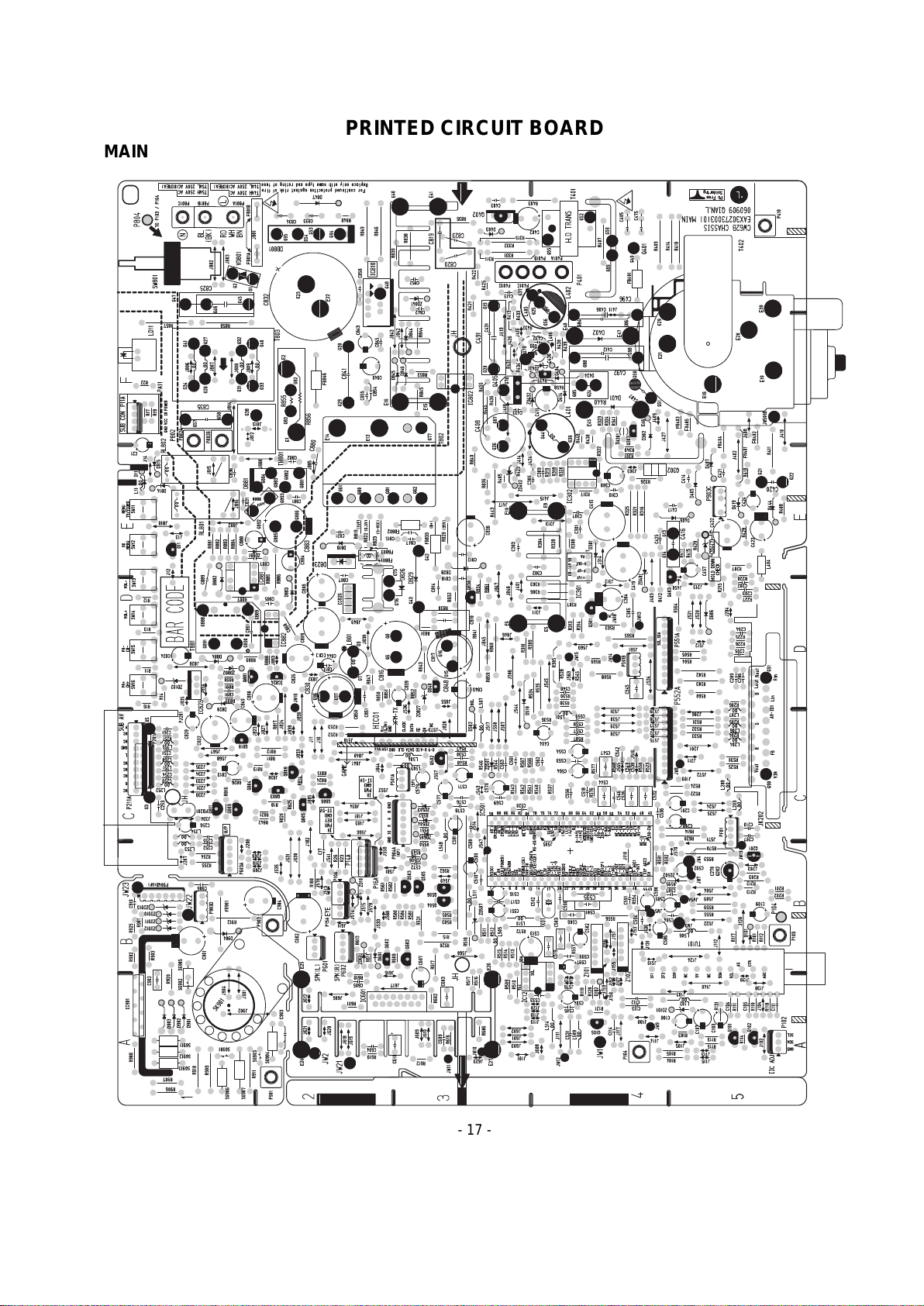

PRINTED CIRCUIT BOARD
MAIN

- 18 -

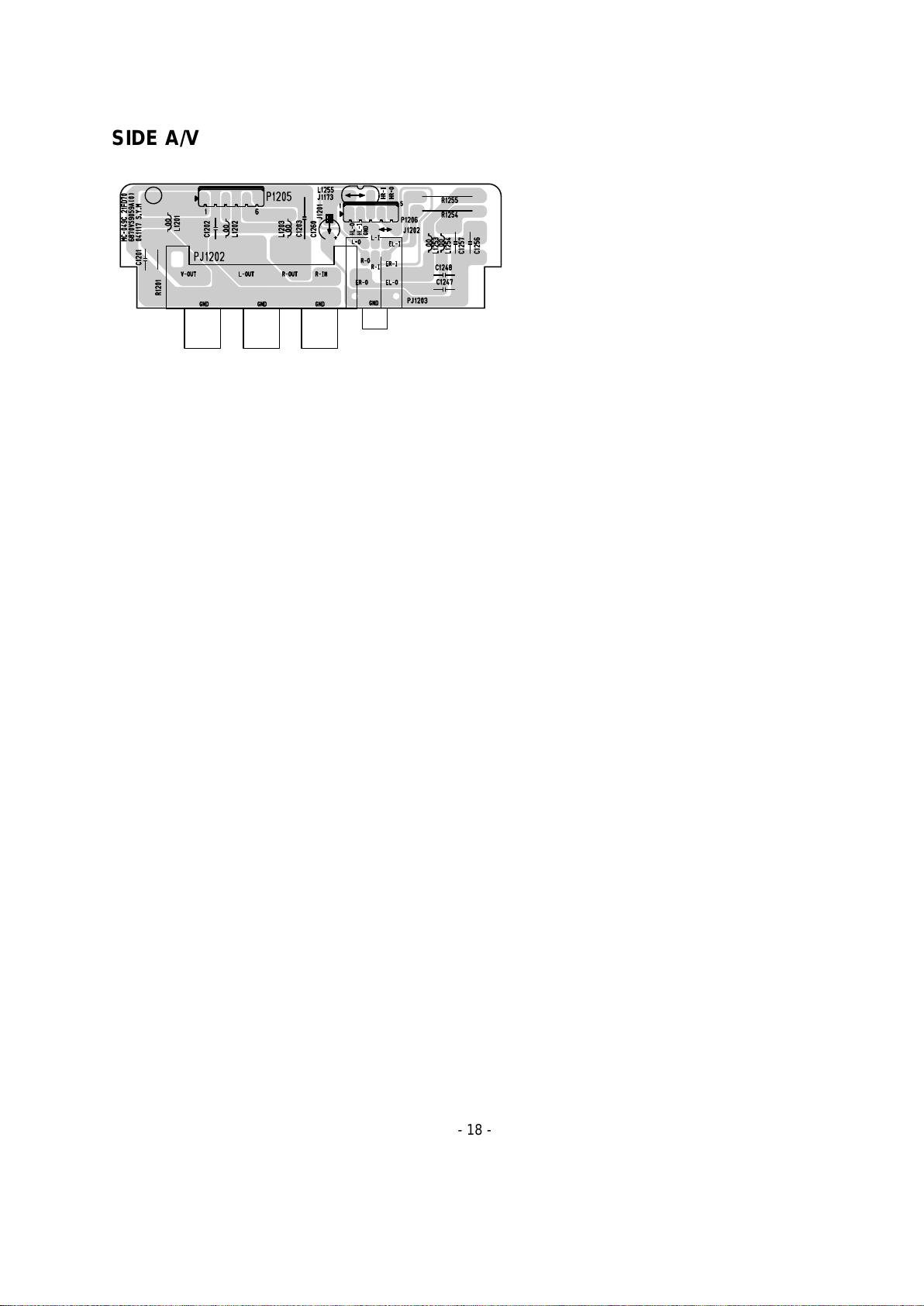

SIDE A/V

- 19 -
BLOCK DIAGRAM

- 20 -
EXPLODED VIEW
112
913
170
943 400
300
520
174
330
310
320 600
121
120
105
150
