LG 26LH1DC1 Installation guide

26LH1DC1
Please read this manual carefully before operating
your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and quote
this information to your dealer when you require
service.

WARNING TmON
This reminder is provided to call the CATV system installer's
attention to Article 820-40 of the National Electric Code
(U.S.A.). The code provides guidelines for proper
grounding and, in particular, specifies that the cable ground
shall be connected to the grounding system of the building,
as close to the point of the cable entry as practical.
IT IS FORBIDDEN TO CONNECT THIS TV
TO ANY TELECOMMUNICATION
NETWORK /TELEPHONE.
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference when the equipment is
operated in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures:
o Reorient or relocate the receiving antenna.
o Increase the separation between the equipment and
receiver.
o Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
o Consult the dealer or an experienced radio/TV
technician for help.
Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
THE PARTY RESPONSIBLE FOR PRODUCT
COMPLIANCE
(LG Electronics U.S.A., Inc.,)
(2000 Millbrook Drive)
(TELEPHONE NO:I-847-941 -8000)
2

Do not attempt to modify this product in any way
without written authorization from LG Electronics
Corporation.
Unauthorized modification could void the user's
authority to operate this product.
Apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases, shall not be placed on the apparatus.
THESE SERVICING INSTRUCTIONS ARE FOR USE BY
QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE
THE RISK OF ELECTRIC SHOCK, DO NOT PERFORM
ANY SERVICING OTHER THAN THAT CONTAINED
IN THE OPERATING INSTRUCTIONS UNLESS YOU
ARE QUALIFIED TO DO SO.
1. Do not put this product next to the patient's bed
where it can be reached by the patient.
2. Install product in such a way that patients will not
be able to touch this product.
3. This product should only be mounted on a wall.
When used outside of the U.S., it may be used HAR
cord with fitting of an approved agency is employed.
(When used outside of U.S., other power supply cords
may be used if the cord is approved by the local
regulating agency.)
Clean the exterior of this television by removing dust
with a lint-free cloth.
CAUTION: To avoid damage to the surface of the
television, do not use abrasive or chemical cleaning
agents.
Main plug is the disconnecting device. The plug must
remain readily operable.
YOUR PRODUCT HAS BEEN MANUFACTURED AND TESTED WITH YOUR SAFETY IN MIND. HOWEVER,
IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARDS. TO AVOID DEFEATING
THE SAFEGUARDS THAT HAVE BEEN BUILT INTO YOUR NEW PRODUCT, PLEASE READ AND OBSERVE THE
FOLLOWING SAFETY POINTS WHEN INSTALLING AND USING YOUR NEW PRODUCT, AND SAVE THEM FOR
FUTURE REFERENCE. OBSERVING THE SIMPLE PRECAUTIONS DISCUSSED IN THIS MANUAL CAN HELP YOU
GET MANY YEARS OF ENJOYMENT AND SAFE OPERATION THAT ARE BUILT INTO YOUR NEW PRODUCT.
3

SAFETY [NST S
IMPORTANT SAFETYINSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
Z Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or
the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
PORTABLE CART WARNING
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in
any way, such as power-supply cord or plug is damaged, liquid has been spilled or object have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
4
Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded
so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National
Electrical Code (U.S.A.), ANSI/NFPA 70 provides information with regard to proper grounding of the mast and
supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors,
location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding
electrode.
Example of Grounding According to National Electrical Code Instructions
Ground Clamp
Antenna Lead in Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductor
(NEC Section 810-21 )
Ground Clamps
Power Service Groumding
-.I_ 11_ I Electrode System (NEC
Art 250, Part H)
NEC - National Electrical Code

CONTENTS
WARNING /CAUTION ........................... 2
SAFETY INSTRUCTIONS ........................ 4
CONTENTS ............................................ S
Accessories ................................................. 6
Front Panel Information ............................... 7
Back Panel Information ................................ 8

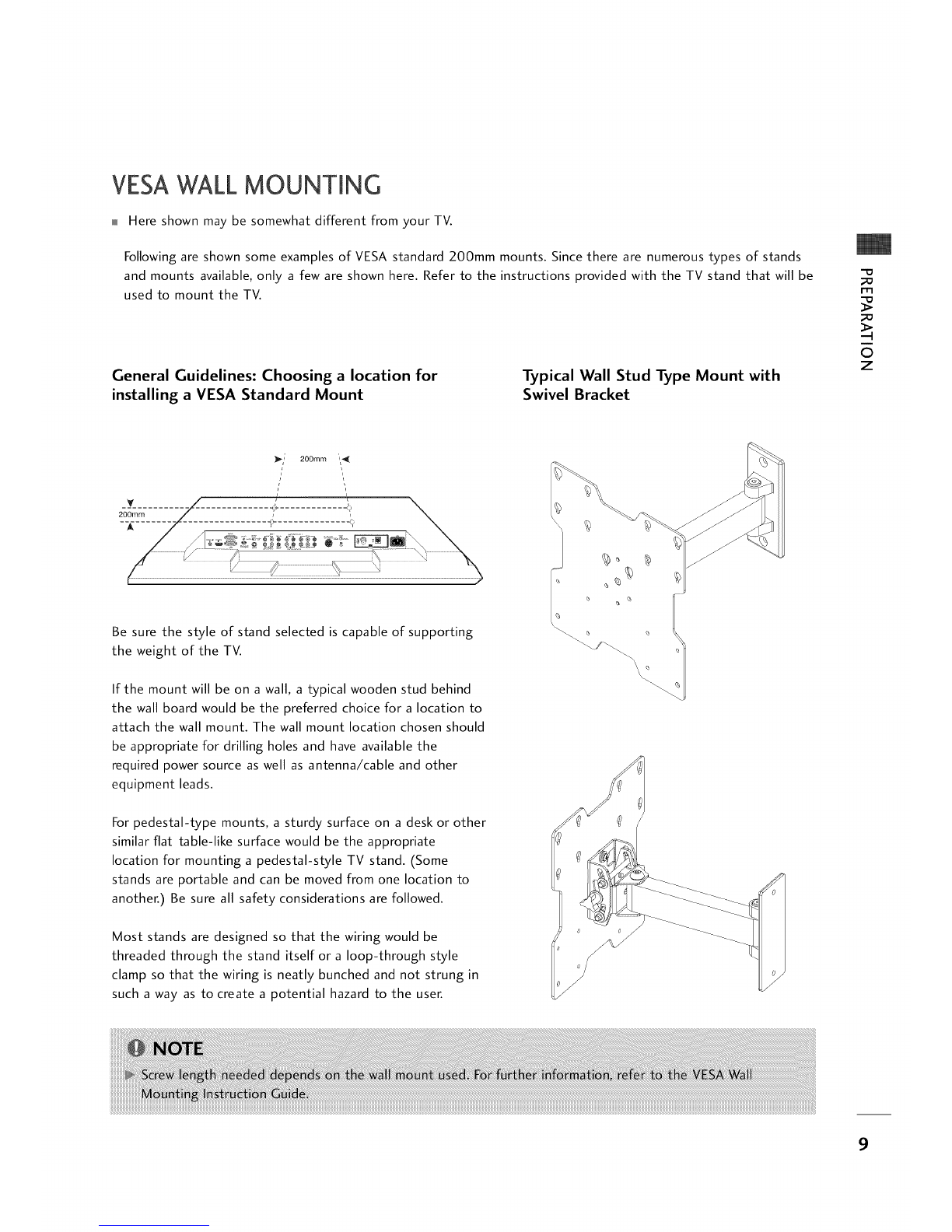

VESA Wall Mounting .................................... 9

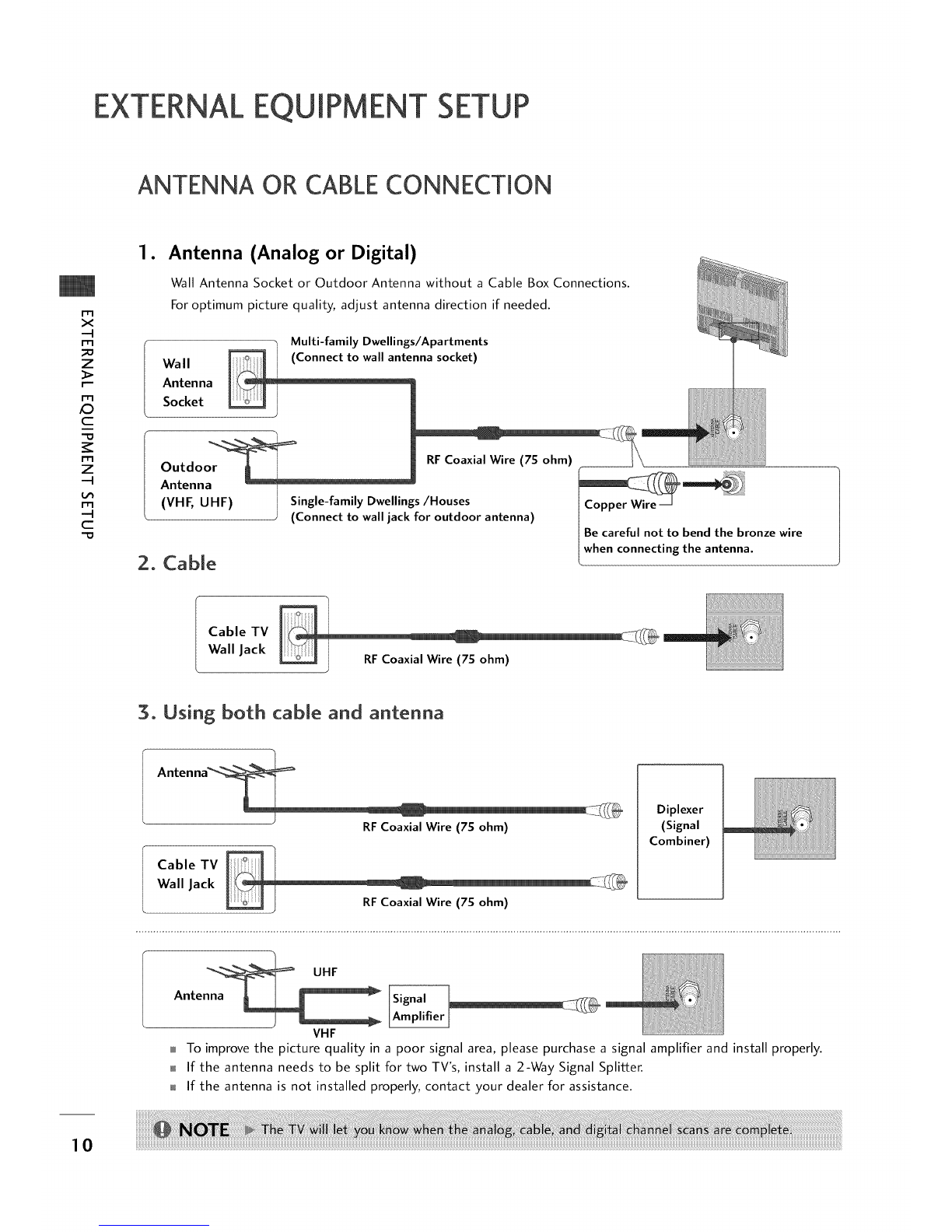

Antenna or Cable Connection ...................... 10

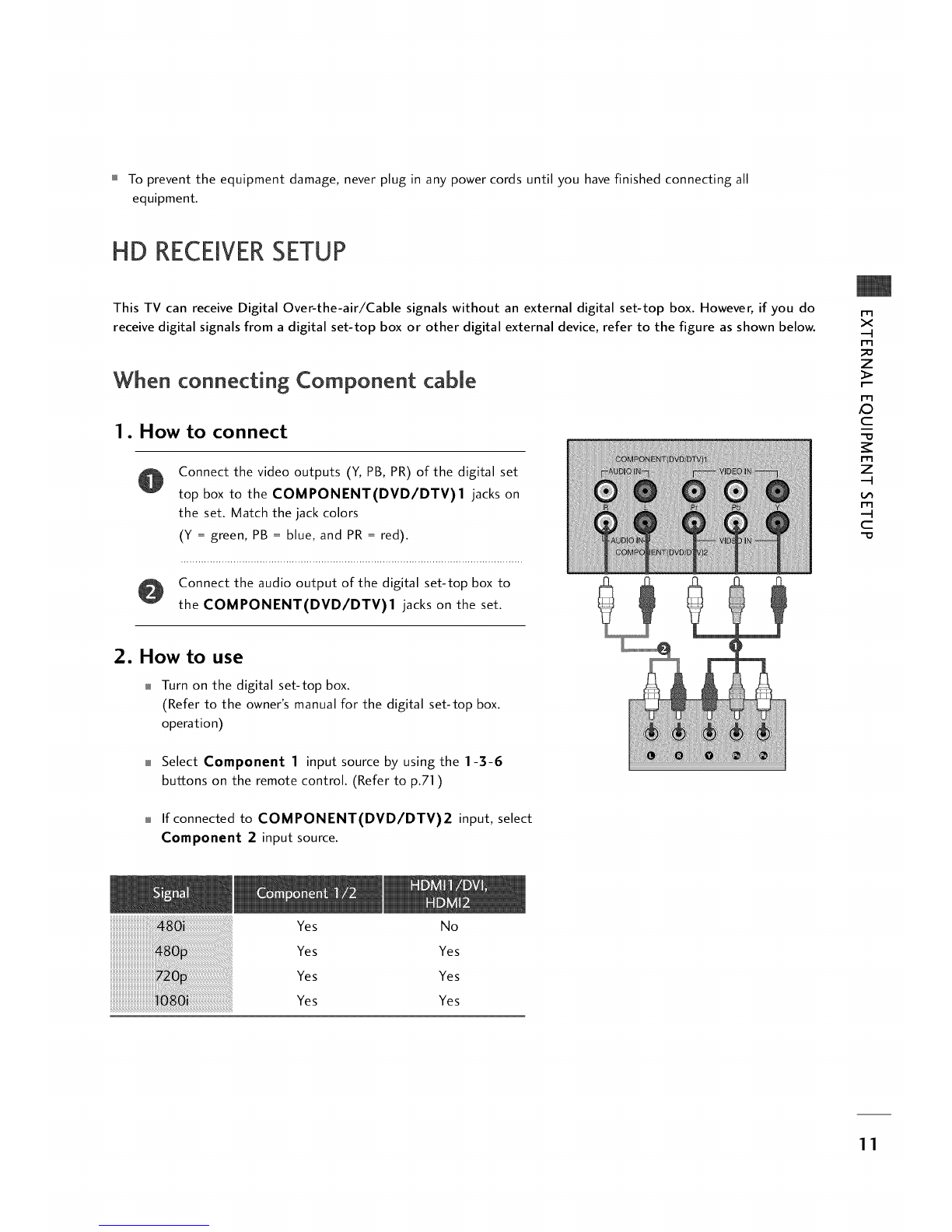

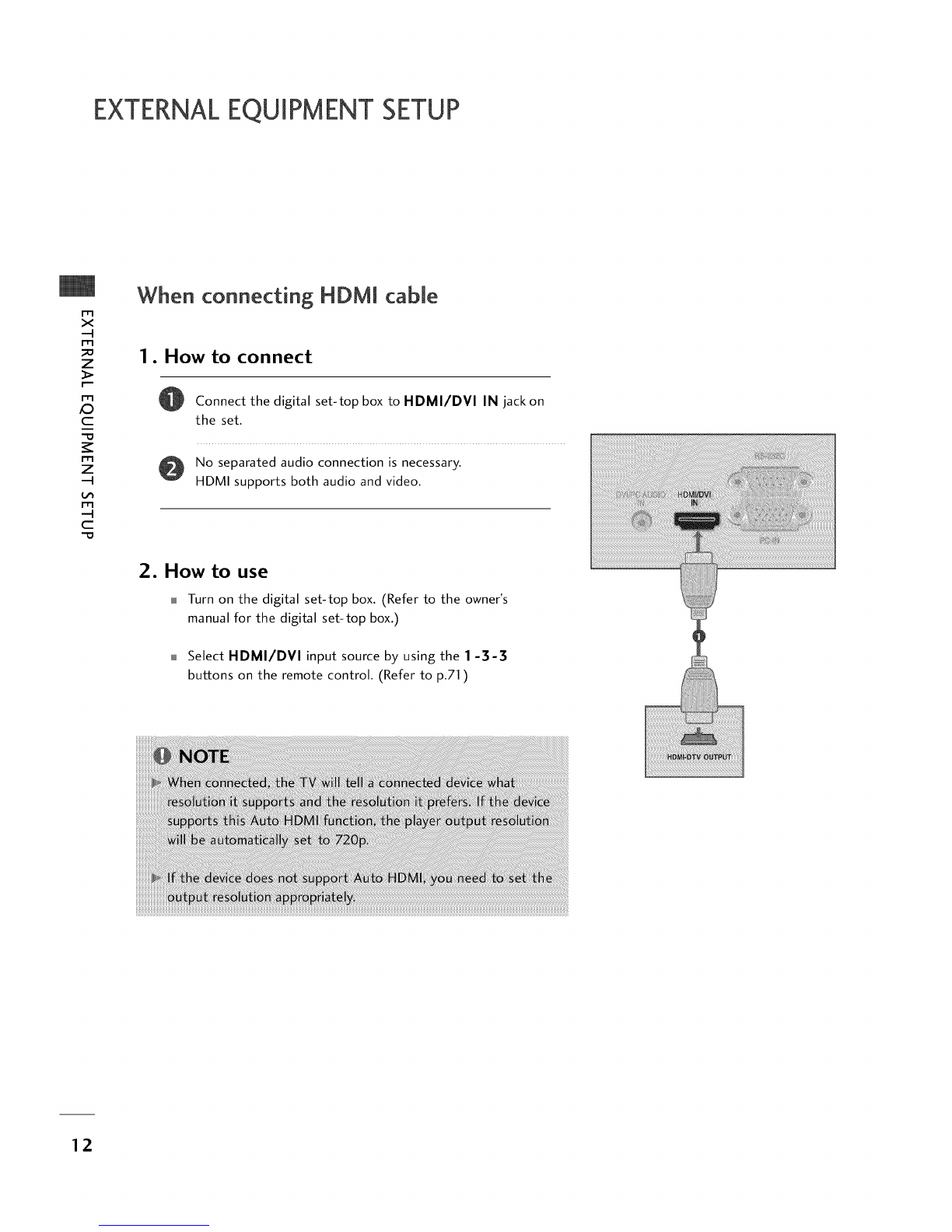

HD Receiver Setup ...................................... 11
DVD Setup ............................................... 14

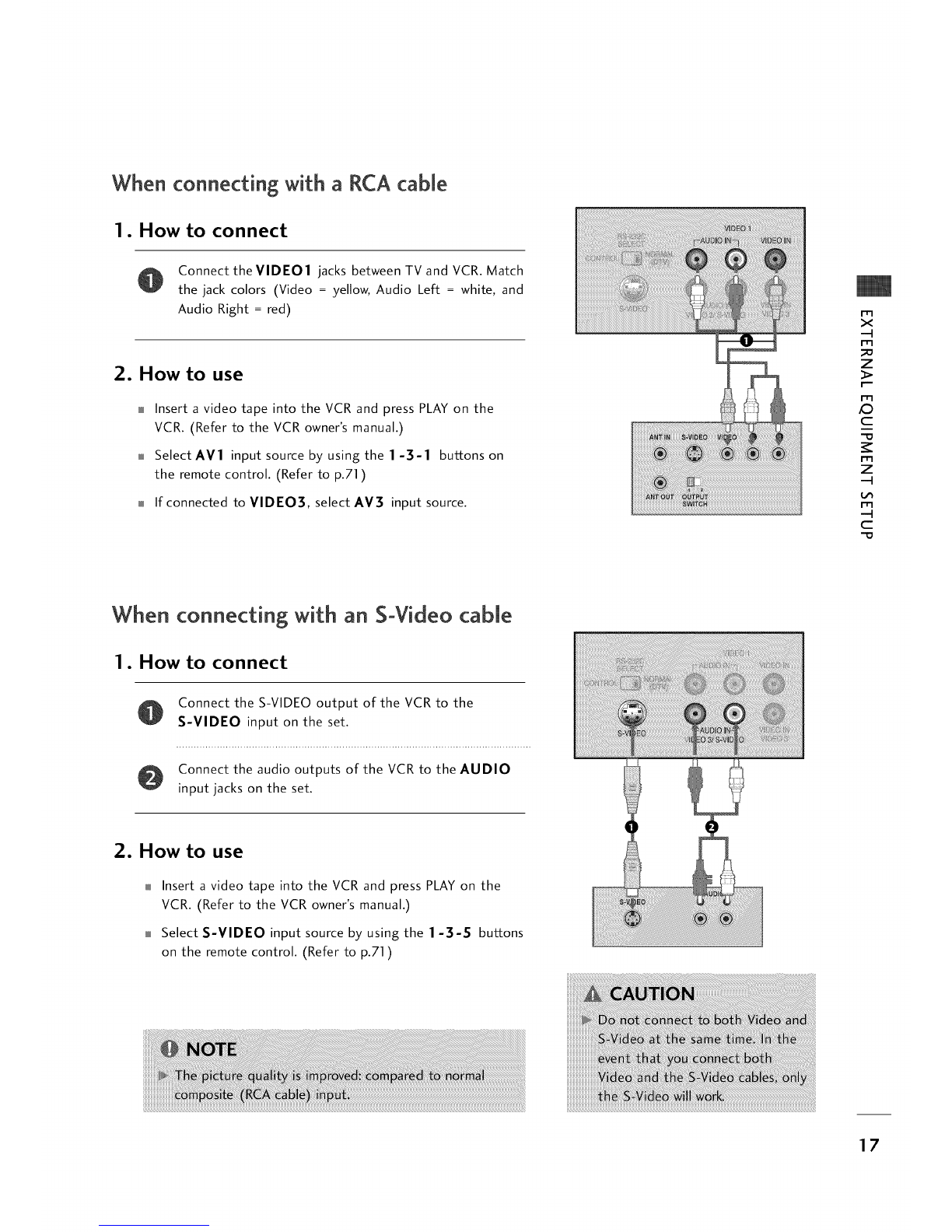

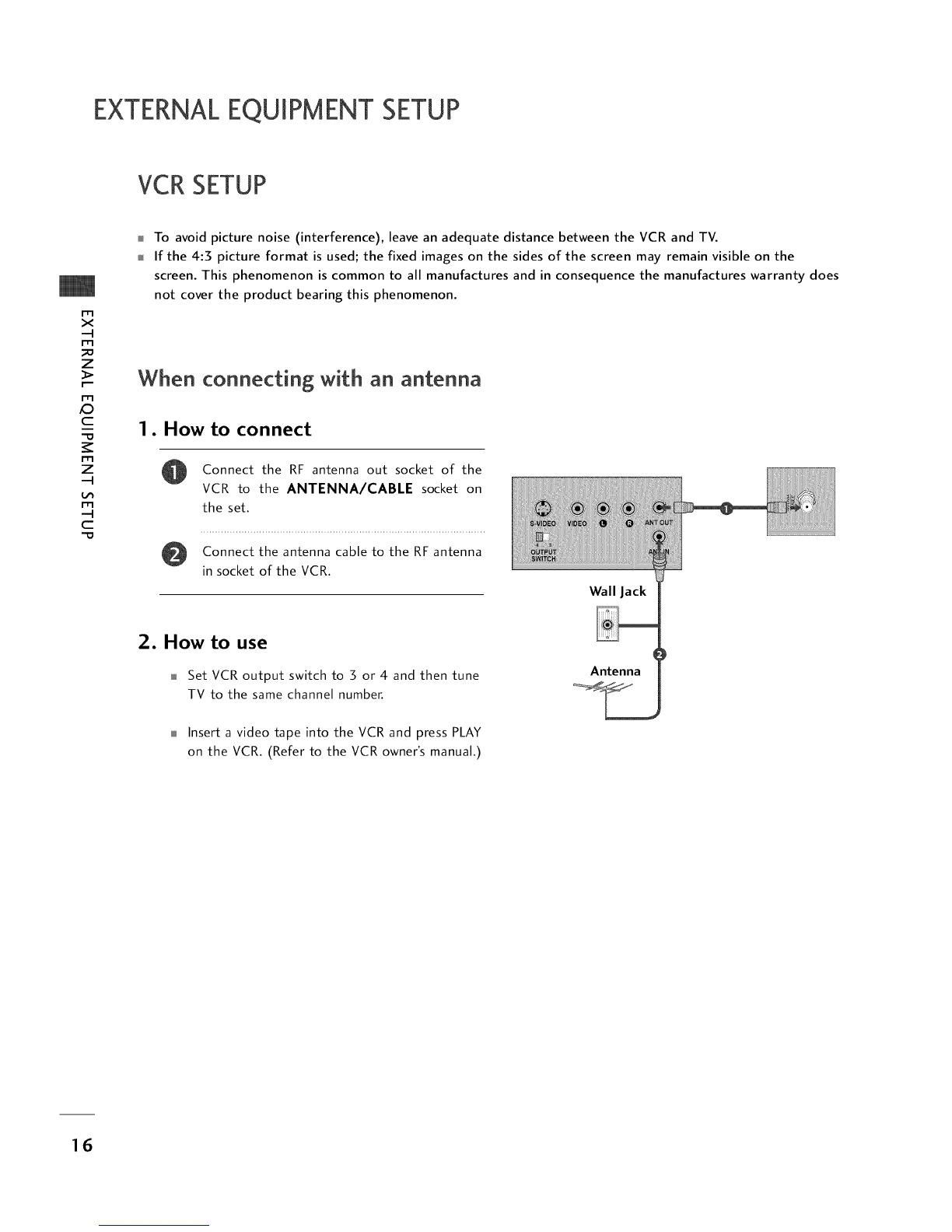

VCR Setup ................................................ 16
Other A/V Source Setup .............................. 18
Digital Audio Output ................................. 18
PC Setup ................................................. 19
Screen Setup for PC mode .......................... 21
Pillow Speaker Setup ................................. 22
User Remote Control Button Functions .......... 23
Caption / Text .......................................... 41
Preset Sound Settings .......................... 43
Sound Setting Adjustment-user Mode ..... 43
Sound Balance Setup ........................... 44
Digital Audio Output Settings ............. 44
Aautomatic Volume Control Settings .... 4S
Analog Audio Settings ......................... 45
Digital Audio Language Settings ............ 46
Using External Speakers ...................... 46
Menu Language .................................. 47
Menu Transparency Settings .................. 48
Set ID .............................................. 48
Preset Picture Settings .............................. 49
Screen Format Adjustments ................. SO
Noise Reduction ................................. 51
Film Mode Options ............................ $1
Installer Remote Control Button functions ..... 24
On-Screen Menus Selection .......................... 2S
Channel Search .......................................... 26
Clock Setting ........................................... 30
Daylight Saving ................................... 32
Time Zone Settings ............................. 32
TV Activation Settings ......................... 33
TV Deactivation Time Settings .............. 33
Auto Off ........................................... 34
Set Password &Lock System ...................... 3S
Movie &TV Ratings .................................. 37
Managing the Channel Banks ....................... 52
Installer Overview ..................................... SS
Commercial Mode Setup ........................... $6
Cloning Connections/Learning Setup ............ $7
Clone Programmer/Learning Setup .............. $8
Cloning Connections/Teaching Setup ............ $9
Installer Menu .......................................... 61
Peference ................................................ 66
Troubleshooting ....................................... 72
Clone Troubleshooting .............................. 74
Clone Troubleshooting Flow Chart ............... 76
TV Operating Check .................................. 77
Glossary of Terms ..................................... 78
Installer Quick Setup Guide ......................... 79 S

ACCESSORIES
"D
m
©
z
Ensure that the following accessories are included with your product. If an accessory is missing, please contact the
dealer where you purchased the product.
User must use shielded signal interface cables with ferrite cores to maintain standard compliance for the product.
Owner's Manual CD Manual
User Remote Control.
Batteries (Optional)
Installer Remote Control.
Batteries (Optional)
Power Cord
Shown herein is an optional remote control available for the 26LH1DC1 model only. The remote control is
NOT included with the TV.
• However, both the User and Installer remotes can be purchased separately, see your LG dealer.
To perform a normal installation set up, you need an installer's remote and the LT2002 Quickset II Clone
Programmer - both are shown and described in later sections. See your LG dealer if you wish to purchase
the Installer remote and LT2002. The installer remote allows access to the Installer menus, User menus,
and Channel Banks in the Manual Channel Set options on the Setup menu. The installer remote has Menu,
Select, and Adjust Keys. The LT2002 Quickset II Clone Programmer is used to duplicate a TV's setup and
install it on another identical TV.
6

FRONT PANELINFORMATION
_ Here shown may be somewhat different from your TV.
Using the front control panel to operate the TV.
Front Panel Controls Power /Standby Indicator
Glows red in Standby mode.
Glows green when the TV is
turned on.
Glows orange in Sleep Timer
and/or Alarm mode.
-O
m
O
Z
Remote Control Sensor
s
A TV Operation
Press the POWER button to turn the TV
on from standby mode.
BPressMENU repeatedly to scroll through
menus.
C
D
E
Displays the current channel bank. Press
again to change banks.
Use the CH (Channel) Up/Down button to
cycle through the available channels.
Use the VO/ (Volume) Up/Down button to
adjust the sound level to your preference.
Li2 L1J
D
On-Screen Displays
See descriptions on page 25. On-screen displays will appear when the feature
is active or the function is being used.
LED Color
RED
GREEN is flashing
GREEN
ORANGE
Action/Status
Power is Off (Standby)
Power On sequence is processing
Power is On
If Power is Off On Timer is set or Alarm is set
If Power is On Off Timer is set or Sleep Timer is set
C
7

PREPARATION
BACK PANELINFORMATION
Here shown may be somewhat different from your TV.
m
©
z
Back Connection Panel
8
8
J
_j8
RS-232C PORT
--AUDIO /VIDEO 1,3 IN
Connect Audio /Video
equipment to these jacks.
SPEAKER SWITCH
Used to select the speaker output switch.
*Nole: If Pillow Speaker is selected, no Sound will
be heard from TV speakers.
(NORMAL SPEAKER or PILLOWSPEAKER.)
COMPONENT 1,2 IN M.P.I. INTERFACE
Use with clone programmer.
PC IN
DVI/PC AUDIO IN
IN
-- DIGITAL AUDIO OUT
(Optical)
HDMI/DVl IN
FUTURE USE
PILLOW JACK IN
Used to connect to pillow speaker
(12V DG-=- 40mA)
AC IN
ANTENNA CABLE
Connect to an antenna or
cable system.
8

VESAWALLMOUNTING
Here shown may be somewhat different from your TV.
Following are shown some examples of VESA standard 200ram mounts. Since there are numerous types of stands
and mounts available, only a few are shown here. Refer to the instructions provided with the TV stand that will be
used to mount the TV.
General Guidelines: Choosing alocation for
installing a VESA Standard Mount Typical Wall Stud Type Mount with
Swivel Bracket
_0
rT1
_o
O
z
}_" 200ram '_
Be sure the style of stand selected is capable of supporting
the weight of the TV.
If the mount will be on a wall, a typical wooden stud behind
the wall board would be the preferred choice for a location to
attach the wall mount. The wall mount location chosen should
be appropriate for drilling holes and have available the
required power source as well as antenna/cable and other
equipment leads.
For pedestal-type mounts, a sturdy surface on a desk or other
similar fiat table-like surface would be the appropriate
location for mounting a pedestal-style TV stand. (Some
stands are portable and can be moved from one location to
another.) Be sure all safety considerations are followed.
Most stands are designed so that the wiring would be
threaded through the stand itself or a loop-through style
clamp so that the wiring is neatly bunched and not strung in
such a way as to create a potential hazard to the user.
\
9

EXTERNALEQUIPMENT SETUP
ANTENNA OR CABLECONNECTION
rT1
x
-4
rT1
_o
z
m
_D
c
-O
rT1
z
-4
m
-4
C
.Antenna (Analog or Digital)
Wall Antenna Socket or Outdoor Antenna without a Cable Box Connections.
For optimum picture quality, adjust antenna direction if needed.
Multi-family Dwellings/Apartments
Wall _/ (Connect to wall antenna socket)
Antenna
Socket
o_ __
Outdo RFCoaxial Wire (7S ohm)
Antenna
(VHF, UHF) Single-family Dwellings/Houses
(Connect to walljack for outdoor antenna)
2. Cable
Be careful not to bend the bronze wire
when connecting the antenna.
Cable TV _ I
Wall Jack RF Coaxial Wire (7S ohm)
3. Using both cable and antenna
Antenna_
Cable TV _ I
Wall Jack
RFCoaxial Wire (7S ohm)
RFCoaxial Wire (7S ohm)
Diplexer
(Signal
Combiner)
UHF
Antenna _ _il_ler_L _
VHF
To improve the picture quality in a poor signal area, please purchase a signal amplifier and install properly.
If the antenna needs to be split for two TV's, install a2-Way Signal Splitter.
If the antenna is not installed properly, contact your dealer for assistance.
10

To prevent the equipment damage, never plug in any power cords until you have finished connecting all
equipment.
HD RECEIVERSETUP
This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. Howeven if you do
receive digital signals from a digital set-top box or other digital external device, refer to the figure as shown below.
When connecting Component cable
1. How to connect
Connect the video outputs (Y, PB, PR) of the digital set
top box to the COMPONENT(DVD/DTV)I jacks on
the set. Match the jack colors
(Y = green, PB = blue, and PR = red).
Connect the audio output of the digital set-top box to
the COMPONENT(DVD/DTV)I jacks on the set.
m
x
-4
m
z
m
_D
c
-D
m
z
-4
m
-4
C
-D
2. How to use
Turn on the digital set-top box.
(Refer to the owner's manual for the digital set-top box.
operation)
Select Component 1 input source by using the 1-3-6
buttons on the remote control. (Refer to p.71 )
If connected to COMPONENT(DVD/DTV)2 input, select
Component 2 input source.
Yes No
Yes Yes
Yes Yes
Yes Yes
11

EXTERNALEQUIPMENT SETUP
m
x
--4
m
_o
z
m
/O
c
"O
m
z
--4
m
--4
C
"O
When connecting HDMi cable
1. How to connect
Connect the digital set-top box to HDMI/DVI IN jack on
the set.
No separated audio connection is necessary.
HDMI supports both audio and video.
2. How to use
Turn on the digital set-top box. (Refer to the owner's
manual for the digital set-top box.)
Select HDMI/DVI input source by using the 1 -3-3
buttons on the remote control. (Refer to p.71 )
12

When connecting HDMI to DV! cabme
1. How to connect
0
Connect the DVI output of the digital set-top box to the
HDMI/DVI IN jack on the set.
Connect the audio output of the digital set-top box to
the DVI/PC AUDIO IN jack on the set.
2. How to use
Turn on the digital set-top box. (Refer to the owner's manual
for the digital set-top box.)
Select HDMI input source by using the 1 -3-3 buttons on
the remote control. (Refer to p.71 )
m
x
-4
m
_o
z
I--
m
£3
c
-O
m
z
-4
m
-4
c
"O
13

EXTERNALEQUIPMENT SETUP
DVD SETUP
rT1
x
-4
rT1
_o
z
m
/O
c
-O
rT1
z
-4
m
-4
C
When connecting Component cable
1. How to connect
Connect the video outputs (Y,PB, PR) of the DVD to
the COMPONENT(DVD/DTV)I jacks on the set.
Match the jack colors
(¥ = green, PB = blue, and PR= red).
Connect the audio outputs of the DVD to the
COMPONENT(DVD/DTV)I jacks on the set.
2. How to use
Turn on the DVD player, insert a DVD.
Select Component 1 input source by using the 1-3-6
buttons on the remote control. (Refer to p.71 )
If connected to COMPONENT(DVD/DTV)2 input,
select Component 2 input source.
Refer to the DVD player's manual for operating instructions.
Component Input ports
To get better picture quality, connect a DVD player to the component input ports as shown below.
Component ports on the TV
Video output ports
on DVD player
14

When connecting with an S-Video cabme
1. How to connect
@
Connect the S-VIDEO output of the VCR to the
S-VIDEO input on the set.
Connect the audio outputs of the VCR to the AUDIO
input jacks on the set.
When connecting HDMI cable
m
x
--4
m
_o
z
m
XD
c
mO
m
z
--4
m
--4
C
1. How to connect
Connect the HDMI output of the DVD to the
HDMI/DVI IN jack on the set.
No separated audio connection is necessary.
HDMI supports both audio and video.
2. How to use
Select HDMI input source by using the 1 -3-3 button on the
remote control. (Refer to p.71 )
Refer to the DVD player's manual for operating instructions.
15

EXTERNALEQUIPMENT SETUP
VCR SETUP
m
x
-q
m
z
m
c
m
z
-q
m
-q
c
To avoid picture noise (interference), leave an adequate distance between the VCR and TV.
If the 4:3 picture format is used; the fixed images on the sides of the screen may remain visible on the
screen. This phenomenon is common to all manufactures and in consequence the manufactures warranty does
not cover the product bearing this phenomenon.
When connecting with an antenna
1. How to connect
Connect the RF antenna out socket of the
VCR to the ANTENNA/CABLE socket on
the set.
Connect the antenna cable to the RF antenna
in socket of the VCR.
oHow to use
Set VCR output switch to 3 or 4 and then tune
TV to the same channel number.
Wall Jack
Antenna
Insert a video tape into the VCR and press PLAY
on the VCR. (Refer to the VCR owner's manual.)
16

When connecting with a RCA cable
1. How to connect
Connect theVlDEO1 jacks between TV and VCR. Match
the jack colors (Video = yellow, Audio Left = white, and
Audio Right = red)
2. How to use
Insert a video tape into the VCR and press PLAY on the
VCR. (Refer to the VCR owner's manual.)
SelectAV1 input source by using the1-3-1 buttons on
the remote control. (Refer to p.71 )
If connected to VIDEO3, select AV3 input source.
rT1
x
-4
r_
_o
z
m
/O
c
-O
r_
z
-4
m
-4
c
-O
When connecting with an S-Video cable
1. How to connect
Connect the S-VIDEO output of the VCR to the
S-VIDEO input on the set.
Connect the audio outputs of the VCR to the AUDIO
input jacks on the set.
2. How to use
Insert a video tape into the VCR and press PLAY on the
VCR. (Refer to the VCR owner's manual.)
Select S-VIDEO input source by using the 1 -3-5 buttons
on the remote control. (Refer to p.71 )
17

EXTERNALEQUIPMENT SETUP
OTHERA/V SOURCESETUP
m
x
-4
m
z
m
XD
c
-D
m
z
-4
m
-4
C
-D
1. How to connect
o
Connect the VIDEO2 jacks between TV and
external equipment. Match the jack colors.
(Video = yellow, Audio Left = white, and
Audio Right = red)
How to use
Select AV2 input source by using the 1 -3-0
buttons on the remote control. (Refer to p.71 )
Operate the corresponding external equipment.
Video Game Set
Camcorder
ex) TV Model
DIGITALAUDIO OUTPUT
Send the TV's audio to external audio equipment via the Digital Audio Output (Optical) port.
1. How to connect
Connect one end of an optical cable to the TV Digital
Audio (Optical) Output port.
Connect the other end of the optical cable to the
digital audio (optical) input on the audio equipment.
Set the "Digital Output - Dolby Digital" in the Sound
menu. (_ p,44) See the external audio equipment
instruction manual for operation.
18

PC SETUP
This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.
When connecting D-sub 15pin cable
1. How to connect
Connect the RGB output of the PC to the PC IN jack
on the set.
Connect the PC audio output to the DVI/PC AUDIO
IN jack on the set.
2. How to use
Turn on the PC and the TV.
Select PC input source by using the 1 -3-4 button on the
remote control.
r'rl
x
--4
rT1
_o
z
I"
rT1
_D
c
-O
rT1
z
--4
L_
rT1
--4
C
"O
When connecting NDMI to DV! cable
1. How to connect
Connect the DVI output of the PC to the HDMI/DVI
IN jack on the set.
Connect the PC audio output to the DVI/PC AUDIO
IN jack on the set.
2. How to use
Turn on the PC and the TV.
Select HDMI input source by using the 1 -3-3
button on the remote control.
19

EXTERNALEQUIPMENT SETUP
m
X
-4
m
z
F-
ro
_D
C
i
-O
m
z
-4
m
-4
C
Supported Display Specifications
RGB-PC, HDMI1/DVI-PC mode HDMI1/DVI-DTV, HDMI2-DTV mode
iiiiii
31.469 70.08
31.469 70.08
31.469 59.94
37.879 60.31
48.363 60.00
47.776 59.87
47.720 59.799
47.130 59.65
31.469 59.94
31.500 60.00
44.960 59.94
45.000 60.00
33.720 59.94
33.750 60.00
2O
