COLOR TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : MP-02AC
MODEL : RT-44NZ31RB
website:http://biz.LGservice.com
e-mail:http://www.LGEservice.com/techsup.html

- 2 -
CONTENTS
CONTENTS ...................................................................................................... 2
SAFETY PRECAUTIONS..................................................................................3
SERVICING PRECAUTIONS ........................................................................... 4
SPECIFICATIONS ............................................................................................ 6
CONTROL DESCRIPTIONS............................................................................. 9
ADJUSTMENT INSTRUCTIONS.....................................................................12
TROUBLE SHOOTING....................................................................................21
PRINTED CIRCUIT BOARD............................................................................30
BLOCK DIAGRAM ..........................................................................................39
EXPLODED VIEW ......................................................................................... 46
EXPLODED VIEW PARTS LIST......................................................................47
REPLACEMENT PARTS LIST ...................................................................... 48
SVC. SHEET .......................................................................................................

- 3 -
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in
the Schematic Diagram and Replacement Parts List.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to
prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during
the servicing of a receiver whose chassis is not isolated from
the AC power line. Use a transformer of adequate power rating
as this protects the technician from accidents resulting in
personal injury from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film
Resistor, over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Due to high vacuum and large surface area of picture tube,
extreme care should be used in handling the Picture Tube.
Do not lift the Picture tube by it's Neck.
X-RAY Radiation
Warning:
To determine the presence of high voltage, use an accurate
high impedance HV meter.
Adjust brightness, color, contrast controls to minimum.
Measure the high voltage.
The meter reading should indicate
31.5 ¡1.5KV
If the meter indication is out of tolerance, immediate service
and correction is required to prevent the possibility of
premature component failure.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc.,
to be sure the set is safe to operate without damage of
electrical shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source,
connect an electrical jumper across the two AC plug prongs.
Place the AC switch in the on position, connect one lead of
ohm-meter to the AC plug prongs tied together and touch other
ohm-meter lead in turn to each exposed metallic parts such as
antenna terminals, phone jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.

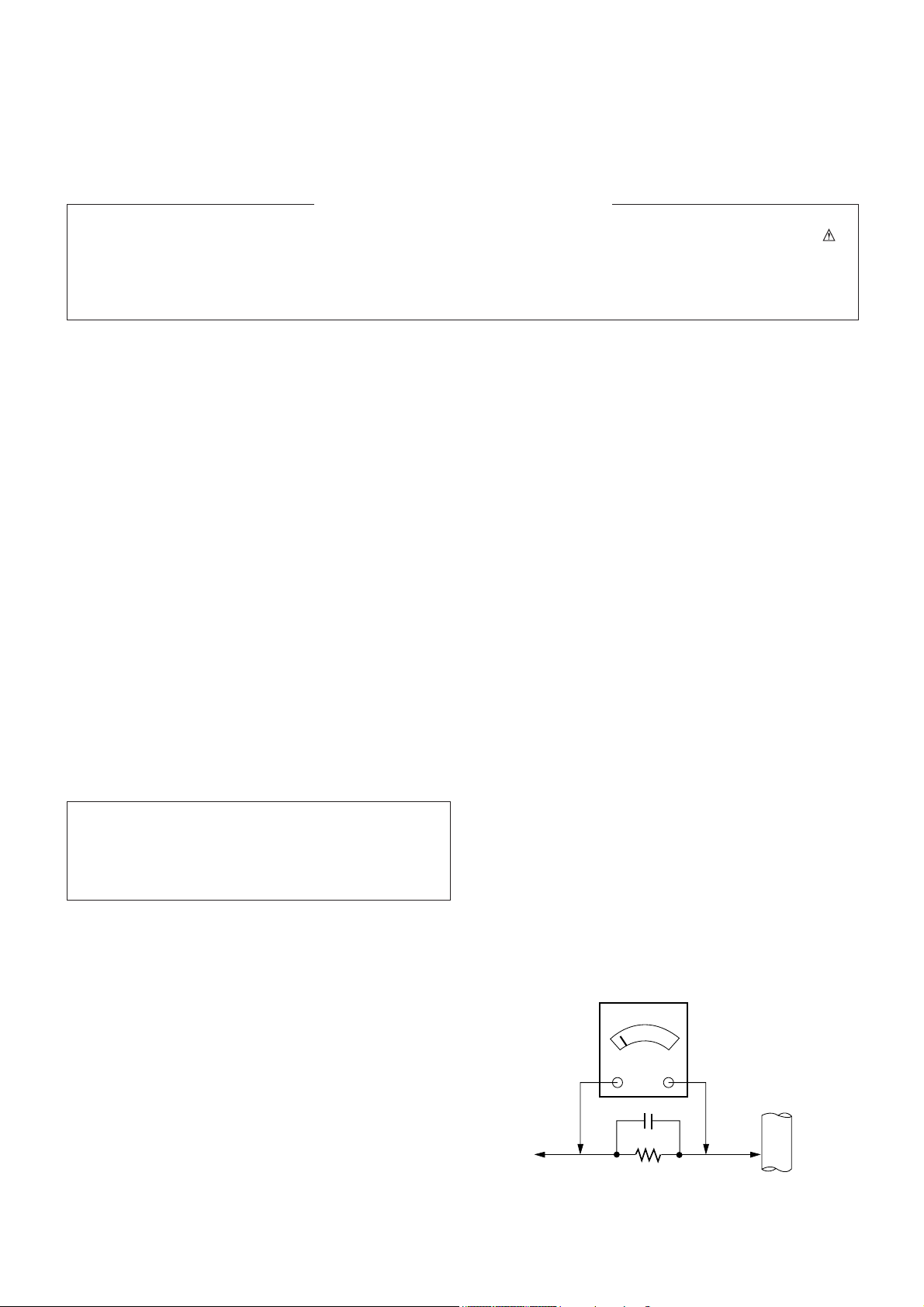

Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC
voltmeter with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC
voltage measurements for each exposed metallic part. Any
voltage measured must not exceed 0.75 volt RMS which is
corresponds to 0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
The source of X-RAY RADIATION in this TV receiver is the
High Voltage Section and the Picture Tube.
For continued X-RAY RADIATION protection, the
replacement tube must be the same type tube as specified in
the Replacement Parts List.
1.5 Kohm/10W
To Instrument's
exposed 
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF

- 4 -
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the
following servicing precautions and any of the safety
precautions on page 3 of this publication, always follow the
safety precautions. Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC
power source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug
or other electrical connection.
c.
Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect
polarity installation of electrolytic capacitors may result
in an explosion hazard.
d. Discharging the picture tube anode.
2. Test high voltage only by measuring it with an appropriate
high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Discharge the picture tube anode only by (a) first connecting
one end of an insulated clip lead to the degaussing or kine
aquadag grounding system shield at the point where the
picture tube socket ground lead is connected, and then (b)
touch the other end of the insulated clip lead to the picture
tube anode button, using an insulating handle to avoid
personal contact with high voltage.
4. Do not spray chemicals on or near this receiver or any of its
assemblies.
5. Unless specified otherwise in this service manual, clean
electrical contacts only by applying the following mixture to
the contacts with a pipe cleaner, cotton-tipped stick or
comparable non-abrasive applicator; 10% (by volume)
Acetone and 90% (by volume) isopropyl alcohol (90%-99%
strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication
of contacts in not required.
6. Do not defeat any plug/socket B+ voltage interlocks with
which receivers covered by this service manual might be
equipped.
7. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks
are correctly installed.
8. Always connect the test receiver ground lead to the
receiver chassis ground before connecting the test receiver
positive lead.
Always remove the test receiver ground lead last.
9. Use with this receiver only the test fixtures specified in this
service manual.
CAUTION: Do not connect the test fixture ground strap to
any heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged
easily by static electricity. Such components commonly are
called Electrostatically Sensitive (ES) Devices. Examples of
typical ES devices are integrated circuits and some field-effect
transistors and semiconductor "chip" components. The
following techniques should be used to help reduce the
incidence of component damage caused by static by static
electricity.
1. Immediately before handling any semiconductor component
or semiconductor-equipped assembly, drain off any
electrostatic charge on your body by touching a known earth
ground. Alternatively, obtain and wear a commercially
available discharging wrist strap device, which should be
removed to prevent potential shock reasons prior to
applying power to the unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder
ES devices.
4. Use only an anti-static type solder removal device. Some
solder removal devices not classified as "anti-static" can
generate electrical charges sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum
foil or comparable conductive material).
7. Immediately before removing the protective material from
the leads of a replacement ES device, touch the protective
material to the chassis or circuit assembly into which the
device will be installed.
CAUTION:Be sure no power is applied to the chassis or
circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such
as the brushing together of your clothes fabric or the lifting
of your foot from a carpeted floor can generate static
electricity sufficient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and
appropriate tip size and shape that will maintain tip
temperature within the range or 500¡£F to 600¡£F.
2. Use an appropriate gauge of RMA resin-core solder
composed of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall
wire-bristle (0.5 inch, or 1.25cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500¡£F to 600¡£F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static,
suction-type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit-
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal
temperature (500¡£F to 600¡£F)
b. First, hold the soldering iron tip and solder the strand
against the component lead until the solder melts.
SERVICING PRECAUTIONS

- 5 -
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it
there only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess
or splashed solder with a small wire-bristle brush.
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following
technique should be used to remove and replace the IC. When
working with boards using the familiar round hole, use the
standard technique as outlined in paragraphs 5 and 6 above.
Remov
1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as the
solder melts.
2. Draw away the melted solder with an anti-static suction-
type solder removal device (or with solder braid) before
removing the IC.
Replacemen
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as
close as possible to the component body.
2. Bend into a "U" shape the end of each of three leads
remaining on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the
corresponding leads extending from the circuit board and
crimp the "U" with long nose pliers to insure metal to metal
contact then solder each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the
circuit board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as
possible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them
and if necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board
hollow stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board
to prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board.
The following guidelines and procedures should be followed
whenever this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper
pattern side of the circuit board. (Use this technique only on IC
connections).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely
necessary).
2. carefully scratch away the solder resist and acrylic coating
(if used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away
copper pattern and let it overlap the previously scraped end
of the good copper pattern. Solder the overlapped area and
clip off any excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper
pattern at connections other than IC Pins. This technique
involves the installation of a jumper wire on the component
side of the circuit board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a
hazardous condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the
pattern break and locate the nearest component that is
directly connected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of
the nearest component on one side of the pattern break to
the lead of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so
the it does not touch components or sharp edges.

- 6 -
SPECIFICATIONS
NOTE : Specifications and others are subject to change without notice for improvement .
FScope
This specification can be applied to all the Projection television
related to MP-02AC Chassis.
FTest and Inspection Method
1) performance:Follow the Standard of LG TV test
2) Standards of Etc requirement
FTest Condition
1) Temperature :25¡5¡C (CST is 40¡5¡C)
2) Relative Humidity:65¡10%
3) Power Voltage:Standard input voltage(AC 220V~, 50/60Hz)
(AC 110V-240V~, 50/60Hz)
But Standard input voltage mark value is marked by model.
4) Use the parts only designated in B.O.M.,PARTS SPEC.,or
drawings.
5) Follow each drawing or spec for spec and performance of
parts,based upon P/N of RPL
6)
Warm up TV set for more than 60min before the measurement.
Remark
Compliance
Safety,EMC : CCC
Model
RT-44NZ31XX
Market
China
Asia, Africa
Middle East
Brand
LGE
LGE
LGE
Chassis
MP-02AC
Remark
Model Name
RT-44NZ31XX
Market Place
Australia,China
Asia, Africa,
Middle East
China
Asia,Africa
Middle East
No
1
2
3
4
5
6
7
8
9
10
11
12
Item
Receiving System
Available Channel
Input Voltage
Market
Screen Size
Aspect Ratio
Tuning System
Display Method
PRT C-Lens
Speaker Spec
Storage Environment
Operating Environment
RT-
Remark
China /Australia MODEL
_(RT model w/o China)
_NA=4:3, NZ=16:9
Comp1,2,RGB-DTV Auto(X)
_ (With Teletext model)
_ (W/O Teletext model)
Matsushita
Sekinos
Specification
PAL,SECAM-BG
PAL,SECAM-DK,PAL-IIÕ
NTSC-M
1)VHF: E2~E12
2)UHF: E21~E69
3)CATV: S1~S20
4)HYPER: S21~S41
AC 220V,~50/60 Hz
AC 110 - 240V,~50/60 Hz
Australia,China, Asia, Africa,Middle East
44/49/54 inch
16:9, 14:9, ZOOM, Auto, 4:3
FVS 100 Program
FVS 200 Program
PRT 7 inch
SSM-100 / SSM-1000(DOE)
1) Impedance: 8 ½
2) Normal: 15 W
3) Output(MAX): 25W
1) Temp: -20 ~ 60 deg
2) Humidity: 85% under
1)Temp: 0 ~ 40 deg
2)Humidity: 85% under
FGeneral Specification

FFeature and Special SPEC
PAL,SECAM-BG
PAL,SECAM-DK,PAL-IIÕ
NTSC-M
Input 1, 2, 3
AV Out
S-video
Component1
Component2
PC(~SXGA)/DTV
Component1,2 / AV2( DTV Sound)/DTV
PC
Full SCART: 1
TV/VIDEO, MENU, OK, INDEX(MUTE)
VOL( F , G ), PR( D , E )
System/ Storage form/ Start
Storage/ System/ Channel/ Fine/ Search,
Name/Booster
8 Programming
Dynamic/ Standard/ Mild/ Game/ User
Contrast/ Brightness/ Color/ Sharpness/ Tint
/ Auto Convergence
On/Off
Dolby virtual/ Flat/ Music/ Speech/ Movie/ Use r
Equalizer: 0.1, 0.5, 1.5, 5, 10 kHz
50(L) ~ 0 ~ 50(R)
Clock/ Off time/ On time/ Auto sleep
TV, AV1,AV2,AV3,AV4, S-Video 2,Component 1
,Component2,RGB - DTV(), RGB - PC()
English/ China
On/ Off
H-Position
V-Position
Clock
Clock Phase
Auto Configure
Reset
- 7 -
1
3
1
2
2
1
2
1
1
No
1
2
3
4
5
6
7
RF Input
AV Input/Out
S-video
Y,Pb,Pr Input
RGB Input
Audio Input
RGB Output
SCART
Local Key
(TACT S/W)
Auto Programming
Manual Programming
Program edit
Favorite Programming
PSM
User Control
AVL
SSM
USER
Balance
Input
Language
Child lock
Component1
Component2
RGB - DTV
RGB - PC
Feature
Key
Station
Sound
Time
Special
Rear2, Side1 (CVBS, L, R)
Rear (CVBS,L,R)
Rear,Side(Y,C)
Rear 480i, 576i
Rear 480i,576i,480P,576P,720P,1080I
Rear, D-Sub 15pin
PC(Option) : Australia(X)
DTV : 480P,576P,720P,1080i
Rear GL,R
Rear, D-Sub 15pin
PC(Option) : Australia(X)
_ Rear (Option)
Front INDEX(MUTE),(Option)
Tint : NTSC system only
difference by model
0 : RGB-PC(Otion)
0 : RGB-PC(Otion)
0 : RGB-PC(Otion)
40 : RGB-PC(Otion)
15 : RGB-PC(Otion)
RGB-PC(Option)
Item Specification Remark
-30 ~ +30
-20 ~ +20
0 ~ 80
0 ~ 31
RGB-PC(Option)

- 8 -
TV, AV 1/2/3, Component 1/2,
RGB - PC, RGB - DTV, Scart
TV, AV 1/2/3, Scart(AV4)
44,49 Inch (16:9), 44/49/54 Inch (4:3)
768P @ 60Hz
625P @ 75Hz
3D Comb
PIP
16:9
O
Universal Remocon
15W * 2
No
Available
Sub Picture
Size
Display format
Comb Filter
PIP
Display Mode
SVM
Remote Controller
Total Audio
Main
Scart (Option)
RGB-PC(Option)
Scart (Option)
_NA=4:3, NZ=16:9
NTSC,PC
PAL,SECAM
Main screen
2 Tuner
NEC code
MAIN(L/R)
EQ: Flat
Item Specification Remark

- 9 -
CONTROL DESCRIPTIONS
All the functions can be controlled with the remote control handset.
Some functions can also be adjusted with the buttons on the front
panel of the set.

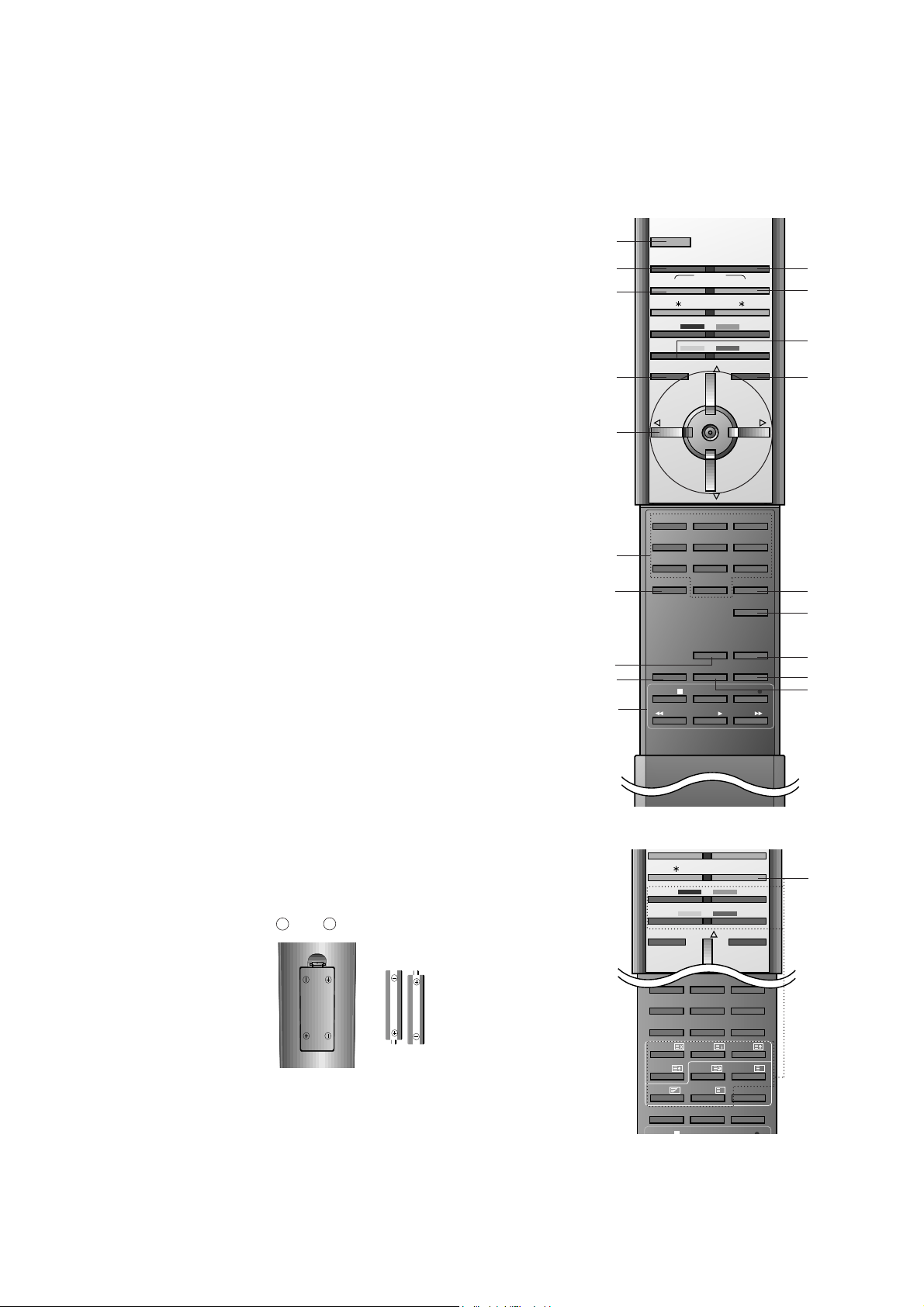

Remote control handset
Before you use the remote control handset, please install the bat-
teries. See the next page.
1. POWER
switches the set on from standby or off to standby.
2. TV/AV
selects TV or AV mode.
switches the set on from standby.
3. TURBO SOUND BUTTON
selects Turbo sound.
4. PIP BUTTONS (option)
PIP
switches the sub picture on or off.
PR +/-
selects a programme for the sub picture.
SWAP
alternates between main and sub picture.
INPUT
selects the input mode for the sub picture.
SIZE
adjusts the sub picture size.
STILL
freezes motion of the sub picture.
POSITION
relocates the sub picture in clockwise direction.
SCAN
switches on or off the programme scan mode 12 sub pictures.
5. MENU
selects a menu.
6. D / E(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
F / G (Volume Up/Down)
adjusts the volume.
adjusts menu settings.
OK
accepts your selection or displays the current mode.
7. NUMBER BUTTONS
switches the set on from standby or directly select a number.
8. PSM (Picture Status Memory)
recalls your preferred picture setting.
9. SLEEP
sets the sleep timer.
10. I/II
selects the language during dual language broadcast.
selects the sound output (option).
11. VCR BUTTONS
control a LG video cassette recorder.
123
456
7
PSM SSM
8
0
POSITION STILL
SCAN
MIX
REVEAL
?
M
TIME
SIZE
LIST
SLEEP
I/II A R C
Q.VIEW
STOP REC
P/STILL
REW FF
PLAY
9
POWER
TV/AV MULTIMEDIA
SOUND PICTURE
TURBO
PIP TEXT
PR -PR +
INPUTSWAP
MENU PR
VOL OK VOL
PR
MUTE
(With TELETEXT / PIP)
4 5 6
7
PSM SSM
8
0
LIST
SLEEP
I/II A R C
Q.VIEW
9
SOUND PICTURE
MENU PR MUTE
PIP
PR -PR +
INPUTSWAP
POSITION STILL
SCAN
SIZE
(Without TELETEXT/With PIP)
1
12
13
14
16
17
19
20
21
15
2
3
4
5
6
7
8
10
9
11
4
18

- 10 -
12. MULTIMEDIA
selects Component 1, Component 2 or RGB-DTV modes.
13. TURBO PICTURE BUTTON
selects Turbo picture.
14. TELETEXT BUTTONS (option)
These buttons are used for teletext.
For further details, see the ÔTeletextÕ section.
15. SWAP
returns to the previously viewed programme.
selects a favourite programme.
16. MUTE
switches the sound on or off.
17. SSM (Sound Status Memory)
recalls your preferred sound setting.
18. STILL
freezes motion of the picture.
19. LIST
displays the programme table.
20. ARC
select your desired picture format.
21. Q.VIEW
returns to the previously viewed programme.
selects a favourite programme.
*: No function
COLOURED BUTTONS : These buttons are used for teletext (only
TELETEXT models) or programme edit.
Note : In teletext mode, the PR +/-,SWAP and INPUT buttons are
used for teletext function.
Battery installation
The remote control handset is powered by two AAA type batteries.
To load the batteries, turn the remote control handset over and
open the battery compartment. Install two batteries as indicated by
the polarity symbols ( and ) marked inside the compartment.
Note : To avoid damage from possible battery leakage, remove the
batteries if you do not plan to use the remote control handset for an
extended period of time.
+
-
1 2 3
4 5 6
7
PSM SSM
8
0
LIST
SLEEP
I/II A R C
Q.VIEW
STOP REC
P/STILL
REW FF
PLAY
9
POWER
TV/AV MULTIMEDIA
SOUND PICTURE
TURBO
MENU PR
VOL OK VOL
PR
MUTE
STILL
(Without PIP/TELETEXT)
4 5 6
7
PSM SSM
8
0
I/II A R C
Q.VIEW
STOP REC
P/STILL
9
SOUND PICTURE
MENU PR MUTE
TEXT
UPDATE HOLD
INDEX
MIX
REVEAL
?
M
TIME
SIZE
LIST
SLEEP
(With TELETEXT/Without PIP)
1
12
13
16
17
18
19
20
21
15
2
3
5
6
7
8
10
9
11
14

- 11 -
1. MAIN POWER
switches the set on or off.
2. REMOTE CONTROL SENSOR
3. LED (Light Emitting Diode) DISPLAY
Option : Only RT-44/49/54NA62 series,
: PAL/SECAM input signal indicator
:STEREO sound indicator
: SLEEP timer indicator
: CHILD LOCK setting indicator
: RGB-DTV input signal indicator
4. POWER/STANDBY INDICATOR
illuminates brightly when the set is in standby
mode.
dims when the set is switched on.
5. TV/AV
selects TV or AV mode.
switches the set on from standby.
6. MENU
selects a menu.
7. OK
accepts your selection or displays the current
mode.
8. INDEX
switches LED DISPLAY on or off.
9. FF/ GG(Volume Up/Down)
adjusts the volume.
adjusts menu settings.
DD/ EE(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
10. AUDIO/VIDEO IN SOCKETS (AV3)
Connect the audio/video out sockets of exter-
nal equipment to these sockets.
S-VIDEO/AUDIO IN SOCKETS (S-AV)
Connect the video out socket of an S-VIDEO
VCR to the S-VIDEO socket.
Connect the audio out sockets of the S-
VIDEO VCR to the audio sockets as in AV3.
*CASTERS (on the bottom)
turn and move the set easily.
S-VIDEO VIDEO L/MONO RAUDIO
AV3

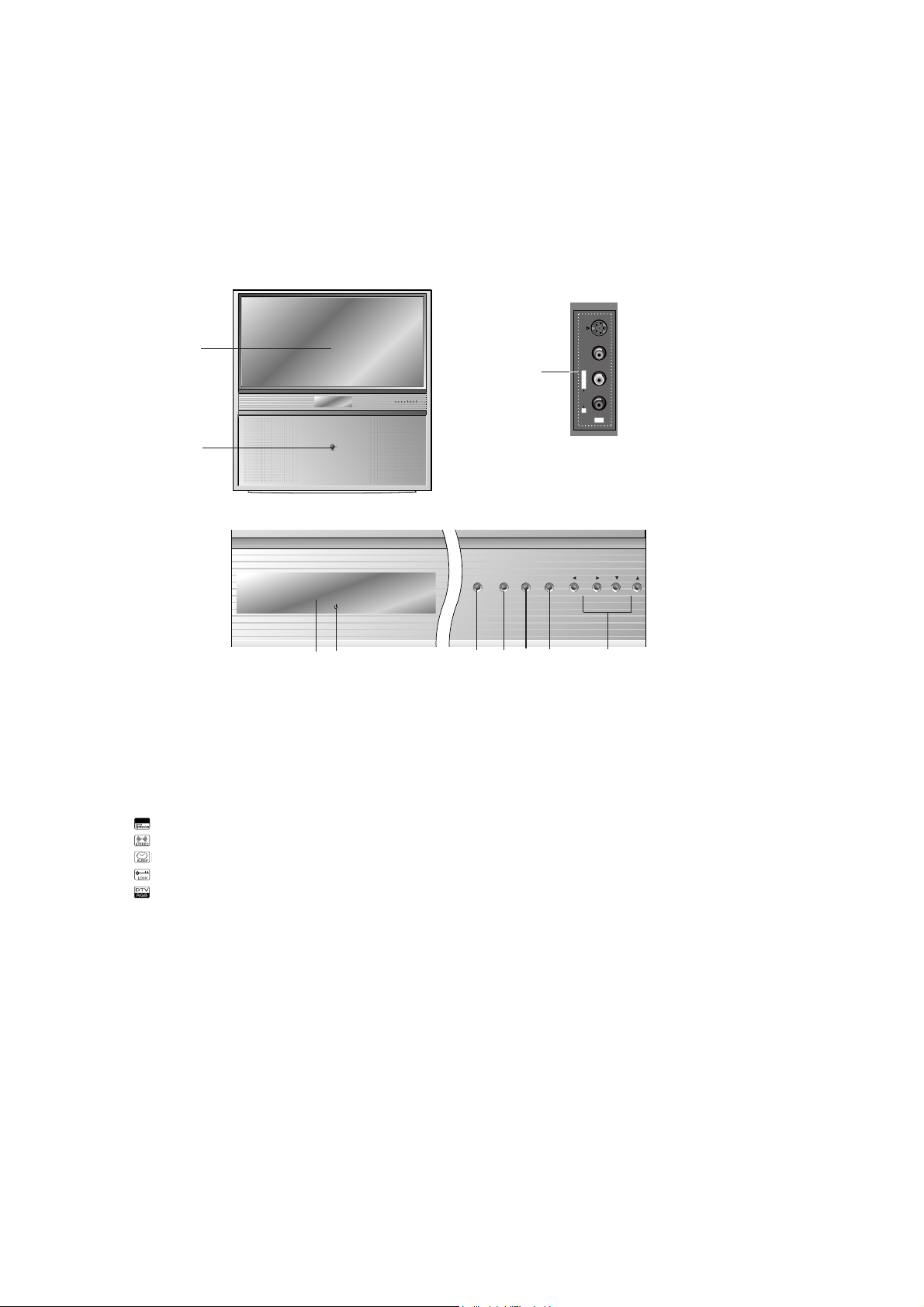

Front panel
(Side panel)
10
¥RT-44NZ31 series
P A L
VOLINDEXOKMENUTV/AV PR
TV/AV OK INDEX VOL PRMENU
1
2
59
67
38
4

- 12 -
O Raster Slope/Focus 1th Adjustment
1. Preliminary steps
1) Turn on the power.
2) Receive the EU 05 CH signal.
3) Press ÒIN-STARTÓ key to select Ò0. DEFLECTIONÓ by
movement of cursor or numeric key.
4) Adjust lens focus and electric focus provisionally.
5) Set the convergence adjustment mode on RESET.
a.Convergence adjustment mode:Press ÒIN-STARTÓ key to
select Ò3.CONVERGENCEÓ.
b.Convergence reset : Press 5 Key and then ÒENTERÓ key.
c.Adjustment mode cancellation : Press ÒIN-STARTÓ key.
2. Adjustment
1) Display only the Green raster using lens covers to block Red
and Blue.

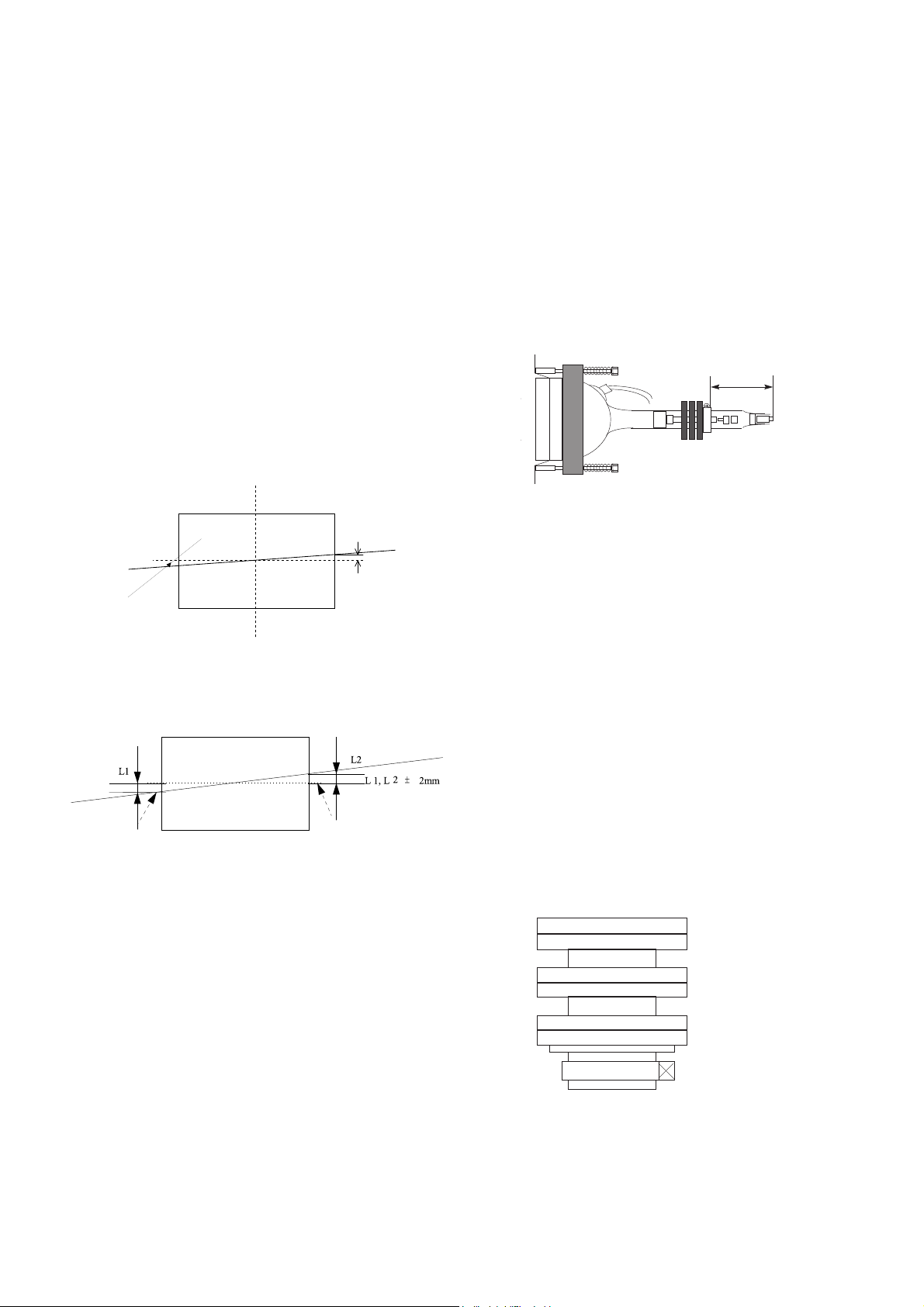

2) Rotate the Green DY and tilt the screen like the figure below.
3) Make 2color raster with Red or Blue and Green.
4) Superimpose the slope of red and blue raster onto that of the
Green.
Note) When adjusting raster slope, loosen the DY and
retighten it after adjusting.Never rotate and adjust the
fixed DY without loosening it. (DY - Deflection York)
5) Press ÒENTERÓ key to exit RASTER adjustment mode and
then ÒIN-STARTÓ key to exit SVC adjustment mode.
*If you press the ENTER key to cancel the RASTER adjustment
mode ,adjustment have finished.At the same time,data of
convergence automatically recover from convergence
adjustment mode .
O Beam Alignment Adjustment
1. Test Equipment
VIDEO TEST GENERATOR(801GF) or
Signal Generator that can produce DOT pattern
(408NPS or 5518/5418)
2. Preparation
1) Heat run over 60 minutes.
2) Pre-adjust Raster slope,Raster position,Lens focus
&centering Magnet.
3) Verify that the Magnet is located 45mm from the end of PRT.
4) Receive DOT pattern by external input terminal.(In case of
signal generator)
Receive #13 DOT Pattern of VGA Mode(Format #5) by PC
input terminal (In case of 801GF)
3. 2-Pole Magnet Adjustment
1) Display only the Green raster using lens covers to block Red
and Blue.
2) Check the center position of DOT pattern on the center of the
screen after turning Green focus volume left.
3) Turning green focus volume right and adjust 2-Pole magnet
so the position to coincide that of item 2).
4) Adjust not to shift the screen by turning green focus volume
left & right.
5) If the screen shifts, readjust 2)~4).
6) Do the same method in Red and Blue. Here, be careful not to
be stained.
4. Beam Shape (4 & 6-Pole Magnet) Adjustment
1) Do after adjustment of the 2-Pole magnet .
2) Display only the Green raster using lens covers to block Red
and Blue and turn the focus volume right.
3) Using the 4 & 6-pole magnets make adjustments so the DOT
in the center is a perfect circle.
4) Follow the same method in Red & Blue.
5) Fasten the Magnet after adjustment.
6) Adjust focus volume accurately and then adjust raster center.
ADJUSTMENT INSTRUCTIONS
Mechanical
center
L ¡´!2mm

Red/Blue Light Green Light
45mm

6 Pole Magnet
4 Pole Magnet
2 Pole Magnet

O Centering Magnet Adjustment
1. Preliminary steps
1) Tune the TV set to receive a EU 05 CH.
(No PR.1:PAL B/G 175.25MHz)
2) Press ÒIN-STARTÓ key on the remote controller and select
Ò0.DEFLECTIONÓ to use numeric key or move the cursor
.
3)
If you select the adjustment mode, automatically reset
the convergence and finished adjustment preparation
by display of
EU05 CH.
2. Adjustment
1) Operate adjustment about Red,Green,Blue centering
magnet. Magnet of Green centering is located center.
2) SGS-THOMSON Convergence assy
Adjust until the center of blue signal is shifted up to 30mm¡ 3
left from that of green signal and center of red signal is
shifted up to 30mm¡5 right from that of green signal with
turning the centering magnet.
3) After adjustment, exit the RASTER adjustment mode by
pressing ÒENTERÓ key and then press ÒIN-STARTÓ key to
exit in SVC adjustment mode.
O High Voltage Regulation Adjustment
1. Test Equipment
Digital Multi-Meter(DMM)
2. Preparation for Adjustment
Press ÒIN-STARTÓ key on the remote controller and then select
Ò1.HIGH VOLTAGEÓ by numeric key or cursor
(Set luminosity/light and shade of no AV signal for Zero(0) in
manual adjustment)
3. Adjustment
1) Connect Ò+Ó terminal(Red) of DMM to the P415 of the
Deflection PCB, [+] and the Ò-Ó terminal(Black) to the P416
,[-].
2) Adjust VR401 so that the voltage of P415(+), P416(-) to be
25000V voltage.(Come under high voltage 31.5KV)
3) After adjustment,press any key to exit in high voltage
adjustment mode and IN-START key to exit in SVC
adjustment mode.
O CUT-OFF Adjustment
1.Preliminary steps
1) Select of AV1 (no signal)
2) Test Equipment: Oscilloscope, 100:1 Probe
2.Adjustment
1) Connect Oscilloscope to R910R/G/B,
Connect GND to heat sink of R/G/B board.
2) Turning Screen Volume (R/G/B) in Focus Pack and adjust
R/G/B is 170!0.5V.
O Deflection Adjustment
1. Preliminary steps
1) NTSC mode should be adjusted after adjusting PAL mode.
2) NTSC adjustment should be done in standard mode of
picture after receiving NTSC 13CH signal or MULTI 48CH
signal,and PAL adjustment should be done in standard mode
of picture after receiving EU05 CH.
3) Press ÒIN-STARTÓ key on the adjustment remote controller
and select Ò0.DEFLECTIONÓ
4) Display only the Green raster using lens covers to block Red
and Blue.
2. PAL Mode Deflection adjustment
Use the ÒCH D,EÓ key to selection of the below each mode and
then adjust ÒVOLF,GÓ key
1) H POSI (Horizontal Shift adjustment)
Adjust until the geometric horizontal center line is accord with
the horizontal center line of screen JIG.
2)V POSI (Vertical Shift adjustment)
Adjust until the geometric vertical center line is accord with
the vertical center line of screen JIG
3) H SIZE (Horizontal SIZE adjustment)
The third column of horizontal size mark in outside angle of
circle is accord with the edge of frame.
4) V SIZE ( Vertical SIZE adjustment)
Adjust until 7th vertical bar from upper and lower center of
the screen is accord with the last point of the frame.
5) UP VLI (Upper vertical Linearity adjustment)
Adjust vertical linearity of upper screen.
6) LO VLI (Lower vertical Linearity adjustment)
Adjust vertical linearity of lower screen.
7)PIN PH (Horizontal trapezoid fixation)
Adjust to make the width of top horizontal line same with it of
the bottom horizontal line.
8) PIN AM (Horizontal PARABOLA correction)
Adjust so that middle portion of the outermost left and right
vertical line looks like parallel with vertical lines of the center
screen.
9) V LIN (Vertical linearity adjustment)
Adjust the screen vertical size to be same
10) S CORRE (S correction)
Adjust so that all distance between each horizontal lines are
to be same.
- 13 -

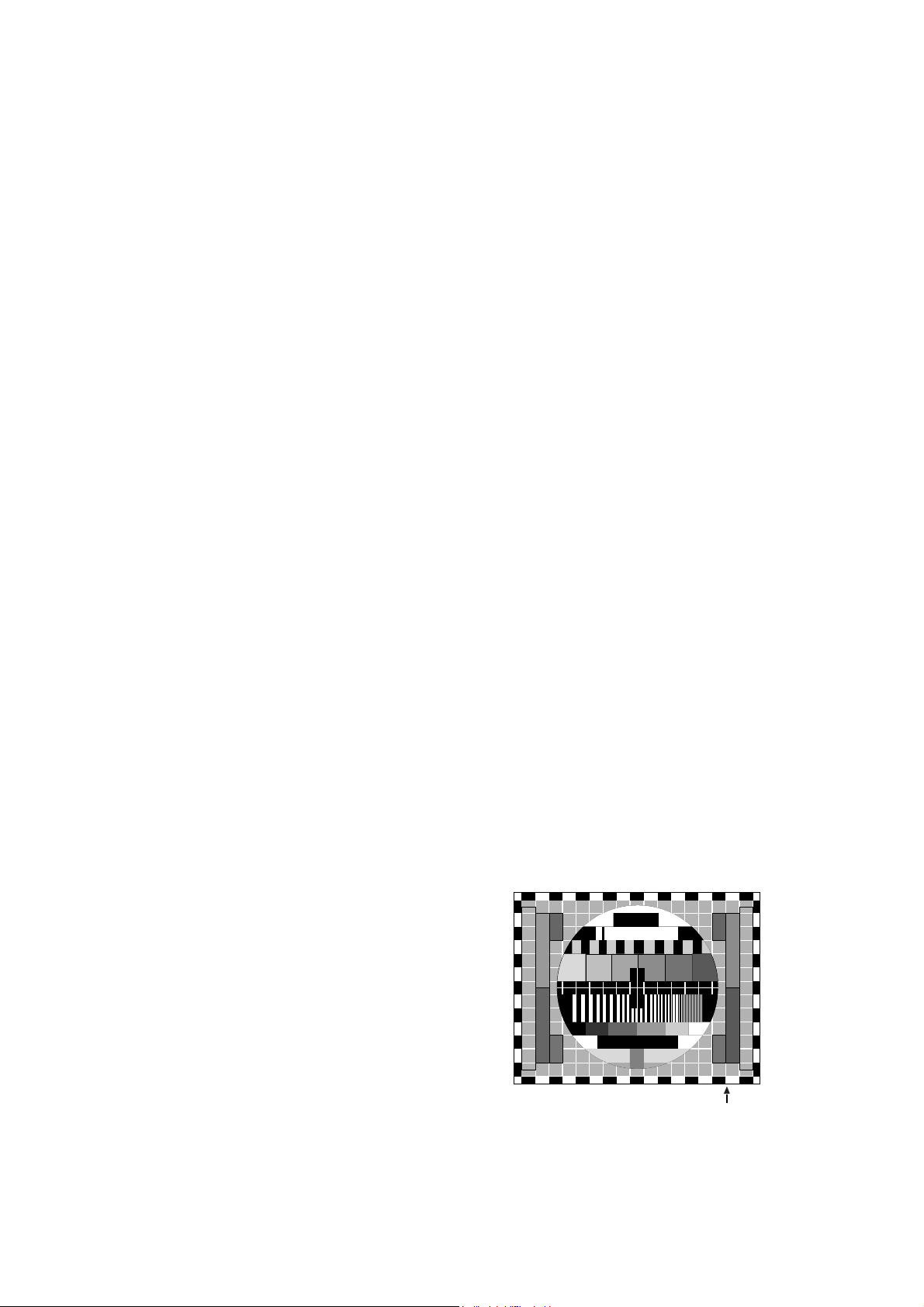

The 7th Vertical Line

11) AFC ANG ( Vertical slope adjustment)
Adjust the slope of screen to be vertical.
12) AFC BOW ( Vertical get bending adjustment)
Adjust the slope to be parallel when the vertical slope get
banded.
13) UP CPIN (Upper Pin-cushion correction)
Adjust pincushion of upper screen.
14) LO CPIN (Lower Pin-cushion correction)
Adjust pincushion of lower screen.
15) V SCROLL (SCROLL adjustment of vertical screen)
16) After adjustment,press ÒENTERÓ key to exit in RASTER
adjustment mode
17) Exit the Adjustment mode by pressing the ÒIN-STARTÓ
key.
3. NTSC Mode Deflection Adjustment
1) Adjust vertical size (VA adjustment) until 7th vertical bar from
upper and lower center screen is accord with the edge of the
frame.
2) Adjust horizontal size (EW adjustment) until third bar to
indicate horizontal size of circle is accord with the edge of
the frame.
3) Do other adjustments the same as in PAL mode.
O Lens Focus & Electronic Focus Adjustment
1. Preliminary steps
1) Electronic focus,Raster slope & Raster position must be pre-
adjusted.
2) Heat-run over 45 minutes.
3) Receive the Cross-hatch pattern.
(PAL:EU07(PR 8) or NTSC:09CH(PR 13))
* Note: Loosen the butterfly nut in the lens tub slightly,being
careful that it is mot loosened to the point that the lens can
move out of focus.
4) Adjustment must be done in a dark room(simple dark room)
Be careful not to touch the lens during adjustment.
5) Make display of one color raster using lens covers.
6) Rotating lens right from the front side chromatic haze occurs
beside Cross-hatch line changes as follows;
2. G-lens Adjustment
1) Rotate the lens until the chromatic haze changes from blue to
red.
2)
Viewing the all screen, in no case of the chromatic aberration
appeared slimly within 3.5 cross-Hatch of the picture center. At
this time, in case that the red chromatic aberrations bright line
isn't equal, adjust Green lens so that the red chromatic
aberration is appeared more than previous time.
3) Switching the signal to PAL 05CH(NASC 13CH) and operate
adjustment minutely.
4) Adjust Green focus control volume of focus pack so that the
external big circle's part appeared clearly.
5) Adjust accurately by repeat adjustment of upper.
6) Especially, noting to the Green light because it influenced on
pictureÕs function.
3. R-lens adjustment
1) Rotate the RED lens until the chromatic haze changes from
orange to scarlet.
2) Adjust to appear Red chromatic aberration in right 3.5 cross-
hatch section at center screen.Adjust the chromatic
aberration so that it located center correctly.
3) Switching the signal to PAL 05CH(NASC 13CH) and adjust it
as same method of Green lens.
4) Adjust as same method of Green lens with Red focus control
volume of focus pack.
4. B- lens adjustment
1) Rotate the lens until the chromatic aberration of 3.5 Cross-
Hatch left from center point changes from Violet to Green.
Adjust the chromatic aberration to be center point between
violet and green.
2) Adjust as same as method of Green lens with Red focus
control volume of focus pack.
- 14 -
Lens
Red
Green
Blue
Change of chromatic aberration
Orange ¤AScarlet
Blue ¤ARed
Violet ¤AGreen
CHROMATIC
ABERRATION
CROSS HATCH
SIGNAL
The seventh Vertical Line
Third Bar

5. Focus checking
After adjustment Red,Green & Blue lens, remove lens cover
and receive Cross-Hatch pattern and check the overall focus. If
needed,repeat above.
O Convergence Adjustment
1. Preliminary steps
This adjustment should be performed after warming up 45
minutes.
1) Adjust after Horizontal/Vertical Raster position,Beam
alignment magnet, and focus adjustments have been
completed.
2) Do it always with crosshatch pattern.
3) Adjust for both PAL and NTSC system.
4) Use the JIG screen with the cross hatch pattern for
Adjustment.
2. Adjustment
1) Press ÒIN-STARTÓ key on the remote controller and then
select Ò3.CONVERGENCEÓ by cursor movement or numeric
key
2) Press numeric key Ò9Ó & Ó5Ó to enter adjustment mode
(vertical /horizontal phase adjustment )
3.Horizontal phase adjustment
1) NTSC adjustment: Move the convex part to the middle of
between the vertical center line of screen and contiguous
right vertical line.(Use ÒF,GÓ key to adjust height of second
check to be same.)
2) PAL adjustment: Move the convex part to the quarter point of
between the vertical center line of screen and contiguous
right vertical line.
4.Horizontal pattern position adjustment:
1) Change into pattern shift mode.
(Press numeric buttons Ò9Ó & Ò4Ó)
2) Make sure to overlap pattern and image.
(Use MUTE button)
3) Accord the center of image and pattern.
(Use F , G , D ,Ekey)
4) Quit pattern shift mode. (Press ÒENTERÓ key)
5) Save adjusted phase/pattern position data
(Press Ò9Ó, Ò2Ó & ÒENTERÓ key)
5. Auto convergence
Convergence is based on the auto adjustment using PC and
Camera and if need,adjust manually like below method.
6. Green convergence adjustment
(In case of manual adjustment)
1)
Show the OSD on screen by pressing Ò2Ó key,then change the
OSD to green(G) adjustment mode with pressing TV/AV key.
2) Close the cover of red PRT and blue PRT so that green
display on screen only.
3) Adjust to coincide green pattern with screen JIG pattern.
(Use F , G , D ,Ebuttons)
At this time move cursor from center to around and adjust
convergence.
7. Red convergence adjustment
(In case of manual adjustment)
1)
Show the OSD on screen by pressing Ò2Ó key,then change the
OSD to red(R) adjustment mode with pressing TV/AV button.
2) If the need arises,close the cover of the blue lens.
3) Coincide the red screen with the green screen in same way
with that of green convergence adjustment.
8. Blue convergence adjustment
(In case of manual adjustment)
1)
Show the OSD on screen by pressing 2 button,then change the
OSD to blue(B) adjustment mode with pressing TV/AV button.
2) Coincide the blue screen with the green screen in same way
with that of red convergence adjustment.
9. Saving adjusted data
(In case of manual adjustment)
1) To save the data after adjustment,Press Ò9Ó, Ò1Ó & ÒENTERÓ
key.
2) Quit convergence adjustment mode. (Press ÒIN-START Ó
button)
10. Auto-Convergence measuring
1) Operate the auto-convergence measuring in PAL/NTSC
mode.
2) Operate in the condition of ÔZero magnetometerÕ in room after
correcting convergence manually.
3) Press ÒIN-STARTÓ key on the remote controller and then
select Ò3.CONVERGENCEÓ by cursor movement or numeric
key
4) First of all,press ÒMENUÓ key and then select Ò3. AC
POSITION MESÓ
5) If it becomes correct adjustment that appear ÒO.KÓ in center
of screen.
6) After finished adjustment,press ÒENTERÓ,ÓIN-STARTÓ key to
exit from CONVERGENCE adjustment mode one by one .
- 15 -

O White Balance Adjustment
1. Test Equipment
Brightness meter(CA110)
2. Adjustment
1) This adjustment must be operated when it finished screen
adjustment and focus adjustment.
2) This adjustment must be operated in a dark room or
equivalent.
3) The brightness meter must be located in 20¡5cm distance
from the center of the optical screen.
4) Set off to BURST OUT Setting of PATTERN GENERATOR
5) Heat-run over 45 minutes.
3. Automatic adjustment
1) Adjust to use automatic white balance adjustment
4. Manual adjustment sequence
1) Press ÒIN-STARTÓ key on the remote controller and then
select Ò4. W/BÓ by movement of cursor or use of numeric
key.
2) Receive window signal
*HIGH LIGHT adjustment mode luminosity:
44 inch model -> 180 !3 cd/m2
LOW LIGHT adjustment mode luminosity:
All model -> 10 ! 3 cd/m2
3) Set brightness to HIGH LIGHT adjustment mode of 2) and
adjust R DRIVE and B DRIVE data until color coordinate
becomes X=283 !3 and Y=292 !3.
4) Set brightness to LOW LIGHT adjustment mode of 2) and
adjust R-CUTOFF and B-CUTOFF data until color
coordinate becomes X=283 !3 and Y=292 !3.
5) After adjustment,press ÒENTERÓ key to exit from RASTER
adjustment mode on the remote controller.
6) Press ÒIN-STARTÓ key to exit from SVC adjustment mode.
O Auto-Convergence Check
1. PAL Auto-Convergence Check
1) Receive EU05 CH signal.
2) Change the magnetometer in magnetometer.
3) Press ÒIN-STARTÓ key on R/C for adjustment and press the
Ò9.AUTO CONVÓ to check whether Auto-Convergence works
normally.
2. NTSC Auto-Convergence Check
1) Receive NTSC 13CH of in-house or MULTI 48 CH signal
2) Change the magnetometer in magnetometer.
3) Press ÒIN-STARTÓ key on R/C for adjustment and press the
Ò9.AUTO CONVÓ to check whether Auto-Convergence works
normally.
O Check the Option Adjustment
1) Check the OPTION1~4 is well recorded.
2) The option value of each suffix is started on JOB EXP of
3141VMN chassis Assy.
- 16 -
Model

- 17 -
O CXA2180, AD9883, Default DATA
1.CXA Default Data (Decimal Data)
2.AD9883 Default Data
2.1 RGB-PC Mode (Hexa) 2.2 RGB-DTV Mode (Hexa)
1
2
3
4
5
6
7
8
9
10
NO ITEM
R-Drive
G-Drive
B-Drive
R-Cutof
G-Cutof
B-CutOf
S-BRIGH
S-CONTR
PIC-ON
R-ON
DATA
12
31
12
12
49
12
12
0
1
1
11
12
13
14
15
16
17
18
19
20
NO ITEM
G-ON
B-ON
DCOL
EXT-SW
SHP-FO
BLK-BTM
PRE-OVE
CTI-LEV
LTI-LEV
PLIMIT_L
DATA
1
1
3
0
0
0
3
0
2
3
21
22
23
24
25
26
27
28
29
30
NO ITEM
ABL-MOD
CTI-MOD
GAMMA
LTI-MOD
DPIC-LE
DC-TRAN
LRGB2-L
P-ABL
ABL-TH
CB-OFFS
DATA
2
0
2
1
3
2
13
11
7
31
31
32
33
34
35
36
37
38
39
40
NO ITEM
CR-OFFS
AGING-W
AGING-B
SYSTEM
Y-OFFSE
VM-DLY
VM-FO
R-Y/R
R-Y/B
G-Y/R
DATA
31
0
0
1
7
2
2
7
10
8
13
15
8
41
42
43
44
45
46
47
48
49
50
NO ITEM
G-Y/B
VM-LEV
FLCOL
FLCOL-S
H-POSIT
V-POSIT
H-SIZE
V-SIZE
UP-VLIN
LO-VLIN
DATA
6
6
1
1
45 46
31
17
31
8
3
15
29
8
3
51
52
53
54
55
56
57
58
59
60
NO ITEM
PIN-PHA
PIN-AMP
V-LIN
S-CORRE
AFC-BOW
AFC-ANG
UP-CPIN
LO-CPIN
UP-UCP
LO-UCP
DATA
32
21
7
0
29
31
41
29
1
1
34
23
7
0
29
31
40
28
61
62
63
64
65
66
67
68
69
70
NO ITEM
UP-UCG
LO-UCG
UC-POL
UP-BLK
LO-BLK
LEFT-BL
RIGHT-B
V-ASPEC
V-SCROLL
V-ON
DATA
1
1
0
0
0
31
31
15
27
1
71
72
73
74
75
76
77
78
79
80
NO ITEM
EW-DC
VBLK-SW
CLP-SHI
NON-INT
AFC-MOD
CLP-PHA
CLP-GAT
HBLK-SW
ZOOM-SW
JMP-SW
DATA
0
0
0
0
1
0
0
0
0
0
81
82
83
84
85
86
NO ITEM
VFREQ
V-COMP
H-COMP
AKB-TIM
BLK-Off
AKB-Off
DATA
0
0
0
9
0
0
4
25
1
2
3
4
5
6
NO ITEM
R OFFSE
G OFFSE
B OFFSE
R GAIN
G GAIN
B GAIN
DATA
45
45
45
46
46
46
1
2
3
4
5
6
NO ITEM
R GAIN
R OFFSE
B GAIN
B OFFSE
G OFFSE
G GAIN
DATA
7F
45
7F
45
7F
45

O SVC Adjustment mode & Initial data
1. White Balance adjustment data (IC:CXA2180)
2. Deflection adjustment data (IC:CXA2180)
3. Sound adjustment data (IC:MSP3411G)
O Convergence Adjustment Mode
0.AC POSITION READ : Distance data(After auto convergence
measuring)
1.Save to 50Hz/60Hz : Save (convergence adjustment data)
ItÕs same 9,1,OK.
2.Save Control data : Save (A phase adjustment data)
ItÕs same 9,2,OK.
3.AC Position Meas. : Execute( auto convergence measuring)
4.Pattern : Adjust location of convergence pattern.
ItÕs same 9,4,OK.
5.Phase : Adjust a phase of convergence pattern.
ItÕs same 9,5,OK.
6.GRID Border
7.FOCUS: Set the Dynamic Focus Data
8.OSD POSITION
9.AC PATTERN ADJ :Assign location for pattern start
- 18 -
10
1F
1C
0F
23
0F
DE
RD
GD
BD
RC
GC
BC
AGC-L
Menu Description
Red Drive
Green Drive
Blue Drive
Red Cut-off
Green Cut-off
Blue Cut-off
AGC LEVEL
Range Default
29
1F
11
1F
8
3
20
15
7
0
1D
1F
29
1B
1B
27
1F
F
1D
8
3
22
17
7
0
1D
1F
28
1C
19
H POSIT
V POSIT
H SIZE
V SIZE
UP VLIN
LO VLIN
PIN PHA
PIN AMP
V LIN
S CORRE
AFC BOW
AFC ANG
UP CPIN
LO CPIN
V SCROLL
Menu Description
Horizontal position
Vertical position
Horizontal size
Vertical size
Upper vertical linearity
Low vertical linearity
Pincushion phase
Pincushion amp
UP Vertical linearity
Vertical S-Correction
AFC BOW
AFC Angle
Upper coner pincushion
low coner pincushion
Vertical scroll
Range Default
PAL NTSC
64
64
64
64
16
16
64
64
16
16
64
64
64
64
64
15
50
10
78
78
FD
64
06
09
24
FM
NP
SP
S1 VOL
S2 VOL
MDB-STR
MDB-HMC
MDB-HP
MDB-LP
MDB-LIM
Menu Description
FM Prescaler
NICAM Prescaler
SCART Prescaler
SCART 1 Volume
SCART 2 Volume
MDB Effect Bass Strength
MDB Harmonic Content
MDB High Pass
MDB Low Pass
MDB Amplitude Limit
Range Default
HGD
HRD
VGD
BPH
BPV
27
55
63
18
35
27
55
51
20
38
Horizontal Grid Distance
Horizontal Retrace Distance
Vertical Grid Adjustment
Border Position Horizontal
Border Position Vertical
Item Description (PAL) (NTSC)
48
35
49
21
53
50
110
60
MICOM
NO
Item Description
Focus parabola top value
Focus parabola middle value
Focus parabola bottom value
Focus parabola position
Start of the retrace value
Focus value during frame retrace
Force the video pattern fast blanking
Auto convergence offset
Auto C/G Measuring initial pattern data
MICOM data ->EEPROM
(PAL/NT)
FV1
FV2
FV3
VFP
FSB
FVR
STA
ACO
OPT
INIT
11,40
12,33
12,32
15,42
15,42
15,42
12,12
13,14
13,16
16,31
17,35
17,37
12,42
11,42
11,42
15,14
15,14
15,12
H,V H,V
5,24
4,23
3,23
5,30
4,30
3,31
H,V
15,25
15,20
17,17
19,52
19,52
19,54
13,35
15,38
14,40
15,21
12,22
14,24
9,51
8,51
8,51
11,36
10,35
10,35
H,V H,V
6,7
3,6
3,6
4,55
3,55
1,55
H,V
<PAL mode> <NTSC mode>
¥ MDB(MICRONAS DYNAMIC BASS)

O OPTION Data Adjustment
AV4
WIDE
CHINA
HDEV
- 19 -
option3
Description
1: With Teletext
0: Without Teletext(CHINA)
Range Default
TEXT
option2
option3
Description
1: With Channel Name Display
(All Countries except Australia)
0: Without Channel Name Display
(Australia)
1: Rushed Sound Curve
(Middle East ASIA,ASIA)
0: Standard Sound Curve
(Other countries)
1: With Headphone
0: Without Headphone
1: With Component input
0: Without Component input
1: With SCART YC
0: Without SCART YC
1: With WOOFER
0: Without WOOFER
1: RGB MODE ON
0: RGB MODE OFF
1: LAST AV ON
0: LAST AV OFF
1: With SCART AV
0: Without SCART AV
1: With wide picture
0: Without wide picture
1: China+Australia channel table
0: Other countries channel table
1:Sound high DEV(China,India)
0:Without sound high dev (Etc.)
Range Default
ACMS
S-CURVE
HEADPH
DVD
SAV
WOOFER
RGB-PC
LAST AV
0:Teletext off
1:Teletext on
No
0:
1:
0: 4:3 Model
1: 16:9 Model
0:BB table off
1:BB table on
0:H-dev off
1:H-dev on
0:OFF
1:ON
0:Low curve
1:High curve
0:OFF
1:ON
0:OFF
1:ON
0:OFF
1:ON
0:OFF
1:ON
0:OFF
1:ON
0:
Non Memory
1:Memory
0:100P
1:200P
0:OFF
1:ON
0:SAVE
1:Not save
0:Enable
1:Disable
0:OFF
1:ON
0:ON
1:OFF
0:BG/I/DK
1:BG/L
2:BG/I/DK/M
3:Reserved
No
1: 200 Program(CHINA Only)
0: 100 Program
1: With BLUE BACK
0: Without BLUE BACK
1: Save Dual Sound Condition
0: Not Save Dual Sound
1: TOP + FLOF TEXT
0: FLOF TEXT
1: With Digital EYE
0: Without Digital EYE
1: With FM Stereo
0 : Without FM Stereo
0 : BG/I/DK(RE-)
1 : BG/L(RL-)
2: BG/I/DK/M(RT-)
3 : RESERVED
200 PR
BLUACK
DUAL
TOP
EYE
A2 ST
SYSTEM
option1

CONTRAST
100
95
60
50
100
- 20 -
State
LANG
T-LAN
Default
Language
0:ENG Only
1:EU 5EA
2:EU ETC
3:PARSI
4:ARAB URDU
5:English+Hindi
6:English+I+M+V
7:English+THAI
8:English+China
0:West Europe
1:East Europe
2:Turkey EU
3:EAST EU2
4:Cyrillic 1
5:Cyrillic 2
6:Cyrillic 3
7:Turkey/Greek 1
8:Turkey/Greek 2
9:Turkey/Greek 3
10:Arab/France
11:Arab/English
12:Arab/Hebrew 1
13:Arab/Hebrew 2
14:Farsi/English
15:Farsi/France
16:Farsi all
Function
English
English/German/French/Italy/Spanish
Pol./Hungary/Czech/Russia/Eng
English/Parsi
English/French/Arab+Urdu
English/Hindi
English/Indonesian/Malaysian/Vietnamese
English/Thai
English/China
English/French/Swedish/Czech/German/Spanish/Italian
Polish/French/Swedish/Czech/German/Slovenian/Italian/Rumanian
English/French/Swedish/Turkish/German/Spanish/Italian
English/Hungarian/Serbian/Czech/German/Polish/Spanish/Italian/
Rumanian
Russia
option4
*Picture data by picture mode : Need not adjustment
No
1
2
3
4
5
PICTURE MODE
DYNAMIC
STANDARD
MILD
GAME
USER
BRIGHT
55
50
50
50
55
COLOR
50
50
40
40
50
SHARPNESS
60
50
40
35
60
No
