LG LG WT-R1071TH User manual

Washing Machine
OWNER'S MANUAL
P/No.: 3828EA3006F
Please read this manual carefully before operating your washing
machine.
Retain it for future reference.
Record model name and serial number of the washing machine.
Quote this information to your dealer if you require service.
MODELS :
WT-R1071TH(P)

T
P
roduct Features
START WASHING AUTO
POWER
OFF
SENSING
Laundry Sensor
Water Level Sensor
SETTING
Optimum
Washing
Condition
C
ontents
Introduction
Before Starting to Wash
Washing Programs
Additional Function
Options
Installation
Care and Maintenance
Specification
Troubleshooting
Important Safety Information
Identification of Parts
Preparation Before Washing
Use of Water, Detergent, Bleach
and Softener
Function of each Button
Delicate Wash
Wool Wash
Normal wash
Speedy Wash
Jean Wash
Soak Wash
Option Washing Method
Delay Start Wash
Other useful Functions
Placing and Leveling
Connecting Water Supply Hose
Connecting Drain Hose
Grounding Method
Cleaning
Troubleshooting
Specification
4
5
6
7
8
10
12
12
12
12
12
12
14
15
16
17
18
20
21
22
24
27
Read this manual
Inside you will find many helpful hints on how to use and maintain your washer
properly. Just a little preventive care on your part can save you a great deal of time and
money over the life of your washer. You will find many answers to common problems
in the Troubleshooting section. If you review our chart of Troubleshooting Tips first, you
may not need to call for service at all.
Low Noise Direct Drive System
● The advanced Blushless DC motor rotates the Tub
directly without belt and clutch, thereby reducing
the noise of the washer.
● The washing machine adjusts to optimum speed
according to the type of clothing in the load.
The Turbo Drum DD washing machine does not operate with the lid open.
If the lid is opened during wash, rinse and spin cycles, the machine will stop
automatically.
Fuzzy Logic Control
● A built-in load sensor automatically detects and measures the laundry load and a
microprocessor optimizes washing conditions such as ideal water consumption
and washing time.
● Advanced technology is built into the Electronic Control System which ensures
the best washing result.
Drum Rotate
Drum rotates at
high speed
Stains are removed by
penetrating water
from centrifugal force
Water pours down
and circulates
Penetration wash from
centrifugal wash
Turbo Drum DD washing
Fully Stainless Steel Washing Tub
● Indentations on the stainless steel washing tub combined with the movement
of the water whirls gently rub the laundry and improving washing efficiency.

Introduction

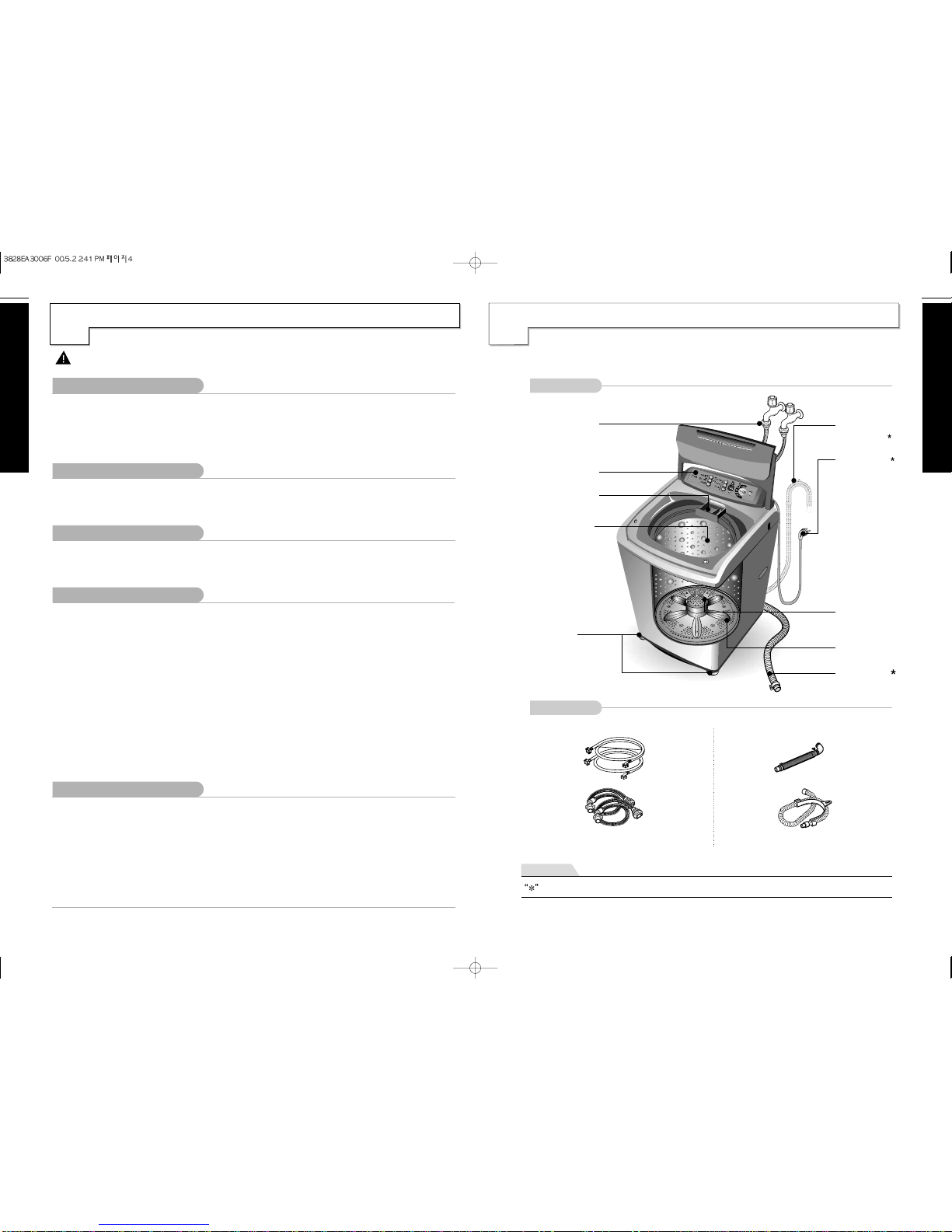

dentification of Parts
5
title
mportant safety information
4
II
Important Safety Information
• Power cord
- Do not touch the
power cord with
wet hands
- If the power cord
or fuse is damaged.
it must be replaced
by the manufacturer
or its service agents
or similaly qualified
people in order to
avoid a risk of fire
or electric shock.
Drain hose
Water supply hoses
or or
or
1 Each for cold and
hot water
Body
Accessories
Part can be different according to the model.
Note
• Water supply hose
• Feature Control panel
• Powder detergent
Power bleach box/
Softener box
• Fully Stainless Steel
Inner tub
• Washing Wing
(unique with Inner Tub)
• Magic hose
• Turbo Clean Filter
• Drain hose for
pump model
• Adjustable leg
For your safety, the information in this manual must be followed to minimize the risk of fire
or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.
Under certain conditions hydrogen gas may be produced in a water heater that has not been used for two
weeks or more. Hydrogen gas can be explosive under these circumstances.
If the hot water has not been used for two weeks or more, prevent the possibility of damage or injury by turning on
all hot water faucets and allowing them to run for several minutes. Do this before using any electrical appliance
which is connected to the hot water system. This simple procedure will allow any built-up hydrogen gas to escape.
Since the gas is flammable, do not smoke or use an open flame or appliance during this process.
■ Install or store where it will not be exposed to
temperatures below freezing or exposed to the weather.
■ Properly ground washer to conform with all governing
codes and ordinances.
■ The base opening must not be obstructed by carpeting when
the washing machine is installed on a carpeted floor.
■ The appliance must be positioned so that the plug is
accessible.
YOUR LAUNDRY AREA
WHEN USING THE WASHER
WHEN NOT IN USE
PROPER INSTALLATION
WATER HEATER SAFETY
Read and follow this Safety Information carefully.
SAVE THESE INSTRUCTIONS
■ Keep the area underneath and around your appliances free
of combustible materials such as lint, paper, rags,
chemicals, etc.
■ Close supervision is necessary if this appliance is used by
or near children. Do not allow children to play on, with, or
inside this or any other appliance.
■ Keep the washing machine away from fire or heat source.
■ Turn off water faucets to relieve pressure on hoses and
valves and to minimize leakage if a break or rupture
should occur. Check the condition of the fill hoses; they
may need replacement after 5 years.
■ Before discarding a washer, or removing it from
service, remove the washer lid to prevent children from
hiding inside.
■ Do not attempt to repair or replace any part of this
appliance unless specifically recommended in this
Owner's Manual, or in published user-repair instructions
that you understand and have the skills to carry out.
■ Do not tamper with controls.
■ Use this appliance only for its intended purpose as
described in this Owner's Manual.
■ Never reach into washer while it is moving. Wait until the
machine has completely stopped before opening the lid.
■ Do not mix chlorine bleach with ammonia or acids such as
vinegar and/or rust remover. Mixing different chemicals can
produce a toxic gas which may cause death.
■ Do not wash or dry articles that have been cleaned in,
washed in, soaked in, or spotted with combustible or
explosive substances (such as wax, oil, paint, gasoline,
degreasers, dry-cleaning solvents, kerosene, etc.) which
may ignite or explode. Do not add these substances to the
wash water. Do not use or place these substances around
your washer or dryer during operation.
■ The laundry process can reduce the flame retardancy of
fabrics. To avoid such a result, carefully follow the
garment manufacturer's wash and care instructions.
■ To minimize the possibility of electric shock, unplug this
appliance from the power supply or disconnect the washer
at the household distribution panel by removing the fuse or
switching off the circuit breaker before attempting any
maintenance or cleaning.
NOTE: Pressing Power button to turn off does NOT
disconnect the appliance from the power supply.
■ Never attempt to operate this appliance if it is damaged,
malfunctioning, partially disassembled, or has missing or
broken parts,
■ Young children should be supervised to ensure that they
do not play with the appliance.
READ ALL INSTRUCTIONS BEFORE USE
WARNING!

Introduction
W
ater Level Temperature
7
Before Starting to Wash
reparation Before Washing
P
6
WIRE
•Check all pockets to make sure that they are empty. Things such as nails, hairclips, matches,
pens, coins and keys can damage both your washer and your clothes.
•Fasten zippers, hook and strings to make sure that these items don't snag on other clothes.
•Mend any torn garments or loose buttons. Tears or holes may become larger during washing.
• Remove any loose brassiere wires as they can damage your washer and clothes.
• Pretreat any dirt and stains.
• Make sure the clothes are washable in water.
• Check the washing instructions on your clothes.
To get the best results, different fabrics need to be washed in different ways.
• SOIL (Heavy, Normal, Light) Separate clothes according to the type and amount of soil
• COLOR (Whites, Lights, Darks) Separate white fabrics from colored fabrics.
• LINT (Lint producers, Collectors) Separate lint producers and lint collectors.
Lint Producers Terry cloth, Chenille, Towel, diaper
Lint Collectors Synthetics, Corduroy, Permanent Press, Socks
SORTING
CHECK BEFORE LOADING
* Look for a care label on your clothes. This will tell you about the fabric content
of your garment and how it should be washed.
Sort clothes into loads that can be washed with the same wash cycle, water
temperature and spin speed.
CARE LABELS.
Use nylon nets for long, delicate items.
For laundry with long strings or long length, a net will prevent tangling during
washing.
Fasten any zippers or hooks on items before washing.
Nylon net is not supplied by LG.
Clothes including downs and woollens are light weight, large and
float easily.So use a nylon net and wash them in a small amount of
water.
If the laundry floats during the wash cycle, it may become damaged.
Use dissolved detergent to prevent the detergent from clumping.
Light and Large-sized clothing
Long laundry items
Do not wash fabrics containing flammable materials (waxes, cleaning fluids, etc.).
Load Size
The water level should just cover the clothes. Adjust the load size accordingly. Loosely load clothes no higher than the
top row of holes in the washer tub. To add items after washer has started, press Start button and submerge additional
items. Close the lid and press Start button again to restart.
LOADING
S M L XL
WATER TEMPERATURE
• You can change the water temperature by pressing the WATER TEMP button. (Option depending on model).
The temperature of the water impacts the effectiveness of all laundry additives and therefore, the cleaning
results. We recommend temperatures of:
❋When washing in cold water additional steps may be needed:
• Adjust detergent amount and pre-dissolve detergent in warm water
• Pretreat spots and stains
• Soak heavily soiled items
• Use appropriate bleach
• Temperature below 18˚C (65˚F) will not activate laundry additives and may cause lint, residue, poor
cleaning, etc. In addition, detergent manufacturers and care labels define cold water as 26~29˚C(80~85˚F).
• If the temperature of the water in the tub is too cold for your hands, the detergent will not activate
and clean effectively.
• This machine detects the quantity of laundry automatically, then sets the water level
and proper amount of detergent.
• When you select a wash program, the water level and amount of detergent
(to be used) will be shown on the control panel.
• When the water level is automatically detected, it may differ depending on the quantity of
laundry even though the same water level is indicated on the control panel.
WATER LEVEL
• When a Wash, Wash/Rinse or Rinse only option is selected, after the wash is completed the water will
not be drained off.
• If you wish to drain the water, press the SPIN button and wait until the water in the tub has drained
completely. Then press the START/PAUSE button .
• If you do not specify the water level, then Medium will be automatically selected.
• If Rinse only is selected, the process will start from Water Supply.
• The washing machine may occasionally add water while pulsator is rotating. This is to maintain the water
level due to the release of air trapped in the garments.
Note
White items, diapers, underclothing and heavily soiled, colorfast items.
Only very bright colors with light soil.
Most items.
HOT 50~60˚C(120~140˚F)
WARM 30~40˚C(85~105˚F)
COLD ❋18~24˚C(65~75˚F)

Before Starting to Wash
U
se of Detergent
9
Before Starting to Wash
se of Detergent
U
8
If the softener is over filled,
it can overflow
AVAILABLE FABRIC SOFTENER TYPE
Do not use concentrated fabric softener. This may cause some problems in automatic dispensing.
For more details refer to the softener products instructions for use.
DEPOSITING FABRIC SOFTENER
Fabric Softener will be dispensed automatically during the final rinse.
Note
• Don't use softener with detergent. Use softener in last rinse water
• When using dispenser, dilute softener(30ml) with
fresh water(30ml)
• When filling dispenser, do not splash or overfill.
It may stain clothes.
• Never pour fabric softener directly on clothes. It may stain them
• If spotting occurs, wet and hand rub dishwashing liquid (or mild
bar soap) and rewash.
DEPOSITING BLEACH
• Separate the laundry to be bleached.
• Measure powdered bleach carefully, following instructions on the box.
• Before starting the washer, pour measured amount of bleach directly into bleach dispenser.
AVAILABLE BLEACH TYPE
Using Bleach
Using Softener
Use oxygenated bleach.
Do not use liquid bleach.
For more details refer to the products instruction for use.
Check fabric care labels for special instructions.
Attention
■ Never pour undiluted liquid bleach directly onto clothes or into the wash basket.
This may affect colors or damage clothing.
■ Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover. Mixing can
produce a toxic gas which may cause death.
■ Do not pour liquid bleach into bleach dispenser.
Where you
deposit the
detergent
Powder Detergent / Powder Bleach dispenser.
AMOUNT OF DETERGENT
Follow the detergent package directions. Using too little detergent is a common cause of laundry
problems. Use more detergent if you have hard water, large loads, greasy or oily soils or lower water
temperature.
The correct amount of detergent will vary depending on the amount of soil in your clothes (Jeans and
work clothes may need more detergent, while bath towels usually need less).
For liquid and concentrated detergents, follow the recommendations of the detergent manufacturer.
To check you are using the correct amount of detergent, lift the lid of your machine about half-way
through the wash. There should be a thin layer of foam over the surface of the water. Lots of foam may
look good, but it does not contribute to cleaning your clothes. No foam means not enough detergent has
been used; soil and lint can settle back on the clothes or the washing machine.
• We recommend the use of domestic detergent, (powder, liquid or concentrated). Soap flakes
or granulated soap powders should not be used in your washing machine. When washing woolens
remember to use a detergent suitable for washing woolens.
If excessive detergent is used, the rinse will not be as clean and efficient. Also, it could cause environmental
pollution, so use it accordingly.
Attention
CHOOSING THE RIGHT DETERGENT
• Open the DETERGENT Box and deposit the
appropriate amount of detergent .
ADDING THE DETERGENT
• Some detergents MUST be fully dissolved before adding to your machine to get the best wash
results. Check the instructions on the detergent packet.
If you use powder detergent it is essential that the required amount be fully dissolved in very hot
water before being added to warm or hot water for the actual wash.
Pre-dissolving detergent in warm water when washing in cold water can improve its performance.
Note

Introduction
11
title
T
10

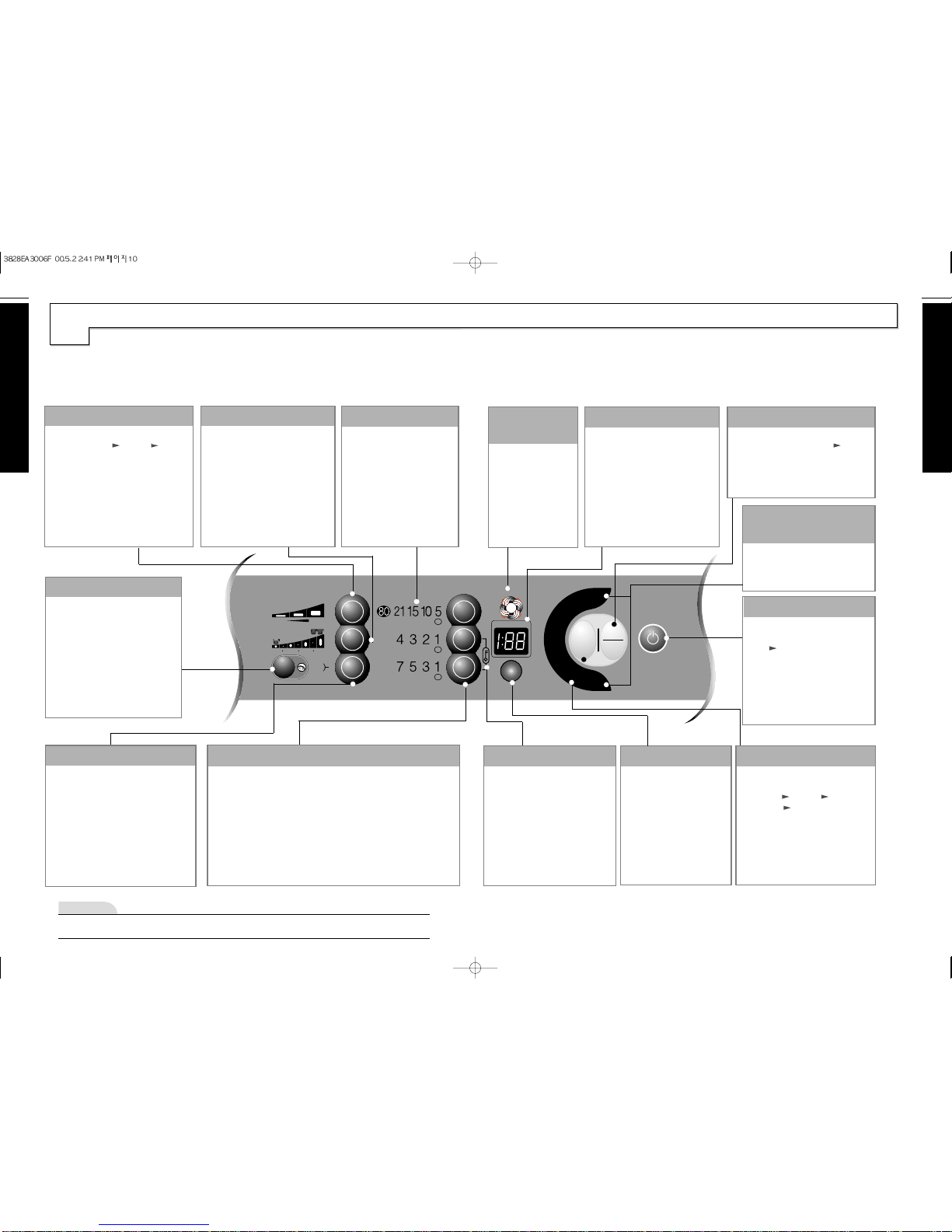

Before Starting to Wash
F
unction of each Button
SILENT COLD
HOT
DELAY
WOOL
NORMAL
SPEEDY
PRO
GRAM START
PAUSE
POWER
JEAN
DELICATE
NO INLET
DOOR OPEN
NO DRAIN
STAIN
LEVEL
WATER
LEVEL
WATER
TEMP.
WASH
RINSE
MIN
MIN
SPIN
S M L XL
LIGHT HEAVY
SOAK
DELAY/TIME LEFT
MOTOR SPEED INDICATOR
TIMES
Water temperature
Water levels
• Use to select water levels.
• Available during washing.
• For appropriate quantity of
detergent follow the detergent
manufacturer’s instruction.
Display Wash Process
• On : will do
• Blink : doing
• Off : Done
• Use to select proper water temperature
while running.
• Available during washing.
• Only cold water for
“WOOL” & “DELICATE”
Stain Level
• Default is MEDIUM. By pressing
button [HEAVY LIGHT
MEDIUM] mode repeats.
• Available all cycle
• Available during washing.
Wash, Rinse, Spin, Button
• Use to change washing time, the number of rinse, spin time.
• To change washing time, the number of rinse, spin time during wash,
do it after pressing “START/PAUSE” button.
• Soak is used to remove old or hardened dirt more effectively.
You can change wash time after soak(80min.)
• Choose 1min Spin to avoid wrinkle
Note
The control panel may differ according to different models
Silent
• Use it at night to wash quietly.
• When selected “Silent” lights are on
and the other cycle’s light are all off.
Before Starting to Wash
Motor Speed
Indicator
• The light circulates
according to motor
speed.
Delay
• Use this function for delayed
washing.
• Use it to set the delayed
time.
• Not available for delicate.
• Available from 3~24Hr
Program
• Use it to select washing programs.
• By pressing the button, it cycles
[NORMAL SPEEDY JEAN
DELICATE WOOL]
(refer to p12)
Power
• Use it to turn on and off.
By pressing the button
[On Off] are repeated.
• Electrical power automatically
turns off 10sec, after the washing
cycle finishes with “boo~” sound.
• Electric power automatically turn
off after 10min. in ‘Pause’
condition.
Child lock function
Use to lock or unlock the control
buttons to prevent setting from
being changed by a child.
To lock, push the RINSE, and SPIN
buttons simultaneously and to
unlock push them one more time
during the washing process.
Display Delay Time,
• Used to indicate the time left of all
processes or delay.
• In case of abnormal operation the
following indications are displayed
- PE : Abnormal water sensor
(No Sensing Water Levels)
- CE : Overload
- LE : Abnormal motor (No Spin)
- UE : Unbalanced load
Start Pause Button
• Use it to start or pause.
By pressing the button [Start Pause]
are repeated.
Abnormal Operation
Display
• In case of abnormal operation
problem will be light and a buzzer
will sound.

Introduction
13
title
T
12

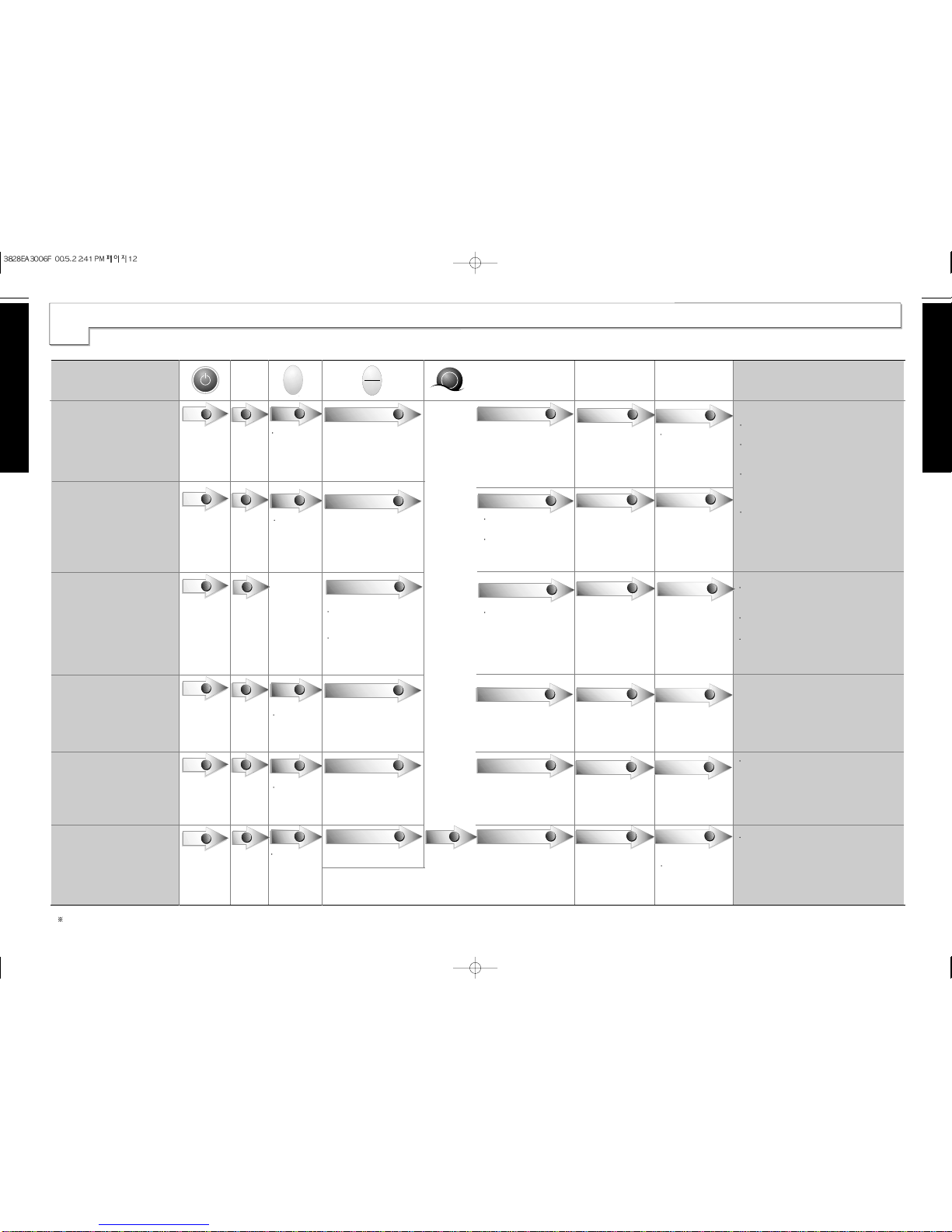

Washing Programs
W
ashing Programs
Washing Programs
Add
the detergent Close the lid Finish Caution & Note
Use appropriate neutral
detergent for the laundry
When washing woolens use a
mild detergent recommended
for washing wool.
When the wash program
ends, the buzzer will ring
for 10 seconds before the
Power goes off
automatically.
If water is already in the tub, or wet laundry is
placed into the tub water will be added to the
optimal level before washing starts..
With lightweight bulky loads, water level can
be set to low.
Changes to water temperature (hot/cold) and
wash level are possible during operation.
(refer to p 10)
Water may splash out when washing light
laundry such as a cashmere blanket or bed
sheet with water set at high level.
Soak time is 80min
Electrical power is
automatically off in
10sec. after buzzer
sounds.
5
6
7
6
7
5
6
4
5
7
6
5
7
6
7
8
5
6
When setting the water level manually, do not set to
MEDIUM to prevent damage to laundry.
Washing with hot water may damage the laundry
(Water is set to cold automatically). Ensure that the load is
under 3.5kg.
In order to avoid damage to laundry, the spin cycle may
appear slow.
This also avoids wrinkles and clothing may still contain
some water. This is normal.
Soak Wash cannot be selected for the Wool and Delicate
Wash program.
For adding the appropriate
quantity of detergent follow
the detergent manufacturer’s
instruction.
Water will be supplied
2 min. after the start of the
wash to supplement the
water the laundry has
absorbed.
When the wash program
ends, the buzzer will ring
for 10 seconds before the
Power goes off
automatically.
Washing
Programs
Add
the
laundry
WOOL
Use this program for washing woolens.
(wash only “water washable” clothes)
Jean Wash
Use jeans program when washing
heavy, thick, and extremely dirty
laundry such as jeans and work
outfits.
Soak Wash
Use this mode for washing heavily dirty
laundry by soaking in water for some
time to remove proteins and fats.
SPEEDY
Use this mode when washing lightly
soiled clothes for a short time.
PRO
GRAM
START
PAUSE
WASH
1
1
1
1
1
1
3
3
2
3
3
2
2
2
2
2
4
3
Select the
WOOL
program on the
Control panel.
Select the
DELICATE
program on the
Control panel.
The inner-tub rotates for 10
seconds to detect the laundry
load.
Then the Water Levels and the
amount of detergent to be used
will be shown and water will
be supplied.
Select the
SPEEDY
program on the
Control panel.
Select the Jean
program on the
Control panel.
Select the
desired program
(Not available
for “WOOL” &
“ DELICATE”
program).
4
4
3
4
4
5
DELICATE Wash
Use this program for washing delicate
fabrics such as lingerie.
Before washing your woolens check the
care label for the washing instructions.
(wash only “water washable” clothes)
• Press ‘WASH’ button until ‘Soak 80’ lights on.
• Wash time except soak is changeable to 5, 10, 15, 21 by
pressing ‘WASH’ button
• Select No. of rinse and spin time by pressing button.
• ‘DELAY’ light is blinking and left time
is displayed.
Normal Washing
Used for normal loads, this mode
automatically selects the most
appropriate conditions and completes
the sequence in one operation. The
built-in sensor detects the size of the
load and the ideal wash power and
wash, rinse and spin times are set
accordingly
It is normal to wash lower water level before the main wash.

Introduction
D
elay Start
15
title
ption Washing Method
14
Additional Function Options
Additional Function Options
O
Wash
only
By pressing button
Rinse
only
Spin
only
Rinse
Spin
only
WASH
RINSE
SPIN
START
PAUSE
WASH
POWER
WATER
LEVEL
WATER
TEMP
1
1
1
1
2
2
2
2
4
4
4
4
3
3
3
Select
WASH
time.
Select water
levels Add
detergent.
Select No.
of RINSE.
Select
SPIN
Close the lid
Close the
lid Press
Start/ Pause
button.
Close the
lid Press
Start/ Pause
button.
Close the
lid Press
Start/ Pause
button.
Press Start/
Pause button.
Select No.
of RINSE
and SPIN
time.
S M L XL
S M L XL
S M L XL
3
Soak
Wash
Soak
Wash
Soak
Wash
Soak
Wash
min
min
min
min
min
min min min
min
min
min
min
OFF
Rinse Rinse Rinse Rinse
time time time time
OFF
5min 7min OFF 1min 3min
3
PRO
GRAM
DELAY
START
PAUSE
Delay Start (Reservation) Wash is used to delay the finishing time of the operation.
The hours to be delayed can be set by the user accordingly.
The time on the display is the finishing time , not the start time.
When you press the START/PAUSE button the light will
blink.
Select the program for laundry on the Control panel.
This method will not work in Wool Delicate Program.
• The time changes 3~24 hours.
• The time on the display is the finishing time,not the
start time.
Press the POWER button to turn power on.
Press the PROGRAM button to select the washing program.
Add the laundry and press the START/PAUSE button.
Press the DELAY button to set the time when the delayed washing is to be
completed.
The appropriate quantity of detergent marked next to the
water level of WATER-DETERGENT.
When the lid is open the machine will not operate, and an
alarm signal will remind you to close the lid
Add the detergent.
Water will be supplied for 2 minutes after the start of the
wash to supplement the water the laundry has absorbed.
Close the lid.
The washing will be finished according to the delayed time.
To select washing program, spinning time, water level or hot/cold manually, press the Delay Start button
and select the desired option. Then press the START/PAUSE button.
Finish
When the laundry cannot be taken out immediately after the wash program ends, it is better to omit the
spinning program . (The laundry will be wrinkled if left for a long time after spinning.)
Note
If the lid is open, the machine will not work, and an alarm & will sound and panel will display
“ DOOR OPEN” to remind you to close the lid.
1
2
4
5
6

Introduction
17
title
ther Useful Functions
O
16
P
lacing and Leveling
Installation
Additional Function Options
After all washing conditions are set according to the manual.
Press the POWER button.
Press the START/PAUSE button to start washing.
• During the wash program, all the buttons are locked
until washing is completed or until the child- lock
function is deactivated manually.
Press both the RINSE button and the SPIN button simultaneously.
Turn Power on.
If you want to lock all the keys to prevent all settings from being changed by a child, you can use
the child lock option.
If you want to unlock during wash, press both the RINSE and the SPIN button simultaneously again.
Child Lock Function
How to Lock
How to Unlock
In child-Lock mode, the LED display continuously repeats “CL” and remaining time.
Note
2
1
3
START
PAUSE
RINSE
SPIN
Caution
Top view of the machine
more than 10cm
more
than
2cm more than
2cm
Place the machine on a flat and firm surface which allows proper clearance.
We suggest a minimum clearance of 2cm right
side and left sides of the machine for ease of
installation.
At the rear, a minimum clearance of 10cm is
suggested.
Check that the machine is level
Open the lid and look from above to see if the
drum sits as shown.
Adjustable legs
If the power is supplied from a cord extension set or generator, the cord extension set or electrical portable
outlet device should be positioned so that it is not exposed to splashing or ingress of moisture.
1
2
3
Leveling the machine
Lift the front of the washing machine and twist
the Adjustable Leg until the washing machine is
placed evenly.
Please ensure that transit restraint has been removed
before operating your machine.
Base Packing
Washer

Introduction
itle
19
title
T
18
Installation
Rubber packing
Rubber packing
Fixed sticker
screw
Guide plate
Connector
Connector
Fixed sticker
Middle
Connector Middle
Connector
Water Supply Hose
Pressing rod Pressing handle
Connector
Middle
connector Fixed Sticker
Pressing Handle
Pressing Rod
Water Supply Hose
Separate Middle connector from Water Supply Hose
Separate Middle connector from the Water Supply Hose
by pulling the Pressing Rod and plessing the Pressing
Handle that is attached to the Water Supply Hose.
Loosen the fixed nuts to connect the connector to the tap
Untighten the screw of the connector so that the
tap can be placed in the middle.
Fixing Connectors to the Tap
Push the upper connector up till the rubber
packing is in tight contact with the tap. Then
tighten the 4 screws.
Fixing Upper Connector and Middle Connector
Remove the fixed sticker in between the Upper
and Middle Connectors. Tighten the connectors
by holding one connector and twist middle
connector to the right.
Connecting Middle Connector and Water Supply Hose
Press down the pressing rod of the Water Supply
Hose which was separated from middle connector
(refer to Step1) and then join it to the middle
connector.
Normal Type
If the tap diameter is too large or is square,
untighten the 4 screws and remove the guide
plate. Then follow step1.
In case the tap is too large.
Note
Check for water leakage
After connecting the hose, open the tap to check
for any water leakage.
If the connection leaks, close the tap and start
again from step 1.
If you skip step 1, water leakage may occur.
(Normal tap without thread & one touch type inlet hose.)
1
2
3
4
5
6
C
Installation
onnecting Water Supply Hose

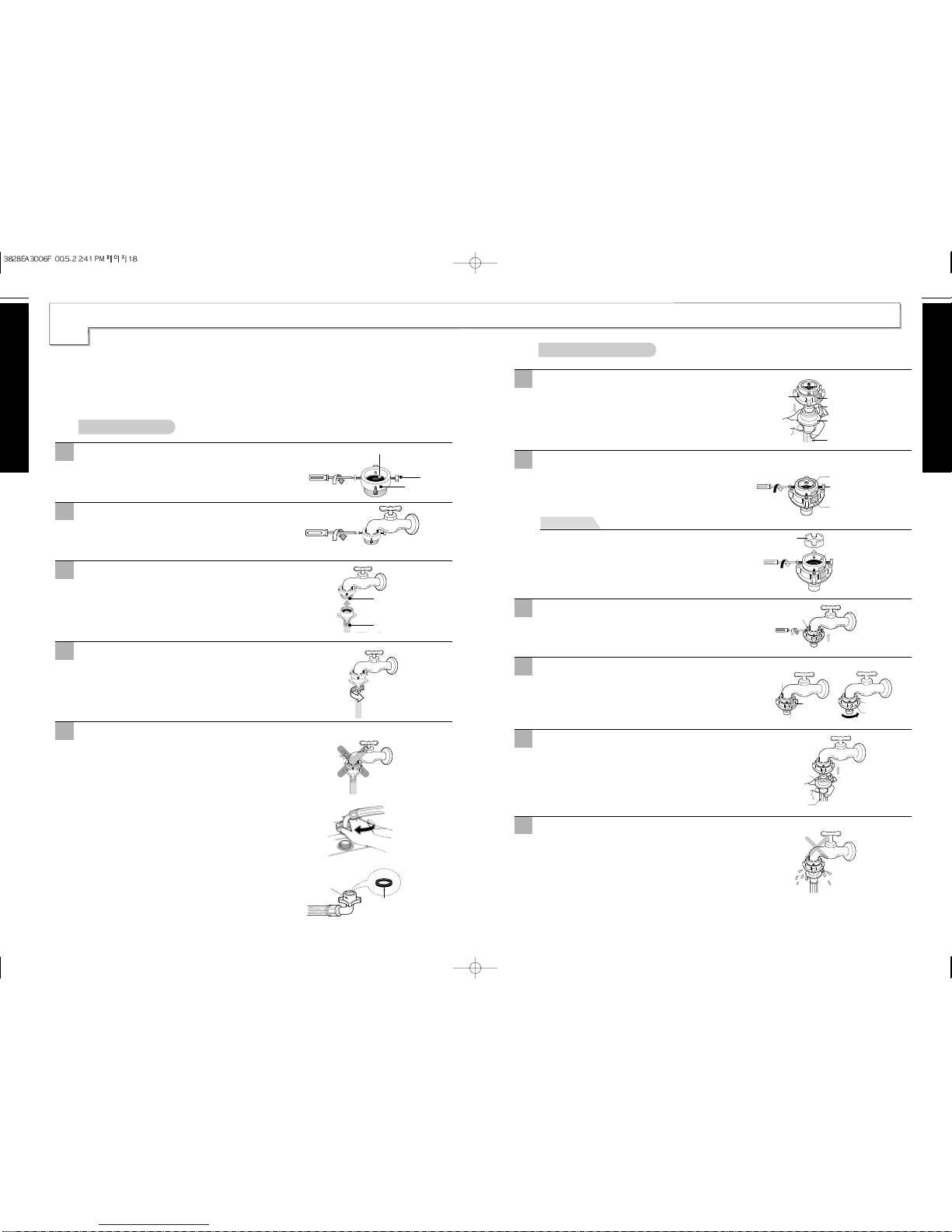

Before connecting the Water Supply Hose to the water tap, check the hose type and then
choose the correct instruction here under.
Note that the Water Supply Hose supplied may vary from country to country, Make sure to
connect the blue inlet hose to the cold water tap, and the orange inlet hose to the hot water tap
Connecting Water Supply Hose to water tap
Rubber packing
Connector
Connector or Tap
Water
Supply Hose
screw
Untighten the screw (option)
Untighten the screw of the connector so that the
tap can be placed in the middle.
Fixing the connector to the tap (option)
Push the upper connector up till the rubber
packing is in tight contact with the tap. Then
tighten the 4 screws.
Attach the water supply hose ensuring it connects
securely to the connector or the water tap
Push the water supply hose vertically upwards so
that the rubber seal within the hose can adhere
completely to the tap.
Check the connection of water supply hose and the connector
After connecting the hose, open the tap to check
for any water leakage.
In case of water leakage, close the tap and start
again from step 1
Tighten the connection between the water supply hose
Attach the water supply hose to the connector and
then tighten it by screwing it to the right.
Normal Type
(Normal tap without thread & screw type inlet hose.)
1
2
3
Connect the water supply hose to inlet valve of
the washing machine, and then lock it by turning
the hose connecting part.
Check to see if there is a rubber seal inside
the connector.
Hose connector
Rubber seal
Connecting Water Supply Hose to the machine

Care and Maintenance
G
rounding Method
21
Installation
onnecting Drain Hose
C
20
Earth wire should be connected.
If the earth wire is not connected, there is possible a danger of electric shock caused by the
current leakage.
Ground Wire
Ground Copper Plate
Short-circuit
breaker
75cm

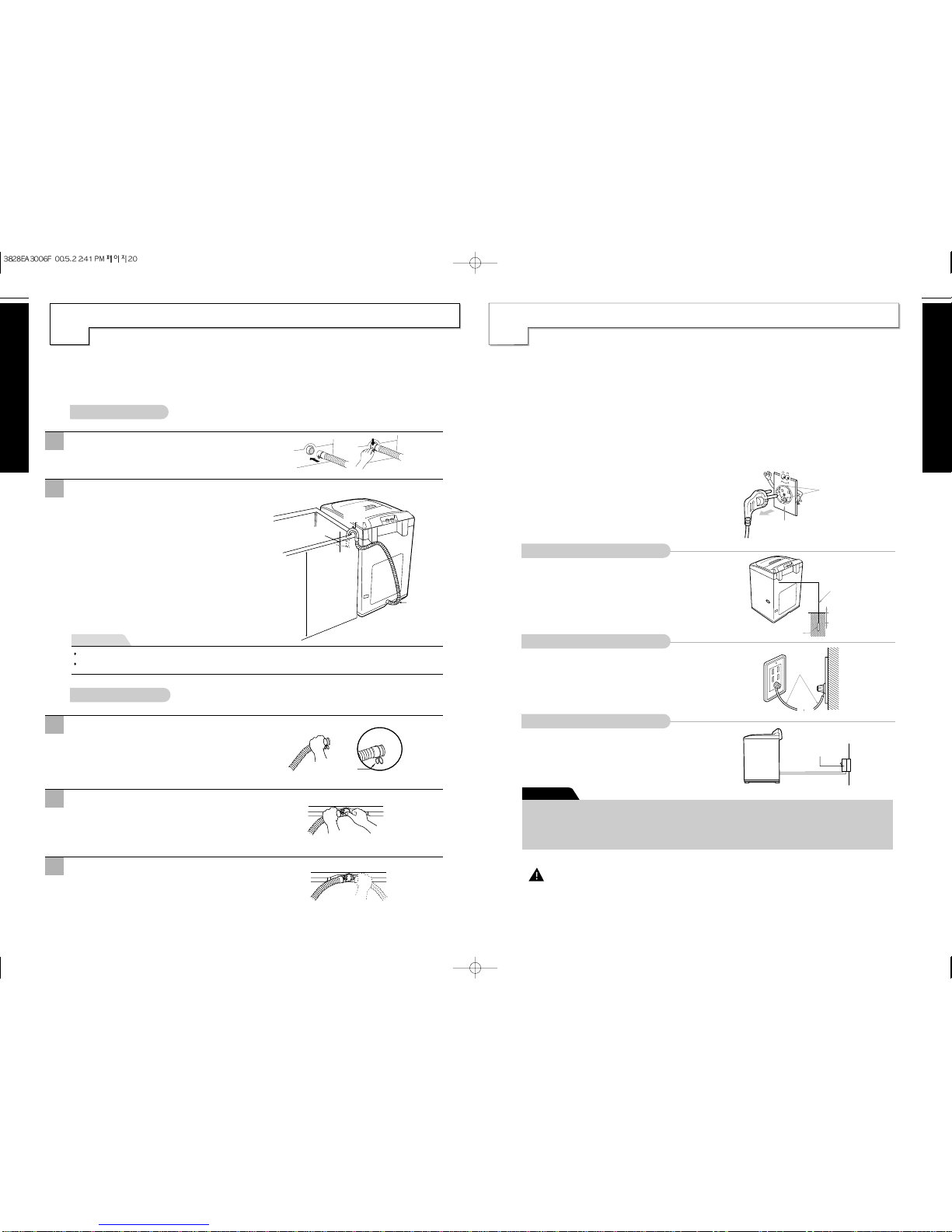

Before connecting Drain Hose, check your Drain Hose model and choose
the correct instructions.
Fit the machine end of the drain hose to the outlet
of the drain pump and tighten the clamp.
Pump Model
0.9~1.2m Drain Hose
Within 50mm
Hose
Guide
To prevent siphoning, the drain hose should not extend more than 50mm from the end of the hose guide.
The discharge height should be approximately 0.9 ~ 1.2m from the floor.
Note
Before connecting
Ensure that the hose clip is set as indicated here.
Connect the Elbow Hose
Push the elbow hose toward the body of the
washing machine.
Non-Pump Model
Place the Drain Hose
To change the direction of the hose, pull out the
elbow hose and change the direction.
Repeat Step2.
Clip
Put the other end of the drain hose over the standpipe or
wash tub.
1
2
1
2
3
Grounding Instruction with Ground insert space Terminal
Grounding Instructions
Other Grounding Instructions
If the AC current outlet has a ground terminal, then
separate grounding is not required. Note that AC power
outlet configurations may differ from country to country
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least resistance for electric current. This appliance is
equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with all local
codes and ordinance.
Connect the ground Wire to the socket provided
exclusively for Grounding.
If grounding methods described above are not
possible, a separate circuit breaker should be
employed and installed by a qualified electrician
Ground Terminal
Outlet with ground terminal.
Ground
Wire
Using Ground Wire
Using Short Circuit Breaker
Connect the Ground Wire to a Ground Copper
Plate and bury it more than 75cm in the ground.
Burying Copper Plate
• To prevent a possible explosion, do not connect ground to a gas pipe
• Do not connect ground to telephone wires or lightning rods. This may be dangerous during electrical storms
• Connecting ground to plastic has no effect
• Ground wires should be connected when an extension cord is used.
Caution
Improper connection of the equipment-grounding conductor can result
in risk of electric shock. Check with a qualified electrician or
serviceman if you are in doubt as to wether the appliance is properly grounded. Do not modify
the plug provided with the appliance - if it does not fit the outlet, have a proper outlet installed
by a qualified.
WARNING!

Care and Maintenance
C
leaning
23
Care and Maintenance
leaning
C
22

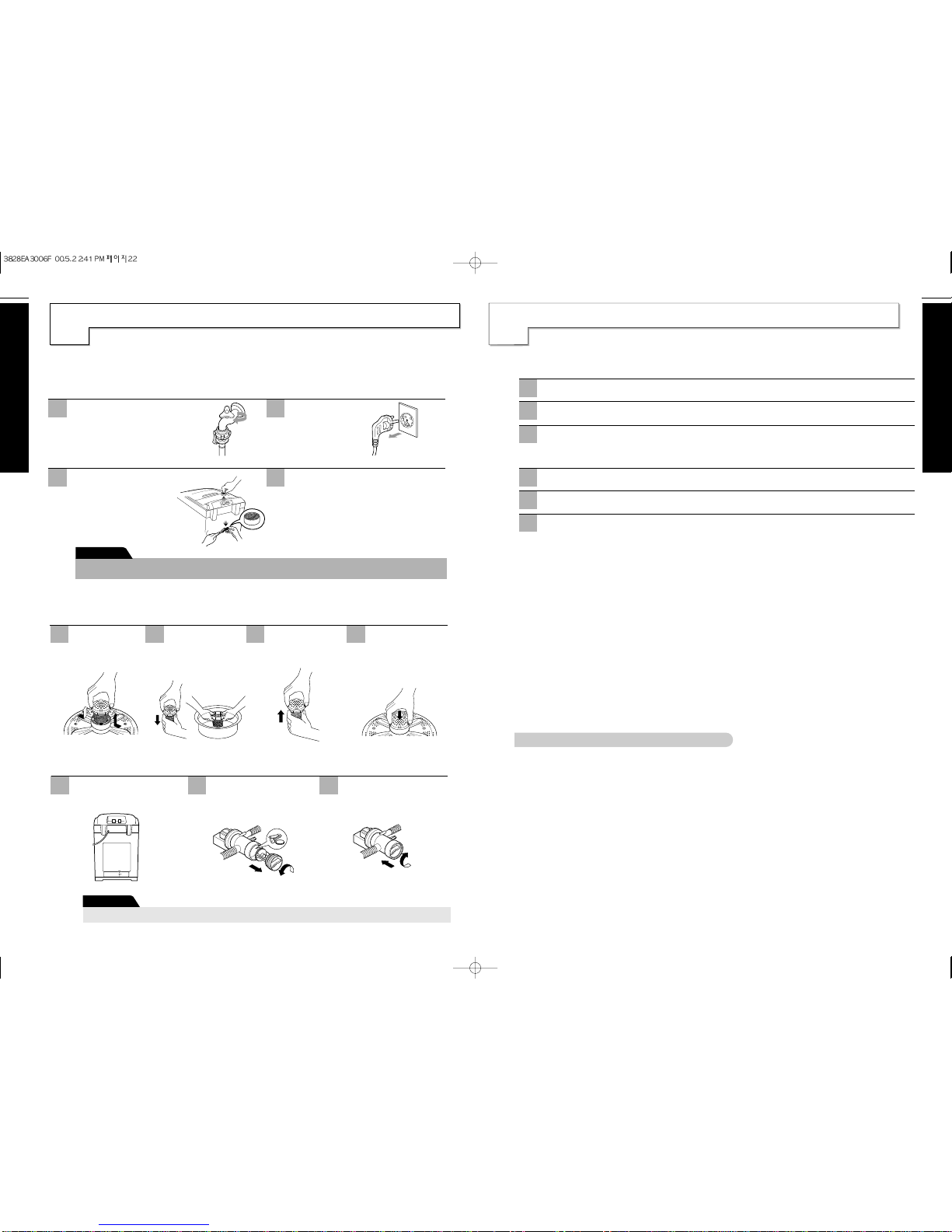

When water supply into the tub is not clean or the filter is clogged with particles(Such as sand), clean the filter in the
inlet valve occasionally.(The figure of power cord and water tap may vary according to the country)
To Clean the Filter in the Inlet Valve
Close the tap before turning off the
power.
Select both hot/cold and then press the
[START/PAUSE] button to remove
water from the machine completely.
After removing the water
supply hose pull out the filter.
Then use a brush to clean
the filter.
Turn off the power before
pulling out the cord.
Replace the filter after cleaning it.
• Before cleaning the filter, the impurities in the water supply hose should be removed.
Caution
1 2
3 4
• Check if water leaks after reassembling. (The Rubber ring is in the cap)
To Clean the Pump casing (for pump model)
(Bottom view) (Bottom view)
Unfasten 4 screws of the
back cover. Reassemble the cap to the arrow direction and
fasten it.
1 2 3
Caution
Turn the cap as shown in
diagram and unfasten it.
Remove foreign objects such
as pin, button, coin, etc
Wash Inner-tub Leave the lid open after washing to allow moisture to evaporate. If you want to clean
the inner-tub use a clean soft cloth dampened with liquid detergent, then rinse. (Do
not use harsh or gritty cleaners.)
Inlet Hoses Hoses connecting washer to faucet should be replaced every 5 years.
Exterior Immediately wipe off any spills. Wipe with damp cloth. Try not to hit surface with
sharp objects.
Long Vacations Be sure water supply is shut off at faucets. Drain all water from hoses if weather will
be below freezing.
WHEN THERE IS A FEAR OF FREEZING
IF FROZEN
Remove the water supply hose, and immerse it in hot water at approx.. 40 ˚C.
Pour approx.. 2 litres of hot water at approx.. 40 ˚C, into the bowl and let it stand for 10 minutes.
Connect the water supply hose to the water tap and confirm that the washing machine performs the
supply and drainage of water.
Close the water taps and remove the water supply hose.
Remove the water which remains in the water supply.
Lower the drain hose and drain the water in the bowl and the drain hose by spinning.
1
2
3
1
2
3
SCRUD
Scrud is the name given to the waxy build-up that can occur within any washer when the fabric softener
comes into contact with detergent. This build-up is not brought about by a fault in the machine.
If scrud is allowed to build-up in the machine it can result in stains on your clothes or an
unpleasant smell in your washer.
If you wish to use fabric softener we recommend.
• Using fabric the dispenser, do not splash or overfill.
• Clean dispenser as soon as the cycle has finished.
• Clean your machine regularly
• Cold water washing increases the chance of this build-up occurring. We recommend a warm or hot wash at regular
intervals e.g. approx. every 5th wash.
• Fabric softener of thinner consistency is less likely to leave residue on the dispenser and contribute to a build-up
CLEANING THE INSIDE OF YOUR WASHER
• Fill your machine with hot water. Add about two cups of a powder detergent that contains phosphate.
• Let it rotate for several minutes.
• Stop the machine, drain the machine and run the machine through a regular cycle.
We do not recommend that you wash clothes during this procedure.
43
To clean the Turbo clean filter
1 2
Pull out the Turbo
Clean Filter in the
direction shown
below.
After disconnecting
the net, remove dirt
with a brush, etc.
Assemble the net
as before. Replace the Turbo Clean Filter to the
original location.
Push the cap until a
pop sound is heard.

Troubleshooting
T
roubleshooting
25
Troubleshooting
T
24
roubleshooting
Look for your problem below, then check the things we suggest. More often than
not, this will give you the answer to your problem. And you’ll be able to carry on
without having to telephone your service center.
WASH PROBLEM
Possible CausesProblem What To Do
• Separate lint producers from lint collectors.
• Wash small loads for a shorter time than larger loads.
• Some lint is normal. Using the dryer should remove
any lint not removed by the washer.
Detergent on
clothes
Lint or residue
on clothes
Incorrect sorting
Washing too long
Natural By-product
When Washing
Certain Items
Detergent not
dissolving
Incorrect use of
fabric softener
Dye transfer
Not enough
detergent used
A buildup caused
by the interaction
of fabric softener
and detergent can
flake off and marks
clothes.
Pins, snaps, hooks,
sharp buttons, belt
buckles, zippers,
and sharp objects
left in pockets
Chemical Damage
a. Chlorine Bleach
b. Battery Acid
c. Hydrogen Peroxide
d. Skin & Hair Care
Products
Non-chemical Damage
a. Age & Normal Use
b. Poor Construction
c. Overloading
d. Mice & Insects
e. Sunlight
• Use warmer water temperature.
• Try pre-dissolving the detergent in warm water
• Try a liquid detergent.
Black spots on
clothes
• When filling dispenser, do not splash or overfill.
• Never pour fabric softener directly on clothes.
• Pre-treat stain and rewash.
• Sort whites or lightly colored items from dark colors.
- Wash and dry non-colorfast clothes separately
• Using insufficient detergent for the amount of soil
on the clothes, can result in black marks on clothes
• Cleaning the inside of your washing machine
Fasten snaps, hooks, buttons, and zippers.
Remove any loose brassiere wires.
Remove objects in pockets and sharp buttons.
Turn knits (which snag easily) inside out.
Dilute bleach or use the dispenser (See User's
Guise)
Use caution around battery acids, skin and hair
care products - these can remove color and cause
holes or tears in fabrics.
Check construction carefully when purchasing
Mend any damage before laundering
Fabric damage(
Snags, holes,
tears, rips or
excessive wear)
WASH PROBLEM
Possible CausesProblem What To Do
• Use warmer water temperature
• Select the wash temperature according to soil type.
• For example, blood and mud are better washed in
cold water, while oily soils wash better in warmer
water.
• Brush a little detergent dissolved in water onto stains
like collars and cuffs to help shift dirt.
• Wash stains as soon as possible. The longer they are
left the harder they are to remove.
• Wash smaller loods at a time.
• White clothes are better washed separately. Separate
light and heavily soiled items, as clothes can pick up
soil from dirty wash water.
• Loads made up of articles of varying sizes will wash
better (e.g. full loads of sheets may not wash that
well).
• Not enough detergent for load size or amount of soil.
Hard water requires more detergent than soft water.
The laundry
comes out dirty
Water temperature
is too cold.
Water temperature
is not correct
Stain is not pre-
treated
Washer is
overloaded
Incorrect sorting
Insufficient
detergent
Result of normal
wear on poly-
cotton blends and
fuzzy fabrics
• While this is not caused by the washer, you
can slow the pilling process by washing
garments inside out.
Pilling
Not enough
detergent
Water is not hot
enough
Washer is
overloaded
Dye transfer
Use more detergent (especially with larger loads).
Make sure water heater is delivering water at
120˚F~40˚F. (48˚C~60˚C.).
Select load size to match clothes load.
Sort clothes by color. If fabric label states wash
separately,unstable dyes may be indicated.
Grayed or
yellowed
clothes

Introduction
S
pecification
27
roubleshooting
T
26

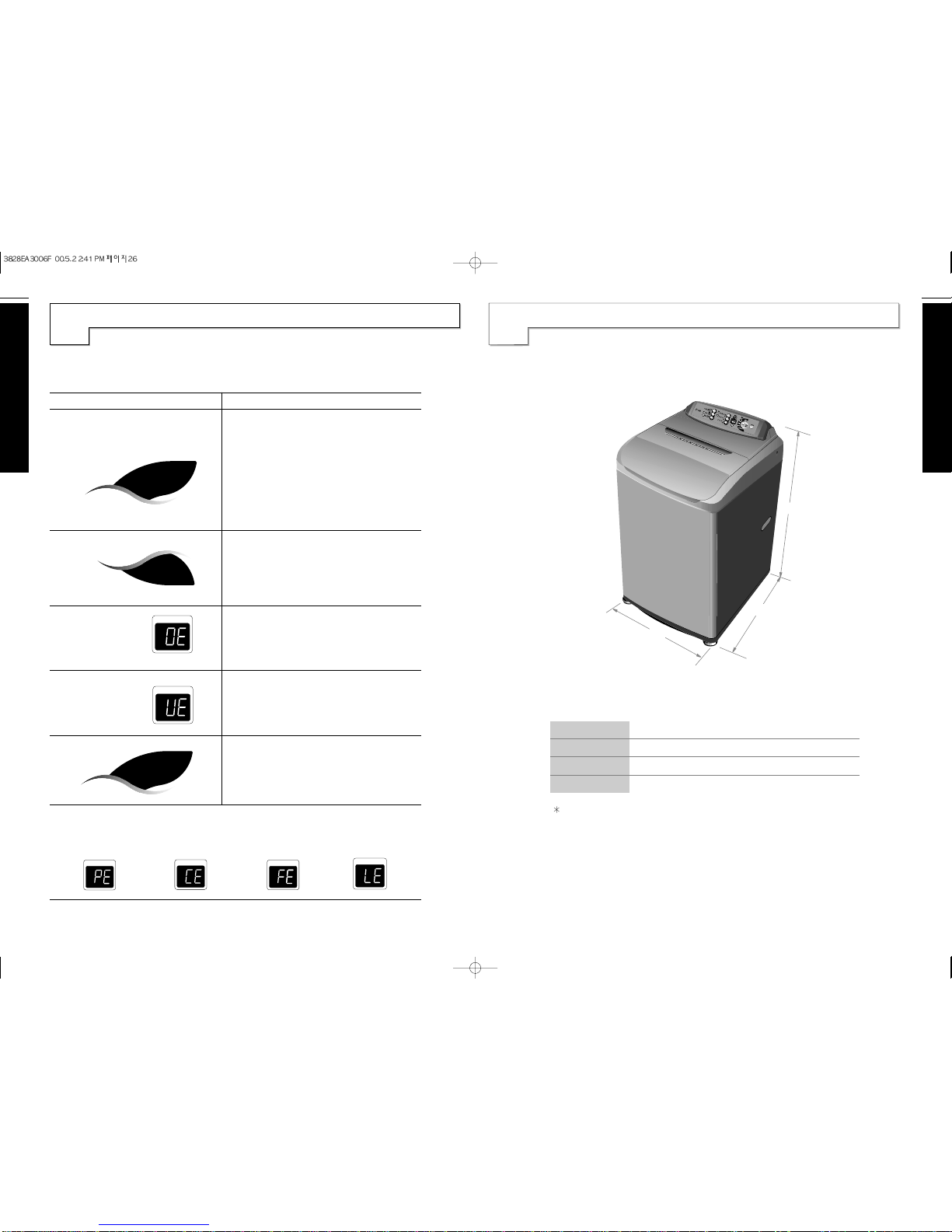

Specification
H
D
W
WT-R1071TH(P)
48.0 kg
632(W) x 693(D) x 1039(H)
30 -800 kPa (0.3 -8.0 kgf /cm2)
Model
Weight
Size
Water tab pressure
The appearance and specifications may be varied without notice to raise the units quality.
Troubleshooting
WOOL
ECONOMY
NO INLET
DOOR OPEN
WOOL
ECONOMY
NO INLET
DOOR OPEN
DELAY/TIME LEFT
DELAY/TIME LEFT
DELAY/TIME LEFT
DELAY/TIME LEFT
DELAY/TIME LEFT
HEAVY
JEAN
NO DRAIN
Before calling for service check the problem against the list belows.
Symptom Error Message Check up
• Is the water tap shut off?
• Is the water supply cut off ?
• Is the tap or water supply hose frozen ?
• Is the water pressure low or is the filter of the inlet
valve clogged with impurities?
• Is Hot/Cold selected to Hot when the hose connected
is Cold?
• Is the Cold hose connected to Hot?
Drain/Spin Failure
Water Supply Failure
• Is the drain hose positioned correctly?
• Is the drain hose bent or placed too high?
• Is the internal part of the hose or drain pump
(only pump model) clogged with impurities?
• Is the laundry evenly balanced?
• Is the washing machine placed on a flat surface?
Spin Failure
• Is the drain hose positioned correctly?
• Is the drain hose bent or placed too high?
• Is the internal part of the hose or drain pump (only
pump model) clogged with impurities?
DELAY/TIME LEFT
Drain Failure
• Is the laundry evenly balanced?
• Is the washing machine placed on a flat surface?
• Is the lid closed?
Door(Lid) Open
Abnormal level
sensing. Power failure Overflow failure Abnormal motor
• Ask for help at the LG Electronic branch of the Service Center
