LG TROMM F4999NTNH User manual

www.lge.co.kr
User’s Manual
Drum Washing Machine
Please read the ‘Safety Instructions’ before use, and use the machine properly!
Please keep this manual in a place where all users can nd it at any time!
This manual includes the product warranty.
Please refer to the installation guide on page 53~58.
F4999NTNH
MFL67526712

Excellent washing performance Korean
style drum washing machine
Name of each
part
Water supply hose (53,54p)
Dispenser drawer for Detergent/
Fabric Softener (10p)
Drum
(Drum) Door
Drain Hose
Drain plug
for removing
remaining water
(46p) Drain Pump
Service Cover cap (46p)
Level Adjustment Leg (56p)
Power Plug
(AC 220 V only)
Transit bolts for
shipping (4EA) (55p)
Control
Panel (12p)
Accessories
Water Supply Hose
(2EA)
(Blue for cold water,
orange for hot water)
Water Supply Hose
Connector (1 EA)
Spanner (1EA)
Anti-slip
mat (2 EA)
Caps (4 EA)
(Close the holes of
the Transit bolts with
the caps supplied.)
Back of
Washer
Cold Water
Inlet (53p)
Hot Water
Inlet (53p)
◈ This product is only for AC 220 V power.
◈Accessories may be different for the models.

Product
Features
6 motions wash just like a hand wash
Unlike the conventional one-way rotation, applying
6 motions washing realizes the best washing
performance according to the types and load amount
of the laundry, and reduces the laundry time.
World’s rst dual spray system
Powerful simultaneous spray of steam and washing
water realizes the washing power of boil wash, and
the strong steam removes wrinkles and odors, and
sterilizes the laundry and tub as well.
Turbo Shot wetting at once and
spraying while rinsing
It reduces the laundry time while retaining the
washing power by spraying water optimally from 3
angles
Customized washing course designed for the
living environment of busy, modern people.
Anyone can do laundry more easily and conveniently
with the 14 various washing courses designed for
busy, modern people.
SMART DIAGNOSIS
This is the function that transmits an abnormal
status of the washer to a Customer Service Center
when the washer has a problem. We provide more
reliable and trustworthy service through this fast and
accurate diagnosis.
CHILD LOCK
The Child Lock function is to prevent accidents that
are caused by children pressing the buttons during
washing by locking the buttons.
TAG ON function
This is the function providing Diagnosis, Course
Download, Wash Coach, One-touch Wash, etc. fast
and easy by touching a smart phone with an NFC
function to the Tag On logo on the washer.
Getting prepared
Table of Contents
Getting Started
Maintenance
Installation and
Check
Name of each part ...............................................................................2
Product Features/Table of Contents..................................................3
Safety Instructions ..........................................................................4~8
General knowledge of laundry ...........................................................9
Preparation for laundry ......................................................................9
Uses of detergent and fabric softener .............................................10
How to sort clothes ..........................................................................11
Function of each buttons............................................................12~13
Before use..........................................................................................14
Course explanation
COTTON/NORMAL course, SPEED WASH course ..........................15
SILENT WASH course, COLOR CARE course ..................................16
BULKY/LARGE course .......................................................................17
HAND WASH/WOOL course, RINSE+SPIN course ..........................18
DOWNLOAD cycle course ..................................................................19
STEAM CLEANING course .................................................................20
ALLERGY CARE course, SPORTS WEAR course .............................21
BOILING CARE course, BABY CARE course .....................................22
HEAVY SOIL course ...........................................................................23
ADDITIONAL FUNCTION
STEAM WASH, SOAK WASH function ...............................................24
PREWASH function/HEAVY function .................................................25
COTTON/NORMAL function, LIGHT function .....................................26
When only WASH • RINSE • SPIN ......................................................27
TUB CLEAN function ...........................................................................28
ADD GARMENTS function ..................................................................29
TIME DELAY function, TUB Lamp function .........................................30
CHILD LOCK function .........................................................................31
SMART FUNCTION
SMART DIAGNOSIS function .......................................................32~35
Knowing of TAG ON before using .......................................................36
Guide for TAG ON ...............................................................................37
TAG ON function ...........................................................................38~45
Cleaning the Washer .....................................................................49~51
Winterizing Instructions .......................................................................52
Troubleshooting .............................................................................53~54
How to connect the Water Supply Hose ........................................53~54
Instructions for Installation .............................................................55~56
Guide to the accessories for Installation (sold separately) ..................57
Power and Ground Check ...................................................................58
Product Warranty/Guide for Consumer Dispute Settlement ................59
Product Specications .........................................................................60
Preparation Use
Maintenance
Installation
and Check
SMART
DIAGNOSIS

GGGGGGGG
GGGGGGGGGG
GGGGGGGG

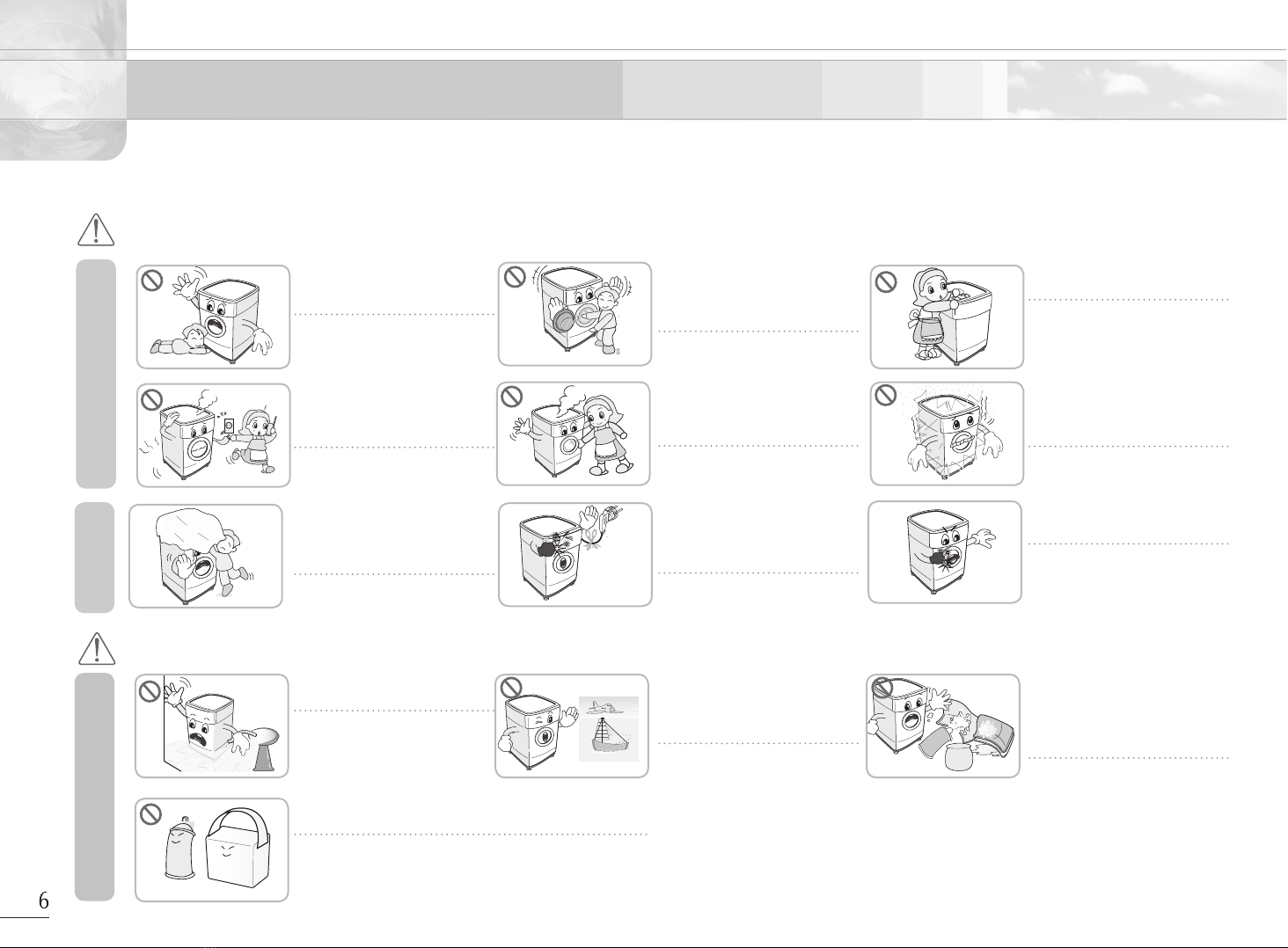

Safety Instructions
The following warnings related to safety are instructions on how to use the product correctly in order to prevent unexpected danger or
loss in advance.
• Warnings are divided into two parts, Warning and Caution, and their meanings are as follows.
This is a sign to call attention to a condition and operation that may cause danger. Read carefully
and follow the instructions of the part with the sign to avoid the occurrence of danger.
This is a sign specifying the strictly forbidden applications.
Failure to comply with the instructions under this sign may result
in severe physical injuries or death.
Warning
Caution Failure to comply with the instructions under this sign may result
in minor physical injuries or product damage.
Warning
The recommended lifetime for this washing machine is 5 years. The use of the product over 5 years may cause a safety accident as a result of the environment of its use and the product’s age.
Please have your washer checked for safety within the recommended lifetime. ※ Safety check is a charged service.
Please make sure the washer
is grounded for safety.
There is a danger of electric shock
in case of failure and current leak.
For the grounding method for
ground wire, please refer to this
manual or ask the service center.
Use a dedicated circuit for
the washer. Do not overload
by plugging it into branch
circuits.
Failure to do so may result in a
fire from the heat created by the
overloaded multi-socket.
Never attempt to disassemble
or tamper with the machine
yourself. Hire a repair
technician.
Failure to do so may result in failure,
fire, or electric shock.
Do not install the machine
near any heating equipment
and do not put a candle or
cigarette nearby.
Failure to do so may result in
product deformation or fire.
After the first installation by the manufacturer, if the
washer was moved and installed by a non-expert,
check the washer installation by an LG service.
There is a danger of fire or breakdown from an incorrect installation.
Do not tamper with the power
cord or put heavy objects on
the cable.
Damage to the power cord may
result in a fire or electric shock.
Install the washer at a place
where it is easy to unplug the
power cord. Please unplug
the power cord when the
washer is not being used.
Failure to do so may result in fire or
electric shock.
When unplugging the power
cord, grasp and pull the plug.
If pulled on the power cord to
unplug, part of the core cables
may be cut and cause a fire by the
generated heat.
Wipe off dirt or dust on the
contacts of the power plug
with a dry towel and make
sure the plug is completely
pressed into the outlet and it
is not to be shaken.
Failure to do so may result in a fire
or electric shock.
Do not use the power cord,
power plug, and outlets if
broken or damaged.
Failure to do so may result in a fire
and electric shock.
Do not install the washer on
a carpet, in a bathroom, at a
place exposed to snow and
rain, or where water splashes.
Failure to do so may result in electric
shock, fire, damage or deformation.
Also there may be leak from a frozen
and burst hose at the temperature
below freezing in winter time.
Do not connect power using
extension cords. Use only an
exclusive power outlet.
Failure to do so may result in a fire
and electric shock.
Do not use electricity of 220
V stepped up from 110 V by a
voltage transformer.
Failure to do so may result in
electric shock and fire.
Power and Installation

When you clean the machine,
do not apply water directly to
the machine.
Failure to do so may result in a fire
and electric shock.
Unplug the power when
cleaning or not in use.
Heat or ignition by penetrated water
or piled dust may cause electric
shock or fire by way of power
leakage.
Ensure that children and
pets do not climb on or get
trapped inside the drum.
There is potential danger that
children might be suffocated or
injured by dropping or rotating parts.
Always check before use.
Ensure that small animals
and pets cannot gnaw
through the power cable or
drain hose.
Failure to do so may result in
electric shock to such animals and
damage to the washer and property.
When steam comes out from
the steaming device, do not
put your hands or any part of
your body near the steam.
Failure to do so may result in
scalding from the steam heat.
Do not press the machine
with an awl or pins.
Failure to do so may result in
electric shock.
Do not touch or operate the
power plug or switch with a
wet hand.
Failure to do so may result in
electric shock or fire.
Never use solvent type
detergent on the machine.
Failure to do so may result in toxic
gas generation, parts failure, and a
danger of fire and explosion.
Do not use the machine
near flammable materials
(benzene, gasoline, thinner,
kerosene, alcohol, etc.).
Failure to do so may result in fire or
explosion.
If there is an LPG gas leak,
do not operate the machine
or unplug the power cord.
Open the windows for
ventilation.
Failure to do so may result in fire or
explosion by a spark.
Take special care of the
washer maintenance when
located at a place where there
are many cockroaches or
vermin (flies, bedbugs, or rats).
They may damage the power cable,
thereby causing fire.
Do not enter the laundry
room if it is flooded
underneath the washer.
Failure to do so may result in
electric shock or fire by leakage
current.
If the machine was
underwater, call the service
center.
Failure to do so may result in
electric shock and fire.
Warning
Using and Cleaning
Solvent
type
detergent
Benzene
Thinner
Preparation

Do not put your hands or
any metal under the washing
machine.
Failure to do so may result in injury.
If there is a strange sound,
smell, or smog, unplug the
power plug immediately and
call for service.
Failure to do so may result in injury
or damage.
Keep all the packaging
materials (vinyl films,
Styrofoam) away from children
when discarding them.
This is to prevent suffocation
accidents from the packaging material.
Ensure that children do not
come close to the washing
machine. Their hands may be
caught in the door.
There is a danger of injury.
Safety Instructions
Warning
Do not touch the door glass
or put anything on top of the
washer since it is hot during high
temperature washing or drying.
Failure to do so may result in burns
and injury, and deformation of the
stuff on top of the washer.
When disposing of the
appliance cut off the power
cable and break the button
parts.
This is to prevent its reuse.
Do not put your hands in the
detergent drawer.
Hands may get caught in the drawer
resulting in injury.
Use the washer after melting
the drain hose or the water
supply hose when they are
frozen.
If parts of the washer are frozen, it
will not work causing a short service
life and risk of fire or electric shock.
Disable the door device when
disposing the washer.
This is to prevent children from
being trapped inside.

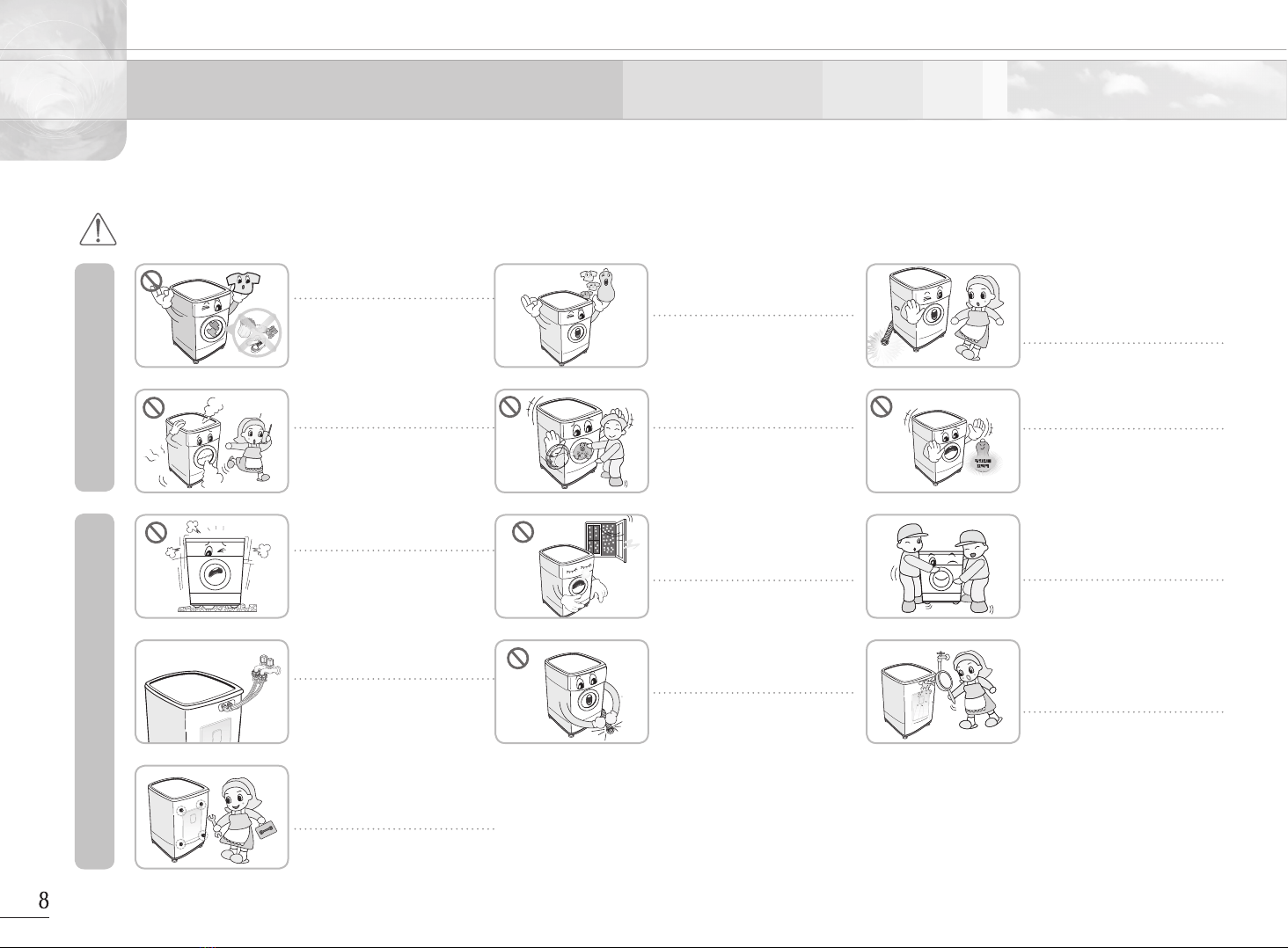

Caution
Do not hang the drain hose
on the hand basin.
The unbalanced draining ratio
between the washer and basin may
result in a leak.
Do not install the washer on
the mobile vehicle such as a
camping car, ship, or inside
an airplane.
Consult to the nearest service
center for the use in a special
condition.
Do not wash laundry that is
stained with chemicals from
oil, cream, lotion, etc. which
are used at a massage parlor
or a skin care shop.
The rubber part of the flexible
gasket may become deformed and
result in a leak.
Do not coat or wipe the outside of the machine with
bleach.
The bleach on the surface of the machine may decolorize. (e.g.:
bleach such as Clorox, Oxi Clean)
Take special care not to drop liquid detergent or bleach on the
surface of the machine since they may contribute to rust or
decolorization.
Using and Cleaning
Product
Disposal
Using and Cleaning
Service
center
Tak, tak,
tak
Chlorine
Bleach
Oil
Massage
cream

Do not try to open the door
of the washer by force when
it is running.
The door is locked during
operation. Openning it by force will
break the door lock device.
When the washer will not be
used for an extended time,
power off the main switch
and unplug the power cord.
Failure to do so may result in
breakdown or fire.
Always close the water tap
after finishing the laundry,
and open it before starting
the laundry.
If the screws on the connector
are loosened, there may be water
leakage.
Do not add the powdered
detergent directly onto the
laundry.
It may cause the decolorization of
the laundry.
Never wash an electric
blanket or a carpet.
Failure to do so may result in the
breakdown of the washer and
damage to the laundry.
Do not put any objects on the
washing machine.
Failure to do so may result in
injury by dropping. There may be a
vibrating sound when spinning.
Confirm that the laundry is
suitable for being washed in
extra hot water (cotton, diapers,
etc.). Sort the dark colored
laundry from whites, and do the
laundry separately.
Failure to do so may result in damage
from shrinkage, decolorization, etc.
Always close the water tap
after finishing the laundry
and when opening it check
the hose connection before
starting the laundry
If the screws on the connector are
loosened, there may be a water leak
resulting in property loss.
Master the use of the washer.
Teach children not to use the
washer.
Be always careful with electricity
and rotating parts when in use.
Operation of the washer by children
is dangerous.
After the water shut-off or reconnecting the power supply
hose, press the ‘POWER’ button and ‘START/PAUSE’
button and open the tap slowly. Do the same steps when
reusing the washer after stoppage for an extended period.
Failure to do so may result in the breakdown of the washer or a leak by
the pressed air in the water supply hose and water pipe line.
Do not wash waterproof clothes such as ski clothes, diaper covers, foot mat,
curtains, etc.
Failure to do so may result in injury to the popped out laundry or abnormal vibration, and damage to
the exterior of the machine, floor and clothes. (Diaper cover, sweat suit, raincoat, umbrella cover, ski
clothes, car cover, sleeping bag and etc.) Vibration is caused by the out of balanced unspun water
inside the waterproof laundry when spinning. Please check the fabric types of laundry before use
since there is a course available for the SPORTSWEAR depending on the model.
Do not touch the draining
water as it may be hot.
Failure to do so may result in burns
and injury.
Caution
Using and Cleaning
Preparation

Use this machine only for its
intended washing purpose.
Damage that is caused by a use
that is other than the intended
purpose of washing laundry shall not
be compensated. (Foods such as
potatoes, cabbages, radishes or etc.)
Safety Instructions
Caution
Replace only with LG parts
when repairing.
Follow this for the product
performance and reliability warranty.
When you use dye or bleach,
use always the one which can
be used in a wahing machine.
Failure to do so may result in damage
to the clothes and the washer.
Never put any pets or live
animals into the washer.
Failure to do so may result in injury.
Make sure that the drain is
finished or there is cold water
inside before opening the door
to clean the drain pump or for an
emergency drainage or situation.
Failure to do so may result in a burn
injury.
Do not use bleach with sulfur
compounds.
Parts may get rusted and damaged.
Install on a solid and level
floor surface.
Otherwise, it will cause vibration
and noise.
Do not change the cold and
hot water connection.
If the cold water tap is connected
to the hot water supply hose, the
DRY cycle will not work causing a
malfunction.
Check the transit bolts for
shipping on the back side for
removal when installing the
machine the first time.
If the transit bolts for shipping are not
removed, they will cause damage to
the washer and noise.
If the washer is delivered at a
temperature below 0℃or in the
winter, do not run the washer
immediately after the installation.
It may result in the failure of the
washer or parts due to operation when
frozen.
Fix the drain hose end so that
it does not splash water from
the untied drain hose.
The splashed water may damage the
power control part or make it dirty.
When moving or unpacking the
product, make sure two or more
people are working together
because of its heavy weight.
Failure to do so may result in injury or
damage by dropping.
After connecting the water
supply hose, check for leaks
with the water tap open before
running the washer.
Failure to do so may result in property
loss from the leak.
Service
center
LG genuine
parts
Tak, tak,
tak
Using and CleaningPower and Installation

GG

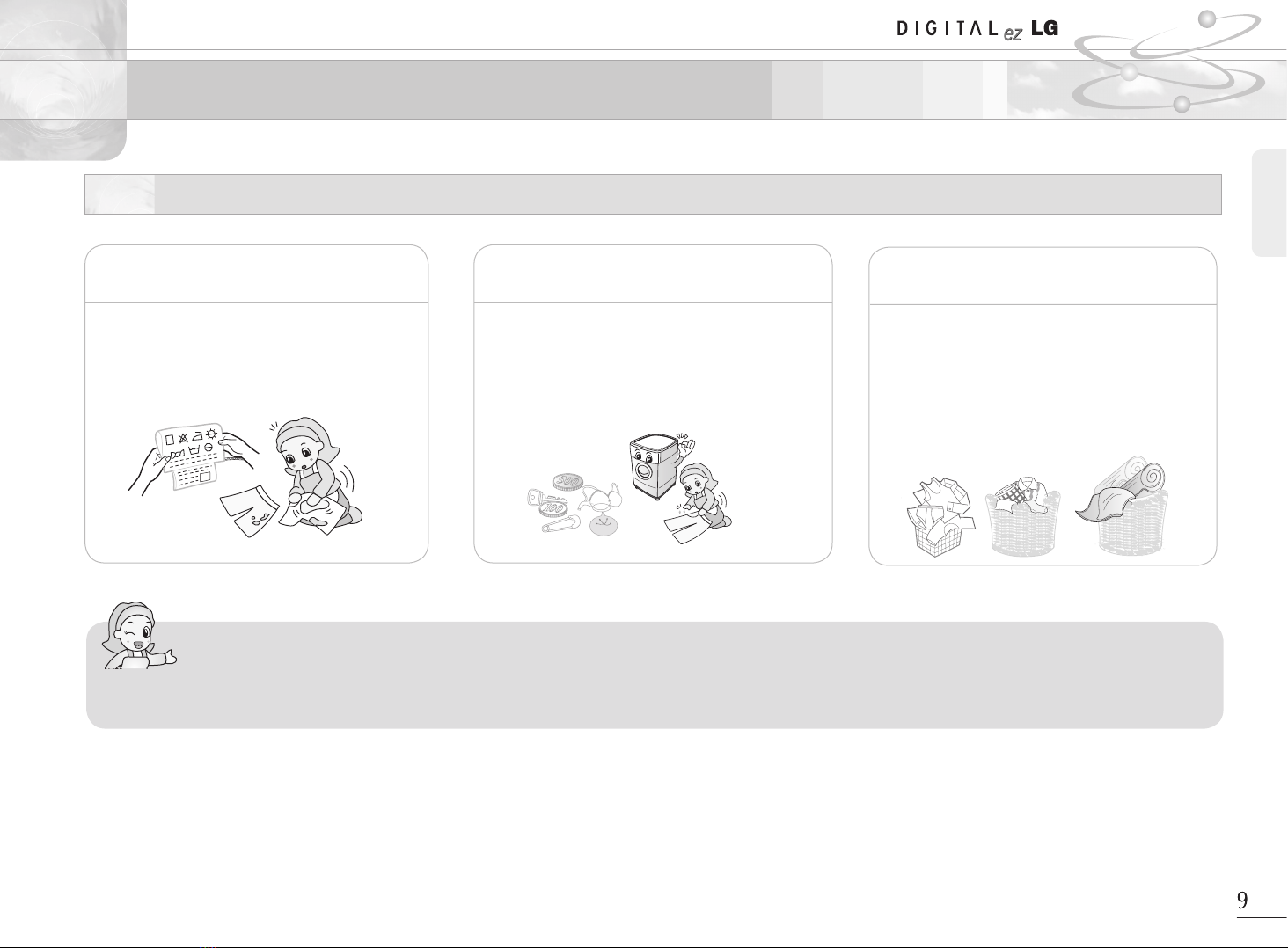

General Knowledge of Laundry
Preparation for Laundry Please follow the next instructions to prevent damage to clothes and/or washer failure.
Check the following for prevention of
damage to clothes and the washer.
Check the care label of clothes for the ways in
which they are washable. (11P)
Close zippers or hooks if there are any.
Do not wash clothes stained with cold cream or
olive oil.
Remove foreign obstacles.
If coins or metals are in the laundry, it may dam-
age the clothes, break the drum and make noise.
Thus, check before washing.
Brush off the dirt and soil on clothes.
Pretreat stains before washing.
Sort clothes for laundry.
Sort clothes with colored, whites, dark colored
and lint producers.
Wash blankets separately from clothes. Other-
wise, the blankets and clothes will be divided in
the drum causing the load to be out of balance
resulting in abnormal washing.
If more than two blankets are loaded, they may
get tangled and unbalance in the drum. Thus,
wash one blanket at a time.
Memory
wire
Please note!
Although the washing drum is made of stainless steel and is not easy to become rusted, there can be rust from the following cases.
 If easily rusted metals such as safety pins or hair pins are left in the drum for a long period
 If water with high iron content has been used for a long time
 If water or chlorine bleach has been kept inside the drum for a long time
If rust occurred in the drum, wipe the rusted part with neutral detergent on a sponge or soft cloth. (Do not use a metal sponge.)
Preparation

35g
20g

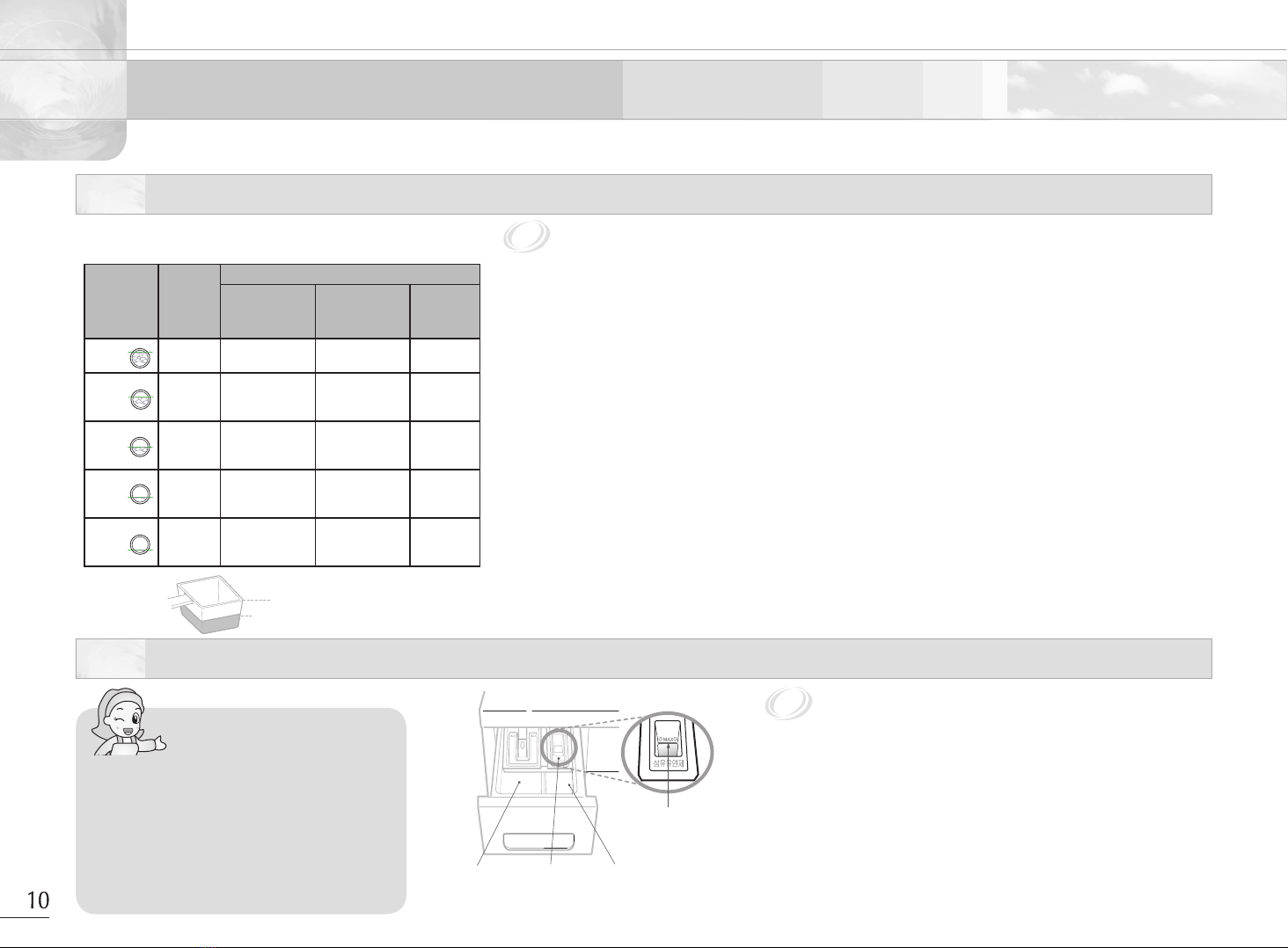

General Knowledge of Laundry
Usage of Detergent
Reference for the amount of detergent
recommended for laundry 1 time
Laundry
amount
Water
amount
Amount of detergent use
High
Concentrated
Detergent
Detergent for
Drum type
washer
Liquid
Detergent
Over
8.0kg
Over
40L About 35g About 70g (2cups)
About
70g
About
6.0 ~
8.0kg
About
30~40 L About 30g About 50g (1 1/2 cups)
About
50g
About
2.0 ~
6.0kg
About
20~30 L About 20g About 35g (1 cup)
About
35g
About
1.0 ~
2.0kg
About
10~20 L About 10g About 20g (2/3 cup)
About
20g
Less
than
1.0kg
Less
than
10 L
About 5g About 10g
(1/3 cup)
About
10g
< Measuring cup for
high concentrated
detergent: 35g>
Warnings regarding the use of detergent
 Add an appropriate amount of detergent, referring to the detergent amounts table.
1) Drum washing machines use 1/3 the water of general washers since they use head drop in washing. Thus
you should use only 1/3 the detergent of general washers as well.
2) For lightly soiled laundry, reduce the amount of detergent. Too much detergent may result in too much suds
and leftover bubbles even after rinsing.
3) Reduce the amount of detergent since it has better washing power with good suds in fine quality water (soft
water).
4) Liquid detergent is easy to dilute in water and makes good suds. Thus, reduce the amount of detergent
added.
For the underwear and baby’s clothes with cottons, most of the contamination on the clothes are fats and
proteins that are more effective in cleaning when washing with higher temperature and more rinses instead of
adding more detergent.
Too much detergent may cause those problems.
1) It may not be able to proceed with the normal RINSE cycle for the long rinse because of excess suds.
2) There may be bubbles left over on the clothes even after last spin.
Natural powdered detergent does not dilute well in water which causes leak or the failure of the washer. Make
sure to dilute in warm water before adding.
The amount of detergent for PREWASH is less than half of the MAIN WASH.
Add detergent before starting since the water supplying time is short.
If the detergent dispenser drawer is wet, the flushing of detergent may not be smooth. Therefore, it is more
effective to add detergent after wiping out the water on the drawer.
Draining water may look murky but it does not mean it needs more rise since the draining water with lint, zeo-
lite, fabric softener, etc. gets vapors after they are through the fast rotating draining pump propeller.
Usage of Fabric Softener
Compartment for
detergent in the
main wash
Add fabric
softener
Detergent for
prewash
Max fill line
 Fabric softener will be automatically dispensed during the last
rinse cycle.
Do not exceed the maximum fill line. (Overfilling can cause direct
dispensing.)
Do not leave the fabric softener in the dispenser drawer for
over two days. (It may become hardened and not be dispensed
automatically.)
Do not use concentrated fabric softener. (It may not be dispensed.)
If the fabric softener compartment is wet, take out the drawer and
wipe the water out before pouring the fabric softener.
The last draining water may look murky from the fabric softener
dispensed in the last rinse cycle.
Guide for Fabric Softener Addition
Please note!
 Do not use tissue type detergent or a fabric
softener. It may clog the detergent drop
which may cause a leak or failure.
 Add fabric softener always in the right
detergent compartment before washing,
and push the detergent drawer in gently to
close it. (Slopping fabric softener may get
into the drum.)

Label
for water
wash
Boiling wash, Machine wash (Hand washable) Any
detergent
40°C water, Machine wash Normal
(Hand washable)
Any detergent
30°C water, Machine wash Delicate
(Hand Washable Delicately)
Neutral detergent
30°C water, Hand Washable Delicately
(No Machine wash)
Neutral detergent
No water wash
Label for
Wring
Wring lightly by hand. Spin a short time.
No wringing.
General knowledge of laundry
How to sort clothes Sort clothes after checking the care labels. (Specified by KS K-0021)
Label
for Dry
Cleaning
Dry Clean OK. Use a solvent of perchlorethylene or
petroleum.
Dry Clean OK. Use a solvent of petroleum only.
No Dry Clean.
Label for
Dry
Hanger Dry in Shade
Flat Dry
Label for
Iron
Iron at the temperature of 80~120°C.
Iron at the temperature of 140~160°C with cloth cover.
Iron at the temperature of 180~210°C with cloth cover.
Do not iron.
Adequate temperature for Iron
 Select an adequate temperature for the garment.
The temperature for blended fabric is to be set for the lower heat
resistance fabric.
Heat resistant fabric such as cotton or hemp can be ironed on the outer side.
Woolen clothes need to be ironed on the outer side with cotton cloth cover.
Silk clothes need to be ironed on the inner side with a cotton cloth cover.
Fabric Temp.(°C)
Hemp 180~200
Cotton 160~180
Woolen 140~160
Silk, Rayon 120~140
Fabric Temp.(°C)
Polyester 100~120
Nylon
Acetate 70~100
Acryl
Others, Synthetic Fiber 120~150
Clothes not to be washed (It may result in shrinkage or deformation.)
Korean traditional dress or clothes including the fabric of Korean dress
Shoes, Electric blanket
Leather product, Tie, Suit, Coat, etc. which only need Dry Cleaning
Clothes with ornamentation
Artificially wrinkled dress
Clothes that can be shrunk by water or decolorized such as silk, woolen, rayon,
acetate, etc. or outer clothes with the lining or stiffener.
 Other clothes that deform and decolorize even by soaking in water.
(Check the care label.)
Preparation

Function of Each Buttons
Display of
the washing
course
selected
CHILD
LOCK
Display of Remaining Time/
Time Delay/
Abnormal Alarm/
Door Lock Indicator/
CHILD LOCK Indicator /
Progress Display
Smart
Diagnosis
Function
Tag
On
Function
WASH
button/
RINSE
button
SPIN
button
WATER
TEMP
button
BUTTON
SOUND
button
CREASE
CARE
button
FAVORITE
button
Turbo
Shot
Button
STEAM
button
Time
Delay
Button
Add
Garments
Button
TUB
CLEAN
button
Power
Button
Course
Selector
Knob
START/
PAUSE
Button
The design of the control panel may be different for the model.

Button Part
6WASH/RINSE/SPIN button
Use this to change the washing function,
number of RINSE cycles and SPIN speed.
14
ADD GARMENTS Button
Use this button to open the door during opera-
tion.
It may be useful when adding laundry or tak-
ing out foreign substances such as coins or
pins.
16
POWER button
 Use when turning the power of the washer on
or off.
The washing machine is automatically turned
off after a certain time from the end of wash-
ing.
17
Course Selector Knob
You may select a course according to the
amount and the soil level of the laundry.
Press the ‘POWER’ button and the ‘START/
PAUSE’ button will start the COTTON/NOR-
MAL course automatically.
18
START/PAUSE Button
Use when you START or PAUSE the washer.
This light is on during the operation, and it
flashes when paused.
The washer automatically turns the power off
after about 4 minutes of PAUSE.
15
TUB CLEAN Button
Use this button to clean and sterilize the
washing drum.
7WATER TEMP button
Use this button to change the water tempera-
ture.
8BUTTON SOUND button
Use this button to turn the sound alarms on or
off at the end of laundry.
9CREASE CARE button
Use this button to reduce the creasing of the
laundry.
10
FAVORITE button
This button is to save and reuse my frequent
courses.
It saves the courses when this button is
pressed and held for 3 seconds after setting
the desired course, washing function, number
of rinse cycles, spin speed and the water
temperature.
11
TURBO SHOT Button
Use this button to reduce the washing time.
The shape of the spraying water may be dif-
ferent depending on the water pressure.
The Turbo Shot may be different according to
the washing cycle.
12
STEAM button
Use this cycle to sterilize the clothes of stub-
born dirt, underwear or other general clothes.
13
TIME DELAY Button
Use this to delay the washing time.
To cancel the TIME DELAY, power off the
washer.
Display Part
1Display of the washing course selected
This displays the selected wash course.
2CHILD LOCK
 Use this function to prevent accidents caused by
children pushing the buttons on the washer.
 This is activated and inactivated when the ‘WASH’
button and ‘RINSE’ button are pressed and held
simultaneously for over 3 seconds.
4SMART DIAGNOSIS
This indicates the place where to put the phone to
receive signals at an abnormal condition. (Refer to
page 32~35)
5TAG ON function
This indicates the place where to put a smart phone
that has NFC inside when the TAG ON function is
used.
3Display of the Remaining Time/TIME
DELAY/Abnormal Alarm/Door Lock/
CHILD LOCK/Progress
This displays the remaining time until the end of
laundry while running.
The displaying time is expected remaining time in
normal progress. The actual time may be different
for the pressure of supplying water, overuse or faulty
use of detergent and the amount of laundry.
When the TIME DELAY is set, it displays the
finishing time of the time delayed laundry.
When an abnormal status is detected, it displays the
Alarm for Abnormal Conditions.
This is the sign displaying that the door is locked for
safety during operation.
How to unlock the door: Do not pull the door until
the Door Lock indicator turns off. Failure to do so
may cause a breakdown. If the door still cannot be
opened even after the indicator off, push the door in
a little and then pull again.
This is the『』sign displaying that the CHILD
LOCK is set. (Refer to the 2 CHILD LOCK
function.)
This indicates the washing progress.
Use

Caution!
 If the laundry is not fully pushed into the inside of the flexible gasket of the drum, the seal can be damaged resulting in a leak.
 Overloaded laundry may cause damage to the washing machine and clothes.
 Be careful that there may be an injury if hands are caught in between the door and product.
 Note that the door glass can be broken by impact.
G
Before use
Check the following things first!
How to open the door
1Is the water supply hose tightly connected
to the water tap and the tap turned on?
(54p)
2Are the water supply hoses for hot water
and cold water connected correctly? (54p)
3Is the power cord plugged in firmly? (58p)
4Is the drain hose laid down into the
drainage?
5Is the washer level? (56p)
Please note!
 Drum washing machines use less water since they wash by
spinning and head dropping wet laundry.
 It may seem like there is no water inside the drum during
washing, but that is normal as long as the laundry is wet enough.
 A splashing sound during the washing cycle is due to the
dropping of the laundry while spinning and it is normal.
 Laundry that absorbs a large amount of water for their small
size such as knitwear or foot mats need to be washed two or
more items at a time. If only one item is washed it may be out of
balance due to the one sided weight causing thereby the short
life service of the washer.
 The amount of laundry is based on the test
laundry by the Korean Standard. Depending
on the type and volume of the laundry, the
actual amount of laundry may be different
from the specification.
The door cannot be opened during the operation or when the ‘Door Lock’ light
[] is on. Do not attempt to open the door by force. Open the door after pausing
the operation by pressing the “Add Garments” or “START/PAUSE” button and the
“Door Lock” indicator is off.
To open the door To close the door
Pull the
door
holding the
right rim of
the door.
Push the
center right
side of the
door to the
end.
Please note!
 If there is 『 』,『 』 upon an Abnormal Alarm display, press the
‘START/PAUSE’ button after closing the door firmly.
 The sound after pressing the ‘START/PAUSE’ button for starting is for
locking the door, and it is normal.
 The sound after finishing the washing cycle or after pressing the ‘START/
PAUSE’ button for a pause is to unlock the door, and it is normal.
 In case of the loss of power during operation, the door can be opened
after a set time (approximately 5 minutes). (Be careful of the heat when
the power shuts-off during the BOILING CARE course.)
 If the loaded laundry is too much or the door is not
fully closed, the “Door Lock” indicator will not be on.

COTTON/NORMAL course
SPEED WASH course
Select normal wash.
Use this course for less soiled clothing under 3 kg to nish the laundry quicker.
Please note!
 To change the setting during the washing operation, press the START/PAUSE button to pause, and change the setting by pressing each button.
 To prevent damage to the clothes, the water temperature cannot be set to ‘95°C’.
 Drum washer wash by beating style so that towels can be felt roughly for the settled strands. Fabric softener will help to minimize the settling of
the strands and make laundry softer.
 The washing time may take longer if laundry with absorbed water is entered.
Please note!
 The laundry time can be different for the load amount. Even if the amount is small, if it is wet, the washer detects that as a heavy
and large load. Thus, it will take longer time to finish.
 This displays 15 minutes of remaining time if the laundry is small with 3 to 4 shirts.
 Use 1/2 of the standard recommended amount of detergent on page 10.
(5 g, based on the detergent exclusive for the drum washer)
 Select the number of RINSE times to 3 or more to enhance the RINSE power.
Press the POWER
button.
Load the laundry and close the door.
 Add detergent and fabric softener in the
detergent drawer and close.
 Refer to page 10 for the amount of detergent.
1
Press the POWER
button.
Load the laundry and close the door.
 Add detergent and fabric softener in the
detergent drawer and close.
 Use 1/2 of the standard recommended amount
of detergent on page 10 since the laundry is less
dirty and small.
1
Dial the Course Selector Knob
to COTTON/NORMAL course.
You may skip this step for the COTTON/
NORMAL course selection. Pressing the START/
PAUSE button will select the COTTON/NORMAL
course automatically.
 This course is automatically set for a water
temperature of ‘40°C’, spin speed ‘HIGH’, and
washing function ‘NORMAL’.
 You may change the setting of the water
temperature, number of rinse times and spin
speed by pressing the button accordingly.
2
Dial the Course Selector Knob
to the SPEED WASH course.
This course is automatically set for the SPIN
speed ‘MEDIUM’ and washing function
‘NORMAL’.
 You may change the number of rinse cycles and
spin speed by pressing the button accordingly.
 STEAM is automatically selected and stops
STEAM if you want to change the water
temperature.
 Water temperature is selectable among the
‘COLD WASH, 30°C and 40°C ‘
2
Press the START/
PAUSE button.
Then, it locks the door, detects the laundry load,
supplies water, and starts washing.
 Turbo Shot is automatically selected.
3
Press the START/
PAUSE button.
Then, it locks the door, supplies water, and starts
washing.
 Turbo Shot is automatically selected.
3
Use

SILENT WASH course
COLOR CARE course
Use this course to wash clothes silently. (At night, when babies or others are sleeping.)
Use this course to keep the original color of clothes for longer. Wash only after sorting white and heavily contaminated clothes.
Please note!
 It is set for the SPIN speed LOW to reduce the noise from spinning so that the spun result is less dried than the NORMAL
course, and this is normal.
 If a higher speed than the set speed is set, it may be noisier.
 To prevent damage to the clothes, the water temperature cannot be set to ‘95°C’.
Please note!
 To change the setting during the washing operation, press the START/PAUSE button to pause, and change the setting by
pressing each button.
 Water temperature is only selectable from ‘COLD WASH, 30°C and 40°C’ to prevent the decolorization of colored clothes.
Press the POWER
button.
Load the laundry and close the door.
 Add detergent and fabric softener and then close
the dispenser drawer.
 Refer to page 10 for the amount of detergent.
1
Press the POWER
button.
Load the laundry and close the door.
 Add detergent and fabric softener and then close
the dispenser drawer.
 Refer to page 10 for the amount of detergent.
1
Dial the Course Selector Knob
to the SILENT WASH course.
This course is automatically set for a water
temperature of ‘40°C ‘, rinse ‘4 times’, spin speed
‘LOW’ and the washing function ‘NORMAL’.
 You may change the set for water temperature,
number of rinse and spin speed by pressing the
button accordingly.
2
Dial the Course Selector Knob
to the COLOR CARE course.
This course is automatically set for a water
temperature of ‘30°C ‘, spin speed ‘LOW’ and the
washing function ‘NORMAL’.
 It is more effective if a detergent and fabric
softener are used that are especially for COLOR
PRESERVATION.
2
Press the START/
PAUSE button.
Then, it locks the door, supplies water and starts
washing.
3
Press the START/
PAUSE button.
Then, it locks the door, supplies water and starts
washing.
3

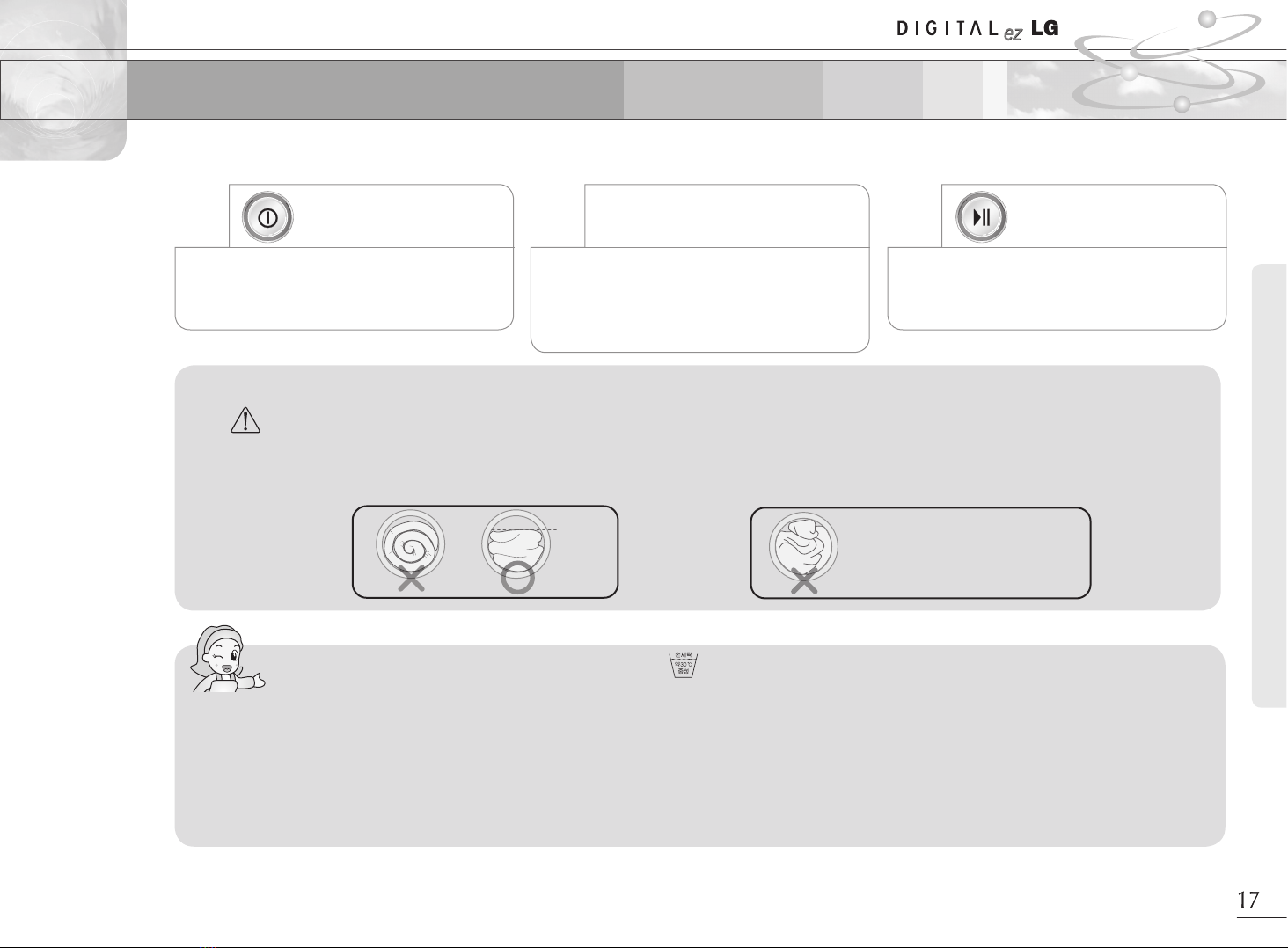

BULKY/LARGE course
Use this course when washing blankets or bed sheets with Water Washable on the care label.
Press the POWER
button.
 Load laundry and close the door.
Add detergent and fabric softener and then close
the dispenser drawer.
Refer to page 10 for the amount of detergent.
1Dial the Course Selector Knob
to the BULKY/LARGE course.
 This course is automatically set for water temper-
ature ‘COLD WASH’, rinse ‘4 times’, spin speed
‘MEDIUM’ and washing function ‘NORMAL’.
You may change the set for water temperature,
number of rinse and spin speed by pressing the
button accordingly.
2Press the START/
PAUSE button.
 Then, it locks the door, supplies water and starts
washing.
3
Caution
 Never wash electric blankets or carpets. (It can cause damage to the washer and laundry.)
Wash duvets separately from the clothes, as those are divided in the tub causing an error from being out of balance.
 It may take a little longer to spread the unbalanced blanket evenly during the spinning.
Washing one blanket at a time is recommended regardless of its size for a cleaner result. If two blankets with different
materials are washed together, the spinning may not work properly because it will be imbalanced.
Do not load bedclothes rolled up. Spread them out evenly and fill up to only 80% or less of the drum.
When out of balance, take out the bedclothes, spread them out evenly and reload.
When loading the bedclothes, push
them into the drum firmly. If a blanket is
caught in between the glass door and
rubber gasket, there damage might be
caused to the laundry and the washer.
Below
80%
Please note!
 Be careful of the possible damage done to the laundry when washing a large blanket (over 4.0kg or exceeding 180 x 220cm) or
two or more blankets.
The washable weight can be different for the volume of the blanket.
You cannot select ‘HIGH’ or ‘EXTRA HIGH’ for the spin in this course. You can select the water temperature among ‘COLD
WASH’, ‘30℃’ and ‘40℃’.
It is possible to wash the blanket with Hand Wash on care label.
Weight Blanket: Below 4.0kg (size within 180 x 220cm)
Infilling: Below 4.0kg (size within 180 x 220cm)
Type Acrylic blanket: Acryl 100% (coated by nylon)
Mixed blanket: Cotton + Polyester
Woolen blanket: Woolen yarn blanket
Blanket filler: Polyester 100%
Use

HAND WASH/WOOL(*) course
RINSE+SPIN course
Please note!
 To prevent clothes from being damage the water temperature is selectable only among the ‘COLD Wash, 30℃, 40℃’ and not selectable for the
spin speed among the ‘MEDIUM, HIGH, and EXTRA HIGH’.
To prevent clothes shrinkage, the STEAM cycle is not selectable.
The recommended load amount for the HAND WASH/WOOL course is below 4kg. Use neutral detergent such as wool shampoo or wool es-
sence to reduce the clothes’ damage and improve the washing power.
 The HAND WASH/WOOL course moves the drum smoothly left and right in order to prevent clothes from being damaged, such as gentle hand wash.
Use this course when washing delicate clothes that may be shrunk or deformed easily. Check the care label on the clothes, and only wash clothes
that are Water Washable.
Press the POWER
button.
 Load the laundry and close the door.
Add the appropriate neutral detergent.
Refer to page 10 for the amount of detergent.
1
Dial the Course Selector Knob to
the HAND WASH/WOOL course.
 This course is automatically set for a water tem-
perature of ‘40°C ‘, spin speed ‘LOW’, and the
washing function ‘NORMAL’.
You may change the setting of the water tem-
perature, number of rinse cycles, and spin speed
by pressing the buttons accordingly.
2Press the START/
PAUSE button.
 Then it locks the door, supplies water, and starts
washing.
3
Use this course to select RINSE and SPIN without WASH.
Press the POWER
button.
 Load laundry and close the door.
Add fabric softener in the detergent drawer.
1Dial the Course Selector Knob
to RINSE+SPIN Course.
 This course is automatically set for the SPIN
speed ‘MEDIUM’.
Water temperature is unchangeable.
2Press the START/
PAUSE button.
 Then, it locks the door, supplies the water and
starts rinsing.
3

DOWNLOAD CYCLE
Please note!
 You may download one of the four courses using the TAG ON function. (SMART SAVING ENERGY, INTENSIVE RINSE, COLD WASH and
SPIN ONLY) Please refer to the LG Smart Washing Machine application for a detailed explanation.
Refer to the page 39~40 for the user’s guide for how to COURSE DOWNLOAD .
The download cycle may be different depending on the updated version of the application.
You may use the DOWNLOAD function of the TAG ON course if you install the LG Smart Washing Machine application on a smart phone which has
an NFC function on the Android OS. If the course is not downloaded, the DOWNLOAD cycle is only available during a COLD WASH.
Press the
POWER
button.
 Load the laundry and close the
door.
Add detergent and fabric softener
according to the course.
Refer to page 10 for the amount
of detergent.
1
Press the
START/PAUSE
button.
 Then, it locks the door and starts
washing.
4
Confirm the course that is currently
downloaded using the LG Smart
Washing Machine application.
 If downloaded on several smart phones,
the download course on the smart phone
and actual downloaded course to the
washing machine may be different.
If you select [ ] button on the download
course of the application, you can check
the course downloaded to the washing
machine.
2
Dial the Course
Selector Knob to the
DOWNLOAD Cycle.
 The selectable setting may be differ-
ent depending on the downloaded
course.
If the course is not downloaded, the
basic course of the DOWNLOAD
Cycle is COLD WASH. Refer to the
COLD WASH course below on the
corresponding page.
3
COLD WASH course
Please note!
 To change the setting during the washing operation press the START/PAUSE button to pause, and change the setting by pressing each button.
Food stains and stubborn dirt cannot be cleaned after a normal wash. Thus, it is more effective to wash them separately with the STUBBRON
course.
Use this course to wash lightly soiled clothes to save energy.
If no course is downloaded, the download course runs the COLD WASH course automatically.
Press the POWER
button.
 Load the laundry and close the door.
Add detergent and fabric softener and then close
the dispenser drawer.
Refer to page 10 for the amount of detergent.
1Dial the Course Selector Knob
to the DOWNLOAD cycle
(COLD WASH course).
 This course is automatically set for the water
temperature ‘COLD’, spin speed ‘HIGH’, and
washing function ‘NORMAL’.
For the water temperature only, cold water can
be selected.
2Press the START/
PAUSE button.
 Then it locks the door, supplies water, and starts
washing.
3
Use

STEAM CLEANING course
Please note!
Warnings on the Washer
Keep the tap open, since the STEAM CLEAN course uses a small amount of water.
To use the STEAM CLEAN course continuously, open the door and cool it down inside before the next STEAM CLEAN course for
a more effective result.
Select the STEAM CLEANING course to remove odors and wrinkles.
When the course ends, the tub rotates intermittently for 30 minutes to reduce wrinkles.
The door cannot be opened at this time. Pressing any button will unlock the door and then it can be opened.
Warnings on Clothes
The clothes will be a little wet right after the STEAM CLEAN course. You may wear them after hanging for 10 to 30 minutes.
The proper amount for STEAM CLEAN is 5 or fewer dress shirts for adults. It may be less effective if a large amount or thick
clothes are used in the STEAM CLEAN course.
This function is effective on the clothes with cotton or blended fabrics.
Use this course to eliminate the bad odor of cigarettes, meat, closets, or others.
What is the STEAM CLEANING? It removes odor and wrinkles by STEAM and AIR - without water.
Press the POWER
button.
 Load the laundry and close the door.
Do not add any detergent or fabric softener.
1Dial the Course Selector Knob
to the STEAM CLEAN course.
 The STEAM function is automatically selected.
Other cycles except the TIME DELAY, TUB
CLEAN and FAVORITE courses are not se-
lected.
2Press the START/
PAUSE button.
 Then, it starts the STEAM CLEANING course as
the drum rotates.
3
Caution!
 The STEAM CLEANING course does not wash or dry. It removes the odor and creases of dry clothes. (Do not load clothes to wash.)
If contaminated clothes are run with this function, they can be decolorized by the contamination. Thus, use the function after
cleaning the contamination.
Zip up the zippers for the clothes with zippers like jumpers.
Clothes appropriate for the course Clothes NOT appropriate (may result in shrink or deformation)
Dress shirts
 T-shirts
 Blouse
 Jumper, Duck-down parka, Coat
 Cotton slacks, Jeans
 Blanket, Pillow case, bedclothes (cotton blended)
 Cotton, Blended
 Leather clothes, suit, Thin knit, waterproof clothes
 Lingerie, stocking, lace, clothes with ornamentation
 Starched clothes, clothes with adhesive
 Shoes, bags, electric blanket, clothes with sponge
 Blanket with hair longer than 100mm, Cotton ll duvet
 Clothes with articial wrinkles
 Clothes that are unable to machine dry
