LG TROMM LSF100 User manual
Model name: FH6G1BAYK2
Note: Please read this guide carefully before repairing and operating the product.
TROMM Front-loading Washer
Technical Manual for Servicing
2
Table of Contents
3
1. Product Features
Movement of the washing tub in 6 directions for hand-wash effect
㻈ᴴ㉔䈑㜼㚱
Front-loading washer with DD inverter
㻈ᴴ㉔䈑㜼㚱
Customized washing cycle for those with busy lifestyle
㻈ᴴ㉔䈑㜼㚱
Smart ThinQ (Wi-Fi feature)
㻈ᴴ㉔䈑㜼㚱
Low noise speed control system
Button lock feature (CHILD LOCK)
Auto Restart
4
2. New Technologies and Operation Principles
2-1. Product Comparison (Dimensions and Functions)
F12WH.AKOR
5
2-2. How to Detect Laundry Weight
•
•
2-3. Water Level Control
•
•
•
6
2-6. Condition for Door Lock Icon and Pop-up Display
2-7. Button Lock Feature
2-9. Smart ThinQ (Wi-Fi feature)
•
•
2-4. DOOR Open Control
•
•
℃
•
2-5. The door cannot be opened if:
•
•
•
•

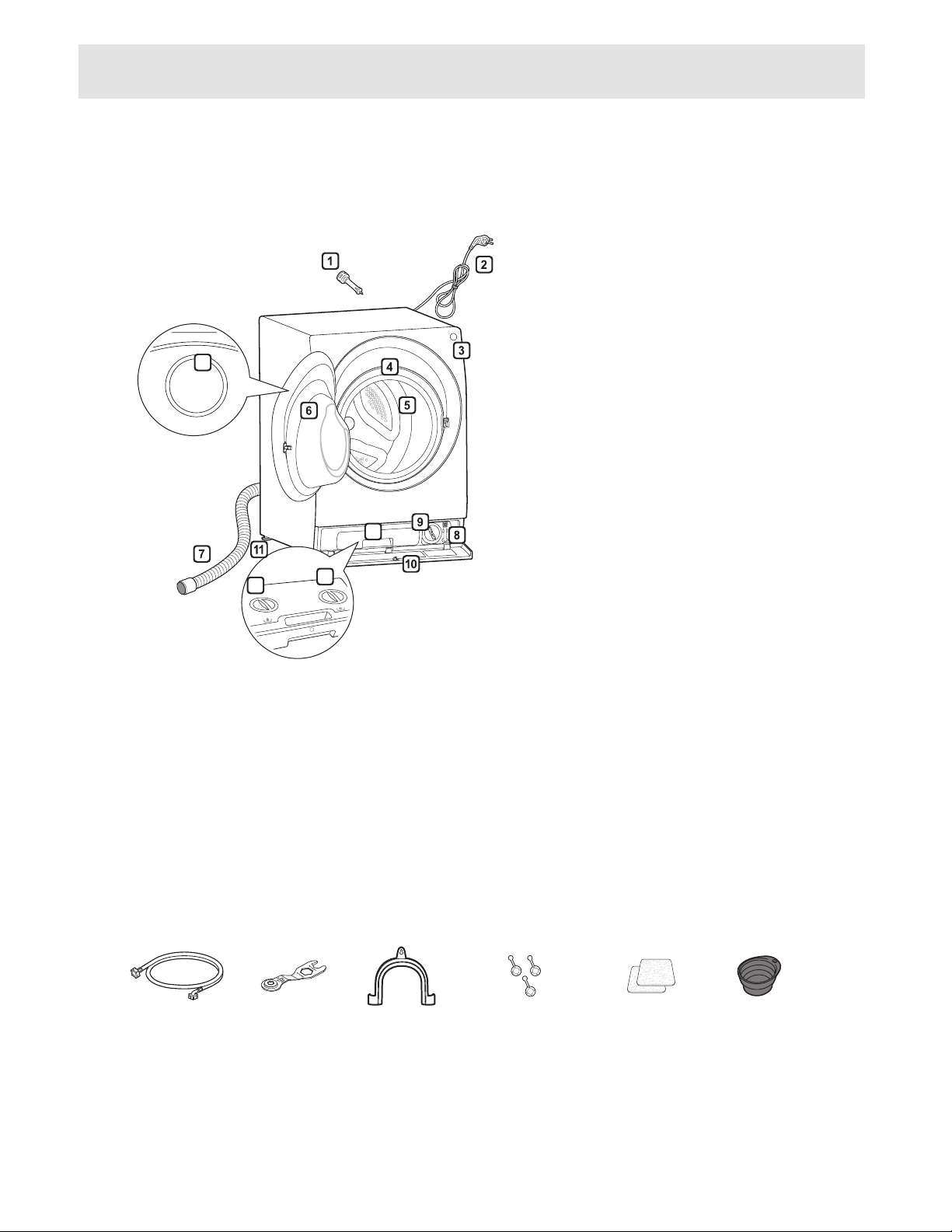

3-1. Names of Components
7
3. Names and Functions of Components
6
9
Pu
sh
12
14
13
15
8
3-2. Function Operation Panel
※
5
4
3
2
1
1 Display window
●
●
2 Settings window
3 Wash mode
4 Start/Pause button
5 Wash mode display window
9
Option Cycle
When you select a cycle, washing starts with the default
settings of options. If necessary
, change the options as
shown belo
w.
: Soil
: Te mp.
: Rinse
: Spin
: Add Option
1Press the Power button.
2Select a washing programme.
3Select options you want to change.
4Change the options and Press the OK button.
5Press the Start/Pause button.
Soil
Light Soi
l
Use this option when the soil level is lower than a
general washing laundry
.
Normal Soi
l
Use this option for general washing
.
Heavy Soil
Select this option to wash the laundry with heavy soil
with more power compared to the standard wash of
each cycle.
Temp.
The button selects the wash and rinse temperature
combination for the selected cycle. Press the desired
setting. All rinses use cold tap water.
•Select the water temperature suitable for the type of
load you are washing. Follow the garment fabric care
labels for best results.
Rinse
Rinse+
Add rinse once.
Rinse++
Add rinse twice.
Normal + Hold
The course is paused until start button is pressed again
Rinse+ + Hold
Add rinse once then after rinsing process, the course is
paused until Start/Pause button is pressed again.
Spin
•Spin speed level can be selected by pressing the
button repeatedly.
NOTE
•When you select ‘No Spin’, it will still rotate for a
short time to drain quickly.
•The spin setting range may be different depending
on cycles.
4. Service sequence
10
1
2
3
•
①
•
→
•
•

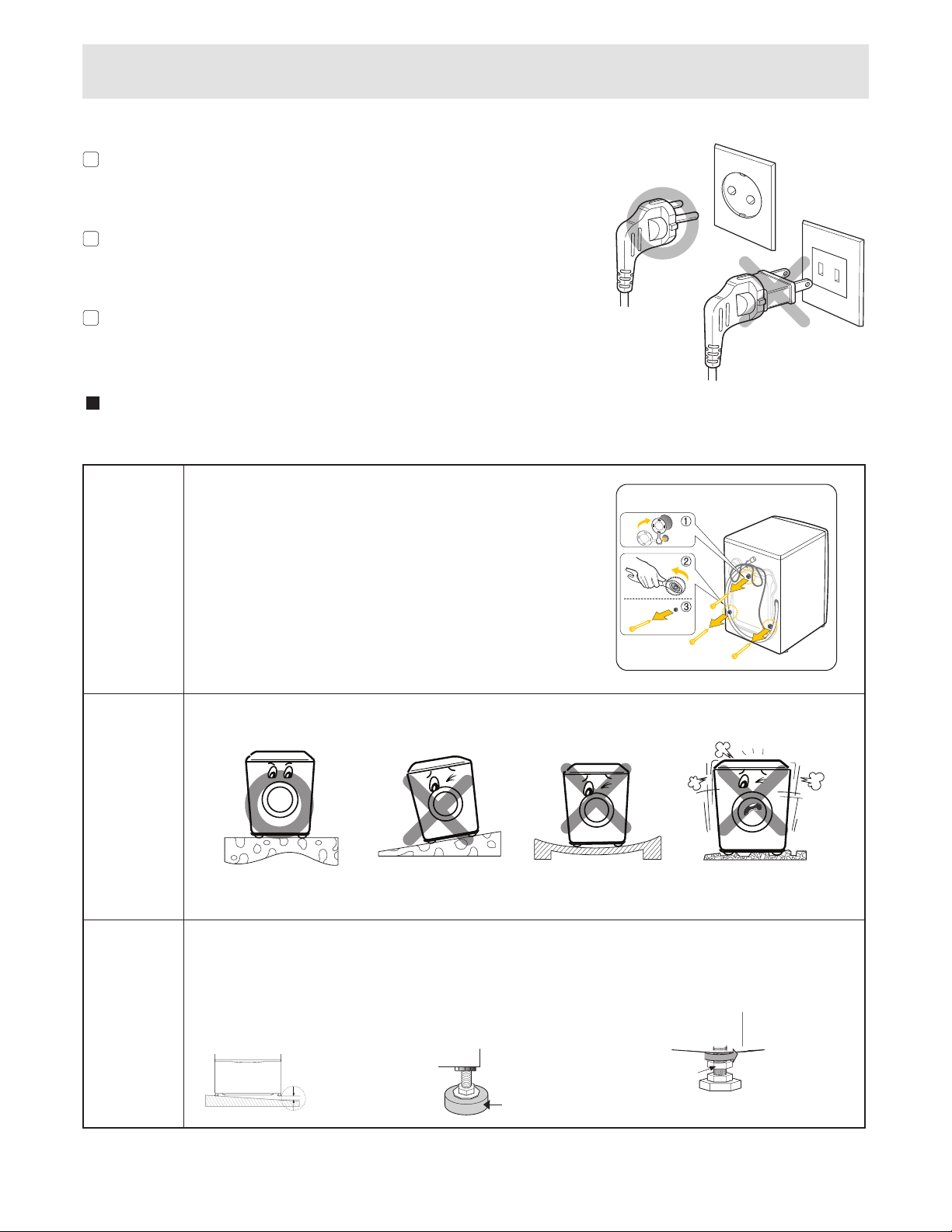

Basic installation
기울어진곳 나무바닥처럼
속이비어있는곳
울퉁불퉁한곳
1
Check the gap between the four
leveling feet of the Mini Washer and
the floor.
•
•
2
Adjust the four leveling feet so that
all of them are firmly standing on the
floor.
3
Once level adjustment is done,
firmly tighten the tightening
nuts.
•
11

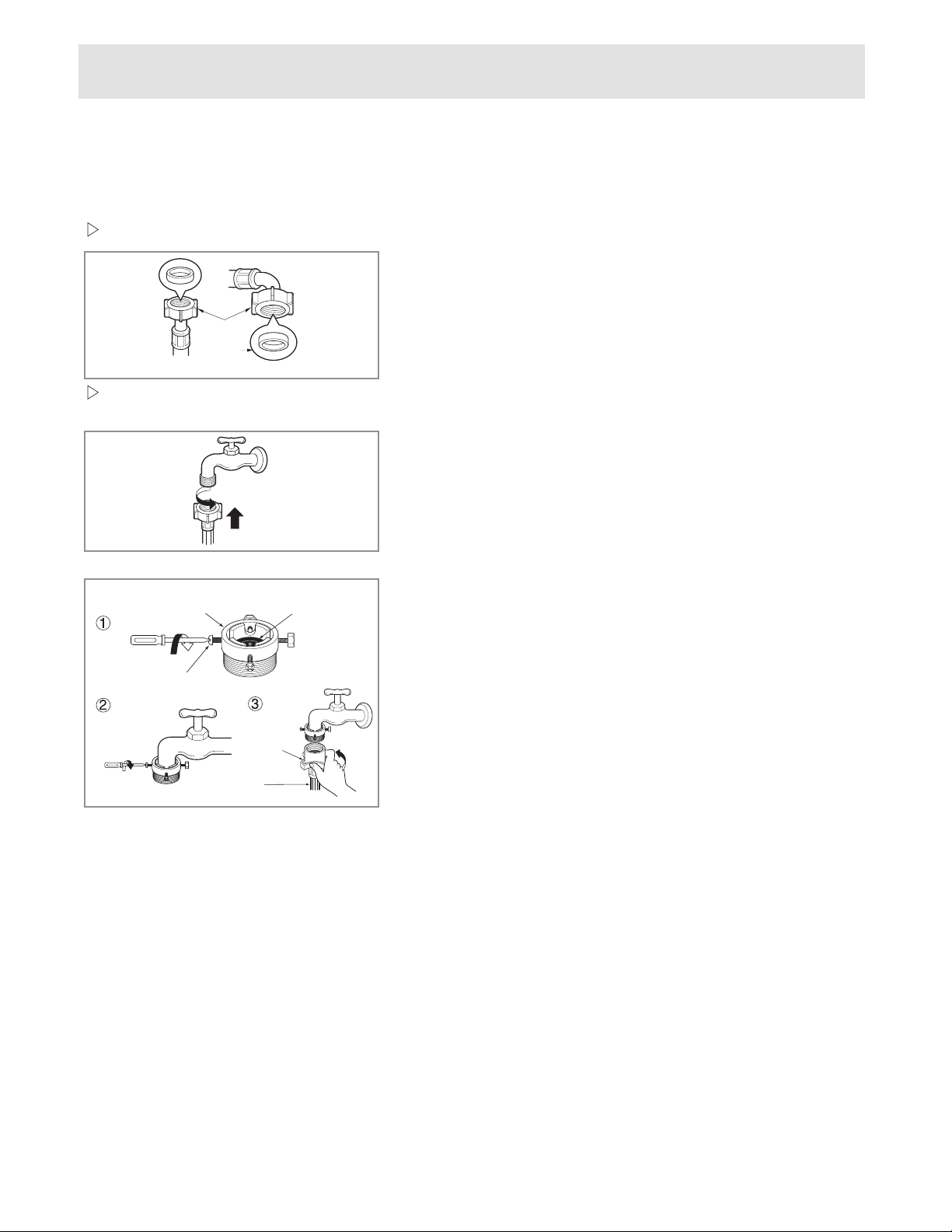

1. Unfasten the adapter ring plate and the 4 adapter retaining screws.
2. Push the adapter onto the end of the tap so that the rubber seal forms
a watertight connection. Tighten the adapter ring plate and the 4
screws.
3. Push the water supply hose vertically upwards so that the rubber
packing in the hose connects fully to the tap and then
tighten it by fastening clockwise.
• Water supply pressure must be between 100 kPa and 1000 kPa (1.0 ~ 10.0 kgf / cm
2
)
• Do not strip or crossthread when connecting inlet hose to the valve.
• If the water supply pressure is more than 1000 kPa, a decompression device should be installed.
• Periodically check the condition of the hose and replace the hose if necessary.
Type-A : Connecting Screw-type hose to tap with thread
• Fasten the hose connector onto water supply tap.
古Connecting water supply hose
君
Step1 : Check the rubber seal of the inlet hose
君
Step2 : Connect hose to water tap
• Two rubber seals are supplied with the water inlet hose.
They are used for preventing water leaks. Make sure the connection to
taps are sufficiently tight.
Upper
connector Rubber
packing
Plate
Water supply
hose
Fixing screw
Hose
connector
Rubber
seal
Type-B : Connecting Screw-type hose to tap without thread
12
Please use the horizontal tap
Horizontal tap Extension tap Square tap
1. Unfasten the adapter ring plate and the 4 adapter retaining
screws.
2. Remove the guide plate if the tap is too large to fit the
adapter.
3. Push the adapter onto the end of the tap so that the rubber
seal forms a watertight connection.
Tighten the adapter ring plate and the 4 screws.
4. Pull the connector latch plate down, push the inlet hose onto
the adapter, and release the connector latch plate.
Make sure the adapter locks into place.
After completing connection, if water leaks from the hose, repeat the same steps.
Use the most conventional type of faucet for water supply. In case the faucet is square or too big, remove the
guide plate before inserting the faucet into the adaptor.
Ring plate
Guide plate
Latch plate
Type-C : Connecting one touch type hose to tap without thread
君Step3: Connect hose to washer
• Make sure that the hose is not kinked or crushed.
君
When your washer has two valves.
• The inlet hose with the red connector is for the hot water tap.
• If the washer has two valves, energy is saved by using the hot valve.
After connecting inlet hose to water tap, turn on the
water tap to flush out foreign substances (dirt, sand or
sawdust) in the water lines. Let water drain into a
bucket, and check the water temperature.
13
Connect Drain Hose.
6
Connect power plug.
7
If the drain hose is not installed properly, the unit will not drain properly.
This allows water to flow back into the unit which can cause odors.
Refer to owner’s manual for proper drain hose installation.
The odor could also be coming from the home’s drain to which the drain hose is attached.
In this type of drain hose installation, the odor could be coming from the standpipe.
This odor can come up the drain hose and into the unit.
Pour a cup or two of bleach or vinegar down the home drain
and let it sit for 24 hours before running another cycle.
This will help eliminate odor from the home drain.
If a cycle is started too soon after doing this, it will not help the issue.
Connect the power plug to the wall outlet. Avoid connecting several electric devices,
it may be the cause of a fire.
about 100 cm
about 145 cm
about 105 cm
Laundry tub
Max. 100cm
Max. 100cm
Retainer
Tie
strap
Hose
max. 100 cm
14

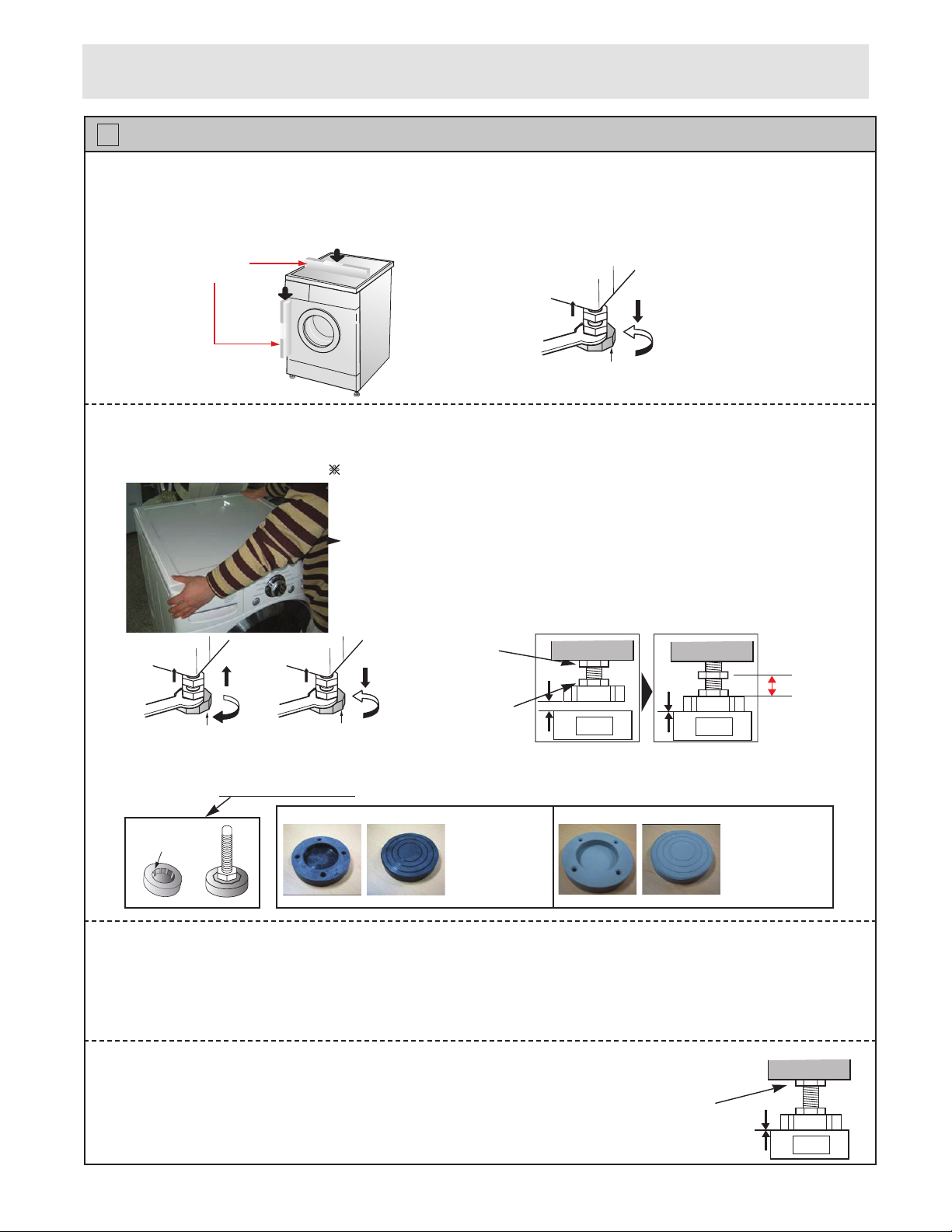

Check the horizontality with a level (Gage).
8
Step 1
If washing machine legs are loose or not fully attached, then tighten with the spanner wrench.
Using the level, level the washing machine from front to back and side to side.
Step 2
Use the spanner wrench to adjust legs until level and try the Diagonal test.
Step 3
Perform a Rinse and Spin with some clothing in the machine.
To do this, put 2~3kg of clothing in the unit, turn on the unit, select the Rinse+Spin
and then start. When the unit reaches the spin cycle, check vibrations.
If the unit vibrates, adjust the leveling foot slightly until the vibration subside. (Repeat step 2)
Step 4
Tighten the lock nut up to lock the positioned leg.
Lower the foot until there is no gap between floor and foot.
And only use adjustment rubber when the gap is more than 10mm.
Place your right hand on the back, right corner and your left hand on the front,
left corner of the unit, then attempt to rock the unit from corner to corner.
Then, move your right hand to the front, right corner and your left hand to the
back, left corner and attempt to rock the unit from corner to corner.
If the unit is level, it will not rock. However, if the unit is not level, it will rock.
If the unit rocks, it will be necessary to adjust the leveling feet of the unit.
Adjust the foot on the front right corner.
叛How to perform a diagonal test:
A level
Lower
Tighten
Adjustable feet
Diagonal test
Loosen
Adjustable feet
Higher
Tighten
Adjustable feet
Lower
4620ER4002B
(Gray)
for Wooden floors
Rubber Cup
4620ER4002A
(Black)
for Tile floors
Lock nut
10mm
Adjustable bolt
Tighen the lock nut
Floor
No Gap
Floor
No Gap
Floor
Gap
220V전용콘센트에연결
냉수수도꼭지에급수호스
연결
급수시작후드럼의좌우
반전확인.
전면부급수확인
세탁준비과정
동작/일시정지터치
Testmode에서Start버튼
10회누른후가열확인
탈수단독코스를선택하여배수
및탈수를확인
시운전후서비스할필요가
있을때제품하단의Cover을
열고,잔수제거호스마개를
빼내어잔수를제거하세요.
세탁수가열확인 자동반전확인
전원버튼누름
급수확인
배수및탈수확인 동작/일시정지터치 잔수제거
4
•
15
•
•
•
•
•
•
•
•
16
5. How to Service the Controller Assembly
5-1. Cautions for Service

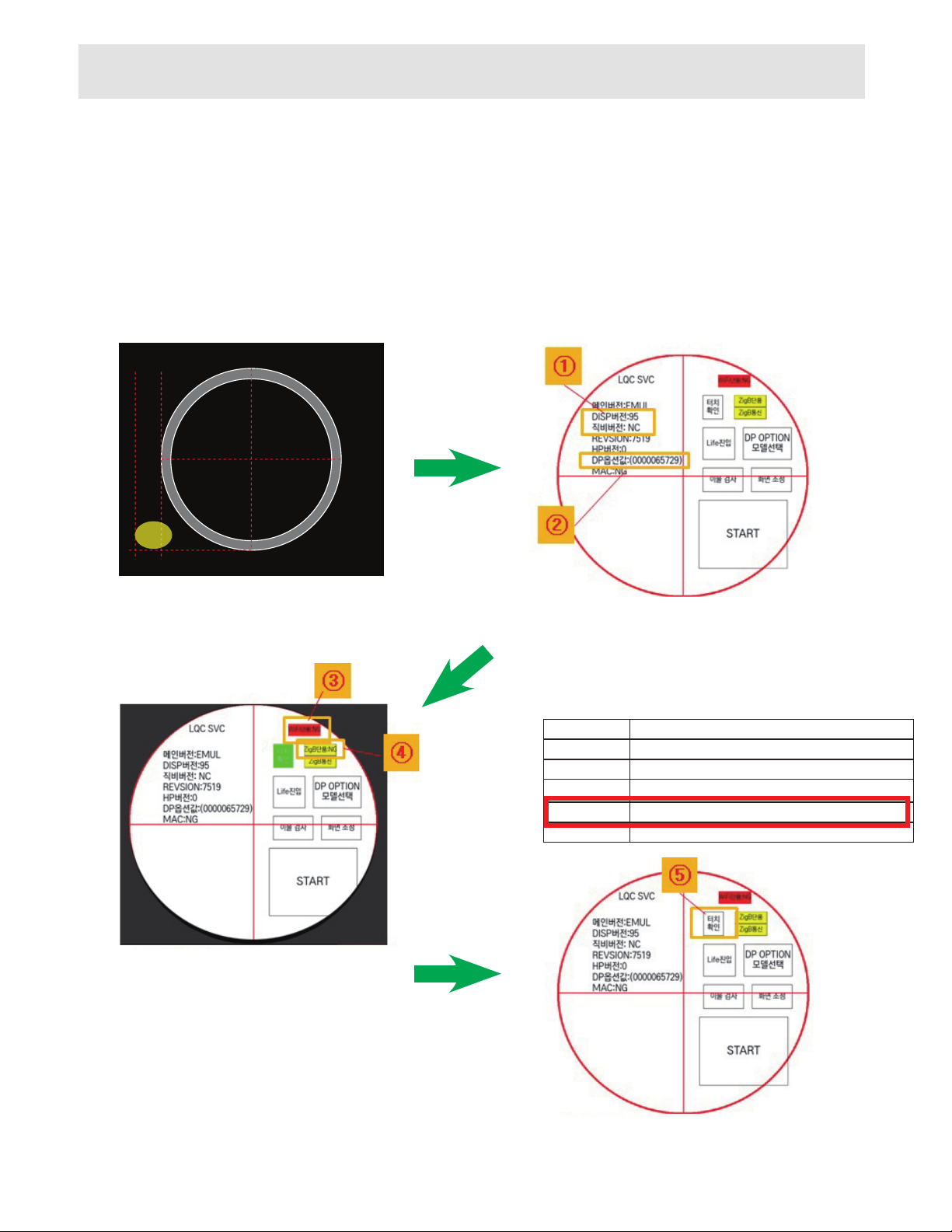

5-2. Check Program
■
■
■
■
.3%58%
Z
17
18

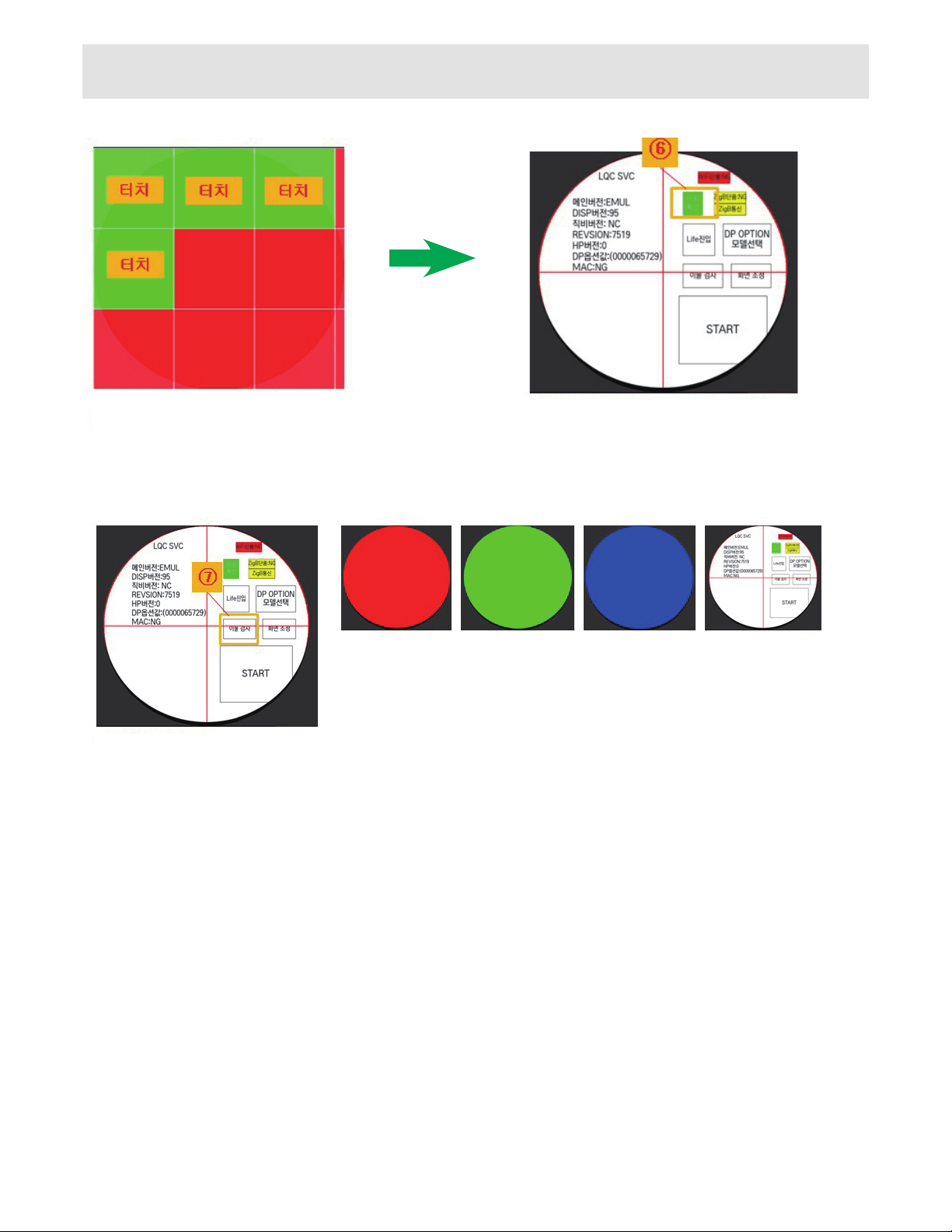

5-3. Check program mode
■
■
☞
.3%58%
Z
19
* ERROR display
•
•
5-4. Fault Confirmation Criteria and Method of Checking
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
20
•
