LG WM0642H Series User manual

1-800-243-0000
24 HOURS A DAY, 7DAYS A WEEK FOR LG CUSTOMER SERVICE
Washing Math"
WMO642H*
carefully. It provides
stallation, use, and maintenance.
_nce.
ial numbers of your machine
your dealer if your machine

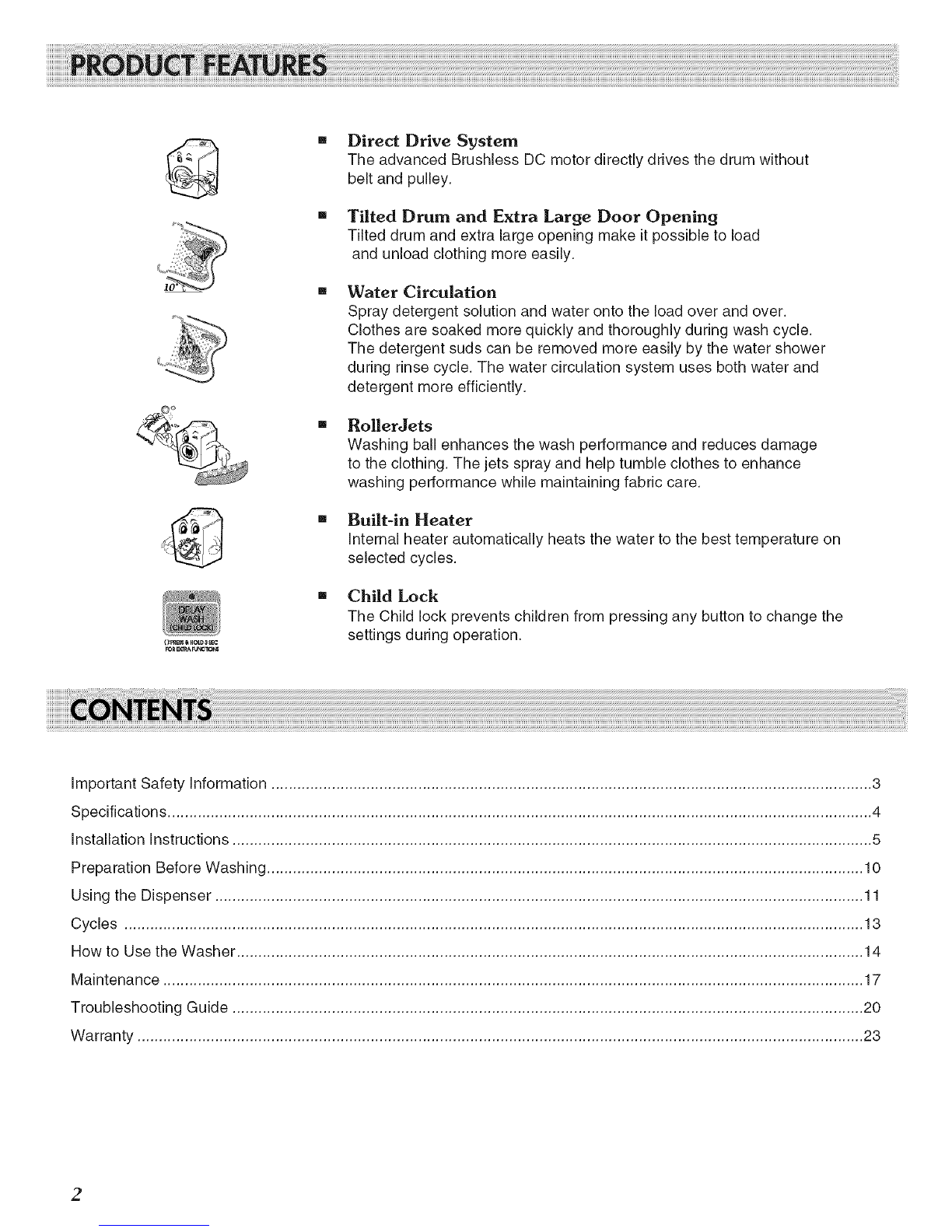

m Direct Drive System
The advanced Brushless DC motor directly drives the drum without
belt and pulley.
m Tilted Drum and Extra Large Door Opening
Tilted drum and extra large opening make it possible to load
and unload clothing more easily.
Water Circulation
Spray detergent solution and water onto the load over and over.
Clothes are soaked more quickly and thoroughly during wash cycle.
The detergent suds can be removed more easily by the water shower
during rinse cycle. The water circulation system uses both water and
detergent more efficiently.
Rollerdets
Washing ball enhances the wash performance and reduces damage
to the clothing. The jets spray and help tumble clothes to enhance
washing performance while maintaining fabric care.
m Built-in Heater
Internal heater automatically heats the water to the best temperature on
selected cycles.
m Child Lock
The Child lock prevents children from pressing any button to change the
settings during operation.
Important Safety Information ........................................................................................................................................... 3
Specifications ................................................................................................................................................................... 4
installation instructions .................................................................................................................................................... 5
Preparation Before Washing .......................................................................................................................................... 10

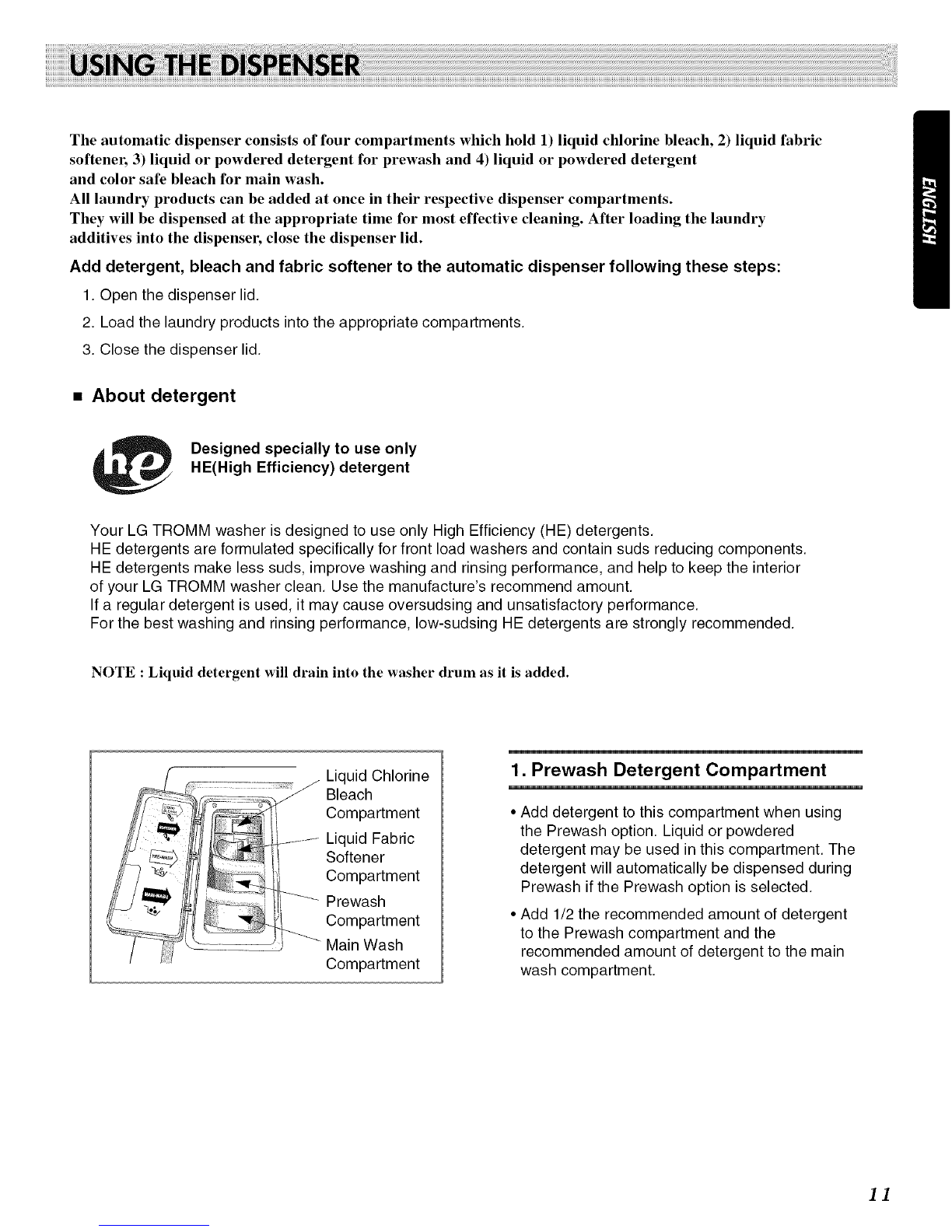

Using the Dispenser ...................................................................................................................................................... 11
Cycles ........................................................................................................................................................................... 13

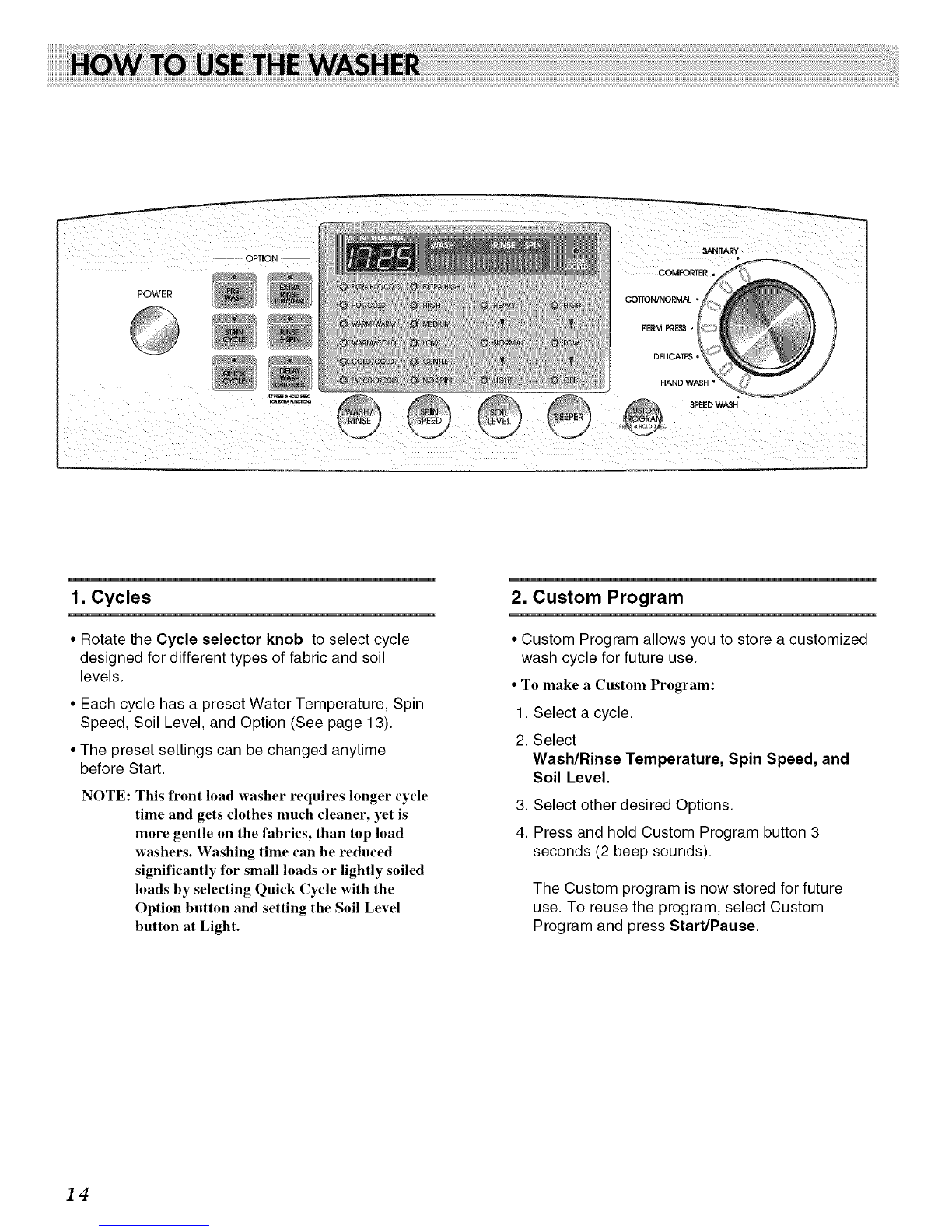

How to Use the Washer ................................................................................................................................................. 14
Maintenance .................................................................................................................................................................. 17
Troubleshooting Guide .................................................................................................................................................. 20
Warranty ........................................................................................................................................................................ 23

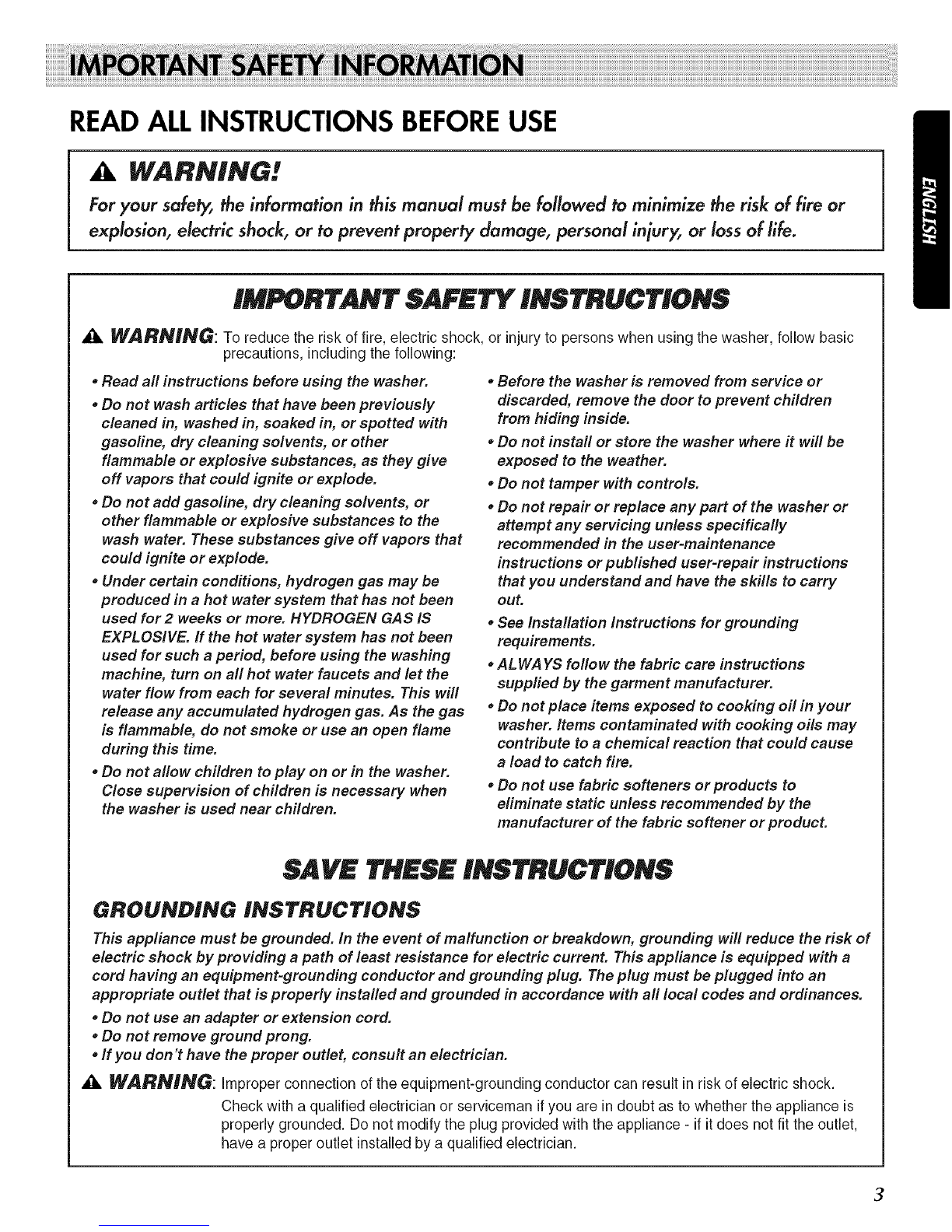

READ ALLINSTRUCTIONS BEFOREUSE
,A, WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire or
explosion, electric shock, or to prevent property damage, personal injury, or loss of life.
IMPORTANT SAFETY INSTRUCTIONS
A I/V,ARNING: To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic
precautions, including the following:
•Read all instructions before using the washer.
•Do not wash articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry cleaning solvents, or other
flammable or explosive substances, as they give
off vapors that could ignite or explode.
• Do not add gasoline, dry cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors that
could ignite or explode.
• Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for 2 weeks or more. HYDROGEN GAS IS
EXPLOSIVE. ff the hot water system has not been
used for such a period, before using the washing
machine, turn on all hot water faucets and let the
water flow from each for several minutes. This will
release any accumulated hydrogen gas. As the gas
is flammable, do not smoke or use an open flame
during this time.
• Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children.
•Before the washer is removed from service or
discarded, remove the door to prevent children
from hiding inside.
• Do not install or store the washer where it will be
exposed to the weather.
• Do not tamper with controls.
• Do not repair or replace any part of the washer or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or published user-repair instructions
that you understand and have the skills to carry
out.
• See Installation Instructions for grounding
requirements.
•AL WAYS follow the fabric care instructions
supplied by the garment manufacturer.
• Do not place items exposed to cooking oil in your
washer. Items contaminated with cooking oils may
contribute to a chemical reaction that could cause
a load to catch fire.
• Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
SAVE THESE INSTRUCTIONS
GROUNDING iNSTRUCTIONS
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of
electric shock by providing a path of least resistance for electric current. This appliance is equipped with a
cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• Do not use an adapter or extension cord.
• Do not remove ground prong.
• If you don't have the proper outlet, consult an electrician.
A I/V,AJI:_NING: Improper connection of the equipment-grounding conductor can result in risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is
properly grounded. Do not modify the plug provided with the appliance -if it does not fit the outlet,
have a proper outlet installed by a qualified electrician.

Control Panel --
Dispenser
Drain Hose
Shipping Bolts
Plug
•If thesupplycordisdamaged,
it mustbe replacedbythe
manufactureror itsauthorized
servicetechnicianin orderto
avoida hazard.
Water Circulation Nozzle
Drum
Lower Cover Cap
Drain Pump Filter
Drain Plug Adjustable Feet
Air Vent for Safety
Cold Water Inlet
Hot Water Inlet --
" Name:
" Power supply:
" Size:
m Weight:
m Spin speed:
Front-loading Washing Machine
120V- 60Hz
68.6 cm (W) X 75.0 cm (D) X 111.5 cm (H), 126.5 crn (D, door open)
27"(W) X 291/2"(D) X 44"(H), 4913/16"(D, door open)
190 Ibs. (86 kg)
1200 rpm max.
m Permissible water pressure: 4.5 - 145 PSI (30 ~ 1000 kPa)
* Specifications subject to change by manufacturer.
Tie strap
Hot/Cold (1 each) Wrench to secure drain hose to standpipe,
Hose inlet hose, or laundry tub

Install or store unit where it will not be exposed to temperatures below freezing or
exposed to outside weather conditions.
Properly ground washer to conform with all governing codes and ordinances.
To reduce the risk of electric shock, do not install the washer in humid spaces.
The base opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.
In countries where there are areas which may be subject to infestation by cockroaches or other vermin, pay
particular attention to keeping the appliance and its surroundings in clean condition at all times.
Any damage which may be cause by cockroaches or other vermin will not be covered by the appliance guarantee.

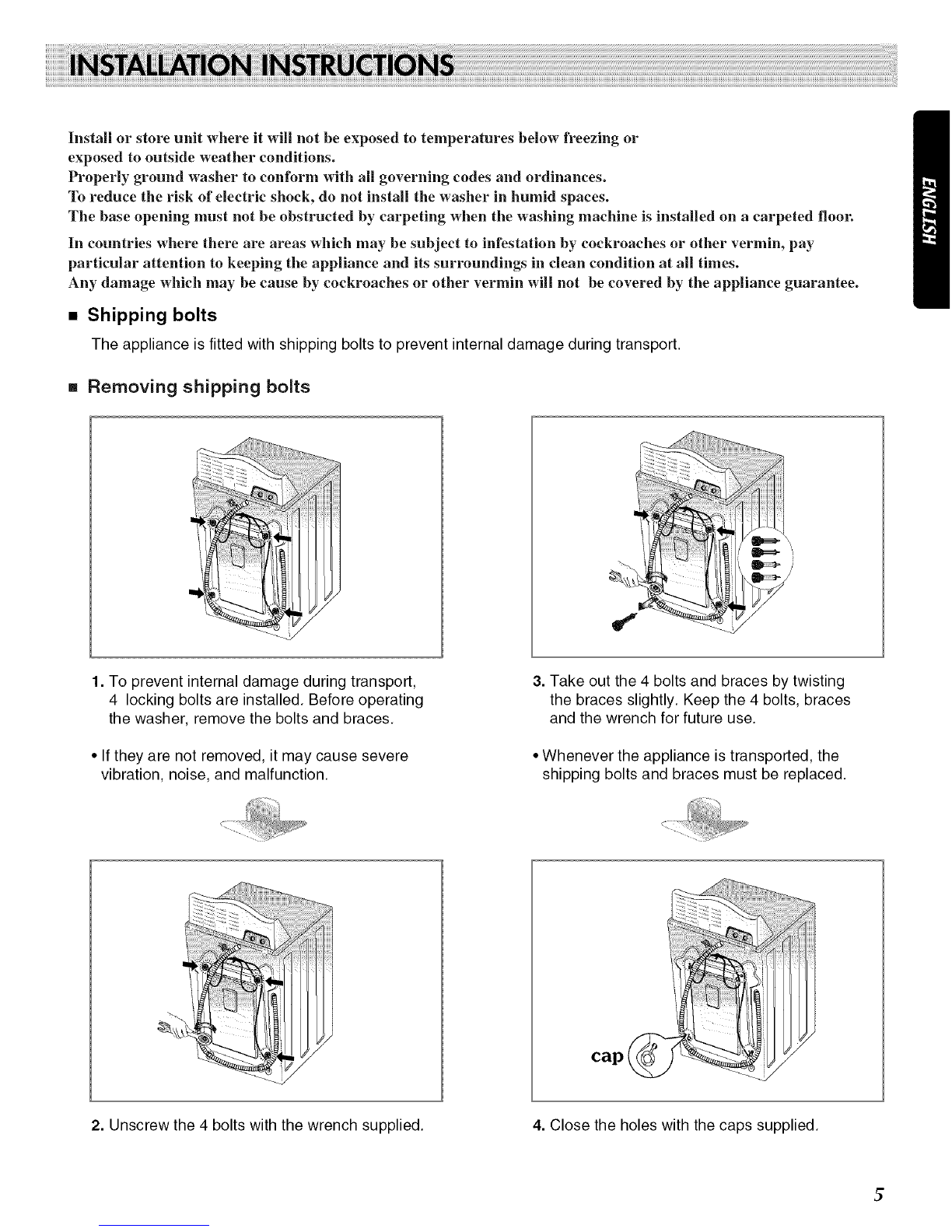

[] Shipping bolts
The appliance is fitted with shipping bolts to prevent internal damage during transport.
[] Removing shipping bolts
1. To prevent internal damage during transport,
4 locking bolts are installed. Before operating
the washer, remove the bolts and braces.
• If they are not removed, it may cause severe
vibration, noise, and malfunction.
3. Take out the 4 bolts and braces by twisting
the braces slightly. Keep the 4 bolts, braces
and the wrench for future use.
• Whenever the appliance is transported, the
shipping bolts and braces must be replaced.
cap(
2. Unscrew the 4 bolts with the wrench supplied. 4. Close the holes with the caps supplied.

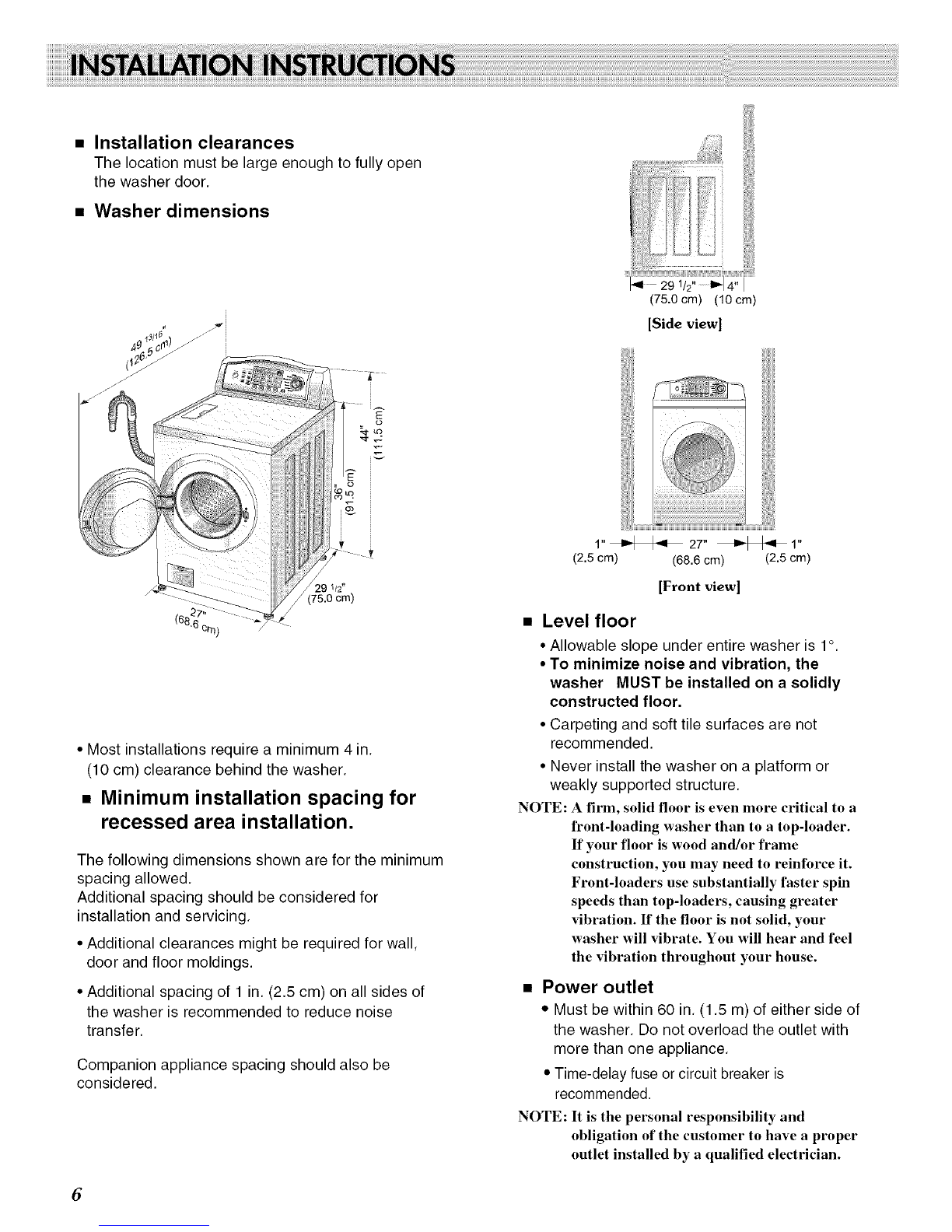

•Installation clearances
The location must be large enough to fully open
the washer door.
• Washer dimensions
9 1/2"
5.0 cm)
• Most installations require a minimum 4 in.
(10 cm) clearance behind the washer.
• Minimum installation spacing for
recessed area installation.
The following dimensions shown are for the minimum
spacing allowed.
Additional spacing should be considered for
installation and servicing.
• Additional clearances might be required for wall,
door and floor moldings.
• Additional spacing of 1 in. (2.5 cm) on all sides of
the washer is recommended to reduce noise
transfer.
Companion appliance spacing should also be
considered.
(75.0 cm) (10 cm)
[Side view]
(2.5 cm) (68.6 cm) (2.5 cm)
[Front view]
•Level floor
• Allowable slope under entire washer is 1°.
• To minimize noise and vibration, the
washer MUST be installed on a solidly
constructed floor.
• Carpeting and soft tile surfaces are not
recommended.
• Never install the washer on a platform or
weakly supported structure.
NOTE: A firm, solid floor is even more critical to a
front-loading washer than to a top-loader.
If your floor is wood and/or frame
construction, you may need to reinforce it.
Front-loaders use substantially faster spin
speeds than top-loaders, causing greater
vibration. If the floor is not solid, your
washer will vibrate. You will hear and feel
the vibration throughout your house.
•Power outlet
• Must be within 60 in. (1.5 m) of either side of
the washer. Do not overload the outlet with
more than one appliance.
• Time-delay fuse or circuit breaker is
recommended.
NOTE: It is tile personal responsibility and
obligation of the customer to have a proper
outlet installed by a qualified electrician.
6

•Electrical connection
• Do not use an extension cord or double adapter.
• Ifthe supply cord is damaged, it must be replaced by a qualified person in order to avoid a hazard,
• Ifthe machine will not be used for an extended time, unplug it and shut off the water supply.
• Connect the machine to a grounded outlet in accordance with current wiring regulations,
• The appliance must be positioned so that the plug is easily accessible.
•Connecting water supply hose
Cold
water
tap
tSealing
• Water supply pressure must be between
14.5 and 116 psi(lOON800 kPa).
• Do not crossthread when connecting inlet hose to the
valve.
• If the water supply pressure is more than 116 psi,
a pressure reducing device should be installed.
• Two Sealing washers are supplied with the water inlet
hoses to prevent water leaks.
• Check for leakage of washing machine connections by
turning the tap completely on.
• Periodically check the condition of the hose and replace
the hose if necessary.
• Make sure that there is no kink in the hose and that it is
not crushed.
• Be sure that the two water input ports are connected to
the correct water faucets. The connector for hot water is
colored red.
• Use ONLY the inlet hoses provided by LG with this
laundry product. Aftermarket hoses are not guaranteed to
fit or function correctly. Other hoses may not tighten
correctly and couldcause leaks. Subsequent damage to
product or property will not be covered under the terms of
LG's warranty.
NOTE: Washing Machine is to be connected to the water mains using new hoses.
Old hoses should not be used.
Repairs to the washing machine must only be carried out by qualified personnel. Repairs carried out by
inexperienced persons may cause injury or serious malfunctioning. Contact your local service center.
Do not install your washing machine in a room where temperatures below freezing may occur.
Frozen hoses may burst under pressure. The reliability of the electronic control unit may be impaired
at temperatures below the freezing point.
If the appliance is delivered in the winter months and temperatures are below freezing,
store the washing machine at room temperature for a few hours before putting it into operation. 7

•Installation of drain hose
about 3T"
• The drain hose should not be placed higher than
96 in. from the bottom of the washer.
• Properly securing the drain hose will protect the
floor from damage due to water leakage.
• Place the end of the drain hose in the hole of the
floor drain system.
Laundrytub
Hose
Retainer
max. 96" (2.4 m)
• When installing the drain hose at a sink, secure it
so it cannot break away and cause flooding and
damage.
• Properly securing the drain hose will protect the
floor from damage due to water leakage.
This equipment is not designed for maritime use or for mobile installations such as in RV's, aircraft, etc.
Turn off the faucet if the machine is to be left for an extended period of time (e.g. holiday).
When disposing of the appliance, cut off the power cable, and destroy the plug.
Disable the door lock to prevent young children being trapped inside.
Packaging material (e.g. Films, Styrofoam) can be dangerous for children. There is a risk of suffocation! Keep all
packaging from children.

•Level adjustment
Adjustable feet
i_igher
Adjustable feet Adjustable feet
•Leveling the washing machine properly prevents
excessive noise and vibration.
Install the appliance on a solid and level floor surface,
preferably in a corner of the room.
• If the floor is uneven, adjust the adjustable feet as
required. (Do not insert pieces of wood, etc. under the
feet.)
NOTE: Extend tile feet no more than necessary to level
the washer. The more the feet are extended, the
more the washer will vibrate.
• Make sure that all four feet are stable and resting on
the floor and then check that the appliance is perfectly
level (Use a level).
• After the washer is level, tighten the lock nuts up
against of the base of the washer. All lock nuts must
be tightened.
• It is critical to adjust the feet perfectly. This must be
done while the washer is spinning with a load. Use the
wrench (supplied) to adjust the feet until there is no
vibration. Then tighten the lock nuts to prevent further
adjustment.
NOTE: If there are vibration and noise during the spin
cycle, re-check the leveling of the washer, adjust
the feet as required, and tighten the lock nuts
securely to prevent changes in adjustment.
Run the washer with a test load to make certain
your washer is properly leveled. Put
approximately 6 pounds of laundry in the
machine. Then, press POWER, RINSE+SPIN, and
START/PAUSE, in that order. When the machine
spins at high speed, verify that it is stable. If not,
adjust the feet accordingly.
*Diagonal Check
When pushing down the edges of the washing machine
top plate diagonally, the machine should not move up
and down at all. (Please, check both directions.)
ff the machine rocks when pushing the machine top plate
diagonally, adjust the Jeet again.

To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY
INSTRUCTIONS before operating this appliance.
1. Fabric Care Labels
Look for a care label on your clothes. This will tell you about the fabric content of your garment and how it should
be washed.
2. Sorting
To get the best results, sort clothes into loads that can be washed with the same wash cycle.
Different fabrics need to be washed in different ways.
Always sort dark colors from pale colors and whites. Wash separately as dye and lint transfer can occur causing
discoloration of white clothing. If possible, do not wash heavily soiled items with lightly soiled ones.
Soil (Heavy, Normal, Light) Separate clothes according to amount of soil.
Color (White, Lights, Darks) Separate white fabrics from colored fabrics.
Lint (Lint Producers, Collectors) Wash lint producers and lint collectors separately.
3. Check before loading
Combine large and small items in a load. Load large items first.
Large items should not be more than half the total wash load.
Do not wash single items. This may cause an out-of-balance load. Add one or two similar items.
• Check all the pockets to make sure that they are
empty. Things such as clip, matches, pens,
coins, and keys can damage both your washer
and your clothes.
• Close zippers, hooks, and strings to make sure
that these items do not snag on other clothes.
• Pretreat dirt and stains by brushing a little
detergent dissolved in water onto stains like
collars and cuffs to help lift dirt.
NOTE: Do not wash or spin water-proof clothes.
10

The automatic dispenser consists of four compartments which hold 1) liquid chlorine bleach, 2) liquid fabric
softener, 3) liquid or powdered detergent for prewash and 4) liquid or powdered detergent
and color safe bleach for main wash.
All laundry products can be added at once in their respective dispenser compartments.
They will be dispensed at the appropriate time for most effective cleaning. After loading the laundry
additives into the dispenser, close the dispenser lid.
Add detergent, bleach and fabric softener to the automatic dispenser following these steps:
1. Open the dispenser lid.
2. Load the laundry products into the appropriate compartments.
3. Close the dispenser lid.
•About detergent
Designed specially to use only
HE(High Efficiency) detergent
Your LG TROMM washer is designed to use only High Efficiency (HE) detergents.
HE detergents are formulated specifically for front load washers and contain suds reducing components.
HE detergents make less suds, improve washing and rinsing performance, and help to keep the interior
of your LG TROMM washer clean. Use the manufacture's recommend amount.
If a regular detergent is used, it may cause oversudsing and unsatisfactory performance.
For the best washing and rinsing performance, low-sudsing HE detergents are strongly recommended.
NOTE :Liquid detergent will drain into the washer drum as it is added.
..... t-
Liquid Chlorine
Bleach
Compartment
Liquid Fabric
Softener
Compartment
Prewash
Compartment
Main Wash
Compartment
1. Prewash Detergent Compartment
• Add detergent to this compartment when using
the Prewash option. Liquid or powdered
detergent may be used in this compartment. The
detergent will automatically be dispensed during
Prewash if the Prewash option is selected.
• Add 1/2 the recommended amount of detergent
to the Prewash compartment and the
recommended amount of detergent to the main
wash compartment.
11

2. Main Wash Detergent Compartment
•Add measured detergent to this compartment for
Main wash. Detergent is flushed from the
dispenser at the beginning of the cycle. Either
powdered or liquid detergent can be used.
• Liquid or powdered color-safe bleach may be
added to the main wash compartment along with
the same type of liquid or powdered detergent.
NOTE: If you are using the Prewash option,
powdered detergent must be used in the
main wash compartment.
Liquid detergent will drain into the washer
drum as it is added.
Designed specially to use only
HE(High Efficiency) detergent
3. Liquid Bleach Compartment
• Add measured liquid chlorine bleach to this
compartment. The bleach will be automatically
dispensed at the proper time during the wash
cycle.
• Do not exceed the maximum fill line. Overfilling can
cause early dispensing of the bleach which could
result in damaged clothes.
• Do not pour undiluted liquid chlorine bleach directly
onto the load or into the drum. Fabric damage can
occur.
• Do not use powdered bleach in this compartment.
4. Fabric Softener Compartment
• Add recommended amount of fabric softener to
this compartment.
• Dilute concentrated softeners with warm water to
the fill line.
• Do not exceed the maximum fill line. Overfilling can
cause early dispensing of the fabric softener which
could result in stained clothes.
• Do not pour fabric softener directly on the wash
load.
• The fabric softener will be automatically dispensed
during the last rinse cycle.
NOTE: Do not place, store, or spill laundry products
(soap, detergent, bleach, softener, etc.) on
the top of your washer or dryer. These
products can damage the finish or controls if
left there too long.
12

•Select cycles designed for different types of fabric and soil levels.
Sanitary
Comforter
Cotton/
Normal
Perm
Press
Delicates
Hand
Wash
Speed
Wash
Extra Hot!Cold High Normal
Heavily soiled
underwear, work Extra High Heavy
No Spin Light
clothes, diapers, Low
etc. Medium
Warm/Cold Gentle Normal
Large items Warm/Warm Low Heavy
such as blankets Hot/Cold Medium Light
and comforters. Tap Cold/Cold
Cold/Cold No Spin
O
Cotton, linen, Warm/Cold High Normal
towels, shirts, Warm/Warm Extra high Heavy
Hot/Cold No spin Light
sheets, jeans, Tap Cold/Cold Low
mixed loads Cold/Cold Medium
Dress shirts/ Warm/Cold Medium Normal
pants, wrinkle free Warm/Warm High Heavy
clothing, poly/ Hot/Cold No spin Light
cotton blend Tap Cold/Cold Gentle
clothing, table cloths Cold/Cold Low
Dress shirts/ Cold/Cold Low Normal
blouses, nylons, Warm/Cold Medium Heavy
sheer or Warm/Warm No spin Light
lacy garment Tap Cold/Cold Gentle
Cold/Cold Gentle Normal
Warm/Cold Low Light
Warm/Warm Medium
Tap Cold/Cold No spin
Hot/Cold Extra high Light
Tap Cold/Cold No spin Normal
Cold/Cold Low Heavy
Warm/Cold Medium
Warm/Warm High
Items labeled
"hand washable"
Lightly soiled
clothing
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
13

POWER
COMFOI_TER o
COITON/NORMAL °
PERMPRESS,
DEUCA1E$
HANDWASH
1. Cycles
• Rotate the Cycle selector knob to select cycle
designed for different types of fabric and soil
levels.
• Each cycle has a preset Water Temperature, Spin
Speed, Soil Level, and Option (See page 13).
• The preset settings can be changed anytime
before Start.
NOTE: This front load washer requires longer cycle
time and gets clothes much cleaner, yet is
more gentle on the fabrics, than top load
washers. Washing time can be reduced
significantly for small loads or lightly soiled
loads by selecting Quick Cycle with the
Option button and setting the Soil Level
button at Light.
2. Custom Program
• Custom Program allows you to store a customized
wash cycle for future use.
• To make a Custom Program:
1. Select a cycle.
2. Select
Wash/Rinse Temperature, Spin Speed, and
Soil Level.
3. Select other desired Options.
4. Press and hold Custom Program button 3
seconds (2 beep sounds).
The Custom program is now stored for future
use. To reuse the program, select Custom
Program and press Start/Pause.
14

3. Beeper
• Press repeatedly to adjust the volume of the
Beeper.
4. Wash/Rinse Temperature
• Select a water temperature based on the type of
load you are washing.
• Follow the fabric care label and chart below for
best results.
5. Spin speed
• To change the spin speed, press the Spin Speed
button repeatedly to cycle through available
options.
• To start Drain/Spin cycle:
1. Press Power button to turn on.
2. Press Spin Speed button only.
3. Press Start/Pause button.
6. Soil Level
• To change the soil level, press the Soil Level
button repeatedly until the desired setting is on.
• Warm rinses leave the loads dryer than cold
rinses. Warm rinses increase wrinkling.
• In cold climates, a warm rinse makes the load
more comfortable to handle.
• Cold rinses save energy.
• The Cold rinse temperatures depend on the cold
water at your faucet.
• For the Tap Cold/Cold setting, both wash and rinse
temperatures depend on the cold water at your
faucet.

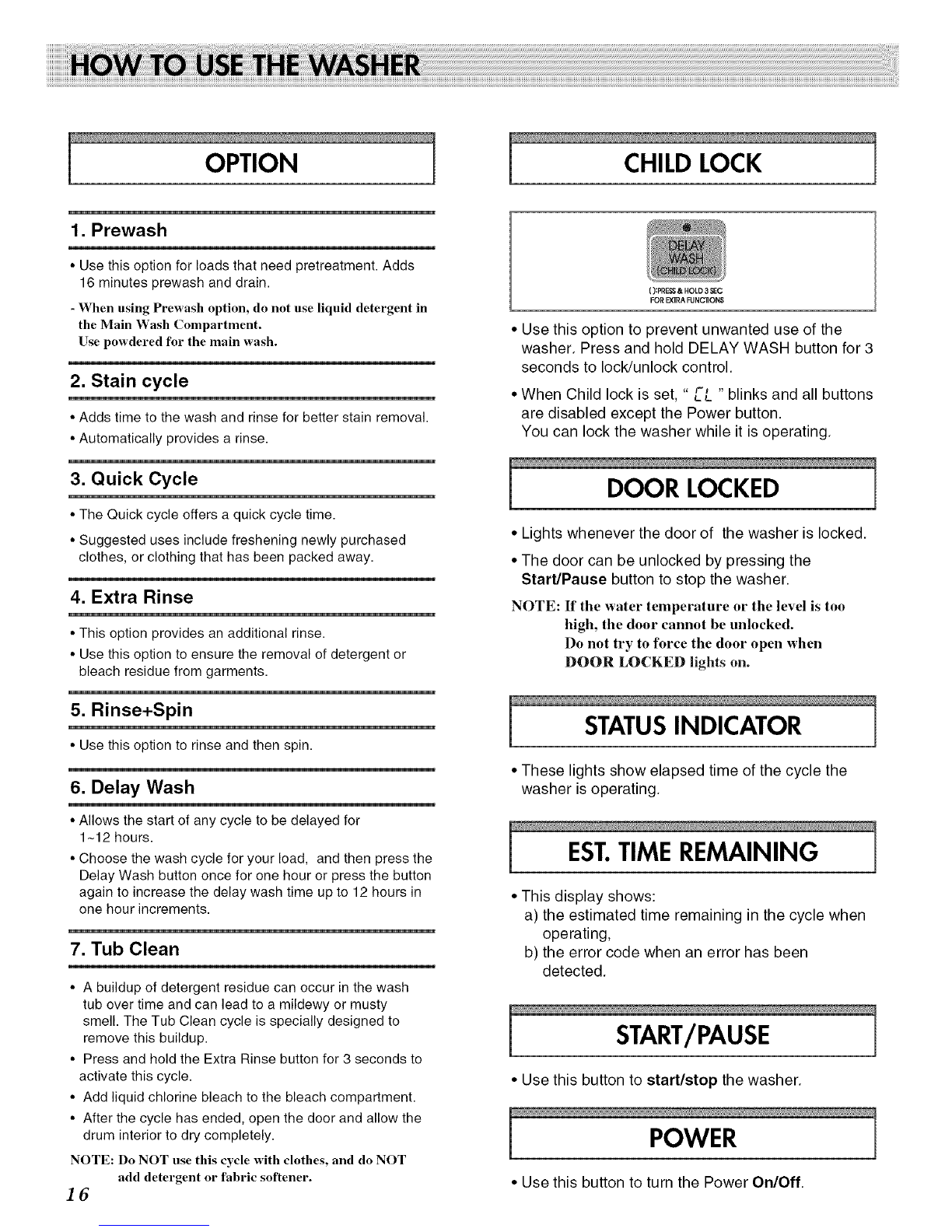

OPTION
1. Prewash
•Use this option for loads that need pretreatment. Adds
16 minutes prewash and drain.
-When using Prewash option, do not use liquid detergent in
the Main Wash Compartment.
Use powdered for the main wash.
2. Stain cycle
• Adds time to the wash and rinse for better stain removal.
• Automatically provides a rinse.
3. Quick Cycle
• The Quick cycle offers a quick cycle time.
• Suggested uses include freshening newly purchased
clothes, or clothing that has been packed away.
4. Extra Rinse
• This option provides an additional rinse.
• Use this option to ensure the removal of detergent or
bleach residue from garments.
5. Rinse+Spin
• Use this option to rinse and then spin.
6. Delay Wash
• Allows the start of any cycle to be delayed for
1-12 hours.
• Choose the wash cycle for your load, and then press the
Delay Wash button once for one hour or press the button
again to increase the delay wash time up to 12 hours in
one hour increments.
7. Tub Clean
• A buildup of detergent residue can occur in the wash
tub over time and can lead to a mildewy or musty
smell. The Tub Clean cycle is specially designed to
remove this buildup.
• Press and hold the Extra Rinse button for 3 seconds to
activate this cycle.
• Add liquid chlorine bleach to the bleach compartment.
• After the cycle has ended, open the door and allow the
drum interior to dry completely.
NOTE: Do NOT use this cycle with clothes, and do NOT
add detergent or fabric softener.
16
CHILD LOCK
[):PHE_ & HOLD 3 _C
FOR EXTRAFUNCtiONS
•Use this option to prevent unwanted use of the
washer. Press and hold DELAY WASH button for 3
seconds to lock/unlock control.
•When Child lock is set, " L,_'-'" blinks and all buttons
are disabled except the Power button.
You can lock the washer while it is operating.
DOOR LOCKED
• Lights whenever the door of the washer is locked.
• The door can be unlocked by pressing the
Start/Pause button to stop the washer.
NOTE: If tile water temperature or tile level is too
high, the door cannot be unlocked.
Do not try to force the door open when
DOOR LOCKED lights on.
STATUSINDICATOR
• These lights show elapsed time of the cycle the
washer is operating.
EST.TIME REMAINING
• This display shows:
a) the estimated time remaining in the cycle when
operating,
b) the error code when an error has been
detected.
START/PAUSE
•Use this button to start/stop the washer.
POWER
• Use this button to turn the Power On/Off.

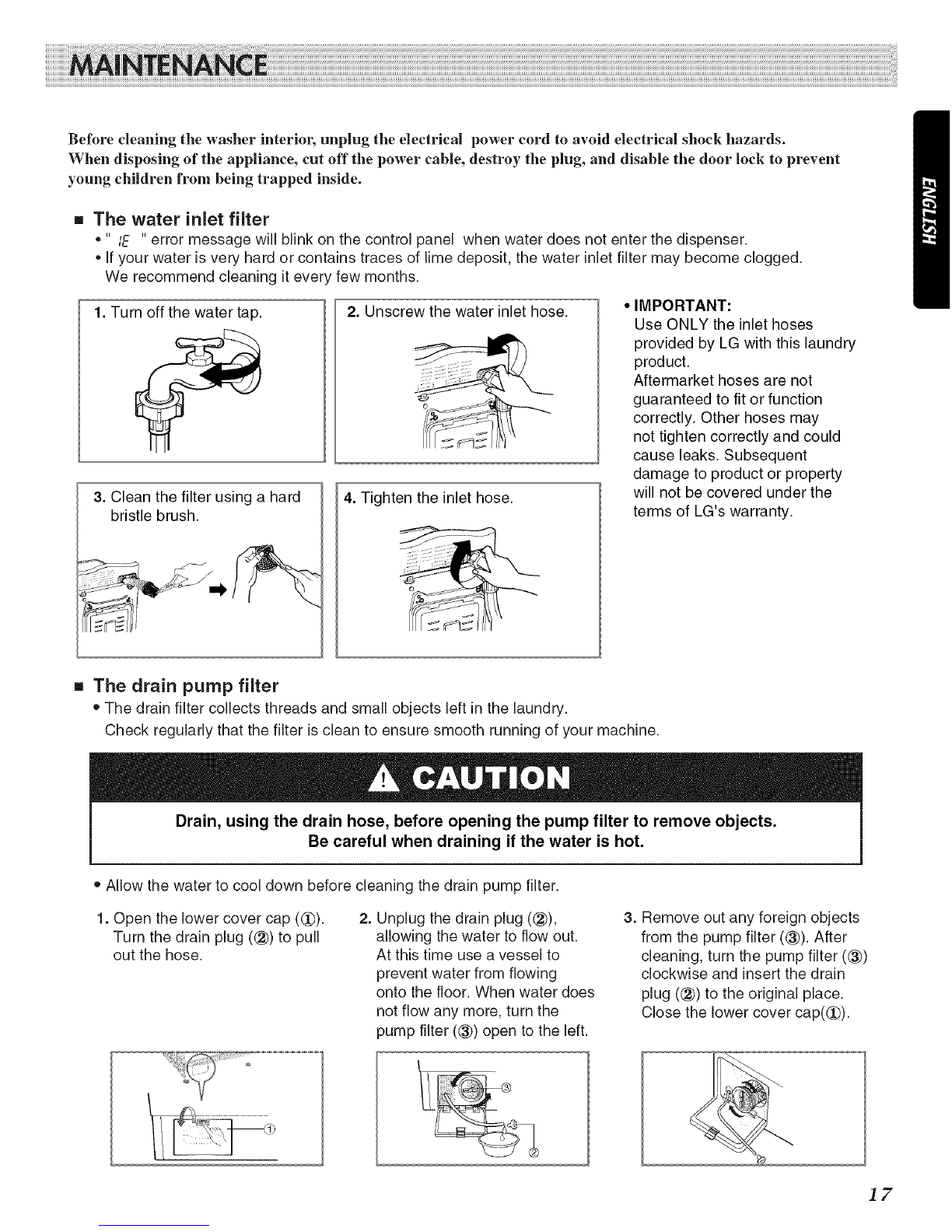

Before cleaning the washer interior, unplug the electrical power cord to avoid electrical shock hazards.
When disposing of the appliance, cut off the power cable, destroy the plug, and disable the door lock to prevent
young children from being trapped inside.
[] The water inlet filter
*" IE " error message will blink on the control panel when water does not enter the dispenser.
*If your water is very hard or contains traces of lime deposit, the water inlet filter may become clogged.
We recommend cleaning it every few months.
1. Turn off the water tap. 2. Unscrew the water inlet hose.
3. Clean the filter using a hard
bristle brush. 4. Tighten the inlet hose.
IMPORTANT:
Use ONLY the inlet hoses
provided by LG with this laundry
product.
Aftermarket hoses are not
guaranteed to fit or function
correctly. Other hoses may
not tighten correctly and could
cause leaks. Subsequent
damage to product or property
will not be covered under the
terms of LG's warranty.
[] The drain pump filter
o The drain filter collects threads and small objects left in the laundry.
Check regularly that the filter isclean to ensure smooth running of your machine.
Drain, using the drain hose, before opening the pump filter to remove objects.
Be careful when draining if the water is hot.
o Allow the water to cool down before cleaning the drain pump filter.
1. Open the lower cover cap ((_).
Turn the drain plug ((_) to pull
out the hose.
2. Unplug the drain plug (®),
allowing the water to flow out.
At this time use a vessel to
prevent water from flowing
onto the floor. When water does
not flow any more, turn the
pump filter (®) open to the left.
3. Remove out any foreign objects
from the pump filter (@). After
cleaning, turn the pump filter (@)
clockwise and insert the drain
plug ((_) to the original place.
Close the lower cover cap((_).
17

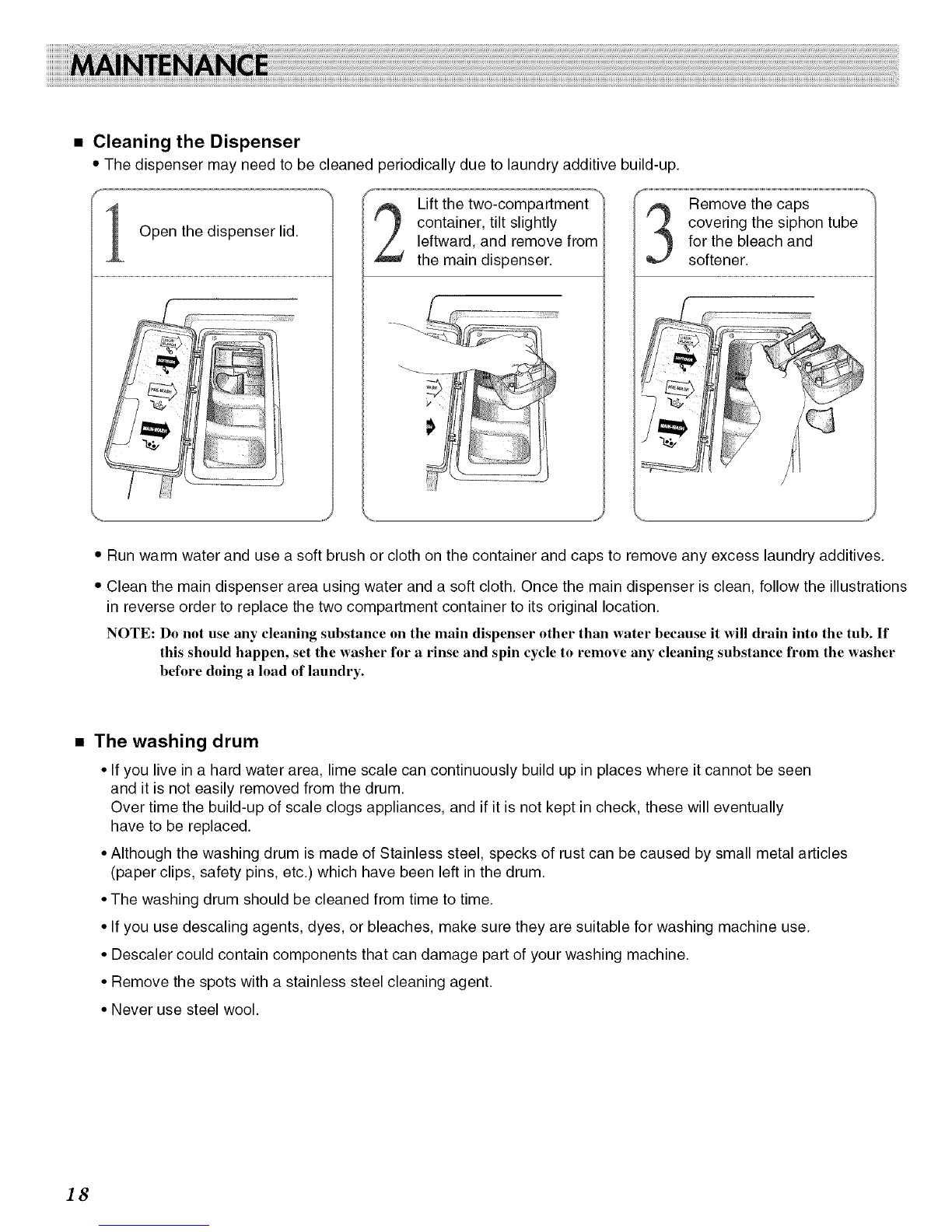

•Cleaning the Dispenser
• The dispenser may need to be cleaned periodically due to laundry additive build-up.
Open the dispenser lid.
Lift the two-compartment
container, tilt slightly
leftward, and remove from
the main dispenser.
f% Remove the caps
covering the siphon tube
for the bleach and
softener.
• Run warm water and use a soft brush or cloth on the container and caps to remove any excess laundry additives.
• Clean the main dispenser area using water and a soft cloth. Once the main dispenser is clean, follow the illustrations
in reverse order to replace the two compartment container to its original location.
NOTE: Do not use any cleaning substance on tile main dispenser other than water because it will drain into tile tub. If
this should happen, set the washer for a rinse and spin cycle to remove any cleaning substance from the washer
before doing a load of laundry.
• The washing drum
• If you live in a hard water area, lime scale can continuously build up in places where it cannot be seen
and it is not easily removed from the drum.
Over time the build-up of scale clogs appliances, and if it is not kept in check, these will eventually
have to be replaced.
• Although the washing drum is made of Stainless steel, specks of rust can be caused by small metal articles
(paper clips, safety pins, etc.) which have been left in the drum.
• The washing drum should be cleaned from time to time.
• If you use descaling agents, dyes, or bleaches, make sure they are suitable for washing machine use.
• Descaler could contain components that can damage part of your washing machine.
• Remove the spots with a stainless steel cleaning agent.
• Never use steel wool.
18

•The water circulation nozzle
• Clean the water circulation nozzle, if clogged.
•Cleaning your washer
1. Exterior
Proper care of your washer can extend its life.
The outside of the machine can be cleaned with warm water and a neutral, non-abrasive
household detergent.
Immediately wipe off any spills. Wipe with a damp cloth.
Try not to damage the surface with sharp objects.
•IMPORTANT: Do not use methylated spirit, solvents or similar products.
2. Interior
Dry around the washer door opening, flexible gasket and door glass. These areas should always be clean to
ensure a water-tight seal.
TUB CLEAN is a special cycle for cleaning the inside of the washer. This cycle uses higher water level with
higher spin speed. Perform this cycle regularly.
• To start the TUB CLEAN cycle:
1. Remove any clothing or items from the washer and close the door.
2. Open the dispenser drawer and add liquid chlorine bleach to the bleach compartment.
NOTE: Do not add any detergent to tile detergent compartments. Excessive suds may be produced and leak
from the washer.
3. Close the dispenser drawer slowly.
4. Power On and then press the Extra Rinse button for 3 seconds. (Prewash option will be selected.)
5. Press the Start/Pause button to start.
6. After the cycle is complete, leave the door open to dry around the washer door opening, door seal and
door glass.
_1_CAUTION: If there are small children in the house, care must be taken so that they can not climb into or
play inside the washer while it is open for drying.
NOTE: Remove hard water deposits using only cleaners labeled as safe for washing machines.
• Winterizing instructions
If the washer is stored in an area where freezing can occur or moved in freezing temperatures, follow these
winterizing instructions to prevent damage to the washer:
1. Turn off water supply tap.
2. Disconnect hoses from water supply and drain water from hoses.
3. Plug electrical cord into a properly grounded electrical outlet.
4. Add 1 gallon (3.8 ) nontoxic recreational vehicle (RV) antifreeze to empty wash drum. Close door.
5. Set spin cycle and let washer spin for 1 minute to drain out all the water.
Not all of the RV antifreeze will be expelled.
6. Unplug electrical power cord, dry drum interior, and close door.
7. Remove the two-compartment container from the Dispenser. Drain any water in compartments and dry the
compartments.
8. Store washer in an upright position.
9. To remove antifreeze from washer after storage, run empty washer through a complete cycle using detergent.
Do not add laundry.
19

This washing machine is equipped with automatic safety functions which detect and diagnose problems at an
early stage and react appropriately. When the machine does not function properly or does not function at all,
check the following points before you call the Service Department.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii i i !!p ! $! i i i! ! i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i¸ ¸ ¸ ¸¸¸¸iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii i a iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii! ii!i....
_;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;'
Rattling and clanking noise
Thumping sound
Vibrating noise
• Foreign objects such as coins
or safety pins may be in drum
or pump.
• Heavy wash loads may
produce a thumping sound.
This is normal.
Water leaks
Excessive suds
Water does not enter
washer or it enters slowly
• Have all the transit bolts and
packing been removed?
• Wash load may be unevenly
distributed in the drum.
• Are all the feet resting firmly
on the ground?
• Fill hose connection is loose at
tap or washer.
• House drain pipes are
clogged.
• Too much detergent or
unsuitable detergent.
• Water supply is not adequate
in area.
• Water supply lap is not
completely open.
• Water inlet hose is bent.
• The filter of the inlet hose
clogged.
Stop washer and check drum and drain
filter.
If noise continues after washer is restarted,
call for service.
If sound continues, washer is probably out
of balance. Stop and redistribute wash
load.
See Installation Instructions for removing
shipping bolts.
Stop washer and rearrange wash load.
Adjust the leveling feet.
Make sure all four feet are in firm contact
with the floor, while the washer is in the
spin cycle with a load.
Check and tighten hose connections.
Unclog drain pipe. Contact plumber if
necessary.
Reduce detergent amount or use HE
(High Efficiency) detergent.
Designedspecially to use only
HE(High Efficiency)detergent
Check another tap in the house.
Fully open tap.
Straighten hose.
Check the filter of the inlet hose.
20
