LG WTR1234 F Series User manual

MODEL : WTR1234*F
WASHING MACHINE
SERVICE MANUAL
CAUTION
Before servicing the washer, Read the safety precautions in the manual.

2
SAFETY PRECAUTION!
IMPORTANT SAFETY NOTICE!
QDISASSEMBLEPOWER CORD BEFORE SERVING
QRECONNECT ALL GROUNDING DEVICES
This service information is intended for individuals
possessing adequate backgrounds of electrical,
electronic and mechanical experience.
Any attempt to repair this appliance may result in
personal injury or property damage.
The manufacturer or seller can not beresponsible
for the interpretation of this information, nor can it
assume any liability in connection with its use.
CONTENTS
1.Specifications .............................................................................................................................. 3
2.Installation Instructions ................................................................................................................ 4
2-1.Installation Place Requirements................................................................................................ 4
2-2.Connecting the Supply Hose..................................................................................................... 5
2-3.Installing the Drain Hose ........................................................................................................... 7
2-4 Leveling the Appliance ............................................................................................................... 9
2-5.Assembling the Anti-Rat Cover (Optional)................................................................................. 9
3.OPERATION............................................................................................................................... 10
3-1.Using the Appliance................................................................................................................. 10
3-2.Sorting Laundry....................................................................................................................... 11
3-3.Adding Cleaning Products....................................................................................................... 12
3-4.Function of Each Button.......................................................................................................... 14
3-5.Washing Programs.................................................................................................................. 16
3-6.Other Functions....................................................................................................................... 18
3-7.Cleaning and Maintenance...................................................................................................... 26
4.Service Information
4-1.Wiring Diagram........................................................................................................................ 30
4-2.Main PCB Picture.................................................................................................................... 32
4-3.Disassembly Instruction .......................................................................................................... 35
4-4.How to use Test Mode............................................................................................................. 42
4-5.Trouble Shooting byCommon Washing Problems.................................................................. 43
4-6.Trouble Shooting With Error Code .......................................................................................... 44
4-7 .How to Diagnose and Repair bySymptom ............................................................................ 47
5.Exploded View............................................................................................................................ 56
Copyright © 2019 LG Electronics Inc. All rights reserved.
Only training and service purposes.

3
1. SPECIFICATIONS
Model WTR1234*F
POWER SOURCE Refer to rating label on the backof Washer
INPUT Refer to rating label on the backof Washer
CAPACITYRefer to rating label on the backof Washer
INNER TUB Stainless
INLET WATER
PRESSURE 0.3kgf/cm2~ 8.0kgf/cm2
SPIN SPEED 950 rpm
DIM. Refer to rating label on the backof Washer
WEIGHT Refer to rating label on the backof Washer
*PROGRAM
Cotton Wash, Eco Cotton, Duvet, QuickWash, Pre Wash+Cotton,
Delicates, TubClean, Download Cycle
WATER LEVEL 5Stages
RESERVATION Available for 3~18 Hr
UNBALANCE
SWITCH B.PSensor
LID INTERLOCK
SWITCH Magnet Sensor
CHILD LOCK Applied
SOFTENER
DISPENSER Applied
DETERGENT
DISPENSER Applied
BLEACH INILET Applied
AUTO POWER OFF Applied
Smart RinseTM
with Jet Spray Applied
Heater Unapplied
* Program can be different according to the model.
Copyright © 2019 LG Electronics Inc. All rights reserved.
Only training and service purposes.

4
2-1. Installation Place Requirements
2. INSTALLATION INSTRUCTIONS
Location
10 cm 2 cm 2 cm
Level floor : Allowable slope under the entire
appliance is 1°.
Power outlet : Must be within 1.5 meters of
either side of the location of the appliance.
ҟDo not overload the outlet with more than one
appliance.
Additional Clearance : For the wall, 10 cm:
rear/2 cm: right & left side.
ҟDo not place or store laundry products on top
of the appliance at any time. These products
may damage the finish or controls.
WARNING
ҟThe plug must be plugged into an appropriate
outlet that is properly installed and grounded
in accordance with all local codes and
ordinances.
Positioning
ҟInstall the appliance on a flat hard floor.
ҟMake sure that air circulation around the
appliance is not impeded by carpets, rugs,
etc.
ҟNever try to correct any unevenness in the
floor with pieces of wood, cardboard or similar
materials under the appliance.
ҟIf it is impossible to avoid positioning the
appliance next to a gas cooker or coal burning
stove, an insulation (85x60 cm) covered with
aluminum foil on the side facing the cooker or
stove must be inserted between the two
appliances.
ҟDo not install the appliance in rooms where
freezing temperatures may occur. Frozen
hoses may burst under pressure. The
reliability of the electronic control unit may be
impaired at temperatures below freezing point.
ҟEnsure that when the appliance is installed, it
is easily accessible for an engineer in the
event of a breakdown.
ҟIf the appliance is delivered in winter and
temperatures are below freezing, place the
appliance at room temperature for a few hours
before putting it into operation.
WARNING
ҟThis equipment is not designed for maritime
use or for use in mobile installations such as
caravans, aircraft etc.
Electrical Connection
ҟDo not use an extension cord or double
adapter.
ҟAlways unplug the appliance and turn off the
water supply after use.
ҟConnect the appliance to an earthed socket in
accordance with current wiring regulations.
ҟThe appliance must be positioned so that the
plug is easily accessible.
ҟRepairs to the appliance must only be carried
out by qualified personnel. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Contact your local
service centre.
Copyright © 2019 LG Electronics Inc. All rights reserved.
Only training and service purposes.

5
2-2. Connecting the Supply Hose
ҟBefore connecting the water supply hose to
the water tap, check the hose type and then
choose the correct instruction.
ҟThe water supply hose supplied may vary
from country to country. Make sure to connect
the blue supply hose to the COLD water tap,
and the orange supply hose to the HOT water
tap.
ҟWater supply pressure must be between 30
kPa and 800 kPa (0.3 - 8.0 kgf / cm²).
ҟDo not overtighten the water supply hose.
ҟIf the water supply pressure is more than 800
kPa, a decompression device should be
installed.
ҟPeriodically check the condition of the hose
and replace the hose if necessary.
Checking the Rubber Seal on the
Supply Hose
Two rubber seals are supplied with the water
supply hoses. They are used for preventing
water leaks. Make sure the connection to taps
is sufficiently tight.
Hose connector
Rubber seal
Hose connector
Rubber seal
Connecting Hose to Water Tap
Connecting Screw-Type Hose to Tap
with Thread
Screw the hose connector onto the water
supply tap.
Connecting Screw-Type Hose to Tap
Without Thread
1Loose the four fixing screws.
Upper
connector
Rubber
seal
Fixing screw
2Remove the guide plate if the tap is too
large to fit the adapter.
Guide plate
Copyright © 2019 LG Electronics Inc. All rights reserved.
Only training and service purposes.

6
3Push the adapter onto the end of the tap so
that the rubber seal forms a watertight
connection. Tighten the four fixing screws.
4Push the supply hose vertically upwards so
that the rubber seal within the hose can
adhere completely to the tap and then
tighten it by screwing it to the right.
Plate
Supply
hose
Connecting One Touch Type Hose to
Tap Without Thread
1Unscrew the adapter ring plate and loose
the four fixing screws.
Ring plate
2Remove the guide plate if the tap is too
large to fit the adapter.
Guide plate
3Push the adapter onto the end of the tap so
that the rubber seal forms a watertight
connection. Tighten the four fixing screws
and the adapter ring plate.
4Pull the connector latch plate down, push
the supply hose onto the adapter, and
release the connector latch plate. Make
sure the adapter locks into place.
Latch plate
NOTE
ҟAfter connecting the supply hose to the water
tap, turn on the water tap to flush out foreign
substances (dirt, sand, sawdust, and etc.) in
the water lines. Let the water drain into a
bucket, and check the water temperature.
Copyright © 2019 LG Electronics Inc. All rights reserved.
Only training and service purposes.

7

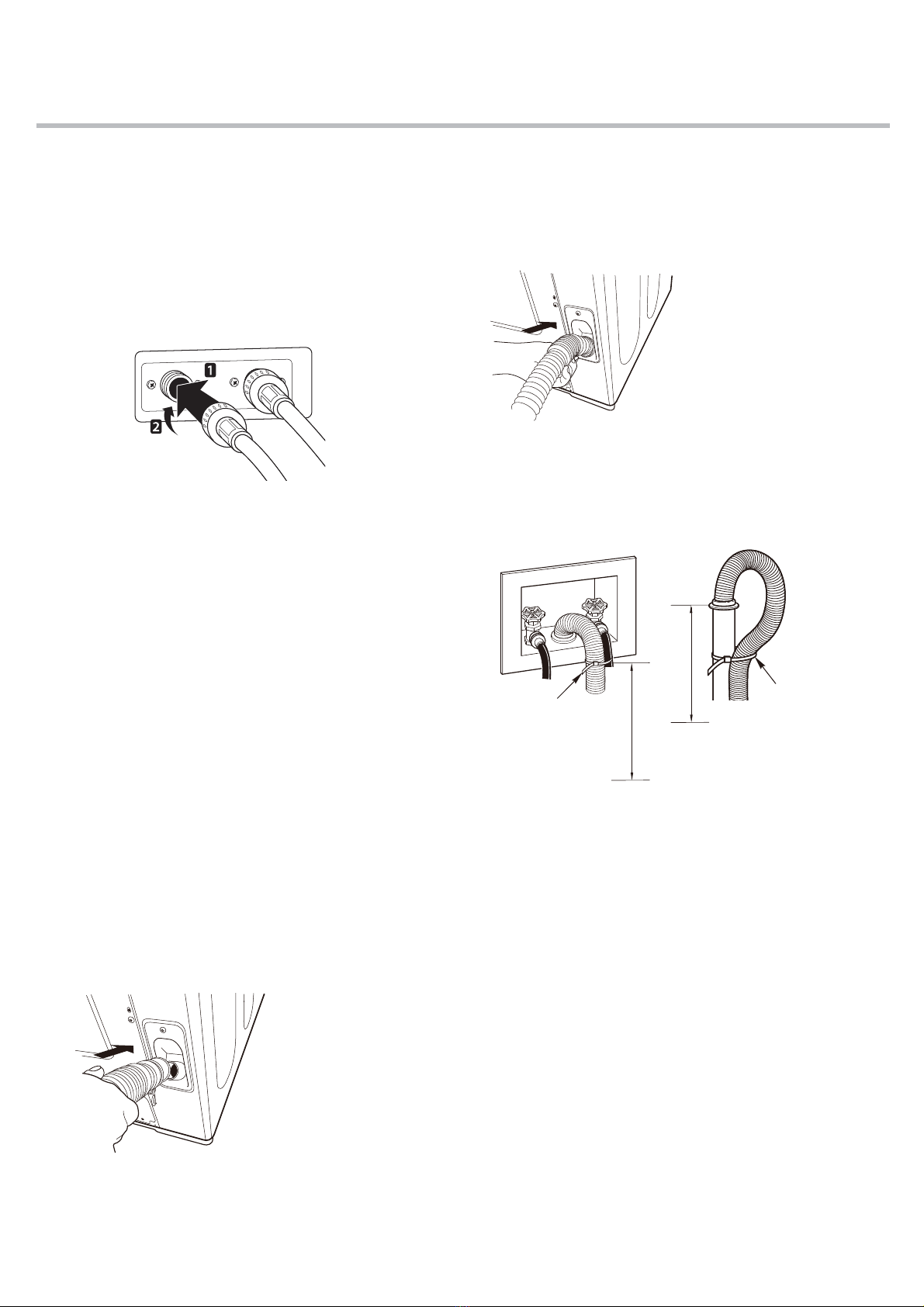

Connecting Hose to Appliance
Pump Model
Attach the hot water line to the hot water inlet
on the back of the washing machine. Attach the
cold water line to the cold water inlet on the
back of the washing machine.
NOTE
NOTE
ҟAfter completing connection, if water leaks
from the hose, repeat the same steps. Use
the most conventional type of tap for the water
supply. In case the tap is square or too big,
remove the guide plate before inserting the
tap into the adaptor.
Before connecting the drain hose, check your
drain hose model and choose the correct
instruction.
35" ~47" ( 0.9~1.2m)
Cable Tie Cable Tie
35" ~47" ( 0.9~1.2m)
 Connect the drain hose to the outlet of the drain

pump located at the rear of the washing machine.
Attach the clip to the drain hose.
And then push it toward the body of the washing
machine as indicated bythe arrow.





The drain hose should always beproperly
secured to the drain or standpipe. Failure to
secure
the drain hose properly can result in flooding and
property damage.
The end of the drain hose should beplaced 39"
(99 cm) above the floor.
The drain must beinstalled in accordance with
any applicable local codes and regulations.
Makesure that the water lines are not stretched,
pinched, crushed, or kinked.
Donot insert the drain hose more than 12” (30
cm) into the drain pipe to avoid siphoning and
odor build-up.


Check that the drain hose is hung up over the
edge of the laundry tub.
Donot use an extension hose.
2-3. Installing the Drain Hose
Copyright © 2019 LG Electronics Inc. All rights reserved.
Only training and service purposes.

8

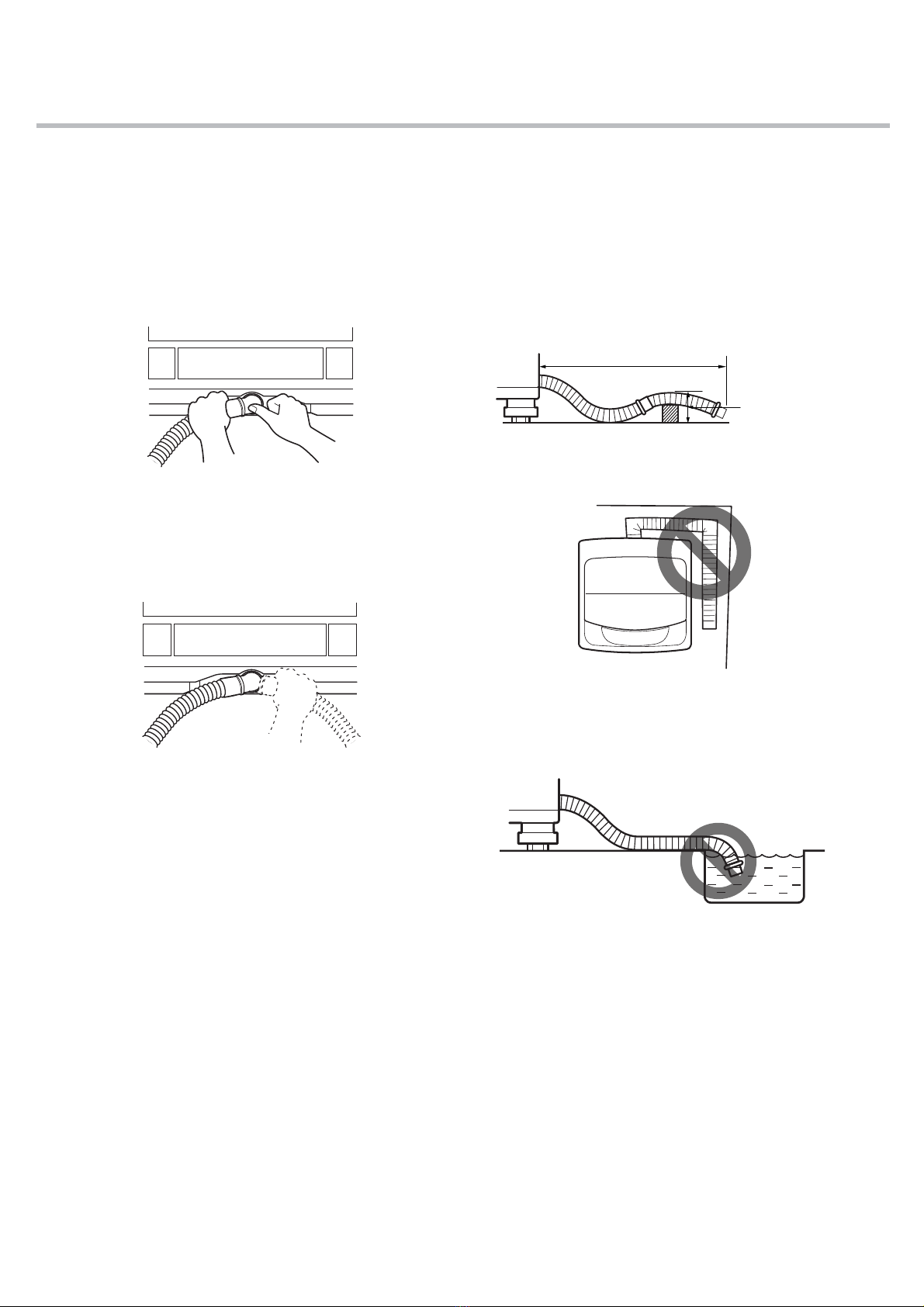

Non-pump Model
1Push the elbow hose toward the body of the
washing machine.
2To change the direction of the hose, pull out
the elbow hose and change the direction.
Repeat Step 2.
Positioning the Drain Hose
ҟThe length of the drain hose should not
exceed 3 m.
ҟDo not place the drain hose on a threshhold
of 6 cm or more.
max. 6 cm
max. 3 m
ҟMake sure the drain hose is not kinked.
ҟThe outlet of the drain hose should not be
submerged in water.
ҟMake sure the drain hose is not kinked.
Copyright © 2019 LG Electronics Inc. All rights reserved.
Only training and service purposes.

9
If the floor is uneven, turn the adjustable feet as
required (Do not insert pieces of wood etc.
under the feet). Make sure that all four feet are
stable and resting on the floor and then check
that the appliance is perfectly level.
Diagonal Check
ҟWhen pushing down the edges of the
appliance top plate diagonally, the appliance
should not move up and down at all (Check
both directions). If the appliance rocks when
pushing the machine top plate diagonally,
adjust the feet again.
NOTE
ҟTimber or suspended type flooring may
contribute to excessive vibration and
unbalance.
ҟIf the washing machine is installed on a raised
platform, it must be securely fastened in order
to eliminate the risk of falling off.
ҟIf the washing machine is installed on a
uneven, weak or tilted floor causing excessive
vibration, spin failure or “UE” error can occur.
It must be placed on a firm and level floor to
prevent spin failure.
Insert the Anti-Rat cover to the assembling hole
from the front or back of the washing machine.
Type 1
Type 2
2-4. Leveling the Appliance 2-5. Assembling the Anti-Rat
Cover (Optional)
Copyright © 2019 LG Electronics Inc. All rights reserved.
Only training and service purposes.

10
3-1. Using the Appliance
3. OPERATING
Before the first wash, select a washing
programme (Normal, add a half load of
detergent), allow the washing machine to wash
without clothing. This will remove residue and
water from the drum that may have been left
during manufacturing.
1Sort laundry and load items.
ҟSort laundry by fabric type, soil level,
colour and load size as needed. Open the
door and load items into the washing
machine.
2Add cleaning products and/or detergent and
softener.
ҟAdd the proper amount of detergent to the
detergent dispenser drawer. If desired,
add bleach or fabric softener to the
appropriate areas of the dispenser.
3Turn on the washing machine.
ҟPress the Power button to turn on the
washing machine.
4Choose the desired wash programme.
ҟPress the Programa button repeatedly
until the desired programme is selected.
5Begin programme.
ҟPress the Start/Pause button to begin the
programme. The washing machine will
agitate briefly without water to measure
the weight of the load. If the Start/Pause
button is not pressed within 60 minutes,
the washing machine will shut off and all
settings will be lost.
6End of programme.
ҟWhen the programme is finished, a
melody will sound. Immediately remove
your clothing from the washing machine to
reduce wrinkling.
NOTE
ҟThe Auto Restart function allows the
programme to restart by itself in case of
power failure. lt does from the stage where it
stopped.
Copyright © 2019 LG Electronics Inc. All rights reserved.
Only training and service purposes.

11
3-2. Sorting Laundry
1Look for a care label on your clothes.
ҟThis will tell you about the fabric content
of your garment and how it should be
washed.
ҟSymbols on the care labels.
[Wash temperature]
[Normal machine wash]
[Permanent press]
[Delicate]
[Hand wash]
[Do not wash]
2Sorting laundry.
ҟTo get the best results, sort clothes into
loads that can be washed with the same
wash cycle.
ҟDifferent fabrics need to be washed at
varying temperatures and spin speeds.
ҟAlways sort dark colours from pale colours
and whites. Wash separately as dye and
lint transfer can occur causing
discolouration of white and pale garments.
If possible, do not wash heavily soiled
items with lightly soiled ones.
<Soil (Heavy, Normal, Light) :
Separate clothes according to amount of
soil.
<Colour (White, Lights, Darks):
Separate white fabrics from coloured
fabrics.
<Lint (Lint producers, Collectors):
Wash lint producers and lint collectors
separately.
3Caring before loading.
ҟCombine large and small items in a load.
Load large items first.
ҟLarge items should not be more than half
the total wash load. Do not wash single
items. This may cause an unbalanced
load. Add one or two similar items.
ҟCheck all pockets to make sure that they
are empty. Items such as nails, hair clips,
matches, pens, coins and keys can
damage both your washing machine and
your clothes.
ҟClose zippers, hooks and strings to make
sure that these items don’t snag on other
clothes.
ҟPre-treat dirt and stains by brushing a
small amount of detergent dissolved water
onto stains to help lift dirt.
CAUTION
ҟDo not wash or spin any item labeled or
known to be water-proof or water-resistant,
even if the product care label on the item
permits machine washing. Failure to follow
these instructions could result in severe
damage to your laundry, your washing
machine and/or property damage as a result
of abnormal vibration of the washing machine.
<Examples of water-proof or water-resistant
items include certain mattress pads,
mattress covers, rain gear, camping gear,
skiing apparel, outdoor gear and similar
items.
Copyright © 2019 LG Electronics Inc. All rights reserved.
Only training and service purposes.

12
Adding Cleaning Products
Detergent Dosage
ҟDetergent should be used according to the
instruction of the detergent manufacturer and
selected according to type, colour, soiling of
the fabric and washing temperature.
ҟIf too much detergent is used, too many suds
can occur and this will result in poor washing
results or cause heavy load to the motor.
ҟIf you wish to use liquid detergent follow the
guidelines provided by the detergent
manufacturer.
ҟYou can pour liquid detergent directly into the
main detergent drawer if you are starting the
cycle immediately.
ҟDo not use liquid detergent if you are using
Time delay, or if you have selected Pre Wash,
as the liquid may harden.
ҟIf too many suds occur, reduce the detergent
amount.
ҟDetergent usage may need to be adjusted for
water temperature, water hardness, size and
soil level of the load. For best results, avoid
oversudsing.
ҟRefer to the label of the clothes, before
choosing the detergent and water
temperature.
ҟWhen using the washing machine, use
designated detergent for each type of clothing
only:
<General powdered detergents for all types of
fabric
<Powdered detergents for delicate fabric
<Liquid detergents for all types of fabric or
designated detergents only for wool
ҟFor better washing performance and
whitening, use detergent with the general
powdered bleach.
ҟDetergent is flushed from the dispenser at the
beginning of the cycle.
ҟDilute liquid detergent with water and pour into
the drum, start the cycle.
ҟUsing liquid detergent without diluting, or
leaving laundry for a long time after pouring
diluted liquid detergent into the drum might
cause damage, bleaching or discoloration of
cloth.
NOTE
ҟDo not let the detergent harden. Doing so may
lead to blockages, poor rinse performance or
odour.
ҟFull load : According to manufacturer’s
recommendation.
ҟPart load : 3/4 of the normal amount
ҟMinimum load : 1/2 of full load
Adding Detergent
ҟFollow the detergent package directions.
Using too little detergent is a common cause
of laundry problems. Use more detergent if
you have hard water, large loads, greasy or
oily soils or lower water temperature.
ҟSoap flakes or granulated soap powders
should not be used in your washing machine.
When washing woolens, remember to use
detergent suitable for washing woolens.
NOTE
ҟToo much detergent, bleach or softener may
cause an overflow.
3-3. Adding Cleaning Products
Copyright © 2019 LG Electronics Inc. All rights reserved.
Only training and service purposes.

13

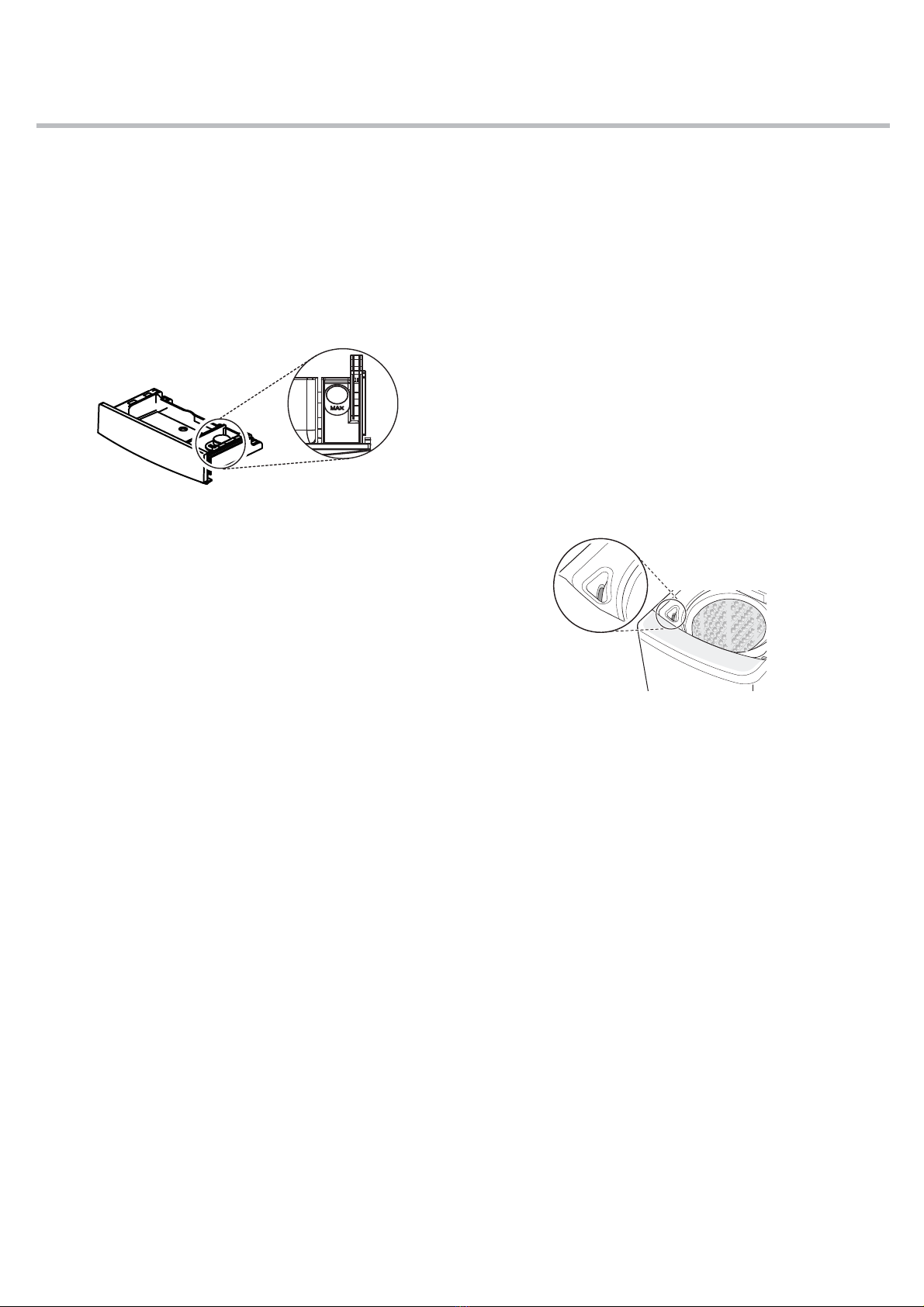

Adding Fabric Softener
ҟDo not exceed the maximum fill line.
Overfilling can cause early dispensing of the
fabric softener, which may stain clothes. Close
the dispenser drawer slowly.
ҟDo not leave the fabric softener in the
detergent drawer for more than 2 days (Fabric
softener may harden).
ҟSoftener will automatically be added during
the last rinse cycle.
ҟDo not open the drawer when water is being
supplied.
ҟSolvents (benzene, etc.) should not be used.
NOTE
ҟDo not pour fabric softener directly on the
clothes.
Adding Liquid Bleach
ҟCheck clothing care label for special
instructions and separate the laundry to be
bleached.
ҟDilute liquid chlorine bleach.
ҟMeasure the recommended amount of liquid
bleach carefully following instructions on the
bottle.
ҟBefore starting the washing machine, pour the
measured amount of bleach directly into the
bleach dispenser. Avoid splashing or
overfilling. Powdered bleach should be mixed
with water before being poured into the
dispenser.
NOTE
ҟNever pour undiluted liquid bleach directly
onto clothes or into the wash basket. This
may cause change of color or damage the
laundry.
ҟDo not pour powdered bleach into the bleach
dispenser.
Copyright © 2019 LG Electronics Inc. All rights reserved.
Only training and service purposes.

Control Panel
Control Panel Features
For Non-Vapour Mode Models
POWER Button
Press the POWER
START/PAUSE Button
Press the START/PAUSE button to start or pause a wash cycle.
Press the START/PAUSE button to stop a wash cycle temporarily.
NOTE
If the wash is not recommenced within 60 minutes when in pause, then the appliance will automatically
For customer safety, the door will be locked automatically during operation. If there is additional laundry
to put in, press START/PAUSE to unlock.
Program Button
Programmes are available according to the laundry type.
The lamp will light up to indicate the selected programme.
Extra Options and Functions
You can use the extra options and functions to customize the programmes.
14
Copyright © 2019 LG Electronics Inc. All rights reserved.
Only training and service purposes.

Cycle Status Indicator
tThe cycle status indicator is turned on before the start.
tThe cycle status indicator blinks during that process, and then the indicator turns o when that
process has completed.
Display
tThe display shows the settings, remaining estimated time, options, and status messages. When the
appliance is turned on, the default settings in the display will light up.
t: When a programme is selected, the default time for that programme is displayed. The time
can change as options are selected.
- If the display shows -:-- , then the time will be displayed after the load sensing has detected the
laundry size.
- The time shown is only an estimate. Several external factors (laundry size, room temperature,
incoming water temperature, etc.) can aect the actual time.
t: The Door Lock icon turns on when the cycle starts and the door is locked.
t: The Wi-Fi icon turns on when the appliance is connected to Wi-Fi network at home.
15
Copyright © 2019 LG Electronics Inc. All rights reserved.
Only training and service purposes.

3-5. WASHING PROGRAMS
Programme
Wash programmes are designed for the best wash
performance for dierent types of clothes.
tPress the Program button to select the desired
programme.
tWhen you select a wash programme, the light
for the corresponding wash programme will
turn on.
Cotton Wash
Use this programme to wash cotton laundry.
tThis programme automatically selects the most
appropriate conditions and completes the
sequence in one operation.
tThe built-in sensor detects the weight of the
laundry and the ideal wash power and wash,
rinse and spin times are set accordingly.
tIf water or wet laundry is already in the drum
before the start, the water level will be increased.
tFor lightweight and bulky items, the water level
may be too low. Increase the water level
manually.
Stain Care
This feature is only available on some models.
Use this programme to remove stains eciently.
Water will be heated up to about 40 °C under this
programme for the best washing result.
tThis programme uses more warm water than
other programmes as it has higher set
temperature for heating.
tStains that can be easily removed with this
programme are coee, soda, juice, soy sauce
etc.
tIf only cold water is connected, it takes longer
laundry time as heating time lengthens.
NOTE
tDue to higher water temperatures used, this
programme is not recommended for wool, silk,
leather, or any other delicates or temperature
sensitive items.
tWhile heating, water drops might be created at
the door glass due to humidity dierences. This
is normal. Wipe the door glass after the wash
cycle is completed.
tBe careful as the exterior of the appliance is hot
by heating.
tThis programme's recommended amount of
laundry is under 5.85 kg .
Allergy Care
This feature is only available on some models.
This programme is specically designed for
reducing certain allergens at a powerful, high
temperature.
tStains that can be easily removed with this
programme are milk, blood, sebum, egg, etc.
tIf only cold water is connected, it takes longer
laundry time as heating time lengthens.
NOTE
tDue to higher water temperatures used, this
programme is not recommended for wool, silk,
leather, or any other delicates or temperature
sensitive items.
tWhile heating, water drops might be created at
the door glass due to humidity dierences. This
is normal. Wipe the door glass after the wash
cycle is completed.
tBe careful as the exterior of the appliance is hot
by heating.
tThis programme's recommended amount of
laundry is under 4.5 kg .
Extra Rinse
Use this programme to increase rinsing
performance.
tThis programme is recommended for
underwear and baby clothes.
tIf someone has sensitive skin or skin trouble, use
this programme.
16
Copyright © 2019 LG Electronics Inc. All rights reserved.
Only training and service purposes.

Quick Wash
Use this programme to wash lightly soiled clothes
for a short time.
NOTE
tThis programme's recommended amount of
laundry is under 4.5 kg .
Eco Cotton
Use this programme to consume less water and
electricity to wash normal clothes.
Information for Energy Test
Select the water temperature to suit wash cycles.
Always follow clothes manufacturer's care label or
instructions when washing.
tFor normally soiled items, select the programme
and options as below and test it in accordance
with AS/NZS 2040. 1 .
- Programme: Eco Cotton
- Option: press Water Level for 3 seconds, Hot
Wash and Cold Wash
tThe test results depend on water pressure,
water hardness, water supply temperature,
room temperature, type and amount of laundry,
type and amount of detergent, uctuations in
the main electricity supply and chosen additional
options.
tDuring water supply, press the START/PAUSE
button to pause, open the door and add the
detergent powder (drum type) that has been
diluted with warm water directly into the drum.
Press the START/PAUSE button to resume the
cycle.
tSince this cycle is programmed to use a lesser
amount of water, usage of fabric softener is not
recommended.
Pre Wash+Cotton
Use this programme to pretreat immediate stain
without handwash.
tIt is necessary for clothes which could smell bad
if they are not washed promptly.
Duvet
Use this programme to wash a blanket or
bedclothes that have the hand wash sign on the
care label.
tCashmere bedclothes, acrylic blanket, mixed
spinning blanket, woollen blanket, inlling
(polyester 101), and bed sheets might be
damaged if they are allowed to oat. It is
recommended to purchase a separate laundry
net to wash.
tSeparate bed clothes from general clothes. It
might cause laundry to be unbalanced, which
results in abnormal washing.
tSpin dry might take longer to redistribute the
laundry evenly if bedclothes are lumped to a
side.
tNever wash an electric blanket, carpets, rugs or
shoes. It can cause damage to the appliance and
other items in the wash.
tPut bedclothes into a laundry net and then soak
and sink them in water so that they are less likely
to oat. If the items oat during the wash or
spin, it may damage the appliance and the
clothes.
tRegardless of size, we recommend washing
bedclothes individually. If two bedclothes with
dierent materials are washed at the same time,
it might cause a spin malfunction due to
imbalance.
CAUTION
tWhen putting a blanket into the drum, do not
load it over the maximum line a. The blanket
must also be submerged in the water. Failure to
do so or overloading the blanket in the appliance
will result in damage to the wash load and the
appliance.
17
Copyright © 2019 LG Electronics Inc. All rights reserved.
Only training and service purposes.

3-6. Other Functions
Delicates
Use this programme to wash delicate fabrics such
as lingerie and woollens. Before washing, check
the care label for the washing instructions.
tThis programme uses a slow spin to prevent the
clothes from being damaged, so the laundry has
more moisture than normal.
NOTE
tHang or lay your delicates at when you dry
them.
tOnly cold water will be used for this programme
as hot water may damage laundry.
Sports Wear
This programme is suitable for sports wear such as
jogging clothes and running wear.
Tub Clean
This is a special function to clean inside the drum of
your appliance.
tTo use this function, refer to the MAINTENANCE
for details.
Download Cycle
Download a new or special washing programme to
this appliance using the smartphone. It will be
placed in this programme position.
tYou can check the default programme in the LG
SmartThinQ application.
You can use the extra options and functions on
some programmes to customize the cycle.
Water Level
This appliance detects the amount of laundry
automatically, then sets the water level. However,
manually increasing the water level may be
required and recommended to avoid linting and
unbalanced errors when the load is bulky but
lightweight.
tPress Water Level option to adjust water level.
tIt can be changed during operation.
tWhen you select a wash programme, the water
level will be shown on the control panel.
tWhen water level is automatically detected, it
may dier depending on the amount of laundry
even though the same water level is indicated on
the control panel.
Wash
Adjusting the wash time setting modies the cycle
times and/or wash actions.
tPress Wash button until the desired wash time is
selected.
Rinse
Use this option to change the number of rinses.
tPress Rinse button to change the number of
rinses.
tWhen the Rinse option is selected, icon is lit.
tIf selecting the maximum number of rinses, then
this option is deactivated.
NOTE
tThis option is only available on some
programmes.
18
Copyright © 2019 LG Electronics Inc. All rights reserved.
Only training and service purposes.

Intensive Rinse
Use this option to remove detergents more
eectively.
tWhen the Rinse button is pressed, Intensive
Rinse option is selected.
tWhen the Intensive Rinse option is selected,
and icons are lit.
tIf selecting the maximum number of rinses, then
this option is deactivated.
NOTE
tThis option is only available on some
programmes.
Spin
Use this option to change the spin strength. When
you press the START/PAUSE button after selecting
this option, the remaining time is indicated on the
display.
To Use the Air Spin Function
When you select Air Spin , you can reduce the
drying time by minimizing the moisture that
remains within the clothes.
tPress the Spin button for 3 seconds to select and
press the POWER button to deselect.
NOTE
tAlways keep the laundry amount to 2 kg or less
and make sure to redistribute the laundry
evenly.
tSelect 60 minutes for cotton laundry and 120
minutes for synthetic bre laundry for eective
moisture reduction.
Vapour Mode
This feature is only available on some models.
Use this option to enhance washing performance
with vapour.
tThis option is automatically selected under the
Allergy Care programme.
Intensive Wash
This feature is only available on some models.
Use this option to allow a higher agitation intensity.
tIt is set to medium intensity by default and it is
not indicated on the display.
tIt can be set on all programmes except
Delicates and Tub Clean .
Turbo Clean™
Use this option to save time and energy by using
the jet spray technology.
Soak
This option can be selected to wash heavily soiled
clothes by soaking them in water for some time to
loosen dirt and grime.
tWhen this option is activated, the icon is lit.
tTo activate this option, press and hold the Turbo
Clean™ button for 3 seconds.
tTo change the soak time on the display or
deactivate this option, press the Turbo Clean™
while this option is activated.
NOTE
tWhile the Turbo Clean™ option is activated, this
option cannot be set even if the Turbo Clean™
button is pressed for 3 seconds.
Time Delay
Use this function to delay ending time. The
appliance will start automatically and nish after a
specied time interval.
1 Press the POWER button.
2 Select a washing programme.
3 Press the Time Delay button to set the
required delay ending time.
19
Copyright © 2019 LG Electronics Inc. All rights reserved.
Only training and service purposes.

4 Press the START/PAUSE button.
NOTE
tThis function is the time to the end of the
programme, not the start. The actual running
time may vary due to water temperature, wash
laundry and other factors.
tReservation can be made up to 18 hours;
- 1 hour interval up to 3 - 12 hours
- 2 hour interval up to 12 - 18 hours
tThis function cannot be set for less than 3 hours.
tTo cancel this function, press Time Delay button
repeatedly until the reservation is cancelled or
press the POWER button to turn o and on
power.
Wi-Fi
When WLAN is connected to the appliance, the Wi-
Fi icon on the control panel is lit.
tPress and hold Time Delay button for 3 seconds
to register the appliance in the LG SmartThinQ
application.
Remote Start
Use a smartphone to control your appliance
remotely.
tIn order to use the this function, refer to SMART
FUNCTIONS .
Hot Wash / Cold Wash
tPress the Hot Wash and/or Cold Wash buttons
to select hot water, cold water, or hot and cold
water (warm water).
tBy pressing the Hot Wash and/or Cold Wash ,
the water temperature can be changed during
operation.
tIf Hot Wash is selected, washing will be done
with hot water and rinse will be done with cold
water.
tUnder normal and standard user environments,
warm water will enter the drum when both hot
water and cold water are selected.
NOTE
t Delicates programme is cold water only. If hot
water is used, the laundry can be damaged.
tBoth Hot Wash and Cold Wash are
automatically selected under Extra Rinse and
Tub Clean programmes.
20
Copyright © 2019 LG Electronics Inc. All rights reserved.
Only training and service purposes.
