LG WD14030RD6 User manual

OWNER’S MANUAL
WASHING MACHINE
P/No.:MFL62644911 www.lg.com
WD14030RD6
Before beginning installation, read these instructions carefully.
This will simplify installation and ensure that the washer is installed
correctly and safely. Leave these instructions near the washer
after installation for future reference.

Contents
2
Contents....................................2
Product Features......................3
Important safety instructions
Important safety instructions .................4
Basic safety precautions .......................5
Save these instructions.........................6
Safety instructions for use.....................7
Specifications...........................8
Installation
Removing packing ................................
Removing transit bolts ..........................
Installation place requirements ...........10
Connecting water supply hose............12
Installation of drain hose .....................14
Leveling...............................................15
How to use washer
Operating washing machine ...............17
Care before washing...........................18
Washing program table.......................1
Drying program table ..........................20
Extra options .......................................21
Operating data ....................................21
Control panel.......................................22
Additional program..............................23
- Time Delay........................................23
- Medic Rinse ......................................23
- Favorite.............................................23
- Pre Wash ..........................................23
Options................................................24
- Option ...............................................24
- Spin...................................................24
- Temp. ...............................................24
Other functions....................................24
- Spin Only .........................................24
Child Lock ...........................................25
Beep On/Off ........................................25
Tub Clean ...........................................26
Door Lock & Detecting ........................26
Dry ......................................................27
Thank you for buying a LG Fully
Automatic Washing Machine.
Please read your owner’s manual
carefully, it provides instruction on safe
installation, use and maintenance.
Retain it for future reference.
Record the model and serial number of
your washing machine.
Model No.
Serial No.
Date of Purchase
Adding detergent
Adding detergent and fabric softener..2
Maintenance
The water inlet filter.............................31
The drain pump filter ...........................32
Dispenser drawer................................33
The washing drum ..............................34
Cleaning your washer .........................34
Cold conditions ...................................34
Troubleshooting guide
Diagnosing problems ..........................35
Error messages...................................37
Using SMARTDIAGNOSIS™..............38

Product Features
3
추가선택 예약
Inverter Direct Drive system
The advanced Brushless DC motor directly drives the drum without
belt and pulley.
Low noise speed control system
By sensing the amount of load and balance, it evenly distributes load
to minimize the spinning noise level.
Child Lock
The Child Lock prevents children from pressing any button to change
the settings during operation.
More economical with Intelligent Wash system
Intelligent Wash System detects the size of load and water temperature,
and then determines the optimum water level and washing time to
minimize energy and water consumption.
Built-in heater
Internal heater automatically heats the water to the best temperature
on selected cycles.
Protection against creases
With the alternating rotation of the drum, creasing is minimized.
6 Motion
Washer is able to perform various drum actions or a combination of
different actions depending on the wash program selected.
Combined with a controlled spin speed and the ability of the drum to
rotate both left and right, the wash performance of the machine is greatly
improved, giving you perfect results every time.

4
Important safety instructions
For your safety, the information in this manual must be followed to minimize the risk of fire or
explosion, electric shock, or to prevent property damage, injury to persons, or death.
READ ALL INSTRUCTIONS AND EXPLANATION OF THE INSTALLATION
BEFORE USE
WARNING
You can be killed or seriously injured if you don’t follow instructions.
Your Safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance.
Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word DANGER,
WARNING or CAUTION.
These words mean:
WARNING
You may be slightly injured or cause damage to the product,if you do not follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the
chance of injury, and tell you what can happen if the instructions are not followed.
CAUTION
You will be killed or seriously injured if you don’t immediately follow instructions.
DANGER

5
Important safety instructions
To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic
precautions, including the following:
WARNING
• Before installation, check for exterior
damages. If it has, do not install.
• Do not install or store the washer
where it will be exposed to the
weather.
• Do not tamper with controls.
• Do not repair or replace any part of
the washer or attempt any servicing
unless specifically recommended in
the user-maintenance instructions or
published user-repair instructions
that you understand and have the
skills to carry out.
• Keep the area underneath and around
your appliances free of combustible
materials such as lint, paper, rags,
chemicals, etc.
• The appliance is not intended for use
by young children or infirm persons
without supervision. Do not allow
children to play on, with, or inside this
or any other appliance.
• Keep small animals away from the
appliance.
• Do not leave the washer door open.
An open door could entice children to hang
on the door or crawl inside the washer.
• Never reach into washer while it is
moving. Wait until the drum has
completely stopped.
• The laundry process can reduce the flame
retardant of fabrics. To avoid such a
result, carefully follow the garment
manufacturer’s wash and care
instructions.
• Do not wash or dry articles that have
been cleaned in, washed in, soaked
in, or spotted with combustible or
explosive substances (such as wax,
oil, paint, gasoline, degreasers, dry-
cleaning solvents, kerosene, etc.)
which may ignite or explode. Oil may
remain in the tub after a whole cycle resulting
in fire during drying.
So, do not load oiled clothes.
• Do not slam the washer door closed
or try to force the door open when
locked. This could result in damage to the
washer.
• When the machine runs high
temperature, the front door may be
very hot. Don’t touch it.
• To minimize the possibility of electric
shock, unplug this appliance from the
power supply or disconnect the
washer at the household distribution
panel by removing the fuse or
switching off the circuit breaker
before attempting any maintenance or
cleaning.
• When unplugging power cord, do not
pull out by grasping the cord.
Otherwise, the power cord may be damaged.
• Never attempt to operate this
appliance if it is damaged,
malfunctioning, partially
disassembled, or has missing or
broken parts, including a damaged
cord or plug.
■Basic sa ety precautions

6
Important safety instructions
■Basic sa ety precautions
■Save these instructions
To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic
precautions, including the following:
WARNING
Improper connection of the equipment-grounding conductor can result in electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is
properly grounded. Do not modify the plug provided with the appliance - if it does not fit the
outlet, have a proper outlet installed by a qualified electrician.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfunction or breakdown, grounding will
reduce the risk of electric shock by providing a path of least resistance for electric current.
This appliance is equipped with a cord having an equipment-grounding conductor and
grounding plug. The plug must be plugged into an appropriate outlet that is properly installed
and grounded in accordance with all local codes and ordinance.
• Do not use an adapter this will defeat the grounding plug.
• If you don’t have the proper outlet, consult an electrician.
WARNING
• Before discarding an old machine
unplug it. Render the plug useless.
Cut off the cable directly behind the
appliance to prevent misuse.
• When a product was under water,
Please call service center. There is a
risk of electric shock and fire.
• Connect the appliance to the water
mains using new hose-sets. Old hose-
sets should not be reused.
• To reduce the risk of personal injury,
adhere to all industry recommended
safety procedures including the use
of long sleeved gloves and safety
glasses. Failure to follow all of the safety
warnings in this manual could result in
property, personal injury or death.
• Do not push down the door
excessively, when washer door open.
This could topple over the washer.

7
Important safety instructions
To minimize the risk of fire within the inner bowl, the following should be observed:
• Items that have been spotted or soaked
with vegetable or cooking oil constitute a
fire hazard and should not be placed in a
tumble dryer.
Oil-affected items can ignite spontaneously,
especially when exposed to heat sources
such as in a tumble dryer.
The items become warm, causing an
oxidation reaction in the oil. Oxidation
creates heat. If the heat cannot escape, the
items can become hot enough to catch fire.
Piling, stacking or storing oil-affected items
can prevent heat from escaping and so
create a fire hazard. If it is unavoidable that
fabrics that contain vegetable or cooking oil
or have been contaminated by hair care
products be placed in a tumble dryer they
should first be washed in hot water with extra
detergent-this will reduce, but not eliminate,
the hazard.
The ‘cool down’ cycle of tumble dryers
should be used to reduce the temperature of
the items.
They should not be removed from the tumble
dryer or piled or stacked while hot.
• Items that have been previously cleaned
in, washed in, soaked in or spotted with
petrol/gasoline, dry-cleaning solvents or
other flammable or explosive substances
should not be placed in a tumble dryer.
Highly flammable substances commonly
used in domestic environments include
acetone, denatured alcohol, petrol/gasoline,
kerosene, spot removers (some brands),
turpentine, waxes and wax removers.
• Items containing foam rubber (also
known as latex foam) or similarly testured
rubber like materials should not be dried
in a tumble dryer on a heat setting. Foam
rubber materials can, when heated, produce
fire by spontaneous combustion.
• Fabric softeners or similar products
should not be used during a drying cycle,
to eliminate the effects of static electricity
unless this practice is specifically
recommended by the manufacturer of the
fabric softener or product.
• Undergarments that contain metal
reinforcements should not be placed in a
tumble dryer.
Damage to the tumble dryer can result if
metal reinforcements come loose during
drying. When available a drying rack could
be used for such items.
• Plastic articles such as shower caps or
babies waterproof napkin covers should
not be placed in a tumble dryer.
• Rubber-backed articles, clothes fitted
with foam rubber pads, pillows, rubber
boots and rubber-coated tennis shoes
should not be placed in a tumble dryer.
■Sa ety instructions or use

8
■Name : Front loading washing machine
■Power supply : 240 V~, 50 Hz
■Size : 600 mm(W) ✕640 mm(D) ✕850 mm(H)
■Weight : 72 kg
■Max.Watt : 2100 W (Wash) / 1700 W (Dry)
■Wash capacity : 8.5 kg (Wash) / 4.5 kg (Dry)
■Water consumption : 73 l
■Permissible water pressure : 100 ~ 600 kPa (1.0 - 6.0 kgf / cm
2
)
• The external hot water supply MUST NOT exceed 65°C
• Permissible cold water temperature : 4-25°C
• No further backfl ow protection required for connection to the water supply.
• The appearance and specifi cations may be varied without notice to lmprove the units quality.
• Specifi cations subject to change by manufacturer.
󳢮The appearance and specifications may vary without notice to improve the quality of the unit.
Specifications
Spanner
Inlet hose: Hot/Cold(2EA)
■Accessories
(For detergent and
fabric softener)
Drawer
Drain hose
Transit bolts Power plug
Control panel
Drain pump filter
Lower cover cap
• If the supply cord is damaged,
it must be replaced by the
manufacturer or its service
agents or a similarly qualified
person in order to avoid a
hazard.
Drum
Door Drain plug
Adjustable feet

9
Installation
■Removing packing
Base Packing
Washer
Spanner

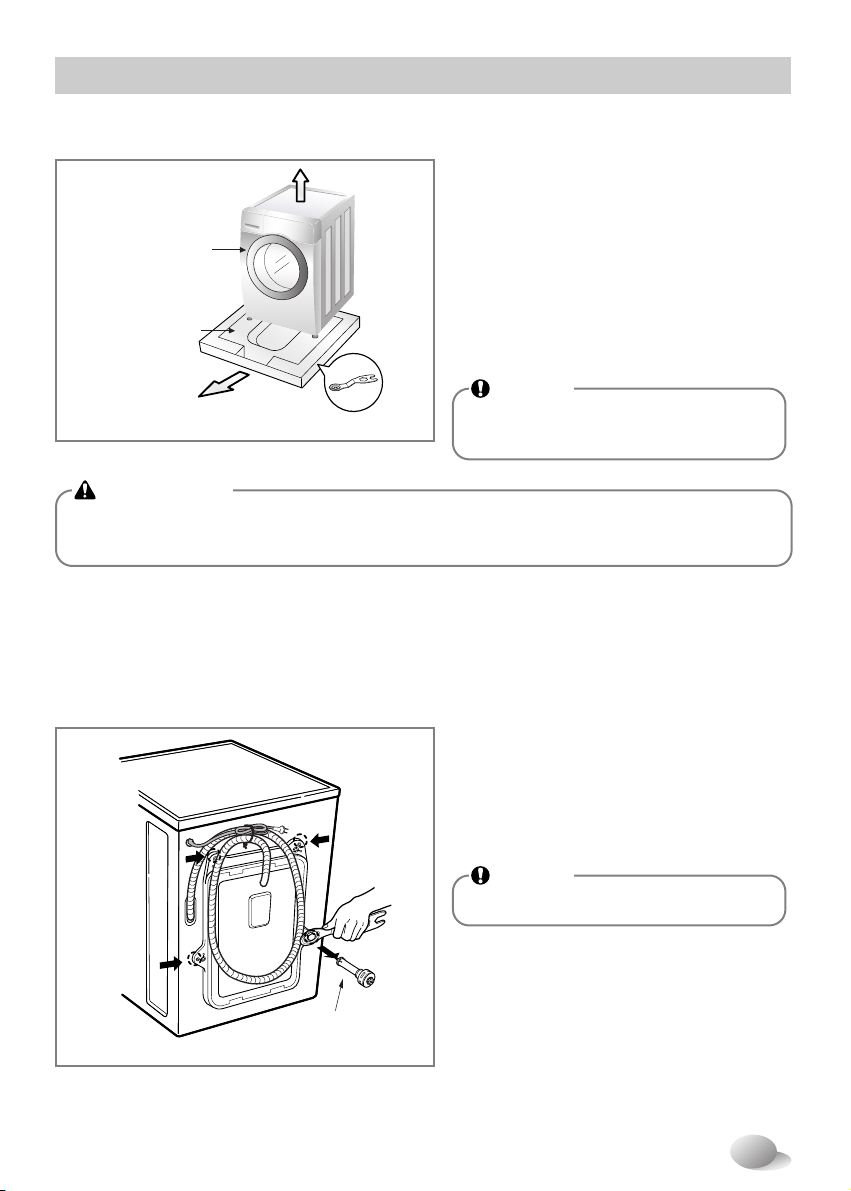

1. Remove the cardboard box and
styrofoam packing.
2. Lift the washing machine and remove
the base packing. This will require 2 or
more people or a lifting device.
3. Remove the tape securing the power
supply cord and drain hose.
4. Remove the inlet hoses from the drum.
1. Unscrew the 4 bolts with the spanner
supplied.
2. Take out the 4 bolts along with the
rubber bungs by slightly twisting the
bung.
3. Close the holes with the caps supplied.
To prevent internal damage during transport, the 4 special bolts are locked.
Before operating the washer, remove the bolts along with the rubber bungs.
If they are not removed, it may cause heavy vibration, noise and malfunction.
■Removing transit bolts
Transit bolt
WARNING
• Packaging material (e.g. Films, Styrofoam) can be dangerous for children.
There is a risk of suffocation ! Keep all packaging well away from children.
NOTE
• Keep the spanner provided for
future use.
NOTE
• Keep the transit bolts for future use.

10
Installation
Washer
approx.
2cm
• Level floor :
Allowable slope under entire washer is 1˚.
• Power outlet :
Must be within 1.5 meters of either side of location
of washer. Do not overload the outlet with more
than one appliance.
• Additional Clearance :
For Wall, 10cm:rear / 2cm : right & left side
Do not place, store or use laundry products on top
of washer at any time.
They can damage the finish or controls.
■Installation place requirements
❿ Positioning
❿Location

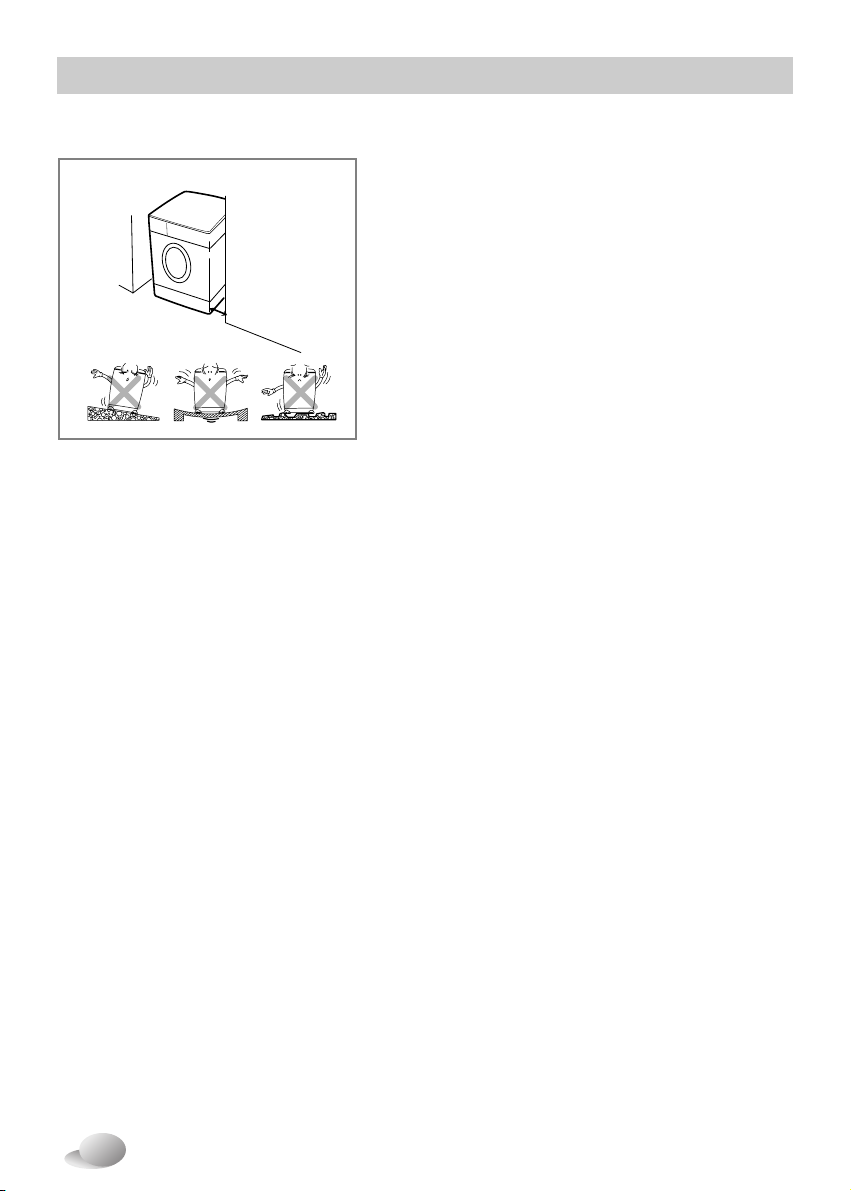

• Install the washer on a flat hard floor.
• Make sure that air circulation around the washer is not impeded by carpets, rugs, etc.
• Never try to correct any unevenness in the floor with pieces of wood, cardboard or similar
materials under the washer. Do not build the machine into a closed cupboard.
• If it is impossible to avoid positioning the washer next to a gas cooker or coal burning
stove,an insulating(85x60cm) covered with aluminum foil on the side facing the cooker or
stove,must be inserted between the two appliance.
• The washer must not be installed in rooms where the temperature can drop below 0°C.
• Please ensure that when the washer is installed, it is easily accessible for a Service
Technician in the event of a breakdown.

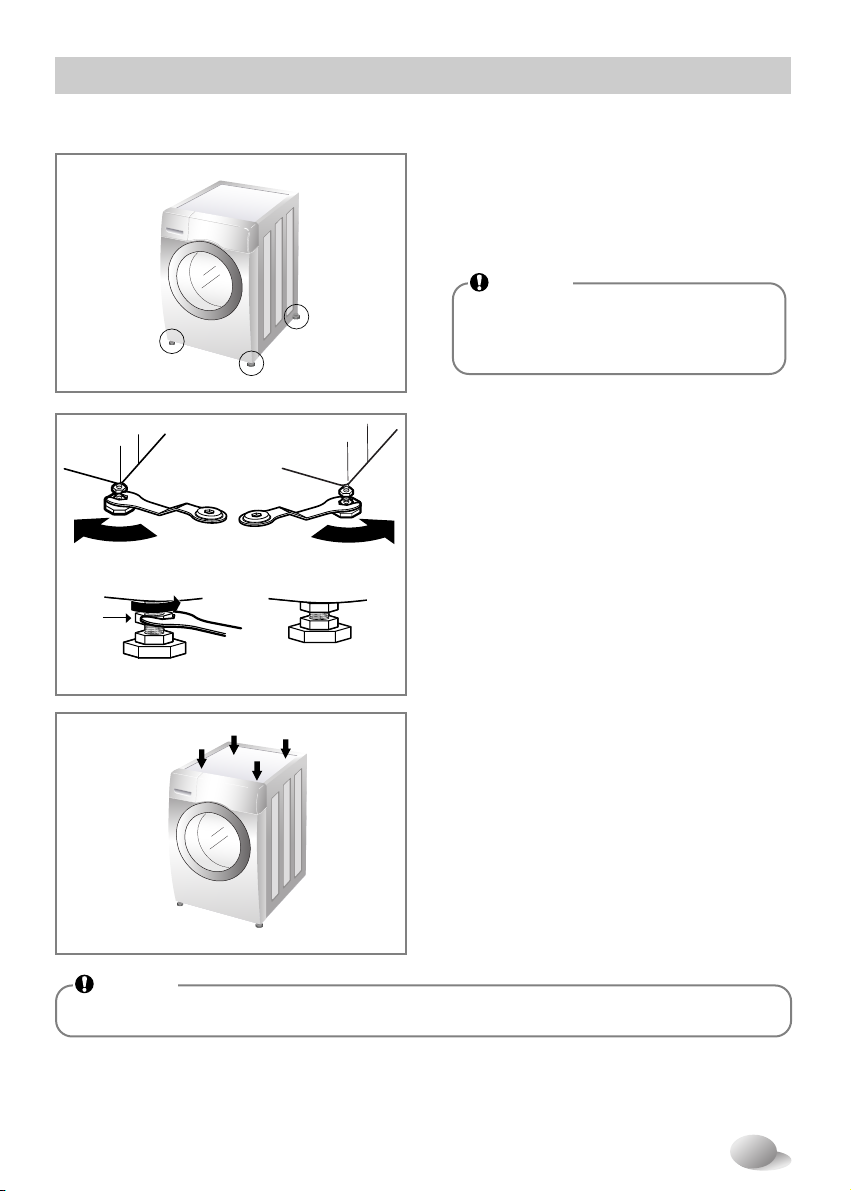

• With the washer installed, adjust all four feet using the transit bolt spanner provided
ensuring the appliance is stable, and a clearance of approximately 20mm is left between
the top of the washer and the underside of any work-top.
• This equipment is not designed for maritime use or for use in a mobile installations such as
caravans, aircraft etc.
• It is also not intended for commercial or outdoor applications, or washing of items such as
foot ware, mats etc.
