Lichtlauf MunichReeds User manual

MunichReeds
en

product description
Design Gerd Pfarré, Christoph Matthias & Team Lichtlauf 2015
Twelve handcrafted optical fibres give an
impression of glowing reeds.
Consequently each stalk looks a little different.
MunichReeds can be placed in a lawn, in boggy soil, in a pond and also in
shallow water.
Light source: LED approx. 8 W Light colour warm white or amber
other light colours on request
Dimensions: housing 14x14x3,5 cm
Length of the stalks up to approx. 150 cm
Each lamp is handcrafted and has its unique shape.
Due to the manual production process there might occure irregularities
between the individual reeds.
By the influence of weather and temperature the reeds might bend
These are no product defects and therefore no reason for complaint or
reclamation.
enclosed
1 MunichReeds
1 Can Closure FDM with LED electronic
control gear (ECG)
4 Terminals
technical data
230V 50Hz
LED, total about 8W, sec. max. 350mA
Type:
outdoor light IP 68
This light contains built-in LED lamps.
Energy classes: A - A ++
The lamp only can be exchanged by the
manufacturer.

care instructions
Disconnect the device from the power supply
grid before cleaning.
The care of the luminaire is limited to the
reeds.
Clean the stalks carefully with a humid and
soft cloth.
Important:
Please don‘t use spiritus or alcohol contai-
ning products to avoid that the stalks get
brittle.
Do not use scouring agents or cleaning
agents containing scouring agents.
For heavier soiling we recommend a plastic
cleaner.
safety note
Follow always the hints of this instruction for
a safe assembly and use of these lights.
Keep the assembly instruction for further
questions.
The assembly and the electric supply must
be done by an electric professional. Local in-
stallation regulations have to be respected.
The manufacturer accepts no liability for any
damage due to improper use of the luminaire.
Luminares are only allowed to be used for
the specified purpose. Interior lights may
not be used in outside area. Luminares may
not be covered.
They may not be connected to power supply
still they are packaged.
Lights with elctronic control gears (ECG)
have to be operated with original ECGs.
Attention! Before working on the luminaire
disconnect it from the mains.
Also for cleaning, maintance and lamp
change.
The lamp change must be done by an compe-
tent professional.
Use only lamps with same type of construc-
tion, performance and voltage.
In case of damages, in particular of cable
and socket, the luminare have to be shut off
immediately. In case of damage on the mains
cable it has to be changed by the Lichtlauf
GmbH.
For malfunction call autorized personnel for
troubleshooting.
Never repair it by yourself.
Through improper repair work may arise risk
for the user.
Elements of plug and connection shall be free
from traction and torque.
Keep plastic bags and small components away
from children to avoid risks of suffocation or
swallowing!
special notes

assembly

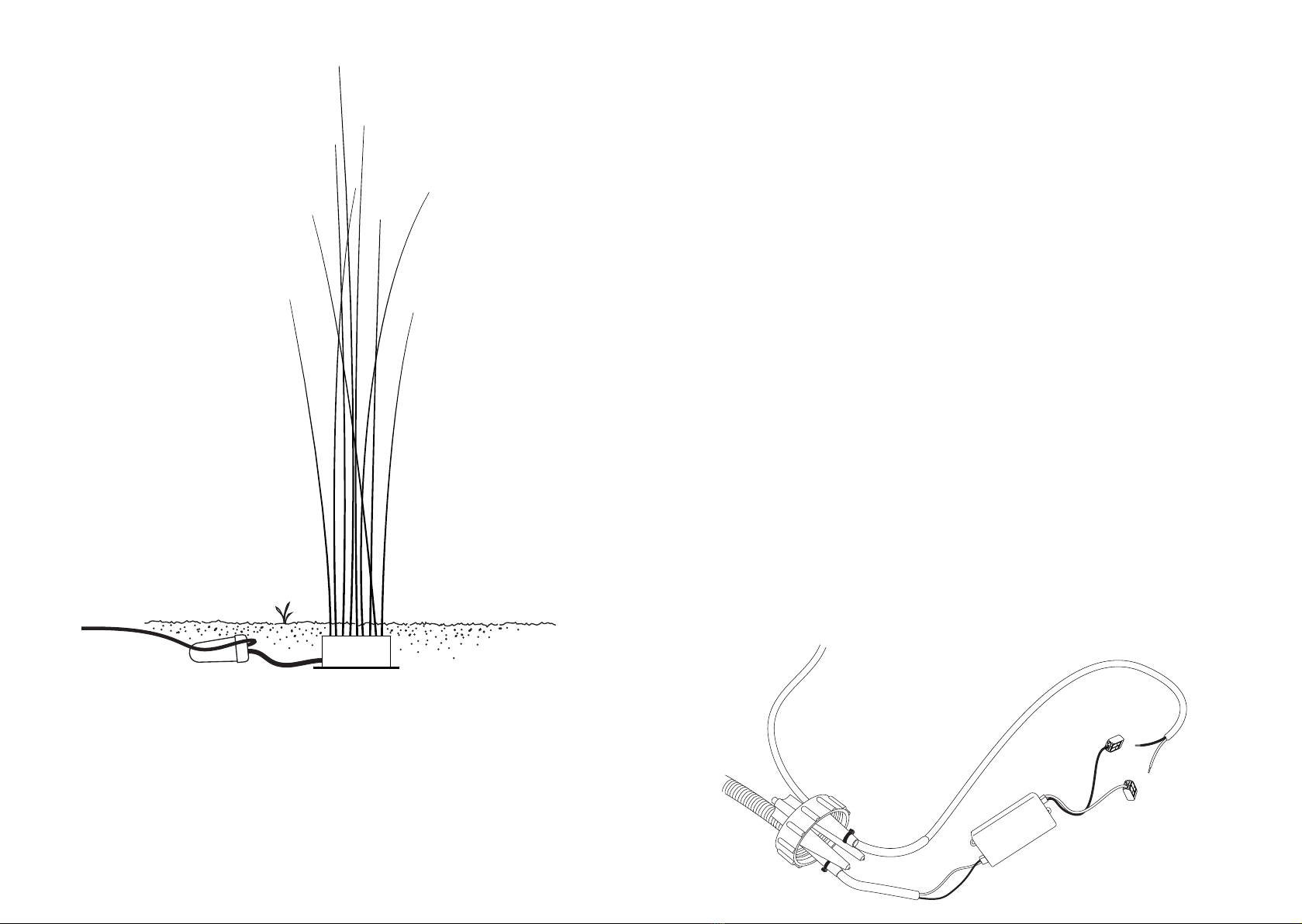

Dig a deepening for the base. Depth: approx.
15 cm.
Besides another deepening for the can
closure.
Put the lamp in the deepening and put the
sleeve in the deepening besides that. Take
care that the cable is strain relieved and lies
loosely.The Cable must not be damaged by
sharp-egded stones. The base and the can
clorure must be covered with gravel or soil
The assembly and electric connection must
be done by an electric professional.
Attend the instructions of the can closure
FDM manufacturer Friedel which is illustrated
on the following pages.
Open the can closure, while holding the yellow
cap and turning the black can body counter-
clockwise. Cut as described in the instruction
a close fit to one of the rubber sleeves.
The size of the hole should be 2/3 of the
cable diameter of your mainscable at ma-
ximum. Use a submersible water resistant
mains cable. Otherwise the water might reach
the inside of the can closure through the
cable.
Clean the can closure as required and use
enclosed cable lubricant to push the cable
through the hole in the rubber sleeve.
(Fig. 3) Push the mains cable approx. 15 cm
through the rubber sleeve. Pay attention
that the rubber sleeve does not get dama-
ged.
Use the cable tie to seal up as shown in
(Fig. 4)
Strip of approx. 8 cm from the outer insula-
tion of the mains cable.
Strip of approx. 10 mm from the inner insula-
tion of the connector and neutral connector
Use the terminals to connect them to the
ECG in accordance to the colors (blue = neu-
tral connector, brown = connector). Open
the lever of the free position on the terminal
and push the strand into the terminal.
Close the lever and control the strand fits
firm in the terminal. Proceed as with leader
and neutral leader.
The secondary connection is already prefab-
ricated on the ECG.
Before you close the can closure, grease the
front end with the cable lubricant as descri-
bed in the instruction in Fig. 5.
Close the can closure, while you turn the
black can body clockwise against the cap.
Close closure very tight and according to the
torque information on the instructions.
Use the big cable tie to strain relieve mains
cable and secondary cable. (Fig. 6)
The installation of the can closure is in the
area of responsibility of the installer.
mains cable
at the end.
Pay attention that the stalks are not dama-
ged by sharp edged stones etc.
AC IN
DC
OUT

The base and the can closure must now be
covered with gravel or soil.
Pay attention that the stalks are not dama-
ged by sharp edged stones etc.
Important:
If Munich Reeds shall be put in a pond and
thus fully in the water, it must be assured
that the can closure and mains cable is out-
side the water!
