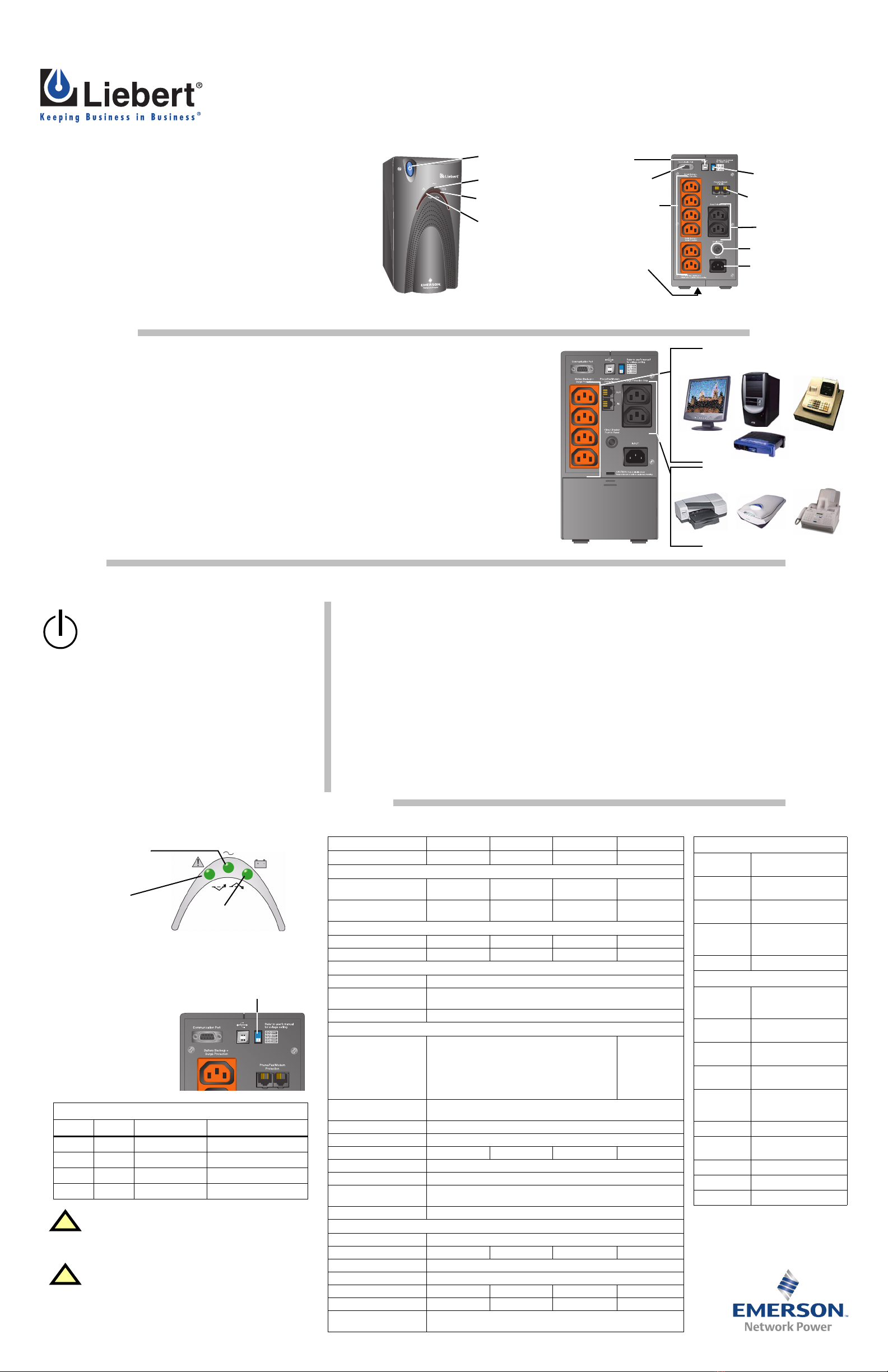

PowerSure™PSA
Quick-Start Guide for 350-1000VA; 230V
WHAT’SINTHE BOX
• Quick-Start guide
• PowerSure family user manual on CD (also at www.liebert.com)
• Two (2) 10A output power cords, 2.0m (6.6 ft.)
• MultiLink™software CD; MultiLink serial cable (M3LS9P9S), 3m (10 ft.)
• RJ-11 cord, 2.1 m (7 ft.); USB cable, 1.8m (6 ft.)
For more details, refer to the PowerSure user manual on CD.
Pour de plus amples informations, voir le manuel d'utilisateur de la
gamme des produits PowerSure sur CD.
Para una información más detallada, consulte el manual del usuario de
la familia PowerSure en el CD.
Per informazioni ulteriori e più particolareggiate, consultare il manuale
dell'utente delle attrezzature PowerSure contenuto sul CD.
Ausfuhrlichere Informationen finden Sie im Benutzerhandbuch der
PowerSure-Familie auf CD.
Battery cover plate
(for 650&1000VA models)
(on rear of 350&500V
models)
PowerSure PSA
PowerSure PSA
* Power ON/OFF/
Alarm Silence
* Fault Indicator
(Red/Green)
* Mains Indicator
(Green)
Battery Indicator*
(Green/Amber)
DIP switches *
*** USB port
*** DB-9 port
** Orange output
receptacles (battery
backup and surge
protection)
(4 receptacles on
350-650VA models)
** Black output
receptacles
(surge protection only)
AC input
Data Line
Protection
Connectors***
For details, see
* Controls and Indicators
** Installation
*** Communications
Input circuit protector
INSTALLATION
Read all safety, installation and operating instructions in the PowerSure family user manual on the included CD or
at www.liebert.com before operating the UPS. Adhere to all warnings on the unit and in the manual.
1. Install the UPS indoors in a controlled environment, where it cannot be accidentally turned off. Place it in an area
of unrestricted airflow around the unit, away from water, flammable liquids, gases, corrosives and conductive
contaminants. Maintain a minimum clearance of 100mm (4 inches) on each side of the UPS. Maintain an ambi-
ent temperature range of 0°C to 40°C (32°F to 104°F).
2. Connect equipment to the receptacles on the back of the PSA: computers and monitors should be connected to
the orange receptacles for battery backup and surge protection; other office machines that do not exceed the
capacity of the UPS may be plugged into either of the two black receptacles, which provide surge protection only.
3. Obtain a suitable input power cable with a minimum cross-sectional area of 1mm2 to connect the PowerSure
PSA to the mains supply socket.
4. Connect Phone/Fax/DSL/Internet/Modem devices to data line connectors.
5. Press and release the ON/OFF/Alarm Silence button to turn on the UPS. The UPS will beep and the Mains Indi-
cator will illuminate (green).
6. Turn on connected equipment.
Plug this type of equipment into
black receptacles ONLY
Plug monitors, computers, & cash registers
and routers into orange receptacles
Inkjet printers Scanners Fax machines
COMMUNICATIONS
The PowerSure PSA will communicate with your computer in either of two ways: over its DB-9 port through Lie-
bert’s MultiLink™software or by USB through Microsoft®Windows®operating system features.
MultiLink supplies useful monitoring data, such as input voltage and battery level, and will perform an orderly shut-
down of the computer system. Microsoft Windows XP and 2000 operating system utilities supply UPS status infor-
mation and will perform an orderly computer shutdown. Check your computer’s OS features to determine whether
it has power management capability.
For MultiLink Serial Communications
• Connect the provided MultiLink serial cable to the DB-9 ports on the rear of the UPS and on the rear of your
computer.
• Install the MultiLink software—the software, installation instructions and the user manual are on the CD included
in the PowerSure PSA package.
For USB Communications (with operating system power management)
• Connect the USB cable provided with the UPS to the USB ports on the PSA and your computer. The PSA will
work automatically with the built-in power management software on Windows XP and 2000 or later.
• All USB models are compatible with Microsoft Windows 2000, Windows XP and Macintosh®OS 10.2 or later.
CONTROLS AND INDICATORS
This button controls output power to the connected
load and has three functions:
• Turns the PowerSure PSA ON
• Turns the PowerSure PSA OFF
• Silences PowerSure PSA alarms
TURN THE UPS ON: Press and release the main ON/OFF
button to start the UPS. An audible alarm will sound briefly.
TURN THE UPS OFF: When the PSA is ON, hold the main
ON/OFF button down for more than 2 seconds to shut it down.
An audible alarm will sound briefly.
SILENCE AN ALARM: When a UPS alarm is active, press and
release the main ON/OFF button to silence the audible alarm
(Exceptions: low battery, overload and overtemperature). DO
NOT hold the button down for more than 2 seconds or the PSA
will shut down.
CHECK THE PSA’S CONDITION: Three status indicators on
the front of the UPS illuminate to specify the status of the UPS
(see Troubleshooting section for details).
TRANSFER VOLTAGE SELECTORS (DIP SWITCHES)
The two-position DIP switch
control on the rear panel,
shown at right, allows the
operator to select the mains
transfer voltage at which
the UPS will switch to bat-
tery power. The factory
default settings are
100VAC - 135VAC. DIP
switch positions for each
voltage setting are:
DIP switch settings
Left Right Nominal Mains Setting
↑Up ↑Up 230VAC 163 - 282VAC (default)
↑Up ↓Down 220VAC 155 - 270VAC
↓Down ↑Up 240VAC 171 - 291VAC
↓Down ↓Down 230VAC 163 - 282VAC
!
CAUTION
Never change the voltage settings while the UPS
is ON and powering connected loads. Change
DIP switches only when the UPS is OFF.
!
CAUTION
To ensure protection of the connected equipment,
the DIP switch settings should match the nominal
mains input voltage. DIP switch settings not
matching the nominal mains could potentially
damage connected equipment.
Fault Indicator
Green: Overload/
Overtemperature
Red: UPS fault
Mains Indicator
Green: Normal operation
Amber: Buck/Boost
mode
Battery Indicator
Green: On battery
Amber: Battery
warning
DIP Switches
Rear of UPS
SPECIFICATIONS
Model Number PSA350MT-230 PSA500MT-230 PSA650MT-230 PSA1000MT-230
Power Rating VA/W 350VA/ 210W 500VA/300W 650VA/390W 1000VA/600W
DIMENSIONS: mm (in.)
Unit
WxDxH
116x196x222
(4.6x7.7x8.7)
116 x 196 x 222
(4.6x7.7x8.7)
116 x 358 x 222
(4.6x14.1x8.7)
116 x 358 x 222
(4.6x14.1x8.7)
Shipping
WxDxH
196x310x293
(7.7x12.2x11.5)
196x310x293
(7.7x12.2x11.5)
242x500x316
(9.5x19.7x12.4)
242x500x316
(9.5x19.7x12.4)
WEIGHT: kg (lbs)
Unit 7.0 (15.4) 7.4 (16.3) 9.1 (20.1) 13.2 (19.1)
Shipping 8.2 (18.0) 8.5 (18.7) 11.2 (24.7) 15.3 (33.7)
INPUT AC PARAMETERS
Surge Protection 660J
Voltage Range Without
Battery Operation
155VAC - 291VAC, DIP switch selectable
(see “DIP switch settings” on page 1)
Frequency Range 46.5 - 63.5 Hz (±0.1 Hz)
OUTPUT AC PARAMETERS
Output Receptacles
(4) IEC-320-C13 (orange)
Battery backup + surge protection;
(2) IEC-320-C13 (black)
Surge protection
(6) IEC-320-C13
(orange) Battery
backup + surge
protection;
(2) IEC-320-C13
(black) Surge
protection
Output Power Cables 2m (6.6 ft.) detached IEC-320-C14
(Wire Type: 1mm2, H05W-F 3G)
Voltage (Normal mode) Nominal (220, 230, 240VAC) ±10%
Voltage (Battery mode) 230VAC ±8%
Output Current 1.5 A 2.1 A 2.8 A 4.3 A
Waveform (Battery mode) Stepped Sinewave
Frequency 50 Hz or 60 Hz; auto sensing
Overload Warning
(Normal & Battery modes)
>100%
Overload Shutdown >110%
BATTERY PARAMETERS
Type Valve-regulated, nonspillable, lead acid
QuantityxVoltagexRating (1)x12Vx7Ah (1)x12Vx9Ah (1)x12Vx9Ah (2)x12Vx7.5Ah
Transfer Time 4 - 6 ms typical
Backup Time At 25°C (77°F), resistive loading, with fully charged batteries:
Full Load 8 minutes 7 minutes 5 minutes 5 minutes
Half Load 22 minutes 21 minutes 15 minutes 16 minutes
Recharge Time 6 hours to 90% of rated capacity,
after full discharge into a resistive load
ENVIRONMENTAL
Operating
Temperature
0°C to +40°C
(+32°F to + 104°F)
Storage
Temperature
-15°C to +40°C
(+5°F to + 104°F)
Relative
Humidity
0% to 95%, non-
condensing
Operating
Elevation
Up to 3000m (10,000 ft.)
at 35°C (95°F) without
derating
Audible Noise < 40 dBA, at 1 meter
AGENCY
Safety
EN50091-1-1, TUV/GS
listed, CE compliance
mark
Surge EN61000-4-5, Level 3,
Criteria A
ESD EN61000-4-2, Level 3,
Criteria A
Susceptibility EN61000-4-3, Level 3,
Criteria A
Electrical Fast
Transient/
Burst
EN61000-4-4, Level 3,
Criteria A
Emissions EN50091-2, Class B
Conducted
Immunity EN61000-4-6
Harmonics EN61000-3-2
Flicker EN61000-3-3
Transportation ISTA Procedure 1A

SLI-23270QS (9/03)Rev.0
TROUBLESHOOTING
The information below indicates various symptoms a user may encounter in the event
the PowerSure PSA experiences a problem.
Use this information to determine whether external factors caused the problem. See
Troubleshooting Chart for suggested remedy.
GUIDE TO STATUS INDICATORS
1. The Fault indicator illuminates, indicating the UPS
detected a problem.
2. An alarm sounds, alerting that the UPS requires
attention. The alarm can be silenced except for low
battery, overload and overtemperature warning
conditions.
3. Mains and/or Battery indicators may be illuminated as
a diagnostic aid to the operator, as shown below:
Fault
Indicator
Mains
Indicator
Battery
Indicator Diagnosis/
Audible Alarm
—Green
ON —Normal operation with mains
power present; no beep.
—— Green
ON
UPS is operating on battery; beep
every 10 seconds.
—— Green
ON
Battery test has been initiated; no
beep.
—Green
ON
Amber
Flashing
Battery needs to be replaced; long
beep every minute.
—— Amber
Flashing
Low battery warning; beep every
half-second.
Green
Flashing
Green
ON —Overload warning, load is >100%; beep every half-second.
Green
Flashing ——
Overload shutdown, load exceeds
UPS capacity (110%); continuous
beep.
Green
ON
Green
ON —
Overtemperature (overtemp)
warning; beep every 5 seconds
(Normal mode).
Green
ON —Green ON
Overtemperature (overtemp)
warning; beep every 5 seconds
(Battery mode).
Green
ON ——
Overtemperature (overtemp)
shutdown; long beep every
5 seconds.
Red
Flashing
Green
ON —UPS is on, fault warning; continuous beep.
Red
ON —— UPS has failed & shut down; continuous beep.
Fault
Indicator
Mains
Indicator
Battery
Indicator
MAINTENANCE
The PowerSure PSA UPS requires very little maintenance. Follow these practices to
prevent problems.
CLEANING THE UPS
The following will help ensure trouble-free operation for years:
• Vacuum dust from the ventilation intake occasionally.
• Wipe the cover periodically with a dry cloth.
MAINTAINING BATTERIES
The batteries are valve-regulated, nonspillable, lead acid and must be kept charged to
retain their design life. The UPS continuously charges the batteries when connected to
the mains supply, even while the UPS is switched off.
When storing the UPS, it is recommended to plug in the UPS for at least 24 hours every
four to six months to ensure full recharge of the batteries.
BATTERY REPLACEMENT
This UPS is equipped with internal “hot swappable” batteries that the user can replace
without shutting down the UPS or connected loads.
!
CAUTION
A battery can present a risk of electrical shock and high short circuit
current. The following precautions should be observed before replacing
the batteries:
• Remove rings, watches, and other metal objects.
• Do not lay tools or other metal objects on top of the batteries.
• If the battery replacement kit is damaged in any way or shows signs
of leakage, contact your local dealer or Liebert representative imme-
diately.
• Do not dispose of batteries in a fire. The batteries may explode.
• Dispose of old batteries according to local codes.
NOTE
Caution should be exercised when replacing the batteries because the
load is unprotected from disturbances and power outages during this
procedure.
TROUBLESHOOTING CHART
If the UPS fails to operate properly, turn off the unit and repeat the steps in the Installa-
tion section of this manual. If the problem persists, refer to the chart below:
Problem Cause Solution
UPS
will
not
start
Overload/Short
Circuit
Check the circuit protector on the rear of the
UPS. If it is tripped, reset it and restart the
UPS.
For further help, call your local dealer,
Liebert representative or the Liebert
Worldwide Support Group.
Battery disconnected
or is completely
discharged
Check for proper connection of battery or
batteries.
UPS starts
on battery,
but will
not switch
to AC
UPS not plugged in Plug in the power cord securely.
Circuit protector
tripped
Reset the circuit protector and restart the
UPS.
Power not available
at mains receptacle
Have the mains checked by a qualified
electrician.
Input voltage
below threshold
Wait until the voltage rises to an appropriate
level or have the mains checked by a
qualified electrician.
AC overvoltage
Wait until voltage lowers to an appropriate
level or have the mains checked by a
qualified electrician.
UPS
shuts
down,
Fault
Indicator
lit
Overload/Short
Circuit
Check the circuit protector on the rear of the
UPS. If it is tripped, reset it and restart the
UPS.
If the problem persists, disconnect some of
the equipment from your UPS—the total
wattage of your equipment must not exceed
the capacity of the UPS.
For further help, call your local dealer,
Liebert representative or the Liebert
Worldwide Support Group.
Internal UPS fault
High temp shutdown
Make sure that the UPS is operating in 32°F
to 104°F (0°C to 40°C) and that it has
adequate ventilation.
MultiLink shutdown Consult the MultiLink user manual or contact
your LAN administrator.
UPS not
providing
expected
back-up
time
Overload Reduce load.
Battery not charged
due to a recent
outage
Recharge battery.
Battery needs to be
replaced Replace battery.
PRODUCT WARRANTY REGISTRATION
To register for warranty protection:
• Visit the Quick Links section of our
Web site at:
http://www.liebert.com
• Click on Product Warranty
Registration and fill in the form.
If you have any questions, please
contact us at:
US: 800-222-5877
Outside the US: 614-841-6755
[email protected]
BATTERY REPLACEMENT
Replacement requires removing the battery cover plate on the bottom of the UPS. No
tools are needed.
To replace the batteries:
1. Remove the battery
cover plate on the
back/bottom of the
UPS (Figure 1).
2. Pull the white tabs
toward you to
remove the battery
from the UPS
(Figure 2).
Figure 1 Figure 2
3. Disconnect the insu-
lated connectors
from the battery ter-
minals (Figure 3).
4. Insert a new battery
pack, and push the
connectors onto the
battery terminals
(black to black & red
to red) (Figure 4).
Figure 3 Figure 4
NOTE: There may be a small spark at the battery terminals when reconnecting
the connectors. This is normal and will not harm you or the UPS.
5. Push the battery
pack into the UPS
(Figure 5).
6. Reattach the battery
cover plate
(Figure 6).
Figure 5 Figure 6
