Liesegang Mayfair User manual

Bedienungsanleitung
User Manual
Mayfair
Mayfair pro
Liesegang Unternehmensgruppe

Table of contents
User Manual Multimedia Projector 1
1. Before use
2. Scope of delivery / accessories / disposal of packing material
3. Views and parts of the projector
4.
5. Connections
6. Starting operation
7. Using the remote control
8. Menu operation
9. Indicators lighting or flashing
10. Cleaning and replacing the air filter
1. Replacing the lamp cartridge
12. Specifications of LCD projector
2.1 Scope of delivery
2.2 Accessories
2.3 Disposal of packing material
4.1 Positioning
4.2 Projection distance and image size
4.4 Ventilation
4.5 Ceiling installation
5.1 Connecting a computer or a notebook PC
Using the remote control as the PC mouse
5.2 Connecting video equipments
7.1 Buttons on the remote control
7.2 Inserting batteries before operating
7.3 Using “General Function Keys” on the remote control
7.4 Using the “Mouse Keys” as wireless PC mouse
7.5 Using the “Hot Keys”
8.1 VGA and HDTV (YPrPr) input menu
8.2
Video input menu
1
Installation
13. FCC Compliance Statement for United States users
14. Service Hotline
15. Procuct Manufacturer
Glossar
Warranty Terms
3.1 Top, front and side view of the unit
3.2.Rear view
3.3 Bottom view
4.3 Projection Table
5.2
Factory Reset
8.3
9.1 Starting operation
9.2 Shutting off the projector
9.3 Abnormal status
2
8
13
19
26
29
29
29
30
31
8
9
9
10
10
10
11
11
11
12
12
13
13
16
26
26
26
26
10
11
21
28
14
19
19
19
20
20
20
21
22
23
27

Before use
The following notes are intended to be a help for handling the product in accordance
with its designated purpose.
Caution:
A person could be killed or injured if the wrong operation is done by ignoring this
indication.
_______________________________________________________________
Do not install this unit
in an unstable place.
Avoid placing it in an unstable place such as a weak base, an inclined floor, etc. This may cause the
projector to drop or fall over, resulting in injury.
Do not remodel
this unit.
Do not remodel this unit. It may cause a fire, an electric shock, etc.
Never use
theprojectorinahumid
environment.
Never use the projector in a humid environment, e.g. bathroom or close to cookers or
humidifiers. This could cause a fire, an electric shock, etc.
Only connect
to the specified mains voltage.
The projector must only be operated with the alternating current specified on the identification plate.
Please immediately check whether the supplied mains connection cable coincides with wall outlets at
the installation location.
Before use
User Manual Multimedia Projector 2
Do not forget
the protective conductors.
Only use extension leads or cables with a minimum cross-section of 1.5 mm² and protective
conductors.

Before use
3 Multimedia Projector User Manual
Do not apply any shock.
If you drop this unit or if the casing is broken, turn off the power switch, disconnect the power plug and
contact your dealer. If you use it as it is, it may cause a fire, an electric shock, etc.
If any abnormality occurs.
It there is abnormal smell or smoke, if you use this unit as it is, this could cause a fire or an electric
shock, etc. Immediately turn off the power switch and pull out the power plug. Contact your dealer to
repair the unit. Do not repair it yourself, as it is very dangerous.
Do not use this unit as it is after trouble has occurred. Immediately turn off the power switch and pull
out the power plug, then contact your dealer to have it repaired.
If water, etc., enters the unit, turn it off, pull out the power plug and contact your dealer to have
it repaired.
Be careful with the power cord.
Do not scratch, damage or modify the power cord. Do not bend it forcibly. Also do not put a heavy
object on it, do not heat it and do not pull it. If you do, the power cord may be damaged and it may
cause fire, electric shock, etc.
If the power cord is damaged (exposed or disconnected wire, etc.), replace it. It may otherwise cause
a fire, an electric shock, etc.
Make sure that no dirt adheres to the power plug and insert it until it stops. If
Do not look directly into the lens
when the lamp is switched on.
Do not look directly into the lens when the lamp is switched on. Since a powerful lamp is used, it could
damage your vision, etc.
Do not put a container, etc,
with liquid on this unit.
Do not put a vase, flower pot, cosmetic container, medicine or water on this unit. If liquid spills and
enters the unit, it may cause fire, electric shock, etc.

Before use
User Manual Multimedia Projector 4
Never leave the projector
switched on unsupervised.
Never leave the projector switched on unsupervised or let children play with it as unusual conditions
may occur which can cause a fire, an electric shock, etc.

Before use
5 Multimedia Projector User Manual
Attention !
Non-observance can lead to injury or damage.
_______________________________________________________________
Caution
when carrying the unit.
When the unit is to be moved, be sure to disconnect the power plug and check that all external
connection cords are removed before moving it. If not, the cord may be damaged and it may cause a
fire, an electric shock, etc.
Do not place this unit
where it gets hot.
Be careful if you place the unit outdoors, in a place exposed to direct sunlight or near a heating device,
the casing and parts could be affected.
Cleaning the projector.
Handle the projector as you would do any other device with glass components. Avoid impact or
dropping. Before cleaning the device disconnect the mains plug.
The worktop is covered with a scratch-resistant glass plate. If necessary, the glass can be cleaned
with a soft cloth and a conventional glass cleaner.
The casing can be cleaned with a soft, slightly moistened cloth and mild detergent. Avoid the ingress
of moisture into the inside of the equipment. Never use solvents or abrasive cleaners. Do not leave
cleaners inside the projector.
Handle the power cord carefully.
Do not bring the power cord near a heating device. The cord’s shield may melt and it may cause a fire,
an electric shock, etc.
Do not insert / disconnect the power plug with wet hands. It may cause an electric shock.
Do not pull the power cord when the power plug is to be disconnected. The power cord may be
damaged and it may cause a fire, an electric shock, etc. Be sure to seize the power plug.
Do not step on this unit.
Do not put a heavy object on it.
Do not step on this unit or put a heavy object on it. Pay attention when children are present. If you do,
the unit may fall over or may be broken causing an injury.

Before use
User Manual Multimedia Projector 6
Never block
the ventilation slots.
Never block the openings for the ventilation or place objects in the projector. Heat may
accumulate inside the projector and it may catch fire.
Set the caster stoppers.
When this unit is installed on a table with casters, set the caster stoppers. If the table moves, it
may fall over, causing an injury.
If you do not use
the unit for a long time.
If you do not use the unit for an extended period of time, be sure to pull out the power plug from
the power outlet.
Replacing the lamp.
Switch off the projector and disconnect the mains plug before replacing the lamp. Let the device
cool down, as the lamp and other components in the projector casing have heated up during
operation, which can cause injury when touched.
Do not place this unit
in a moist or dusty place.
Do not place this unit in a moist or dusty place. It may cause a fire, an electric shock, etc. Do
not place this unit where it would be exposed to soot or steam, near a cooking stove or humidifier,
etc. It may cause a fire, an electric shock, etc.
Volume.
Use a volume level that does not bother persons in the neighborhood. Especially, since the sound is
likely to carry well at nighttime even at a low volume, be careful to choose a suitable level.
Clean the projector inside
at least once a year!
Ask your dealer to clean the unit inside once a year. If the unit is left with too much dust inside it may
cause fire.

Before use
7 Multimedia Projector User Manual

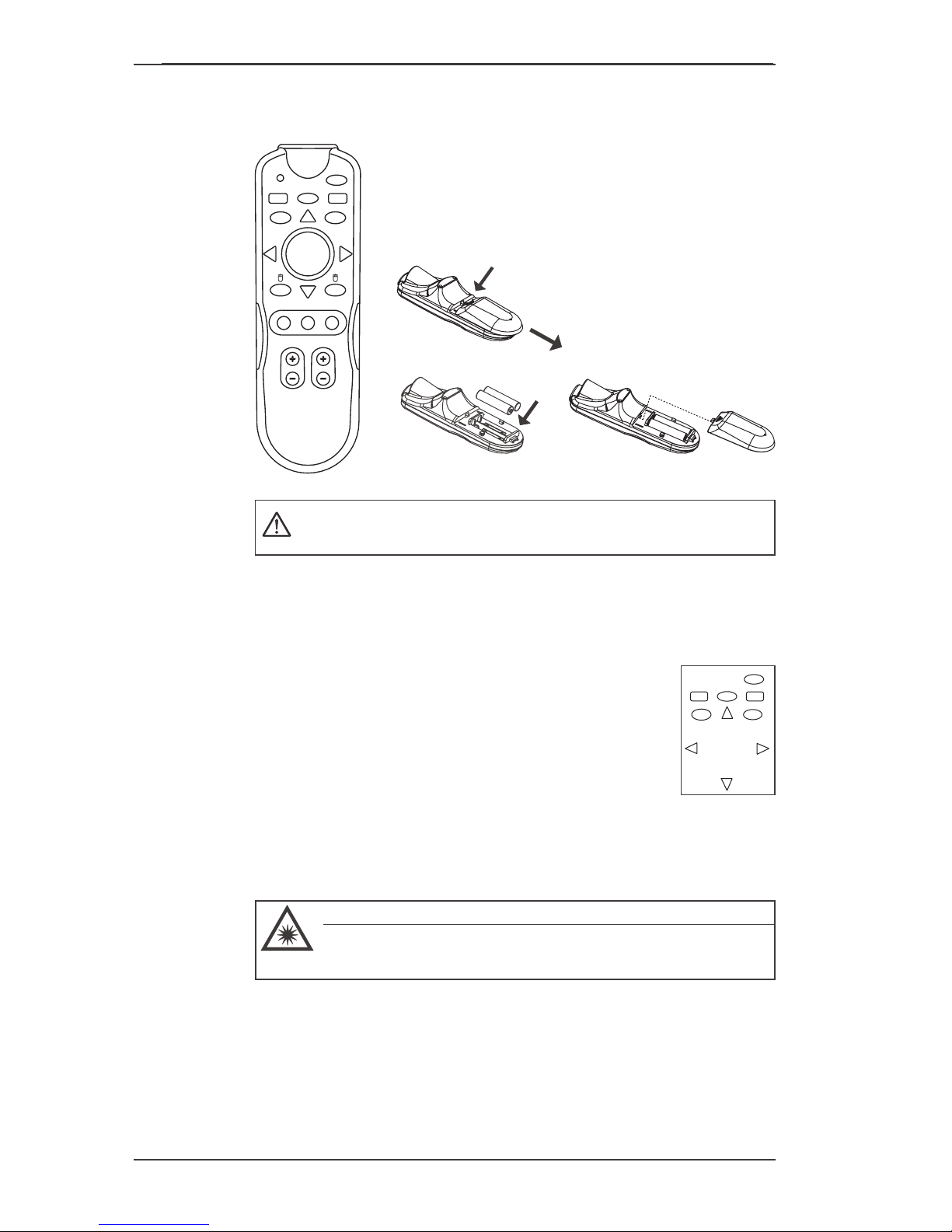

Use of batteries.
Do not use batteries not specified for this unit. Do not use new batteries mixed with old ones. This may
cause a fire, injury due to burst of battery, liquid leakage.
When inserting batteries in this unit, pay attention to the direction of the + and - polarities and insert
the batteries correctly. If the polarities are confused, it may cause injury or damage near the unit due
to burst batteries, liquid leakage, etc.

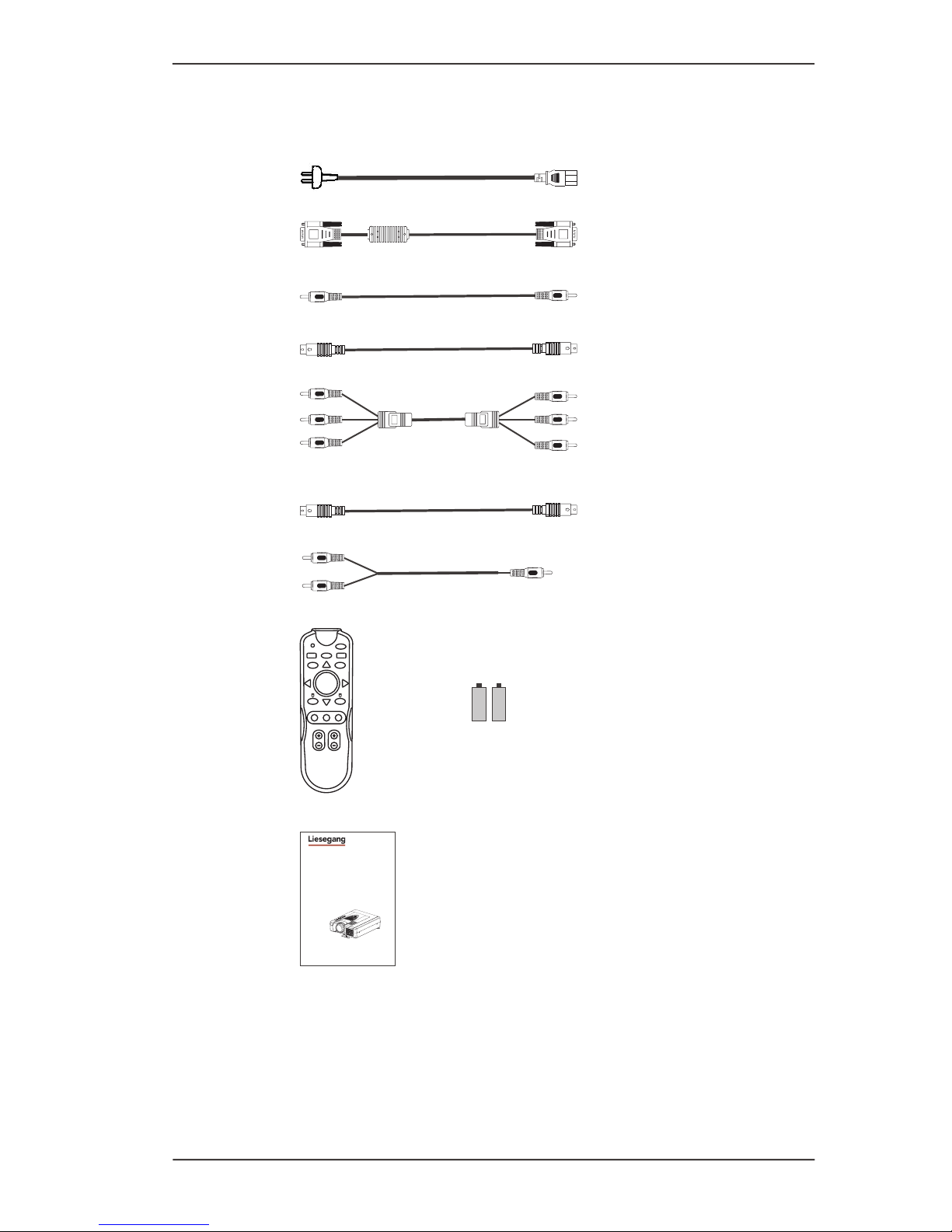

VGA cable (1.8 m / 6.0ft)
S-Video cable (1.8m / 6.0ft)
PS/2 mouse cable
(1.8m / 6.0ft)
Remote control and batteries
+
AAA battery x 2
Video cable (1.8m / 6.0ft)
Air Filter
Component YCbCr cable
(1.8m / 6.0ft)
Scope of delivery / Accessories / Disposal of packing material
User Manual Multimedia Projector 8
AC power cable (1.8m / 6.0ft)
COX-02
User Manual
Bedienungsanleitung
Mayfair
Mayfair pro
Liesegang Unternehmensgruppe
2
2.1
Scope of delivery, accessories, Disposal of packing material
Scope of delivery
R
Standbild
Lautstärke ZOOM
L
TrapezkorrekturStumm
LASER
ENTER
Ein/Aus
ESC
Quelle Menü
U
D
LR
Audio-Kabel (1.8m)

Scope of delivery / Accessories / Disposal of packing material
9 Multimedia Projector User Manual
2.2
2.3
Accessories
Disposal of packing material
The following accessories are available:
Monitor splitterbox, Boosterbox, booster extension cables, HDTV Cable, Ceiling
mount, replacement bulb
In case of extreme operating conditions – examples: >8-hour-operation, severe
vibrations, great temperature fluctuations, heavy nicotine or other aggressive
smoke, heights exceeding 3000 m – please contact your dealer. We recommend
that you conclude a maintenance contract.
The projector features its own electronic multi-range power supply with automatic
switching. It must only be operated with 100 V - 240 VAC with a frequency of 50 Hz
to 60 Hz. The unit must only be connected to a properly installed network with
protective conductor. Please check immediately whether the supplied mains cable
is compatible with the mains sockets on-site. Please contact your supplier if a
different power supply cable is required for use abroad.
The transport packing consists only of materials which may be disposed.
the transport packing offers perfect protection for the product and should
be kept for further transport
In case of extreme operating conditions:
Important note
Remark:
etc.

Keypad and indicators
Adjustable foot
(6-6, p17)
Exhaust vents
Speaker
Lens
(6-7, p 18)
Air filter
(p 26)
3.3 Bottom view
Remote sensor
(front)
Front adjustable foot
(6-6, p 17)
Lamp cover
(p. 27)
Lamp cover screws
(p. 27)
3.1 Top, front, and side view of the unit
(with control buttons, indicators and input sources)
3.2 Rear view
Remote sensor
(rear)
Power Cablel (6-2, p 16)
Rear adjustable foot
(6-6, p 17)
Cooling fans and
ventilation slot
Input sources
Strom Lampe Temperatur
MENÜ
ENTER
TRAPEZKORREKTUR
ZOOM
QUELLE ESC
Strom
Views and parts of the projector
3Views and parts of the projector
VGA
S-VIDEO
AUDIO
MAUS
YCb Cr VIDEO
User Manual Multimedia Projector 10

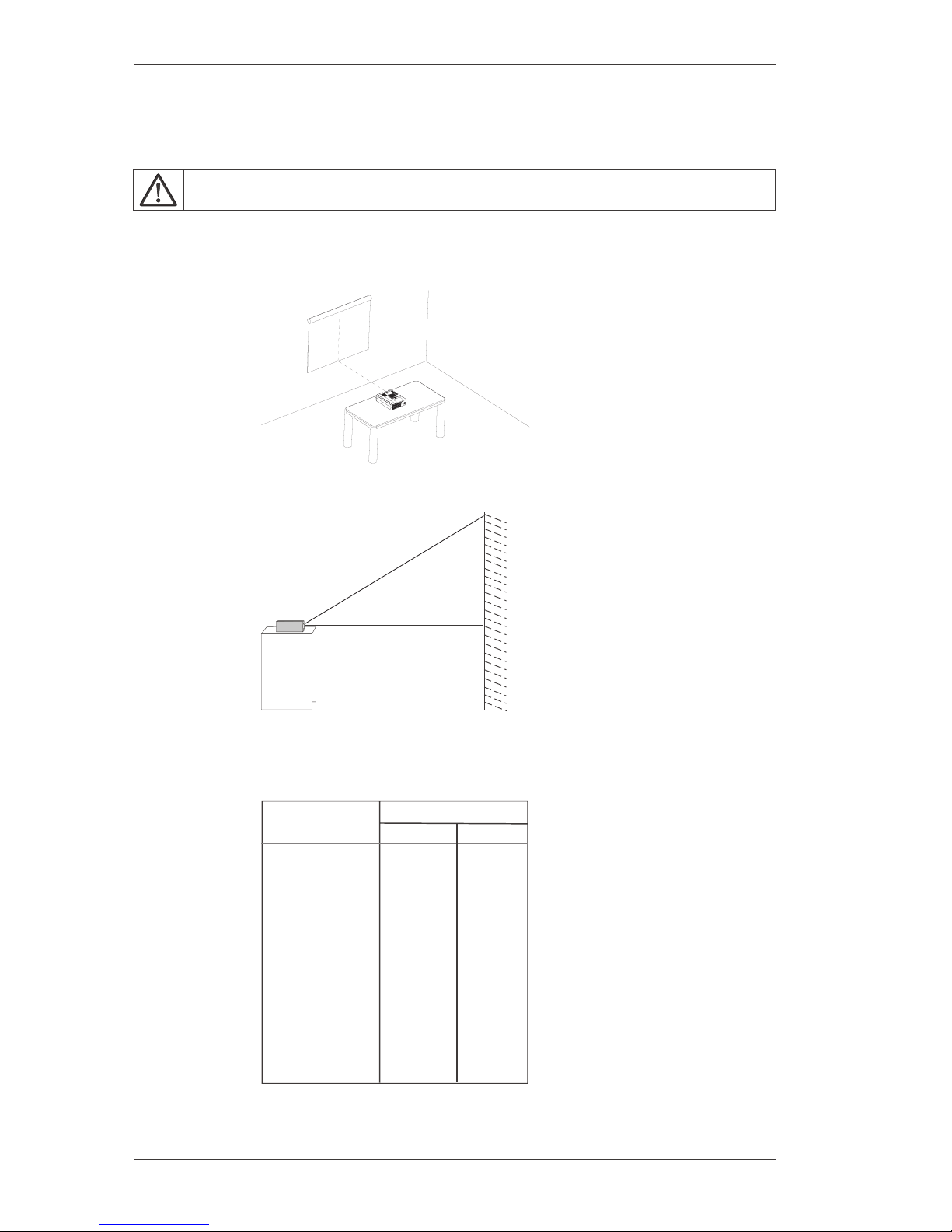

4.1 Positioning
Please place the unit on a solid plat level surface.
4.2 Projection distance and image size
Please read the important safety information (p2) carefully before installation.
The distance from projector lens to the screen
will determine the size of the projected image.
The maximum image size is about
290 ~ 378 inches (about 7.3 ~9.6 meter)
diagonally at a distance of 15 meter.
Projection Table4.3
1,0
2,0
3,0
4,0
5,0
6,0
7,0
8,0
9,0
10,0
11,0
12,0
13,0
14,0
15,0
0,7
1,3
2,0
2,6
3,2
3,8
4,5
5,1
5,8
6,4
7,0
7,7
8,3
9,0
9,6
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
4,4
4,9
5,4
5,9
6,4
6,9
7,4
Projektionsabstand
(m)
Bildgröße (diagonal)
Tele (m)
Breit (m)
* "Wide" and "tele" means the maximum and minimum image size diagonally at the
same distance by adjusting lens to zoom.
Installation
11 Multimedia Projector User Manual
4 Installation

- Please do not place any object near the ventilation slots of the projector within
30cm distance.
- Please prevent any scraps or lint suck into ventilation slots or use the projector
in the dusty environment.
- Please do not operate the projector while the ambient temperature or the
humidity is too high.
- Please use the projector at plate level and use the adjustable feet to adjust the
height. Do not operate the projector upside down or at an inclined level. This
may damage the projector.
The ceiling mount is an optional accessory. Please contact qualified service
personnel or agent for further information or service.
Mayfair / Mayfair pro can be installed on the ceiling for education, conference
and home entertainment applications.
Installation
User Manual Multimedia Projector 12
4.4
4.5
Ventilation
Ceiling installation

PS/2 mouse cable
(accessory)
Audio cable
(not supplied)
Desktop-PC or Notebook
VGA cable
(accessory)
VGA cable
(accessory)
Audio cable
(not supplied)
Desktop-PC or Notebook
VGA
S-VIDEO
AUDIO
MAUS
YCb Cr VIDEO
VGA
S-VIDEO
AUDIO
MAUS
YCb Cr VIDEO
5 Connections
5.1
5.2
Connecting a computer or a notebook PC
Using the remote control as the PC mouse
Connections
13 Multimedia Projector User Manual

Composite video cable
(Accessory)
S-Video cable (accessory)
Connecting a VCD/DVD player, digital camcorder by using a S-Video cable
Connecting a VCR/VCD/DVD player, digital camcorder by using a composite video cable
Audio cable (not supplied,
optional)
S-VIDEO
LR
Audio
VCD / DVD-Player,
digitaler Camcorder
LR
Audio
VIDEO
Component-YcbCr cable
Connecting a DVD player by using a component video cable (YCbCr)
DVD-Player
YCb Cr
LR
Audio
Composite video images
S-Video images
Component images: YcbCr
VCD/DVD-Player,
digitaler camcorder
Connections
User Manual Multimedia Projector 14
5.3 Connecting video equipments
VGA
S-VIDEO
AUDIO
MAUS
YCb Cr VIDEO
VGA
S-VIDEO
AUDIO
MAUS
YCb Cr VIDEO
VGA
S-VIDEO
AUDIO
MAUS
YCb Cr VIDEO
Audio cable (not supplied,
optional)
Audio cable (not supplied,
optional)

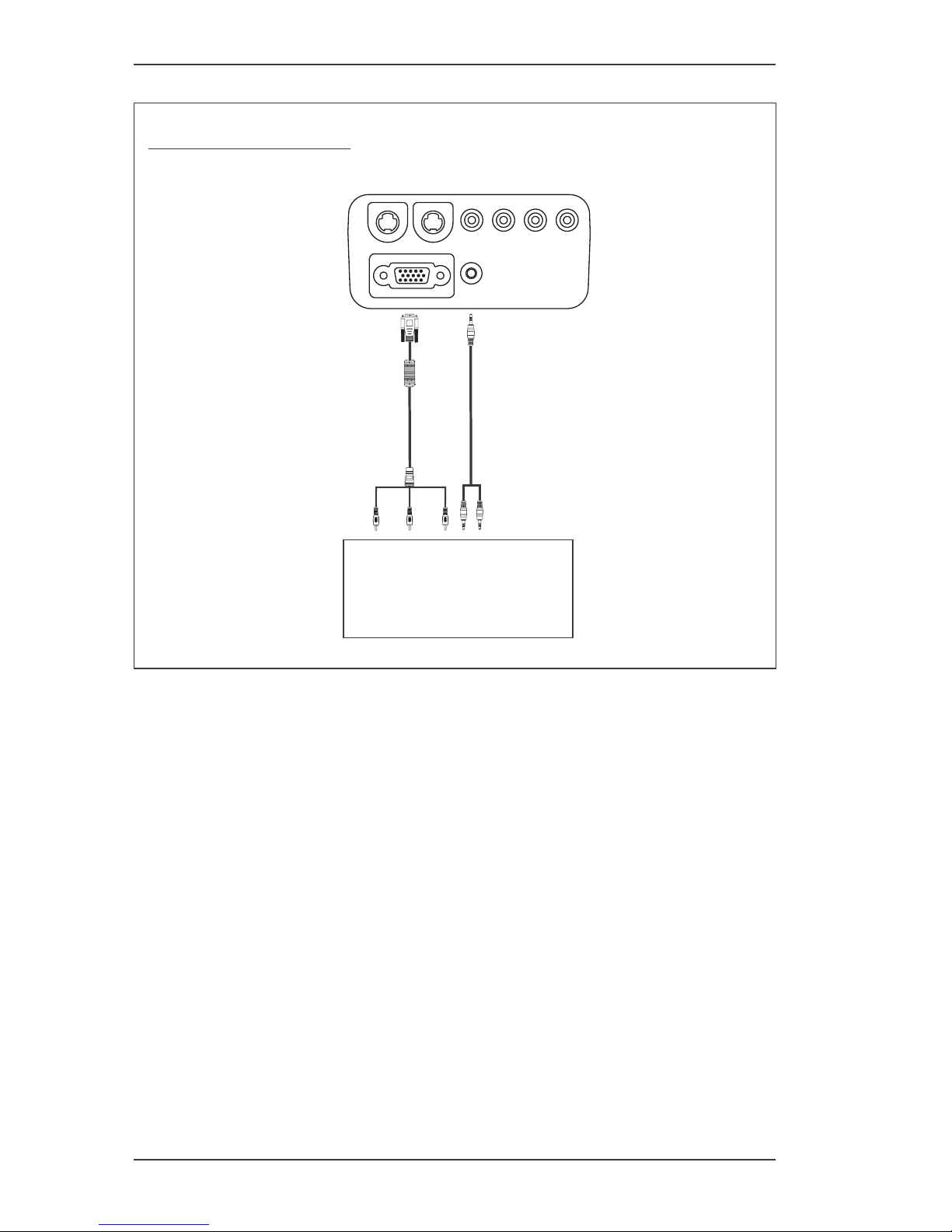

Connecting a DVD player or set-top-box by using a YPbPr to VGA converting cable
* If your DVD player does not support Macrovision (video copy protection) -encoded
function, please use YCbCr video input as your component video source.
Component images: HDTV
Audio cable
()not supplied, optinal
DVD-Player, Set-Top-Box
YPb Pr LR
Audio
HDTV cable
(not supplied, optinal)
VGA
S-VIDEO
AUDIO
MAUS
YCb Cr VIDEO
Connections
15 Multimedia Projector User Manual

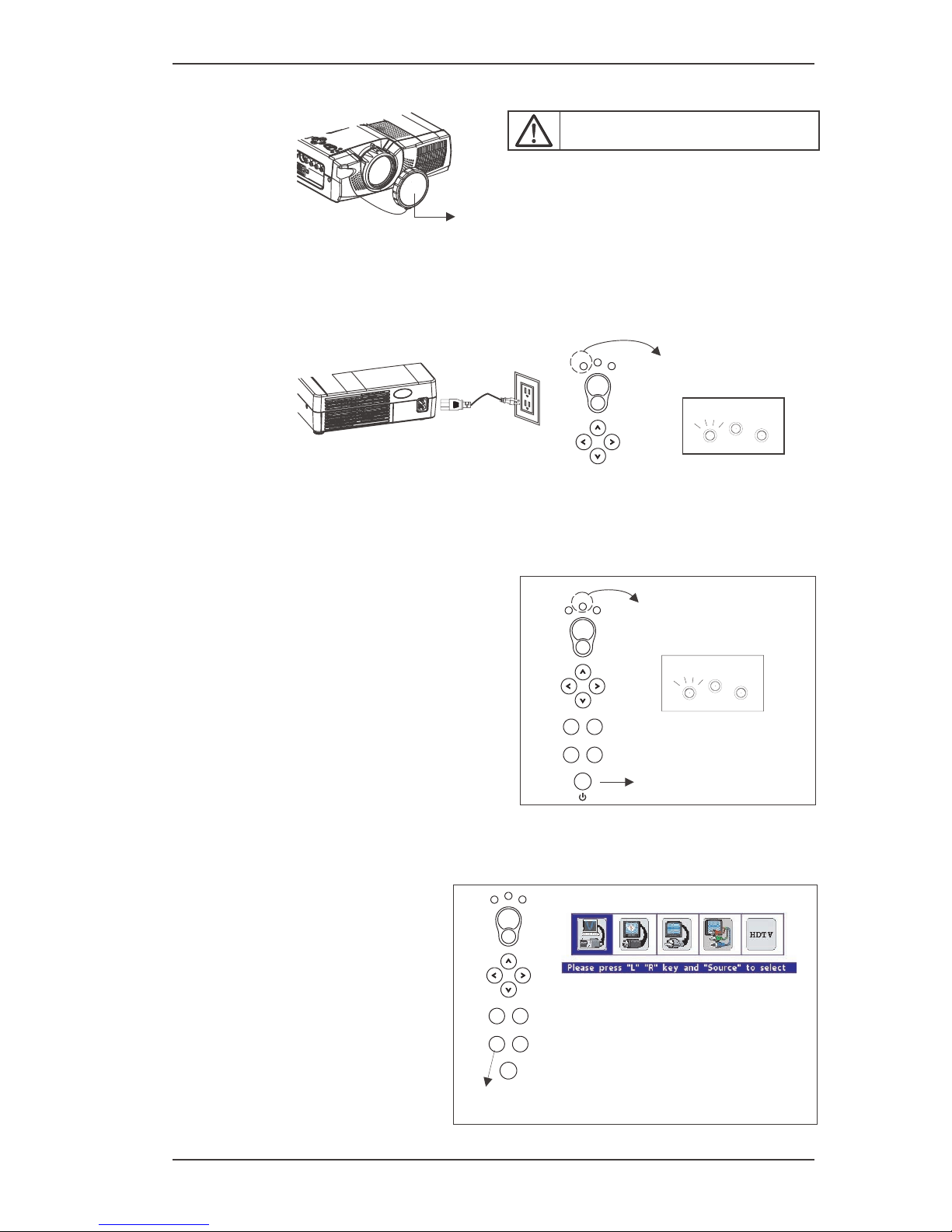

D) Press the button on the keypad or the remote control to
select the input source manually.
"SOURCE”
E) Press the “Source” button again to confirm.
3 Press "POWER" button on the keypad or the remote control to start operating
the projector. “Power" indicator turns GREEN and continues flashing for 30
seconds until lamp lights on. If the lamp successfully lights up, the indicator
will stop flashing and the projected image appears.
4 Turn on the connected input source (PC, video equipment, etc.)
User can press the "SOURCE" button on the kkeypad or the remote control to
select input signal manually.
A) “Power" indicator flashes RED
once the power cable is
connected.
1. Connect a PC or video equipment to the projector
2. Connect the power cable
The three indicators will flash RED and the cooling fan will operate at slow
speed.
(Connection see p 13 - 15)
.
Lens Cap
Lampe Temperatur
Power
Power
B) Press " " to start operation.POWER .
C) "Power" indicator turns GREEN
and flashes. It will stop flashing
once the lamp lights on.
Lampe Temperatur
Power
Power
User Manual Multimedia Projector 16
Starting operation
6Starting operation
Remove the lens cap before starting
operation.

6. User can use the adjustable feet to adjust the height of projected image.
- Press the adjuster button upward to loosen
the extendable leg unti the position of image
is satisfactory.
- Release the button and the leg will be locked.
6.1 Front adjustable foot
6.2 Rear adjustable foot
(1) Press
(2) Adjust the adjuster leg
- Rotate the rear adjuster and adjust the level
(See 4.2, p11 for projection
distance and projected image
size.)
Down
Up
Projection screen or wall
Distorted Richtig Distorted
Correct

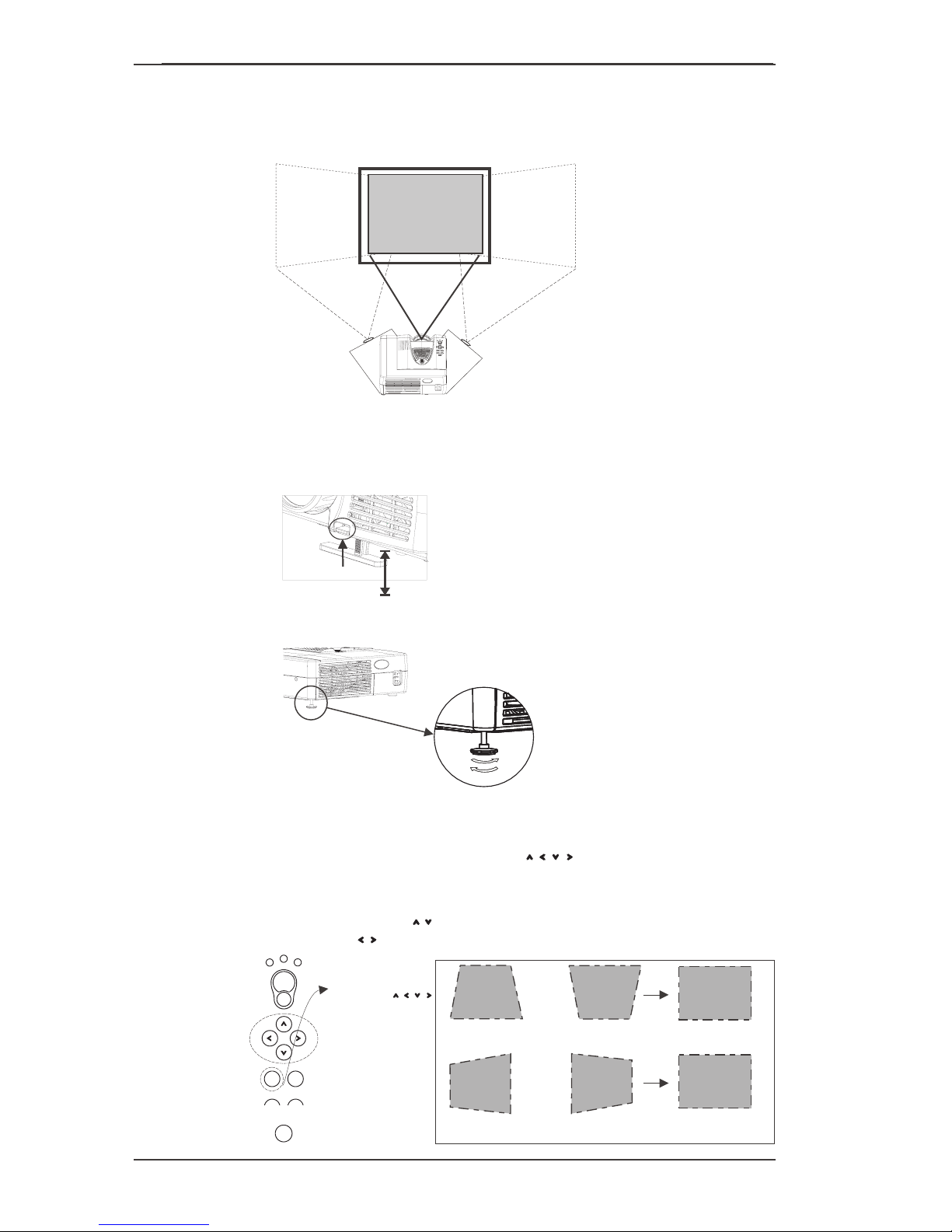

5. Adjust the position of the unit
Move the unit to the position where the projected image's size is appropriate
and horizontally centered to the screen or wall.
Distorted image Vertical keystone correction
Or
Distorted image Horizontal keystone correction
Or
7. Adjust the position of the projected image
If the projected image is offset, user can press the " button on the
keypad (or the remote control) and use keys for further adjustment
until the image is square.
The adjustable angle of keystone correction of Mayfair / Mayfair pro is +/-15
degree. When pressing keys, it will proceed vertical keystone correction and
when pressing keys, it will proceed horizontally.
KEYSTONE"
Press
""
button and
to adjust the
position of
projected image.
KEYSTONE
KEYSTONE
Starting operation
17 Multimedia Projector User Manual

User can use the following buttons on the keypad
or the remote control while operation if needed.
- : On-Screen Display window (OSD) shows
up and user can press or and to select
the element and adjust.
( see p12~14 for OSD introduction)
- (digital): user can use<,>onthekeypad
or +, - on the remote control to zoom the image.
- : Cancel OSD window.
MENU
ENTER
ZOOM
ESC
Menü
Enter
Zoom
Esc
Zoom adjuster
Fokus ring
User Manual Multimedia Projector 18
Starting operation
8. Adjust the image size
User can use Zoom adjuster near the lens to adjust the size of image after
positioning the unit. Then, use "Focus ring" to adjust the focus for a clear
image.
10. After using the unit
Press "POWER" on the keypad or the remote control and a shut-off window
shows up. If user confirms to turn off the projector, press "POWER" button again
and the lamp will shut off.
The "Power" indicator will light GREEN and continue flashing for 3 minutes.
9. Other functions by using the keypad or remote control
Please do not disconnect the power cable before "Power" indicator
lights RED.
"Power" indicator lights
GREEN and turns to
RED after 3 minutes.
Shut-off window shows up. Press
"POWER" again to confirm.
Power
After the lamp turns off, the cooling fan will continue running for 1.5 minutes to
cool down the lamp in order to keep it in good condition.
When the "Power" indicator turns RED, user can disconnect the power cable.
Mayfair / Mayfair pro is designed not able to restart when the projector
just shuts off and the cooling procedure is still going on. User must wait
until the cooling procedure completely finishes before restarting the unit.

7.2 Inserting batteries before operating
Mayfair / Mayfair pro attaches two AAA batteries as
accessories. If the electricity is used up, please purchase
and replace new ones of the same type.
Those functions are the same on the keypad.
- : turning on the unit and starting operation.
- selecting the input source manually such as VGA
(connecting computer), Video, S-Video, YCbCr, or
HDTV (YPbPr).
- : On-Screen Display menu (OSD) and adjust the
picture elements. Using " " button to enter OSD
components or using " " to cancel OSD.
- : pressing the button to use the remote control as
a laser pointer.
POWER
SOURCE:
MENU
ENTER
ESC
LASER
1. If the remote control gets wet, please wipe it dry immediately.
2. If you will not use the remote control for a long time, remove the batteries.
3. Do not mix new and old or different types of batteries.
Press the button and slide to remove
the cover.
R
Freeze
Volume ZOOM
L
Keystone
Mute
LASER
ENTER
Power
ESC
Source Menü
U
D
LR
Power
Source Menü LASER
ESC ENTER
R
L
U
D
7
7.1
7.3
Using the remote control
Buttons on the the remote control
Using "General Function Keys" on the remote control
Do not point LASER pointer to anyone's eyes or stare into beam.
Laser Beam:
Laser type: Class 2, Wavelength: 650nm,
Output: 0.45-0.80 mWW
Using the remote control
19 Multimedia Projector User Manual
