Introduction
Thank you for purchasing this quality product. To minimize t e risk of injury we urge t at our
clients take some basic safety precautions w en using t is device. Please read t e operation
instructions carefully and make sure you ave understood its content.
The electric part of the device contains no parts that can be inspected or serviced by the user. Leave
the maintenance, adjustment and repair to qualified technical personnel. In case of unauthorised
intervention the 2-year warranty is no longer valid! Keep these operation instructions safe.
© by WilTec Wildanger Tec nik GmbH Seite 2
ttp://www.WilTec.de
ttp://www.aoyue.eu
ttp://www.teic tip.de

IMPORTANT NOTICES
Please pay special attention to statements preceded by the following words:
WARNING:
A warning is used to alert the user to fact that hazardous operating and
maintenance procedures may result in injury to or death of personnel if not
strictly observed.
AUTION:
A caution is used to alert the user to fact that hazardous operation and
maintenanceprocedures may result in injury to or death of personnel if not
strictly observed.
NOTE:
Give helpful information.
This manual is filled with important safety information — please read it carefully. This manual should
be considered as a permanent part of the water pump set and should remain with the water pump set
when resold.
1. SAFETY GENERAL RULES
Before operating, read the manual carefully and be sure to become familiar with it, otherwise
personal injury of death as well as severe parts damage may occur.
Before operating, perform the pre-operation inspection to make your operation on the
waterpump safer.
For the sake of safety, it is forbidden to pump inflammable or corrosive liquids (such as
gasoline or acid). Similarly, be sure not to pump corrosives such as seawater, chemical
solution, and alkaline liquids.
Locate the water pump on a firm and level ground. A sloped or over turned water pump may
result in fuel spilled out.
 Operate a water pump in a well-ventilated place without fire resources and keep it at least
one meter from other devices.
 Because touching hot parts of the engine may get severe burns when operating the water
pump, keep children and pets far away from the operating site.
Master the method to quick stop the water pump; learn manipulating control devices. Using
the water pump without following the instructions in the manual is forbidden.
WARNING:
 Gasoline is extremely inflammable and explosive in certain conditions.
 Filling gasoline in a well-ventilated place with engine stalled. In gasoline
filling and storage sites, be sure there are no smoking and fire resources
such as flame, fire spark and so on.
 Do not spill gasoline out of the fuel tank. After filling, make sure to tighten
the fuel filler cap.
 When filling, avoid spilling gasoline out, for spilled gasoline and gasoline
vapor is prone to ignite. Once gasoline is spilled out, make sure to wipe it
up before operation.
© by WilTec Wildanger Tec nik GmbH Seite 3
ttp://www.WilTec.de
ttp://www.aoyue.eu
ttp://www.teic tip.de

 Don’t run the engine in an enclosed room and poor-ventilated place, since
exhaust emission from the engine contain toxic carbon monoxide ( O),
which may make people lose consciousness, even lead to death.
2. PARTS DESCRIPTION
(Fig.1)
3. PRE-OPERATIO PREPARATIO
3.1 Connecting water inlet pipe
Use commercially available hose, hose joint and clamp. The water inlet hose must be of continuous
structure and be non-folded. The length of the hose should be as the same as or not more than that
required. The effect of suction is greater the shorter distance from the water surface.
Suction time varies with the length of the water inlet hose in direct ratio. The filter matching with the
water pump should be mounted to the end of the water inlet hose with a hose clamp.
(Fig.2)
AUTION:
 Before pumping, install the filter securely to the end of the water inlet hose. The
filter flits any impurity, which may produce passage jam to damage impellers.
 Be sure to install the hose joint and clamp well so as to prevent from air leaks
and pumping performance drop; loose water inlet hose will decrease the water
pump performance and self-suction ability.
© by WilTec Wildanger Tec nik GmbH Seite 4
ttp://www.WilTec.de
ttp://www.aoyue.eu
ttp://www.teic tip.de

3.2 Connecting t e water outlet ose
Use commercially available hose, hose joint and clamp. A short hose with a big diameter is the
best. A long hose with small diameter will increase flowing resistance and decrease the power output
of the water pump.
NOTE
Tighten the hose clamp to avoid falling off under high pressure.
3.3 Engine oil level c eck
AUTION:
 The quality of the engine oil is one of the key factors in deciding engine
performance and service life. Not apply filthy engine oil or vegetable oil.
 Be sure to check engine oil level with the engine stalled and stand vertically in
level ground.
Use 4-stroke gasoline engine oil engine oil equivalent in quality with SF, SG from API. Oil velocity
varies with average temperature; please select engine oil with proper velocity according to your local
temperature.
ENGINE OIL ALARM SYSTEM
The engine oil alarm system is intended to avoid engine damage due to engine oil too low in the
crankcase.
(Fig.3)
Before the engine oil level in the crankcase drops down below the safety line, the alarm system will
turn off the engine automatically (while the engine switch keeps at O ).
If the engine stops and cannot restart, check the engine oil level first.
Remove the engine oil dipstick and wipe it clean;
Re-insert the dipstick into engine oil filler hole but not
screw it in, and then take it out to check the engine oil
level; if the engine oil level is too low, fill specified
engine oil up to the top of the filler hole.
© by WilTec Wildanger Tec nik GmbH Seite 5
ttp://www.WilTec.de
ttp://www.aoyue.eu
ttp://www.teic tip.de

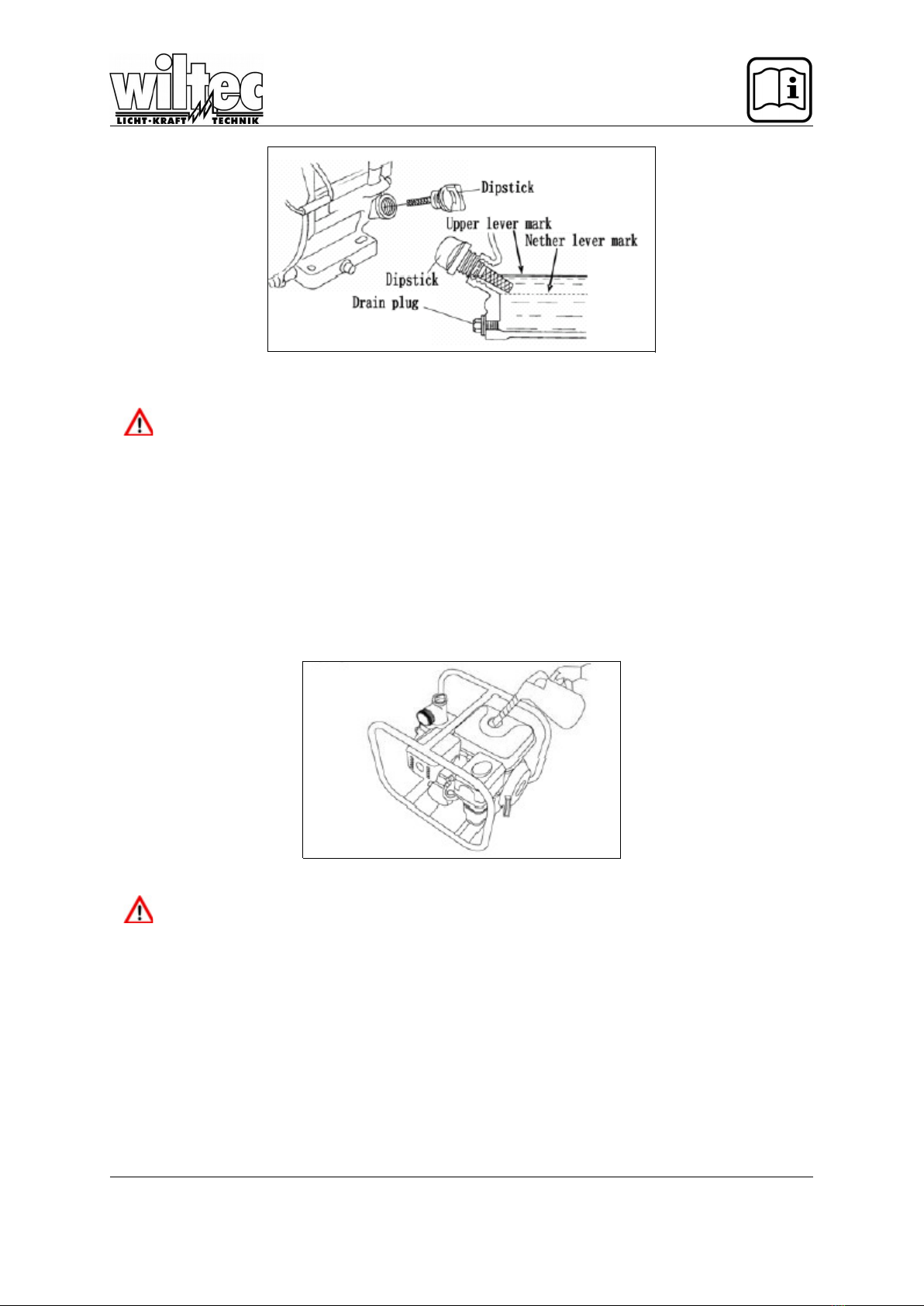

(Fig.4)
AUTION:
Running with insufficient engine oil can damage the engine severely.
3.4 C eck fuel level
Remove the fuel tank cap and check the fuel level, if the fuel level is too low, refuel more.
Only use specified gasoline in the manual (Recommend to use unleaded gasoline).
Do not use the combination of engine oil and gasoline or filthy gasoline. Avoid dirt, dust and
water into the fuel tank.
Fuel tank capacity
80ZB30-4,8Q......................3.6L
(Fig.5)
WARNING:
Gasoline is extremely inflammable and explosive in certain conditions.
Refueling in a well-ventilated area with the engine stalled. In places refueling or
fuel storage,
no smoking, flames and spark.
Do not spill fuel out of the fuel tank (no gasoline in fuel filler neck), after refueling,
make
sure to put the fuel tank cap back securely.
When refueling, be careful not to spill gasoline. Spilled gasoline and gasoline
vapor may
ignite. If there is spilled gasoline, be sure to wipe it dry before starting the engine.
Avoid repeated or sustained breathing and touch gasoline with skin.
Keep out of reach of children.
© by WilTec Wildanger Tec nik GmbH Seite 6
ttp://www.WilTec.de
ttp://www.aoyue.eu
ttp://www.teic tip.de

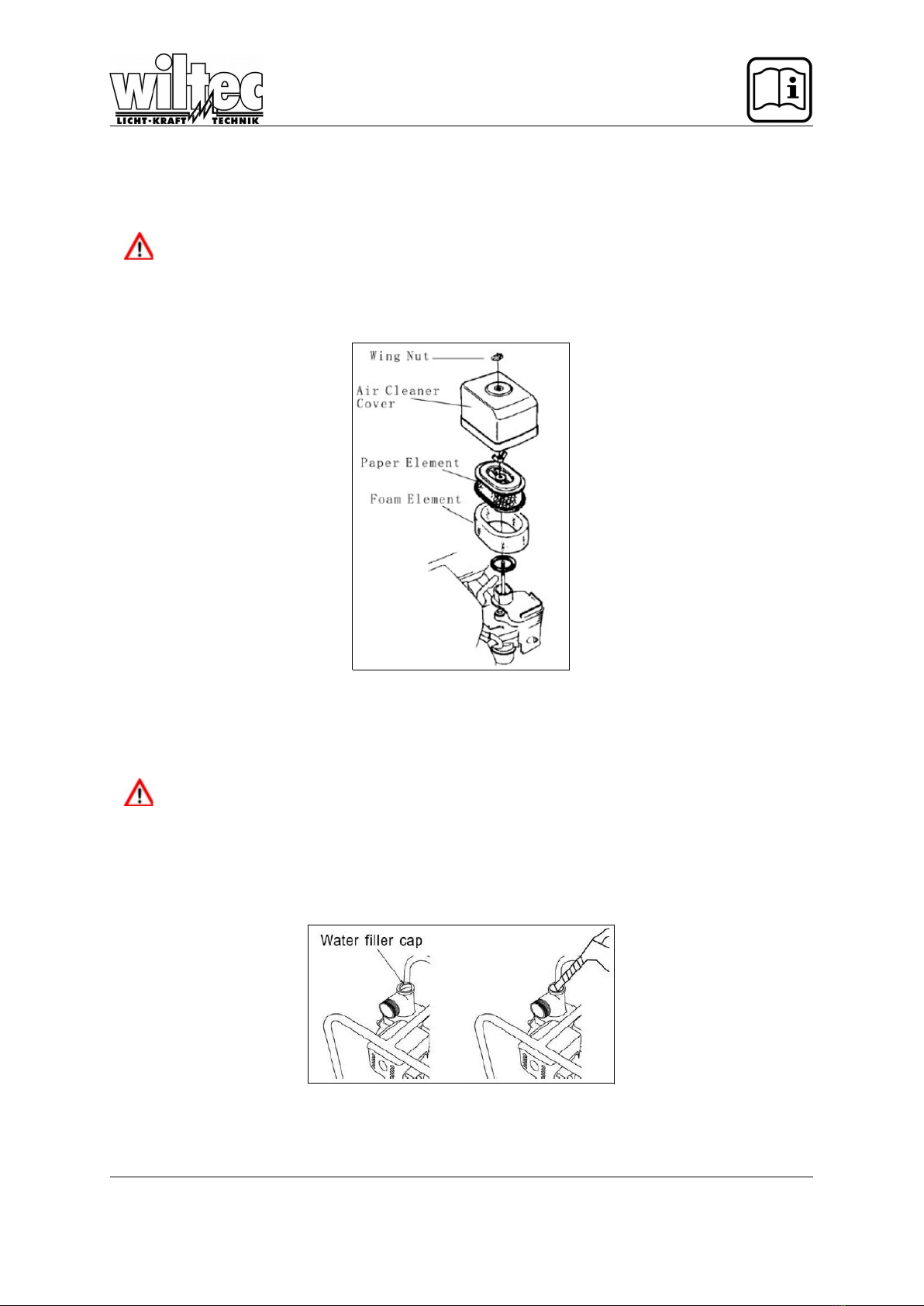

3.5 Air cleaner filter element c eck
Dismount the thumbnut, washer and air cleaner cover.
Check the filter element, if too filthy or clogged, clean it.
AUTION:
Do not run the engine without the air cleaner installed,otherwise dirt, dust and
other staff will be inhaled into the engine through the carburetor, resulting in
premature wear of the engine.
(Fig.6)
3.6 Water capacity c eck in t e pump
Before operating the pump, make sure to fill the pump with enough water.
AUTION:
Do not running the pump without water inside; otherwise the pump will become
overheated.
Prolonged running of the pump without water will damage the pump gasket. If the
water in the pump is used up, stop the engine at once and fill up water once it
cools down.
(Fig.7)
© by WilTec Wildanger Tec nik GmbH Seite 7
ttp://www.WilTec.de
ttp://www.aoyue.eu
ttp://www.teic tip.de

4. OPERATION
4.1 Before operation
For your safety, and to maximize the service life of your equipment, it is very important to take a few
moments to check its condition before you operate the pump. Be sure to take care of any problem you
find, or have your service dealer to correct it.
Make sure the pump is on a level surface and the engine switch is in the OFF position.
To prevent fire hazards, keep the pump at least 1 meter (3 feet) away from building walls and other
equipment during operation. Do not place flammable objects close to the engine.
Exhaust gas contains poisonous carbon monoxide. Avoid inhalation of exhaust gas. ever run the
engine in a closed garage or confined area.
AUTION:
Improperly maintaining this pump, or failing to correct a problem before
operation, could
cause a malfunction in which you could be seriously injured.
Always perform a preparation inspection before each operation, and correct any
problem.
4.1.1 Check the Condition of the Pump
Look for signs of damage.
Look around and underneath the pump for signs of oil or gasoline leaks.
Remove any excessive dirt or debris, especially around the engine muffler, and recoil
starter.
4.1.2 Check the Suction and discharge Hoses
Check the general condition of the hose. Be sure the hoses are in serviceable
condition before connecting them to the pump. Remember that the suction hose must
be reinforced construction to prevent hose collapse.
Check that the sealing washer in the suction hose connector is in good condition.
Check that the hose connectors and clamps are securely installed.
Check that the filter is in good condition and is installed on the suction hose.
4.1.3 Check the engine
Check the oil level. To avoid the inconvenience of an unexpected shutdown by the
engine oil alarm system, always check the engine oil level before startup.
Check the air cleaner. A dirty air cleaner will restrict air flow to the carburetor, reducing
engine and pump performance.
Check the fuel level. Starting with a full tank will help to eliminate or reduce operation
interruptions for refueling.
4.2 Starting t e Engine
4.2.1 Prime the pump.
4.2.2 Move the fuel cock to the ON position.
4.2.3 To start a cold engine, move the choke level to the CLOSED position. To restart a warm
engine, leave the choke level in the OPEN position.
© by WilTec Wildanger Tec nik GmbH Seite 8
ttp://www.WilTec.de
ttp://www.aoyue.eu
ttp://www.teic tip.de

(Fig.8)
4.2.4 Move the throttle valve level away from the LOWER position, about 1/3 of the way toward the
UPPER position.
4.2.5 Turn the engine switch to the ON position.
4.2.6 Pull the starter handle lightly until resistance is felt, then pull it briskly. Do not allow the starter
handle to snap back against the engine. Return it gently to prevent damage to the starter.
4.2.7 If the choke lever was moved to the CLOSED position to start the engine, gradually move it to
the OPEN position as the engine warms up.
4.3 Setting Engine Speed
After starting the engine, move the throttle valve lever to the UPPER position for self-priming, and
check pump output.
Pump output is controlled by adjusting engine speed. Moving the throttle valve lever in the UPPER
direction will increase pump output, and moving the throttle valve lever in the LOWER direction will
decrease pump output.
(Fig.9)
5. TURN IT OFF
To stop the engine in an emergency, simply turn the engine switch to the OFF position. Under normal
conditions, use the following procedure.
5.1 Move the throttle valve lever to the LOWER position.
5.2 Turn the engine switch to the OFF position.
5.3 Turn the fuel cock to the OFF position.
After use, remove the water drain plug, and drain the pump chamber. Remove the water filler
cap, and flush the pump chamber with clean, fresh water. Allow the water to drain from the pump
chamber, then reinstall the water filler cap and water drain plug.
© by WilTec Wildanger Tec nik GmbH Seite 9
ttp://www.WilTec.de
ttp://www.aoyue.eu
ttp://www.teic tip.de

NOTE
After stalling the engine in emergency, turn the engine switch to OFF position.
6. MAINTENANCE
To keep t e water pump at optimal performance, c eck and adjustment on it periodically
is necessary. Regular maintenance and service may extend its service life obviously. T e
Maintenance Sc edule below specifies ow often you s ould ave your water pump served,
and w at t ings need attention.
WARNING:
Before maintenance, shut off the engine. If maintaining the engine when it runs,
make sure to perform any check in a well – ventilated area. Emissions from the
engine contain toxic carbonmonoxide ( O), which may cause loss of
consciousness and even life if exhausted.
Maintenance Sc edule
NOTE
When it used in extremely dusty area, perform this job more often.
Should be done by your dealer, unless you are equipped with proper repair tools, and are
qualified mechanically.
AUTION:
Only use original spare parts and specified maintenance tool or the water pump
may be damaged.
6.1 Engine Oil Replacement
A warm-up engine can assure quick oil draining.
1. Remove the dipstick and drain plug, and then drain the oil.
2. Fill specified fresh engine oil to oil.
3. Reinstall the dipstick and tighten it.
Oil capacity:
SCWP-30G............................0.6L
© by WilTec Wildanger Tec nik GmbH Seite 10
ttp://www.WilTec.de
ttp://www.aoyue.eu
ttp://www.teic tip.de

Once touch engine oil, clean your hands with soap in fresh water.
NOTE
Handing discarded engine oil in accordance with relative environmental protection rules.
It’s better for you to take it in a sealed container and take to local recycling station. Do not
pour at will.
6.2 Air Cleaner Maintenance
A filthy air cleaner will decrease airflow quantity through the carburetor. To avoid troubles of
the carburetor, clean the air cleaner regularly. In extremely dusty area, the job should be done more
often.
WARNING:
Never clean the air cleaner in gasoline or low-flash point solvent, for gasoline and
low-flashpoint solvent may produce flames and even an explosion in certain
conditions.
AUTION:
Never operate the water pump without the air cleaner installed. In the case that
dirt and dust is sucked into the engine, the engine will wear out more quickly.
6.2.1 Drive off the thumbnut and dismantle the air cleaner cover and filter element.
6.2.2 Clean the filter element in high flash point solvent or cleansing solvent thoroughly, and then dry
it up.
6.2.3 Soak the filter element in clear engine oil, and then squeeze out excessive oil.
6.2.4 Reinstall the removed parts well.
6.3 Spark Plug Maintenance
Recommended spark plug
80ZB30-4,8Q............. HSP LD F6RTCU
To keep the engine in good condition, there must keep proper spark plug clearance and no
accumulated carbon.
6.3.1 Dismantle the spark plug cap.
WARNING:
When the engine is running, the exhaust muffler is very hot, be careful and do not
to get burns.
6.3.2 Check the spark plug just with eyes. If there exists obvious wear sign around it or gasket is
cracked, please replace with a new one. Before reinstall a spark plug, clean it first with a wire
brush.
6.3.3 Measure spark plug clearance with a feeler gauge and adjust it by bending the side electrode.
Spark plug clearance should be 0.70-0.80 mm.
© by WilTec Wildanger Tec nik GmbH Seite 11
ttp://www.WilTec.de
ttp://www.aoyue.eu
ttp://www.teic tip.de

6.3.4 Check that the spark plug gasket is in good condition, or replace with a new one. Drive it into the
engine with a spark plug wrench to protect thread from being damaged.
NOTE
Installing a new spark plug, after it touch and oppress the gasket, twist 1/2 more turns; as to
a used one, twist 1/2-1/4 more turns.
AUTION:
Be sure to tighten the spark plug securely, otherwise it may become very hot and
possibly damage the engine. Never use a spark plug with improper heat range.
7. STARTING UP IN PLATEAU REGIONS
In plateau or regions with high altitude, standard carburetor produces over-dense combination
of fuel and air, resulting in decreased engine performance and increased fuel consumption. To keep
the engine with high performance, install a carburetor main spray nozzle and readjust the adjusting
screw for idle speed. Using in plateau regions frequently with an altitude of over 1380 m, contact
your dealer for replace the carburetor and make adjustment in advance. Even though a proper
carburetor spray nozzle is installed in the engine, the power output of the engine will drop about
3.5% with every 1000 ft increase in altitude. If carburetor replacement and adjustment is not done,
the “plateau-effect” will be more severe.
AUTION:
Use the water pump in regions with lower altitude than that the carburetor spray
nozzle is applicable, the engine’s performance will be reduced and it would
overheated, and over-thin combination of fuel and air produce may cause severe
damage of the engine.
8. TRANSPORTATION/STORAGE
WARNING:
To avoid a fire, make sure to allow at least 20 minutes cooling the water pump
down before transportation or storage in room.
Transport the water pump with the fuel cock turned off; besides, keep it
horizontal to prevent fuel from spilling. Spilled gasoline and gasoline vapor may
ignite.
8.1 Make sure the storage site for the water pump is dry and clean.
8.2 Clean the water pump inside.
If the water pump is used to pump water with mud, sand or heavy debris, deposit of such may
remain inside it. Before storage, operate the water pump to suck into fresh water to wash,
otherwise impeller may be damaged once reuse. Finishing wash, drive off the water drain plug,
then empty the water in the water pump thoroughly, and reinstall the water drain plug.
8.3 Empty the fuel tank.
© by WilTec Wildanger Tec nik GmbH Seite 12
ttp://www.WilTec.de
ttp://www.aoyue.eu
ttp://www.teic tip.de

WARNING:
Gasoline is extremely inflammable and explosive in certain conditions.
Turn the fuel cock to OFF position; drive off the fuel drain plug of the carburetor floater
chamber, drain out the fuel in the carburetor. Hold drained gasoline in proper container.
Turn the fuel cock to O position.
Reinstall the fuel drain plug of the carburetor floater room.
8.4 Replace engine oil.
8.5 Dismount the spark plug, and fill clean specified engine oil into the cylinder about one soupspoon.
Turn the engine several times to distribute oil evenly and then reinstall the spark plug.
8.6 Pull the starter handle towards until feel anti-action, and then continue pulling until the triangle
mark on the starter wheel lines up with the starter screw hole (see diagram below). In this location,
both the air inlet and exhaust valves are closed, which may prevent the engine inside from rusting.
8.7 Cover the water pump to protect from dust.
9. TROUBLESHOOTING
9.1 Engine cannot start
Check according to the following:
Check if there is enough fuel;
Check if the fuel cock is turned on;
Check if the fuel enters the carburetor;
In the case that the fuel cock is turned on, check through dismantle the fuel drain plug at the
bottom of the carburetor.
WARNING:
Gasoline is extremely inflammable and explosive in certain conditions.
If fuel is spilled, be sure to wipe it dry before checking the spark plug and starting
up the engine, otherwise spilled fuel or fuel vapor may ignite.
Check if the engine switch is at ON position;
Check if there is enough engine oil the crankcase;
Check if there is spark plug spark;
oDismantle the spark plug cap. Clear away dirt around the spark plug, and then
dismantle it.
oInstall the spark plug into the spark plug cap.
oTurn the engine switch at ON position.
oGround the side electrode by touching the engine; pull the kick-starter to check if there
is spark.
oIf no spark, please start the engine according to “Starting the Engine” in the manual.
If the engine still cannot start, contact your dealer for help.
© by WilTec Wildanger Tec nik GmbH Seite 13
ttp://www.WilTec.de
ttp://www.aoyue.eu
ttp://www.teic tip.de

9.2 Water pump cannot pump
Check according to the following:
Check if there is enough water;
Check if the filter is clogged;
Check if the hose clamp is tightening securely;
Check if the water hose is damaged;
Check if suction height required is too high;
If the water pump still cannot pump water, please contact your dealer for help.
10. SPECIFICATIONS
Typ 92494 92492 92493 92495 92491
Hose connection Ø 50 mm (2 Zoll) 50 mm (2 Zoll) 80 mm (3Zoll) 80 mm (3Zoll) 100mm (4
Zoll)
max. Delivery rate 36m³/h 9m³/h 66m³/h 48m³/h 80m³/h
Delivery Head 26m 20 m 30 m 30 m 26 m
Engine model 168F-2E 50ZB20-1.4Q 168F-2E 168F-2B 177F
Motor power 6,5 PS / 4,8
kW bei 3600
U/min
2.45 PS / 1.8kW
bei 3600 U/min
6,5 PS / 4,8
kW bei 3600
U/min
6,5 PS / 4,8
kW bei 3600
U/min
8.9 PS / 6.6kW
bei 3600 l/m
Max. Dirt particle
size
20 mm - 20 mm - -
Volume 7m in dis-
tance (dBA)
78
© by WilTec Wildanger Tec nik GmbH Seite 14
ttp://www.WilTec.de
ttp://www.aoyue.eu
ttp://www.teic tip.de
