Light Emotion LEDBAR18012 User manual

www.lightemotion.com.au
LEDBAR1812
Outdoor 1m LED Bar 18 x 12W 6-in-1 RGB LEDs
User’s instruction manual
This manual contains important information about the safe installation and use of this product
Please read this instruction manual carefully before installing or operating
Please keep these instructions in a safe place for future reference
V1.00

1
Contents
1. Safety Instructions 2
2. Installation 3
3. Features 3
4. Menu Operation 4
5. DMX Tables 5
5a. 2 Channel Mode 5
5b. 6 Channel Mode 6
5c. 8 Channel Mode 6
5d. 11 Channel Mode 6
5e. 108 Channel Mode 7
5f. 110 Channel Mode 8
6. DMX Connection 9
7. DMX Address Setting 9
8. DMX Terminator 10
9. Cleaning and Maintenance 10
10. Technical Data 10
11. Warranty 11

2
Introduction
Thank you for the purchase of your LEDBAR18012 Outdoor 1m LED bar with 18 x 12w
6-in-1 LEDs by Light Emotion. We are confident you will be satisfied with your purchase and
enjoy many years of use from this Professional Light Emotion product. Please read these
instructions carefully to ensure the product is well look after and used correctly to avoid any
potential problems.
Please note that as part of our ongoing commitment to continuous improvement and product
development, the specifications in this manual are subject to change without notice. Whilst
every care has been taken in the preparation of this manual we reserve the right to change
specifications in the course of product improvement.
What is in the box:
- 1 x LEDBAR1812 Lighting Effect
- 1 x Power Cable
- This user manual and warranty card
1. Safety Instructions:
Please read these instructions carefully. It includes important information about the installation
usage and maintenance of this product.
- Please keep this User Manual for future consultation. If you sell the unit to another user, be
sure that they also receive this instruction booklet.
- Always make sure that you are connecting to the proper voltage and that the line voltage you
are connecting to is not higher than that stated on the sticker of the fixture.
- This is an outdoor water-proof rated unit. In order to ensure the fixture remains water-proof,
do not attempt to disassemble as in doing so the rubber seals and the like that help keep the
product water-proof may be damaged.
- Use only compatible water-proof cables for installation and connection
- Product can be used indoors as well
- Make sure there are no flammable materials close to the unit while operating.
- The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surface. Be sure that no ventilation slots are blocked.
- Always disconnect from power source before servicing.
- Secure fixture to stands, trussing and the like using a safety chain.
- Maximum ambient temperature is 50˚C. Do not operate fixture at temperatures higher than
this.

3
- In the event of serious operating problem, stop using the unit immediately. Never try to repair
the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction.
Please contact the nearest authorized technical assistance center.
- Make sure power cord is never crimped or damaged.
- Never disconnect power cord by pulling or tugging on the cord.
- Never carry the fixture directly from the cord. Carry by holding the chassis of the unit.
- Avoid direct eye exposure to the light source while it is on.
2. Installation:
Caution: For safe mounting of this product, please read the following carefully.
- When mounting the product, do not stand directly underneath the product.
- When mounting in fixed installation, use the provided brackets. Please ensure the unit is
being attached securely to any surface – consult a professional for the installation if need be.
- For outdoor installations be sure that proper IP rated cables are used compatible with the
connections that come with the product.
- Always use a safety chain when mounting the product on stands, trussing or bars. Make sure
the breaking strain rating of the chain is at least 10 times the weight of the product.
- Product will work in any orientation.
- Make sure there is adequate ventilation around the product.
- Never look directly into the LED light sources of the product.
- Keep out of reach of children.
3. Features
This product is designed as an outdoor professional LED flood lighting effect and is only
intended to be used as such for entertainment, display and architectural applications. Due to
our ongoing commitment to constantly reviewing and improving products, features and
specifications are subject to change without prior notice.
- LEDs: 18 x 12W RGBWAUV HEX 6-in-1 LEDs with average 50000 hours lifespan
- Beam angle ： 15º
- Control: DMX or on-board built-in programs
- 6 different DMX modes to suit users’ needs
- DMX Channels: 2/6/8/11/108/110
- Functions: Colour mixing and fading, single colour, patterns, individual pixel control
- Electronic strobe rate: 1-25Hz
- Built in colour macros and programs
- Extruded rugged Aluminium housing
- IP65 rated
- Weight: 10kg / 12kg gross
- Packed Dimensions 1060x130x150mm

4

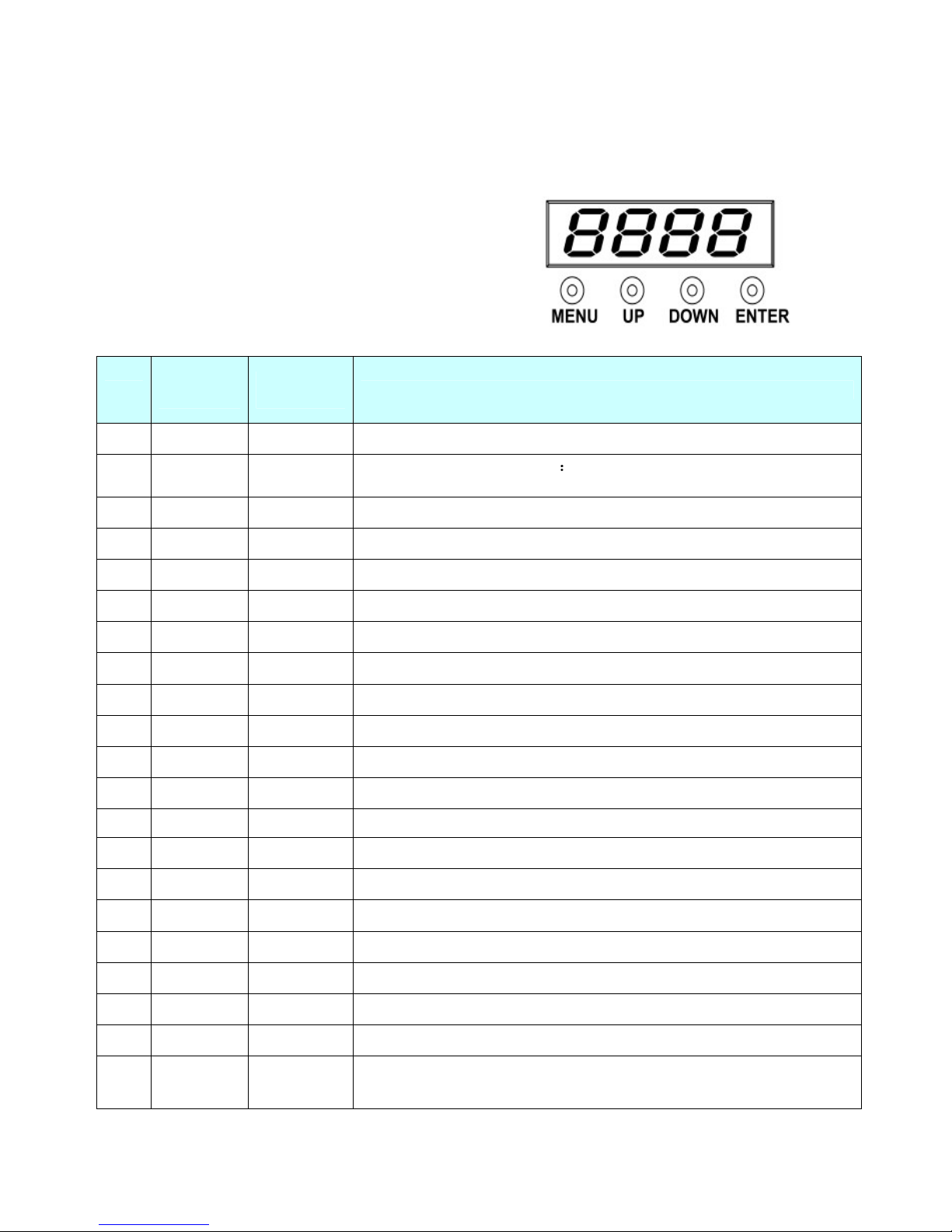

4. Menu Operation
Used for setting up or operating the product without DMX control:
Menu: Press each time to access features – see table
below:
UP: Increase setting
DOWN: Decrease setting
Enter: Confirm and save setting.
No Display
Show
Numerical
Value Function and Description
1 d001 001- 512 DMX512 starting address setting
2 ID01 ID01-ID50 Fast DMX512 address settings
：
ID1: is 1
st
fixture, ID2 is 2
nd
fixture, etc.
3 CL 1 01 - 08 8 kinds of colour output
4 FF99 00 - 99 RGB strobe, speed from slow to fast
5 1JP0 0 - 9 Effect 1, speed from slow to fast
6 2JP0 0 - 9 Effect 2, speed from slow to fast
7 3JP0 0 - 9 Effect 3, speed from slow to fast
8 4JP0 0 - 9 Effect 4, speed from slow to fast
9 5JP0 0 - 9 Effect 5, speed from slow to fast
10 6JP0 0 - 9 Effect 6, speed from slow to fast
11 7JP0 0 - 9 Effect 7, speed from slow to fast
12 8JP0 0 - 9 Effect 8, speed from slow to fast
13 9JP0 0 - 9 Effect 1-8 rotation, speed from slow to fast
14 1dE0 0 - 9 Red fading, speed from slow to fast
15 2dE0 0 - 9 Green fading, speed from slow to fast
16 3dE0 0 - 9 Blue fading, speed from slow to fast
17 4dE0 0 - 9 UV fading, speed from slow to fast
18 5dE0 0 - 9 Amber fading, speed from slow to fast
19 6dE0 0 - 9 R,G,B,W,UV,A fading rotation, speed from slow to fast
20 Sud0 0 - 9 Sound control, speed from slow to fast
21 CH11 2/6/8/
11/108/110 DMX channel mode setting

5
5. DMX Channel Allocation and functions tables.
There are 6 different DMX profiles for this fixture. This allows the user to use simple overall
control over fewer DMX channels or for the user to individually control each individual
feature of the light over many more channels. You must choose the DMX mode/profile prior to
setting up with DMX. When using multiple fixtures, all fixtures should be set to the same
DMX profile for simplicity of control and DMX address allocation.
5a. Two channel DMX mode:
Channel DMX value Function Description
CH1
000-005 No effect
006-016 LED colour selection: red
017-027 LED colour selection: green
028-038 LED colour selection: blue
039-049 LED colour selection: amber
050-060 LED colour selection: UV
061-071 LED colour selection: cyan
072-082 LED colour selection: white
083-093 effect-1
094-104 effect-2
105-115 effect-3
116-126 effect-4
127-137 effect-5
138-148 effect-6
149-159 effect-7
160-170 effect-8
171-181 effect 1-8 rotation
182-192 Red fading
193-203 Green fading
204-214 Blue fading
215-225 UV fading
226-236 Amber fading
237-247 Roation fading effect
248-255 Sound control
CH2 000-255 Function speed, from slow to fast

6
5b. Six Channel DMX Mode
Channel DMX value Function Description
CH1 000-255 Red dimming , from dark to bright
CH2 000-255 Green dimming , from dark to bright
CH3 000-255 Blue dimming , from dark to bright
CH4 000-255 White dimming , from dark to bright
CH5 000-255 Amber dimming , from dark to bright
CH6 000-255 UV dimming , from dark to bright
5c. Eight channel DMX Mode
Channel DMX value Function Description
CH1 000-255 Master dimming ,from dark to bright
CH2 000-255 Strobe, from slow to fast
CH3 000-255 Red dimming , from dark to bright
CH4 000-255 Green dimming , from dark to bright
CH5 000-255 Blue dimming , from dark to bright
CH6 000-255 White dimming , from dark to bright
CH7 000-255 Amber dimming , from dark to bright
CH8 000-255 UV dimming , from dark to bright
5d. Eleven Channel DMX Mode
Channel DMX value Function Description
CH1 000-255 Master dimming ,from dark to bright
CH2 007-255 Master Strobe, from slow to fast
CH3
000-005 No action
006-015 Custom running effect selection and built-in programs
CH1 ： Dimming
CH2 ： Simultaneously superimposed strobe effect
CH4 ： The effect of running speed selection;
CH5 ： Background colour selection;
CH6-CH11 ： Running colour selection;
016-025
026-035
036-045
046-055
056-065
066-075
076-085
086-095
096-105
106-115
116-125
126-135
136-145 Built-in running effect – 1
146-155 Built-in running effect – 2

7
156-165 Built-in running effect – 3
166-175 Built-in running effect – 4
176-185 Built-in running effect – 5
186-195 Built-in running effect – 6
196
-
205
Built
-
in running
effect
–
7
206-215 Built-in running effect – 8
216-225 Built-in Circulation fading effect
226-235 Yellow fading effect
236-245 Circulation built-in fading effect
246-255 Sound control
CH4 000-255 Function speed, from slow to fast
CH5 000-255 When effect custom effect, choose the background colour
CH6 000-255 Red dimming , from dark to bright
CH7 000-255 Green dimming , from dark to bright
CH8 000-255 Blue dimming , from dark to bright
CH9 000-255 White dimming , from dark to bright
CH10 000-255 Amber dimming , from dark to bright
CH11 000-255 UV dimming , from dark to bright
5e. 108 Channel DMX Mode
Channel DMX value Function Description
CH1 000-255 R1 dimming , from dark to bright
CH2 000-255 G1 dimming , from dark to bright
CH3 000-255 B1 dimming , from dark to bright
CH4 000-255 W1 dimming , from dark to bright
CH5 000-255 A1 dimming , from dark to bright
CH6 000-255 UV1 dimming , from dark to bright
CH7 000-255 R2 dimming , from dark to bright
CH8 000-255 G2 dimming , from dark to bright
CH9 000-255 B2 dimming , from dark to bright
CH10 000-255 W2 dimming , from dark to bright
CH11 000-255 A2 dimming , from dark to bright
CH12 000-255 UV2 dimming , from dark to bright
... ...... ......
... ...... ......
CH103 000-255 R18 dimming , from dark to bright
CH104 000-255 G18 dimming , from dark to bright
CH105 000-255 B18 dimming , from dark to bright
CH106 000-255 W18 dimming , from dark to bright
CH107 000-255 A18 dimming , from dark to bright
CH108 000-255 UV18 dimming , from dark to bright

8
5f. 110 Channel DMX Mode
Channel DMX value Function Description
CH1 000-255 Master dimming ,from dark to bright
CH2 007-255 Master Strobe, from slow to fast
CH3 000-255 R1 dimming , from dark to bright
CH4 000-255 G1 dimming , from dark to bright
CH5 000-255 B1 dimming , from dark to bright
CH6 000-255 W1 dimming , from dark to bright
CH7 000-255 A1 dimming , from dark to bright
CH8 000-255 UV1 dimming , from dark to bright
CH9 000-255 R2 dimming , from dark to bright
CH10 000-255 G2 dimming , from dark to bright
CH11 000-255 B2 dimming , from dark to bright
CH12 000-255 W2 dimming , from dark to bright
CH13 000-255 A2 dimming , from dark to bright
CH14 000-255 UV2 dimming , from dark to bright
... ...... ......
... ...... ......
CH105 000-255 R18 dimming , from dark to bright
CH106 000-255 G18 dimming , from dark to bright
CH107 000-255 B18 dimming , from dark to bright
CH108 000-255 W18 dimming , from dark to bright
CH109 000-255 A18 dimming , from dark to bright
CH110 000-255 UV18 dimming , from dark to bright

9
6. DMX-512 Control Connection
Using a 3 pin XLR cable, you can connect the product to a DMX controller and then to
other fixtures with 3 pin XLR inputs and outputs. When not using DMX, multiple
fixtures can be connected together and operate under master/slave control. The signal
cable should have two core with shielded cable, the signal connectors are XLR input

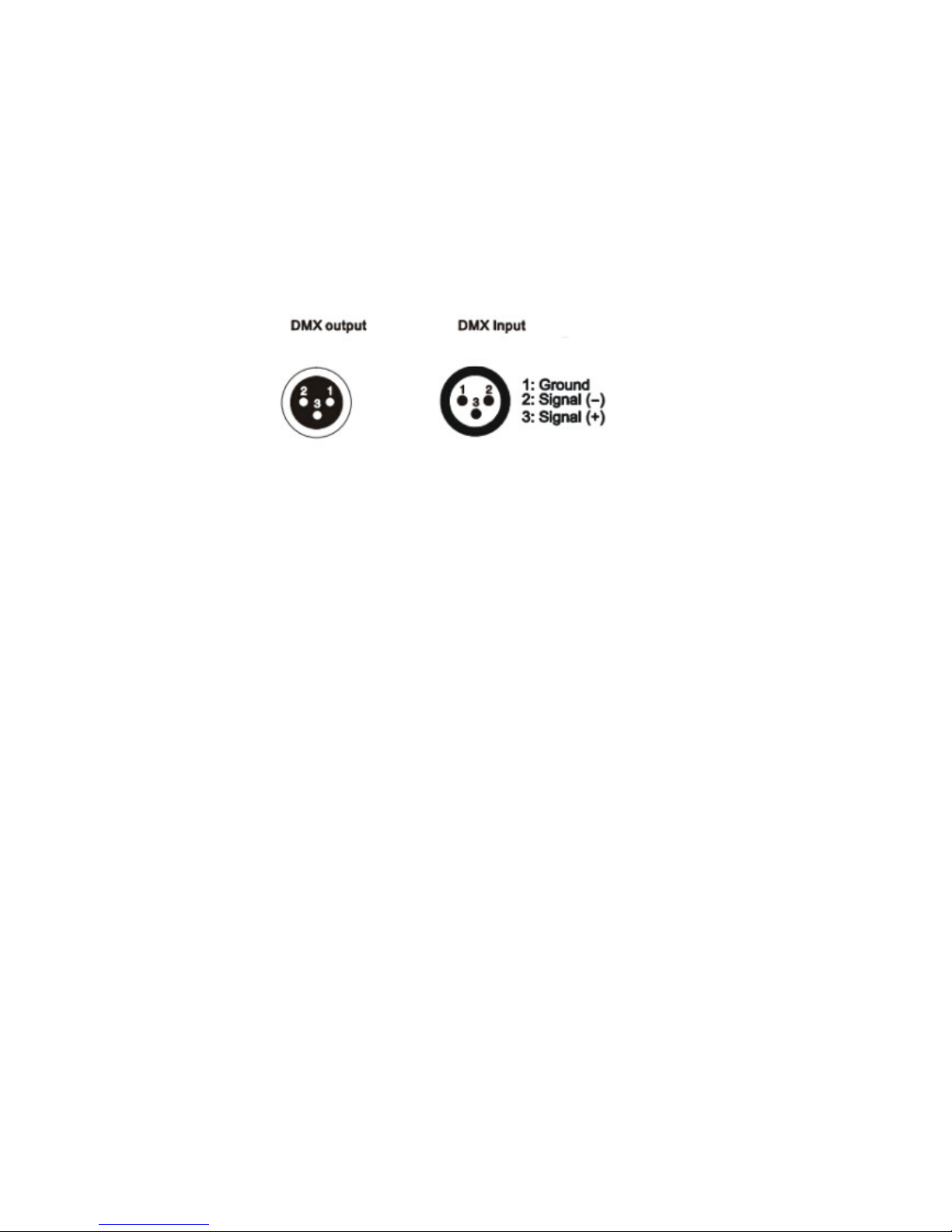

and output connectors. Please refer to the below diagram:
7. DMX Address Setting
When being used in conjunction with a DMX controller, each fixture must be set a specific
starting address. When receiving signal, fixture will receive channel control signals of this
address from the DMX controller.
For simplicity, the user can use the same address for multiple fixtures but this will result in
each fixture providing exactly the same output and fixtures with the same DMX address cannot
be individually controlled.
To control each fixture individually via DMX, each fixture must have its own unique DMX
address. Depending upon which DMX mode this fixture is set in, the individual DMX
addresses must be separated by at least the same number of channels. For example in 9 channel
mode, the DMX addresses must be at least 9 channels apart.
So for example – assuming the first fixture is DMX channel 1 and we are in 9 channel DMX
mode, the second fixture would need to be on channel 10, then the 3
rd
channel 19 and so on.
Some DMX controllers may group fixtures in lots of 16 channels – so in that case, fixture 1 on
channel 1, fixture 2 on channel 17, 3 on 33, and so on. Refer to your DMX controllers’
instruction manual on how best to manage your DMX channel allocation.

10
8. DMX Terminator:

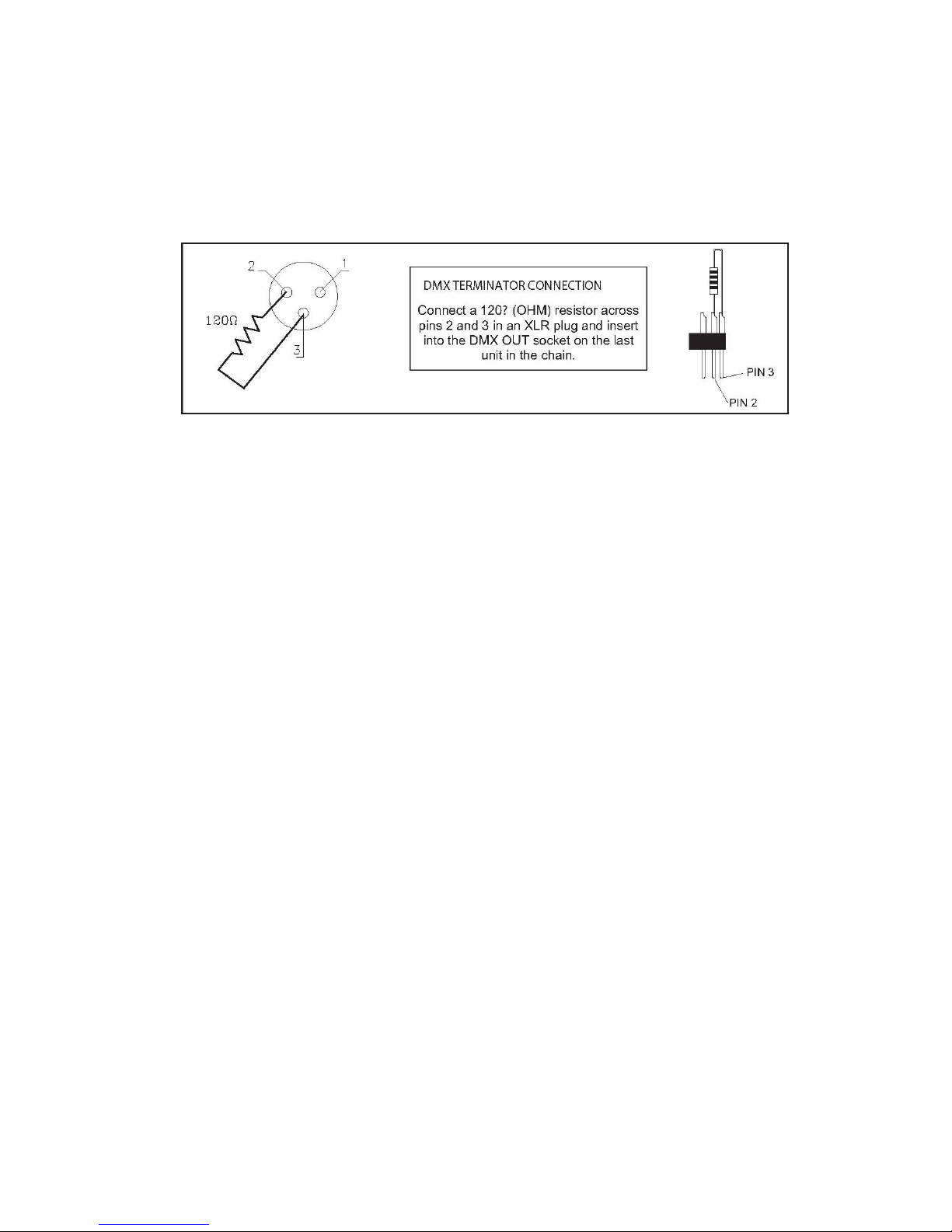

A DMX terminator helps to reduce ‘noise’ on the DMX chain, and makes the light respond to
control more accurately. It should be plugged in to the last fixture in any chain. For Terminator
connections please see below:
9. Cleaning and maintenance
From time to time it is recommended the product is cleaned to ensure maximum light output
and performance. Use a wet cloth to clean the housing as well as the lenses and base. Glass
cleaner is also suitable but alcohol based cleaners and solvents cannot be used as they will
cause damage to the product.
When used in a fixed long term installation such as a venue or club, the unit should be
periodically taken down from the installation and professionally cleaned. Dust build-up within
the unit can cause damage and ultimately failure of components.
10. Technical Data
- Input voltage: 90-240VAC, 50 or 60Hz
- Power consumption: 220W
- LEDs: 18 x 12W RGBWAUV HEX 6-in-1 LEDs with average 50000 hours lifespan
- Beam angle: 15º
- Control: DMX or on-board built-in programs
- 6 different DMX modes to suit users’ needs
- DMX Channels: 2/6/8/11/108/110
- Functions: Colour mixing and fading, single colour, patterns, individual pixel control
- Electronic strobe rate: 1-25Hz
- Built in colour macros and programs
- Extruded rugged Aluminium housing
- Cooling via Aluminium housing
- IP65 rated
- Weight: 10kg / 12kg gross
- Packed Dimensions 1060x130x150mm

11
11. Warranty
This product is warranted for 12 months from your purchase date. We are confident that this
product will give many years of trouble-free operation but should an unlikely problem arise,
warranty claims must be via the original place of purchase, together with the original purchase
receipt. Please keep both your original purchase receipt and this instruction manual together
and in a safe place for future reference. Should the product be sold within the warranty period,
be sure to pass on both to the new purchaser so they are able to claim warranty should they
need to. We recommend you register your warranty online at www.industrygear.com.au.
Purchased from:_________________________________________
Contact Details:_________________________________________
Date Purchased:_________________________________________
Invoice/Receipt Number:__________________________________
Copyright Light Emotion 2016. E&OE
Exclusively imported by LSW Imports and Distribution
PO Box 887, Kingsgrove, NSW, 2208
[email protected]
www.lightemotion.com.au
1800 643 111 (within Australia)
[phone] (outside of Australia)
