1.1 PRODUCT INTRODUCTION
This product is designed for indoor or outdoor use. Suitable applications include wash or
effect lighting for architectural, stage, theatre or road show applications. Direct input of
DMX512 signal allows the units to be controlled from any DMX512 controller. This product
can be operated as a single unit or in multiple units for large applications.
1.2 PRODUCT FEATURES
LED FIXTURE
1
* DIM1~4
RGBW Dimmer 0-100%
* Strobe
* Built-in automatic programs
* Upload custom parameters to slave fixtures
* LED display
* Display control 'lock-out'
* Direct DMX512 input
* Independent ID address
* Different white colors setting
* 'Over-heat' protection
* DV:NTSC\PAL
*
1PRODUCT (GENERAL)

1.3 TECHNICAL SPECIFICATIONS
LED MODULE
Dimensions
LED MODULE:
Voltage
Rated Power
54pcs (14 x RED / 14 x GREEN / 14 x BLUE/ 12 x WHITE)
Weight
LED/Unit
Output/LED
Cooling
3W
270 x 270 x 490mm
3.2Kg
100~250V...50/60Hz
200W
2
Environment Temperature -20℃~40℃
½öÓÃÓÚÆÀ¹À¡£
°æȨËùÓÐ (c) by Foxit Software Company, 2004
ÓÉ Foxit PDF Editor ±à¼-
fan
½öÓÃÓÚÆÀ¹À¡£
°æȨËùÓÐ (c) by Foxit Software Company, 2004
ÓÉ Foxit PDF Editor ±à¼-

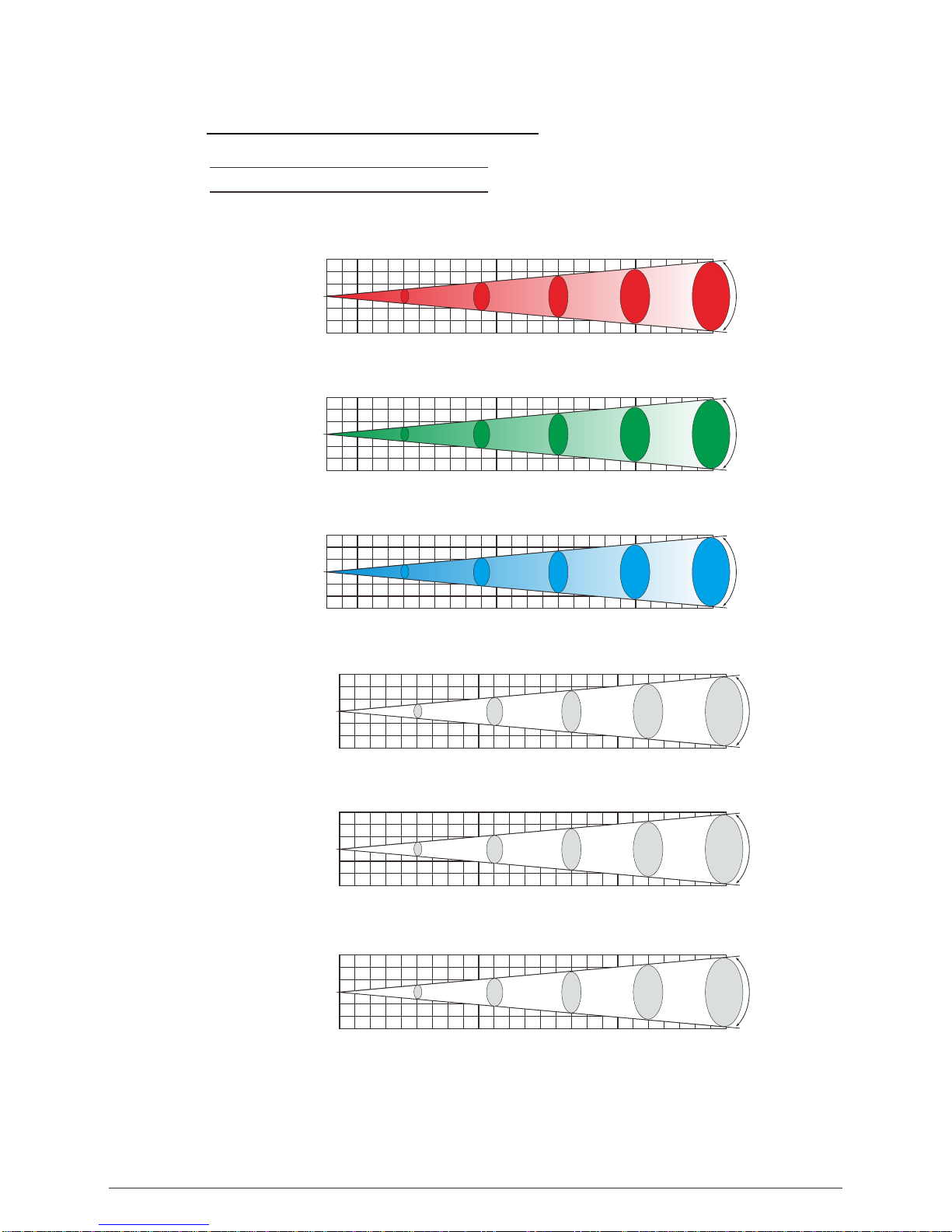

1.4 PHOTOMETRIC DATA
PHOTOMETRIC DATA
3
RED
1
2
3
0
1
2
33931 1010 482 274 186 LUX
15°
GREEN
1
2
3
0
1
2
36130 1700 776 450 304 LUX
15°
BLUE
1
2
3
0
1
2
31360 256 120 68 46 LUX
15°
WHITE
1
2
3
0
1
2
3
246 8 10Distance(m)
4613 1204 552 326 230 LUX
15°
RGB
1
2
3
0
1
2
3
246 8 10Distance(m)
11340 2885 1285 765 530 LUX
15°
1
2
3
0
1
2
3
246 8 10Distance(m)
16300 4000 1900 1122 752 LUX
15°
RGB+WHITE
246 8 10Distance(m)
246 8 10Distance(m)
246 8 10Distance(m)

1.5 SAFETY WARNING
IMPORTANT
【ALWAYS READ THE USER MANUAL BEFORE OPERATION. 】
【PLEASE CONFIRM THAT THE POWER SUPPLY STATED ON THE
PRODUCT IS THE SAME AS THE MAINS POWER SUPPLY IN YOUR
AREA.】
●This product must be installed by a qualified professional.
●Always operate the equipment as described in the user manual.
●A minimum distance of 0.5m must be maintained between the equipment and
combustible surface.
●The product must always be placed in a well ventilated area.
●Always make sure that the equipment is installed securely.
●DO NOT stand close to the equipment and stare directly into the LED light
source.
●Always disconnect the power supply before attempting and maintenance.
●Always make sure that the supporting structure is solid and can support the
combined weight of the products.
●The earth wire must always be connected to the ground.
●Do not touch the power cables if your hands are wet.
ATTENTION
●This product left the place of manufacture in perfect condition. In order to
maintain this condition and for safe operation, the user must always follow the
instructions and safety warnings described in this user manual.
●Avoid shaking or strong impacts to any part of the equipment.
●Make sure that all parts of the equipment are kept clean and free of dust.
●Always make sure that the power connections are connected correct and
secure.
●If there is any malfunction of the equipment, contact your distributor
immediately.
●When transferring the product, it is advisable to use the original packaging in
which the product left the factory.
●Shields, lenses or ultraviolet screens shall be changed if they have become
damaged to such an extent that their effectiveness is impaired.
●The lamp (LED) shall be changed if it has become damaged or thermally
deformed.
4

2.1 MOUNTING
HANGING
UPRIGHT
The fixture can be mounted in an upright or
sitting position using the supporting brackets.
The fixture can be mounted in a hanging position
using the supporting bracket. The bracket
should be secured to the mounting truss or
structure using a standard mounting clamp.
Please note that when hanging the unit a safety
cable should also be used.
@ 220V: 15 units may be connected in series
@120V: 7 units may be connected in series
The LED MODULE can be mounted at any angle and in any
position. It is possible to further adjust the angle of the LED
MODULE using the two adjustment knobs located on the side of
the fixture.
2.2 POWER CONNECTIONS
5
Note:
1. As this fixture's DMX signal cable connection is Parallel connection, so if over 32 units to be
connected, then a DMX signal amplifier is needed.
2. If the signal cable is over 60m between the DMX512 controller and fixture or beween two
fixtures, then a DMX signal amplifier is needed as well.
2INSTALLATION
½öÓÃÓÚÆÀ¹À¡£
°æȨËùÓÐ (c) by Foxit Software Company, 2004
ÓÉ Foxit PDF Editor ±à¼-

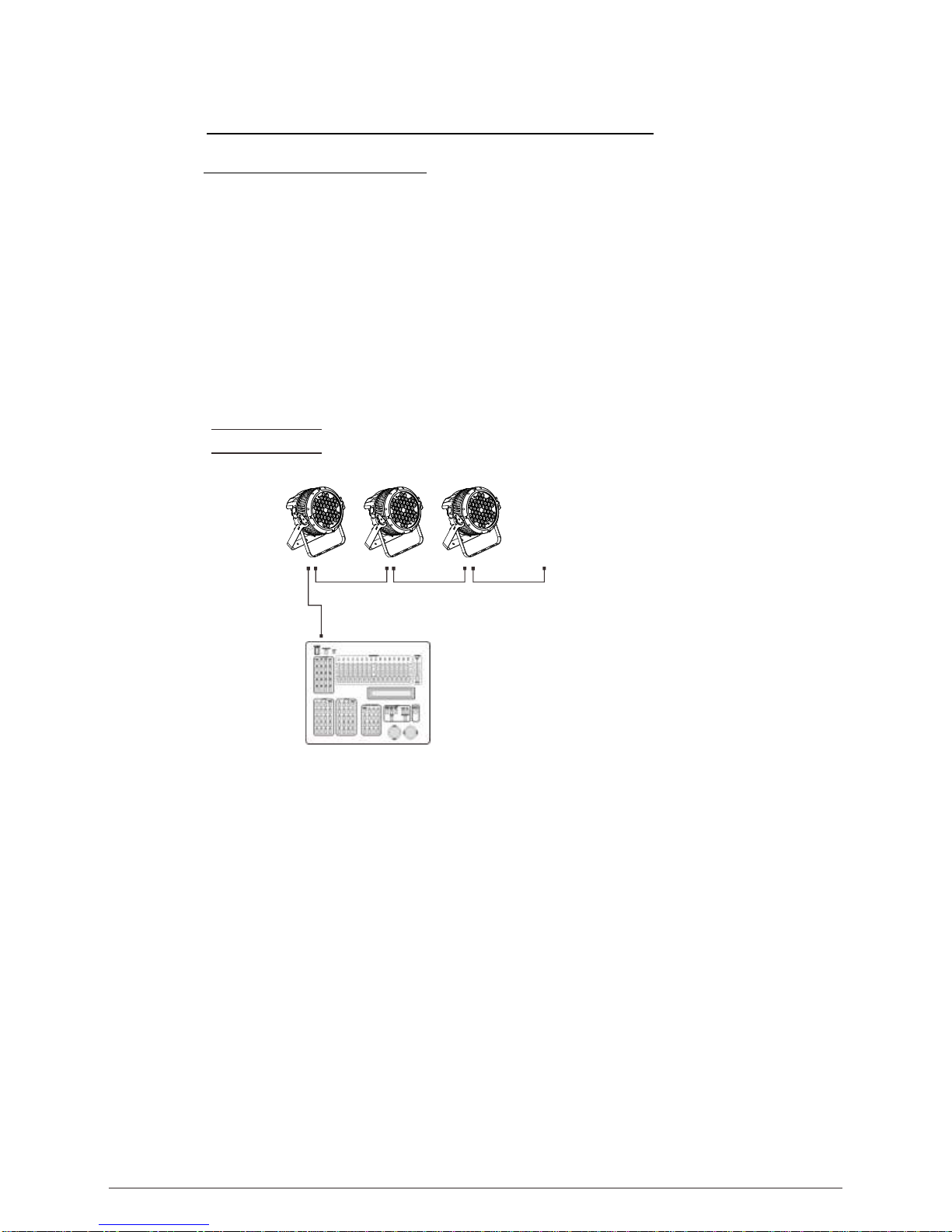

2.3 SETTING UP WITH A DMX512
CONTROLLER
2.3-1 DMX512 ADDRESSING WITHOUT ID ADDRESSING
(STAG MODE)
The figure above shows a simple DMX512
layout with the starting address of the first
unit set at 1, with the second set at 12 and
so on... (Note that when used in this way,
the CH11 ID function must be inactive (CH11=0))
DMX512
CONTROLLER
●
●Each unit has 11 DMX channels so the DMX Addresses should increase by increments of
11 (e.g. 1,12,23,34...)
●The ID address has not been set so therefore when using the controller CH11 must
be inactive ( CH11=0 ).
●It is also possible to deactivate ID address selecting【ID OFF】from the【Settings】menu.
on the fixture
●Each DMX Address may be used as many times as required.
●Any DMX address in the range from 001 to 512 may be used.
Connect the DMX512 controller to the units in series.
2.3-2 DMX512 ADDRESSING WITH ID ADDRESS (STAG MODE)
Connect the DMX512 controller to the units in series
●Each unit has 11 DMX channels so the DMX Addresses should increase by increments of
11 (e.g. 1,12,23,34...)
●Each DMX Address may be used as many times as required.
●Any DMX address in the range from 001 to 512 may be used.
●Each DMX address may carry up to 66 separate ID addresses.
●【ID】should be set in the menu on each unit in ascending values
(i.e. 1,2,3...)
●【ID On】should be set in the【Settings】menu on each unit.
●ID addresses are accessible from Ch9 on the DMX512 controller.
●
Example:
6
............
DMX Addr.1 DMX Addr.12 DMX Addr.23

DMX512
CONTROLLER
Example:
The figure above shows a simple DMX layout
which has used three units at each DMX address.
The three units have different ID addresses which
allows the user to collectively control the whole
group of units at that DMX address by setting
CH11 to 0, or to control each unit independently by
first selecting the DMX address and then by using
CH11 to locate the target ID address.
7
............
DMX Addr.1
ID Addr.1 DMX Addr.1 ID Addr.2 DMX Addr.1 ID Addr.3 DMX Addr.12 ID Addr.1 DMX Addr.12 ID Addr.2 DMX Addr.12 ID Addr.3

3.1 BASIC

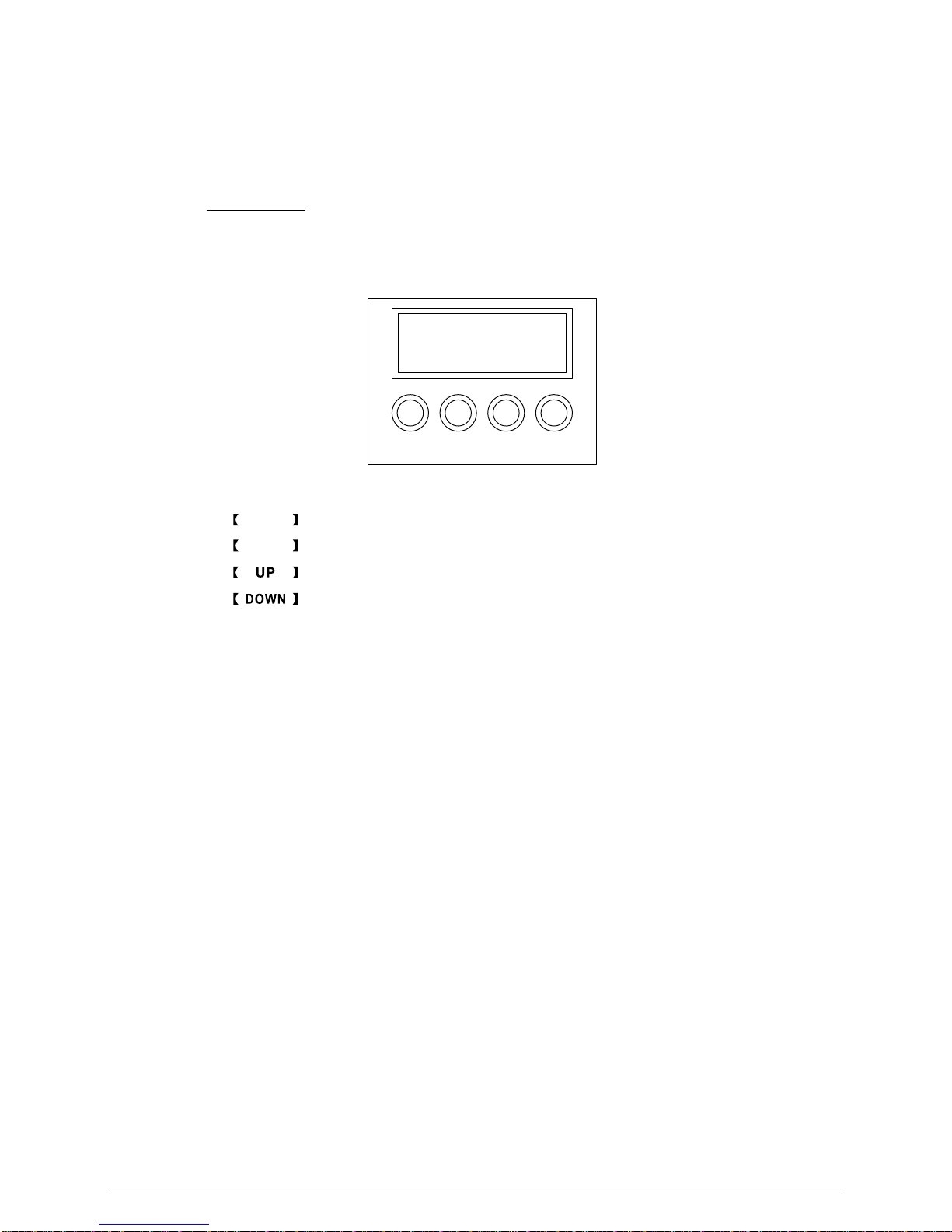

The LED fixture is mounted with a LCD display and 4 control buttons.
enter the currently selected menu or confirm the current function value
scroll 'UP' through the menu list or increase the value of the current function
scroll'DOWN'throughthemenulistordecreasethevalueofthecurrentfunction
scroll through the main menu or return to the main menu
MENU
3DISPLAY PANEL OPERATION
8
ENTER UP DOWN
MENU
ENTER

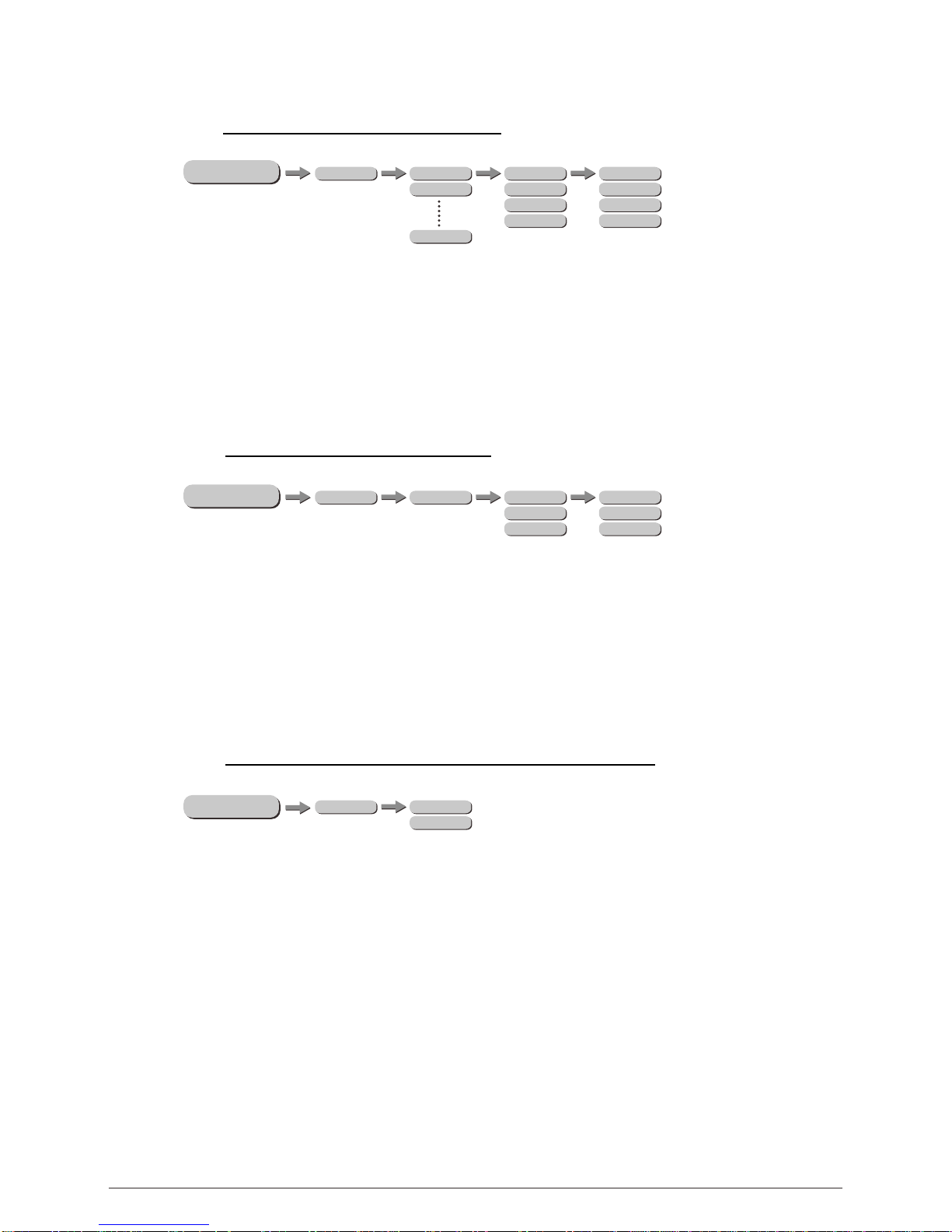

3.2 MENU
9
PR.01
PR.02
PR.10
RUN DMX
SLAV
SC.01
SC.02
SC.30
AT.01
AT.02
AT.10
AUTO
PR.01
PR.02
PR.10
D(001~512)
DMX
ID
ID(01~66)
Red
Green
Blue
White
Strobe
Time
Fade
(0~255)
(0~255)
(0~255)
(0~255)
(0~20)
(0~255)
(0~255)
SET UPLD
ID
POW
ON
OFF
NORM
HIGH
KEY ON
OFF
STAG
Arc.1
Arc.2
Ar1.d
Ar2.s
Ar2.d
WT01
WT02
WT11
Red
Green
Blue
White
(0~255)
(0~255)
(0~255)
(0~255)
MENU Red
Green
Blue
White
(0~255)
(0~255)
(0~255)
(0~255)
Strob (0~20)
STAT
PERS
EDIT
REST
ON
OFF
RGBW
CAL1
RGBW Red
Green
Blue
(0~255)
(0~255)
(0~255)
CAL2
HSV
Off
Dim1
Dim3
Dim2
Dim4
Dim
DV
Dim4
Dim4NTSC
Dim4PAL

3.3 EDIT STATIC COLOUR
10
3.4 ACTIVATING AUTO PROGRAMS
AUTO
●Select the target【AUTO】program and press【ENTER】.
●Programs【AT.01】to【AT.10】are fully pre-programmed and will not be altered
by changes in【EDIT 】mode.
●Programs 【PR.01】to【PR.10】are fully pre-programmed and can be edited in
【EDIT 】mode.
【 】
STATIC COLOUR
●Combine 【Red】, 【Green】, 【Blue】and 【White】to create an infinite range
of colors (0-255)
●Set the value of the 【Strobe】(0-20Hz)
【 】
MENU Red
Green
Blue
White
(0~255)
(0~255)
(0~255)
(0~255)
Strob (0~20)
STAT
AT.01
AT.02
AT.10
AUTO
PR.01
PR.02
PR.10
MENU
RUN
●Enter the【RUN 】mode to set working mode.
●【DMX】mode is for using the DMX512 controller to control the fixtures.
●【SLAV】mode is for Master -- Slave operation.
【 】
3.5 RUN MODE
RUN DMX
SLAV
MENU

3.6 DMX512 SETTINGS
DMX
●Enter the【DMX】mode to set the DMX ADDRESS.
【 】
11
3.7 PERSONALITY
PERSONALITY
●Enter the【PERSONALITY】mode to select DMX mode:【STAG】,【Arc.1】,
【Ar1.d】,【Arc.2】,【Ar2.d】,【Ar2.s】or【HSV】.
【 】
3.8 ID ADDRESS
ID
●Enter the【ID】mode to set the ID ADDRESS.
【 】
D(001~512)
DMX
MENU
STAG
Arc.1
Arc.2
Ar1.d
Ar2.s
Ar2.d
PERS
HSV
MENU
ID
ID(01~66)
MENU

12
PR.01
PR.02
PR.10
SC.01
SC.02
SC.30
Red
Green
Blue
White
Strobe
Time
Fade
(0~255)
(0~255)
(0~255)
(0~255)
(0~20)
(0~255)
(0~255)
EDIT
MENU
3.9 EDITING CUSTOM PROGRAMS
EDIT CUSTOM
●Enter the【EDIT 】mode to edit the custom programs【PR.01】to
【PR.10】.
●Each custom program has 30 steps that can be edited.
●Each step allows the creation of a scene using RED 【Red】, GREEN 【Green】,
BLUE 【Blue】, WHITE【White】,STROBE 【Strobe】, TIME【Time】& FADE
【Fade】.
【 】
SET UPLD
ID
POW
ON
OFF
NORM
HIGH
REST
ON
OFF
RGBW
Off
Dim1
Dim3
Dim2
Dim4
Dim
MENU
3.10 SPECIAL SETTINGS
【SETTING】
●Select【UPLD】to upload the custom programs from the current MASTER unit to
the SLAVE units.
●In order to activate the upload function the password must be entered.
●Password is the same as the main access password.
●When uploading the MASTER and SLAVE units will display YELLOW.
●If an error occurs when uploading the MASTER and/or SLAVE units will display RED.
●On successful uploading of the custom programs the MASTER and SLAVE units
will display GREEN.
●In order to reset custom modes to default values select 【REST】.
●Enter【ID 】in order to allow/disallow ID address function from the DMX512
controller.
●When 【RGBW】-- RGB TO WHITE is set to 【YES】, on RGB = 255,255,255, the
color is perfect white as the actual RGB values are adjusted to make white. When it
is set to 【NO】,on RGB = 255,255,255, the RGB values are not adjusted and the
output is most powerful. The 【RGB W】’s parameter can be adjusted in 【CAL2】.
●Enter 【POW】to choose the operation power mode 【NORM】or 【HIGH】,
when it is normal mode, the power consumption is about 90W, while under high
mode, it is about 150W.
●Enter 【Dim】to select dimmer mode and dimmer speed. When DIMMER is set to
【Off】, then RGBW and MASTER DIMMER are linear. The Dim 1/2/3/4 are speed
modes of the non linear dimmer ,【Dim1】is the faster, while 【Dim4】is the slowest.
●The 【Dim】setting here does not react on the the 【STAG】mode.
NTSC
PAL
DV

CAL2
●Enter the 【CAL2】to adjust the RGB parameter to make different whites.
●【CAL2】
【 】
When the new setting is activated, the DMX controller choose RGB = 255,255,255,
the white color will be made by the actual RGB values on the .
3.12 WHITE BALANCE
13
WT01
WT02
WT11
Red
Green
Blue
White
(0~255)
(0~255)
(0~255)
(0~255)
CAL1
MENU
CAL1
●Enter the 【CAL1】to select white color of different color temperature.
●There are 11 pre-programmed White colors can be edited by using 【Red】,
【Green】, 【Blue】& 【White】.
【 】
3.11 WHITES SETTING
RGBW Red
Green
Blue
(0~255)
(0~255)
(0~255)
CAL2
MENU
KEY ON
OFF
MENU
3.13 A CTIVATE THE PASSWORD
KEYLOCK
●Enter the【KEY】mode to select whether the access password is on or off.
●In order to enter access password it is necessary to first press【ENTER】.
●Access password is【UP】+【DOWN】+【UP】+【DOWN】.
【 】

●Note: This product have three DMX512 channel configuration: 【STAG】,【Arc.1】,
【Ar1.d】,【Arc.2】,【Ar2.d】,【Ar2.s】and 【HSV】
4.1 BASIC ADDRESSING
●Connect all of the units in series using standard DMX512 signal cable or the IP65 rated cable
provided.
●Set the DMX512 address in the【DMX】menu.
●It is possible to have the same DMX address or independent addresses for each fixture.
4.2 CHANNELASSIGNMENT
14
STAG
4USING A DMX512 CONTROLLER
1
2
0 255
3
4
0 255
0 255
0 255
50 255
0 9
10
30
50
70
90
110
130
29
49
69
89
109
129
149
150 169
170 200
201 205
206 210
211 215
216 220
221 225
226 230
231 235
236
240
RED UP/GREEN 0％/BLUE 100％
RED 100％/GREEN 0％/BLUE DOWN
RED 100％/GREEN UP /BLUE UP
RED DOWN /GREEN DOWN /BLUE 100％
RED 100％/GREEN 100％/BLUE 100％/WHITE 100％
WHITE 1(3200K)
WHITE 3(4200K)
WHITE 2 (3400K)
RED 0％/GREEN 100％/BLUE UP
RED 0％/GREEN DOWN/BLUE 100％
WHITE 4(4900K)
WHITE 5(5600K)
WHITE 6(5900K)
WHITE 7(6500K)
WHITE 8(7200K)
6
COLOR MACRO
CHANNEL FUNCTIONVALUE
BLUE
WHITE
GREEN
(or FADE TIME when CUS.01-CUS.10 in CH8 is activated)
RED
(or STEP TIME when CUS.01-CUS.10 in CH8 is activated)
MASTER DIMMER
NO FUNCTION
RED DOWN/GREEN 100％/BLUE 0％FUNCTION
RED 100％/GREEN UP/BLUE 0％

15
CHANNEL FUNCTIONVALUE
7
8
0 9
1~20Hz
10 255
PROG 2
PROG 3
PROG 4
PROG 5
PROG 6
PROG 7
PROG 8
PROG 9
PROG10
161 170
171 180
181 190
191 200
201 210
211 220
221 230
231 240
241 250
PROG1
251 255
111 120
121 130
131 140
141 150
AUTO 6
AUTO 7
AUTO 8
AUTO 9
151 160 AUTO 10
0 40
41 70
71 80
81 90
91 100
101 110
AUTO 1
AUTO 2
AUTO 3
AUTO 4
AUTO 5
0 255
9
241 245
246 250
251 255
WHITE 9: 8000K
WHITE 10: 8500K
WHITE 11: 10000K
6
DIMMER SPEED
LINEAR DIMMER
NON LINEAR DIMMER 1（fastest）
0 50
51 100
101 150
151 200
201 255
10 NON LINEAR DIMMER 2
NON LINEAR DIMMER 3
NON LINEAR DIMMER 4（slowest）
ID1~ID66
0
1 255
11
NO FUNCTION
AUTO
NO FUNCTION
STROBE
ALL ID ADDRESS
AUTO SPEED ADJUSTMENT
When using CH8,AUTO01-AUTO10, this function activated

16
ID21
ID22
210
211
11
ID20
200 209
ID19
190 199
ID18
180 189
ID14
ID15
ID16
ID17
140 149
150 159
160 169
170 179
ID65
ID66
254
255
ID8
ID9
ID10
ID11
ID12
ID13
80 89
90 99
100 109
110 119
120 129
130 139
CHANNEL FUNCTIONVALUE
ID6
ID7
60 69
70 79
Arc.1
BLUE
1
2
0 255
CHANNEL FUNCTIONVALUE
3
0 255
0 255
GREEN
RED
DIMMER SPEED
LINEAR DIMMER
NON LINEAR DIMMER 1（fastest）
0 50
51 100
101 150
151 200
201 255
NON LINEAR DIMMER 2
NON LINEAR DIMMER 3
NON LINEAR DIMMER 4（slowest）
4

17
Ar1.d
BLUE
1
2
0 255
CHANNEL FUNCTIONVALUE
3
4
0 255
0 255
0 255
GREEN
RED
MASTER DIMMER
Arc.2
BLUE
1
2
0 255
CHANNEL FUNCTIONVALUE
3
4
0 255
0 255
0 255
GREEN
RED
WHITE
Ar2.d
BLUE
1
2
0 255
CHANNEL FUNCTIONVALUE
3
4
0 255
0 255
0 255
GREEN
RED
WHITE
50 255
MASTER DIMMER
DIMMER SPEED
LINEAR DIMMER
NON LINEAR DIMMER 1（fastest）
0 50
51 100
101 150
151 200
201 255
NON LINEAR DIMMER 2
NON LINEAR DIMMER 3
NON LINEAR DIMMER 4（slowest）
100
5
DIMMER SPEED
LINEAR DIMMER
NON LINEAR DIMMER 1（fastest）
0 50
51 100
101 150
151 200
201 255
NON LINEAR DIMMER 2
NON LINEAR DIMMER 3
NON LINEAR DIMMER 4（slowest）
100
5

Ar2.s
18
1
2
0 255
CHANNEL FUNCTIONVALUE
3
0 255
0 255
4
5
7
0
0
10
255
255
255
BLUE
GREEN
RED
WHITE
MASTER DIMMER
DIMMER SPEED
LINEAR DIMMER
NON LINEAR DIMMER 1（fastest）
0 50
51 100
101 150
151 200
201 255
NON LINEAR DIMMER 2
NON LINEAR DIMMER 3
NON LINEAR DIMMER 4（slowest）
100
6
0 9
10
30
50
70
90
110
130
29
49
69
89
109
129
149
150 169
170 200
201 205
206 210
211 215
216 220
221 225
226 230
231 235
236
240
RED UP/GREEN 0％/BLUE 100％
RED 100％/GREEN 0％/BLUE DOWN
RED 100％/GREEN UP /BLUE UP
RED DOWN /GREEN DOWN /BLUE 100％
RED 100％/GREEN 100％/BLUE 100％/WHITE 100％
WHITE 1(3200K)
WHITE 3(4200K)
WHITE 2 (3400K)
RED 0％/GREEN 100％/BLUE UP
RED 0％/GREEN DOWN/BLUE 100％
WHITE 4(4900K)
WHITE 5(5600K)
WHITE 6(5900K)
WHITE 7(6500K)
WHITE 8(7200K)
6
COLOR MACRO
NO FUNCTION
RED DOWN/GREEN 100％/BLUE 0％FUNCTION
RED 100％/GREEN UP/BLUE 0％
8
0 9NO FUNCTION
STROBE
1~20Hz
DIMMER SPEED
LINEAR DIMMER
NON LINEAR DIMMER 1（fastest）
0 50
51 100
101 150
151 200
201 255
NON LINEAR DIMMER 2
NON LINEAR DIMMER 3
NON LINEAR DIMMER 4（slowest）
100
