Listen Technologies LA-318 User manual

Dear Valued Customer,
Thank you for choosing Listen! All of us at Listen are dedicated to providing
you with the highest quality products available. We take great pride in their
outstanding performance because we care that you are completely
satised. That’s why we independently certify them to the highest quality
standards and back them with a limited lifetime guarantee. We stand ready
to answer any questions you might have during installation or in the operation
of our products. Should you experience any problems whatsoever with your
Listen products, we are ready to help you in any way we can with prompt,
efcient customer care. Because at Listen, it’s all about you! And should you
have any comments on how we might improve our products or our
service, we’re here to listen.
Here’s how to reach us:
+1.801.233.8992
+1.800.330.0891 North America
+1.801.233.8995 fax
[email protected]
www.listentech.com
Thank you and enjoy your listening experience!
Best regards,
Russell Gentner and the Listen Team
• In the few instances where repairs were needed, 99% of all clients indicated that they were happy with
repair turn-around-times and 85% of the time, clients were without their product for less than 10 days!
• Overall client satisfaction of working with Listen was rated 4.8 out of 5.
• “ Please continue with your excellent attitude toward customer satisfaction. You guys are great!”
• “I’ve never had such good service from any company. Keep up the good work!”
• “You stand behind your product wonderfully.”
Assistive Listening • Language Interpretation • Soundeld • Tour Group • Conferencing

8-Unit Cases
Table of Contents 4-Unit Cases 16-Unit Cases Information
25-Unit Case
4-Unit Cases 3
Package Contents 4
Specications 5
Charging Instructions 6
8-Unit Cases 9
Package Contents 10
Specications 11
Charging Instructions 12
16-Unit Cases 15
Package Contents 16
Specications 17
Charging Instructions 18
25-Unit Case 21
Package Contents 22
Specications 22
Conguration Instructions 23
Supplementary Information 24
Troubleshooting 26
Warranty 27
Contacting Listen 27
Optional Accessories 28
Cases Table of Contents

4
8-Unit Cases 4-Unit Cases
4-Unit Case Package Contents
3
LA-317/323 Contents
• LA-317 4-Unit Charging/Carrying
Case or LA-323 4-Unit Charging/
Carrying Case
• Power Supply
• Keys
•Shoulder Carrying Strap
LA-318 Contents
• LA-318 4-Unit Storage/Carrying
Case
• Keys
• Shoulder Carrying Strap
LA-317/323 Highlights
•Sturdy case with hard foam interior and durable latches
•Charges up to 4 receivers or portable transmitters with NiMH batteries
•Pocket stores power supply, earphones and/or other accessories
•SmartCharge™ charging technology built into Listen products prevents overcharge
•Case comes with keys and can be locked for security
•Detachable nylon carrying strap
•Convenient removable lid (LA-323 model only)
3
LA-318 Highlights
•Sturdy case with hard foam interior and durable latches
•Individual storage pockets for a combination of 4 receivers and transmitters
•Large pocket for accessory storage
•Case comes with keys and can be locked for security
•Detachable nylon carrying strap

5
4-Unit Cases
4-Unit Case Specications
Specication LA-317/LA-323
Power Primary Power Input 110-120 VAC, 60 Hz, 15 W
Secondary Power Output 7.5 VDC, 600 Ma
Physical
Description Black, grey, and chrome lockable hard case. Interior foam.
Weight 2.6 lbs. (1.2 kg)
Shipping Weight 5 lbs. (2.2 kg)
Shoulder Carrying Strap Length Adjustable 33.00 to 53.00 in. (83.0 to 135.0 cm)
Power Cord Length 6.0 ft. (1.8 m)
Size W x H x D 11.80 x 7.50 x 3.75 in. (30.0 x 7.5 x 9.5 cm)
Specication LA-318
Power None
Physical
Description Black, grey, and chrome lockable hard case. Interior foam.
Weight 2.6 lbs. (1.2 kg)
Shipping Weight 5 lbs. (2.2 kg)
Shoulder Carrying Strap Length Adjustable 33.00 to 53.00 in. (83.0 to 135.0 cm)
Size W x H x D 11.80 x 7.50 x 3.75 in. (30.0 x 7.5 x 9.5 cm)

6
8-Unit Cases 4-Unit Cases
LA-317/323 Charging Instructions
Plug power supply into power source.
Any 110 to 120 VAC outlet can be used. The power must stay connected during
the full 13 hour charge cycle.
1
2Plug power into case.
The green LED next to the power connector will illuminate
indicating the case is powered.
Check Battery Select Switch.
Make sure that you are using NiMH batteries and that the
battery select switch is in the correct position. Charging will only occur when the
Listen product’s battery selection switch is set to the “NiMH” position. This switch
is located inside the battery compartment of the product.
3
Warning: Do not attempt to charge alkaline batteries. This may damage the unit
and case, and will void the warranty!
green LED lit when
power is connected
Turn units to be charged OFF.
For optimal charging, receivers and transmitters should be turned OFF* during
the charge cycle. Portable transmitters manufactured prior to 2003 require that
the unit be turned ON to begin charging. Once charging begins, turn the
unit OFF.
4
LT-700 power switch
Receiver power
switch - turn
clockwise until you
hear a ‘click’
Enlarged area of interior of
LR-500

7
4-Unit Cases
LA-317/323 Charging Instructions (cont.)
Place units in case slots.
5
Connect units to power.
Plug power connectors into PWR/CHG jack on the side of the units.
Verify units are charging.
Watch units for 10 seconds before leaving them to charge. Once placed in the
charging slots, the red LED on top of Listen’s portable receivers and transmitters will
glow continuously for 1-2 seconds, then extinguish. The units will then evaluate
battery status for 5-7 seconds. If the battery select switch is positioned in the NiMH
setting, the red LED will begin to flash indicating that the units are charging.
NOTE: If batteries are completely discharged, the red LED will remain solid while the
batteries are reconditioned. Unit should begin flashing after 5-10 minutes. The
LED may flicker during the reconditioning process.
Verify Full Charge.
Each unit’s red LED will stop flashing once charging is complete. Charging time for
full recharge on completely discharged batteries is 13 hours.
NOTE: If a unit is removed from the case during the charge cycle, and then
reinserted, it will begin a new charge cycle.
WARNING: The case lid MUST be open or removed while the units are charging. The
charging process generates heat and ventilation is required. It is best to
store your charging case at room temperature away from heat sources
and direct sunlight.
6
7

10
8-Unit Cases

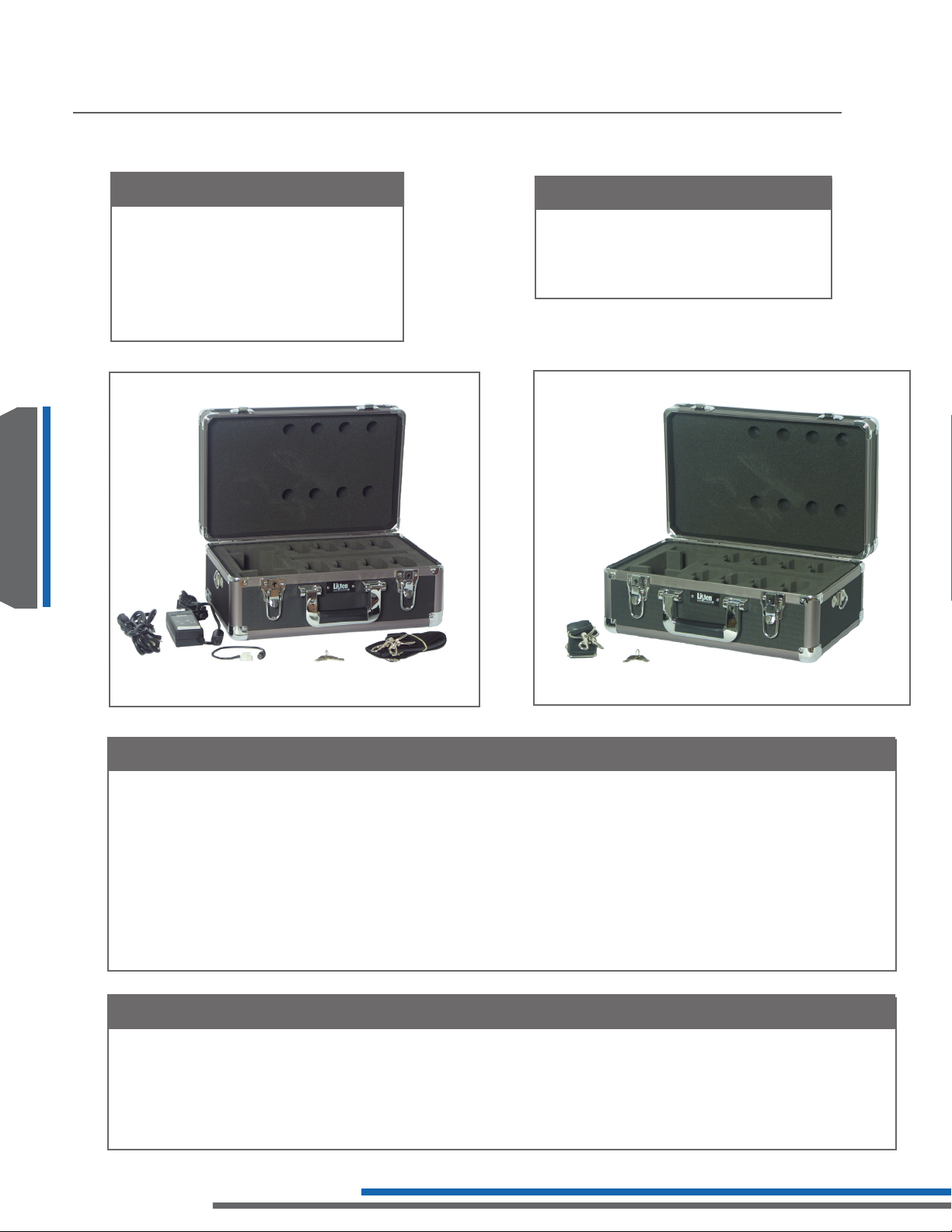

8-Unit Case Package Contents
3
LA-321/324 Contents
• LA-321 8-Unit Charging/Carrying
Case or LA-324 8-Unit Charging/
Carrying Case
• Power Supply
• Keys
•Shoulder Carrying Strap
LA-322 Contents
• LA-322 8-Unit Storage/Carrying Case
• Keys
• Shoulder Carrying Strap
LA-321/324 Highlights
•Sturdy case with hard foam interior and durable latches
•Charges up to 8 receivers or portable transmitters with NiMH batteries
•Removable charging platform
•Large pocket stores power supply, earphones and/or other accessories
•Center pocket stores earphones or other accessories
•Earphones can remain attached to receivers during storage and charging
•SmartCharge™ charging technology built into Listen products prevents overcharge
•Case comes with keys and can be locked for security
•Detachable nylon carrying strap
•Convenient removable lid (LA-324 model only)
3
LA-322 Highlights
•Sturdy case with hard foam interior and durable latches
•Stores up to 8 receivers or portable transmitters
•Pocket stores earphones and/or other accessories
•Earphones can remain attached to receivers during storage
•Case comes with keys and can be locked for security
•Detachable nylon carrying strap

11
8-Unit Cases
8-Unit Case Specications
Specication LA-321/324
Power Primary Power Input 100-240 VAC, 50-60 Hz, 1200 mA
Secondary Power Output 7.5 VDC, 4A, 30W
Physical
Description Black, grey, and chrome lockable hard case. Interior foam.
Weight 6.2 lbs. (2.80 kg)
Shipping Weight 9.0 lbs. (4.00 kg)
Shoulder Carrying Strap Length Adjustable 33.00 to 53.00 in. (83.0 to 135.0 cm)
Power Cord Length 12.0 ft. (3.7 m)
Size W x H x D 15.75 x 9.80 x 7.00 in. (40.0 x 25.0 x 18.0 cm)
Specication LA-322
Power None
Physical
Description Black, grey, and chrome lockable hard case. Interior foam.
Weight 6.2 lbs. (2.80 kg)
Shipping Weight 8.0 lbs. (3.60 kg)
Shoulder Carrying Strap Length Adjustable 33.00 to 53.00 in. (83.0 to 135.0 cm)
Size W x H x D 15.75 x 9.80 x 7.00 in. (40.0 x 25.0 x 18.0 cm)

12
8-Unit Cases
LA-321/324 Charging Instructions
Plug power supply into power source.
Any 110 to 120 VAC outlet can be used. The power must stay connected during
the full 13 hour charge cycle.
1
2Plug power into case.
The green LED next to the power connector will illuminate
indicating the case is powered.
green LED lit when
power is connected
Check Battery Select Switch.
Make sure that you are using NiMH batteries and that the
battery select switch is in the correct position. Charging will only occur when the
Listen product’s battery selection switch is set to the “NiMH” position. This switch
is located inside the battery compartment of the product.
3
Warning: Do not attempt to charge alkaline batteries. This may damage the unit
and case, and will void the warranty!
Turn units to be charged OFF.
For optimal charging, receivers and transmitters should be turned OFF* during
the charge cycle. Portable transmitters manufactured prior to 2003 require that
the unit be turned ON to begin charging. Once charging begins, turn the
unit OFF.
4
LT-700 power switch
Receiver power
switch - turn
clockwise until you
hear a ‘click’
Enlarged area of interior of
LR-500

13
8-Unit Cases
LA-321/324 Charging Instructions (cont.)
Place units in charging slots.
It may be necessary to press the units down
into the pocket to ensure that it is touching
the charging contacts.
5
Verify units are charging.
Watch units for 10 seconds before leaving them to charge. Once placed in the
charging slots, the red LED on top of Listen’s portable receivers and transmitters will
glow continuously for 1-2 seconds, then extinguish. The units will then evaluate
battery status for 5-7 seconds. If the battery select switch is positioned in the NiMH
setting, the red LED will begin to flash indicating that the units are charging.
NOTE: If batteries are completely discharged, the red LED will remain solid while the
batteries are reconditioned. Unit should begin flashing after 5-10 minutes. The
LED may flicker during the reconditioning process.
Verify Full Charge.
Each unit’s red LED will stop flashing once charging is complete. Charging time for
full recharge on completely discharged batteries is 13 hours.
NOTE: If a unit is removed from the case during the charge cycle, and then
reinserted, it will begin a new charge cycle.
WARNING: The case lid MUST be open or removed while the units are charging. The
charging process generates heat and ventilation is required. It is best to
store your charging case at room temperature away from heat sources
and direct sunlight.
6
7

16
16-Unit Cases

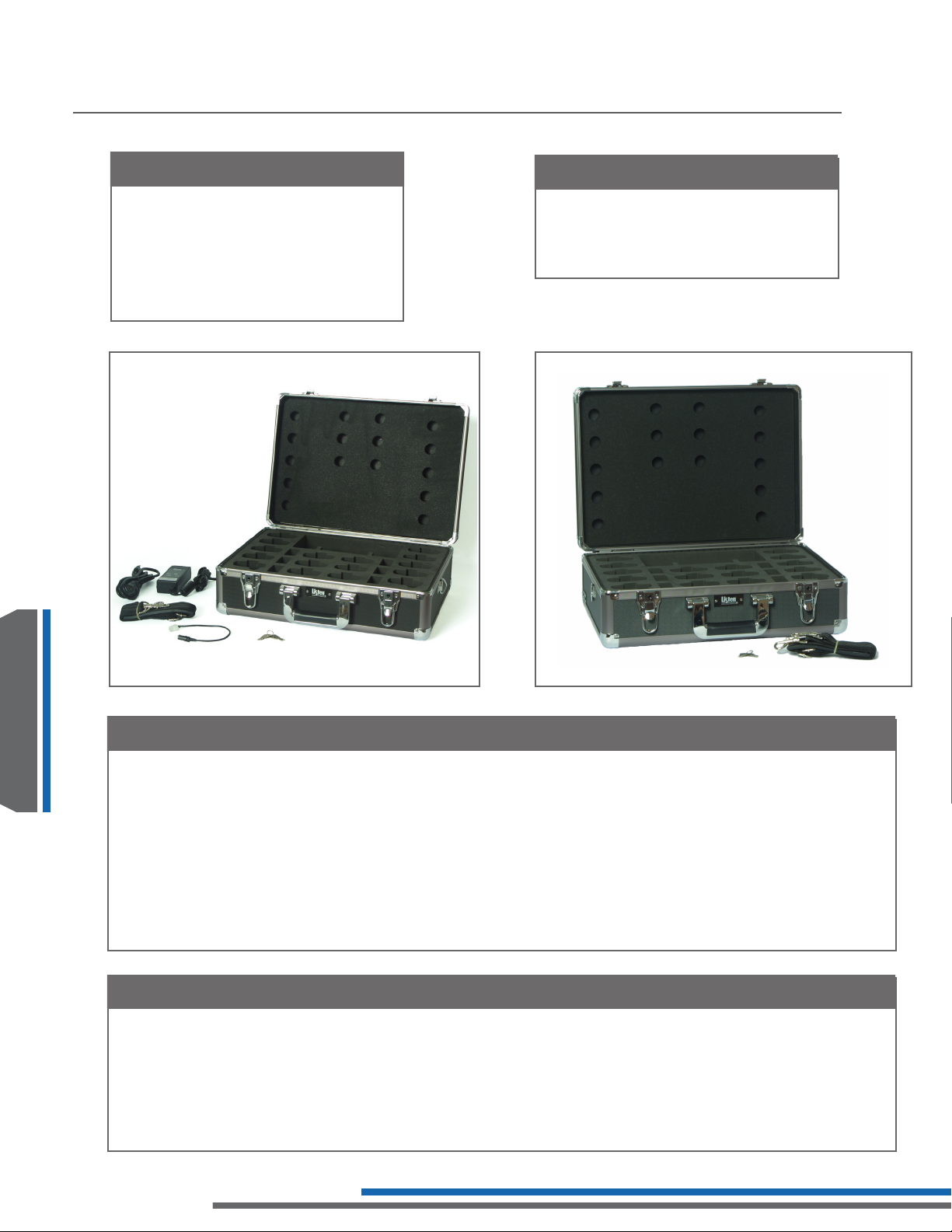

16-Unit Case Package Contents
3
LA-311/325 Contents
• LA-311 16-Unit Charging/Carrying
Case or LA-325 16-Unit Charging/
Carrying Case
• Power Supply
• Keys
•Shoulder Carrying Strap
LA-313 Contents
• LA-313 16-Unit Storage/Carrying Case
• Keys
• Shoulder Carrying Strap
LA-311/325 Highlights
•Sturdy case with hard foam interior and durable latches
•Removable charging platform
•Charges up to 16 receivers or portable transmitters with NiMH batteries
•Large pocket stores power supply, earphones and/or other accessories
•Small pockets store earphones or other accessories
•Earphones can remain attached to receivers during storage and charging
•SmartCharge™ charging technology built into Listen products prevents overcharge
•Case comes with keys and can be locked for security
•Detachable nylon carrying strap
•Convenient removable lid (LA-325 model only)
3
LA-313 Highlights
•Sturdy case with hard foam interior and durable latches
•Stores up to 16 receivers or portable transmitters
•Large pocket stores earphones and/or other accessories
•Small pocket stores earphones and/or other accessories
•Earphones can remain attached to receivers during storage
•Case comes with keys and can be locked for security
•Detachable nylon carrying strap
