Litelume Wallpack Large User manual

Wallpack Large
Installation Instructions
LITELUME™ seeks to deliver the most advanced and efficient LED technology. Due to
technology progression, specifications may change. We reserve the right to update product
specifications without notice. Contact LITELUME™ for the most up-to-date data.
www.litelume.com
[email protected]
833.LED.LUME
Page 1/4
Rev Date: 07/16/2018
©Lite Lume Corporation 2018
Warning
1.To avoid electric shock, disconnect power at source prior to installation.
2.The installation should be performed by qualified electricians or lighting technicians.
3.Before conducting any installation, maintenance, or removal, disable all power to the luminaries and wait until the fixture cool
down.
4.Do not touch the fixture while it is in service.
5.If there is any problem with the fixture, DO turn off power and DO NOT attempt repair unless you are a qualified technician or
the customer service member.
Installation

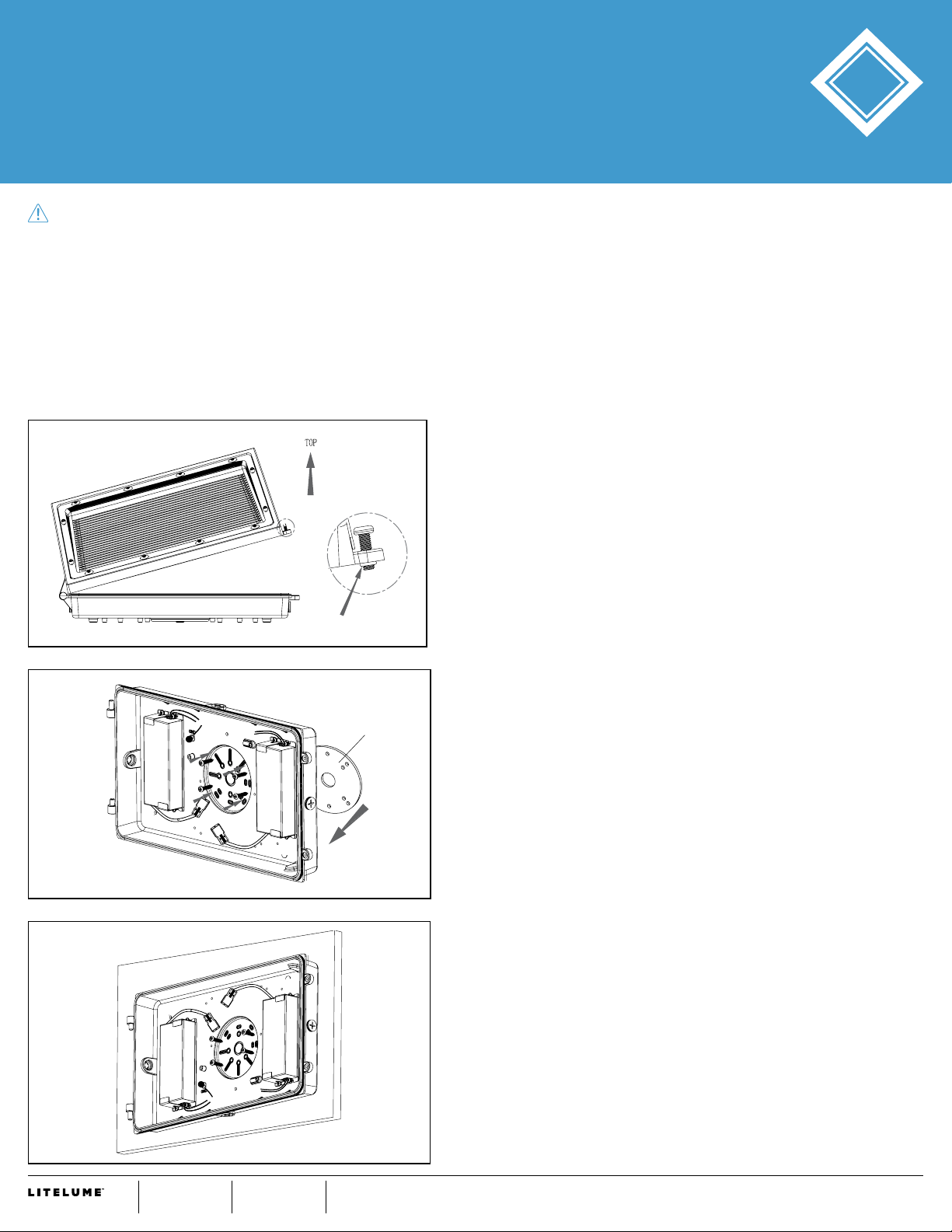

1. Loosen screws and remove the front lens set carefully from the back plate.
2. Drill appropriate knockouts (B) for wiring, the fixture supports standard 3 1/4’’ and 4’’Junction box.
gasket
B
3. Attach the back plate on the wall, use the supplied gaskets for a weather tight seal.
C
C

Wallpack Large
Installation Instructions
LITELUME™ seeks to deliver the most advanced and efficient LED technology. Due to
technology progression, specifications may change. We reserve the right to update product
specifications without notice. Contact LITELUME™ for the most up-to-date data.
www.litelume.com
[email protected]
833.LED.LUME
Page 2/4
Rev Date: 07/16/2018
©Lite Lume Corporation 2018
4. Finish wiring (Black for Line, White for Neutral and Green/Yellow Green wire for Ground).
Wire Connection
Black
White Neutral
Green/Yellow Green
Ground
Line
5. Replace the lens on the hinges, make connections and close the lens set then tighten the screws.
Conduit Mounting
1. Loosen screws and remove the front lens set carefully from the back plate.

Wallpack Large
Installation Instructions
LITELUME™ seeks to deliver the most advanced and efficient LED technology. Due to
technology progression, specifications may change. We reserve the right to update product
specifications without notice. Contact LITELUME™ for the most up-to-date data.
www.litelume.com
[email protected]
833.LED.LUME
Page 3/4
Rev Date: 07/16/2018
©Lite Lume Corporation 2018
2. Remove 1/2” plug from where you intend to feed conduit.
3. Drilling out the holes (C) to secure it on the wall with choosing proper screws.
C
C
C
4. Finish wiring (Black for Line, White for Neutral and Green/Yellow Green wire for Ground).
Wire Connection
Black
White Neutral
Green/Yellow Green
Ground
Line

Wallpack Large
Installation Instructions
LITELUME™ seeks to deliver the most advanced and efficient LED technology. Due to
technology progression, specifications may change. We reserve the right to update product
specifications without notice. Contact LITELUME™ for the most up-to-date data.
www.litelume.com
[email protected]
833.LED.LUME
Page 4/4
Rev Date: 07/16/2018
©Lite Lume Corporation 2018
5. Replace the lens set on the hinge and finish connection, Close the lens set and tighten the screws to fasten the lens set to the
back plate.
