LiveView GPS PT-8100 User manual

PT-8100 USER GUIDE
Tracking Portal: https://lvgps.net
POWER ON THE PT-8100
●Firmly Press & Hold The Power Button located on the top left corner of
the PT-8100 above the LED lights. Press the Power Button for at least 3
seconds.
CHARGE TIMES
●Internal Battery: 3.5 Hours
●Extended Battery: 12 Hours
LiveViewGPS Inc. | LiveViewGPS.com | 661-294-6805

LED LIGHT STATUS
GPS (BLUE) > Flashing > Trying To Get Fix > Solid > GPS Fixed
POWER (RED) > Flashing > Charging > Solid > Fully Charged
CEL (GREEN) > Fast Flashing > Trying To Connect To Network
> Slow Flashing > Establishing Network Connection
> Solid > Connected To Network
CHARGING THE PT-8100
The Standalone PT-8100 Includes: USB Charging Cable, 120 VAC Charger.

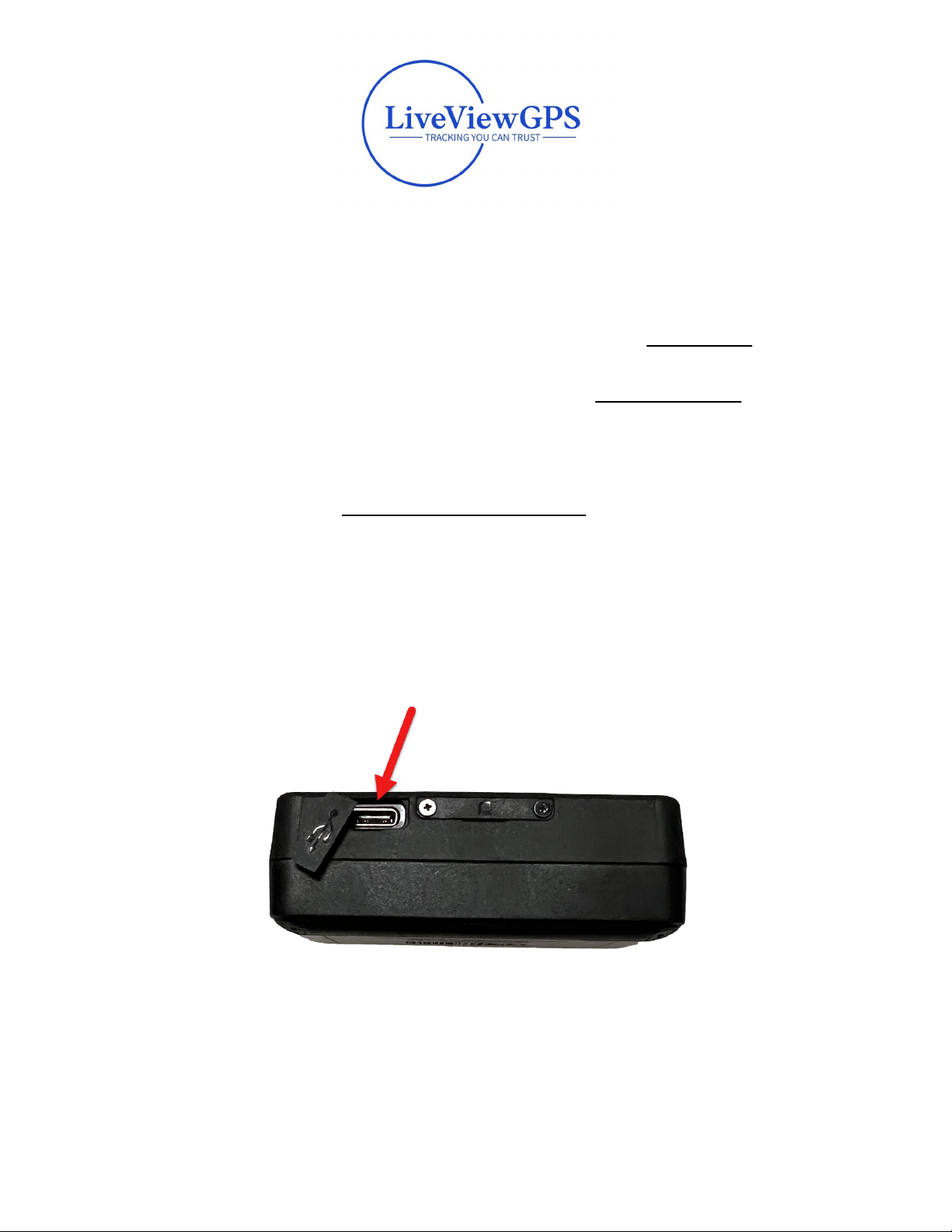

To Charge The PT-8100 Insert The USB Cable Into The USB port on the
PT-8100. Charging Time Is Approximately 6 Hours. Once Fully Charged
Expect 8-10 Motion Hours Of Live 10-Second GPS Tracking. When the device
is not moving, it enters standby mode to save battery power, it updates
positions every 8 hours when not moving.
LiveViewGPS Inc. | LiveViewGPS.com | 661-294-6805

EXTENDED BATTERY CHARGING/USE
The Extended Battery Kit Includes; Pelican Case with Magnetic Mount, 17.6 Ah
battery, as well as battery to device adapter, and External battery charger
cable.
Device Will Automatically Turn On When Connected to the External Battery.
Device will also Automatically Turn Off When Disconnected to the External
Battery.
CHARGE THE EXTERNAL BATTERY
To Charge The External Battery, Connect Wall Charger to Battery. Plug The
AC-DC Power Adapter in the DC Connector Of The External Battery. The LED
LiveViewGPS Inc. | LiveViewGPS.com | 661-294-6805

indicator on the adapter will be red during charging, and green when the
battery is fully charged. Approximate time to Full Charge is 16 hours.
Once fully charged you can expect approximately 140 motion hours of
tracking. When not moving, the PT-8100 goes into standby mode, and
updates its position every 8 hours.
CONNECT PT-8100 TO EXTERNAL BATTERY
1. Connect Male Molex Connector From External Battery, To Female
Connector (Adapter Cable: GL200PM).
2. Connect USB from Adapter Cable To PT-8100 USB Port.
LiveViewGPS Inc. | LiveViewGPS.com | 661-294-6805

INSERT INTO PELICAN CASE
1. Insert External Battery Into Right Side Of Pelican Case. Ensure that the
external charging cable is tucked into the side of the case.
2. Insert PT-8100 Into Left Side Of Case. Please Note The Orientation Of
The USB Connector Cable - it faces into the case.
3. Tuck The Adapter Cables into the space between the PT-8100 and the
External Battery.
4. Close and Secure the Pelican Case.
