LLG uniPERISTALTICPUMP 3 User manual

LLG-uniPERISTALTICPUMP 3
Please read the manual carefully before use, and follow all
operating and safety instructions!
LABWARE
®
INSTRUCTION MANUAL
INSTRUCTION MANUAL UK

LABWARE
®
2
1. Product Introduction 3
2. Installation instruction 4
3. Operation instruction 5
3.1 Product Appearance .......................................5
3.2 Screen and keypad ........................................6
3.3 Communication interface ...................................7
4. Dimension drawing 7
5. Specications 8
6. Orderinginformation 8
7. Warranty 9

INSTRUCTION MANUAL
3
Warning!
• The tubing may have cracks due to wear. This could result in the overow of uid from
tubing and may cause damages, so the user must check regularly and change tubings
in time.
• Connect the power cable directly to the wall socket and avoid using an extension cable.
• If the power line or plug is damaged, please hold the plug to unplug it, not hold the
line.
1. Product Introduction
LLG-uniPERISTALTICPUMP 3 uses a step
motor, has a small size and low noise
emission. It adopts an OLED high-denition
display and has an external control
interface for remote control. The pump can
communicate with computers and is used
with a variety of analytical instruments.
LLG-Labware oers 3 dierent
PharMed®
tubings with an inner diameter of 3,1 mm,
4,8 mm, or 6,4 mm and a wall thickness
of 1,6 mm. All tubings are equipped with
a corresponding connector to connect the
customers tubing.
Part numbers of the pump heads can be
found at the end of the manual.
Features:
• Easy installation of pump head, stable
ow rate
• OLED high-denition display
• Digital speed control knob
• Power down memory function
• Scope of supply:
LLG-uniPERISTALTICPUMP 3, pump head,
tubing with connector
ID = 6.4 mm, OD = 9.6 mm

LABWARE
®
4
LABWARE
®
2. Installation instruction
Head tubing installation and replacement:
1. Put LLG-uniPERISTALTICPUMP 3 on the
table and open the pump head cover lock
as shown in picture 1.
2. Open the pump head cover and install the
tubing as in picture 2.
3. Close the pump head cover and clock as
in picture 3.
Picture 1 Picture 2
Picture 3

INSTRUCTION MANUAL
5

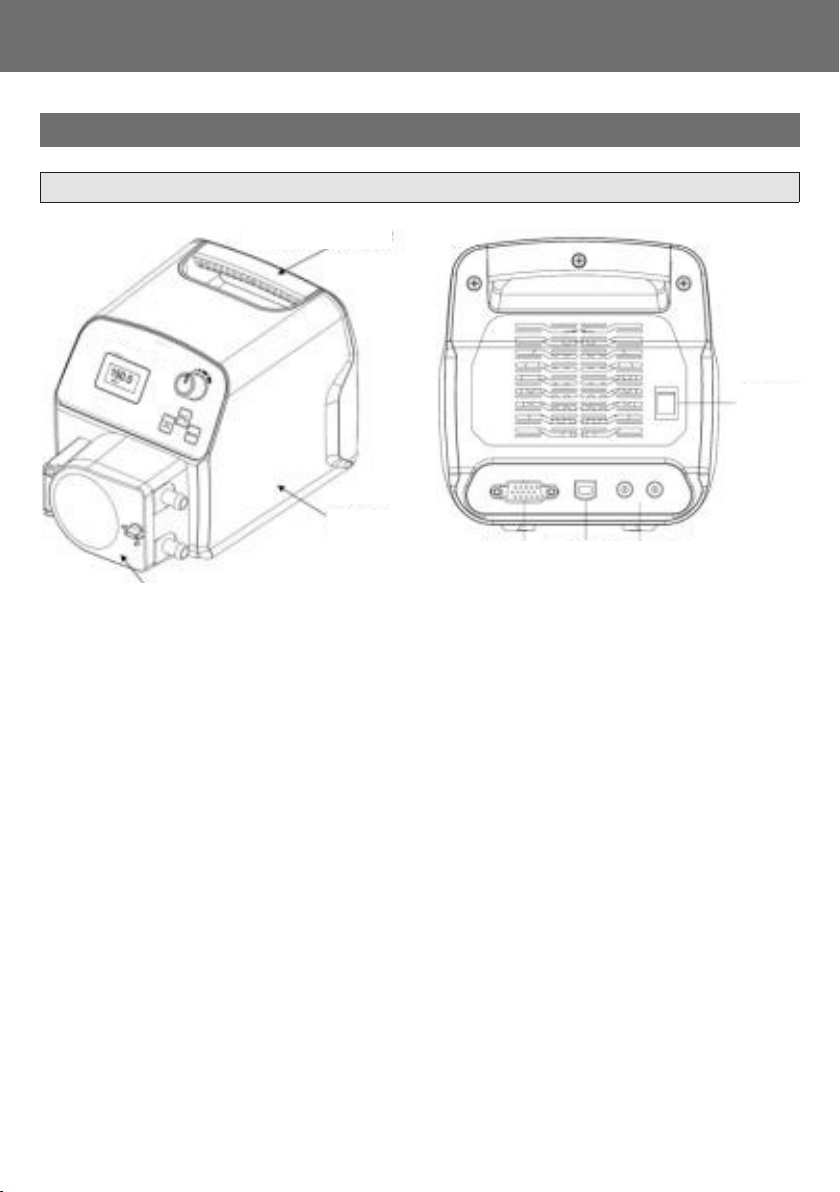

3.1 Product Appearance
3. Operation instruction
Power
switch
Picture 4 Picture 5
External USB 24 V
port input
Pump head
Drive
Silicone handle
LLG-uniPERISTALTICPUMP 3 peristaltic pump
has an ABS plastic casing that is anti-static
and prevents corrosion. On the backthere
are a fan, a power switch, a power interface,
a USB interface and an external control
interface.
The two power connectors on the back can
be cascaded with up to two other
LLG-uniPERISTALTICPUMP 3 pumps. In
this case, please select the power adapter
with power supply greater than or equal to
24V/3A.

LABWARE
®
6
The LLG-uniPERISTALTICPUMP 3 pump has a
mechanical keypad with a life of
300,000 cycles to fully meet the needs of
various environments.
1. Digital knob: Turn the speed control
knob to the left or right to decrease or
increase the speed. The speed range is
0.1-150 rpm.
2 Continuously pressing the knob will let
the motor run at the highest speed in the
current direction. The display shows the
full speed and maximum speed. Release
the button to stop, the screen displays the
stop state and the original speed.
3. Press the knob in the stop state to enter
the RS485 communication address
adjustment. The two digits in the lower
right corner of the screen ash, turn the
knob left or right to decrease or increase
the communication address. The address
adjustment range is 1-32. After adjusting,
press the knob again to exit the address
adjustment state.
4. Start/stop button: Change the motor
status. Press once, the pump will start,
press again, the pump will stop.
5. Direction button: Change the direction
of the motor. Pressing the button again
changes to the other direction.
100.0
V 01
Speed
Adress
Analog speed control
Working status
EXT
Control
knob
Start/Stop
External button
Direction
3.2 Screen and keypad
Picture 6 Picture 7

INSTRUCTION MANUAL
7
3.3 Communication interface
We use standard modus protocol
(RTUmode). Communication modes are
RS485 and USB. You can control the start/
stop, direction and motor speed. You can
also read the current running status.
• USB communication mode is enabled with
a USB cable, connected to the computer
through the pump USB interface.
• For RS485 communication mode connect
the A+pin (5 pin) together with T/R+ pin
of the RS485 module: Connect the B- pin
(4 pins) together with T/R- of the RS485
module.
4. Dimension Drawing

LABWARE
®
8
5. Specications
Model Peristaltic Pump LLG-uniPERISTALTICPUMP 3
Adaptor Input: AC100-240V,
50/60Hz
Output: DC24V/1A
Power <20W
Display OLED screen
Operation mode Mechanical keypad
Motor speed 0.1-150 RPM
Flow rate 0,08 - 398 ml/min (depends on the tubing)
Working environment Temperature 0-40 °C
Relative humidity <80 %
Dimension 190 x 128 x 135 mm
Weight 1100 g
Tubing
Speed Range (rpm) Flow Rate
(ml/min)
Tubing
Art. No.
ID x WallThickness
(mm)
6.263 552 3.1 x 1.6
0.1 ~ 150
0.08 ~ 120
6.263 553 4.8 x 1.6 0.16 ~ 240
6.263 554 6.4 x 1.6 0.26 ~ 398
6. Ordering Information
Cat No. Descriptions
6.263 550 Peristaltic Pump LLG-uniPERISTALTICPUMP 3, with EU plug,
pump head with hose connection ID 6.4 mm
6.263 551 Peristaltic Pump LLG-uniPERISTALTICPUMP 3, with UK Plug,
pump head with hose connection ID 6.4 mm
6.263 552 PharMed®tubing (ID = 3,1 mm, OD = 6,3 mm)
with connector for LLG-uniPERISTALTICPUMP 3
6.263 553 PharMed®tubing (ID= 4,8 mm, OD= 8,0 mm)
with connector for LLG-uniPERISTALTICPUMP 3
6.263 554 PharMed®tubing (ID = 6,4 mm, OD= 9,6 mm) with
connector for LLG-uniPERISTALTICPUMP 3

INSTRUCTION MANUAL
9
7. Warranty
This product is warranted to be free from defects in material and workmanship for a period of
three (3) years from date of purchase.
This warranty is valid only if the product is used for its intended purpose and within the
guidelines specied in this instruction manual. This warranty does not cover damage caused
by accident, neglect, misuse, improper service, natural forces or other causes not arising
from defects in original material or workmanship. This warranty does not cover any incidental
or consequential damages, commercial loss or any other damagesfrom the use of this
product.
The warranty does not cover damage to paint or nish and defects or damages caused by
physical and chemical abuse or normal wear and tear. The warranty is invalidated by any non-
factory modication, which will immediately terminate all liabilities on us for the products or
damages caused by its use. The buyer and its customer shall be responsible for the product
or use of products as well as any supervision required for safety. If requested the products
must be returned to the distributor in well packed and insured manner and all shipping
charges must be paid.
Information on the disposal of electrical and electronic devices in the European Community:
The disposal of electrical devices is regulated within the European Community by national
regulations based on the European Directive 2012/19/EU on waste electrical and electronic
equipment (WEEE). According to these regulations, any devices supplied after 13.06.05 in the
business to business sphere, to which this product is assigned, may no longer be disposed of
in municipal or domestic waste. They are marked with the following symbol to indicate this.
As disposal regulations within the EU may vary from country to country, please contact your
supplier if necessary.
PRODUCT DISPOSAL
In case the product is to be disposed of, the relevant legal regulations are to be followed.
