LLOYTRON Classique N8101SV User manual

MODEL: N8101SV
OPERATING INSTRUCTIONS
‘Classique’
AM/FM
Portable Radio
Cassette Recorder

2
FEATURES
thank you
Thank you for the purchase of this quality LLOYTRON product. Used carefully and in accordance with the
instructions enclosed, it should give you trouble free service over a long period of time. Please keep these
instructions for future reference.
• AM/FM Radio Wavebands + Cassette Recorder
• Rotary Tuning and Volume Control
• Telescopic Swivel Antenna
• Earphone Socket & Built-in Condenser Microphone
• Soft tape eject mechanism
• Automatic level control
• Record Radio or Microphone
• Mains or Battery Operation (Mains Lead Included, batteries not included)
• Carry Handle
SPECIFICATIONS
Operating Voltage: 220-240v~ 50Hz or 4x1.5v D Batteries
Frequency Range: FM 88 –108Mhz
AM(MW) 540 –1600Khz
Antenna: Ferrite bar (MW), Telescopic Antenna (FM)
Power Consumption: 5.5w
Output Power: 800MW

3
SAVE THESE INSTRUCTIONS
• Read all instructions carefully.
• For Household Use only.
• Only for use indoors.
• Do not use outside or in damp conditions.
• Keep away from hot surfaces, such as gas or electric hobs and ovens etc.
• Do not use for any purposes other than the appliances intended use.
• Do not use if any part of this appliance is damaged in any way.
• To prevent against the risk of electric shock, do not submerge any part of this appliance in water,
unless advised in this manual.
• This appliance should only be used on a at surface.
IMPORTANT SAFEGUARDS AND PRECAUTIONS
• To prevent possible hearing damage, do not listen at high volume levels for long periods.
• This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or instruction concerning
use of the appliance, by a person responsible for their safety.
• Children should be supervised to ensure they do not play with this appliance.
• Cleaning and user maintenance shall not be made by children.
• Never let children push anything into holes or slots in the cabinet or casing – this could result in an
electric shock.
• Before plugging into mains socket, check whether supply line voltage and current rating are in
compliance with the rated electrical parameters shown on the rating label.
• To prevent damage to the mains cord, do not let it pass over sharp corners, edges or hot surfaces.
• If the supply cord is damaged, do not use. Check before each use!
• If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer
or its service agent.
• Always unplug when not in use.
• Do not use rechargeable batteries in this appliance.
• Do not mix old and new batteries, different types of batteries, alkaline or rechargeable batteries with
different capacity together – they may leak.
• Always turn the unit off, when not in use. Leaving it on will shorten the life of the batteries.
• If you plan not to use the unit for a length of time, remove the batteries. Old batteries can leak and cause
corrosion, damaging the unit.
• Should you nd the sensitivity or quality of sound deteriorating, replace all old batteries with new ones
as soon as possible.
• The use of long life alkaline batteries is recommended.
• DON’T throw the battery in re or dispose of in household waste. Consult your local authority in the
correct way to dispose of unwanted batteries.
• DON’T short-circuit the supply terminals of the batteries.
• Always check the correct polarity when inserting batteries. Incorrect polarity can damage this unit.

4

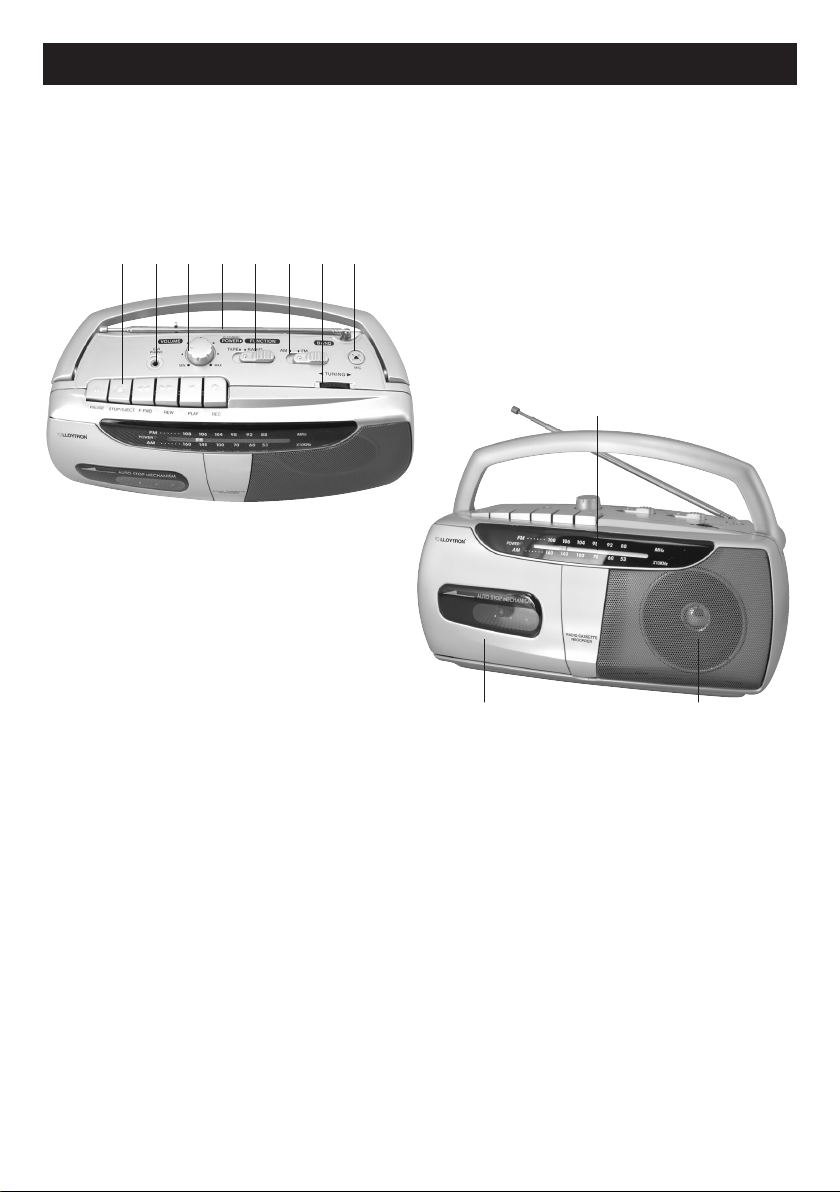

LOCATION OF CONTROLS
FUNCTION SELECTOR
• Use the function selector to choose between RADIO function and TAPE function.
BAND SELECTOR
• Enables you to choose between FM and AM frequencies.
VOLUME CONTROL
• Adjust the volume to your desired level using the volume control.
TUNING CONTROL
• Use the tuning control to select your favorite radio station.
HEADPHONE OUTPUT
• Insert your headphones into this jack to listen to your desired cassette or radio station privately and the
speaker will be disconnected automatically.
CASSETTE DECK CONTROLS
• REC: to start recording.
• PLAY: to start a cassette playback.
• REW: to fast rewind the cassette.
• F.FWD: to fast forward the cassette.
• STOP/EJECT: to stop and eject the cassette.
• PAUSE: to interrupt recording or playback.
1 762 3 4 5 8
1. Cassette Deck Controls
a. Pause
b. Stop/Eject
c. F FWD (Fast forward)
d. REW (Rewind)
e. Play
f. REC (Record)
2. Headphones Output
3. Volume Control
4. Rod Antenna
5. Function Selector
6. Band Selector
7. Tuning Control
8. MIC (built in)
9. Dial Scale
10. Speaker
11. Soft Eject Door
9
11 12

5
INSTALLATION
OPERATION
AC POWER
You can power your radio from standard AC power using the AC power cord. Plug power cord into the unit
AC socket and then plug the radio’s power cord into a standard AC outlet.
BATTERY INSTALLATION
Your radio operates on 6V DC Power, using 4 x 1.5 Volt DC “D” Size, or Equivalent Batteries.
To Install Batteries:
1. Remove the Battery Compartment Door by pressing and sliding the door down.
2. Insert 4 x 1.5 Volts “D” size or equivalent batteries, observing the correct polarities as indicated in the
battery compartment.
3. Replace cover.
RADIO OPERATION
1. Switch Function Selector to “RADIO” to set unit to Radio mode.
2. Select the waveband FM or AM with the BAND selector.
3. Rotate TUNING CONTROL to select the desired station.
4. Adjust Volume Control to obtain the desired listening level.
NOTE:
When listening to broadcasts it is advisable to extend fully the antenna on the top of unit, and to adjust the
position of the antenna for optimum reception.
CASSETTE DECK
Before operating the cassette deck, make sure Function Selector is in the TAPE mode.
PLAYBACK
1. Press Stop/Eject button to open the cassette door
2. Place the cassette tape into Deck, with the side to be played facing the window.
3. Close cassette door and Press Play button to start playback.
4. Playback stops when the tape reaches the end.
5. Press Stop/Eject button if you want to stop playback before the end of the tape.
6. Press Stop/Eject button twice to open the cassette door.
RECORDING FROM RADIO / Microphone (built-in)
1. Push function button “RADIO” for recording from radio, or “TAPE” for recording from the built-in microphone.
2. Place a blank tape into cassette deck.
3. Press PAUSE button rst and then Press PLAY and RECORD buttons together.
4. Play the selected sound source, to start recording, release PAUSE button.
CASSETTE TAPE NOTES
1. TAPE SLACK - Check and tighten slack tape before use with a pencil or similar tool. Slack tape may
possibly break or get jammed in the mechanism.
2. TO PREVENT ACCIDENTAL ERASURE - Use a screwdriver or other pointed tool to break off the plastic tabs.
3. TO RECORD AGAIN - Cover the tab openings with cellophane tape.
10. Speaker
11. Soft Eject Door

6
MAINTENANCE:
This appliance has been designed to operate over a long period of time with a minimum of maintenance.
Continuous satisfactory operation depends upon proper care and regular cleaning.
CLEANING:
The exterior surface of the appliance should be wiped with a clean dry cloth only.
DO NOT USE ABRASIVE CLEANERS, SOLVENTS OR POLISH ON ANY PART OF THIS APPLIANCE.
CLEANING AND CARE
OPERATION (CONTINUED)
EARPHONE
To enjoy your radio in privacy, use an earphone (Not Supplied). Plug the 1/8-inch (3.5mm) earphone into
the radio’s EARPHONE socket. This automatically disconnects the built-in speaker.
LISTENING SAFELY
To protect your hearing, follow these guidelines when you use the earphone:
• Set the volume to the lowest setting before you begin listening. After you begin listening, adjust the
volume to a comfortable level.
• Do not listen at extremely high volume levels. Extended high-volume listening can lead to permanent
hearing loss.
• Once you set the volume, do not increase it. Over time, your ears adapt to the volume level, so a volume
level that does not cause discomfort might still damage your hearing.
TRAFFIC SAFETY
Do not wear the earphone while operating a motor vehicle or riding a bicycle. This can cause a trafc hazard
and is illegal in some areas. Even though some earphones are designed to let you hear outside sounds
when listening at normal volume level, they still present a trafc hazard.

7
WEEE/ENVIRONMENTAL PROTECTION
Disposal of Electrical and Electronic Equipment
Do not dispose of this product with household waste. For the proper treatment, recovery and
recycling please take this product to the appropriate waste collection point. If you are unsure
where this may be, please contact your local authority. Improper disposal may be harmful to
the environment.
3A FUSE
(L) LIVE
(N) NEUTRAL
UK PLUG REWIRING
This appliance must be protected by a 3 Amp fuse in a 13 Amp type (BS1363) plug.
Should you need to replace the fuse, use only an ASTA approved BS1362 fuse.
Your appliance operates on 220-240V~50Hz AC Mains and comes tted with a 3-pin BSI Approved plug, so
that it is ready for use by simply plugging into AC Mains. Should you need to change or ret a plug, proceed
as follows: -
IMPORTANT:
The wires in the mains lead are coloured in accordance with the following code:
BLUE: NEUTRAL (N)
BROWN: LIVE (L)
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The BLUE wire must be connected to the terminal which is marked with the letter “N” or coloured BLACK.
The BROWN wire must be connected to the terminal which is marked with the letter “L” or coloured RED.
DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL OF A 3-PIN PLUG
Always ensure that the Mains Cord is located into the Plug through the Cord Guard or Cable Clamp, and that
the Cord Guard screws are tightened to clamp the Cord (outer sheath and inner coloured wires) in position
in the Plug. Make sure the Plug top is also tted securely.
If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer
or its service agent.

call: 08454 81 8808
email: [email protected]
web: www.lloytronhelpdesk.com
If you have any queries about this product, there are three ways to contact our customer service department:
To nd more details on a wide range of Lloytron products please visit our website at www.lloytron.com
Lloytron plc, Laltex House, Leigh Commerce Park, Greenfold Way, Leigh, Lancashire, WN7 3XH. England, U.K
CUSTOMER SERVICES
2011/65/EC
