LODAPUG Y10 User manual
LODAPUG Y10 Smart Watch Fitness Tracker Sports Watch Activity Tracker
Y10 Smart Watch Smart Bracelet User
Manual
LODAPUG Y10 Smart Watch Fitness Tracker Sports Watch Activity Tracker
1
【lntroduction of smart watch function】
1.Connection mode:
Android: the smart watch is connected to an android phone. Click
"add device" to enter the APP and search for the device's bluetooth
address connection 4.0. After the automatic pop-up 3.0 connection
click agree, if not, please go to the phone Settings - bluetooth
search your device name, and connect.
iOS: iOS is connected to the smart watch. Click "add device" in the
mobile APP to search for the device's bluetooth address 4.0
connection, and enter the setting menu in the phone single 3.0
manual connection --iOS disconnect mode, if the device needs to
be replaced, the APP in the current mobile phone needs to interrupt
the device before entering in the setting menu of the mobile phone,
bluetooth cancels the pairing of this device to allow other devices to
connect; Bluetooth 3.0 supports Shared contacts, media audio, and
communication Audio.
LODAPUG Y10 Smart Watch Fitness Tracker Sports Watch Activity Tracker
2
2. Dial mode: dial displays time, date and power. (after connecting
to the APP, the time of the smart watch will automatically
synchronize with the phone's time, and there is no time on the
smart watch method to set the time).
3. Dialing: enter the number into the dial to make a call manually.
4.Contacts: you need to synchronize contacts in the APP, and
select up to 50 imported smart watchs at a time to display the
contacts after successful import look at it.
5.Step counting: enter the step counting menu to view the total
number of steps, time, calories and distance of the day.
6.Heart rate function interface: the heart rate interface of the hand
ring can measure your current heart rate and display the
measurement results. More detailed information analysis and data
recording record, can be synchronized in the APP to view.
7.Blood pressure function interface: the blood pressure interface of
the hand ring can measure your current blood pressureand display
the measurement results. More detailed information analysis and
data recording record, can be synchronized in the APP to view.
8.Blood oxygen function interface: the blood oxygen interface of the
hand ring can measure your current blood oxygen value and
display the measurement results. More detailed information
analysis and data recording record, can besynchronized in the APP
LODAPUG Y10 Smart Watch Fitness Tracker Sports Watch Activity Tracker
3
to view.
9. Sleep interface: by default, the smart watch can record and
display your total sleep time, as well as the length of deep and light
sleep, from 10:00 pm-8:00 am. More detailed data analysis, which
can be viewed synchronously in the APP.
10.Sports mode: click into the interface of sports mode, and there
are running, cycling, badminton and other sports modes in each
mode. The interface records the time of exercise and calories
generated, click enter, and then right slide out.
11.Music control: after connecting to the phone, the smart watch
can control the phone's player. When the phone plays music, click
to enter and the smart watch can be used control the mobile phone
to play / pause, the previous, the next operation.
12.Stopwatch function: click to enter the stopwatch function to start
/ stop / end the operation.
13.Wallpaper push: you need to select wallpaper push on the APP
device page, and push the wallpaper synchronously displayed on
the device side successfully.
14.Take photos: click or shake to take photos.
15.Setting function: switch dial, find mobile phone, APP QR code,
vibration setting, restore factory, about, language settings.
16.Message reminder: open the reminder on the APP. When there
LODAPUG Y10 Smart Watch Fitness Tracker Sports Watch Activity Tracker
4
are messages such as Facebook, call and SMS on the phone,
there will be corresponding prompt on the smart watch.
17.More functions: sedentary reminder, water reminder, connection
reminder, incoming call reminder, alarm clock reminder, charging
reminder, etc.
【APP connection mode】
1.Scan the QR code above to download or search " Lefun Health "
in Android store or APP store to download install.
2.Press and hold the touch button for 3 seconds to turn it on, open
and enter the " Lefun Health " app, search for the device according
to the APP connection wizard,select the device model, and
complete the connection pairing.
Tips: For iOS devices, please press pair the Bluetooth for the first
time connecting. Afterward, the smart watch will be able to receive
the income calls, texts and more notifcations pushed from the iOS.
【APP function introduction】
LODAPUG Y10 Smart Watch Fitness Tracker Sports Watch Activity Tracker
5
LODAPUG Y10 Smart Watch Fitness Tracker Sports Watch Activity Tracker
6
LODAPUG Y10 Smart Watch Fitness Tracker Sports Watch Activity Tracker
7
LODAPUG Y10 Smart Watch Fitness Tracker Sports Watch Activity Tracker
8
LODAPUG Y10 Smart Watch Fitness Tracker Sports Watch Activity Tracker
9

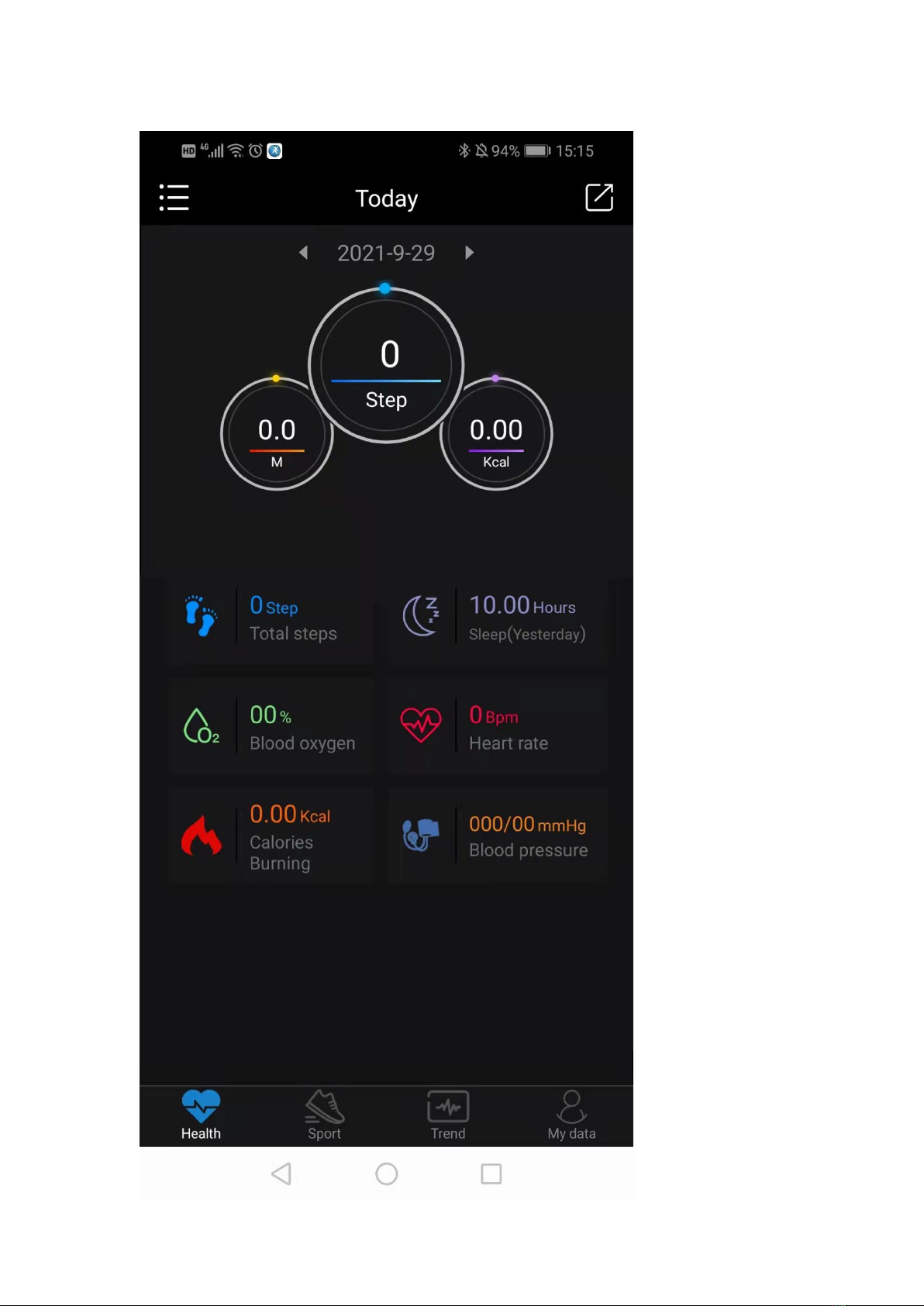

1.Home page, additional functions, personal information

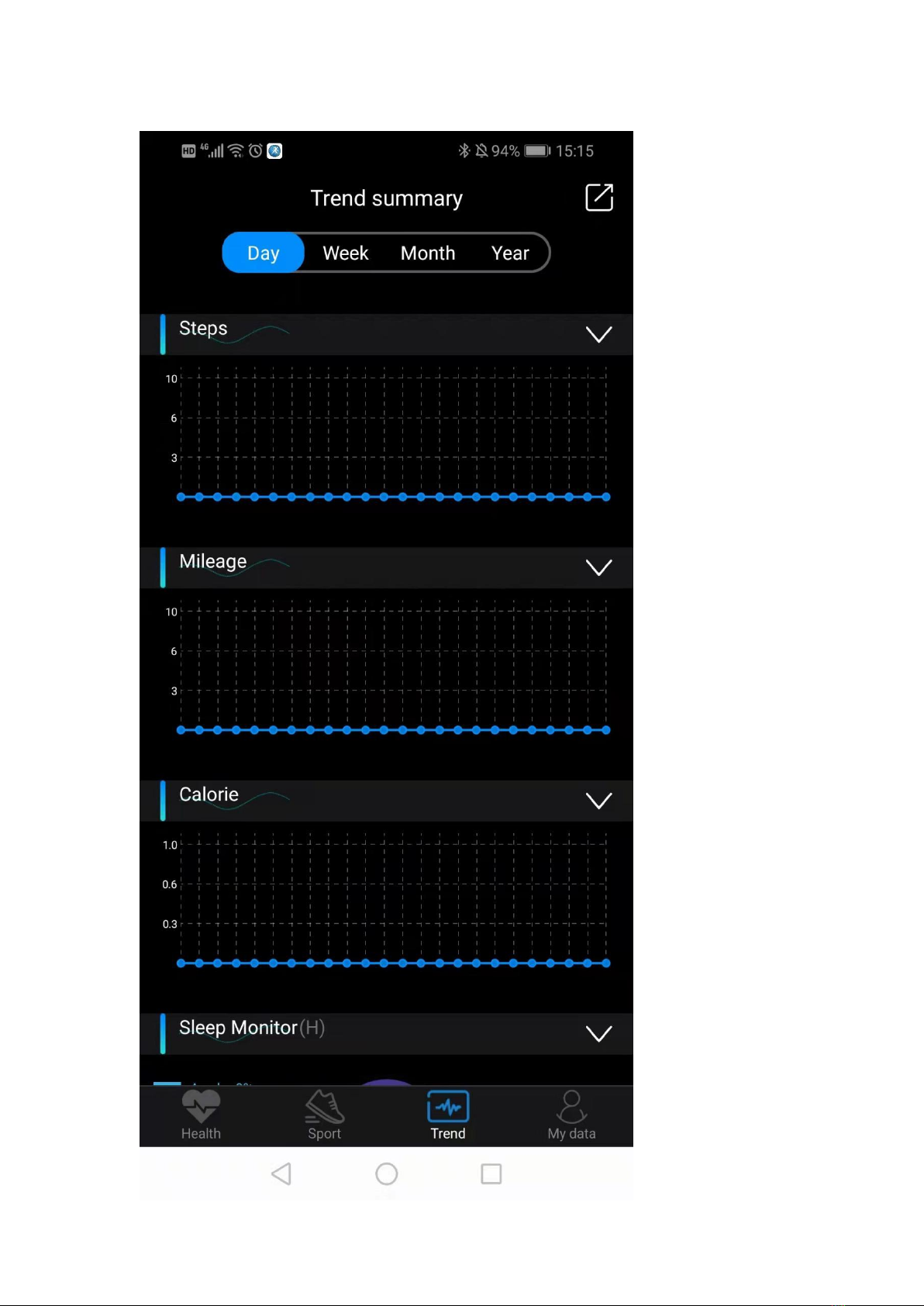

2.Step module: A chart will bedrawn to show the steps, distance
and calories burnt accordingly. Provide an insight for user of daily,
weekly, and monthly data.
3.Heart rate: Provide the detail information of your heart rate daily,
weekly, and monthly. Your heart rate will be read in every hour.
4.Blood pressure module: Provide the detail information of your
blood pressure daily, weekly, and monthly. Your blood pressure will
be read in every hour.
5.Blood oxygen module: Provide the detail information of your
blood oxygen daily, weekly, and monthly. Your blood oxygen will be
read in every hour.
6.Sleep module: Record the daily, weekly, and monthly sleep
information in the form of chart. Base on the smart watch data to
calculate the daily sleep quality and sleep time.
【Parameter】
Screen size
1.54 inch
Bluetooth
Bluetooth 4.0 Bluetooth 3.0
Type of battery
Lithium polymer battery
Battery capacity
200mAh
Charging time
2 Hours
smart watch size
44.8mm*39.2mm*13mm
LODAPUG Y10 Smart Watch Fitness Tracker Sports Watch Activity Tracker
10
Charging
Magnetic charging,Compatible clamp
Touch screen
Full screen touch
Package
Smart smart watch+Magnetic charger+Instruction
manual
【Attention】
1
、
lf there is a product quality problem or the use of products
is not clear, please contact us, we will deal with it as soon as
possible.
2
、
The measurement results of this product are for reference
only, not for any medical purpose and basis. Please follow
the doctor's instructions and do not rely on the
measurement results for self diagnosis and treatment.
3
、
Our company reserves the right to modify the contents of
this manual. Some functions are different in the various
software version, which is normal.
4
、
Caution do not use a power adapter that outputs more
than 5V=1A to charge, otherwise the circuit may be burned
out and the battery will not be charged.
Note:
1
、
Please charge the smart watch for two hours before you
firstly use it.
2
、
Put the smart watch into the specialized charging base
LODAPUG Y10 Smart Watch Fitness Tracker Sports Watch Activity Tracker
11
(please note that the touch point at the back must be aligned
with the thimble at the charging base. Please see the
following figure), then insert the other side into computer
USB port. The power adapter is recommended to use a
standard 5V 1A -5V 2A adapter. Please only charge device
using the Micro-USB cable connected to a computer, do not
charge using a third-party adapter. Otherwise, it is easy to
damage the smart watch due to excessive current.
3
、
Do not charge in condition of water stains.
4
、
This smartwatch is an electronic monitoring product,
which is not used as medical treatment. The monitoring
data is for reference only.
5
、
Please don't wear the watch too tight or wear it for a long
time, so your wrist skin can breathe well and feel
comfortable.
6
、
IP67 Waterproof. It is sweat-proof and splash-proof, but
it cannot be immersed in water. Please take it off when you
take a bath or swim.
7
、
The message on the smartwatch cannot be deleted
manually, but the new message will automatically cover the
old one.
8
、
This smart watch can not connect to wifi, no GPS
LODAPUG Y10 Smart Watch Fitness Tracker Sports Watch Activity Tracker
12
function.
In order to help you use this product better here are
some common problems and solution .
Please kindly contact with us if you have any other
questions, we must provide the best after-sale
customer service.
Question 1: How to Download “Lefun Health” App?
Answer:
1、Download the "Lefun Health" APP by scanning this QR code on
the manual, or search "Lefun Health" APP on Google Play or
Android store or APP store to download install.
Please follow the instructions in the picture
LODAPUG Y10 Smart Watch Fitness Tracker Sports Watch Activity Tracker
13
When you scan the QR code, the above page appears, there are
three versions of this Lefun Health App, iOS version, Android
version and Google version. Just choose the right version to
download according to your own phone.
2. Open the App and enter your true personal data so the data will
be more accurate, if there is a problem, please check the network
of your phone.
LODAPUG Y10 Smart Watch Fitness Tracker Sports Watch Activity Tracker
14

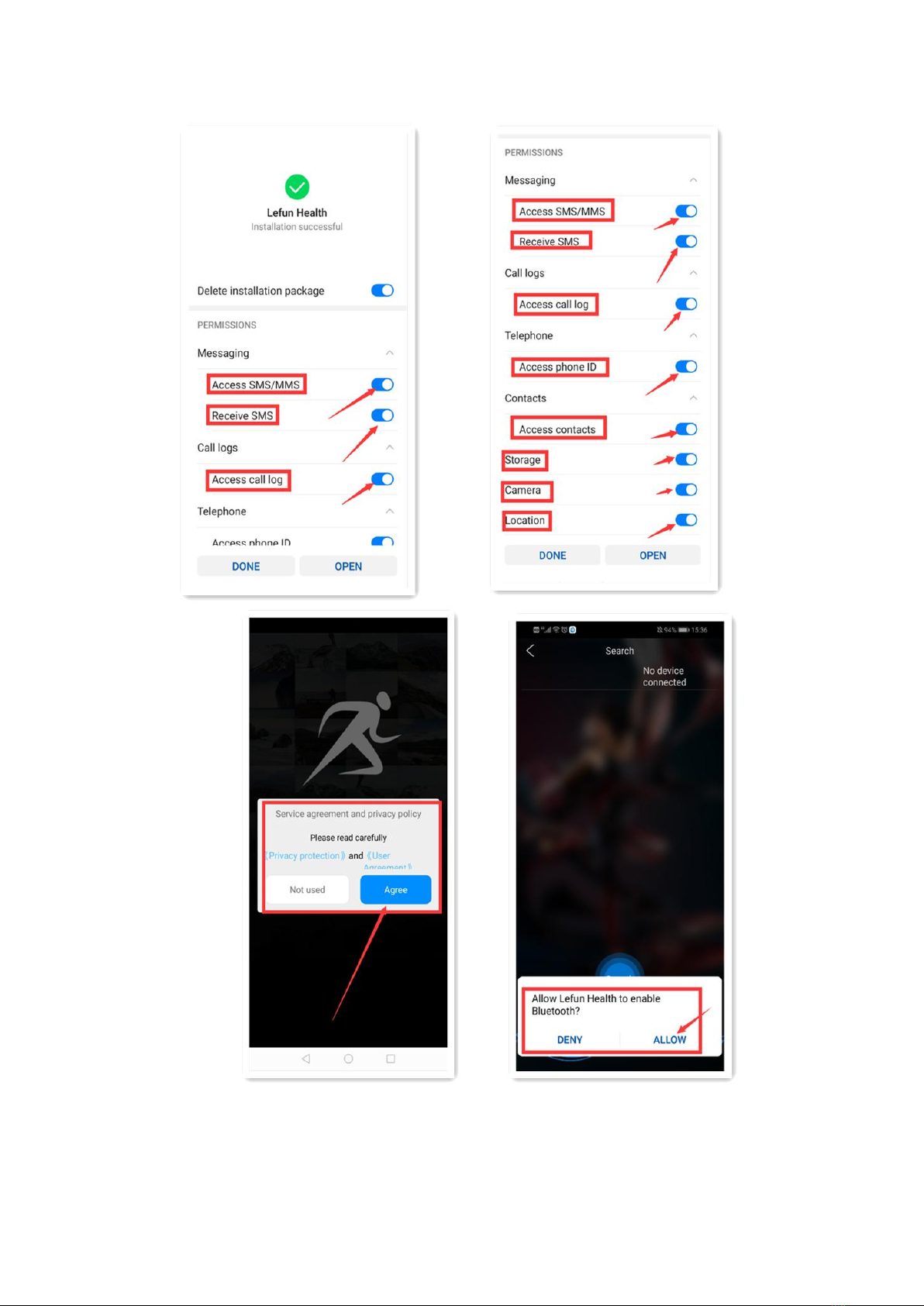

After downloading the app, please give the app permission to open
these and open Bluetooth in order to use the functions of this
LODAPUG Y10 Smart Watch Fitness Tracker Sports Watch Activity Tracker
15
smartwatch normally, such as message reminder, remote photo,
etc.
Question 2: How to Connect the Smart Watch with Your Phone?
Answer:
1、Open the "LeFun Health" app and allow the smartwatch to
request permission to access location, enable Bluetooth, use
wireless network and cellular network on your phone.
2、Turn on your phone's Bluetooth first. Click on the directory bar to
open the hidden screen. Click "Device name / connection status"
→click "Search" →search and select "Y10". If the connection is
successful, it will display "connected", please ensure the watch is
kept on.
3、Please don't connect the smart watch on bluetooth Setting page
of your phone directly.
4、The time, date and language on the smartwatch are
synchronized with the connected phone. If you find that these data
are incorrect, please reset the connecting.
Please follow the instructions in the picture
LODAPUG Y10 Smart Watch Fitness Tracker Sports Watch Activity Tracker
16

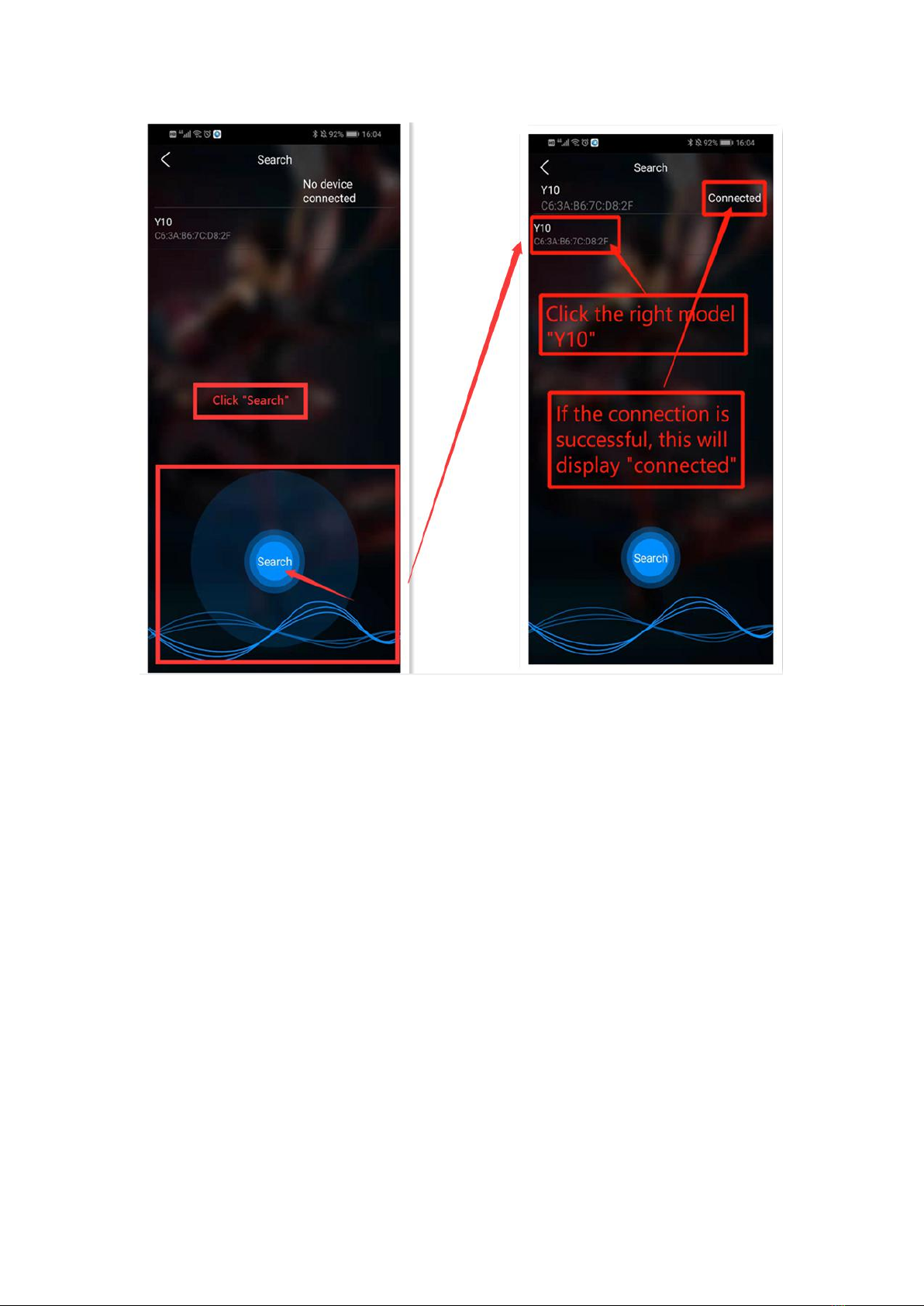

Click "Device name / connection status" →click "Search" →search
and select "Y10". If the connection is successful, it will display
"connected", please ensure the watch is kept on.
LODAPUG Y10 Smart Watch Fitness Tracker Sports Watch Activity Tracker
17
If there are more than one "Y10" model smartwatch in your
neighborhood, please connect by the specific number of your watch.
The path to view the watch's specific number is : Go to watch
settings→Click "About". Then a string of characters will appear,
similar to: C6:3A:B6:7C:D8:2F. Just select your own watch number
to connect.
If you can't connect your watch to your smartphone
1.Please check the smart watch with enough power or not, there is
bluetooth image on the smart watch screen or not.
2. Please ensure the smart watch is not connected to any other
LODAPUG Y10 Smart Watch Fitness Tracker Sports Watch Activity Tracker
18
phones.
3. Turn on the bluetooth on your phone's setting page.
4. Open the "Lefun Health" APP, click "Connected", and confirm to
disconnect from smart device, then click"Search" to connect again.
(note: please don't connect the smart watch on phone's bluetooth
setting page, you must connect the smart watch on "Lefun Health"
APP.
Question 3: How to Get Notifications on the Watch?
Answer:
1. Make sure the watch connected with your phone. (Refer to the
connection steps)
2. Open the "Lefun Health" APP→Click on the directory bar to open
the hidden page→"Message Reminder"→Allow the APP open
notifications permission→Select the "Lefun Health" app you want to
get notification→Back to "Message push"→Turn on the app you
want to get the message notifications, like "Facebook
reminder""WhatsApp reminder".
3. To ensure this message reminder function, please open the
Message Notification permission of the "Lefun Health" APP from
the mobile phone Setting.
Note: Please make sure your phone's dropdown can show you the
message notification when it comes in. The watch won't receive
LODAPUG Y10 Smart Watch Fitness Tracker Sports Watch Activity Tracker
19
any notification if messages / calls / SMS notifications didn't appear
on dropdown of your phone, make sure they are able to show up:
Phone Settings-->Notifications> Find the app you need to get
notification from-->Allow Notifications.
For example, if you want to receive notification of Facebook, please
allow all the permissions of Facebook when you install Facebook. If
your phone cannot receive Facebook message notification, the
smart watch won’t receive the Facebook message. You need to
allow notification permission of Facebook in the Settings of phone.
Please follow the instructions in the picture
