Logic L812WM12 User manual

8KG/6KG Washing
Machine
Installation Guide / Instruction Manual
L812WM12 / L614WMS12
L812WM12_614WMS12_IB_120709_RC04_Annie.indd 1 12年7月9日 上午10:50

L812WM12_614WMS12_IB_120709_RC04_Annie.indd 2 12年7月9日 上午10:50

Contents
Unpacking.................................................................................................................................... 5
Installing Your Washing Machine ............................................................................................... 6
Choosing the Right Location for Your Washing Machine ........................................................................ 6
Moving and Installing ................................................................................................................. 7
Removing the Transit Bolts ................................................................................................................................. 7
Moving the Washing Machine from One Location to Another.............................................................. 7
Hose and Cable Lengths...................................................................................................................................... 8
Levelling the Washing Machine ........................................................................................................................ 8
Water Supply Hose................................................................................................................................................. 8
Water Drain Hose.................................................................................................................................................... 9
Connecting to the Mains Supply ...................................................................................................................... 9
Product Overview...................................................................................................................... 10
The unit ....................................................................................................................................................................10

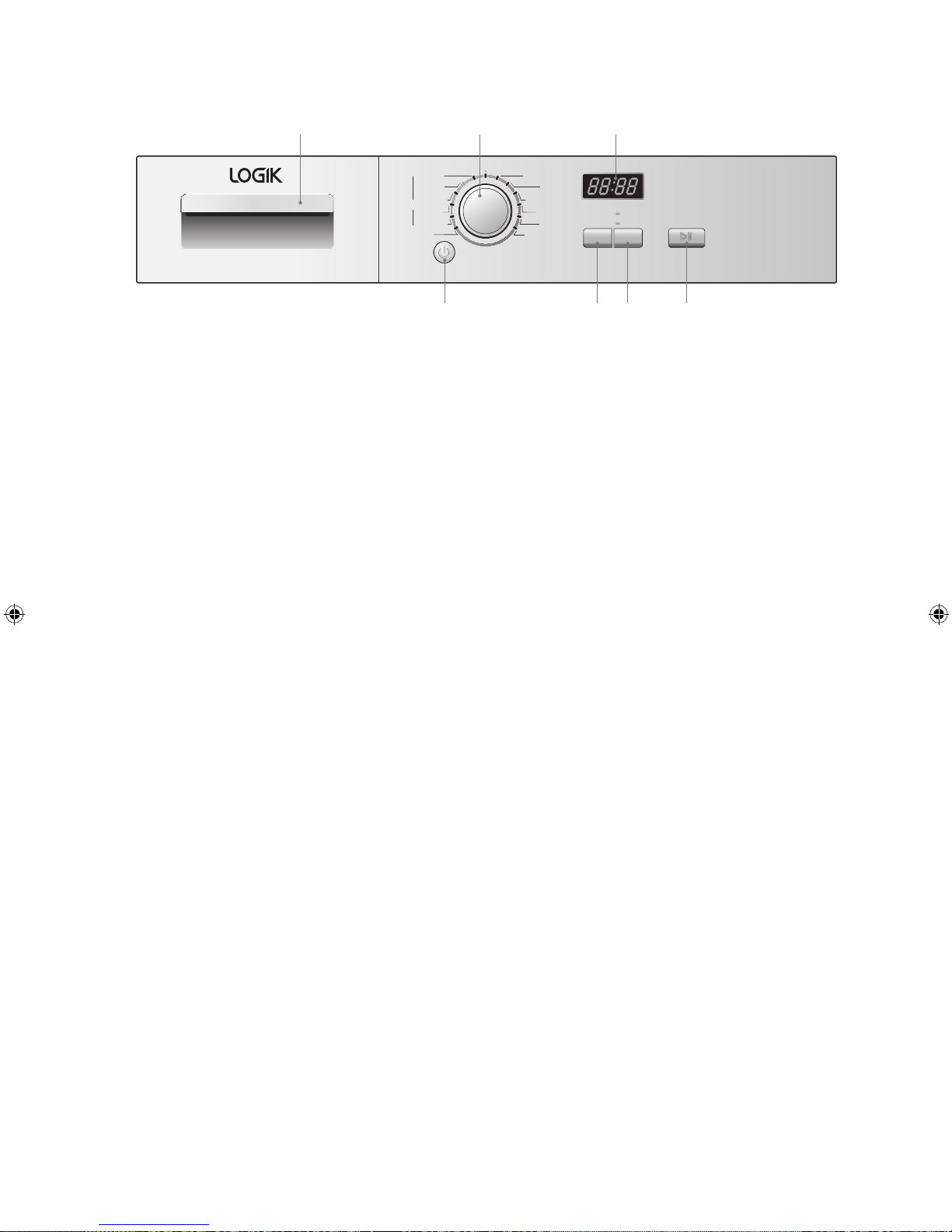

The Control Panel ................................................................................................................................................11
Preparation ................................................................................................................................ 12
Organising Laundry.............................................................................................................................................12
Preparing Laundry ...............................................................................................................................................12
Adding Detergent and Softener .....................................................................................................................12
Selecting the Programme (For Model L812WM12)..................................................................................13
Selecting the Programme (For Model L614WMS12) ...............................................................................14
Wash Setting .............................................................................................................................. 15
First Time Use.........................................................................................................................................................15
Standard Washing ................................................................................................................................................15
Manual Soaking ....................................................................................................................................................15
Optional Functions ..............................................................................................................................................16
Program ending....................................................................................................................................................16
Removing Laundry...............................................................................................................................................16
Switching O .........................................................................................................................................................16
Important Information.............................................................................................................. 17
Washing Delicates................................................................................................................................................17
Adding Delicate Laundry Items to the Drum.............................................................................................17
Which Detergent to Use.....................................................................................................................................17
Tips for Hanging Delicate Items to Dry.........................................................................................................17
If Clothing Shrinks in the Wash........................................................................................................................17
Maintenance – Cleaning the Washing Machine ......................................................................18
Cleaning the Drum...............................................................................................................................................18
Cleaning the Exterior of your Washing Machine.......................................................................................18
Cleaning the Detergent Drawer......................................................................................................................18
Cleaning the Door Seal and Window ............................................................................................................19
Cleaning the Drain Filter....................................................................................................................................19
Preventing a Frozen Water Supply Hose......................................................................................................19
Cleaning the Filter Net of the Water Supply Hose ....................................................................................19
L812WM12_614WMS12_IB_120709_RC04_Annie.indd 3 12年7月9日 上午10:50

Hints and Tips ............................................................................................................................ 20
Troubleshooting ........................................................................................................................ 22
Error Code ...............................................................................................................................................................22
Specications............................................................................................................................. 24
Product Fiche (For Model L812WM12)..................................................................................... 25
Product Fiche (For Model L614WMS12)...................................................................................26
Safety Warnings......................................................................................................................... 27
L812WM12_614WMS12_IB_120709_RC04_Annie.indd 4 12年7月9日 上午10:50

5
Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to
local regulations.
The following items are included:
The Main Unit
Thank you for purchasing your new Logik Washer Machine.
We recommend that you spend some time reading this installation/instruction manual
so that you fully understand all the operational features it offers.
Read all the safety instructions carefully before use and keep this installation/
instruction manual for future reference.
If items are missing or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
Water Supply Hose
P.N.: 0020300158A
Noise Protection Board (For L812WM12)
P.N.: 0020501896
Noise Protection Board (For L614WMS12)
P.N.: 0020501889A
Cover Cap x 4
P.N.: 0020202911
Instruction Manual
P.N.: L812WM_614WMS12-004
Standard
Cotton
Synthetic
Wool
Power
Express 15’ Time to end
Temprature
Extra rinse
Intense Start/pasue
Pre-wash
Standard
Quick wash
Stardard
Quick wash
Lingerie
Mix
Sport wash
Spin/drain
Drain
Drum clean
This product has been wet tested to
ensure correct operation. As a result some
water may remain inside the unit. This
is normal and safe. Remove any water
droplets from the exterior if necessary.
U-Shape Holder
P.N.: 00221123015002
L812WM12_614WMS12_IB_120709_RC04_Annie.indd 5 12年7月9日 上午10:50

Installing Your Washing Machine
Please read and follow the instructions carefully.
• In addition to the instructions mentioned here, special regulations of the relevant water and power
supply companies may apply. If in doubt, have the washing machine connected by a qualified
technician.
• The washing machine is heavy - caution when lifting it. Do not lift by projecting components (e.g.
washing machine door).
• Warning: Frozen hoses may tear/burst. Do not install washing machine in outdoor areas or where
there is a risk of frost.
• Lay hoses and cables in such a way that there is no risk of tripping over them.
Choosing the Right Location for Your Washing Machine
• Make sure there’s enough space for your washing machine.
• Install your washing machine on a flat, stable surface to avoid excessive vibrations and noise.
• Don’t install your washing machine in direct sunlight or in a place where temperatures reach
freezing.

Sloping
surface
Unstable Bumpy
surface
Two or more people are required to carry
the washing machine.
• Start by tilting the washing machine backwards.
• One person should stand behind it, holding the rear of the top panel. The other person should grip
the bottom feet at the front.
• Don’t touch the door opening button while holding.
• Check that you have all the required accessories for installation.
• Entrust the installation of the washing machine to a qualified technician.
An additional space of (240mm) is required at the rear of the washing machine. This is to
allow enough space for the water hose and drain hose.
INSTALLATION
6
L812WM12_614WMS12_IB_120709_RC04_Annie.indd 6 12年7月9日 上午10:50

Moving and Installing
Do not run the washing machine without removing the bolts, as this can cause excessive
vibrations.
Installing the Noise Protection Board
To reduce the noise produced by the washing machine, install the noise protection board.
1. Lay down the machine. Unscrew the four feet.
2. Fit the board onto the bottom of the machine. The four holes in the board should correspond to
the screw holes of the levelling feet.
3. Screw the four levelling feet back on to fix the noise protection board to the machine.
4. Stand the machine upright.
Removing the Transit Bolts
Four (4) transit bolts keep the interior of the washing machine in place while it is being moved.
They need to be removed before installation. Use a spanner (not included) and follow the instructions
detailed below.
Two or more people are required to carry the
washing machine and for any installation work.
Fix the Noise Protection Board onto the bottom of the machine
BEFORE removing the transit bolts.
The L812WM12’s Noise Protection
Board comes with a felt layer.
When installing, this felt layer
must face the inside of the unit.
INSTALLATION
7
L812WM12_614WMS12_IB_120709_RC04_Annie.indd 7 12年7月9日 上午10:50

Moving the Washing Machine from One Location to Another
Before you move the washing machine:
• Shut off the tap and run the washing machine to drain the water. Drain any remaining water from
the pump hose.
• Disconnect the mains cable.
• Attach the transit bolts.
To remove the transit bolts:
1. Use a spanner to loosen the four transit bolts. They are located at the rear side of the washing
machine.
2. Pull the bolts out horizontally. Make sure the entire bolt is removed.
3. Push the four cover caps (included with your accessories) into the respective bolt holes.
You’ll need the transit bolts again if you move the washing machine, so make sure you keep
them in a safe place.
Make sure transit bolts are fixed prior to moving the washing machine.
1 2 3
* All images are for reference only;
please refer to your individual unit
for actual item.
INSTALLATION
8
L812WM12_614WMS12_IB_120709_RC04_Annie.indd 8 12年7月9日 上午10:50

Levelling the Washing Machine
There are 4 levelling feet on the underside. They must be adjusted to make sure the washing machine
is level.
1. On each stand, loosen the lock nut by turning it clockwise with a
spanner.
2. Adjust all four feet in this way.
3. Use a spirit level to ensure the washing machine is level.
4. Tighten each lock nut by turning them anti-clockwise (towards the
washing machine body), again using a spanner.
Ensure all four lock nuts are tightened securely. Check the feet are still bolted to
the washing machine - if they’re unbolted, the washing machine will move around.
Water Supply Hose
Points to remember
• Follow the instructions in this section to avoid water leaks.
• Don’t connect the hose to a combination tap.
• Don’t twist, squash, modify or cut the hose.
• Optimum water pressure in the main pipe is 0.03 MPa - 1.0 MPa. If the water pressure is set higher
than this, you will need to install a depressurising valve. Water-flow from the tap should be more
than 5 litres per minute. If you’re unsure, ask a qualified technician to connect the hose.
• This unit must only be connected to the cold water mains using the new water inlet hose provided.
Connecting the Water Supply Hose
1. Attach the hose to a tap, and tighten the
plastic joint by hand.
2. Open the tap slowly and check that there
are no leaks around the joint.
The joint is subject to water pressure.
3/4”
min. 10 mm
3/4”
min. 10 mm
Plastic joint
How to connect from the left side How to connect from the right side
~80cm
~90cm
~85cm ~135cm
min. 80cm
max. 100cm
~40cm
~130cm
StandardCotton
Synthetic
Wool
Power
Express15’ Timeto end
Temprature
Extrarinse
Intense Start/pasue
Pre-wash
Quickwash
Stardard
Quickwash
Lingerie
Mix
Sportwash
Rinse
Spin
Drumclean
Hose and Cable Lengths
* All images are for reference only; please refer to your individual unit for actual item.
INSTALLATION
9
L812WM12_614WMS12_IB_120709_RC04_Annie.indd 9 12年7月9日 上午10:50

Water Drain Hose
Points to remember:
• Don’t twist, pull out or bend the drain hose.
• Your washing machine should be no more than 250cm from the drain outlet.
Draining to a sink or wash-basin
• Secure the drain hose in position, so it can’t drop out of the basin.
• Don’t block the basin’s drain outlet, and make sure that the drainage through it is sufficient.
• Don’t let the tip of the drain hose dip into the drained water, as this can cause the water to flow
back into the washing machine.
U-Shape Holder
Draining to a wash-basin Draining to a drain hose
Connecting to the Mains Supply
For your safety:
• Do not use a mains plug adapter or extension cable.
• If the mains cable or mains plug are damaged, stop using them and call a qualified technician for
assistance.
Installation Check List
By now, you should have installed the washing machine.
Let’s go through the checklist to ensure that the installation has been done correctly!
Questions Checkbox
Transit bolts - Have you removed them and attached the cover caps properly?
4 levelling feet Four Adjustable Stands - Are they bolted securely to the washing
machine?
Four Stand Cushions - Are they standing flat?
Power supply - Is the household dedicated mains socket, fully rated at AC220V to
240V independently?
Location - Is your washing machine on a flat, stable surface? Does it run without
vibrating?
Water Supply Hose - Is it free from leaks and is the water supply normal?
Water Drain Hose - Is it free from leaks and is it draining normally?
INSTALLATION
10
L812WM12_614WMS12_IB_120709_RC04_Annie.indd 10 12年7月9日 上午10:50
