Logik LIAA4614 User manual

Instruction Manual
Make sure that your TV is switched off at the mains before
making any connections.
1. Connect the stand to the back of the aerial.
2. Connect the aerial to the socket marked ANT IN on the external
amplifier.
3. Connect the external amplifier to the aerial socket on your TV.
4. Plug the mains adapter into the socket marked DC 6V on the
external amplifier and then plug into the mains socket and switch
on at the mains.
Amplied Aerial
LIAA4614
OFF/ON
DC 6V

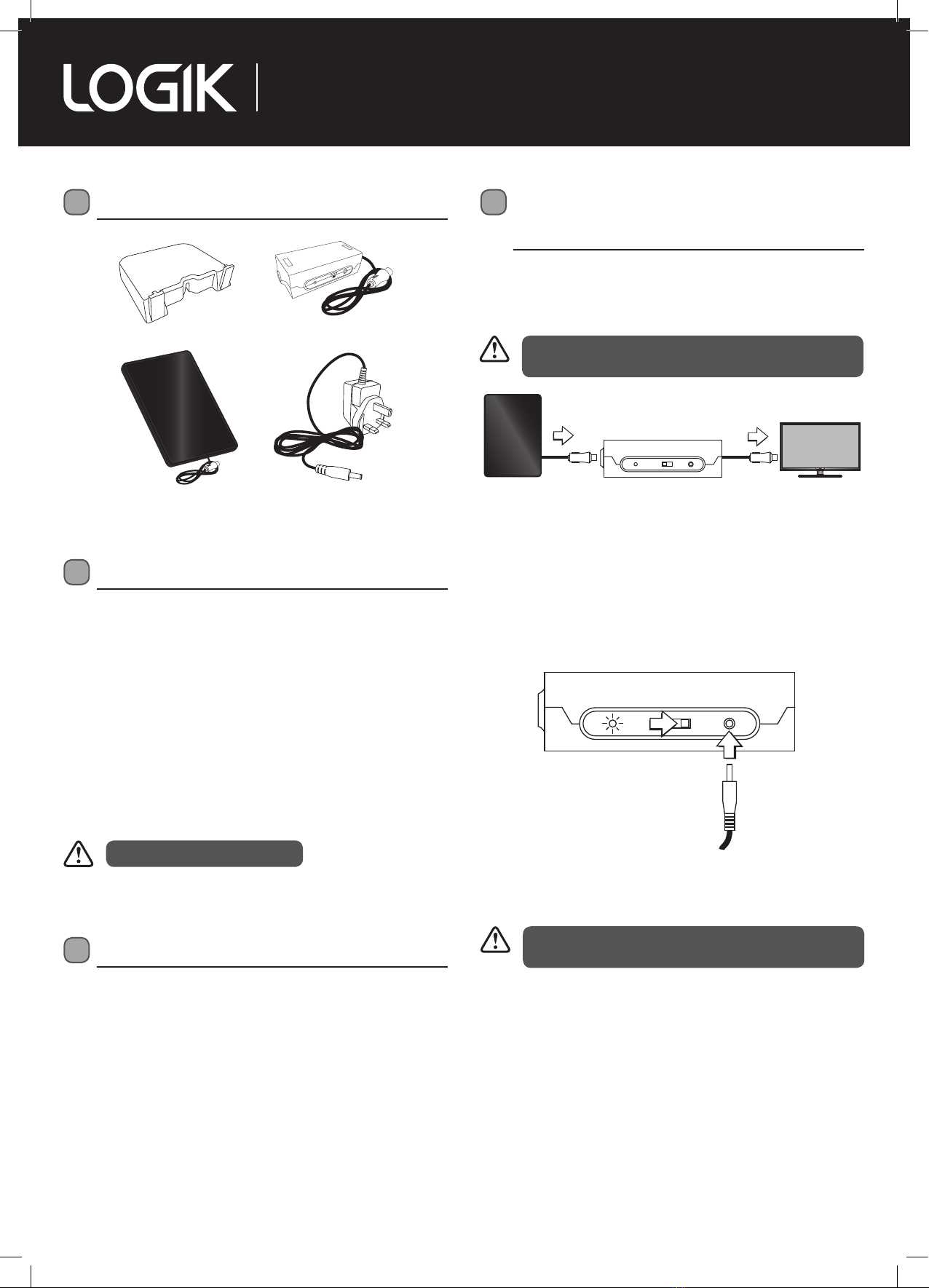

Unpacking the Aerial
Features
• Built-in LTE/4G filter to avoid interference to digital signal
reception.
• Receives Full HD TV, Digital signals and DAB radio programs.
• For reception of local and regional UHF signals.
• Wide band amplifier.
• Includes an external amplifier to enhance performance in poor
reception areas.
• Can be used as active (powered) or passive.
• Powered by AC/DC power adaptor (included).
• Auto gain control.
Connecting the Aerial &
External Amplier
Connect the aerial and external amplifier as shown below. Make sure
you switch the amplifier on and retune your TV after making all the
connections.
Aerial Mains Adaptor
Stand External Amplifier
OFF/ON
ANT IN TO TV
DC 6V
OFF/ON DC 6V
5. Slide the power switch to ON, and the aerial and amplifier are
now ready to use. The red power LED will switch on and light up.
Your aerial is for indoor use only.
The amplifier MUST be switched on to receive the best
reception.
Troubleshooting
Reception is poor?
• Reposition the aerial (closer to the window) to improve the
reception.
• Do not place the aerial behind a metal object, it could block the
TV and radio signals.
• Check that you are in a good reception area. Try checking a digital
TV website to find out what channels you can expect in your area.
• Make sure your Amplifier is switched on if you have connected it.
Channels are missing
• Make sure you retune your TV after connecting your aerial and
amplifier. Make sure the amplifier is connected to the mains and
switched on.
6. Retune your TV, see the TV manufacturers instructions for the
tuning procedure.
You may need to move the aerial around until you receive the best
reception. If you move the aerial you may need to retune your TV
again.
If you are in an area with strong reception you may not need to use
the external amplifier. Simply connect the aerial directly to your TV.
LIAA4614_IB.indd 1 22/10/2014 17:26

Warnings
• Read all the instructions carefully before using the unit and keep
them for future reference.
• Retain the manual. If you pass the unit onto a third party make
sure to include this manual.
• Check that the voltage marked on the rating label matches your
mains voltage.
Damage
• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about
it working normally, or if it is damaged in any way - switch off,
withdraw the mains plug and consult your dealer.
Location of Unit
• The unit must be placed on a flat stable surface and should not be
subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit
may fall off or tip over.
• The mains socket must be located near the unit and should be
easily accessible.
• This unit is designed for indoor, domestic use only.
Temperature
• Avoid extreme degrees of temperature, either hot or cold. Place
the unit well away from heat sources such as radiators or gas /
electric fires.
• Avoid exposure to direct sunlight and other sources of heat.
Naked Flames
• Never place any type of candle or naked flame on the top of or
near the unit.
Moisture
• To reduce the risk of fire, electric shock or product damage, do not
expose this unit to rain, moisture, dripping or splashing.
• If you spill any liquid into the unit, it can cause serious damage.
Switch it off at the mains immediately. Withdraw the mains plug
and consult your dealer.
Safety
• Always disconnect the unit from the mains supply before
connecting / disconnecting other devices or moving the unit.
• Unplug the unit from the mains socket during a lightning storm.
Mains Cable
• Make sure the unit or unit stand is not resting on top of the mains
cable, as the weight of the unit may damage the mains cable and
create a safety hazard.
• If the mains cable is damaged it must be replaced by the
manufacturer, its service agent, or similarly qualified persons in
order to avoid a hazard.
Interference
• Do not place the unit on or near appliances which may cause
electromagnetic interference. If you do, it may adversely affect the
operating performance of the unit, and cause a distorted picture
or sound.
Supervision
• Children should be supervised to ensure that they do not play
with the unit.
• Never let anyone especially children push anything into the holes,
slots or any other openings in the case - this could result in a fatal
electric shock.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
unit’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the manual accompanying the unit.
Service
• To reduce the risk of electric shock, do not remove screws. The
unit does not contain any user-serviceable parts. Please leave all
maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous
voltages.
Maintenance
• Ensure to unplug the unit from the mains socket before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions
as these may damage the unit’s surface.
• Do not use liquids to clean the unit.
• The wall socket plug is used as a disconnect device, the disconnect
device should be readily accessible.
• This equipment is a Class II or double insulated electrical
appliance. It has been designed in such a way that it does not
require a safety connection to electrical earth.
To prevent the spread of fire, keep candles or
other open flames away from this product at
all times.
This symbol on the product or in the instructions means
that your electrical and electronic equipment should
be disposed at the end of its life separately from your
household waste. There are separate collection systems
for recycling in the EU.
For more information, please contact the local authority or your
retailer where you purchased the product.
Visit Partmaster.co.uk today for the
easiest way to buy electrical spares
and accessories. With over 1 million
spares and accessories available we can deliver direct to your door the
very next day. Visit www.partmaster.co.uk or call 0344 800 3456 (UK
customers only). Calls charged at National Rate.
For general information about this
appliance and handy hints and tips,
please visit
www.knowhow.com/knowledgebank or call 0344 5611234.
DSG Retail Limited (Registered in England No. 504877)
Maylands Avenue, Hemel Hempstead, Hertfordshire HP2 7TG. UK
(IB-LIAA4614-141022V3)
Specications
Model LIAA4614
Frequency UHF (470~790MHz)
Output level Max 90dBμV
3dB Beam width ±20° (UHF)
Max. Noise Figure 1.7dB (UHF)
Channels 21-60
Impedance (Ω) 75
Features and specifications are subject to change without prior notice.
