INSTRUCTION MANUAL

IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this sewing machine.
When using an electrical appliance, basic safety should always be followed, including the following:
DANGER - To reduce the risk of electric shock:
1. The appliance should never be left unattended when plugged in.
2. Always unplug this appliance from the electric outlet immediately after using and before cleaning.
WARNING - To reduce the risk of burns, re, electric shock, or injury to persons:
1. Read the instruction carefully before you use the machine.
2. Keep the instructions at a suitable place close to the machine and hand it over if you give the machine to a third party.
3. Use the machine only in dry locations.
4. Never leave the machine unattended with children or elderly people due to they may not be able to estimate the risk.
5. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
6. Children should not play with the appliance.
7. Cleaning and user maintenance should not be made by children without supervision.
8. Always switch off the machine if you carry out preparation for work (change the needle, feed the yarn through the machine, change the footer,
etc.).
9. Always unplug the machine if you leave it unattended, to avoid injury by expediently switch on the machine.
10. Always unplug the machine if you changing the lamp or carry out maintenance (oiling, cleaning).
11. Don’t use the machine if it’s wet or in humid environment.
12. Never pull at the cord, always unplug the machine by gripping the plug.
13.  IftheLEDlampisdamagedorbroken,itmustbereplacedbythemanufactureroritsserviceagentorasimilarlyqualiedperson,in
order to avoid a hazard.

14. Neverplaceanythingonthepedalprzedgromadzeniemsiękurzu,kawałkównitekimateriału.
15. Never use the machine if the air vents are blocked, keep the air vents of the machine and the foot pedal free from dust, fusel and
leftovers.
16. The machine must only be used with designated foot controller, in order to avoid a hazard. If the foot controller is damaged or broken, it
mustbereplacedbythemanufactureroritsserviceagentorasimilarlyqualiedperson.
17. The sound pressure level at normal operation is smaller than 75 dB (A).
18. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for
informationregardingthecollectionsystemsavailable.Ifelectricalappliancesaredisposedofinlandllsordumps,hazardoussubstances
can leak into the groundwater and get into the food chain, damaging your health and well-being.
19. Contact your local government for information regarding the collectionsystems available.
20.  Ifelectricalappliancesaredisposedofinlandllsordumps,hazardoussubstancescanleakintothegroundwaterandgetintothefood
chain, damaging your health and well-being.
21. When replacing old appliances with new ones, the retailer is legally obligatedto take back your old appliance for disposal at least for free
of charge.
22. The appliance is not to be used by persons (including children) with reducedphysical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction. (For outside Europe)
23. Children being supervised not to play with the appliance. (For outside Europe)
SAVE THESE INSTRUCTIONS
This sewing machine is intended for household use only. Be sure to use the sewing machine in the temperature range from 5ºC to 40ºC.
If the temperature is excessively low, the machine can fail to operate normally.

Contents
Principal parts of the machine 9-10
MACHINE INTRODUCTION
Accessories 11
Standard 11
Optional 11
Connecting machine to power source 12
Foot control 12
MACHINE SETTINGS
Sewing table 13
Free arm 13
Two-step presser foot lifter 14
Winding the bobbin 15-16
Inserting the bobbin 17
Threading the upper thread 18
Bringing up the bobbing thread 21
Replacing the needle 22
Matching needle/fabric/thread 23
Changing the presser foot 24
Remove the presser foot 24
Attach the presser foot 24
Remove and insert the presser foot holder 24
To raise or drop the feed dogs 25
Thread tension 26
INSTRUCTION
Operation buttons 27-29
Selecting stitch 30

Altering the stitch length & width 31
Stitch length adjustment button 31
Stitch width adjustment button 31
STITCH CHART
Stutcg chart 32-36
SEWING BASICS
Straight stitch 37
Changing the needle position 37
Zigzag stitch 38
Starting to sew 39
Useful skills 41-43
Reverse sewing 41
Sewing curves 41
Sewing corners 42
Sewing stretch farbics 42
Sewing thin fabrics 42
Sewing heavy fabric 43
UTILITY STITCHES
stretch stitch 44
Straight stretch stitch 44
Zigzag stretch stitch 44
Sewing stretch fabrics and elastic tape 45
Overcasting stitch 46
Blind Hem 47-48
Buttonhole sewing 49-52
Making a buttonhole on stretch fabrics 52
Bar tack stitch 53
Button sewing 54

Zipper insertion 55-57
Inserting a centered zipper 55-56
Inserting a side zipper 56-57
Satin stitch sewing 58
Gathering 59
Smocking 60
Free motion darning, embroidery and monogramming 61-62
Preparation for embroidering and monogramming 61
Darning 62
Embroidery 62
Monogramming 62
Quilting 63-64
Using the edge/quilting guide 63
Joining the pieces of the fabric 64
Patchwork stitching 64
Applique 65
Faqoting 65
Scallop stitch 66
Scallop edging 66
Scallop hem 66
MAINTENANCE AND TROUBLE SHOOTING
Maintenance 67
Clean the machine surface 67
Clean the hook 67
Warning Function 68
Warning beeping sound 68
Instruction message display 68
Trouble shooting guide 69-70

14
12
13
4
5
6
10
8
2
1
3
11
9
15
16
17
7
19
18
20
21
22

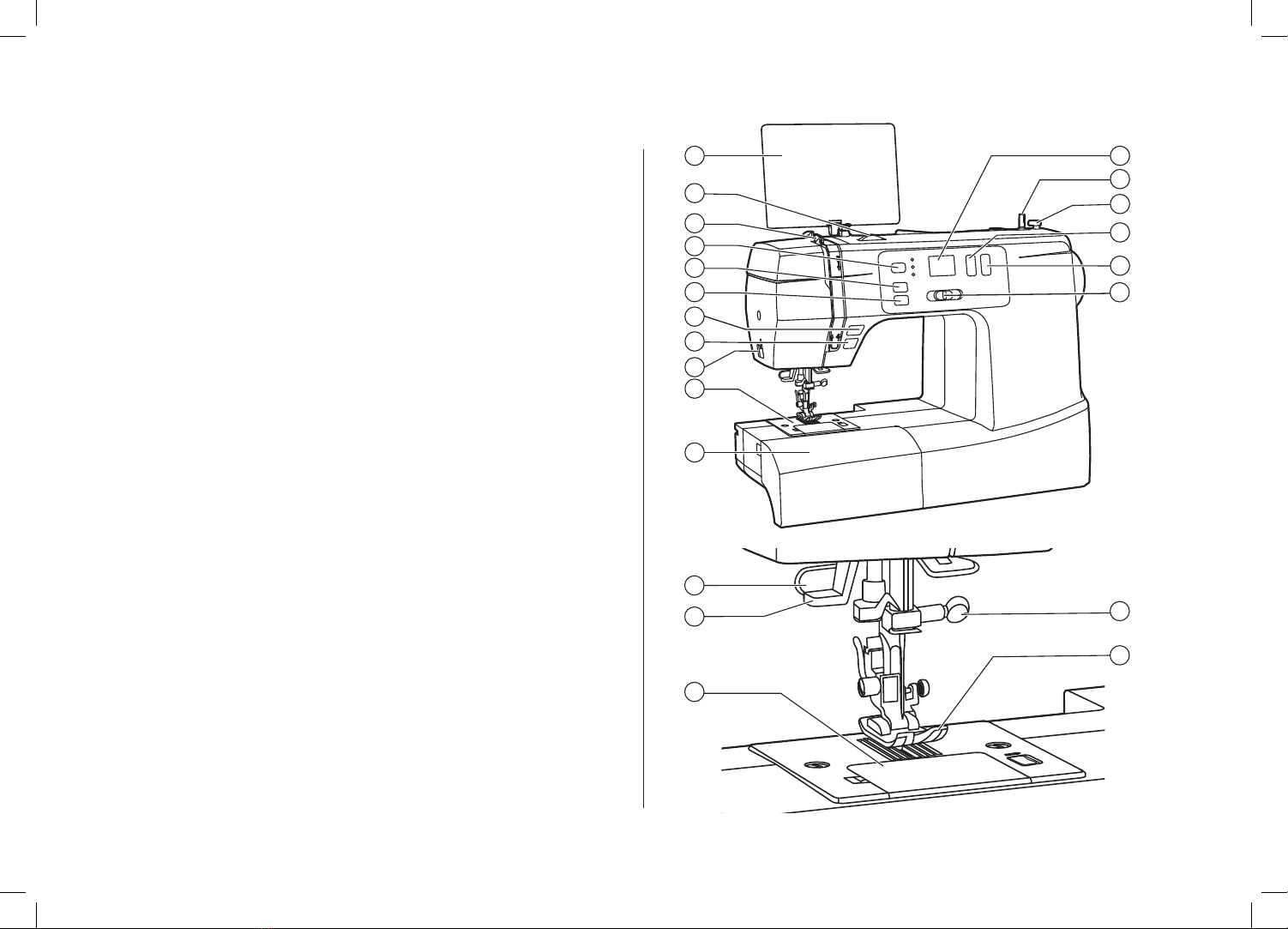

Principal parts of the machine:
1. Stitch pattern plate
2. Tension dial
3. Take-up lever
4. Mode selection/sound button
5. Auto-lock button
6. Needle up/down position button
7. Reverse button
8. START/STOP button
9. Thread cutter
10. Needle plate
11. Sewing table and accessory box
12. Number display
13. Bobbin winder spindle
14. Bobbin winder stopper
15. Stitch length adjustment button
16. Stitch width adjustment button
17. Speed adjustment slider
18. Buttonhole lever
19. Needle threader
20. Bobbin cover
21. Needle clamp screw
22. Presser foot

9
23
27
31
28
24
25
26
32
33
30
29

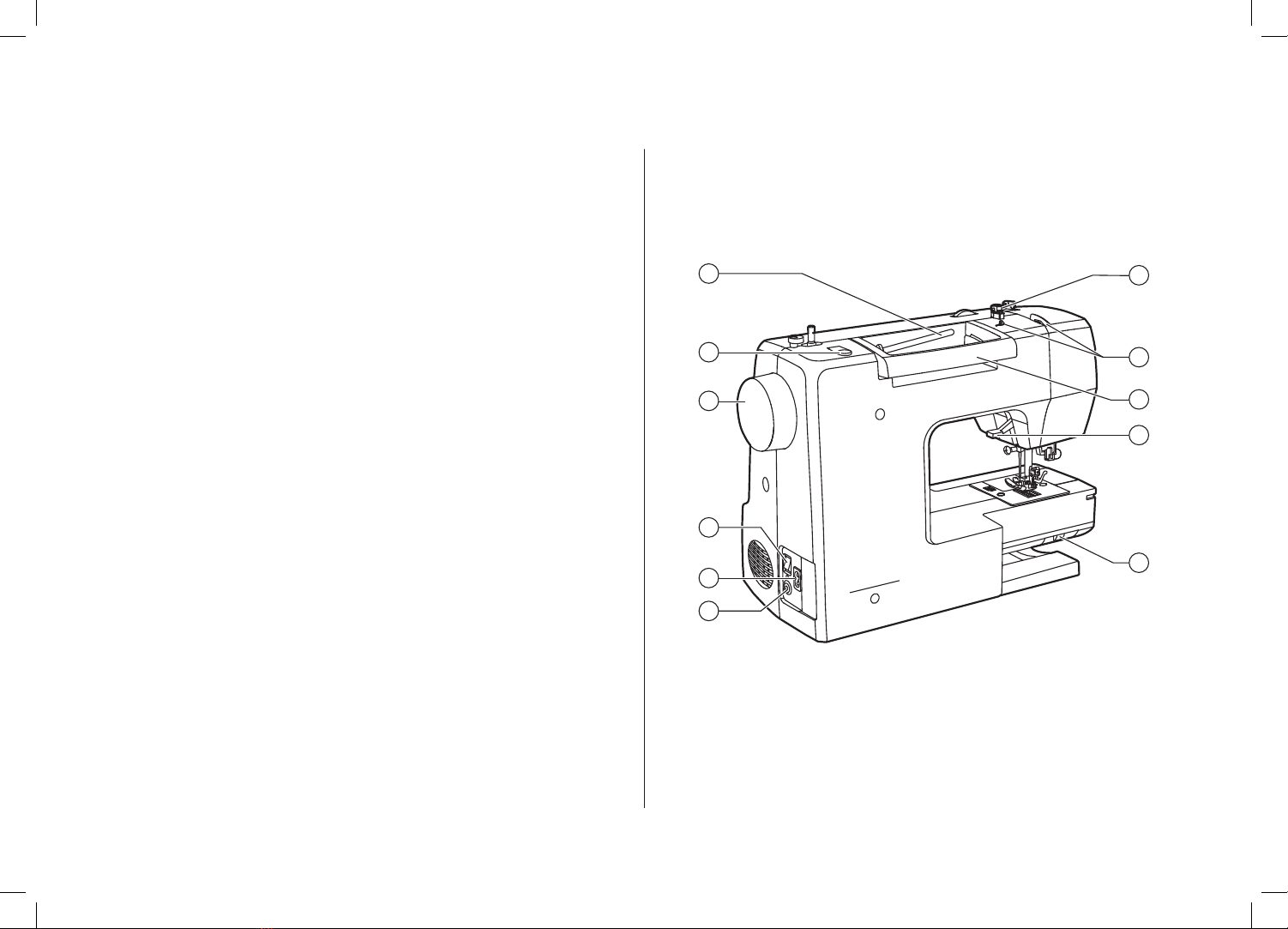

Principal parts of the machine:
23. Horizontal spool pin
24. Second spool pin hole
25. Handwheel
26. Main power switch
27. Power cord
28. Foot controller connector
29. Bobbin thread guide
30. Upper thread guide
31. Handle
32. Presser foot lifter
33. Drop feed lever

10
23
21 22
18 1916 17 20
14
89
56 7
10 12
1 2 34
13
11
15

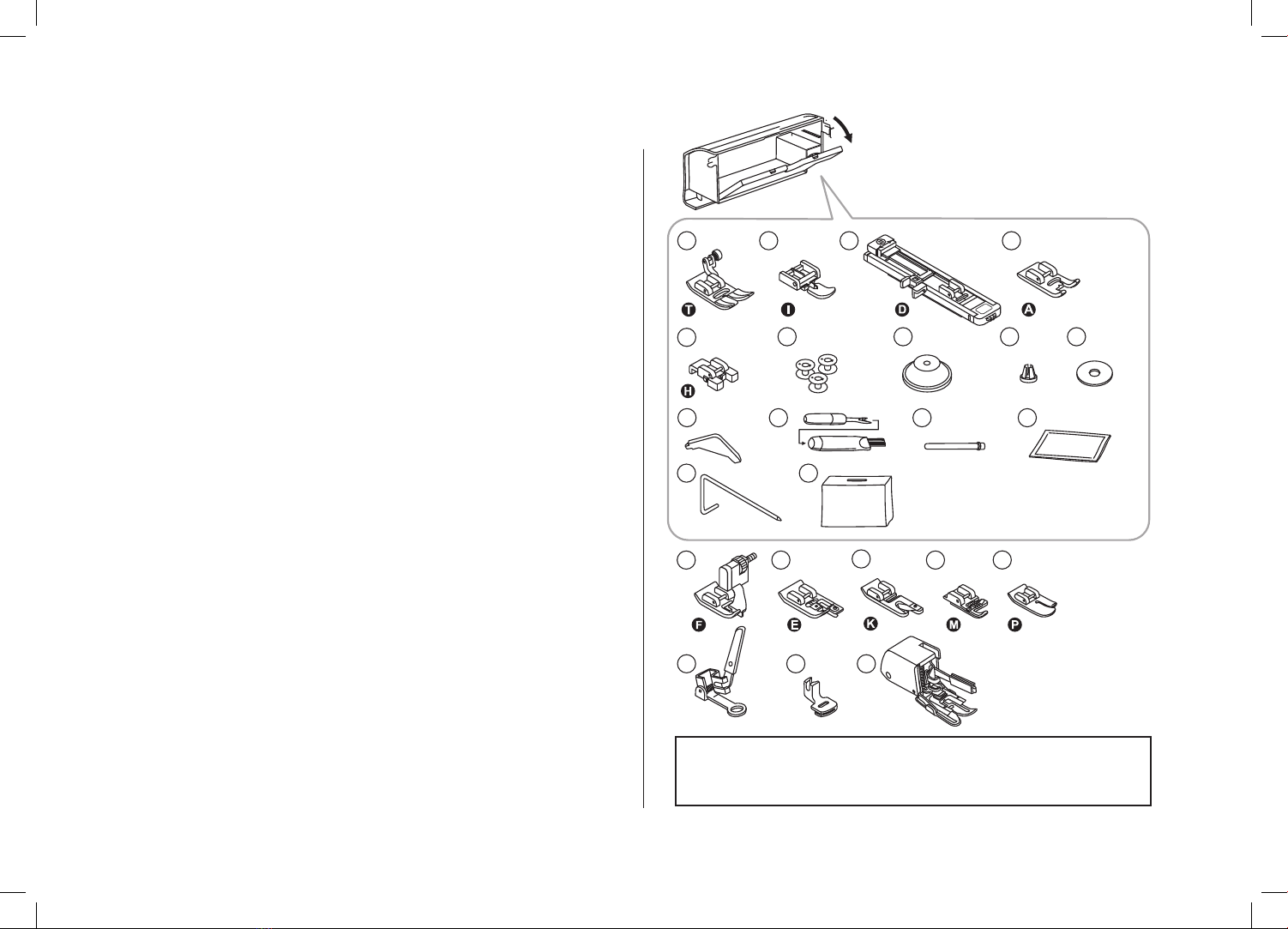

Accessories
Accessories are stored inside the accessory box.
Standard:
1. All purpose foot
2. Zipper foot
3. Buttonhole foot
4. Satin stitch foot
5. Button sewing foot
6. Bobbin (3x)
7. Spool holder (Large)
8. Spool holder (Small)
9. Spool pin felt
10. L-screwdriver
11. Seam ripper/brush
12. Second spool pin
13. Pack of needles
14. Edge/quilting guide
15. Soft cover
Optional:
16. Blind hem foot
17. Overcasting foot
18. Hemmer foot
19. Cording foot
20. Quilting foot
21. Darning/embroidery foot
22. Gathering foot
23. Walking foot
MACHINE INTRODUCTION
NOTE:
The optional accessories are not included in set. To purchase optional
accessories, please consult your local dealer for further information.

11
1
2
Connecting machine to power source
Before connecting the power supply, make sure that the voltage
shown on the rating plate is conforming with your main power.
Put the machine on a stable table.
1. Connect the machine to a power source as illustrated
2. Turn the power switch to on (“I”)
The sewing lamp will light up when the switch is turned on.
Foot control
When the machine is off, insert the foot control plug into its
connector on the machine.
Turn on the machine, and then slowly press down the foot control
to start sewing. Release the foot control to stop the machine.
User can quickly kick one step on the foot control to change the
needle position and set the stop position at the same time.
Attention:
Always make sure that the machine is unplugged from power
source and the main switch is off (“O”), when the machine is not
in use and before inserting or removing parts.
Note:
Consultaqualiedelectricianifindoubtonhowtoconnectthe
machine to the power source.
MACHINE INTRODUCTION

12

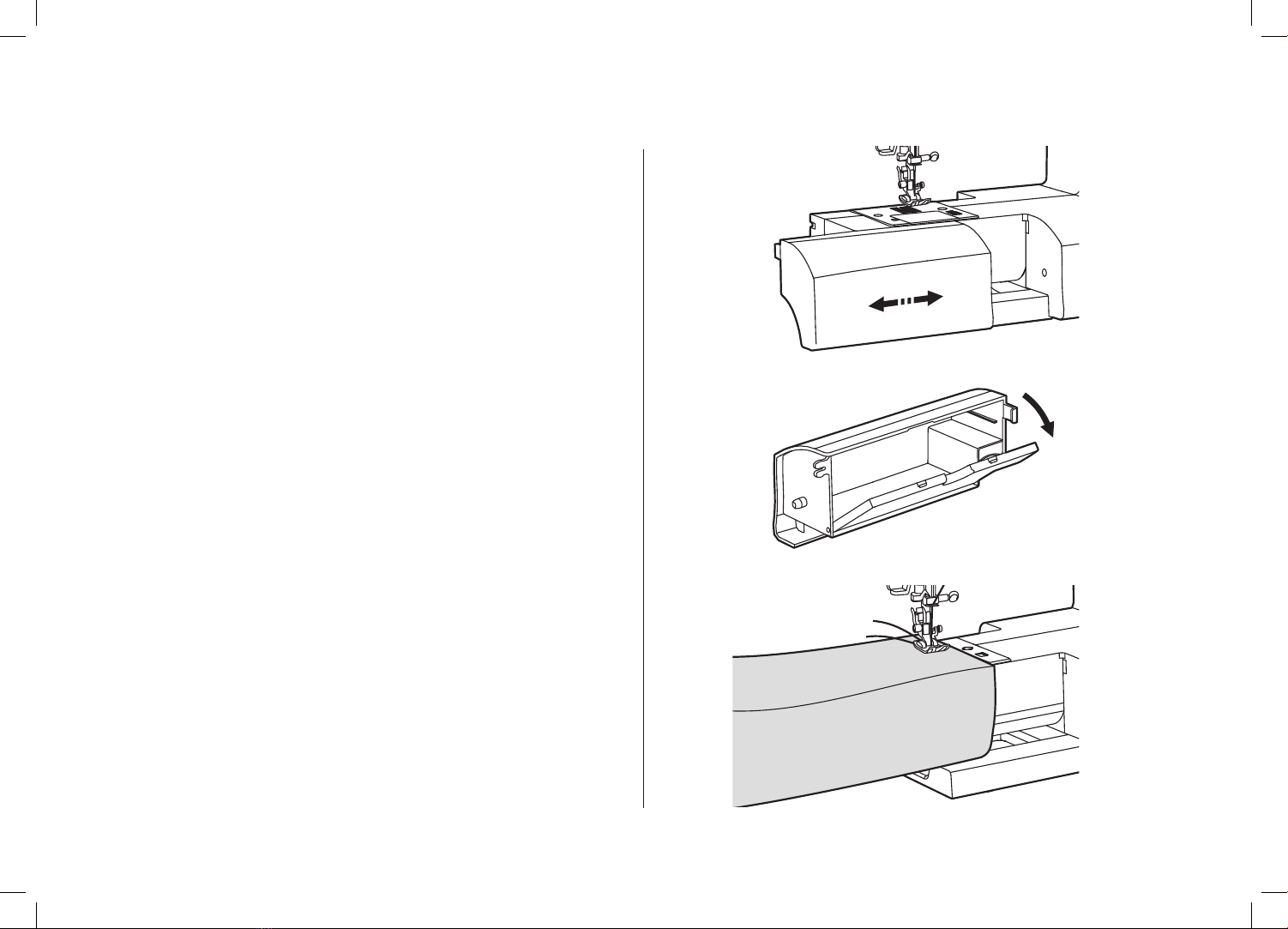

Sewing table
Hold the sewing table horizontally, then pull toward the left to remove
it from the machine.
Attach the sewing table, and then push it to the right.
The inside space of the sewing table is used as an accessory box.
Free arm
Free-arm sewing is convenient for sewing tubular areas such as pant
hems and cuffs.
MACHINE SETTINGS

13
MACHINE SETTINGS

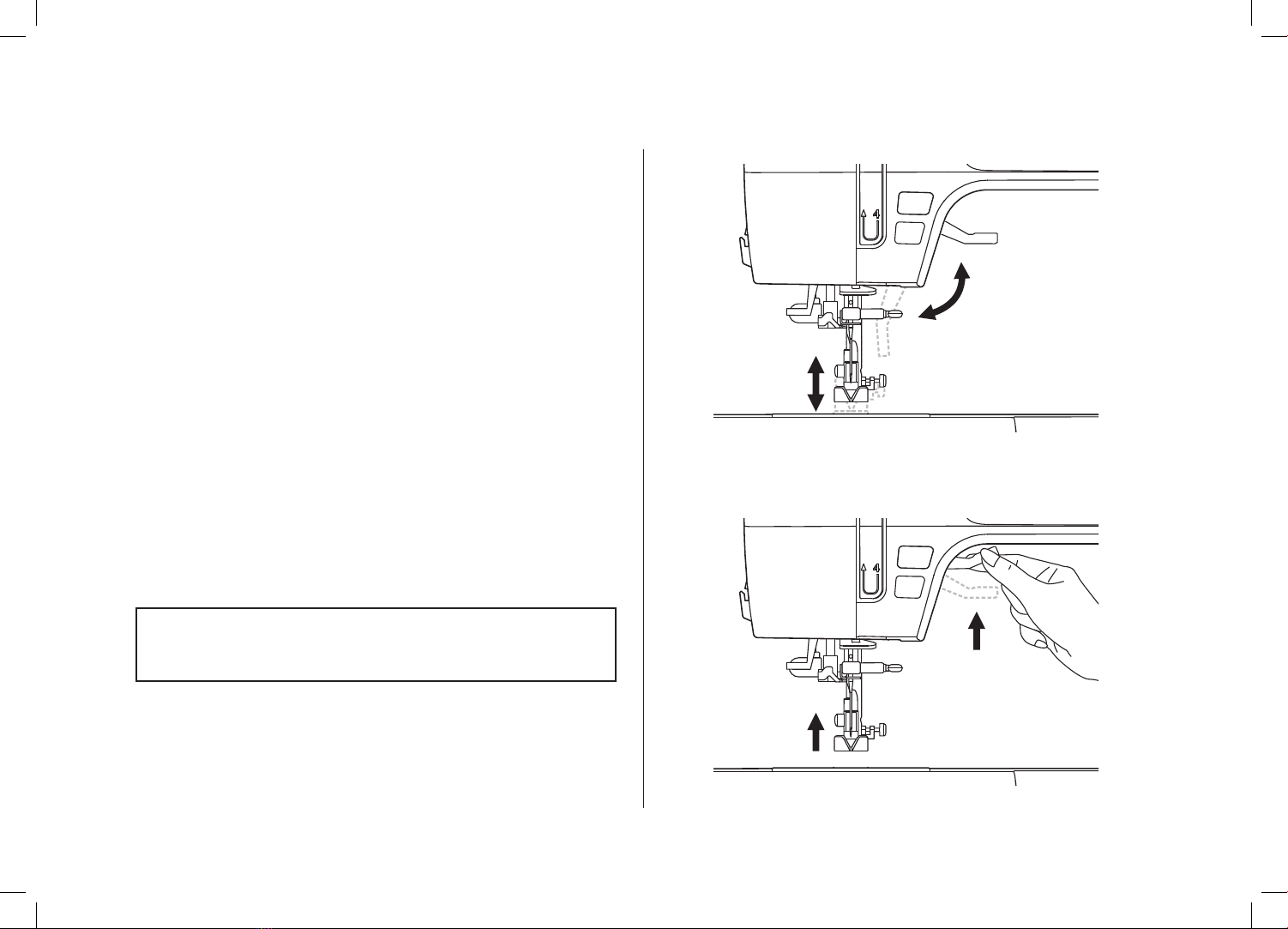

The presser foot lifter is to raise or lower your presser foot.
Note:
The needle must always be at the highest position.
Two-step presser foot lifter
When sewing multi-layers or thick fabrics, the presser foot can be
further raised up manually to allow enough space for your sewing
work.

14
2
1
1
4-9
2
3
12

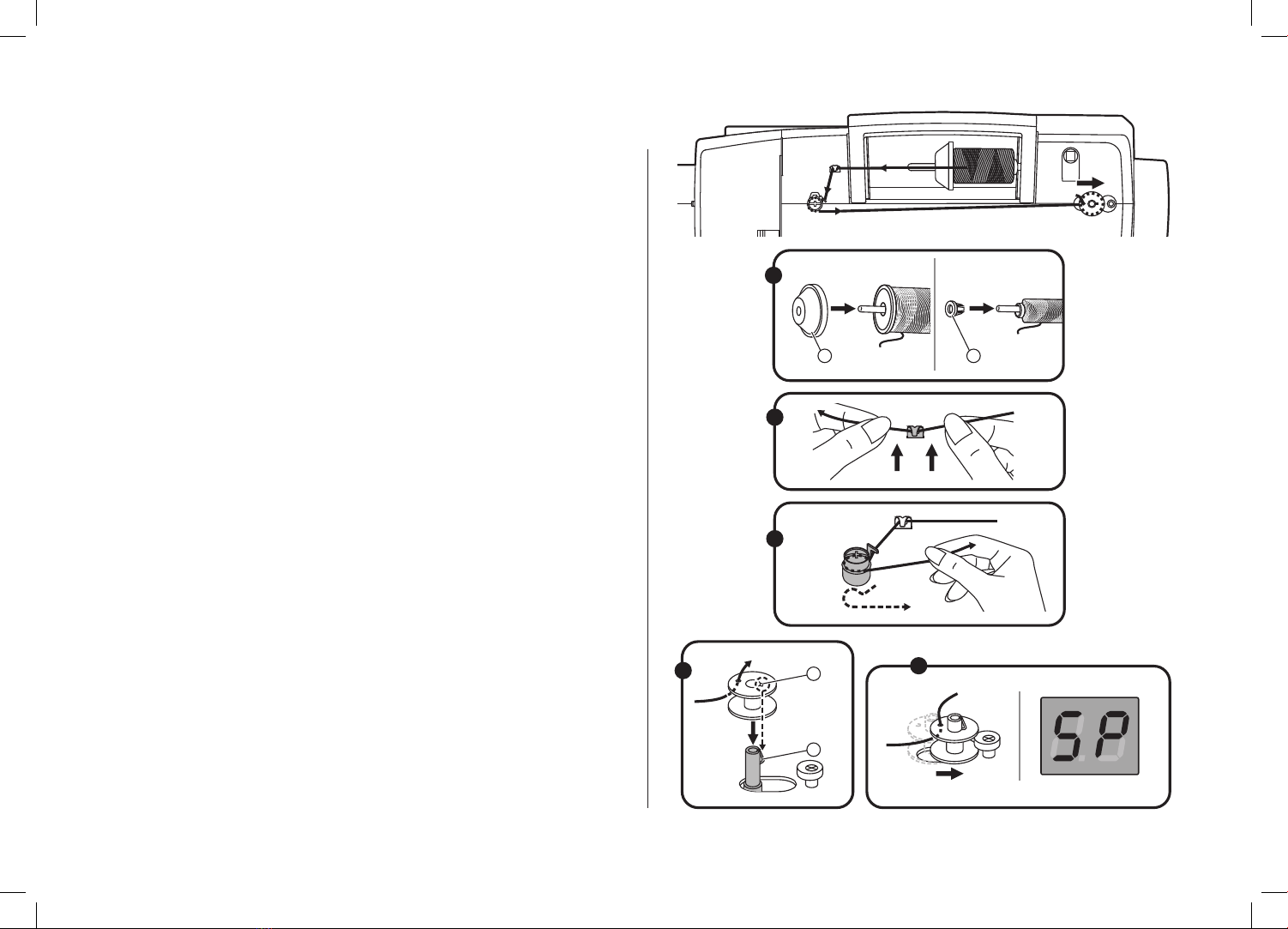

Winding the bobbin
Please following the number order and see the corresponding
illustrations below.
MACHINE SETTINGS
1. Place the thread and spool holder onto the spool pin. For better
sewing quality, choose a proper size of the spool holder for the
thread and attach it next to the spool.
- Large spool holder (1)
- Small spool holder (2)
2. Draw the thread from the spool and place the thread in between
the upper thread guide.
3. Wind the thread counter-clockwise around the tension discs.
4. Place the thread end through one of the inner holes as illustrated
and place the empty bobbin on the bobbin winder spindle. Then
align the notch with bobbin winder spindle spring.
- Notch (1)
- Bobbin winder spindle spring (2)
5. Push the bobbin to the right. When the bobbin winder spindle is
pushed to the right, the screen will show „SP”.
1
2
3
45

15

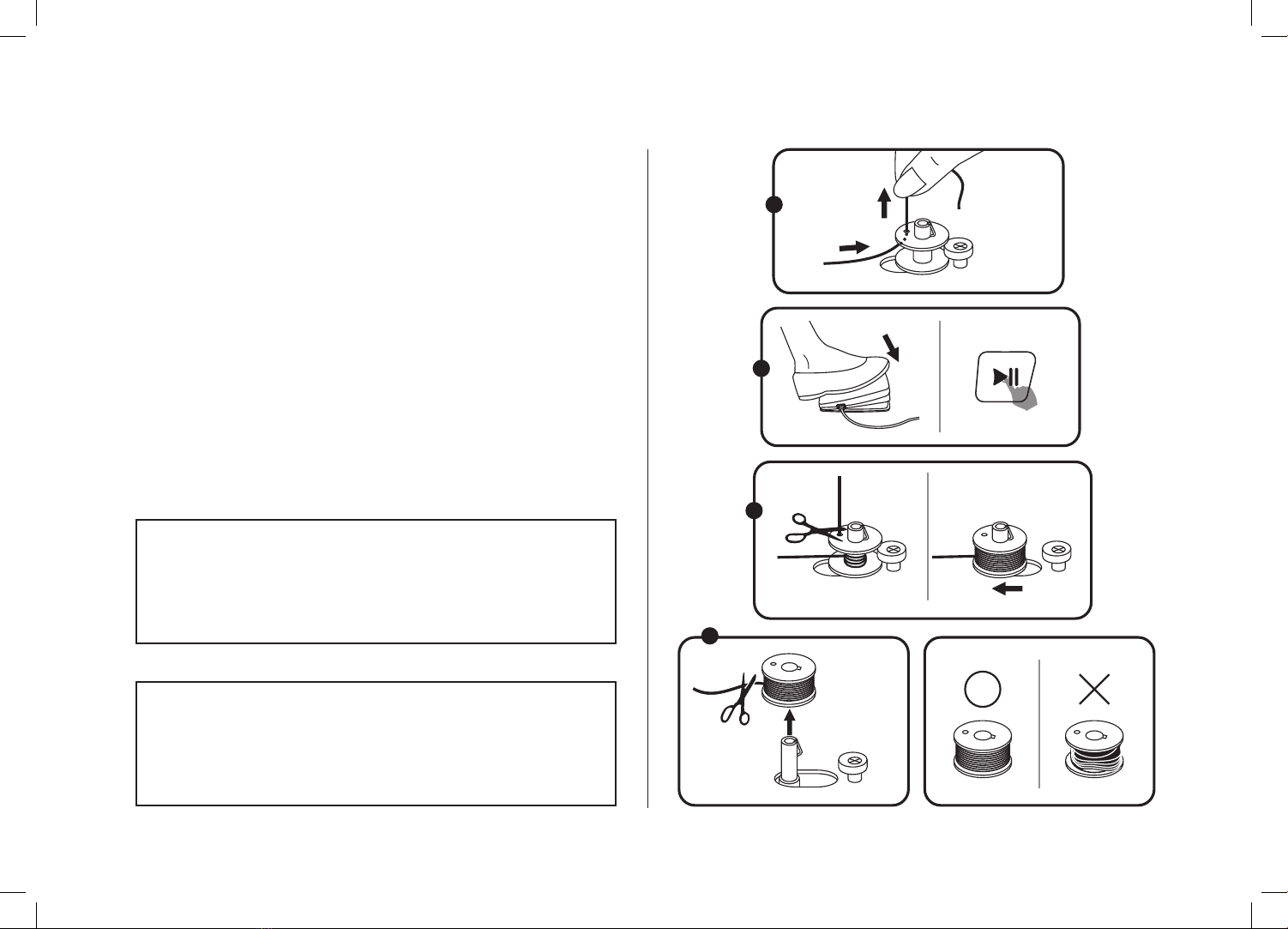

Winding the bobbin
MACHINE SETTINGS
6. Hold the thread tail securely in one hand.
7. Step on the foot control or press the START/STOP button to start
winding the bobbin
8. After the bobbin has wound a few rounds, stop the machine and cut
thethreadneartheholeofthebobbin.Continuellingthebobbin
until it is full. Once the bobbin is full, it rotates slowly. Release the
foot control or press the START/STOP button to stop the machine,
then push the bobbin winder spindle to the left.
9. Cut the thread and then remove the bobbin.
Note:
When the bobbin winder spindle is pushed to the right position,
it’s in “bibbin winding” mode and the machine is not allowed to
sew and the handwheel will not be able to turn. To start sewing,
push the bobbin winder spindle back to the left.
Note:
Use a bobbin that has been correctly wound with thread, otherwise
the needle may break or the thread tension will be incorrect.
6
7
8
9

16
1

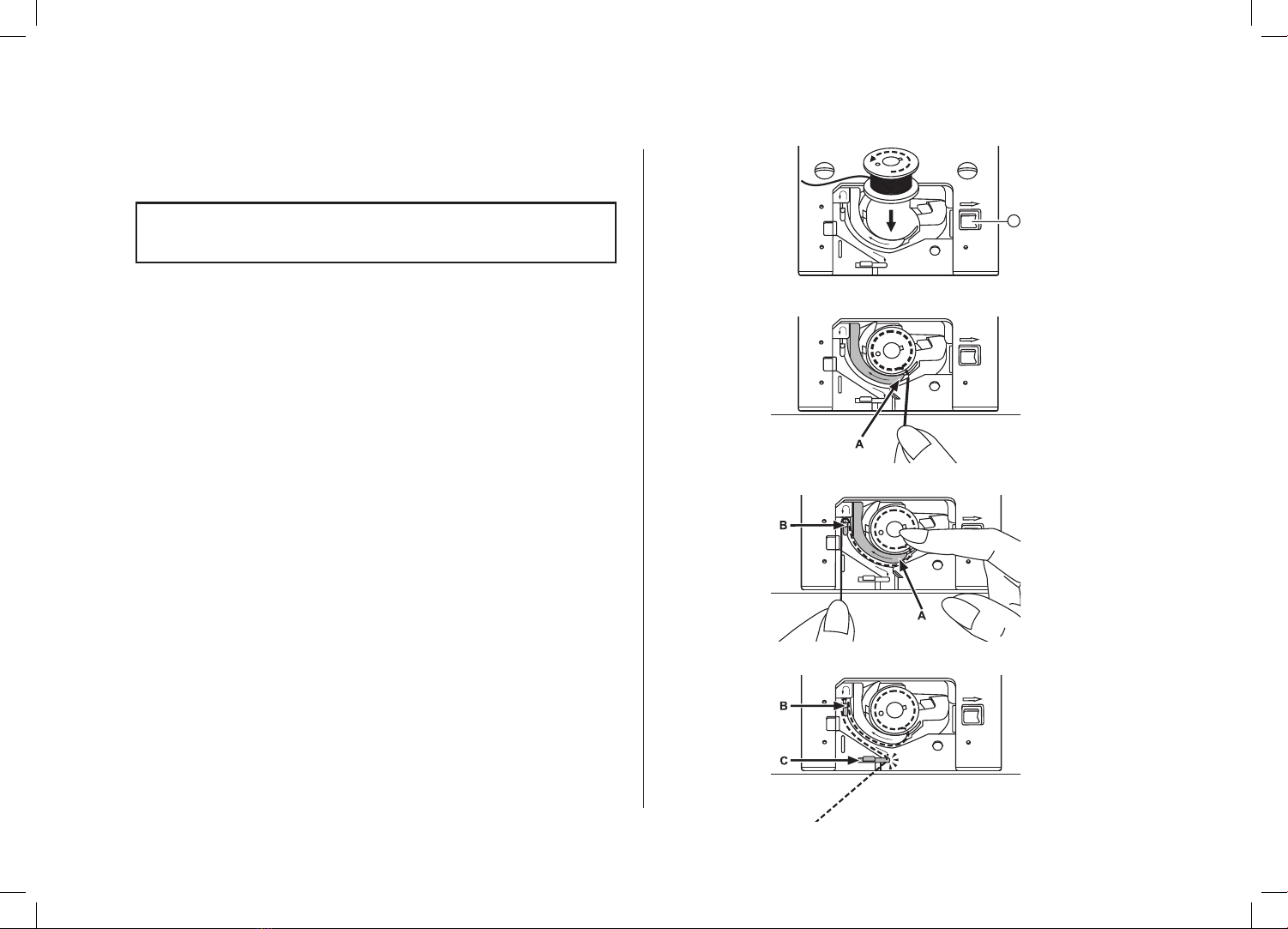

Inserting the bobbin
When inserting or removing the bobbin, the needle and the presser
foot must be fully raised.
Open the bobbin cover by pushing the release button to the right.
- Release button (1)
Insert the bobbin in the bobbin case with the thread running in a
counter-clockwise direction (arrow).
Pull the thread through the slit (A).
Withangerholdgentlyontopofthebobbin,pleasefollowthearrow
markings and draw the thread into the bobbin thread guide from (A)
to (B).
Follow the arrow markings and draw the thread into the bobbin
thread guide from (B) to (C).
To cut off excessive thread, pull it to the cutter at point (C)
Close the bobbin cover.
Attention:
Turn the power switch to off (“O”).
MACHINE SETTINGS

17
11-14
10
1
2
8
7
9
43
5
6
12

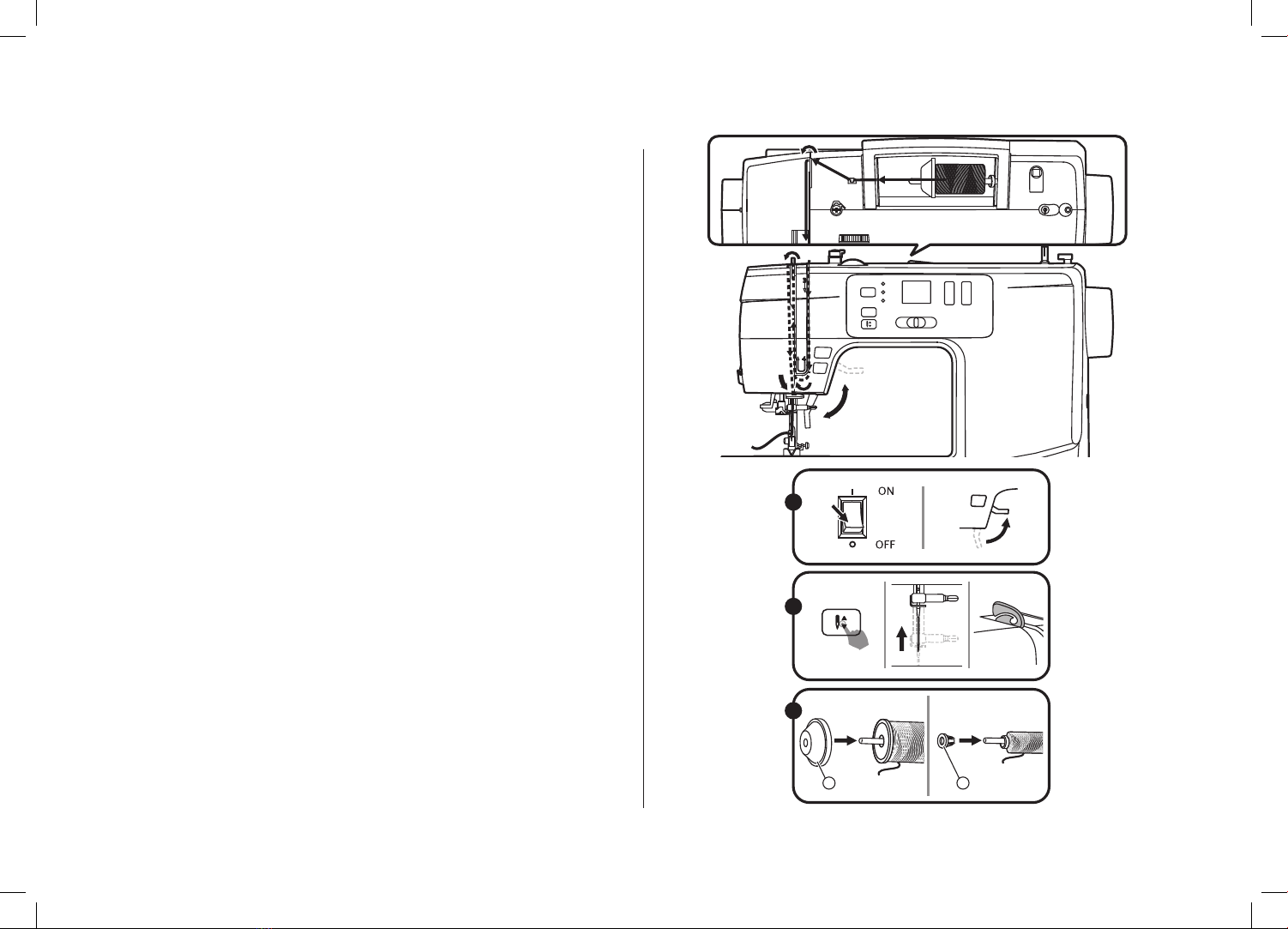

Threading the upper thread
Please following the number order and see the corresponding
illustrations below. It is important to carry out the threading
correctly to get a quality sewing. Otherwise several problems
will occur.
1.Turn the power switch to on (“I”). Raise the presser foot lifter.
2. Press the needle up/down button to bring the needle and take-up
lever to highest position.
3. Place the thread and spool holder onto the spool pin. For better
sewing quality, choose a proper size of the spool holder for the
thread and attach it next to to the thread.
- Large spool holder (1)
- Small spool holder (2)
MACHINE SETTINGS
1
2
3

18
4. Draw the thread from the spool and place the thread in between
the upper thread guide.
5. Guide the thread ahead and pull the thread through the pre-tension
spring as illustrated.
6. Continue to guide the thread into the silver discs to keep the thread
in proper tension.
7. Pass the thread under the take-up spring then pull it upwards as
arrow marks illustrated.
8. Pull the thread to the top then pass the thread through the slotted
eye of the take-up lever. Guide the thread down afterwards.
9.Passthethreadbehindtheat,horizontalthreadguide.Usethe
needle threader to thread the needle.
10. Lower the presser foot lifter.
Threading the upper thread
MACHINE SETTINGS
4
56
8
9
7
10

19
1
1
2
1
1
Threading the upper thread
MACHINE SETTINGS
Note:
Your machine is threaded and ready for sewing, follow the
instructions on “Starting to sew” chapter ro start sewing.

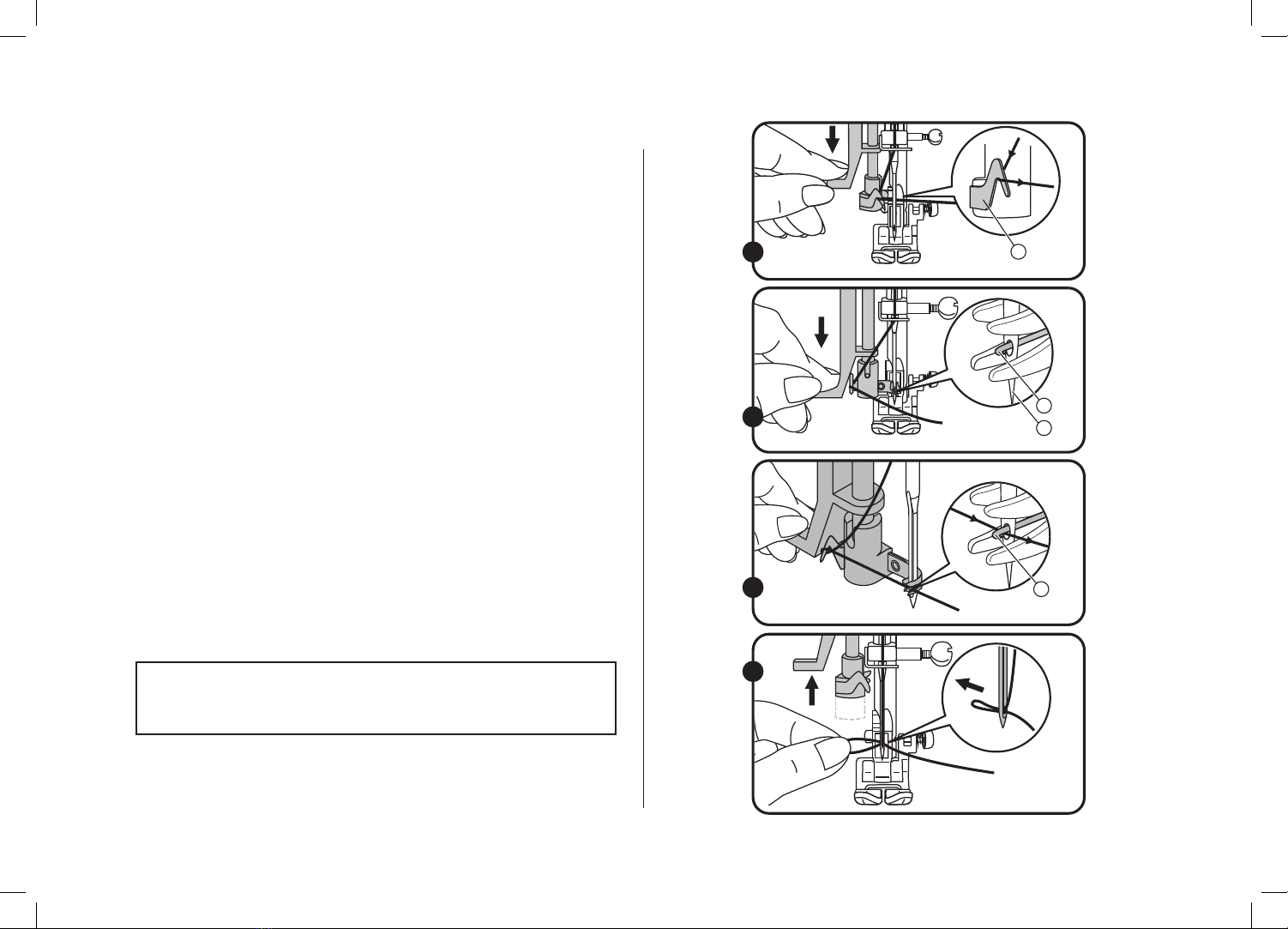

11. Press down the needle threader for a certain distance and cross
the thread over the thread guide.
- Thread guide (1)
12. Press down the needle threader as far as it goes.
The needle threader turns automatically to the threading position
and the hook pin passes through the needle eye
- Hook pin (1)
- Needle (2)
13. Take the thread in front of the needle and make sure it is under
the hook pin
- Hook pin (1)
14. Hold the thread loosely and release the lever slowly. The hook
turns and passes the thread through the needle eye forming a
loop.
 Pullthethreadthroughtheneedleeyetonishthreading
11
12
13
14

20

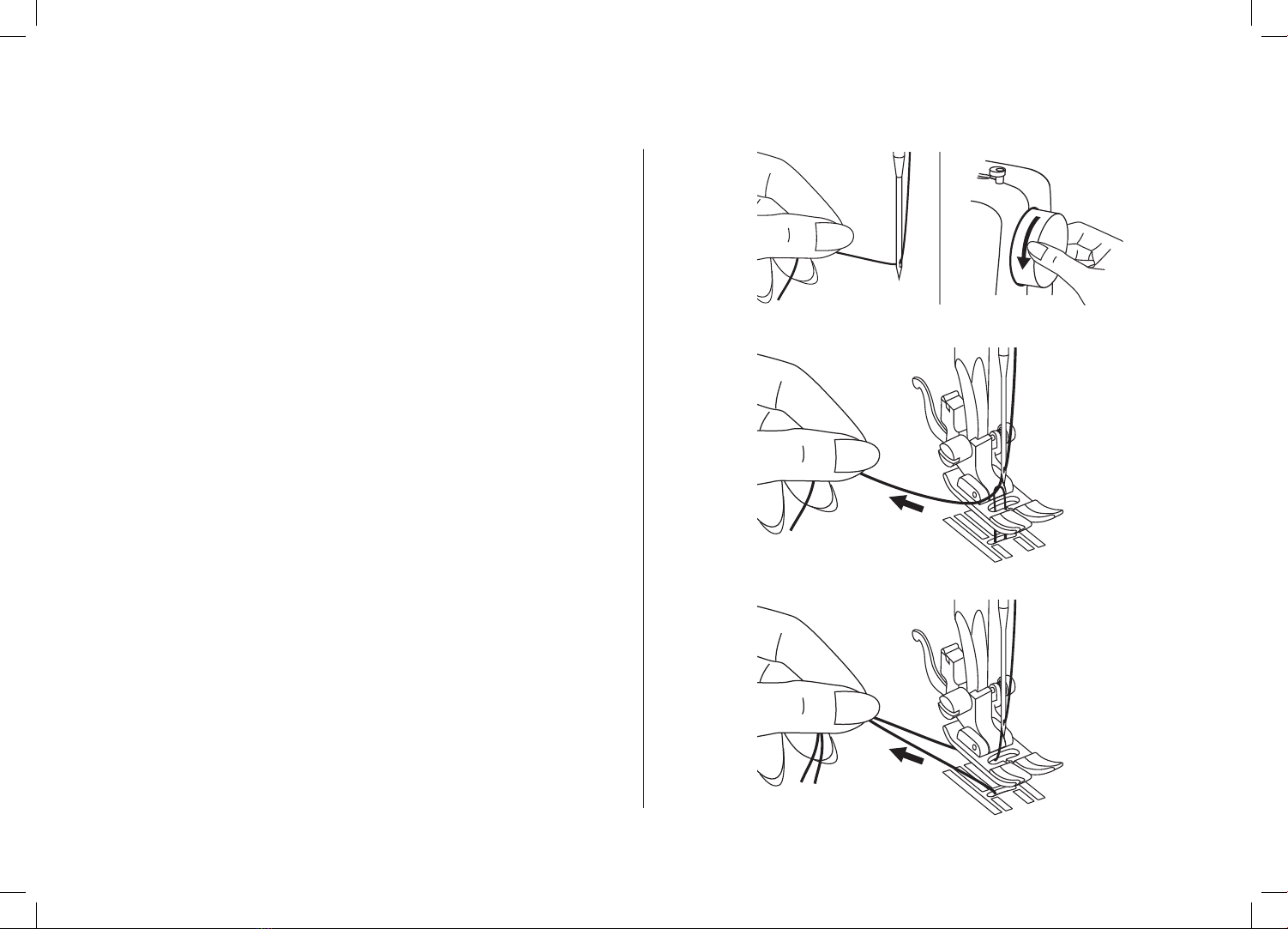

Bringing up the bobbin thread
When sewing gathering or smocking stitch, bring up the bobbin
thread rst as below instruction.
MACHINE SETTINGS
Hold the upper thread with your left hand. Turn the handwheel
towards you (counter- clockwise) to lower the needle down below
the needle plate then raise it to bring the bobbin thread up.
Gently pull on the upper thread to bring the bobbin thread up through
the needle plate hole. The bobbin thread will come up in a loop.
Pull both threads to the back under the presser foot.
