Lumex AQ1000 User manual

AQ1000 / AQ2000
ALTERNATING PRESSURE
BUBBLE PAD AND PUMP SYSTEM
USER MANUAL
Important: Do not operate the Mattress System
without rst reading and understanding this manual!
Save this manual for future use.
The latest version of this manual can be found online
at www.grahameld.com.
AQ1000-INS-LAB-RevD13

2 AQ1000-INS-LAB-RevD13
CONTENTS
INTRODUCTION...................................................................................... 3
INTENDEDUSEOFTHISDEVICE........................................................ 3
CONTRAINDICATION...................................................................... 3
DANGER................................................................................................. 4
WARNING............................................................................................... 4
NOTICE................................................................................................... 5
EQUIPMENTSYMBOLS......................................................................... 6
PRODUCTDESCRIPTION...................................................................... 7
BUBBLEPADANDPUMPSYSTEM...................................................... 7
PUMP...................................................................................................... 7
FRONTPANEL....................................................................................... 8
AQ1000............................................................................................ 8
AQ2000............................................................................................ 8
INSTALLATION........................................................................................ 9
UNPACKING........................................................................................... 9
PUMPANDBUBBLEPADINSTALLATION........................................... 9
OPERATION.......................................................................................... 11
AQ2000ONLY:PRESSUREADJUSTMENT....................................... 11
QUICKDISCONNECT.......................................................................... 11
CPRFUNCTION.................................................................................... 11
MAINTENANCE..................................................................................... 12
CLEANING............................................................................................ 12
PUMP.............................................................................................. 12
BUBBLEPAD................................................................................. 12
GENERALMAINTENANCE.................................................................. 12
FUSEREPLACEMENT(220VSYSTEMONLY)............................ 13
STORAGE............................................................................................. 13
SPECIFICATIONS.................................................................................. 14
WARRANTY........................................................................................... 15
GF Health Products, Inc. is not responsible for typographical errors. All
illustrations, specications, packaging and warranties contained in this
document are based on the latest product information available at the
time of printing. The most current product information, including the most
current revision of this manual, can be found online at www.grahamfield.com.
Graham-Field and Lumex are registered trademarks of GF Health Products, Inc.

AQ1000-INS-LAB-RevD13 3
INTRODUCTION
Use this manual for setup and operation of the Lumex
AQ1000 / AQ2000 Alternating Pressure Pad and Pump
System. Read all instructions before using the pad and
pump system. Save this manual for future reference.
INTENDED USE OF THIS DEVICE
The intended use of the Alternating Pressure Pad
and Pump System, in either a homecare or long-term
care setting, is the treatment of pressure ulcers while
optimizing user comfort, and pain management as
prescribed by a physician.
Contraindication
WARNING:DONOTusethisproductinthepresenceof
ammableanesthesia.Thereisapossiblerehazard
whenthisproductisusedwithcertainoxygendelivery
equipment.
 Usenasalcannula,facemask,or1/2lengthoxygentent
todeliveroxygeninthepresenceofthisproduct.
 DONOTuseafulllengthoxygententthatextendspast
thetopsurfaceofthemattresswiththisproduct.
IMPORTANT SAFETY PRECAUTIONS
The safety statements presented in this chapter refer
to the basic safety information that should be observed
by those using the Alternating Pressure Pad and Pump
System. There are additional safety statements in other
chapters or sections, which may be the same as or similar
to the following, or specic to the operations.
DANGER:Indicatesanimminenthazardsituationthat,if
notavoided,willresultindeathorseriousinjury.
WARNING:Indicatesapotentialhazardsituationor
unsafepracticethat,ifnotavoided,couldresultin
deathorseriousinjury.

4 AQ1000-INS-LAB-RevD13
CAUTION:Indicatesapotentialhazardorunsafe
practicethat,ifnotavoided,couldresultinminoror
moderatepersonalinjury.
s NOTICE:Indicatesapotentialhazardorunsafepractice
that,ifnotavoided,couldresultinproductorproperty
damage.
Info: Provides application recommendations or other useful
information to ensure that you get the most from your
product.
DANGER
To reduce the risk of electrocution:
DANGER:Alwaysunplugthisproductimmediatelyafter
using.
DANGER:Donotusethisproductwhilebathing.
DANGER:Donotplaceorstorethisproductwhereit
canfallorbepulledintoatuborsink.
DANGER:Donotplacethisproductinordropinto
waterorotherliquid.
DANGER:Donotreachforaproductthathasfalleninto
water.Unplugitimmediately.
WARNING
To reduce the risk of burns, electrocution, re,
or personal injury:
WARNING:Donotleavethisproductunattendedwhen
pluggedin.
WARNING:Alwaysuseclosesupervisionwhenthis
productisusedby,on,ornearchildrenorthosewho
requireclosesupervision.
WARNING:Usethisproductonlyasintendedand
describedinthismanual.Donotuseattachmentsor
accessoriesnotrecommendedbyGFHealthProducts,
Inc..

AQ1000-INS-LAB-RevD13 5
WARNING:Neveroperatethisproductif
a) ithasadamagedcordorplug.
b)itisnotworkingproperly.
c) ithasbeendroppedordamaged.
d)ithasbeendroppedintowater.
 ReturntheproducttoyourGraham-Fieldauthorized
distributor.
WARNING:Keepthecordawayfromheatedsurfaces.
WARNING:Neverblocktheairopeningsofthisproduct
orplaceitonasoftsurface,suchasabedorcouch,
wheretheopeningsmaybeblocked.Keeptheair
openingfreeoflint,hair,andothersimilarparticles.
WARNING:Neverdroporinsertanyobjectintoany
openingorhose.
WARNING:Connectthisproductonlytoaproperly
groundedpoweroutlet.
WARNING:Maximumpatientweightcapacityforthis
productis275lb(125kg),EVENLYDISTRIBUTED.
WARNING:NoticeforCaliforniaCustomers-California
Proposition65WARNING:Thisproductcontainsa
chemicalknowntotheStateofCaliforniatocause
cancerandreproductiveordevelopmentalharm.
NOTICE
s NOTICE:Thepumpcanbeusedonlywiththe
accompanyingbubblepad.Donotuseitforanyother
purpose.

6 AQ1000-INS-LAB-RevD13
EQUIPMENT SYMBOLS
Attention! Consult accompanying documents (this manual)
“BF”symbol: Indicates that this product is in accordance with the
degree of protection against electric shock for type BF equipment
Grounding terminal
Class II (for UL only)
Disposal of Electrical & Electronic Equipment (WEEE):
Do not treat this product as household waste. For more detailed
information with regard to returning and recycling this product,
please consult your local city ofce, household waste disposal
service, or Graham-Field authorized distributor.
The system has been tested and successfully approved with the following
standards:
U.S. UL 1431
Europe EN 60601-1, EN 60601-1-2, EN 55011 Class B,
EN 61000-3-2, EN 61000-3-3, IEC 801-2, IEC 801-3,
IEC 801-4, IEC 801-5

AQ1000-INS-LAB-RevD13 7

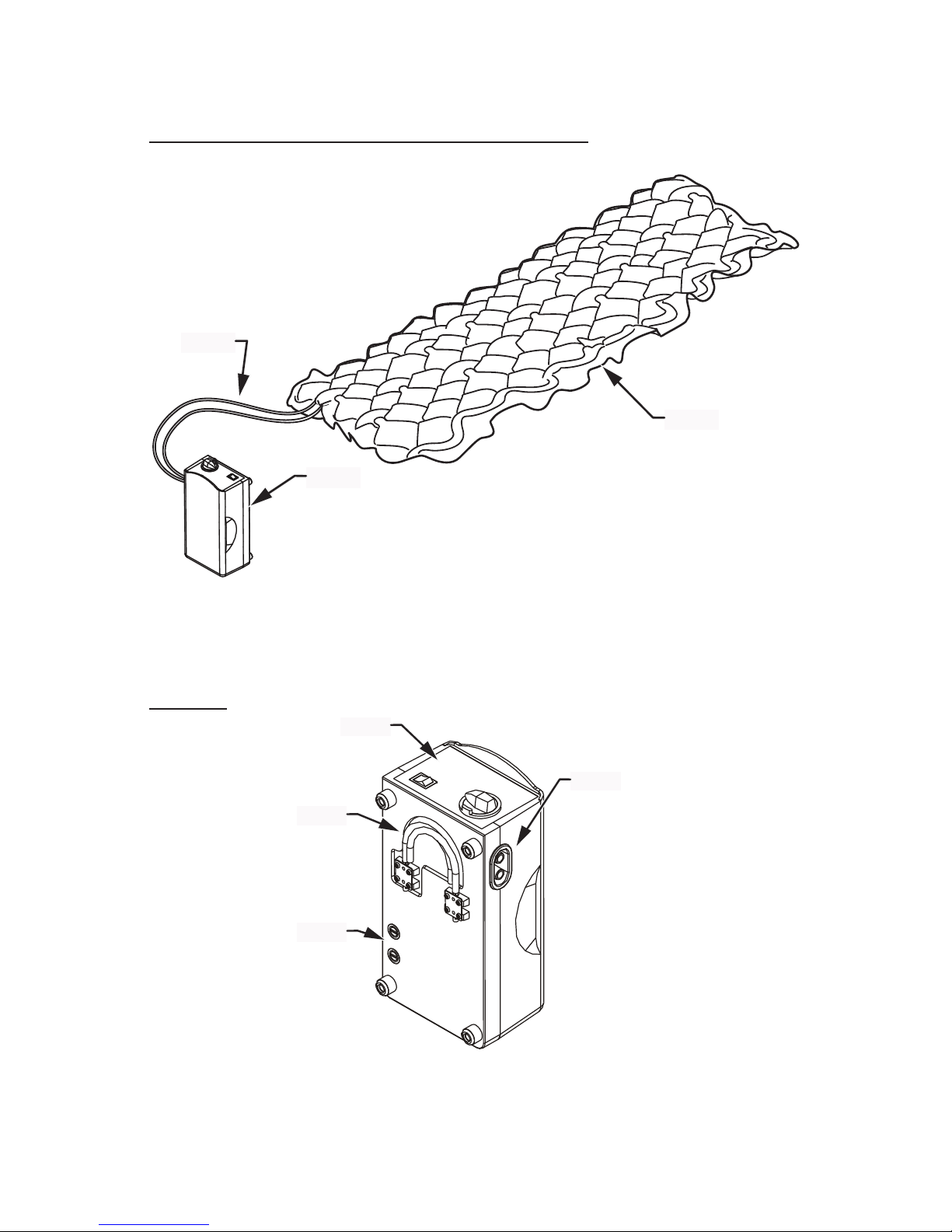

PRODUCT DESCRIPTION
BUBBLE PAD AND PUMP SYSTEM
bubble pad and pump system
air tubes
bubble pad
pump
PUMP
pump (AQ2000 shown)
front panel
wire
hangers
fuses
(220V only)
air tube connectors

8 AQ1000-INS-LAB-RevD13
FRONT PANEL
AQ1000
AQ1000 pump front panel
ON/OFF switch
air tube connectors
AQ2000
AQ2000 pump front panel
ON/OFF
switch pressure
control dial
Front panel pressure control dial (AQ2000 only): The
pressure control dial controls the air pressure output. To
increase pressure, turn the dial clockwise. To decrease
pressure, turn the dial counter-clockwise.

AQ1000-INS-LAB-RevD13 9
INSTALLATION
UNPACKING
1. Before unpacking, check for obvious damage to the
carton or its contents. If damage is evident, please
notify the carrier and your Graham-Field authorized
distributor.
2. Remove all loose packing from the carton.
3. Carefully remove all components from the carton.
4. Inspect all components. If damage is evident, please
notify the carrier and your Graham-Field authorized
distributor.

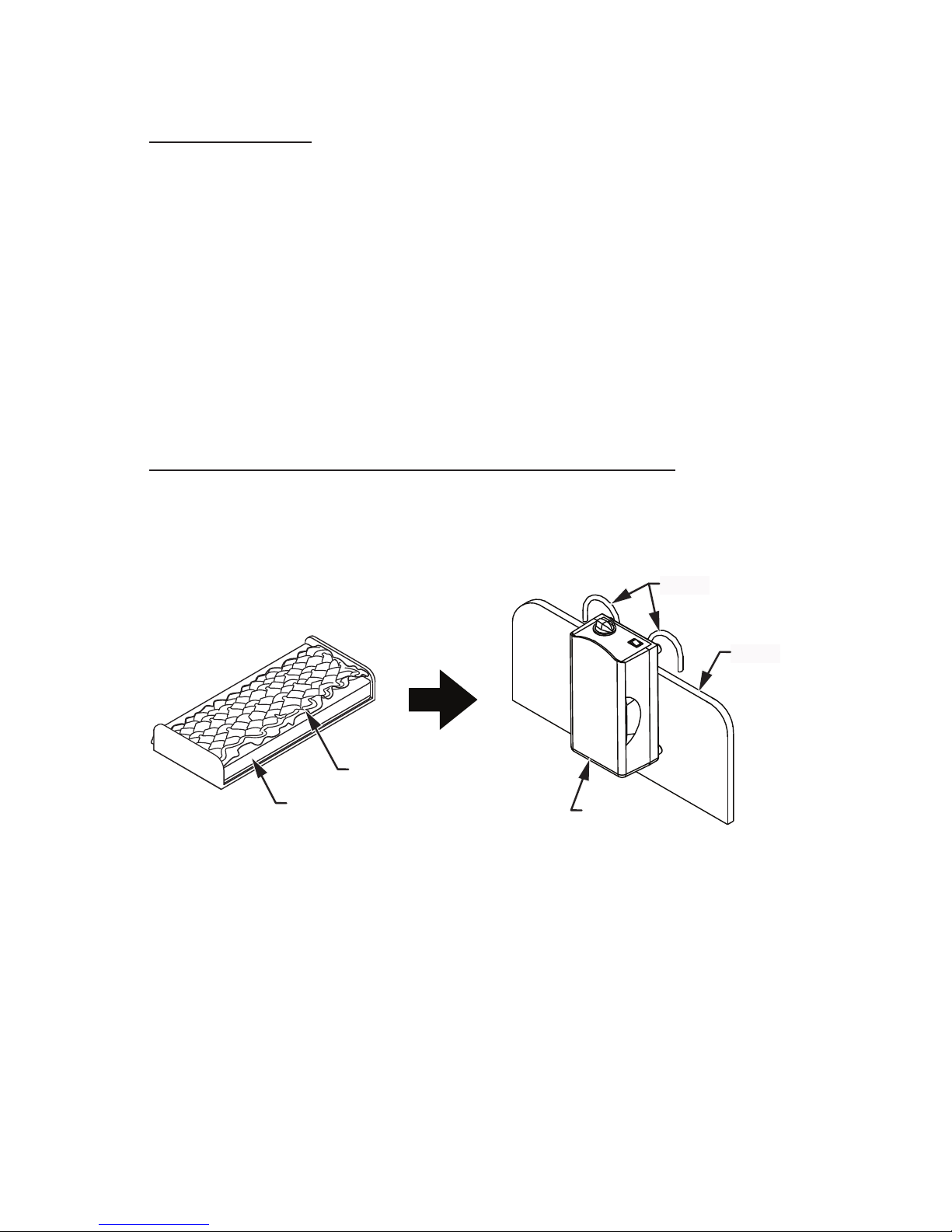

PUMP AND BUBBLE PAD INSTALLATION
1. Remove all sheets, blankets, and pillows from the bed.
2. Place the bubble pad on the bed mattress with the
tubing at the patient's feet.
installation
wire hanger
foot end
pump
(AQ2000 shown)
mattress
bubble pad
3. Fold open the wire hangers on the back of the pump as
shown above.
4. Use the hangers to hang the pump on the bed's foot end,
as shown above; adjust the hangers to place the pump
in the most upright position (or place the pump on a at
surface easily accessible to the caregiver and/or doctor).
s NOTICE:Placethedeviceinapositionwherethe
caregiverand/ordoctorcanaccessiteasily.

10 AQ1000-INS-LAB-RevD13
5. Connect one end of the air tubes to the bubble pad:
slide the ends of the air tubes over the connectors on
the top of the foot end of the bubble pad.
6. Connect the other end of the air tubes to the pump
connectors; ensure that the ends of the air tubes are
rmly tted over the bubble pad and pump connectors
before continuing.
s NOTICE:Ensurethattheairtubesarenotkinkedor
tuckedunderthebubblepadormattress.
WARNING:Locateallcordssothattheywillnotbe
steppedon,trippedover,orotherwisesubjectedto
damageorstress.
WARNING:Donotuseahouseholdextensioncordif
theelectricalcorddoesnotreachthepoweroutlet.Use
ofanimproperextensioncordcouldresultinreand
electricshock.Ifanextensioncordmustbeused,use
athreeconductorcordwithground,properlywired,
ingoodelectricalcondition,andkeepitasshortas
possible.
WARNING:Thisdevice—whichMUSTbegrounded—is
equippedwithacordthathasagroundingwirewith
agroundingplug.Theplugmustbepluggedintoan
outletthatisproperlyinstalledandgrounded.
WARNING:Ensurethatthelocalpowervoltageis
appropriateforthepumpunit.
7. Plug the power cord into a properly grounded electrical
outlet.

AQ1000-INS-LAB-RevD13 11
OPERATION
1. Turn the ON/OFF switch to the ON position. The pump
will begin to deliver air into the bubble pad.
2. Replace all sheets, blankets, and pillows on the bed.
Info: if the pressure level seems low, check for any leakage
in the air tubes or bubble pad. Replace any damaged tubes. If
necessary, contact your Graham-Field authorized distributor
for repair or replacement.
AQ2000 ONLY: PRESSURE ADJUSTMENT
Adjust the pressure control dial for comfort.
Info: For maximum effectiveness, patient should sink into
bubble pad to reduce pressure points. Ensure that patient
does not bottom out.
QUICK DISCONNECT
Pull the power plug from the wall connector to disconnect
the device quickly.
CPR FUNCTION
If CPR must be performed on the patient while the bubble
pad is in use, to immediately deate the bubble pad, pull
the air tubes off the bubble pad or pump connectors.

12 AQ1000-INS-LAB-RevD13
MAINTENANCE
CLEANING
Perform the following cleaning procedures before use and
as necessary thereafter.
Pump
Wipe the pump with a clean, damp cloth and mild
detergent, and keep it away from dust. Air dry.
s NOTICE:Donotusephenolicproductsorcorrosiveor
powderedcleanserstocleanthepump.
s NOTICE:Donotimmerseorsoakthepump.
Bubble pad
Wipe the bubble pad with a clean, damp cloth and mild
detergent. The bubble pad may also be cleaned using a
10% solution of sodium hypochlorite (bleach) diluted in
water. Air dry all parts thoroughly before use.
s NOTICE:Donotusephenolicproductstocleanthe
bubblepad.
s NOTICE:Aftercleaning,airdrythebubblepadwithout
directexposuretosunlight.
GENERAL MAINTENANCE
1. Check main power cord for abrasion or excessive wear.
2. Check bubble pad for signs of wear or damage. Ensure
air tubes are rmly secured to bubble pad and pump
connectors.
3. Check the air tubes for kinks or breaks. For
replacement, please contact your Graham-Field
authorized distributor.

AQ1000-INS-LAB-RevD13 13
Fuse replacement (220V system only)
tool needed: small screwdriver
1. If you suspect a blown fuse, disconnect the plug from
the wall outlet immediately.
fuse location
fuse
fuse cover
2. Use a small screwdriver to remove the cover of the fuse
holder (fuse locations are shown in picture above).
3. Insert a new fuse of the correct rating (T1A/250V).
4. Replace the fuse holder cover. Ensure that fuse holder
cover is securely installed.
STORAGE
1. Fold the bubble pad loosely.
2. Store bubble pad and pump in a dust-free environment
with no exposure to direct sunlight.

14 AQ1000-INS-LAB-RevD13
SPECIFICATIONS
Model AQ1000 (Standard) AQ2000 (Deluxe)
Power Supply
120V: 120V AC, 60 Hz, 1A
220V: 230VAC, 50 Hz, 7W
Fuse Rating
120V: N/A
220V: T1A, 250V
Pressure
1.9 psi (13.10 kPa) 1.0 - 2.0 psi (6.89-13.79 kPa)
Air Output
120V: 4.5 LPM 120V: 4-5 LPM
220V: 5.0 LPM 220V: 5-6 LPM
Cycle Time
120V: 5 min.
220V: 6 min.
Power Cord
Length
10 ft. (304.8 cm)
Pump Unit Size
8.5 x 4.25 x 3.62 in.
(21.59 x 10.80 x 9.19 cm)
9.75 x 5.12 x 3.88 in.
(24.77 x 13.00 x 9.86 cm)
Pump Unit Weight
2.9 lb. (6.38 kg) 3.5 lb. (7.7 kg)
Bubble pad Size,
Inated
78 x 34 x 2.5 in.
(198.12 x 86.36 x 6.35 cm)
76 x 34 x 2.5 in.
(193.04 x 86.36 x 6.35 cm)
Weight Capacity
275 lb. (125 kg), EVENLY DISTRIBUTED
Bubble pad
Material
14 GA anti-bacterial, ame-retardant vinyl
Tubing
2 each: 5 ft. (152.4 cm) long clear PVC
Replacement
Parts
Contact your Graham-Field dealer or visit Graham Field's
website, www.grahameld.com
Info: Specifications are subject to change without notice.

AQ1000-INS-LAB-RevD13 15
WARRANTY
GF Health Products, Inc. warrants the Lumex AQ1000 /
AQ2000 Alternating Pressure Pad and Pump System for
defects in workmanship and materials for the terms listed
below.
Pump: one year
Pad: 90 days
If a product is deemed to be under warranty, GF Health
Products, Inc. shall provide, at its option, (1) replacement
of any defective part or product or (2) a credit of the
original selling price made to GF Health Products, Inc.’s
initial customer. The warranty does not include any labor
charges incurred in replacement part(s) installation or
any associated freight or shipping charges to GF Health
Products, Inc.
The warranties contained herein contain all the
representations and warranties with respect to the
subject matter of this document, and supersede all
prior negotiations, agreements and understandings with
respect thereto. The recipient of this document hereby
acknowledges and represents that it has not relied on any
representation, assertion, guarantee, warranty, collateral
contract or other assurance, except those set out in this
document.

GF Health Products, Inc.
2935 Northeast Parkway
Atlanta, Georgia 30360
tel: [phone]
fax: [phone]
www.grahamfield.com
© 2008 GF Health Products, Inc.
