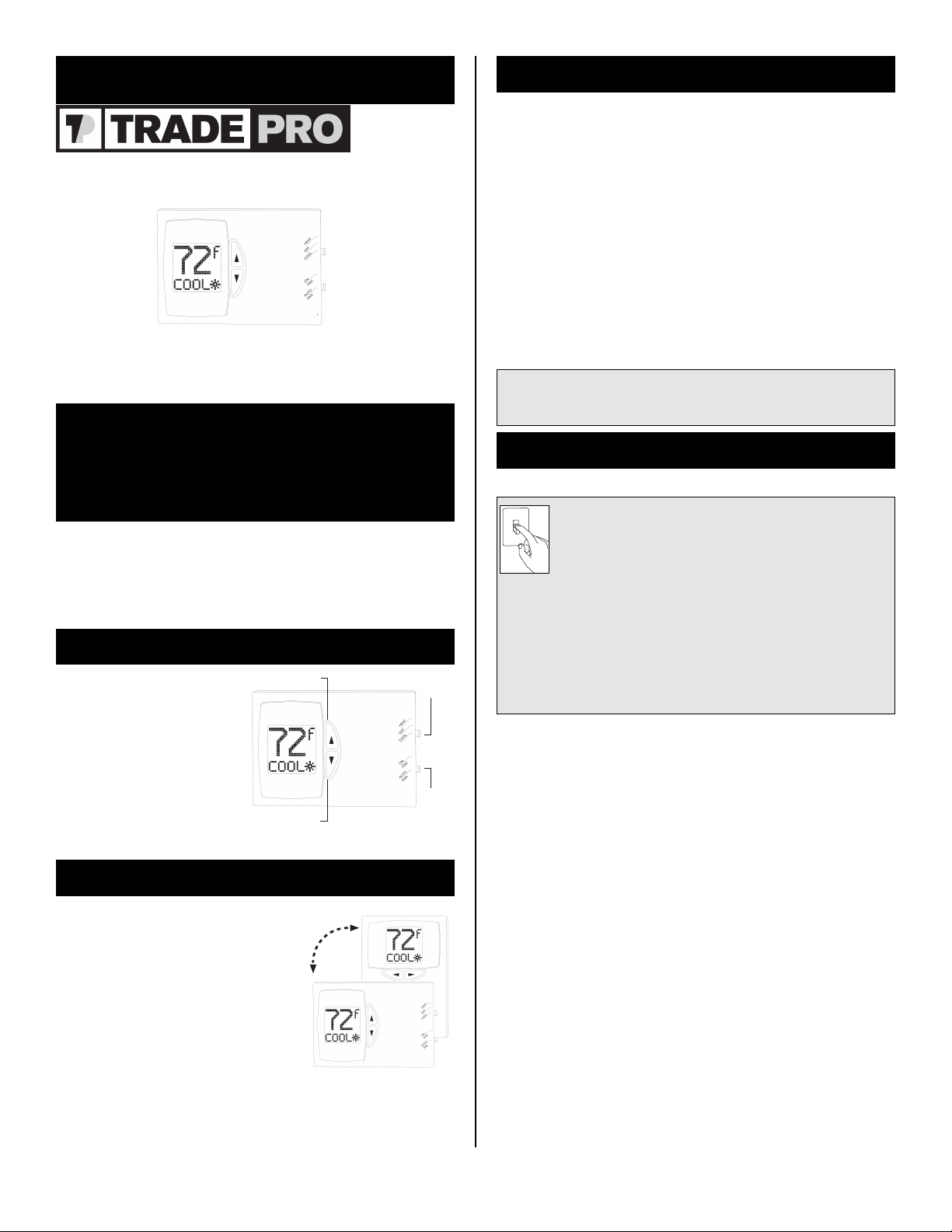

Lux Products TP-L111 User manual

© COPYRIGHT 2016 LUX PRODUCTS CORPORATION. ALL RIGHTS RESERVED
IMPORTANT!
Please read all instructions carefully before beginning
installation and save for future reference. Before
removing any wiring from your existing thermostat, its
wires must be labeled with their terminal designations.
Ignore the color of the wires since they may not
comply with any standard.
Thank you for your confidence in our product. To obtain the best results
from your investment, please read this manual and acquaint yourself with
your purchase before installing your new thermostat. Then follow the
installation procedures, one step at a time. This will save you time and
minimize the chance of damaging the thermostat and the systems it
controls. These instructions may contain information beyond that required
for your particular installation. Please save for future reference.
INSTALLATION AND OPERATING
INSTRUCTIONS
COMPATIBILITY
The unit can be used with
most 24 volt gas, oil or electric
heating and air conditioning
systems, gas millivolt heating
systems, and single stage heat
pumps. It cannot be used with
120 volt heating systems or two
stage heat pumps. Ask your
dealer for other TradePro
thermostats to control those
systems.
FEATURES
● Vertical or Horizontal Orientation
● Large easy to read backlit display
● Mode and Fan control for ease of use
● Simple Temperature UP and Down
Control.
● Calibration control
● Temperature Swing adjustability (9
levels)
● 2 or 5 minute compressor delay
● Fahrenheit or Celsius selection
● Temperature Limits for High and Low
selections
● Test mode to temporarily disable the
compressor delay
TEMP UP
MODE
FAN
TEMP DOWN
WARNING: Use Energizer® or DURACELL® Alkaline
Batteries Only. Energizer® is a registered trademark of Eveready
Battery Company, Inc. DURACELL® is a registered trademark of
The Gillette Company, Inc.
Patent # 6,951,306
● In the winter, set the system switch to HEAT to control your heating
system.
●
●
In the summer, set the switch to COOL to control your air conditioner.
Press either the TEMPERATURE UP or DOWN key in order to show
the current SET TEMPERATURE.
● Press TEMPERATURE UP or DOWN keys again until your desired
temperature is displayed. The display will show the current roo m
temperature again after two seconds.
● Press the light bulb button to illuminate the display. Adjusting the
temperature will keep the display lit until no button has been pressed for
over ten seconds.
● In spring and fall or when windows are open, you can set the system
switch to OFF.
● Setting the FAN switch to AUTO automatically runs your system’s fan
during heating and cooling.
● Setting the FAN switch to ON runs your system’s fan continuously even
without heating or cooling.
NOTE
The FAN switch works only if your system provides a wire for the
thermostat’s “G” terminal.
INSTALLATION
Please read all instructions carefully before beginning installation.
CAUTION
Turn off electricity to the appliance before installing or
servicing thermostat or any part of the system. Do not turn
electricity back on until work is completed.
● Do not short (jumper) across electric terminals at control on furnace or
air conditioner to test the system. This will damage the thermostat and
void your warranty.
● All wiring must conform to local codes and ordinances.
● This thermostat is designed for use with 24 volt and millivolt systems.
The thermostat should be limited to a maximum of 1.5 amps; higher
current may cause damage to the thermostat. If you are in doubt, call
your HVAC contractor.
● Your thermostat is a precision instrument. Please handle it with care.
OFF
TOOLS REQUIRED
MODE
On replacement installations, mount the new thermostat in place of the
old one unless the conditions listed below suggest otherwise. On new
installations, follow the guidelines listed below.
● Remember that your TP-L111 may be mounted vertically or
horizontally when determining the optimal location.
● Locate the thermostat on an inside wall, about 5 ft. (1.5m) above the
floor, and in a room that is used often.
● Do not install it where there are unusual heating conditions, such as: in
direct sunlight; near a lamp, radio, television, radiator, register, or
fireplace; near hot water pipes in a wall; near a stove on the other side
of a wall.
● Do not locate in unusual cooling conditions, such as: on a wall
separating an unheated room; or in a draft from a stairwell, door, or
window.
●
Do not locate in a damp area. This can lead to corrosion that will
shorten thermostat life.
● Do not locate where air circulation is poor, such as: in a corner or an
alcove; or behind an open door.
● Do not install the unit until all construction work and painting has been
completed.
OPERATING INSTRUCTIONS
● #1 Phillips screwdriver (small)
● Wire Stripper
● Drill
THERMOSTAT LOCATION
TP-L111
DIGITAL ELECTRONIC THERMOSTAT

NOTE
If you are mounting the base to a soft material like plasterboard or if you
are using the old mounting holes, the screws may not hold. Drill a 3/16-
in. (4.8mm) hole at each screw location, and insert the plastic anchors
provided. Then mount the base as described below.
WIRING DIAGRAMS
These diagrams are provided for new installations or un-referenced
wires.
5. Route the wires through the large hole in the base
plate by the terminal block. Hold the base against the
wall, with the wires coming through. Position the base for
best appearance (to hide any marks from an old
thermostat). The terminal block should be either to the
right of or below the routing hole. Attach the base to the
wall with the two screws provided.
CAUTION
Read instructions carefully before removing any wiring from existing
thermostat. Wires must b e labeled before they are removed. When removing
wires from their terminals, ignore the color of the wires since they may not
comply with any standard.
REMOVING THE OLD THERMOSTAT
1. Switch electricity to the furnace and air conditioner
OFF; then proceed with the following steps.
2. Remove cover from old thermostat. Most are snap-on
types and simply pull off. Some have locking screws on
the side. These must be loosened.
3. Note the letters printed near the terminals. Attach labels (enclosed) to
each wire for identification. Label and remove wires one at a time. Make
sure the wires do not fall back inside the wall.
4. Loosen all screws on the old thermostat and remove it from the wall.
MOUNTING THE TP-L111 ON THE WALL
1. Decide whether the thermostat will be mounted vertically or horizontally.
Y
W
2. Strip insulation 3/8 in. (9.5mm) from
wire ends and clean off any corrosion.
3. Fill wall opening with non-combustible
insulation to prevent drafts from affecting
the thermostat.
4. Grip the de vice per the diagram below to remove the front plate
from the back plate.
Y
W
Y
W
R
ATTACHING WIRES
W
RH
B
O
RC
Y
G
C
W
RH
B
O
RC
Y
G
C
W
RH
B
O
RC
Y
G
C
W
RH
B
O
RC
Y
G
C
W
RH
B
O
RC
Y
G
C
GAS
VALVE
TYPICAL 2 WIRE HEAT HOOKUP
24 VAC AND MILLIVOLT SYSTEMS
AC
LINE
24
VAC
XFMR
OPTIONAL
COMMON
GAS
VALVE
TYPICAL 3 WIRE HEAT HOOKUP
WHERE THIRD WIRE IS FAN WIRE
AC
LINE
24
VAC
XFMR
FAN
OPTIONAL
COMMON
GAS
VALVE
TYPICAL 4 WIRE HOOKUP
HEATING AND COOLING
AC
LINE
24
VAC
XFMR
FAN
COOL
COMPRESSOR
OPTIONAL
COMMON
GAS
VALVE
TYPICAL 5 WIRE HOOKUP
HEATING AND COOLING
AC
LINE
24
VAC
24
VAC
XFMR
AC
LINE
XFMR
FAN
COOL
COMPRESSOR
OPTIONAL
COMMON
TYPICAL SINGLE STAGE HEAT PUMP
HEATING AND COOLING
24
VAC AC
LINE
XFMR
CHANGEOVER
VALVE
FAN
HEAT
COMPRESSOR
OPTIONAL
COMMON
NOTE: ADD JUMPER BETWEEN "W" AND "Y"
BB
OO
B
O
OR
USE "B" OR "O"
BUT NOT BOTH
ALL COMMON WIRES ARE OPTIONAL
AND MAY BE TAPED OFF
W
RH
B
O
RC
Y
G
COPTIONAL OPTIONAL
OPTIONAL OPTIONAL
OPTIONAL OPTIONAL
TC BC
FG
RCRH V 5R
HW 4
ALL COMMON WIRES ARE OPTIONAL
AND MAY BE TAPED OFF
** IF A "B" WIRE IN YOUR SYSTEM IS A
SYSTEM COMMON, THEN CONNECTING IT
AT THE "B" TERMINAL MAY CAUSE
DAMAGE TO YOUR SYSTEM
* IF Y AND "C" ARE BOTH PRESENT,
"C" IS THE COMMON WIRE
W
RH
B
O
RC
Y
G
C
DO NOT CONNECT
A "B" WIRE HERE
UNLESS YOU ARE SURE
THAT IT IS CORRECT
BTCC
FG
C* 6Y
RCRH V 5R
B**
HW 4
O
J
U
M
P
E
R
R
E
M
O
V
E
D
ALL COMMON WIRES ARE OPTIONAL
AND MAY BE TAPED OFF
** IF A "B" WIRE IN YOUR SYSTEM IS A
SYSTEM COMMON, THEN CONNECTING IT
AT THE "B" TERMINAL MAY CAUSE
DAMAGE TO YOUR SYSTEM
* IF Y AND "C" ARE BOTH PRESENT,
"C" IS THE COMMON WIRE
* IF Y AND "C" ARE BOTH PRESENT,
"C" IS THE COMMON WIRE
B**
W
RH
B
O
RC
Y
G
CBTCC
FG
RRC
C* 6Y
RH V 5
HW 4
O
ALL COMMON WIRES ARE OPTIONAL
AND MAY BE TAPED OFF
W
RH
B
O
RC
Y
G
CB TCC
FG
C*Y 6
RCR V
HEATING SYSTEMS COOLING SYSTEMS
4- or 5-WIRE WITH ONE TRANSFORMER 5- or 6-WIRE WITH TWO TRANSFORMERS
HEATING / COOLING SYSTEMS HEATING / COOLING SYSTEMS
DO NOT CONNECT
A "B" WIRE HERE
UNLESS YOU ARE SURE
THAT IT IS CORRECT
*RH-RC shorted via
jumper selection
*RH-RC shorted via
jumper selection
*RH-RC
shorted
via jumper
selection
*RH-RC
shorted
via jumper
selection
*RH-RC
shorted
via jumper
selection
*RH-RC
shorted
via jumper
selection
*RHxRC
not shorted
via jumper
selection
*RHxRC
not shorted
via jumper
selection
*RH-RC
shorted
via jumper
selection
NOTE
Install two AA batteries in the unit regardless if the the C wire is
connected to 24VAC. This will ensure that all MENU settings will be
preserved during a power outage condition.

NOTE
If you have an electric system and the blower does not operate after
installation, find the electric/gas heat jumper on the back of the body as
indicated in the following diagram. Move the jumper from the center and
right pins, to the center and left pins.
CAUTION
Do not allow wires to touch each other or parts on thermostat.
Terminated wires must be trapped between black spacer and
brass terminal. Securely tighten all 8 electrical terminal screws.
OPEN: In this position, the RH and RC terminals are not shorted.
RH=RC: In this position, the RH and RC terminals are shorted.
GAS: In this position, the thermostat is set for GAS furnace
operation.
ELECT: In this position, the thermostat is set for Electrical furnace
operation
JUMPER Settings
There are 2 Basics steps involving jumper settings:
1. Move the Jumper to the appropriate position as described below.
2. After making all the jumper selections, press the Reset (RST)
button.
HORZ: Sets the thermostat in a Horizontal orientation.
VERT: Sets the thermostat in a Vertical orientation.
Multiple Features can be accessed and selected by navigating through
the MENU screen. The instructions below detail all the options under the
MENU screen:
a. CAL: Calibration
b. SWNG: Temperature Swing
c. DELY: Delay
d. F/C: Fahrenheit and Celsius Selection
e. TLMT: Temperature Limit
f. TEST: Test Mode
g. EXIT: Exit
1. Access the Menu Screen: In the off position, press Up and Down
simultaneously (approx. 3 seconds) until the MENU screen is displayed
MENU
1. Press and hold the Up and Down button simultaneously at the CAL
selection.
2. Press Up or Down to select the Calibration amount (-5F to +5F
increments)
3. Once the desired calibration point is reached, press and hold the Up
and Down button simultaneously to select the value
CALIBRATION
1. Press and hold the Up and Down button simultaneously at the
SWNG selection.
2. Press Up or Down to select the Swing setting (0.25 to 2.25
increments)
3. Once the desired swing point is reached, press and hold the Up and
Down button simultaneously to select the value
TEMPERATURE SWING
1. Press and hold the Up and Down button simultaneously at the
DELY selection.
2. Press Up or Down to select the 5 Minute or 2 Minute Compressor
delay
3. Once the desired delay point is reached, press and hold the Up and
Down button simultaneously to select the value
COMPRESSOR DELAY

WARRANTY
Limited Warranty: If this unit fails because of defects in materials or
workmanship within three years of date of original purchase, LUX will, at its
option, repair or replace it. This warranty does not cover damage by
accident, misuse, or failure to follow installation instructions. Implied
warranties are limited in duration to three years from date of original
purchase. Some states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you. Please return
malfunctioning or defective units to the participating retailer from which
purchase was made, along with proof of purchase. Please refer to
"TECHNICAL ASSISTANCE" before returning thermostat. Purchaser
assumes all risks and liability for incidental and consequential damage
resulting from installation and use of this unit. Some states do not allow the
exclusion of incidental or consequential damages, so the above exclusion
may not apply to you. This warranty gives you specific legal rights and you
may also have other rights which vary from state to state. Applicable in the
U.S.A. only.
BATTERIES/MAINTENANCE
1. Remove fresh batteries from their carton.
2. Remove body of thermostat as described during installation.
3. Remove the used batteries.
4. Install two new Energizer® or DURACELL® "AA" size alkaline batteries in
the battery compartment. Observe the polarity marking shown in the
compartment.
5. If the device is no longer powered, all programmed Menu settings will
have to be reprogrammed if the batteries were not immediately replaced
with new batteries.
6. Place the body back on the wall
TECHNICAL SERVICE
WARNING: Use Energizer® or DURACELL® Alkaline
Batteries Only.
1. Press and hold the Up and Down button simultaneously at the F/C
selection.
2. Press Up or Down to select the F or C
3. Once the value is selected, press and hold the Up and Down
button simultaneously to select the value
FAHRENHEIT AND CELSIUS
1. Press and hold the Up and Down button simultaneously at the
TLMT selection.
2. Press Up or Down to select the Heat limit, then press UP and
DOWN simultaneously to set the Heat limit
3. Press Up or Down to select the Cool limit, then press UP and
DOWN simultaneously to set the Cool limit
TEMPERATURE LIMITS
This mode is also known as Compressor Defeat. It allows the
installer to operate the heating and cooling without any delays.
Once entering this mode, the thermostat will automatically return out
of the TEST mode in a 10 minute period. When the TEST mode is
active, the temperature reading blinks as an indication of the TEST
mode.
1. Press and hold the Up and Down button simultaneously at the
TEST selection.
2. Press Up or Down to select the Yes or No
3. Once the value is selected, press and hold the Up and Down
button simultaneously to select the value
TEST MODE
EXIT
1. Press and hold the Up and Down button simultaneously at the
EXIT selection.
*The device will automatically exit out of the MENU screen after
being idle for 60 seconds
If you are experiencing any issues with the installation or usage of
the thermostat, please feel free to call our Technical Support
department at [phone] or visit our website at
www.luxproproducts.com
1. Make sure all power is turned
off to the equipment connected to
the thermostat
2. Remove the front plate of the
thermostat per the diagram below
with a Phillips screwdriver
SERVICING THERMOSTAT
Low Battery
Icon
PSD001
When a low battery indication is displayed, proceed to replace the
batteries immediately per the instructions below:
