This manual covers the following models:
TH6110D: For 1 Heat/1 Cool systems
TH6220D: For up to 2 Heat/2 Cool systems
(Remove battery holder to find model number)
Need Help?
For assistance with this product please visit http://yourhome.honeywell.com
or call Honeywell Customer Care toll-free at 1-800-468-1502

FocusPROTM TH6000 Series
1
About your new thermostat
Thermostat features...................................2
Programming at a glance .......................... 3
Quick reference to controls....................... 4
Quick reference to display ........................5
Programming & Operation
Set time and day........................................6
Select fan setting (auto/on) ....................... 7
Select system setting (heat/cool)..............8
Using program schedules .........................9
Program schedule overrides ...................12
Auto-changeover (heat/cool)...................14
Compressor protection............................15
Adaptive Intelligent Recovery™..............16
Appendices
Battery replacement ................................ 17
In case of difficulty...................................18
Customer assistance ...............................20
Accessories/replacement parts ..............20
5-year limited warranty............................21
This thermostat is ready to go!
Your new thermostat is pre-programmed
and ready to go.
See page 3 to check settings.
Table of contents
CAUTION: EQUIPMENT DAMAGE
HAZARD. To prevent possible
compressor damage, do not operate
cooling system when outdoor
temperature is below 50°F (10°C).

About your new thermostat
Congratulations on the purchase of your new Honeywell thermostat. It has been
designed to give you many years of reliable service and easy-to-use, push-button
climate control.
Features
• Separately programmable weekday/weekend schedules.
• One-touch temp control overrides program schedule at any time.
• EnergyStar®compliant to greatly reduce your heating/cooling expenses.
• Large, clear, backlit display is easy to read — even in the dark.
• Displays both room temperature and temperature setting.
• Removable battery holder for fast, easy replacement.
• Built-in compressor protection.
Operating Manual
2

FocusPROTM TH6000 Series
3
This thermostat is ready to go!
Your new thermostat is pre-programmed and ready to go. All you have to do is set
the time and day. Then check the settings below and change if needed:
1. Set time and day (required for proper operation).........................See page 6
2. Select fan setting (Auto/On): Preset to Auto.................To change, see page 7
3. Select system setting (Heat/Cool): Preset to Heat ......To change, see page 8
4. Program schedules: Preset to energy-saving levels while you’re at work or
asleep (assumes you wake at 6 am, leave at 8 am, return at 6 pm and go to
bed at 10 pm)...............................................................To change, see pages 9-11
ONE-TOUCH TEMP CONTROL: You can override the program schedule at any time, and
manually adjust the temperature (see pages 12-13).

Operating Manual
4
Digital display (see page 5). Battery holder (see page 17).
Temperature Buttons
Press to adjust temperature
settings (see page 11-13).
Hold Button
Press to override
programmed temperature
control (see page 13).
Function Buttons
Press to select the function displayed just above each
button. (Functions change depending on the task.)
Quick reference to controls

FocusPROTM TH6000 Series
5
Current inside temperature
Set Clock/Day/
Schedule
Auto
Wake Wed
Fan
In Recovery
System
Auxiliary
Heat On
Heat
Heat
Setting
Inside
AM
72
72
6:30
Replace Battery
In Recovery
(see page 16)
Current program period
Wake/Leave/Return/Sleep
(see pages 9-11)
Set Clock/Day/Schedule
(see pages 6 & 11)
Function buttons
Press the button beneath each function to
view or change settings (functions change
depending on the task)
Low battery warning
(see page 17)
Current time/day
(see page 6)
Temperature setting
(see pages 11-13)
Auxiliary heat
(Only for heat pumps
with auxiliary heat)
System status
Heat On/Cool On (If
flashing, see page 15)
System setting
Heat/Cool/Auto/Off/Em
Heat (see page 8)
Fan setting
Auto/On (see page 7)

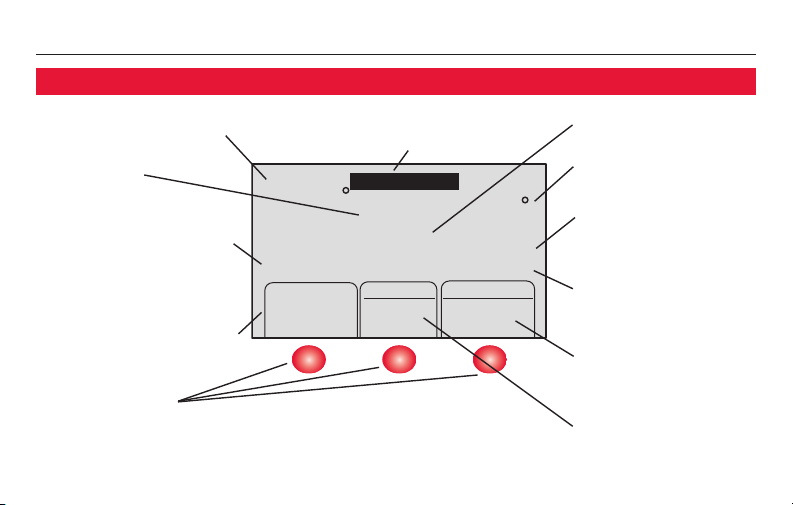

Quick reference to display screen

Operating Manual
6

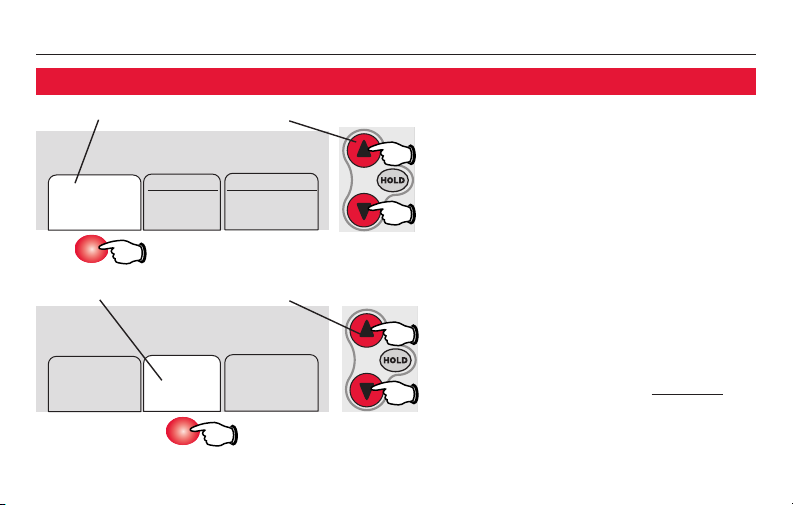

1. Press the SET CLOCK/DAY/SCHEDULE
button, then press s or t to set
the clock time.
2. Press the SET DAY button, then
press s or t to select the day
of the week.
3. Press DONE to save & exit.
Note: If the SET CLOCK/DAY/SCHEDULE
option is not displayed, press DONE or RUN
SCHEDULE.
Note: If the display flashes Set Clock,
the thermostat will follow your settings
for the weekday “Wake” time period until
you reset the time and day.
Set Clock/Day/
Schedule
Auto
Fan System
Heat
PM
4:30
Done
Set Day Set Schedule
Wed
Set the time and day
Press SET CLOCK/DAY/SCHEDULE, then adjust time
Press SET DAY, then select current day

FocusPROTM TH6000 Series
7
Press the FAN button to select Auto or On.
In “Auto” mode (the most commonly used
setting), the fan runs only when the heating
or cooling system is on. If set to “On,” the
fan runs continuously. Use this setting for
improved air circulation, or for more efficient
air cleaning.
Set Clock/Day/
Schedule
Auto
Fan System
Heat
Set Clock/Day/
Schedule
On
Fan System
Heat
Select the fan setting

Operating Manual
8
Note: The Auto and Em Heat
system settings may not
appear, depending on how your
thermostat was installed.
Set Clock/Day/
Schedule
Auto
Fan System
Heat
Set Clock/Day/
Schedule
Auto
Fan System
Cool

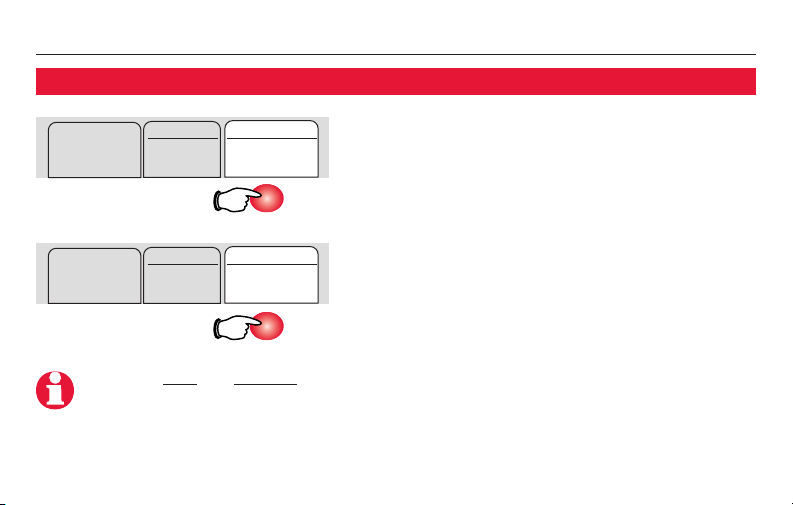

Press the SYSTEM button to select:
• Heat: Thermostat controls only the
heating system.
• Cool: Thermostat controls only the
cooling system.
• Off: Heating and cooling systems are off.
• Auto: Thermostat automatically selects
heating or cooling depending on the
indoor temperature.
• Em Heat (only for heat pumps with
auxiliary heat): Thermostat controls
Emergency and Auxiliary Heat.
Compressor is locked out.
Select the system setting

FocusPROTM TH6000 Series
9
It’s easy to program your system for maximum energy savings. You can program four
time periods each day, with different settings for weekdays and weekends.
Set to the time you awaken and the temperature you want during
the morning, until you leave for the day.
Set to the time you leave home and the temperature you want
while you are away (usually an energy-saving level).
Set to the time you return home and the temperature you want
during the evening, until bedtime.
Set to the time you go to bed and the temperature you want over-
night (usually an energy-saving level).
Save money by setting program schedules
WAKE
6:00 am
70 °
LEAVE
8:00 am
62 °
RETURN
6:00 pm
70 °
SLEEP
10:00 pm
62 °

Operating Manual
10
Wake
(6:00 am)
Leave
(8:00 am)
Return
(6:00 pm)
Sleep
(10:00 pm)
Cool (Mon-Fri)Heat (Mon-Fri) Heat (Sat-Sun) Cool (Sat-Sun)
70 °75 °70 °75 °
62 °83 °62 °
[Or cancel period]
83 °
[Or cancel period]
70 °75 °70 °
[Or cancel period]
75 °
[Or cancel period]
62 °78 °62 °78 °
EnergyStar®settings for maximum cost savings
This thermostat is pre-set to use EnergyStar®program settings. We recommend these
settings, since they can reduce your heating/cooling expenses by as much as 33%.
(See next page to adjust times and temperatures of each time period.)

FocusPROTM TH6000 Series
11
1. Press SET CLOCK/DAY/SCHEDULE, then SET
SCHEDULE.
2. Press s or t to set your weekday Wake
time (Mon–Fri), then press NEXT.
3. Press s or t to set the temperature for this
time period, then press NEXT.
4. Set time and temperature for the next time
period (Leave). Repeat steps 2 and 3 for each
weekday time period.
5. Press NEXT to set weekend time periods (Sat-
Sun), then press DONE to save & exit.
Note: Make sure the thermostat is set to the system you
want to program (Heat or Cool).
Note: You can press CANCEL PERIOD to eliminate unwanted
time periods (except Wake).
Set Clock/Day/
Schedule
Auto
Fan System
Cool
Done
Set Day Set Schedule
Mon Tue Wed Thu Fri
Done CancelPeriod
Leave
Set Schedule
Next
Heat
Setting
AM
62
8:00
To adjust program schedules

Operating Manual
12

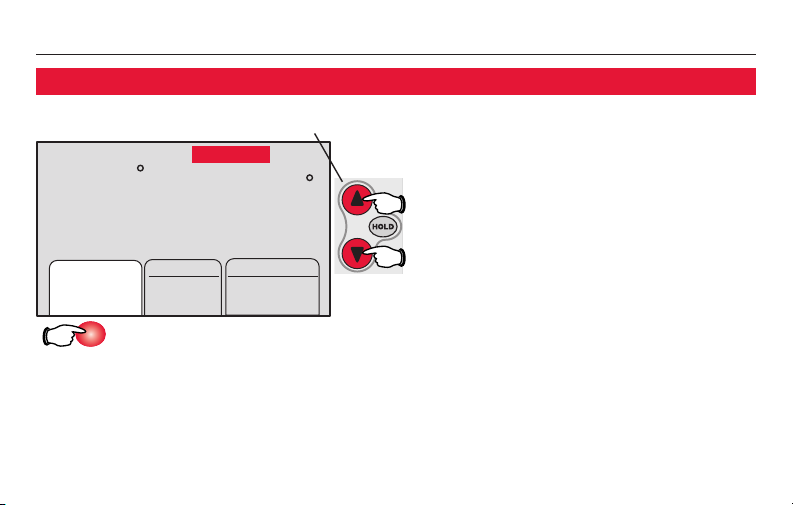

Press s or t to immediately adjust
the temperature. This will temporarily
override the temperature setting for the
current time period.
The new temperature will be
maintained only until the next
programmed time period begins (see
page 10). For example, if you want to
turn up the heat early in the morning,
it will automatically be lowered later,
when you leave for the day.
To cancel the temporary setting at any
time, press RUN SCHEDULE.
Run Schedule
Auto
Fan System
Heat
Heat
Setting
Inside
AM
69
75
6:30
Temporary
Press to cancel temporary setting and
resume program schedule.
Note: Make sure the thermostat is set
to the system you want to control (heat,
cool or auto).
Press to temporarily adjust temperature.
Program schedule override (temporary)

FocusPROTM TH6000 Series
13
Run Schedule
Auto
Fan System
Heat
Heat
Setting
Inside
AM
69
75
6:30
Hold
Press to cancel “Hold” setting and
resume program schedule.
Note: Make sure the thermostat is set
to the system you want to control (heat,
cool or auto).

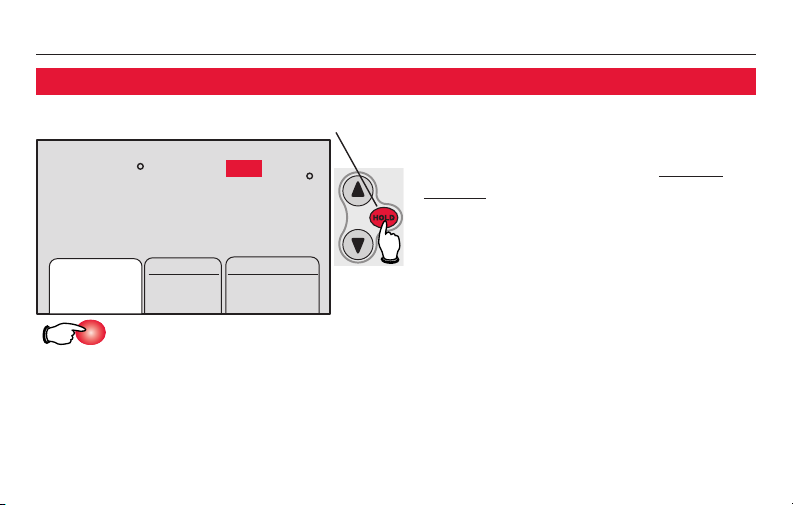

Press to permanently adjust temperature. Press HOLD to permanently adjust
the temperature. This will override
the temperature settings for all time
periods.
The “Hold” feature turns off the
program schedule and allows you to
adjust the thermostat manually, as
needed.
Whatever temperature you set will
be maintained 24 hours a day, until
you manually change it, or press RUN
SCHEDULE to cancel “Hold” and resume
the programmed schedule.
Program schedule override (permanent)

Operating Manual
14
Set Clock/Day/
Schedule
Auto
Fan System
Auto
Auto Changeover is a feature used in cli-
mates where both air conditioning and heat-
ing are used on the same day. When the sys-
tem is set to Auto, the thermostat automati-
cally selects heating or cooling depending on
the indoor temperature.
Heat and cool settings must be at least 3
degrees apart. The thermostat will automati-
cally adjust settings to maintain this
3-degree separation (called “deadband”).
The 3-degree separation between heating
and cooling set temperatures is fixed, and
cannot be changed.
Press until screen
displays “Auto”
Note: The Auto system setting
may not appear, depending on
how your thermostat was installed.
Auto Changeover (heat/cool)

FocusPROTM TH6000 Series
15
Set Clock/Day/
Schedule
Auto
Fan System
Cool On
Cool
Cool
Setting
Inside
AM
75
75
6:30
This feature helps prevent damage to the
compressor in your air conditioning or heat
pump system.
Damage can occur if the compressor is
restarted too soon after shutdown. This fea-
ture forces the compressor to wait for a few
minutes before restarting.
During the wait time, the display will flash
the message Cool On (or Heat On if you have
a heat pump). When the safe wait time has
elapsed, the message stops flashing and the
compressor turns on.
Message flashes until safe restart
time has elapsed
Built-in compressor protection

Operating Manual
16
Note: When Adaptive Intelligent Recovery is in effect, the thermostat will display “In
Recovery”.
Adaptive Intelligent RecoveryTM (AIR)
Adaptive Intelligent Recovery eliminates guesswork when setting your schedule.
It allows the thermostat to “learn” how long your furnace and air conditioner take
to reach the temperature you want.
Just set your program schedule to the time you want the house to reach your desired
temperature. The thermostat then turns on the heating or cooling at just the right time
to reach your scheduled temperature at your scheduled time.
For example: Set the Wake time to 6 am and the temperature to 70°. The heat will
come on before 6 am, so the temperature is 70° by the time you wake at 6.

FocusPROTM TH6000 Series
17
Batteries are optional (to provide backup
power) if your thermostat was wired to run on
AC power when installed.
Install fresh batteries immediately when the
REPLACE BATTERY warning begins flashing. The
warning flashes about two months before the
batteries are depleted.
Even if the warning does not appear, you
should replace batteries once a year, or
before leaving home for more than a month.
If batteries are inserted within two minutes,
the time and day will not have to be reset.
All other settings are permanently stored in
memory, and do not require battery power.
Replace Battery
Press and pull to remove
Insert fresh AA alkaline
batteries, then reinstall
battery holder.
Battery Replacement

Operating Manual
18
In case of difficulty
If you have difficulty with your thermostat, please try the following suggestions.
Most problems can be corrected quickly and easily.
Display is blank • Check circuit breaker and reset if necessary.
• Make sure power switch at heating & cooling system is on.
• Make sure furnace door is closed securely.
• If thermostat is battery powered, make sure fresh AA alkaline
batteries are correctly installed (see page 17).
Temperature
settings do not
change
Make sure heating and cooling temperatures are set to acceptable ranges:
• Heat: 40° to 90°F (4.5° to 32°C).
• Cool: 50° to 99°F (10° to 37°C).
To restore
Energy Star®
default settings
Follow these steps to restore Energy Star default settings (see page 10):
1. Press SET CLOCK/DAY/SCHEDULE.
2. Press SET SCHEDULE.
3. Press DONE and NEXT at the same time for 4 seconds.
