LuxCam IP LBA-LDA P1080 User manual

N
N
Ne
e
et
t
tw
w
wo
o
or
r
rk
k
k I
I
IR
R
R W
W
We
e
ea
a
at
t
th
h
he
e
er
r
r-
-
-P
P
Pr
r
ro
o
oo
o
of
f
f C
C
Ca
a
am
m
me
e
er
r
ra
a
a
User Manual
Please read this instruction carefully for correct use of the product and preserve it for
reference purposes

Cautions
Before operation, we strongly advise users to read this manual and keep it properly for
using later.
Please use the specified power supply to connect.
Avoid from in correct operation, shock vibration, heavy pressing which can cause
damage to product.
Do not use corrosive detergent to clean main body of the camera. If necessary, please
use soft dry cloth to wipe dirt; for hard contamination, use neutral detergent. Any
cleanser for high grade furniture is applicable.
Avoid aiming the camera directly towards extremely bright objects, such as, sun, as this
may damage the image sensor.
Please follow the instructions to install the camera. Do not reverse the camera, or the
reversing image will be received.
Do not operate it incase temperature, humidity and power supply are beyond the limited
stipulations.
Keep away from heat sources such as radiators, heat registers, stove., etc.
This is product instructions not quality warranty. We may reserve the rights of amending
the typographical errors, inconsistencies with the latest version, software upgrades and
product improvements, interpretation and modification. These changes will be published
in the latest version without special notification.
When this product is in use, the relevant contents of Microsoft, Apple and Google will
be involved in. The pictures and screenshots in this manual are only used to explain the
usage of our product. The ownerships of trademarks, logos and other intellectual
properties related to Microsoft, Apple and Google belong to the above-mentioned
companies.

Contents
1 Introduction..................................................................................................1
2 Installation....................................................................................................3
3 IE Connection...............................................................................................5
3.1.1 Access through IP-Tool.............................................................5
3.1.2 Directly access through IE.........................................................7
4 Remote Preview .........................................................................................10
4.1 Remote Preview.................................................................................10
4.2 Playback.............................................................................................11
4.3 Snap....................................................................................................11
5 Remote Configuration................................................................................13
5.1 System Configuration.........................................................................13
5.1.1 Basic Information....................................................................13
5.1.2 Date & Time Configuration.....................................................13
5.1.3 SD Card...................................................................................14
5.2 Video Configuration...........................................................................15
5.2.1 Camera Configuration.............................................................15
5.2.2 Video Stream...........................................................................15
5.2.3 Time Stamp .............................................................................16
5.3 PTZ Configuration .............................................................................16
5.3.1 Protocol ...................................................................................16
5.3.2 Preset Configuration................................................................16
5.3.3 Cruise Configuration...............................................................17
5.4 Alarm Configuration..........................................................................18
5.4.1 Motion Detection Area............................................................18
5.4.2 Motion Detection Trigger........................................................19
5.4.3 Motion Detection Schedule.....................................................19
5.4.4 Alarm Input Trigger ................................................................20
5.4.5 Alarm Input Schedule..............................................................21
5.4.6 Alarm Out................................................................................21
5.5 Network Configuration ......................................................................22
5.5.1 Port ..........................................................................................22
5.5.2 Wired.......................................................................................22
5.5.3 Server Configuration...............................................................23

5.5.4 IP Notify..................................................................................23
5.5.5 DDNS Configuration...............................................................23
5.5.6 RTSP .......................................................................................26
5.5.7 UPNP.......................................................................................26
5.5.8 Mail Setting.............................................................................27
5.5.9 FTP..........................................................................................28
5.6 Advanced Configuration....................................................................28
5.6.1 User Configuration..................................................................28
5.6.2 Onvif Configuration ................................................................30
5.6.3 Security Configuration ............................................................30
5.6.4 Configure Backup & Restore ..................................................31
5.6.5 Reboot Device.........................................................................31
5.6.6 Upgrade...................................................................................32
6 Video Search ..............................................................................................33
7 Mobile Surveillance ...................................................................................35
7.1 Network Configuration ......................................................................35
7.2 By Phones with Windows Mobile OS................................................35
7.3 By Phones with iPhone OS ................................................................39
7.4 By Phones with Android OS ..............................................................49
7.5 By Phones with Blackberry OS..........................................................53
8 IP-Tool........................................................................................................55
9 Q & A.........................................................................................................58
10 Specification...............................................................................................60

IP-CAMERA User Manual - 1
C
C
Ch
h
ha
a
ap
p
pt
t
te
e
er
r
r 1
1
1 I
I
In
n
nt
t
tr
r
ro
o
od
d
du
u
uc
c
ct
t
ti
i
io
o
on
n
n
1Introduction
1.1 Overview
This IP-CAMERA (short for IP-CAM) is designed for high performance CCTV solutions. It
adopts state of the art video processing chips. It utilizes most advanced technologies, such as
video encoding and decoding technology, complies with the TCP/IP protocol, SoC, etc to
ensure this system more stable and reliable. This unit consists of two parts: the IP-CAM
device and central management software (short for CMS). The CMS centralizes all devices
together via internet or LAN and establishes a sound surveillance system to realize unified
management and remote operation to all devices in one network.
This product is widely used in banks, telecommunication systems, electricity power
departments, law systems, factories, storehouses, uptowns, etc. In addition, it is also an ideal
choice for surveillance sites with middle or high risks..
1.2 Package
The pictures below are only for reference. Only part of our products can adjust focus. Please
make the object as the standard.
IP-CAMERA
Quick Start Guide
CD
Screwdriver
Accessories
Description
IP-CAMERA
The device without Lens
Quick Start Guide
The Brief instructions of the product
CD
CD-ROM with software and manual
Screwdriver
A tool to adjust the stand
1.3 Interfaces and Parts
1Zoom：Turn the screw to zoom in/out.
2Focus：Turn the screw to adjust the image definition.

IP-CAMERA User Manual - 2
C
C
Ch
h
ha
a
ap
p
pt
t
te
e
er
r
r 1
1
1 I
I
In
n
nt
t
tr
r
ro
o
od
d
du
u
uc
c
ct
t
ti
i
io
o
on
n
n
Video out: connect to monitor
HP: connect to headphone
MIC: connect to MIC
DC12V: connect to power supply
LAN: network port (support PoE power supply).
Alarm NO/COM: alarm out; connect to alarm output device
Alarm GND: connect to external sensor together with alarm in line
Alarm In: connect to external alarm input device, like sensor
RS 485: connect to speed dome and keyboard; D+ positive pole; D- negative
pole
GND: grounding line
Default: intersect with GND line to reset

IP-CAMERA User Manual - 3
C
C
Ch
h
ha
a
ap
p
pt
t
te
e
er
r
r 2
2
2 I
I
In
n
ns
s
st
t
ta
a
al
l
ll
l
la
a
at
t
ti
i
io
o
on
n
n
2Installation
2.1 Install IP-CAM to Ethernet network
The connection of digital video server is show below.
Monitor
Headphone
PTZ
MIC
Adapter
Modem WAN
Hub LAN
Alarm
Sensor
Keyboard
Control
Center
User can connect the PC and IP-CAMERA in accordance with above picture. Before
connecting, please connect external devices, and then connect the power.
The connection step as shown as below:
Step 1: Connect IP-CAM firstly.
Step 2: Internet line connect to Internet transfer equipment or devices
Step 3: Connect power cable to a power outlet
2.2 CMS Installation
1）Find CMS software from CD and then double click “Setup.exe” file to pop up
installation wizard.
2）Click “Next” button and then click “Browse” button to set the installation path.

IP-CAMERA User Manual - 4
C
C
Ch
h
ha
a
ap
p
pt
t
te
e
er
r
r 2
2
2 I
I
In
n
ns
s
st
t
ta
a
al
l
ll
l
la
a
at
t
ti
i
io
o
on
n
n
3）Click “Next” button to select files as shown in the figure on the left.
4）Click “Next” button to start installing as shown in the figure on the right.
5）The installation is completed as shown below.
6）Click “Finish” to complete installation。After that, two icons will
display on the desktop
Double click CMS icon to run the software. The default user name is “system” and the default
password is “123456”.
Double click IP-Tool icon to start IP-Tool.

IP-CAMERA User Manual - 5
C
C
Ch
h
ha
a
ap
p
pt
t
te
e
er
r
r 3
3
3 I
I
IE
E
E C
C
Co
o
on
n
nn
n
ne
e
ec
c
ct
t
ti
i
io
o
on
n
n
3IE Connection
User can connect IP-CAM through LAN or WAN. Here only take IE browser (6.0) for
example. The details are as follows.
3.1 LAN
In LAN, there are two ways to access IP-CAM：①Access through IP-Tool；②Directly
Access through IE Browser.
3.1.1 Access through IP-Tool
Step 1: Make sure the PC and IP-Cam are connected to the LAN and the IP-Tool is installed
in the PC from the CD.
Step 2: Use IP-Tool to modify the network of IP-Cam. Then, double click the icon on
the desktop to run this software as shown below:
After starting IP-Tool and clicking the IP-Cam in the list, user can check the information of
IP-Cam. If user cannot confirm which one is himself, please shut off the electricity of the
IP-Cam and then power on it. When shutting off the power, the device information will
disappear. When powering on, the device information will emerge. Well, this device is the
used device. Right click the device information and select “network setup”. Then the network

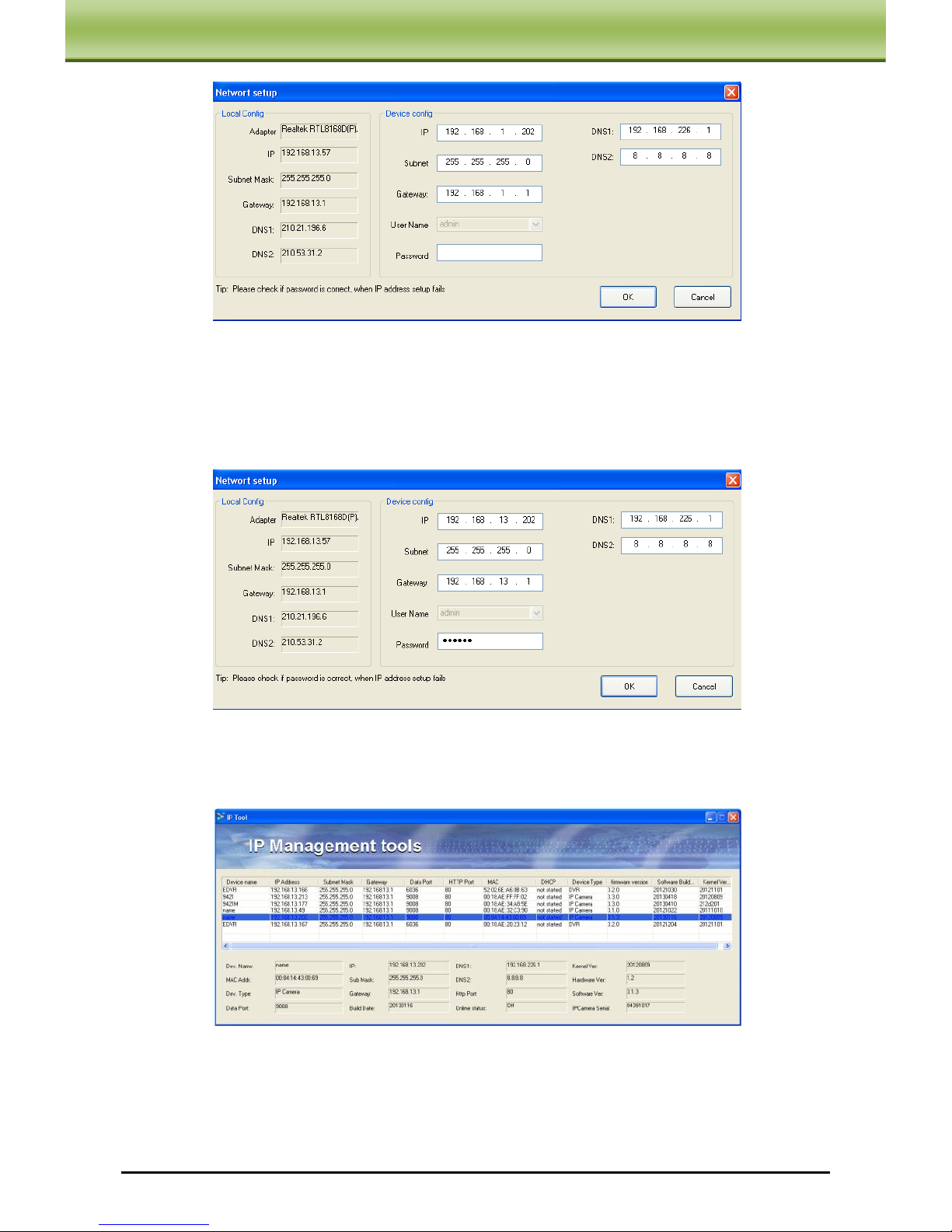

setup window will pop up as shown below:

IP-CAMERA User Manual - 6
C
C
Ch
h
ha
a
ap
p
pt
t
te
e
er
r
r 3
3
3 I
I
IE
E
E C
C
Co
o
on
n
nn
n
ne
e
ec
c
ct
t
ti
i
io
o
on
n
n

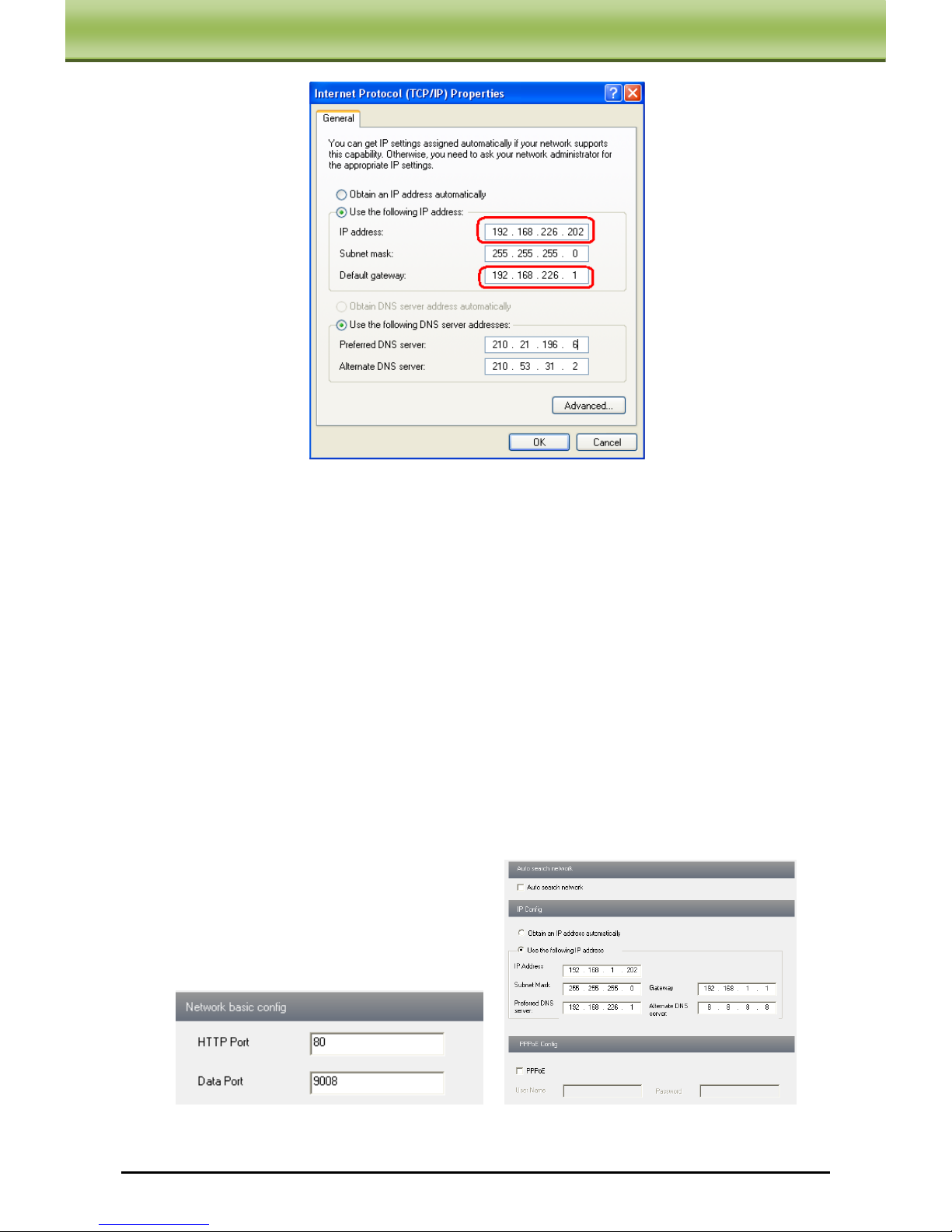

For example, the network segment of this computer is 192.168.13.57. So, please modify the
IP address, Subnet Mask, Gateway of IP-Cam which must be in the same network segment
with the computer. After modifying, please input the user name and password and then click
“OK” button to save the setting.
Note: The default user name is: admin. The default password is: 123456.
The new IP address of this device will display as follows after modification.
Step 3: Use the IP-Tool to login the IP-Cam.
Right-click the IP address and select “browse with IE”. Then the system will pop up the IE
browser to connect IP-Cam as shown below. IE browser will auto download the Active X
control. After finishing the installation of the Active X control, a login window will pop up.
