3
1 General information
Name of manufacturer: Luxision GmbH
Street: Schmidtheimer Str. 15
melhaD94935:nwoT
Phone: [phone]
11-79719-744294+:xaF
E-mail: inf[email protected]
Internet: www.luxision.com
Product name: LED Outdoor Lighting
Typ FARA Vela
Year of manufacture: since 2014
2 Notes for the customer
2.1 Purpose of this document
This operating manual contains important information for safe, correct and economical opera-
tion of the product. Observing the instructions in this manual will help to avoid dangers, reduce
repair costs and down times, increase the reliability and prolong the service life of the product.
The operating manual must be read and applied by every person who is deployed to work on/
with the product.
In addition to the operating manual, the statutory accident-prevention regulations which apply
in the user‘s country and at the site of deployment are also to be observed. The recognised
technical standards for safe and correct working practices are also to be complied with.
2.2 Liability and warranty cove
All information in this operating manual are provided to the best of our knowledge, on the basis
of our experience and findings to date.
This operating manual has been drafted with the utmost care. Should you nevertheless establish
any gaps and/or errors, please notify us at the above-stated address. Your suggestions for impro-
vements will assist us in designing a user-friendly operating manual.
2.3 Copyright
All rights are expressly reserved. This manual may not be duplicated or its contents divulged to
third parties in any form whatsoever without our written consent.

Assembly and operating manual
LED Outdoor Lighting
Typ FARA Vela
4
3 Safety
3.1 Representation of safety notes
This symbol signifies imminent danger for the life and health of persons.
Failure to observe such notes has severe consequences, including
life-threatening injuries.
This symbol signifies potential risks to property and/or the environment.
This symbol denotes a possibly dangerous situation.
Environmentally hazardous.
3.2 Safety instructions
A basic prerequisite for safe handling and trouble-free operation of this product
is acquaintance with the basic safety instructions. In addition to the instructions
provided in this manual, the safety instructions for supplier components (see docu-
mentation in the appendix) must be followed.
detalupitstahtnahtrehtoesopruparoftcudorpehtesuotdettimreptonsitI.1
by the manufacturer.
dessap
ybrodevomerebreventsumserusaemytefasdnasecivedytefaS.2
during normal operation of the product.
aybtuodeirracebylnoyamtnemp
iuq
elacirtceles‘tcudorpehtnokroW.3
qualified electrician.
ekam,strapnokrowriaperdnaecnanetniam,noitcepsnituo
gniyrracerofeB.4
sure that these parts have been made voltage-free.
!egarepmadetalupitsehtfosesuflanigiroylnoesU.5
ralugeranodetset/detcep
sniebotsitnempiuqelacirtceles‘tcudorpehT.6
basis. Any defects must be removed immediately.
roevisolpxeyllaitnetophtiwtcatnocotniemoc
tontsumstnenopmoctoH.7
readily flammable chemicals.
taetatselbigelanitpekebtsum
tcudorpehtnosngisdrazahdnaytefa
sllA.8
all times.

5
4 Product description
4.1 Identification data

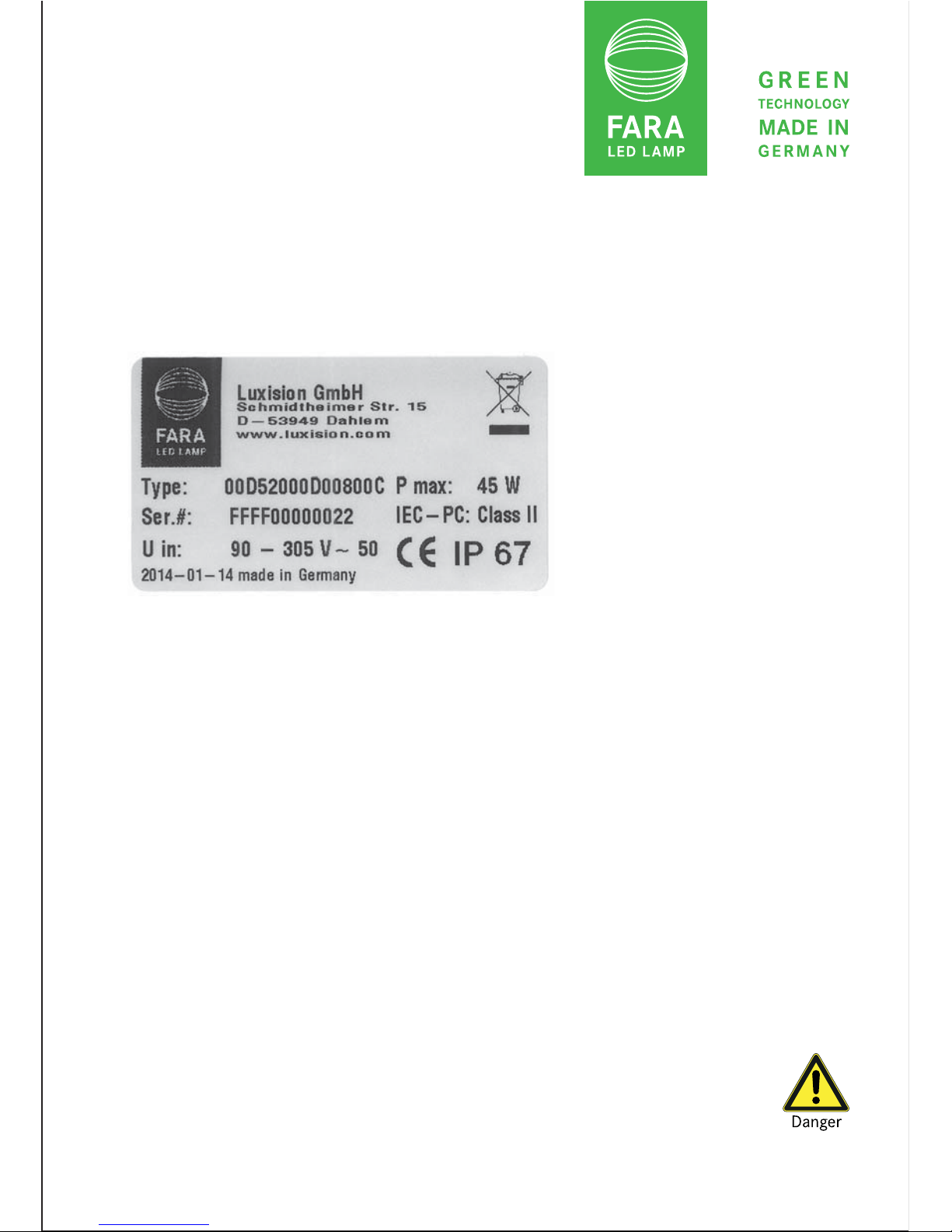

The data mentioned below are inscribed on the identification/type plate.
(The data vary depending on the version of the product.)
4.2 Proper use
The product must only be used for its intended purpose as described in these
operating instructions. Any other use is considered as being not in accordance
with the intended purpose. The manufacturer is not responsible for any damage
resulting from this.
The manufacturer will not be responsible for any consequences resulting from:
tfailure to observe or inadequate attention to the information contained in this
operating manual;
tVTFPGTQBSFQBrts or components that are not approved by the manufacturer;
;secivedevitcetorpdnaytefasfonoitallatsni-nonronoitalupinam,lavomert
tNPEJmcation of the product;
tJNQSPQFSVTF
4.3 Foreseeable misuse
Risks may occur if the product is used improperly or not in accordance with its
intended purpose.
The product is not suited
tfor use in explosion-hazardous areas
tfor tunnel lighting

Assembly and operating manual
LED Outdoor Lighting
Typ FARA Vela
6
4.4 Product design and components

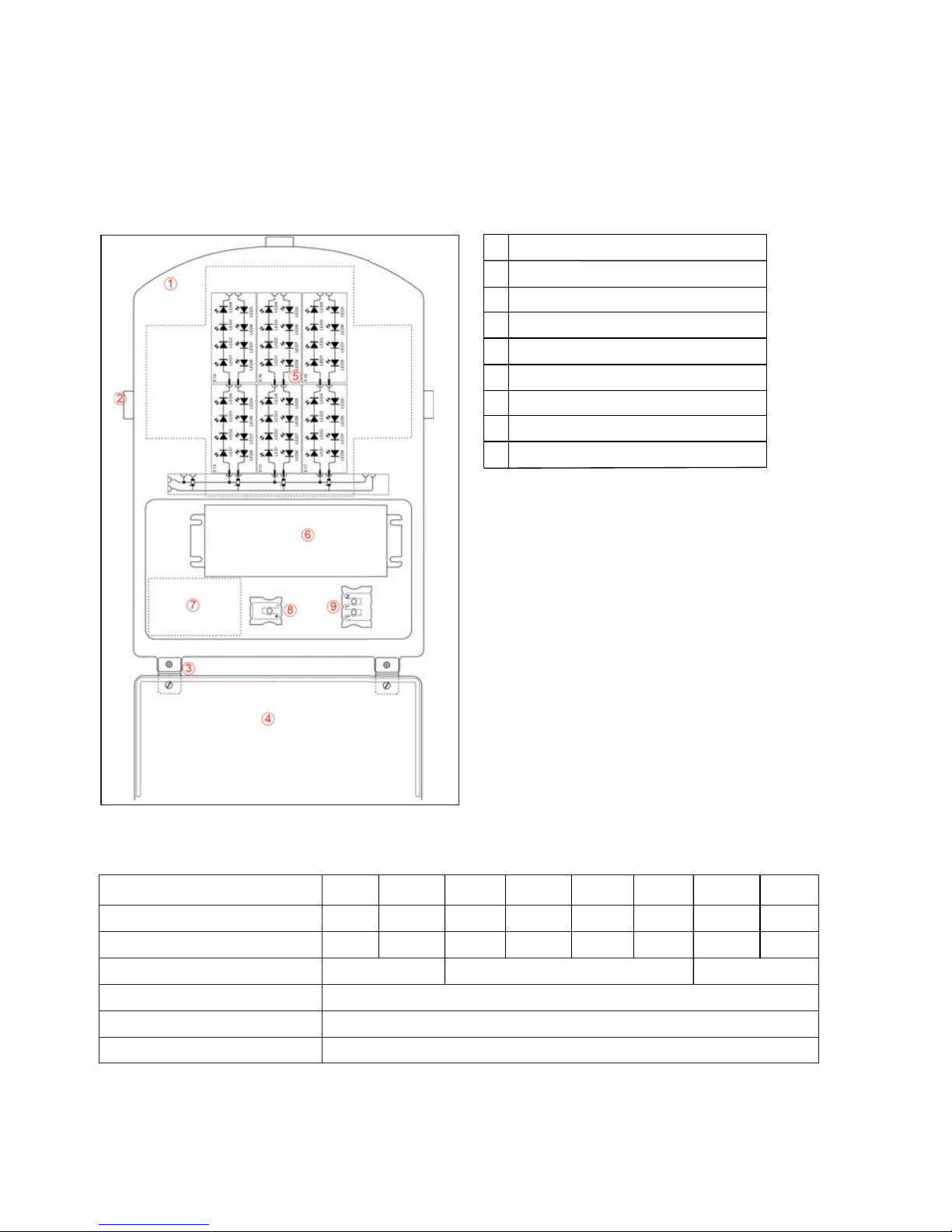

Figure 1: Design and components
4.5 Technical data
product type FARA Vela-CD-
quantity LED‘s
typical usage
supply voltage 90 VAC - 305 VAC
total weight in kg 5,7
dimensions l x w x h (mm) 542 x 314 x 90
15 30 45 60 75 90 120 165
8 16243240404864
15 W 30 W 45 W 60 W 75 W 90 W 120 W 165 W
1housing
2cover glass fixing (3 pieces)
3hinge
4cover glass with gasket
5optomodule (1 - 8 piece)
6power supply
7dim unit (optional)
8
dim connecting terminal 1-10 V/DC
9connecting terminal
inrush current 60 A 50 A 65 A @ 445 μs

7
5 Installation, mounting and transport
5.1 Installation of the product
terminal plan for external 1 - 10 V dimming signal
with internal power supply (15 W - 90 W)
terminal plan for external 1 - 10 V dimming sign
al
w
i
th
i
nternal power supply (15 W - 90
W)
terminal plan with dim unit (15 W - 90 W)
Dim

Assembly and operating manual
LED Outdoor Lighting
Typ FARA Vela
8
5.1 Installation of the product
terminal plan for external 1 - 10 V dimming signal
and external power supply (120 W - 165 W)
luminaire wire lengthdim-unit
Vela 120 W
Vela 165 W
1 - 9 m
9 - 14 m
none or iMCU
RF Dimmer 7 x 1,5mm² without ground
2 x 1,5mm²
2 x 2,5mm²
1 - 9 m
1 - 10 m
9 - 18 m
none or iMCU
RF Dimmer 7 x 1,5mm² without ground
2 x 1,5mm²
2 x 2,5mm²
1 - 10 m
wire overview for external power supplies (FARA Vela 120 W & 165 W)

9
terminal plan for internal 1 - 10 V dimming (120 W - 165 W)
terminal plan for internal 1 - 10 V RF-dimming with
external power supply (120 W - 165 W)
9

Assembly and operating manual
LED Outdoor Lighting
Typ FARA Vela
10
5.2 Mounting of the product
Procedure:

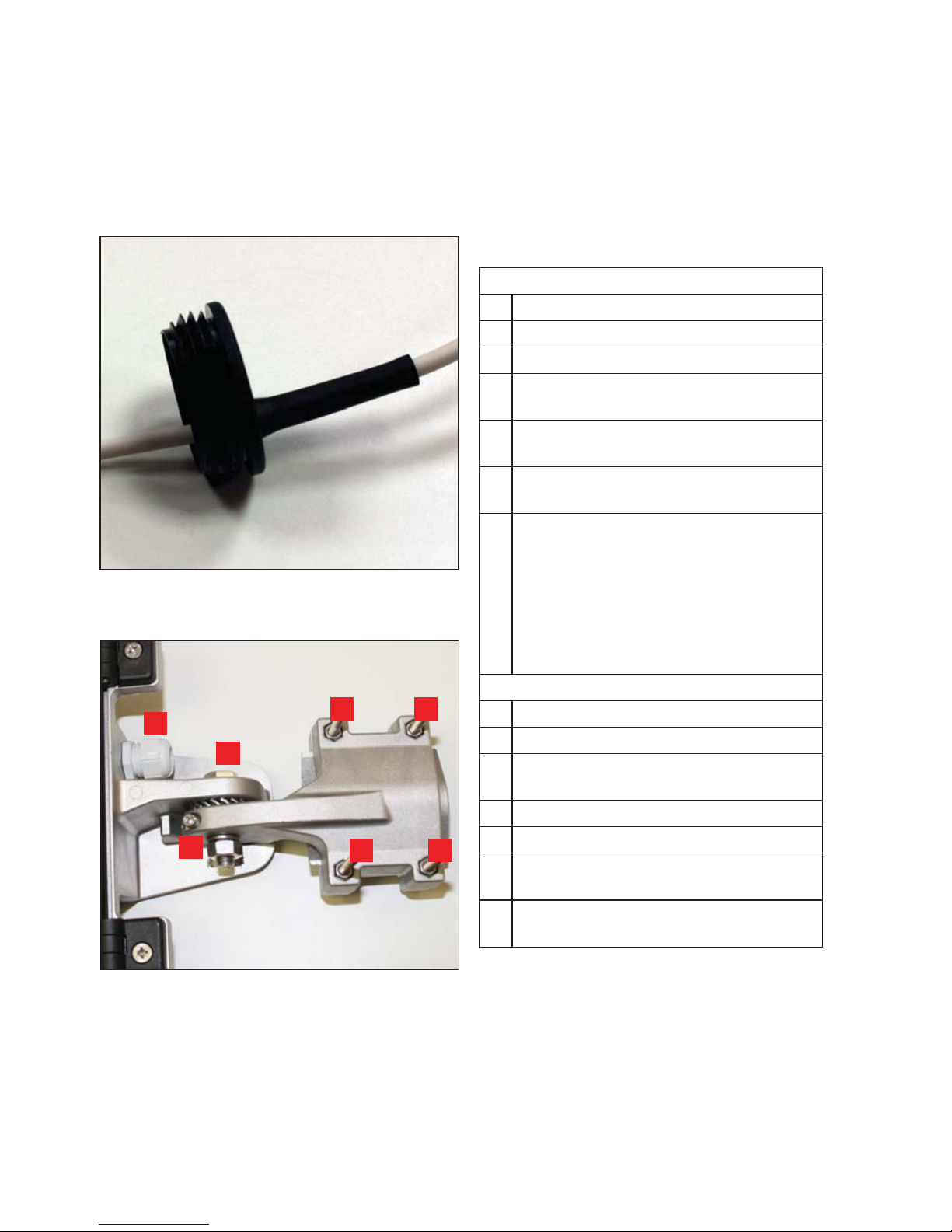

Figure 2: Plug und grommet
Figure 3: Mounting
1
2
3 3
33
1
2
3 3
33
4
Preparations before mast mounting:
1 Pull plug and grommet onto cable.
2 Strip approx. 8 cm of cable.
3 Insert cable into lamp.
4Carry out voltage supply according to
terminal plan.
5 Close glass lid and lock all three
closing clamps.
6 Safeguard the connection cable via the
cable strain relief ( 1).
7
Procedure for mast mounting:
8 Insert cable into mast.
9 Mount mast plug.
10 Pre-adjust bracket screws ( 3) to the
estimated mast diameter.
11 Attach lamp to mast.
12 Tighten bracket screws ( 3) manually.
13 Align lamp horizontally/parallel to the
illuminated surface.
14 Tighten bracket screws ( 3) with max.
8 Nm.
Adjust the angular position with the
helpscale to the illuminated surface and
fasten the screw connection ( 2 ) hand

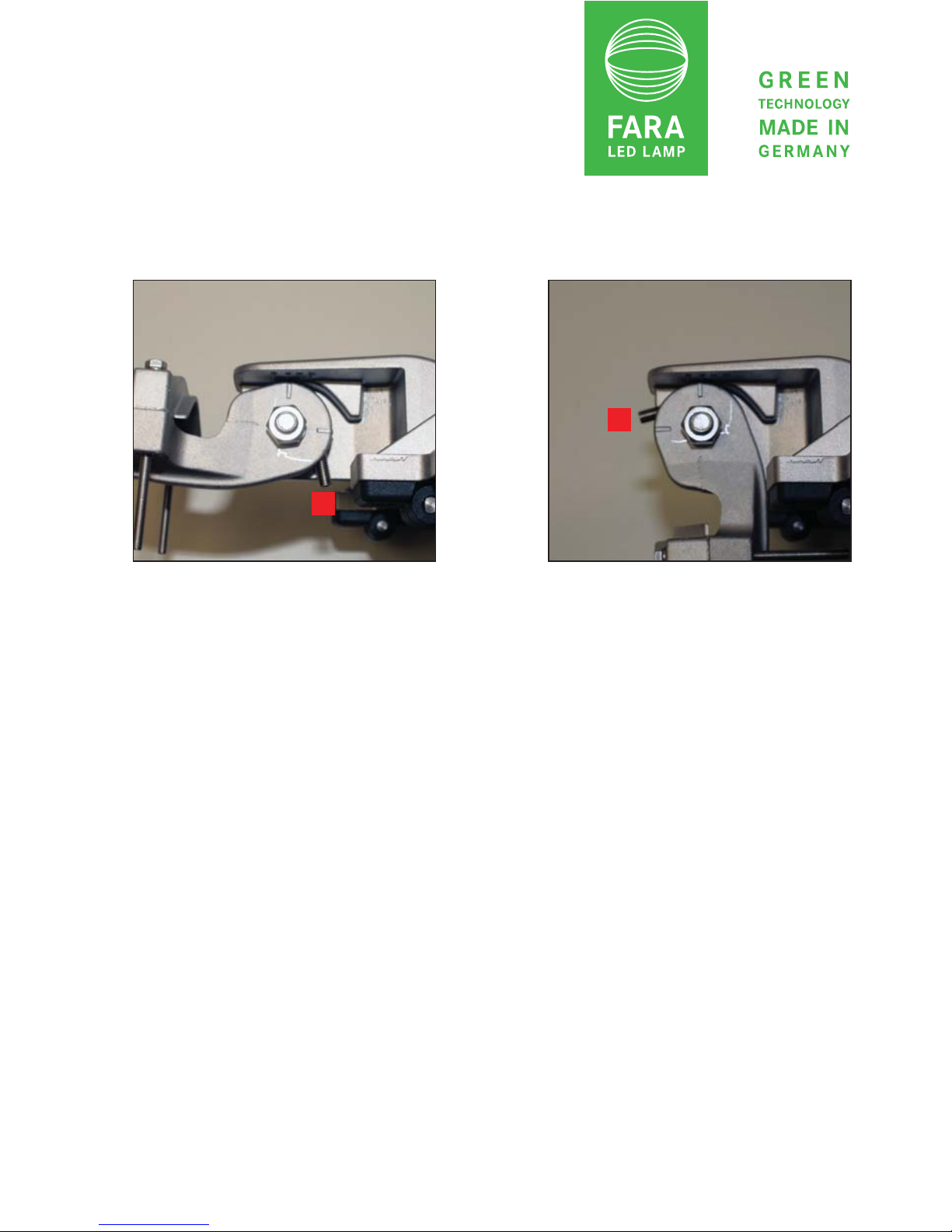

tight. Lock the headless screw ( 4 ) as
defind in figure 4 or 5 hand tight. Now
fasten the screw connection ( 2 ) with a
maximum fastening torque of 110 Nm.
