Luxon Video C7DN User manual

C7DN
User Manual

Day Night Box C amer a · User Manual
2
Thank you for purchasing our product. If there are any questions,
or requests, please do not hesitate to contact the dealer.
This manual applies to following cameras:
Mo d e l
C7DN
This manual may contain several technical incorrect places or
printing errors, and the content is subject to change without notice.
The updates will be added to the new version of this manual. We
will readily improve or update the products or p roce d ures d escr ib e d
in the manual.

Day Night Box C amer a · User Manual
3
DIS C LAIM ER STATEMENT
“Underwriters Laboratories Inc. (“UL”) has not tested the
performance or reliability of the security or s ignaling aspects of this
product. UL has only tested for fire, shock or casualty hazards as
outlined in UL’s Standard(s) for Safety, UL60950-1. UL Certification
does not cover the performance or reliability of the security or
signaling aspects of this product. UL MAKES NO REPRESENTATIONS,
WARRANTIES OR CERT IF ICATIONS WHATSOEVER REGARDING THE
PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING
RELATED FUNCTIONS OF THIS PRODUCT.”

Day Night Box C amer a · User Manual
4
Regulatory Information
FCC Information
FCC compliance: This equipment has been tested and found to
comply with the li m its for a digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commerc i a l environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the
interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation
EU Conformity Statement
This product and - if applicable - the supplied
accessories too are marked with "CE" and comply
therefore with the applicable harmonized
European standards listed under the Low Voltage Directive
2006/95/EC, the EMC Directive 2004/108/EC.

Day Night Box C amer a · User Manual
5
2002/96/EC (WEEE directive): Products marked
with this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or dispose of it at
designated collection points. For more information see:
www.recyclethis.info.
2006/66/EC (battery directive): This product
contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union.
See the product documen t at i on for specific battery
information. The battery is marked with this
symbol, which may include lettering to indicate cadm ium (Cd),
lead (Pb) , or mercury (Hg) . For proper recycling, return the battery
to your supplier or to a designated collection point. For more
information see: www.recyclethis.info.

Day Night Box C amer a · User Manual
6
Safety Instruction
These instructions are intended to ensure that user can use the
product correctly to avoid danger or property loss.
The precaution measure is divided into “Warnings”and “Cautions”
Warnings: Serious injury or death may occur if any of the
warnings are neglected.
Cautions: Injury or equipment damage may occur if any of the
cautions are neglected.
Warnings Follow these
safeguards to prevent
serious injury or death.
Cautions Follow these
precautions to prevent
potential injury or material
damage.
Warnings
Please adopt the power adapter which can meet the safety
extra low voltage (SELV) request. And source with DC 12V or
AC 24V (depending on models) according to the IEC60950-1
and L i m ited Power Source standard.
If the product does not work properly, please contact your
dealer or the nearest service center. Never attempt to
disassemble t he camera yourself. (We shall not assume any

Day Night Box C amer a · User Manual
7
responsibility for problems caused by unauthorized repair or
maintenance.)
To reduce the risk of fire or electrical shock, do not expose this
product to rain or moisture.
This installation should be made by a qualified service person
and should conform to all local codes.
Please install blackouts equipment into the power supply
circuit for convenient supply interruption.
Please make sure that the ceiling can support more than 50(N)
Newton gravities if the camera is fixed to the ceiling.
Cautions
Make sure the power supply voltage is correct before using the
camera.
Do not drop the camera or subject it to physical shock.
Do not touch sensor modules w ith fingers. If cleaning is
necessary, use a clean cloth with a bit of ethanol and wipe it
gently. If the camera will not be used for an extended period of
time, put on the lens cap to protect the sensor from dirt.
Do not aim the camera at the sun or extra bright places. A
blooming or smear may occur otherwise (which is not a
malfunction however), and affecting the endurance of sensor
at the same time.

Day Night Box C amer a · User Manual
8
The sensor may be burned out by a laser beam, so when any
laser equipment is being used, make sure that the surface of
the sensor will not be exposed to the laser beam.
Do not place the camera in extremely hot or cold temperatures
(the operating temperature should be between -10°C ~ 60°C,
dusty or damp locations, and do not expose it to high
electromagnetic radiation.
To avoid heat accumulation, good ventilation is required for a
proper operating environment.
Do not let water and any liquid flow into the camera.
While shipping, the camera should be packed in its original
packing, or packing of the same texture.
Improper use or replacement of the battery may result in
hazard of explosion. Replace with the same or equivalent type
only. Dispose of used batteries according to the instructions
provided by the battery manufacturer.

Day Night Box C amer a · User Manual
9
Table of Co n t en t s
1 Introduction ......................................................................10
1.1 Product Features .................................................... 10
1.2 Overview ............................................................... 13
1.2.1 Rear Panel ( A ) ............................................... 16
1.2.2 Rear Panel ( B ) ............................................... 17
1.2.3 Rear Panel (C) ............................................... 18
1.2.4 Rear Panel (D) .............................................. 22
1.2.5 Rear Panel (E) ............................................... 26
1.2.6 Rear Panel ( F ) ............................................... 28
2 I ns tallat io n........................................................................ 30
2.1 Wall Mounting ........................................................ 30
2.2 W i r i n g .................................................................... 37
3 Menu Oper atio ns............................................................... 39
3.1 Menu Description (A).............................................. 39
3.1.1 Menu Overview ............................................. 39
3.1.2 Lens Settings ................................................ 40
3.1.3 Shutter/AGC Setting ..................................... 42
3.1.4 White Balance Setting ................................... 45
3.1.5 Backlight Se tti n g ........................................... 48
3.1.6 Picture Adjust Se tti n g .................................... 48
3.1.7 ATR Se tti n g ................................................... 50
3.1.8 Motion Detection Setting ............................... 50
3.1.9 Privacy Mask Setting ..................................... 53
3.1.10 Day/Night Setting ....................................... 54
3.1.11 NR Setting .................................................. 56
3.1.12 Camera ID Setting ...................................... 57
3.1.13 SYNC Setting .............................................. 59

Day Night Box C amer a · User Manual
10
3.1.14 Language Setting ........................................ 59
3.1.15 Camera Reset Se tti n g .................................. 59
3.1.16 Defective Pixel Correct Se tti n g ..................... 60
3.1.17 RS-485 Setting ........................................... 60
3.1.18 Save All/Exit ............................................... 60
3.2 Menu Description (B).............................................. 61
3.2.1 Menu Overview ............................................. 61
3.2.2 Scene ........................................................... 62
3.2.3 Exposure....................................................... 62
3.2.4 Function ......................................................... 72
3.2.5 Sys t em ......................................................... 81
3.2.6 Lan g ua g e ...................................................... 85
3.2.7 E x it ............................................................... 85
Appendix...............................................................................87
1 Glossary ................................................................... 87
2 T rou bl eshoo ti n g ......................................................... 91
3 Technical M ai n t enance ............................................... 94

Day Night Box C amer a · User Manual
11
1 Introduction
1.1 Product Features
This camera adopts high performance sensor and advanced print
circuit board design t echno logy. It possesses of high resolution,
low distortion, and low noise features, etc. It is extremely suitable
for surveillance system and image process system.

Day Night Box C amer a · User Manual
12
1.2 Overview
The appearances of the cameras are as follows:
Figure 1-1 O verv i e w
1-Lock Screws: available both on top and bottom for ceiling
mounting and wall mounting respectively.
2-Auto-Iris Drive Interface: It connects the lens to the auto
drive circuit in the camera which outputs direct current to drive
the iris.

Day Night Box C amer a · User Manual
13
Figure 1-2 Side V i e w
3-Lens: the optical lens adopted for the box camera (not provided.
Please purchase a compatible lens for the camera).
4-Back Focus Lever: It is set to optimum status by default. You
can also manually pull and adjust it for more accuracy focus.
Notes:
The back focus has been configured to optimum value by default.
But it can be adjusted slightly to coordinate with different lens.
Adjust the back focus lever when the lens connector has been
confirmed but the lens is still not focalized.
The setting steps are as follows:
Steps:
1. Rotate the lens to the camera tightly.

Day Night Box C amer a · User Manual
14
2. Loosen the set screw of back focus lever.
3. Adjust the stick left and right until lens gets clear image
4. Lock the set screw.
Video
DC
1
Power
Damp-
2
NC
Damp+
3
Video
Driver+
4
GND
Driver-

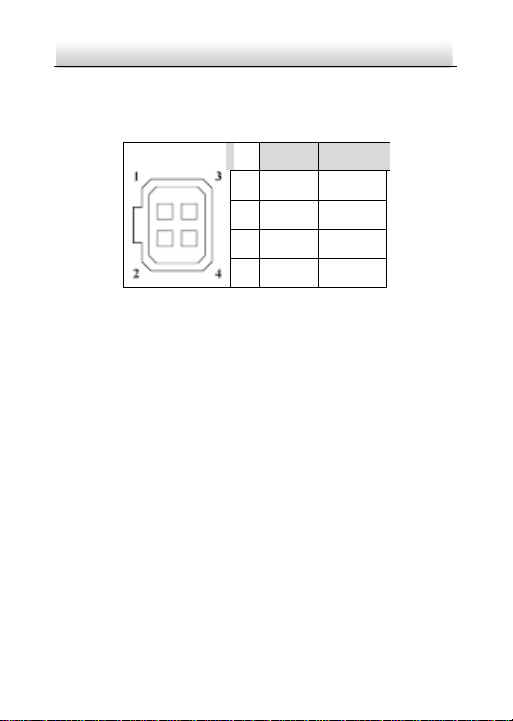

Figure 1-3 Pins of the Auto Iris In t erface
The auto iris interface is composed of four square pins as shown in
Figure 1-3.
Power, Video and GND pins are used in video driven mode.
Damp+, damp-, drive+ and drive- pins are used in DC driven
mode.
There are two driven modes of auto iris as fo llows:
Video Driven: The camera inputs the video signal level into
lens interior, and internal drive circuit of the lens outputs
control voltage for the electronic motor to adjust lens iris.
Direct Current Driven: There is a drive circuit for electronic
motor of the iris in the camera. The drive circuit can directly
output DC control voltage to control electronic motor.

Day Night Box C amer a · User Manual
15
1.2.5 Rear Panel
The rear panel is shown as follows.
Figure 1-8 Rear P ane l
Table 1-7 Rear Panel Descr ipti on
No.
Items
Description
1
Alarm OUT, IN, GND
Interface
Support alarm in and
out.

Day Night Box C amer a · User Manual
16
No.
Items
Description
2
D/N Interface
Used to switch
day/night mode
externally
3
RS-485 Interface
Used for remote
control by DVR,
keyboard, etc.
4
Video Output
Output up to 700 TVL
high-definition video.
5
Power Interface
Support both 12V DC
and 24V AC.
6
PWR Indicator
The indicator is on,
when the power is up.
7
Grounding Screw
8
Joystick
9
DD and VD Switch
Used for selecting the
iris mode to DD(DC
Drive) or VD(Video
Drive).

Day Night Box C amer a · User Manual
17
2 Installation
Before you start:
Please make sure that the device in the package is in good
condition and all the assembly parts are included.
2.1 Wall Mounting
Steps:
1. Rotate the lens clockwise onto the lens mount of the camera.
2. Plug the wire of auto iris lens to the auto iris interface of the
camera.
Notes:
Please prevent dust from entering between the lens mount and
the lens.
The weight of the lens must be less than 1kg. It’s better to
install a lens with CS type interface. If the interface of lens is C
type, you need to install a C adaptor between the lens and the
camera.

Day Night Box C amer a · User Manual
18
Figure 2-1 Lens Installation
3. Attach the camera to the fixing metal plate and fix them
together with a 1/4# screw.
Note: Please install the camera correctly to avoid a reversed
image displayed in the monitor.

Day Night Box C amer a · User Manual
19
Figure 2-2 Install the Metal Plate
4. Install the camera with the metal plate to the housing and fix
them with screws.

Day Night Box C amer a · User Manual
20
Figure 2-3 Housing Installation
5. Connect the power supply and video output and cover the
housing. For more details, please refer to the user manual of
the housing.
6. Attach the wall mount to the wall and t ighten the screws to fix
it.
Notes:
The wall mount (not provided) should be longer than 1/2 of the
camera length.
Please make sure that the wall is strong enough to withstand
three times the weight of the camera.
For cement wall mounting, you need to use the expansion
screw to fix the mount. The mounting hole of the expansion
