Lyda 203E User manual

FOREWORD
Thank you for purchasing 250 ATV. This manual includes important safety information. It provides information about special techniques and skills necessary to
ride this vehicle. It also includes the details to operate and necessary maintenance procedure to perform safety.
IMPROTANT SAFETY MESSAGE:
● AY ATTENTION TO THE CAUTION AND WARNING LABELS ON THIS ATV.
● READ THIS MANUAK BEFORE O ERATING THIS ATV.MAKE SURE YOU UNDERSTAND ALL INSTRUCTION. ALSO KEE ALL INFORMATION IN MIND WHILE
O ERATING THIS ATV.
● RIDING ACCORDING TO LOCAL RI ING LAW AND REGULATIONS
● KEE THIS MANUAL IN THE WATE ROOF LACTIC BAG AND STORED IN THE COM ARTMENT ROVIDED BY YOU ATV.
● FAILURE TO FOLLOW THE WARNINGS CONTAINED IN THIS MANUAL CAN RESULT IN SERIOUS INJURY DEATH.
● NEVER CARRY A ASSENGER ON THIS ATV

第二页
IMPORTANT NOTICE TO PARENTS AND ADULTS
● THIS ATV IS NOT A TOY.
● YOU SHOULD UNDERSTAND THIS INSTRUCTIONS AND WARNINGS IN THIS MANUAL BEFORE YOU LET YOUR CHILD RIDE THIS ATV.THEN BE SURE YOUR CHILD
UNDESTANDS AND WILL FOLLOW THEM.
● THIS ATV SHOULD ONLY BE O ERATED UNDER THE DIRECTSU ERVISION OF AN ADULT.
● NEVER EXCEED YOUR RIDING CA[ABILITIES.
● THIS ATV CAN BE HAZARDOUS TO O ERATE, AVOID EXCESSIVE S EED, AVED SURFACES, SHAR TURNS, AND UNEVEN TERRAIN.
● ADULTS SHOULD ADJUST THE THROTTLE FOR SLOWER S EEDS.
● NEVER RIDE THIS ATV DURING LOWLIGHT CONDITIONS
● CHILDREN DIFFER IN SKILLS, SOME CHILDREN MAY NOT BE ABLE TO O ERAT AN ATV SAFETY. ARENTS SHOULD ERMIT CONTINUED USE ONLY IF THEY
DETERMINE THAT THE CHILD HAS THE ABILITY TO O ERATE THE ATV SAFETY.
● IF YOUR CHILDIS INEX ERIENCED IN RIDING ATV, HE OESHE SHOULE TAKE A TRAINING COURSE BEFORE O ERATING THIS ATV.

第三页
Whenever you see the symbols shown below, heed their instructions. Always follow safe operating and maintenance prastices.
FAILURE TO FOLLOW THE WARNINGS CONTAINED IN THIS MANUAL CAN RESULT IN SERIOUS INJURY OR DEATH.
WARNING
HAZARD
Faliure to head WARNINGS.
WHAT CAN HAPPEN
WARNINGS identify special instructions or
procedueres which,if not correctly followed,
could result in serious injury death.
HOW TO AVOID THE HAZARD
Read all WARNING in this manual carefully
and for your safety be sure to follow their
instruction.
CAUTION
This caution symbol identifiers special
instruction or procedurds which, if not
strictly observed, could result in damage to
or destruction of equipment.
NOTE
This note symbol indicates points of
particular interest for more efficient and
convenient operation.

第四页
IMPORTANT NOTICE
Off-road vehicle riding is a wonderful sport, and we hope you will enjoy it to the fullest.
This vehicle is designed and manufactured for off-road use only. It is illegal and unsafe to operate this vehicle on any public road, street and highway.
This vehicle complies with all applicable off-road noise and spark arrester laws and regulations in effect at the time of manufacture. lease check your local
riding laws and regulations before operating this vehicle.
Read this manual carefully and completely before starting your new ATV.
It contains important safety information. Never operate this ATV without proper instruction. Beginner should take a training course before operating this
vehicle.
Never allow a child under the age of 16to operate this ATV. Use of this ATV by children under 16 years of age can lead to severe injury of death of the child. Even
youths starting at age 16 may not have the skills, abilities, or judgment needed to operate this ATV safety. Therefore youths starting at age 16 should have adult
supervision even after the attend a training course.
To protect your safety, make sure you use your vehicle legally, show concern for the environment and respect the rights of the other people.

5

6
AN ATV IS NOT A TOY AND CAN BE HAZARDOUS TO OPERATE. AN ATV handles differently from other vehicles including motorcycle and cars. A collision or
rollover can occur quickly, even during routine maneuvers such as turning and driving on hills or over obstacles, if you fail to take proper precautions
SEVERE INJURY OR DEATH CAN RESULT IF YOU DO NOT FOLLOW THESE INSTRUCTIONS:
● Read this manual and all labels carefully and follow the operating procedures described.
● Never operate an ATV without proper instruction. Take a training course. Beginners should receive training from a certified instructor.
● Always follow the age recommendation:
 A child under 6 years old should never operate an ATV with engine size greater than 50cc.
 A child under 12 years old should never operate an ATV with engine size greater than 70cc.
 A child under 16 years old should never operate an ATV with engine size greater than 90cc.
SAFETY INFORMATION

7
● Never allow a child under age 16 to operate ATV without adult supervision, and never allow continued use of an ATV by a child if he or she does not have the
abilities to operate it safety.
● Never carry a passenger on an ATV
● Never consume alcohol or drugs before or while operating this ATV.
● Never operate an ATV without wearing an approved motorcycle helmet that fits property. You should also wear eye protection (fact shield or goggles), gloves,
bots, long-sleeved shirt or jacket, and long pants.
● Always go slowly and be extra careful when operating on unfamiliar terrain. Always be alert to changing terrain conditions when operating the ATV.
● Always follow proper procedures for turning as described in this manual. ractice turning at low speeds before attempting to turn at faster speeds. Do not turn
at excessive speed.
● Never operate on excessively rough, slippery or loose terrain until you have learned and practiced the skill necessary to control the ATV on such terrain. Always
be especially cautious on these kinds of terrain.
● Always keep both hands on the handlebars and both feet on the footrests of the ATV during operating.

8
● Always inspect your ATV each time you use it to make sure it is in safe operating condition. Always follow the inspection and maintenance procedures and
schedules described in this manual.
● Never attempt wheelies, jumps, or other stunts.
● Never operate at speeds too fast for your skills or the conditions. Always go at a speed that is proper for the terrain, visibility and operating conditions, and your
experience.
● Never exceed the stated load capacity for an ATV. Cargo should be properly distributed and securely attached. Reduce speed and follow instructions in this
manual for carrying cargo or pulling a trailer. Allow greater distance for braking.
● Never modify an ATV through improper installation or use of accessories.
● Never operate the ATV on hills too speed for the ATV or for your abilities. ractice on smaller hills before attempting larger hills.
● Always follow proper procedures for climbing hills as described in this manual. Check the terrain carefully before you start up any hill. Never climb hills with
excessively slippery or loose surfaces. Shift your weight forward. Never open the throttle suddenly or make sudden gear changes. Never go over the top of a hill
at high speed.
● Always use the size and type tires specified in this manual. Always maintain proper tire pressure as described in this manual.

9
● Never attempt to operate over large obstacles, such as large rocks or fallen trees. Always follow proper procedures when operating over obstacles as described
in this manual.
● Always use proper procedures if you stall or roll backwards when climbing a hill. To avoid stalling, use proper gear and maintain a steady speed when climbing a
hill. If you stall or roll backwards, follow the special procedure for braking described in this manual. Dismount on the uphill side or to a side if pointed straight
uphill. Turn the ATV around and remount, follow the procedure deceived in this manual.
● Always be careful when skidding or sliding. Leak to safety control skidding or sliding by practicing at low speeds and on level, smooth terrain. On extremely
slippery surface, such as ice, go slowly and be very cautious in order to reduce the chance of skidding or sliding out to control.
● Never operate an ATV in fast flowing water or in water deeper than the recommended in this manual. Remember that wet brakes may have reduced stopping
ability. Test your brakes after leaving water. If necessary, apply them several times to let function dry out the linings
● Always follow proper procedures for going down hills and for braking on hills as described in this manual. Check the terrain carefully before you start down any
hill. Shift your weight backward. Never go down a hill at hill at high speed. Avoid going down a hill at an angle that will cause the ATV to lean sharply to one side.
Go straight down the hill where possible.
● Always follow proper procedures for crossing the side of a hill as described in this manual.

10
● Avoid hills with excessively slippery or loose surface. Shift your weight to the uphill side of the ATV. Never attempt to turn the ATV around on any hill until you
have mastered the turning technique described in this manual on level ground. Avoid crossing the side of a steep hill if possible.
● Always check for obstacles before operating in a new area.

11
WARNING
POTENTIAL HAZARD
Improper handing of gasoline
WHAT VAN HAPPEN
Gasoline can catch and you could be
burned
HOW TO AVOID THE HAZARD
Always shut down the engine while
refueling. Do not refuel immediately after
the engine has been running and is skill
very hot. Do not spill gasoline on the
exhaust muffler/pipe or engine when
refueling. Never refuel ehile smoking, or
while in the vicinity of sparks, open
flames, or other sources of ignition such as
the pilot lights of clothes dryers or water
heaters
When transporting the ATV in another vehicle,
make sure it is placed upright and its fuel cock is
in the “OFF” position. Otherwise, gasoline may
leak out from the fuel tank or carburetor.
WHAT CAN HAPPEN
Gasoline is poisonous and can cause injuries.
HOW TO AVOID HAZARD
If you swallow some gasoline or breathe a lot of
gasoline vapor, or get some gasoline into your
eyes, see your doctor right away.
If gasoline spills on your skin, wash with water
and soap immediately. If gasoline spills on your
clothes, change your clothes immediately.

12
WARNING
POTENTIAL HAZARD
Starting or running the engine in a closed area.
WHAT CAN HAPPEN
Exhaust smokes are poisonous and may cause people unconsciousness and death within a short time.
HOW TO AVOID THE HAZARD
Always start and operate your ATV in an area with adequate ventilation

13

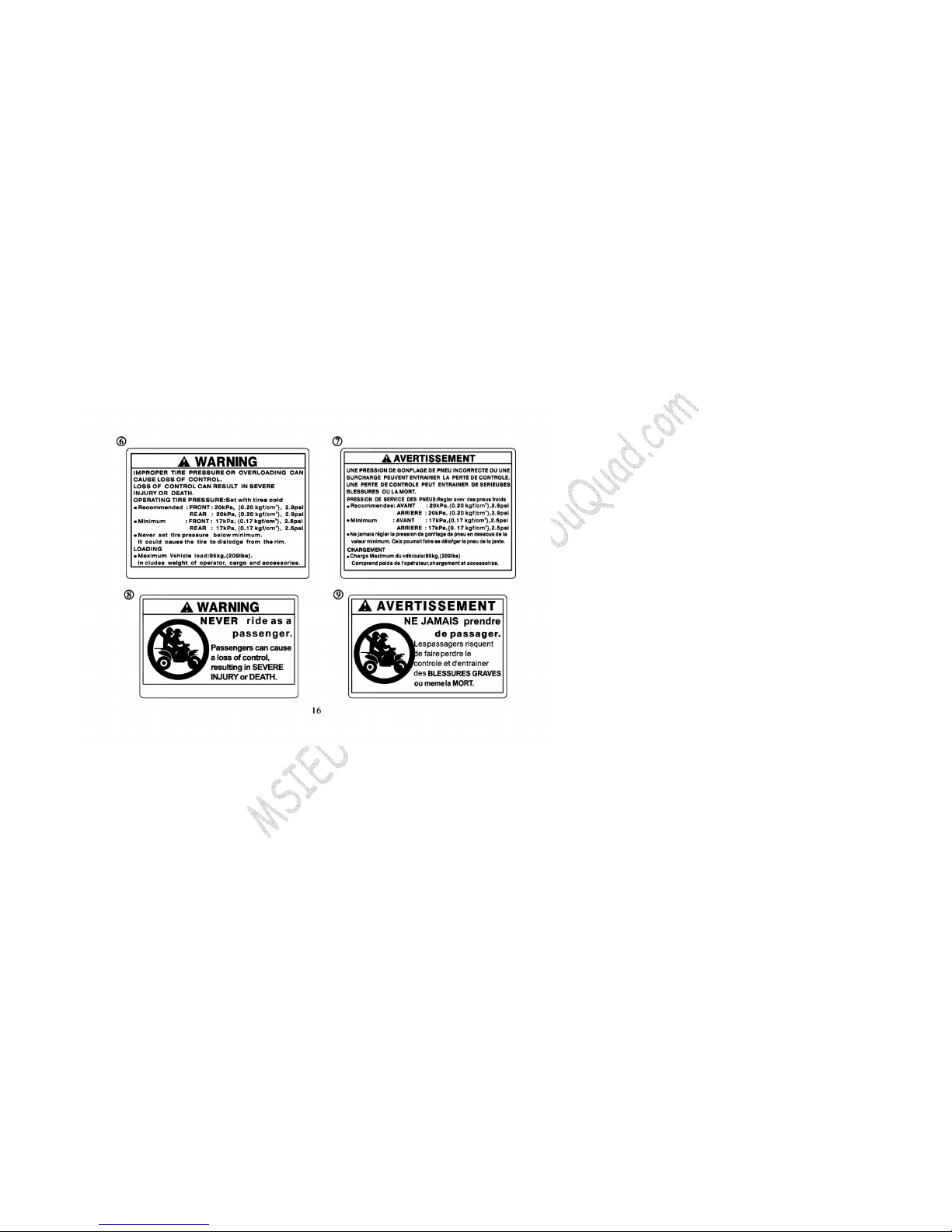

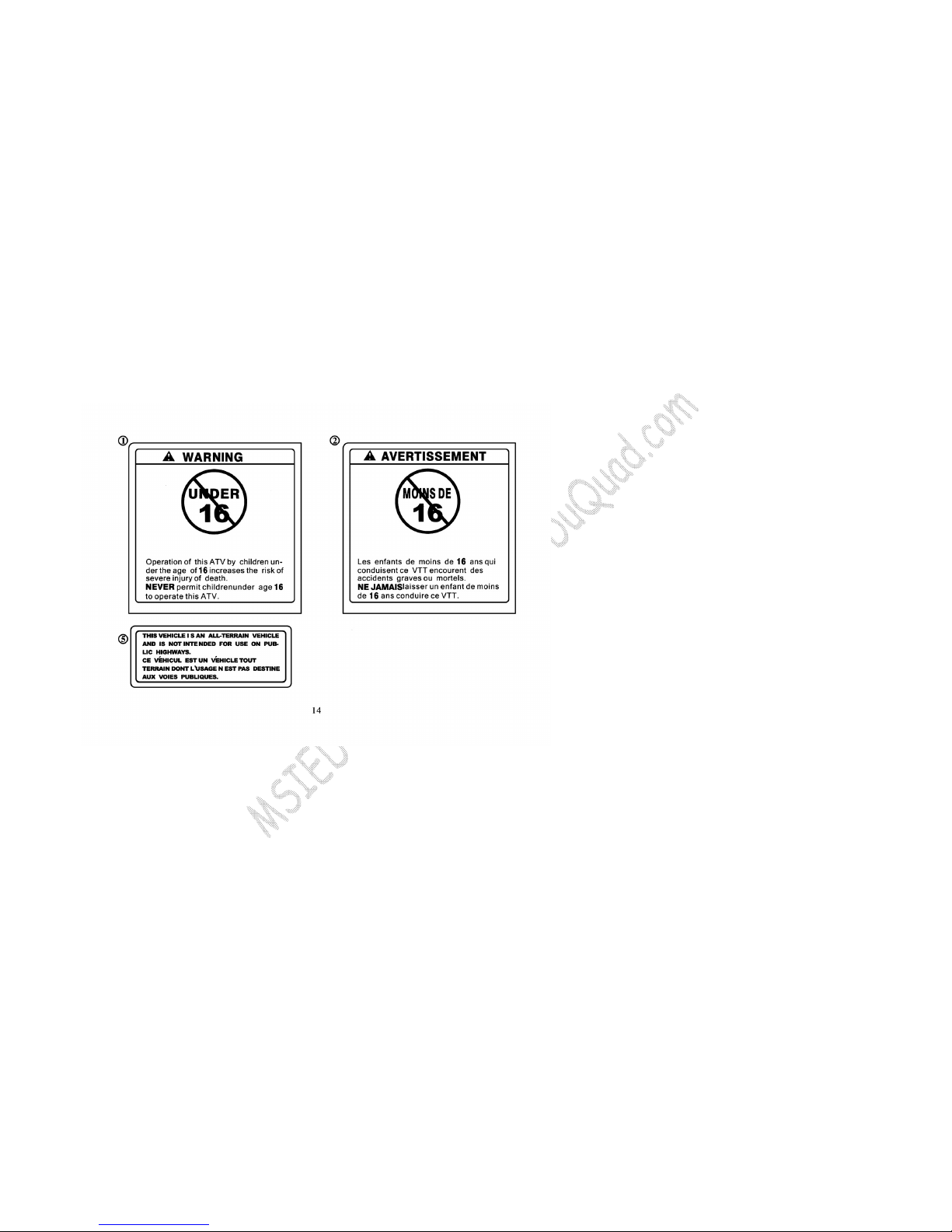

LOCATION OF THE WARNING AND S ECIFICATION LABELS
Read and understand all of the labels on this ATV. They contain important information for safe and proper operation of
your ATV.
Never remove any labels from your vehicle. If any label becomes difficult to read or comes off, a replacement label is
available from your dealer.
French warning label No. 2, 4, 7&9 are not equipped if not required.

14

15

16

17
VEHICLE IDENTIFICATION
Identification number records record the vehicle identification number and
engine number in the follow spaces provided for assistance when ordering
spare parts from your dealer or for reference in case the ATV is Vehicle
identification number. The vehicle identification number is stamp into the
frame. This vehicle identification number is used to identify your ATV.
stolen.
1. Vehicle identification Number
2. Engine Number

18
CONTROL FUNCTIONS
WARNING
Indica es a po en ial hazard ha could resul in serious
injury or dea h.
Main swi ch
Functions of the respective switch positions are as
Following:
ON:
The engine can be started only at this position
OFF:
All electrical circuits are switched off. The key can be
removed in this position
Indica or ligh s
Neu ral indica or ligh “N”
This indicator light comes on when the transmission is in neutral.

19
Handlebar Swi ches
laced in left handlebar
1. Headlight switch (Black button)
2. Engine stop switch (Red button)
3. Start swicth (Black button)
Headligh swi ch:
HL: High beam
●
●●
● : Low beam
To gain longer life of the battery, always start
the engine with the headlight switch at off
position
Engine s op swi ch “ENG, STOP”
The engine stop switch controls ignition and
can be used at all times to stop the engine,
especially in an emergency. The engine will
not start when this switch is in “OFF” position.
CAUTION:
To s ar he engine, also see page 32
for more de ails.
NOTE:
If the starter switch is pushed with the main
Switch “ON” and the engine stop switch “OFF”
the starter motor will be activated but the
engine will not start. To start the engine, make
sure the engine stop switch at “RUN” position.

20
Thro le lever
Accelera e ：
：：
： ress the throttle level.
Decelera e: Release the throttle level. The
spring of the level will return to the position
prior pressing and the engine will return to
an idle. Before starting the engine, check the
throttle level to make sure it is operating
smoothly. Make sure it return to idle position
as soon as the level is released.
WARNING
POTENTIAL HAZARD
Malfunction of throttle.
WHAT CAN HAPPEN
The throttle level could be hard to operate,
cause it difficult to speed up or slow down
when you need to. This could cause an
accident.
HOW TO AVOID THE HAZARD
Always check the operation of the throttle
level before you start the engine. If it does
work smoothly, check for the reason. Correct
the problem before riding this ATV. Consult
your dealer if you can not find or solve the
problem by yourself.
