1 Introduction
1.1 Purpose
The GPS Evaluation Kit EVA2235-H allows an easy evaluation of Maestro’s GPS
receiver /smart antenna module A2235-H by offering quick access to the ports of the
module.
The EVA2235-H serves three major purposes:
As a demonstration package of the module’s capabilities
Powering the A2235-H GPS receiver module via the USB connector with suffi-
cient view to the sky will result in an NMEA output with position information.
As an example how to integrate the module into a system
The schematic in chapter “9 Board Schematics” is a basic example of how to
integrate the GPS module into an application or system.
To support an easy temporary design in
The signals provided on the Evaluation Kit allow direct integration into a sur-
rounding system making it an ideal development tool.
The EVA2235-H can especially demonstrate that the on-module GPS antenna and
an external active GPS antenna connected tothe External Antenna input will result in
outstanding GPS performance. The user can switch between the two antennas with
the ANT_SW signal provided by the DIP switch.
1.2 Contents
The EVA2235-H includes the following components:
Demonstration board (labeled EVA2235-H) with one A2235-H GPS receiver /
smart antenna
Active GPS antenna
USB cable to connect to your PC
CD with complete documentation and Maestro’s GPS Cockpit software
Please check your package for completeness and connect the components properly.
2 Handling Precautions
The EVA2235-H contains components that are sensitive to electrostatic discharge
(ESD). Please handle with appropriate care.

V0.1–May-13
User’s Manual
Page 6 of 18
3 Quick Start (using USB connection)
(1) Connect the EVA2235-H with your PC using the included USB cable.
(2) When the PC asks for drivers select the folder “Tools\Drivers” on the included CD
ROM. Note that two drivers need to be installed, the EVA2235-H FTDI driver and
the USB serial driver.
Note: During the driver installation process your Windows system will probably
notify you, that the driver did not pass Windows logo testing with a warning:
Figure 1: Windows driver installation warning
Note: After successful driver installation Windows might interpret the data
coming over the serial interface as a serial ballpoint mouse! Your mouse pointer
can start jumping around. To stop this, disable the according device using your
device manager. Leave the EVA2235-H kit connected and press and keep
pressing the reset button. You will find the device under “Mice and other pointing
devices”. Use a right click to open the sub-menu and disable the device.
Figure 2: Disabling of Microsoft Serial BallPoint
(3) Assure that the on-module GPS antenna has a good view to the sky!
Update Driver
Disable
Uninstall
Scan for hardware changes
Properties

V0.1–May-13
User’s Manual
Page 7 of 18
(4) To start the GPS Cockpit software which visualizes the NMEA output data coming
from the GPS receiver, copy all files from the included CD ROM “Tools/GPS
Cockpit” to a folder of you choice on your PC. Then double click the GPSC.exe file.
The GPS cockpit software starts without additional software installation.
(5) Now you need to activate the correct port within GPS Cockpit. You can do this by
selecting “COM port connection”. A detailed description of the GPS Cockpit
software is included on the CD ROM. In any case, the following window will
appear:
Figure 3: GPS Cockpit communication window - blank
Activate “Terminal 1”, choose the COM port to which the GPS receiver is con-
nected (verify in your system settings - device manager, which communication
port is used for this USB serial connection), in our example COM2 at 4800 baud
(default setting for the EVA2235-H), and click on “OK”:
Figure 4: GPS Cockpit communication window –COM2
The connection is established now.
(6) Open a terminal window to see NMEA sentences by using the “NMEA Terminal”
window button. You should then see messages like this:

V0.1–May-13
User’s Manual
Page 8 of 18
Figure 5: GPS Cockpit NMEA terminal with NMEA data
Now you can start using all the other windows and features of GPS Cockpit. Please
refer also to the GPS Cockpit manual and the online help within GPS Cockpit.

V0.1–May-13
User’s Manual
Page 9 of 18
4 On-Board Peripherals
4.1 RESET and ON_OFF Push-Button
The EVA2235-H holds two push-buttons:
nRST (RESET)
ON_OFF
After power on by pushing the “ON” button will start the A2235-H module. This is
absolutely necessary to get the module going. The “ON” button must be used as well
in other cases, e.g.in order to request a position when in SiRFawareTM state or to go
to hibernate mode and wake up again.
The “nRST” button is used to get a full reset of the GPS module. All parameters are
stored in non-volatile memory. After pushing this button the module starts again from
the beginning.
4.2 External Antenna Connector
The A2235-H supports two antenna inputs:
The on-module antenna.
The antenna connector “External Antenna” leads to pin 10 of the A2235-H GPS
receiver which supports active GPS antennas.
It can be switched between the two antenna inputs by using the ANT_SW pin of the
A2235-H connected to the DIP switch on board the EVA2235-H evaluation kit.
Setting the DIP switch to “OFF” means the on-module is activated.
Setting the DIP switch to “ON” means the External Antenna input is activated.

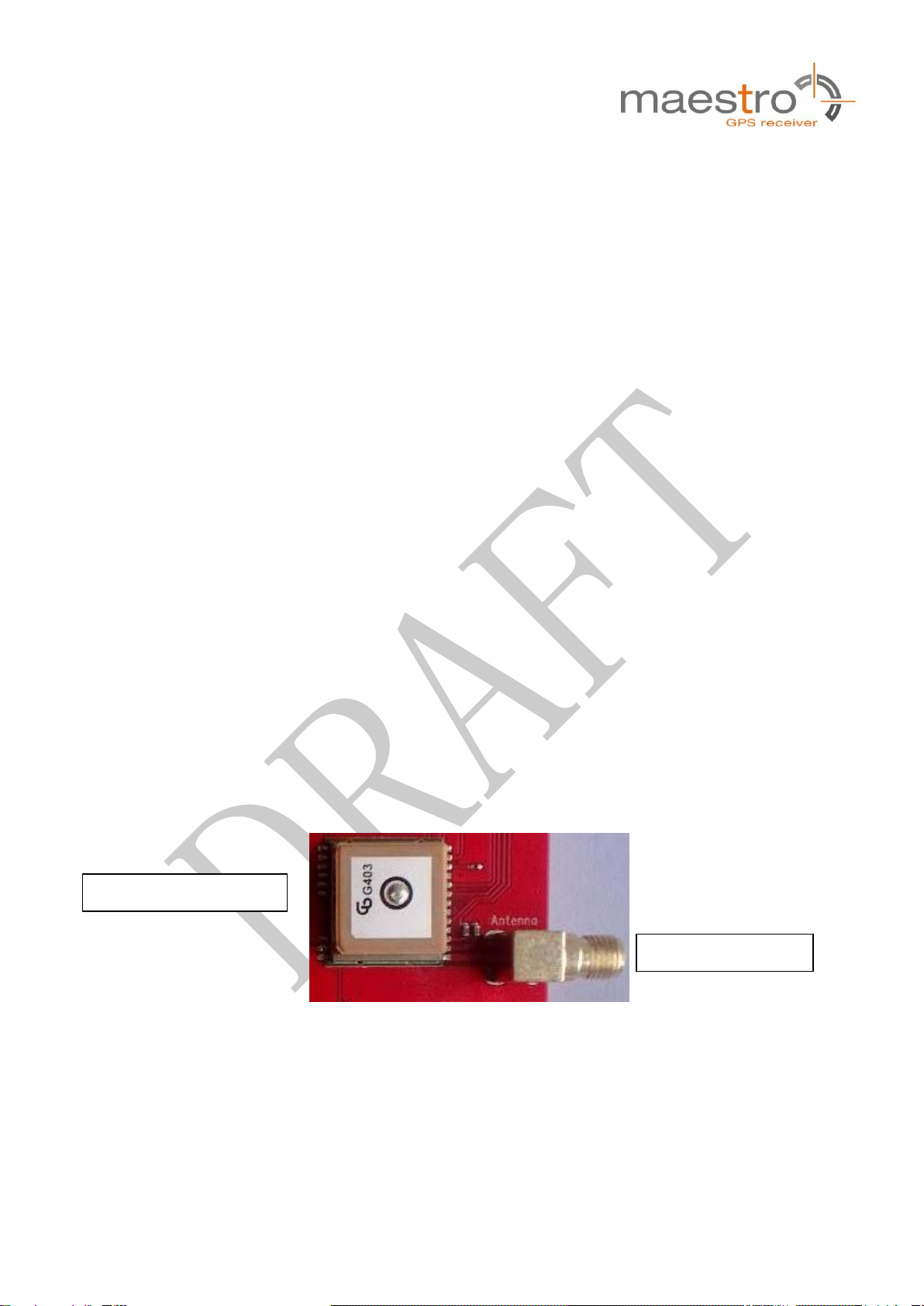

Figure 6: On-module antenna and External Antenna Connector
On-module antenna
External Antenna

V0.1–May-13
User’s Manual
Page 10 of 18
Further information is given in
Chapter “6.2 DIP Switch Settings” and
Maestro’s GPS Receiver A2235-H User Manual
5 LED’s
There are 6 LEDs on the EVA2235-H that indicate different signals from the GPS
receiver (order of LED’s on EVA2235-H from left to right):
LED
Name
Function
Description
D2
TX
Transmit
Serial data traffic (from GPS receiver)
D1
RX
Receive
Serial data traffic (into GPS receiver)
D5
1PPS
Timing
1PPS signal at rising edge (1 pulse per second,
duration 500ms typ.)
D3
ON_OFF
Hibernate
Toggle hibernate mode / position request during PTF
cycle (the LED visualizes the ON_OFF pulse)
D4
WAKEUP
Operational
state
HIGH: Full operation
LOW: Module in a low power mode
D6
Power / VCC
POWER
Power on LED
Table 1: LED’s function and description
Figure 7: EVA2235-H LED’s

V0.1–May-13
User’s Manual
Page 11 of 18
6 Design-in Support
The EVA2235-H demo board offers the possibility to implement the A2235-H GPS
receiver module temporarily into your design by using the terminal block with 15
connections & a pad of 3V3. To operate the EVA2235-H via this terminal block,
please check “Table 3: Switch settings”.
Please note:
VCC power input is not protected against reversed polarity
External supply has to be within the range of 3.3 to 3.6 VDC
6.1 Terminal Block
The terminal block offers direct access to the A2235-H GPS receiver pins.
Pin
Port
1
VCC
2
GPIO7, SPI chip select pin when module works in SPI mode
3
GPIO6, SPI clock pin when module works in SPI mode
4
nRST
5
ON_OFF
6
Host Port I2C_CLK
7
GND
8
TX,SPI data out pin when module works in SPI mode
9
RX, SPI data in pin when module works in SPI mode
10
I2C_CLK, GPIO 1
11
I2C_DIO, GPIO 0
12
Vout, Voltage Output 1.8V
Table 2: Terminal block description
Figure 8: Terminal block

V0.1–May-13
User’s Manual
Page 12 of 18
6.2 DIP Switch Settings
The following picture shows the DIP switches of the EVA2235-H.

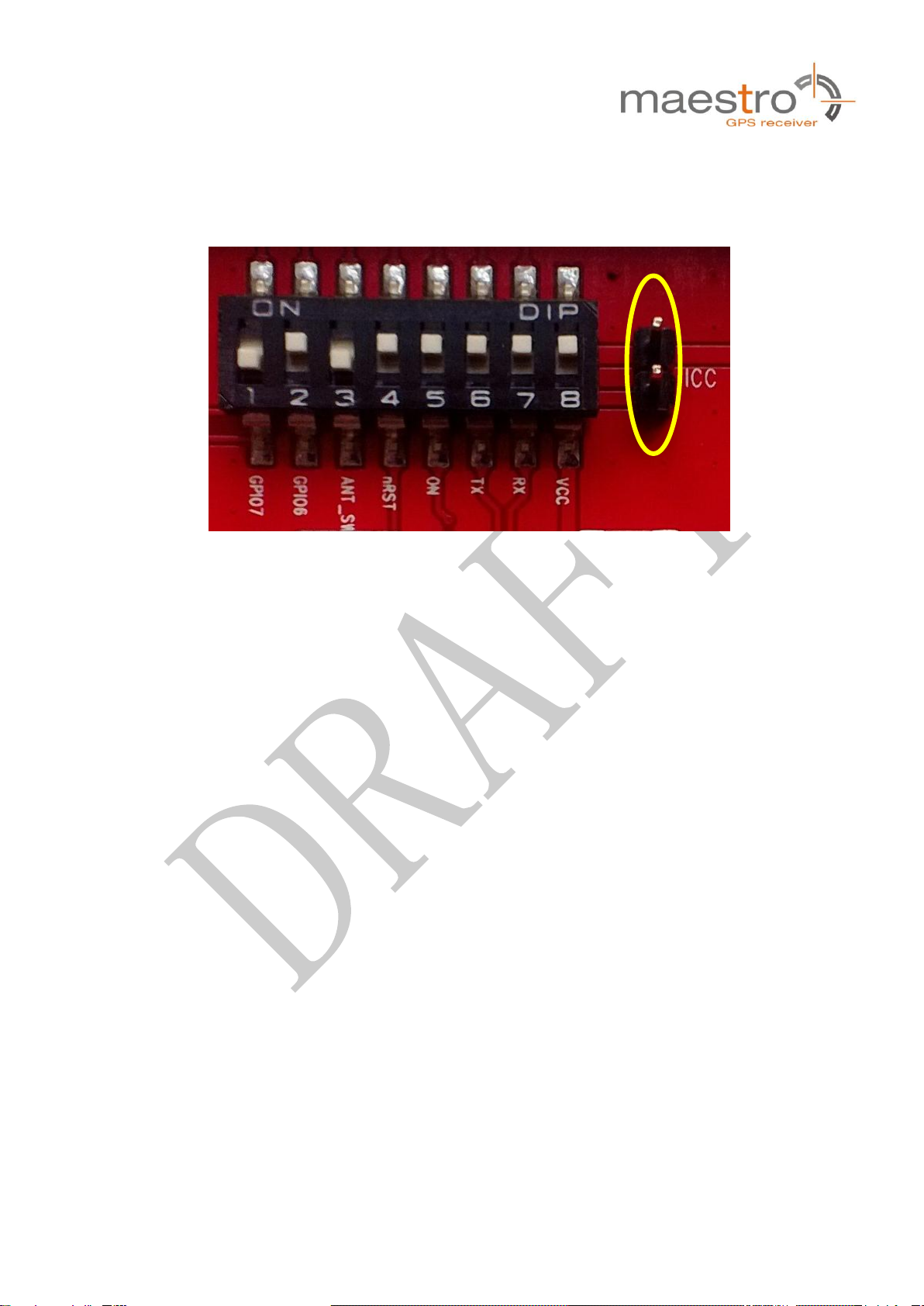

Figure 9: DIP switches
Switch
Function
Operation via USB connector
(default settings)
Operation via
terminal block
S1
GPIO7
OFF
OFF
S2
GPIO6
ON
OFF
S3
ANT_SW
ON = high (A2235-H pin 10, external active
antenna)
not applicable
OFF = low (A2235-H on-module antenna)
S4
nRST
ON
OFF
S5
ON_OFF
ON
OFF
S6
TX
ON
OFF
S7
RX
ON
OFF
S8
VCC
ON
OFF
Table 3: Switch settings

V0.1–May-13
User’s Manual
Page 13 of 18
6.3 Configure the baud rate
Baud rate and protocol selection can be set upon start up through GPIO configura-
tion.A2235-H can be configured to output NMEA at standard baud rates, if
the A2235-H is using the UART host interface.
Table 4 lists the settings for GPIO 0 andGPIO 1 to configure the baud rate at start-up.
After start-up, the GPIOs can be used for other purposes.
J9 (GPIO 0/ I2C_DIO)
J8 (GPIO 1 / I2C_CLK)
Protocol
Baud Rate
Pull high
Pull high
NMEA
4800
Pull high
Pull low
NMEA
9600
Pull low
Pull high
NMEA
38400
Pull low
Pull low
OSP
115200
Remark: Pull high/low =2.2K
Table 4: GPIO 0 and GPIO 1 Settings

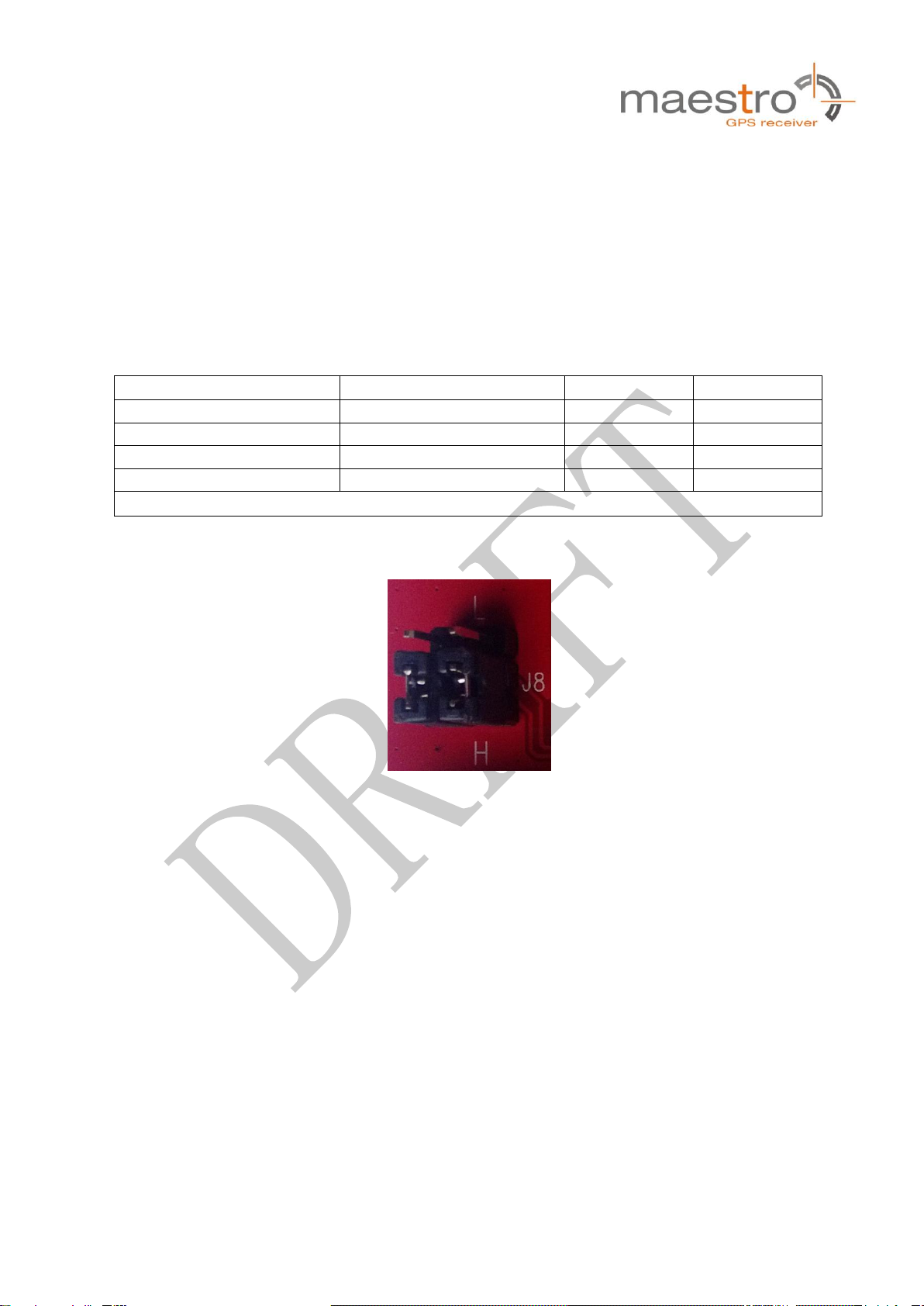

Figure 10: Configure the baud rate jumper
Note: This feature is not available if any MEMS or non-volatile memory devices
are attached to the auxiliary serial bus. The internal software default baud rate
is NMEA 4800 when an EEPROM is connected.

V0.1–May-13
User’s Manual
Page 14 of 18
6.4 ICC Jumper
Figure 11: ICC jumper
As long as the VCC DIP switch is “ON” the ICC jumper is bridged. By putting the VCC
DIP switch to the OFF position the current draw of the A2235-H GPS receiver can be
measured directly by connecting a low resistance measurement device to the ICC
jumper.
The low resistance measurement device should be connected before VCC is
switched off!
7 NMEA Port
Default setting: 4800 baud, 8 data bits, no parity, 1 stop bit, no flow control!
Standard NMEA-0183 output on NMEA, baud rate selectable.
Standard USB connectors

V0.1–May-13
User’s Manual
Page 15 of 18
8 Board Overview
Figure 12: Board overview

V0.1–May-13
User’s Manual
Page 16 of 18
9 Board Schematics
Figure 13: EVA2235-H board schematics

V0.1–May-13
User’s Manual
Page 17 of 18
10 Related Information
10.1 Contact
This manual was created with due diligence. Wehope that it will be helpful to the user
to get the most out of the GPS module.
Inputs regarding errors or mistaken verbalizations and comments or proposals to
Maestro, HongKong, for further improvements are highly appreciated.
Maestro Wireless Solutions Limited
Add:Unit 3603-09,36/F.,118 Connaught Road West,HK
Main Line: (852) 28690688
Fax: [phone]
[e-mail]
www.maestro-wireless.com
10.2 Related Documents
GPS Receiver A2235-H (Maestro)
10.3 Related Tools
GPS Cockpit (Maestro)
SiRFLive (SiRF)
SiRF Flash(SiRF)

V0.1–May-13
User’s Manual
Page 18 of 18
11 List of Figures
Figure 1: Windows driver installation warning...........................................................6
Figure 2: Disabling of Microsoft Serial BallPoint .......................................................6
Figure 3: GPS Cockpit communication window - blank.............................................7
Figure 4: GPS Cockpit communication window –COM2..........................................7
Figure 5: GPS Cockpit NMEA terminal with NMEA data...........................................8
Figure 6: On-module antenna and External Antenna Connector ..............................9
Figure 7: EVA2235-H LED’s ...................................................................................10
Figure 8: Terminal block..........................................................................................11
Figure 9: DIP switches............................................................................................12
Figure 10: Configure the baud rate jumper .............................................................13
Figure 11: ICC jumper.............................................................................................14
Figure 11: Board overview......................................................................................15
Figure 13: EVA2235-H board schematics...............................................................16
12 List of Tables
Table 1: LED’s function and description..................................................................10
Table 2: Terminal block description.........................................................................11
Table 3: Switch settings..........................................................................................12
Table 4: GPIO 0 and GPIO 1 Settings ....................................................................13

专注于微波、射频、天线设计人才的培养
易迪拓培训 网址：http://www.edatop.com
射 频 和 天 线 设 计 培 训 课 程 推 荐
易迪拓培训(www.edatop.com)由数名来自于研发第一线的资深工程师发起成立，致力并专注于微
波、射频、天线设计研发人才的培养；我们于 2006 年整合合并微波 EDA 网(www.mweda.com)，现
已发展成为国内最大的微波射频和天线设计人才培养基地，成功推出多套微波射频以及天线设计经典
培训课程和 ADS、HFSS 等专业软件使用培训课程，广受客户好评；并先后与人民邮电出版社、电子
工业出版社合作出版了多本专业图书，帮助数万名工程师提升了专业技术能力。客户遍布中兴通讯、
研通高频、埃威航电、国人通信等多家国内知名公司，以及台湾工业技术研究院、永业科技、全一电
子等多家台湾地区企业。
易迪拓培训推荐课程列表： http://www.edatop.com/peixun/tuijian/
射频工程师养成培训课程套装
该套装精选了射频专业基础培训课程、射频仿真设计培训课程和射频电
路测量培训课程三个类别共 30 门视频培训课程和 3本图书教材；旨在
引领学员全面学习一个射频工程师需要熟悉、理解和掌握的专业知识和
研发设计能力。通过套装的学习，能够让学员完全达到和胜任一个合格
的射频工程师的要求…
课程网址：http://www.edatop.com/peixun/rfe/110.html
手机天线设计培训视频课程
该套课程全面讲授了当前手机天线相关设计技术，内容涵盖了早期的
外置螺旋手机天线设计，最常用的几种手机内置天线类型——如
monopole 天线、PIFA 天线、Loop 天线和 FICA 天线的设计，以及当前
高端智能手机中较常用的金属边框和全金属外壳手机天线的设计；通
过该套课程的学习，可以帮助您快速、全面、系统地学习、了解和掌
握各种类型的手机天线设计，以及天线及其匹配电路的设计和调试...
课程网址： http://www.edatop.com/peixun/antenna/133.html
WiFi 和蓝牙天线设计培训课程
该套课程是李明洋老师应邀给惠普 (HP)公司工程师讲授的 3天员工内
训课程录像，课程内容是李明洋老师十多年工作经验积累和总结，主要
讲解了 WiFi 天线设计、HFSS 天线设计软件的使用，匹配电路设计调
试、矢量网络分析仪的使用操作、WiFi 射频电路和 PCB Layout 知识，
以及 EMC 问题的分析解决思路等内容。对于正在从事射频设计和天线
设计领域工作的您，绝对值得拥有和学习！…
课程网址：http://www.edatop.com/peixun/antenna/134.html

`
专注于微波、射频、天线设计人才的培养
易迪拓培训 网址：http://www.edatop.com
CST 学习培训课程套装
该培训套装由易迪拓培训联合微波 EDA 网共同推出，是最全面、系统、
专业的 CST 微波工作室培训课程套装，所有课程都由经验丰富的专家授
课，视频教学，可以帮助您从零开始，全面系统地学习 CST 微波工作的
各项功能及其在微波射频、天线设计等领域的设计应用。且购买该套装，
还可超值赠送 3个月免费学习答疑…
课程网址：http://www.edatop.com/peixun/cst/24.html
HFSS 学习培训课程套装
该套课程套装包含了本站全部 HFSS 培训课程，是迄今国内最全面、最
专业的 HFSS 培训教程套装，可以帮助您从零开始，全面深入学习 HFSS
的各项功能和在多个方面的工程应用。购买套装，更可超值赠送 3个月
免费学习答疑，随时解答您学习过程中遇到的棘手问题，让您的 HFSS
学习更加轻松顺畅…
课程网址：http://www.edatop.com/peixun/hfss/11.html
ADS 学习培训课程套装
该套装是迄今国内最全面、最权威的 ADS 培训教程，共包含 10 门 ADS
学习培训课程。课程是由具有多年 ADS 使用经验的微波射频与通信系统
设计领域资深专家讲解，并多结合设计实例，由浅入深、详细而又全面
地讲解了 ADS 在微波射频电路设计、通信系统设计和电磁仿真设计方面
的内容。能让您在最短的时间内学会使用 ADS，迅速提升个人技术能力，
把 ADS 真正应用到实际研发工作中去，成为 ADS 设计专家...
课程网址： http://www.edatop.com/peixun/ads/13.html
我们的课程优势：
※成立于 2004 年，10 多年丰富的行业经验，
※一直致力并专注于微波射频和天线设计工程师的培养，更了解该行业对人才的要求
※经验丰富的一线资深工程师讲授，结合实际工程案例，直观、实用、易学
联系我们：
※ 易迪拓培训官网：http://www.edatop.com
※ 微波 EDA 网：http://www.mweda.com
※ 官方淘宝店：http://shop36920890.taobao.com
专注于微波、射频、天线设计人才的培养
官方网址：http://www.edatop.com
易迪拓培训
淘宝网店：http://shop36920890.taobao.com
