Magna BLUEPIRAT Series User manual

BLUEPIRAT Series
Camera User Guide / 30.09.2020
Version 5.0.1

BLUEPIRAT SERIES | CAMERA USER GUIDE/ page 2 of 93
Table of contents
1LICENSE AGREEMENT ...................................................................... 4
2PRODUCT LIABILITY.......................................................................... 5
2.1 Terms and Conditions of Sale and Delivery......................................................5
2.2 Important operating instructions........................................................................5
3Overview.............................................................................................. 6
4System requirements ......................................................................... 7
4.1 Accessing a connected camera / camera server ..............................................8
4.2 Further manuals................................................................................................9
4.3 Additional features by optional licenses..........................................................10
4.4 Firmware Care................................................................................................11
5Configuring the network camera AXIS F54..................................... 12
5.1 Connecting the network camera AXIS F54.....................................................12
5.2 Access to the network camera AXIS FA54.....................................................13
5.3 Creating the „admin“ user ...............................................................................15

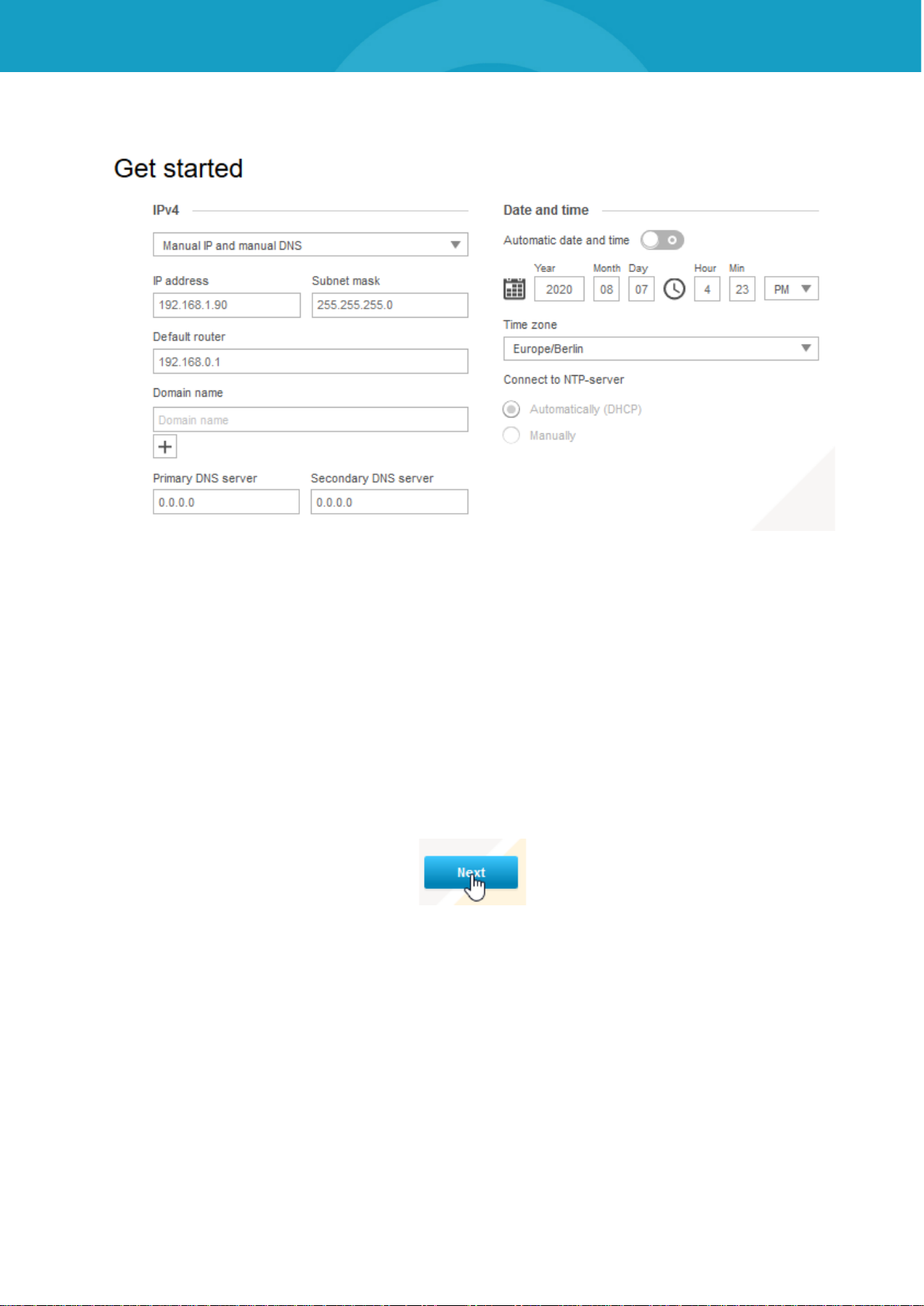

5.4 Further system settings...................................................................................18

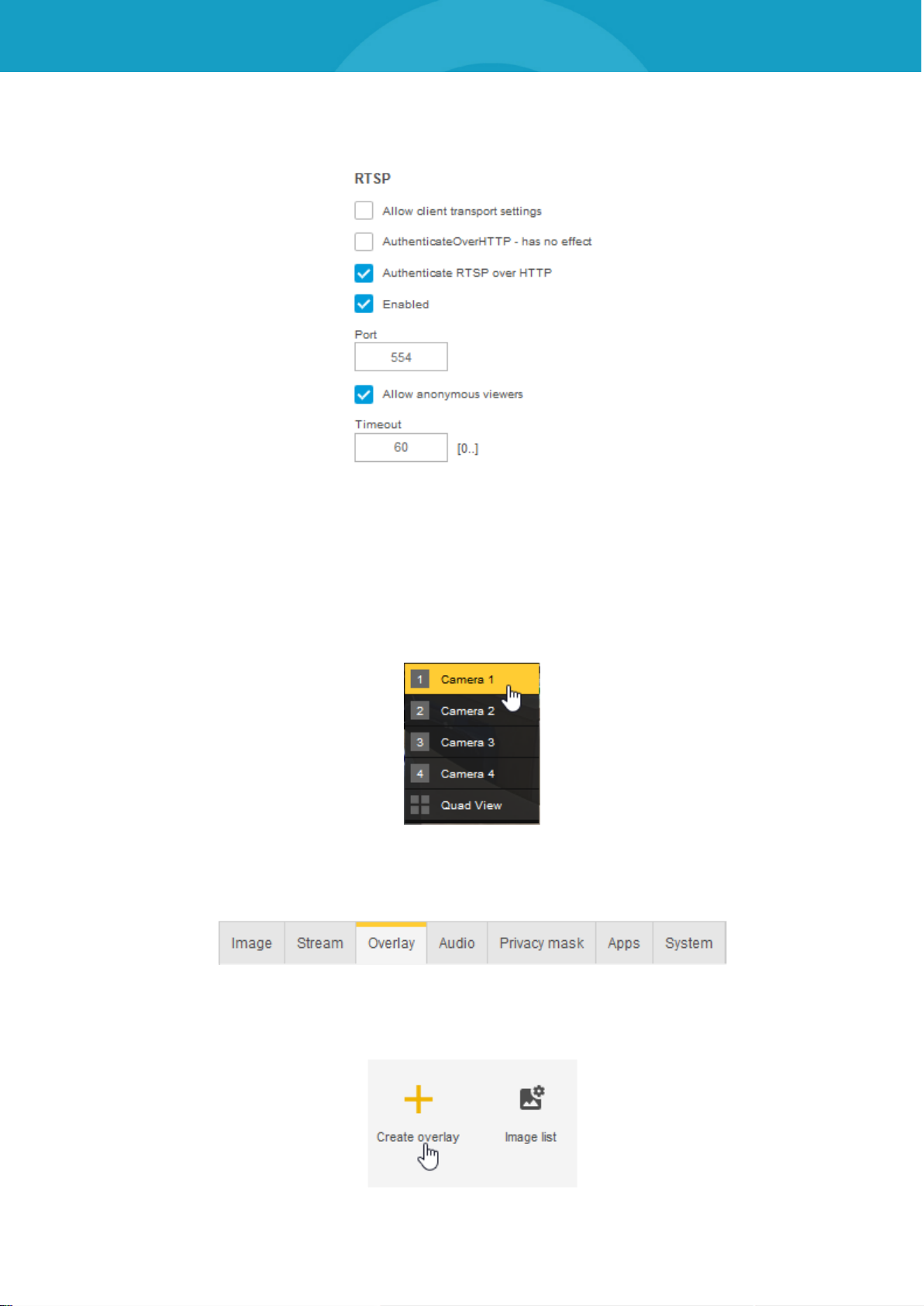

5.4.1 RTSP (Real-Time Streaming Protocol).................................................................18

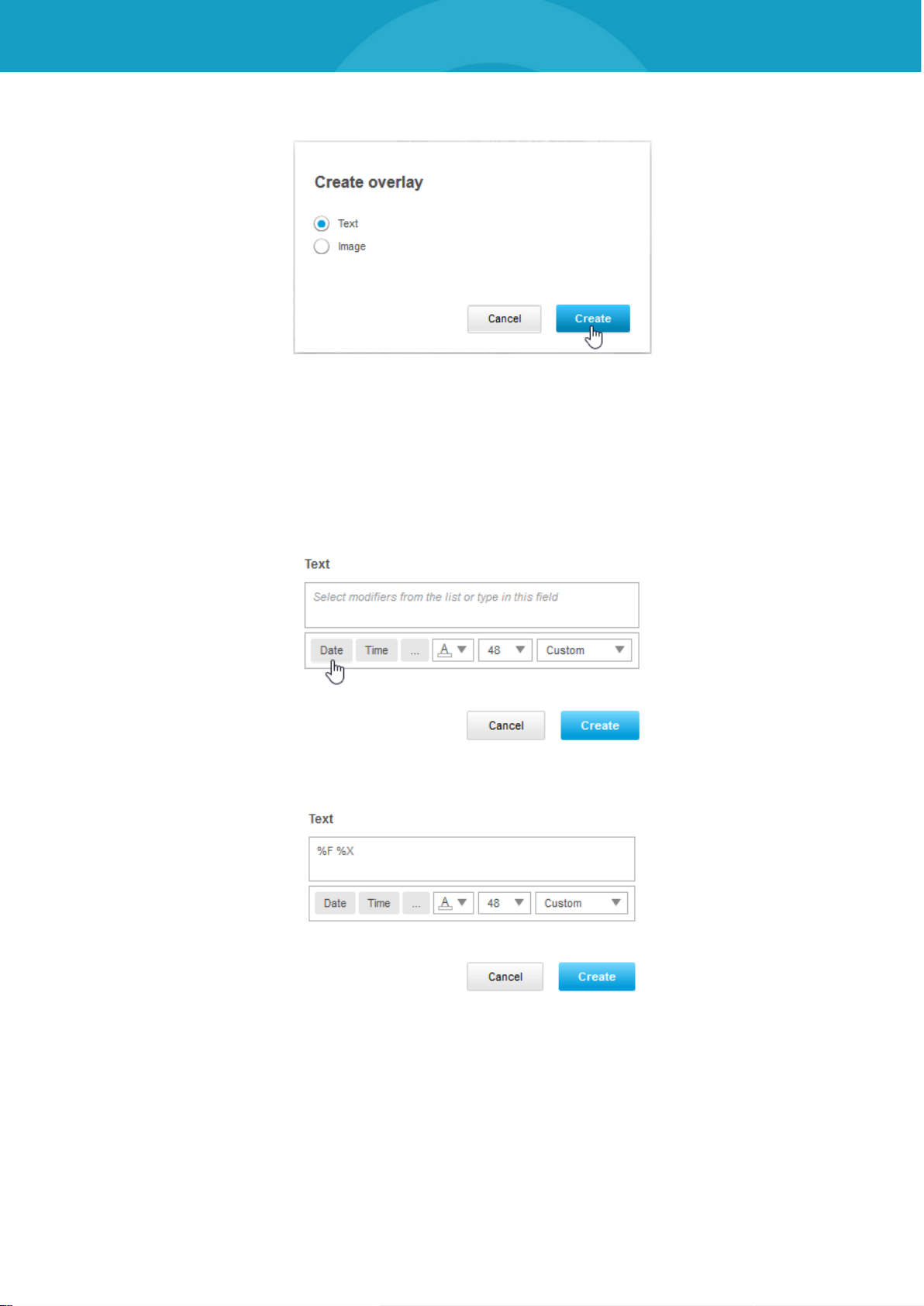

5.4.2 Displaying the date and time in the video image...................................................19
5.4.3 Stream settings ....................................................................................................21
5.4.4 Audio setting ........................................................................................................22
5.5 System Maintenance ......................................................................................23
5.6 Reset to factory settings .................................................................................24
6Configuring the network camera AXIS F41/F44.............................. 25
6.1 Connecting the network camera AXIS F41/F44..............................................25
6.2 Access to the network camera AXIS F41/F44 ................................................26
6.3 Creating the user “admin” ...............................................................................29
6.4 Setting date and time......................................................................................30
6.5 Audio settings (FW 2.0.1 onwards).................................................................32
6.5.1 Adjusting audio source.........................................................................................32
6.5.2 Adjusting audio quality..........................................................................................33
6.6 IP configuration...............................................................................................34
6.7 Resetting configuration...................................................................................35
7Configuring the network camera AXIS P12xx................................. 36
7.1 Connecting the network camera AXIS P1204 / P1214 / P1224......................36
7.2 Access to the network camera AXIS P12xx....................................................37
7.3 Creating the user “admin” ...............................................................................39
7.4 Setting date and time......................................................................................40
7.5 IP configuration...............................................................................................42
7.6 Resetting configuration...................................................................................43
8Configuring the network camera AXIS 207/210/211....................... 44
8.1 Related manuals.............................................................................................44
8.2 Automatic configuration (recommended)........................................................44
8.2.1 Installing the camera template..............................................................................45
8.2.2 Creating the user “admin”.....................................................................................47
8.3 Manual configuration ......................................................................................48
8.3.1 Resetting configuration.........................................................................................48
8.3.2 IP configuration ....................................................................................................49
8.3.3 Creating the user “admin”.....................................................................................50
8.3.4 Setting date and time ...........................................................................................52
8.3.5 Setting MPEG-4 ...................................................................................................54

BLUEPIRAT SERIES | CAMERA USER GUIDE/ page 3 of 93
9Configuring the Video Encoder AXIS Q7404 .................................. 55
9.1 Connecting the Video Encoder AXIS Q7404 ..................................................55
9.2 Access to the Video Encoder AXIS Q7404.....................................................56
9.3 Creating the user “admin” ...............................................................................58
9.4 Setting date and time......................................................................................59
9.5 IP configuration...............................................................................................61
10 Configuring the Video Encoder AXIS P7214................................... 63
10.1 Connecting the Video Encoder AXIS P7214...................................................63
10.2 Access to the Video Encoder AXIS P7214 .....................................................64
10.3 Creating the user “admin” ...............................................................................66
10.4 Setting date and time......................................................................................67
10.5 IP configuration...............................................................................................69
11 Save and restore the Video Encoder settings................................ 71
12 Resetting the Video Encoder AXIS Q7404 / P7214......................... 74
13 Connecting video equipment to the data logger............................ 75
14 Configuring the data logger............................................................. 76
14.1 General settings..............................................................................................76
14.2 Camera settings..............................................................................................78
14.2.1 Camera | General settings...............................................................................78
14.2.1.1 Encrypting video data.............................................................................79
14.2.1.2 Setting the video server..........................................................................79
14.2.1.3 Configuring the cameras ........................................................................80
14.3 Front display of BLUEPIRAT2 ........................................................................82
15 Downloading video data................................................................... 83
16 Converting video data...................................................................... 84
17 Watching videos............................................................................... 85
18 Axis IP Utility..................................................................................... 86
19 Abbreviations.................................................................................... 87
20 List of figures.................................................................................... 89
21 List of tables ..................................................................................... 92
22 Contact.............................................................................................. 93

BLUEPIRAT SERIES | CAMERA USER GUIDE/ page 4 of 93
1 LICENSE AGREEMENT
Please read the license agreement of this license contract carefully, before you install the software. By
the installation of the software you agree to the conditions of this license contract.
This software-license agreement, in the following called “license”, contains all rights and restrictions for
final users that regulate the use of the accompanying software, operating instructions and other docu-
ments, in the following called as “software”.
1. This license contract is an agreement between licensor and licensee, who is being licensed to use the
named software.
2. Licensee acknowledges that this is only a limited nonexclusive license. This means, that the licensee has no
right to allocate sublicenses. Licensor is and remains the owner of all titles, rights and interests in the soft-
ware.
3. The software is a copyright property of the MAGNA Telemotive GmbH. The program or parts of it may not
be further licensed to third parts, rented, sold or be further marketed in any form without explicit written ap-
proval by MAGNA Telemotive GmbH. The user may neither change the software and their components, nor
modify, nor redevelop or decompile otherwise in any form.
4. This software is subject to no warranty. This software is sold as is, without any warranty. If at any time, a
user changes his system, we hold no responsibility to change our software to make it work again.
5. This license permits licensee to install the software on more than one computer system, as long as the soft-
ware will not be used on more than one computer system simultaneously. Licensee will not make copies of
the software or allow copies of the software to be made by others, unless authorized by this license agree-
ment. Licensee may make copies of the software for backup purposes only. Licensee is not entitled to trans-
mit or to transfer the software or its rights from this license agreement.
6. Licensor is not liable to licensee for any damages, including compensatory, special, incidental, exemplary,
punitive or consequential damages, connected with or resulting from this license agreement or licensee’s
use of this software.
7. Licensee agrees to defend and indemnify licensor and hold licensor harmless from all claims, losses, dam-
ages, complaints or expenses connected with or resulting from licensee’s business operations.
8. Licensor has the right to terminate this license agreement and licensee’s right to use this software upon any
material breach by licensee. The duration of the license contract is indefinitely determined.
9. Licensee agrees to return all copies of the software to licensor or to destroy them upon termination of the
license contract.
10. This license agreement replaces and supersedes all prior negotiations, dealings and agreements between
licensor and licensee regarding this software.
11. This license contract is subject to German law.
12. If a regulation of this license contract is void by law, the validity of the remaining regulations is not affected. If
there is such a regulation it will be replaced by a valid, according to the legal regulations and enforceable
regulation with similar intention and similar economic consequence.
13. The license contract is effective by delivery of the software of the licensor to the licensee and/or by usage of
the software by the licensee. This license contract is also valid without licensor’s signature.
14. The license automatically goes out if the licensee does not agree to the license regulations described here
or offend against the license regulations of this license contract. With ending the license contract the licen-
see is obliged to extinguish or to destroy the software and all copies of it no matter if installed or stored on
disk or to hand all of it back to MAGNA Telemotive GmbH.
15. The licensee is liable for all damages caused to the licensor by the violation of these license regulations.

BLUEPIRAT SERIES | CAMERA USER GUIDE/ page 5 of 93
2 PRODUCT LIABILITY
2.1 Terms and Conditions of Sale and Delivery
The General Terms and Conditions of Sale and Delivery of MAGNA Telemotive GmbH can be
found on our website (https://telemotive.magna.com) under imprint.

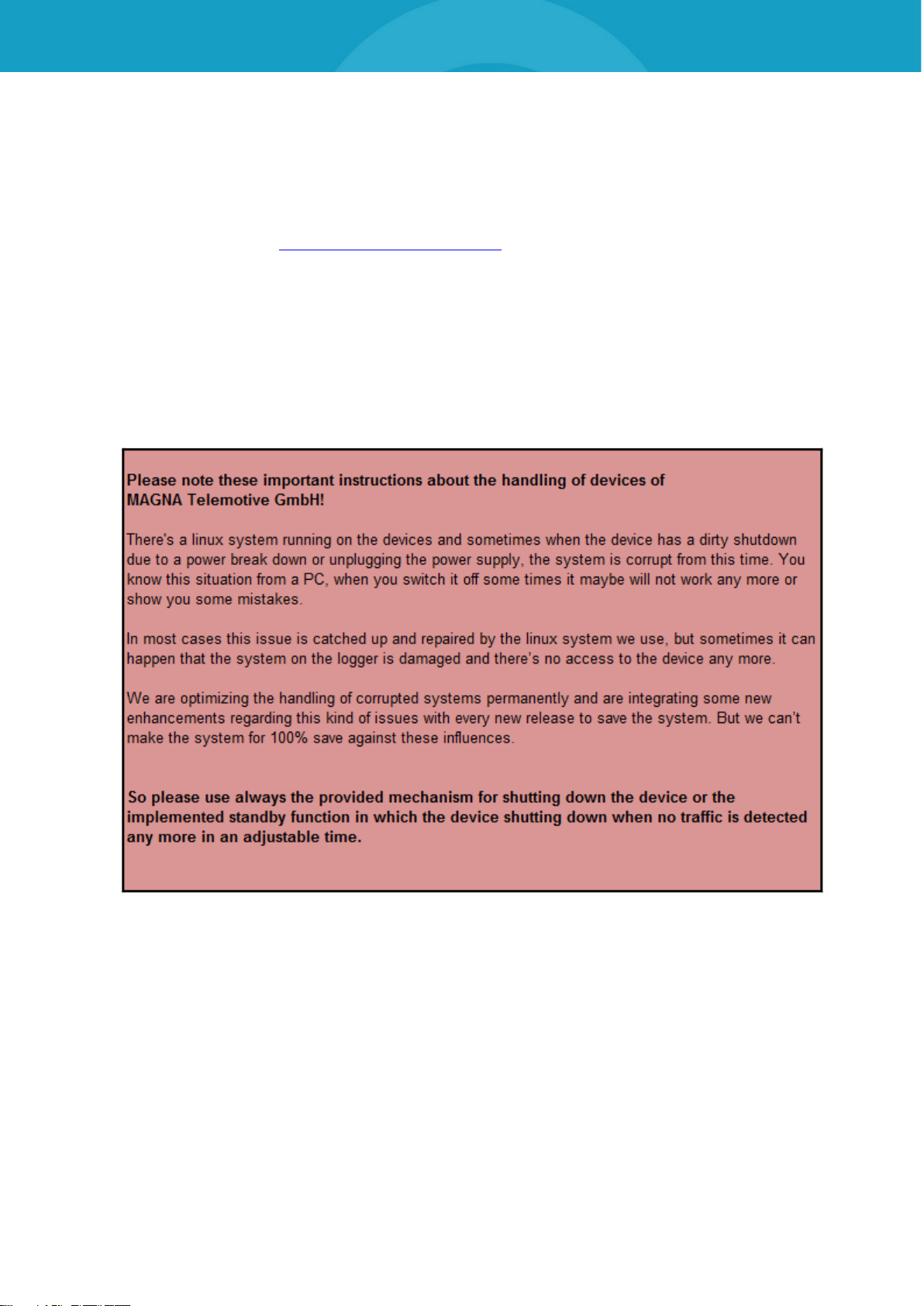

2.2 Important operating instructions

BLUEPIRAT SERIES | CAMERA USER GUIDE/ page 6 of 93
3 Overview
This user guide describes the installation and usage of a system for video recording. It consists
of one network camera AXIS P12-series / F-series / 211 / 210 / 207 or a Video Encoder AXIS
Q7404 / P7214 with analog cameras and a one of the data logger
BLUEPIRAT Rapid
BLUEPIRAT Mini
BLUEPIRAT2 5E
BLUEPIRAT2
BLUEPIRAT Remote
of MAGNA Telemotive GmbH. The Video Encoders are used to connect analog cameras
(NTSC/PAL). The network cameras can be connected directly to the data logger.
The system allows the recording of up to four different video streams at the same time. For that
the server (or a network camera) and the data logger must be connected to each other and con-
figured separately by a HTML-based client.
The video streams are recorded in real-time and in a specified time interval in the logger. They
can be downloaded into a control unit for offline use. They can also be converted to a video file
and transferred from the logger into a computer. The video block length can be adjusted to 15
up to 60 seconds and the videos are stored in the mpeg4 format.
Attention:
The Video Encoder and the cameras are not set by default to standby mode, which may
be a reason for an empty battery.
After rebooting the system takes approximately 120 seconds to be synchronized. The recording
starts immediately after the synchronization.
If the Ethernet cable was removed between the Video Encoder / camera and the data logger
and plugged in again, the system takes around 11 seconds for the resynchronization.
If the supply voltage is removed from the Video Encoder / camera during the recording, it takes
about 120 seconds to be synchronized (after a reconnection).
AXIS camera and Video Encoder should be operating within the AXIS specification. This is es-
pecially required for power and environmental parameters.
This user guide describes the configuration and usage of this feature. The general configuration
is described in the user guides of the used data logger as well as the System Client, which is
valid together.
This document refers to firmware version 05.00.01 and the System Client from version 5.0.1.
Some features depending on model and feature license or may not be available in older ver-
sions.
Software updates and user guides for other, optional, licensed enhancements are available in
our Service Center. (Please find the address under Contact at the last page.)
To ensure the most reliable operation of your system as possible, please make sure to use al-
ways current firmware and software versions.

BLUEPIRAT SERIES | CAMERA USER GUIDE/ page 7 of 93
4 System requirements
Network camera AXIS P12 / F44 / F41 / 211 / 210 / 207
Network cameras have an Ethernet port and therefore can be connected directly to the data log-
ger. Up to four cameras are supported to record the video streams. These cameras can be con-
nected to the four channels of the encoder. The following AXIS camera types are supported:
P12, F44, F41, 211, 210 and 207.
AXIS Q7404 / P7214 Video Encoder
The AXIS Video Encoder is a high performance, four-channel standalone device that integrates
up to four analog cameras (NTSC/PAL) at a time into an IP-based video surveillance system.
Video Encoder and camera are connected via BNC connector.
Both Video Encoders support the compression formats H.264, MJPEG and MPEG-4. Therefore
they are capable to reduce bandwidth and storage requirements without compromising image
quality.
The AXIS Q7404 Video Encoder contains four separate video channels, one for each video in-
put. Each channel has its own IP address.
The AXIS P7214 Video Encoder uses only one IP address for all four channels.
The communication between bus systems and control units is monitored, and relevant data can
be recorded very precisely with the data logger. The collected data are stored to the logger and
can be downloaded via Ethernet to a PC.
Control Unit
You need a Windows based Laptop or PC to configure the devices by the System Client. It
also allows to save the recorded data and to use them offline later.
System Client
Update, configure and read out your data loggers with System Client. Save time with central ad-
ministration of your software products. System Client is your key to success for using all our
products!
BLUEPIRAT Rapid
High-performance multi-bus data logger for modern vehicle architectures based on Automotive
Ethernet. With up to 3 TB internal memory and supreme recording performance. Robust and
compact for in-vehicle use.
Due to the increasing complexity of driver assistance systems and the growing number of info-
tainment applications, the data traffic between ECUs in the most recent vehicle models has
grown significantly. Consequently, besides the various classic bus systems, modern vehicle ar-
chitectures are based on Automotive Ethernet according to BroadR-Reach / IEEE 802.3
100(0)Base-T1, which can keep up with the growing bandwidth demand.
Power Backup
The Power Backup is a special component, which is designed to bridge short voltage interrup-
tions. It is connected upstream of the data loggers on the voltage side, and must be connected
to them via a dedicated LS CAN port for controlling.
BLUEPIRAT Mini
The BLUEPIRAT Mini is smallest data logger in the world with an outstanding functional scope.
It offers a wide range of interfaces, stable temperature behavior, very low energy consumption,

BLUEPIRAT SERIES | CAMERA USER GUIDE/ page 8 of 93
four GBit Ethernet ports, and much more. Different blue PiraT Mini can be expanded flexibly to
one cluster and therefore handled very easily by using System Link.
BLUEPIRAT2
The BLUEPIRAT2 is our top-class all-in-one data logger. Seven models cover a wide range of
interfaces. (Device is EOL)
BLUEPIRAT2 5E
Additionally, the BLUEPIRAT2 5E offers improved power management and power backup, five
integrated Ethernet ports and super-fast start-up behavior. The BLUEPIRAT2 can be expanded
flexibly via System Link. (Device is EOL)
Remote Control Touch (optional)
Operate your BLUEPIRAT data loggers safely and comfortably from the driver’s or passenger
seat. Via System Link our new remote control becomes part of your logger network. One remote
control can handle all connected loggers.
BLUEPIRAT Remote (optional)
While Remote Control Touch is just a control unit for handling unique devices or a TSL network,
the blue PiraT Remote additional has logger functionality by offering internal storage and some
interfaces. (Device is EOL)
License
For the additional feature Camera Link, an installed license is required. Settings for licensed
features can be performed with a valid license only.
If you need a license for your logger, please contact our sales department (please find the ad-
dress under contact at the last page).
4.1 Accessing a connected camera / camera server
If the camera / camera server is connected to a data logger and has to be modified, it can be
reached by the IP address of the logger and port 11400.
To access the configuration just put the IP address and port into your browser, e.g.:
192.168.0.233:11400
If there are more cameras / camera server connected, they can be reached by the ports 11401,
11402, 11403.

BLUEPIRAT SERIES | CAMERA USER GUIDE/ page 9 of 93
4.2 Further manuals
Beside this user Manual, we offer the main manuals for our System Client as well as for the dif-
ferent data logger generations in our Service Center at
https://sc.telemotive.de/bluepirat.
Our licensed enhancements have own manuals which are stored in the Service Center too. You
will find a list of these enhancements in the user manuals in the chapter Additional features by
optional licenses.
Under the following links, you always will find the latest versions:
User manual for the System Client
https://sc.telemotive.de/4/uploads/media/SystemClient_UserManual.pdf
User manual for BLUEPIRAT Rapid
https://sc.telemotive.de/4/uploads/media/BLUEPIRAT_Rapid_UserManual.pdf
User manual for BLUEPIRAT Mini
https://sc.telemotive.de/4/uploads/media/BLUEPIRAT_Mini_UserManual.pdf
User manual for Remote Control Touch
https://sc.telemotive.de/4/uploads/media/RCTouch_UserGuide.pdf
User manual for BLUEPIRAT Power Backup
https://sc.telemotive.de/4/uploads/media/BLUEPIRAT_Power_Backup_UserManual.pdf
User manual for BLUEPIRAT2 / BLUEPIRAT2 5E
https://sc.telemotive.de/4/uploads/media/BLUEPIRAT2_UserManual.pdf
User manual for BLUEPIRAT Remote
https://sc.telemotive.de/4/uploads/media/BLUEPIRAT_Remote_UserGuide.pdf
For having an easy access if necessary, the most important manuals are linked in the cli-
ent under the menu item [Help] and are reachable easily from there.
Figure 4.1: links to the manuals in the System Client

BLUEPIRAT SERIES | CAMERA USER GUIDE/ page 10 of 93
4.3 Additional features by optional licenses
Additional features can be activated by purchasing and installing licenses. Licenses can be or-
dered at our sales team. You find the user guides for these additional features in our Service
Center. Currently the following licensed features are available.
Feature
Description
Camera Link
video recording via video server or network cameras
Till now, only some cameras from AXIS were supported
WLAN
supporting wireless LAN / WiFi
(802.11, 802.11a, 802.11n), (802.11ac from FW 02.04.01)
GPS logging
tracking of GPS data
Measurements with CCP
CAN Calibration Protocol
Measurements with XCP
Universal Measurement and Calibration Protocol
Currently the functionality for Ethernet (XCP on Ethernet) and the CAN-bus
(XCP on CAN) are available.
MOST150 Streaming
logging MOST150 synchronous/isochronous data
MLBevo / QXDM
The license Connected-Gateway MLBevo enables the recording of data of
the ATOP control unit MLBevo via USB to the Magna Telemotive data log-
ger and convert these data with the System Client.
(from FW 02.03.01)
Additional this license allows to log Qualcomm QXDM logs via USB
(from FW 03.06.XX)
Download Terminal
The in the System Client integrated Download Terminal allows an automati-
zation of configured tasks for a defined group of devices.
(from FW 02.03.01)
Test automation
Interface for connecting to test automation tools.
At the moment, the sending of CAN messages is supported.
(from FW 02.04.01)
Cellular network
Allows the logger to send status messages over cellular network.
(from FW 03.01.01)
Firmware Care
As part of the " Service Product Firmware Care ", new software and
firmware versions are made available for download for a limited pe-
riod of time. This service is available for 12 months from the date of
purchasing the BLUEPIRAT.
This period can be extended by licenses.
Table 4.1: Additional features by optional licenses

BLUEPIRAT SERIES | CAMERA USER GUIDE/ page 11 of 93
4.4 Firmware Care
MAGNA Telemotive GmbH invests a great amount in the further development of its products.
For this we regularly provide new functions and enhancements via firmware and client releases.
Basic conditions
As part of the " Service Product Firmware Care ", new software and firmware versions are made
available for download for a limited period of time. This service is available for 12 months from
the date of purchasing the BLUEPIRAT. This period can be extended.
For details, please contact your sales partner (see contact at the end of the manual for ad-
dresses).
Affected products
BLUEPIRAT Rapid
BLUEPIRAT Mini
Remote Control Touch
BLUEPIRAT2 5E
BLUEPIRAT2
BLUEPIRAT Remote
Note:
Enhancements are only possible in current firmware releases.
Attention:
Please note that updates to main firmware versions (05.00.01 / 06.00.01) need a special
update license and can't be flashed to a device without this license.
To buy these licenses please contact our sales department under TMO.S[email protected]
(please find the complete address under Contact on the last page).

BLUEPIRAT SERIES | CAMERA USER GUIDE/ page 12 of 93
5 Configuring the network camera AXIS F54
More information about AXIS FA54 Main Unit you can also be found at:
https://www.axis.com/de-de/products/online-manual/32947
The following settings were made with AXIS firmware 10.0.2.
5.1 Connecting the network camera AXIS F54
Connect the camera with the associated main unit. Connect the power supply to the main unit.
Connect your PC or laptop via Ethernet cable to the main unit. Turn on the power supply. All
three LEDs should light green after about 60 seconds.
Figure 5.1 Connecting the network camera with a PC/ laptop
Change your PCs IP configuration. Use static IP address with the following settings:
Figure 5.2 Setting a static IP address
Power supply (acc.
AXIS-Spec.)
PC / Laptop

BLUEPIRAT SERIES | CAMERA USER GUIDE/ page 13 of 93
5.2 Access to the network camera AXIS FA54
Open your Internet browser and enter the network camera's default IP address: 192.168.0.90.
Please refer to the instructions from AXIS regarding browser support:
https://www.axis.com/support/technical-notes/browser-support
The latest versions of Chrome and Firefox are recommended.
Figure 5.3 Initial login mask
Choose your password and type it in. This password will be needed later.
If the system asks for a further authentication, please type in the same password like before.
Thereafter you have to set the capture mode and the power line frequency of the power supply.
In Europe 50 Hz is common.
Figure 5.4 Select power line frequency

BLUEPIRAT SERIES | CAMERA USER GUIDE/ page 14 of 93
Set IP address to 192.168.1.90 and set date and time manually
Figure 5.5 Defining the IP address and setting the date and time
Comment:
The time set here is initially only a temporary adjustment. In our system the data logger is the
time master and overwrites the logger time after successfully synchronizing with the video
server.
Attention:
Before you start recording always set the date and time in the data logger first.
It is impossible to change the timestamp at recorded video data. This means, the setup of a new
logger time before downloading does not change the time within the video pictures. In this case,
the timestamps of the other channels and the video picture timestamp could not match.
Click on [next].
Hint:
If you change the IP address, you will lose the connection to the network camera.
To connect to the Main Unit again, change the IP address to 192.168.1.80 in the [Internet Proto-
col Version 4 (TCP/IPv4) Properties] window of your computer.

BLUEPIRAT SERIES | CAMERA USER GUIDE/ page 15 of 93
5.3 Creating the „admin“ user
Now enter the IP address 192.168.1.90 in the browser:
Enter the user name root and the password you entered before.
Figure 5.6 Login to the Main Unit after changing the IP address
Click on the [Done] button at the bottom right
Then the [Settings] button will also appear in the bottom right-hand corner, please click on it:
In the window that opens, click on the [System] tab.
Here on [Users]:
Figure 5.7 Select the Users menu
There you create a new user "Admin" in the role of the administrator by clicking on the "+" sign.

BLUEPIRAT SERIES | CAMERA USER GUIDE/ page 16 of 93
Important!
Please enter as password 2x8bg4
Username
admin
Password
2x8bg4
Figure 5.8 Create new user Admin
After entering the password click on [Save].
Now two users root and Admin should appear in the user menu.
Figure 5.9 Created users

BLUEPIRAT SERIES | CAMERA USER GUIDE/ page 17 of 93

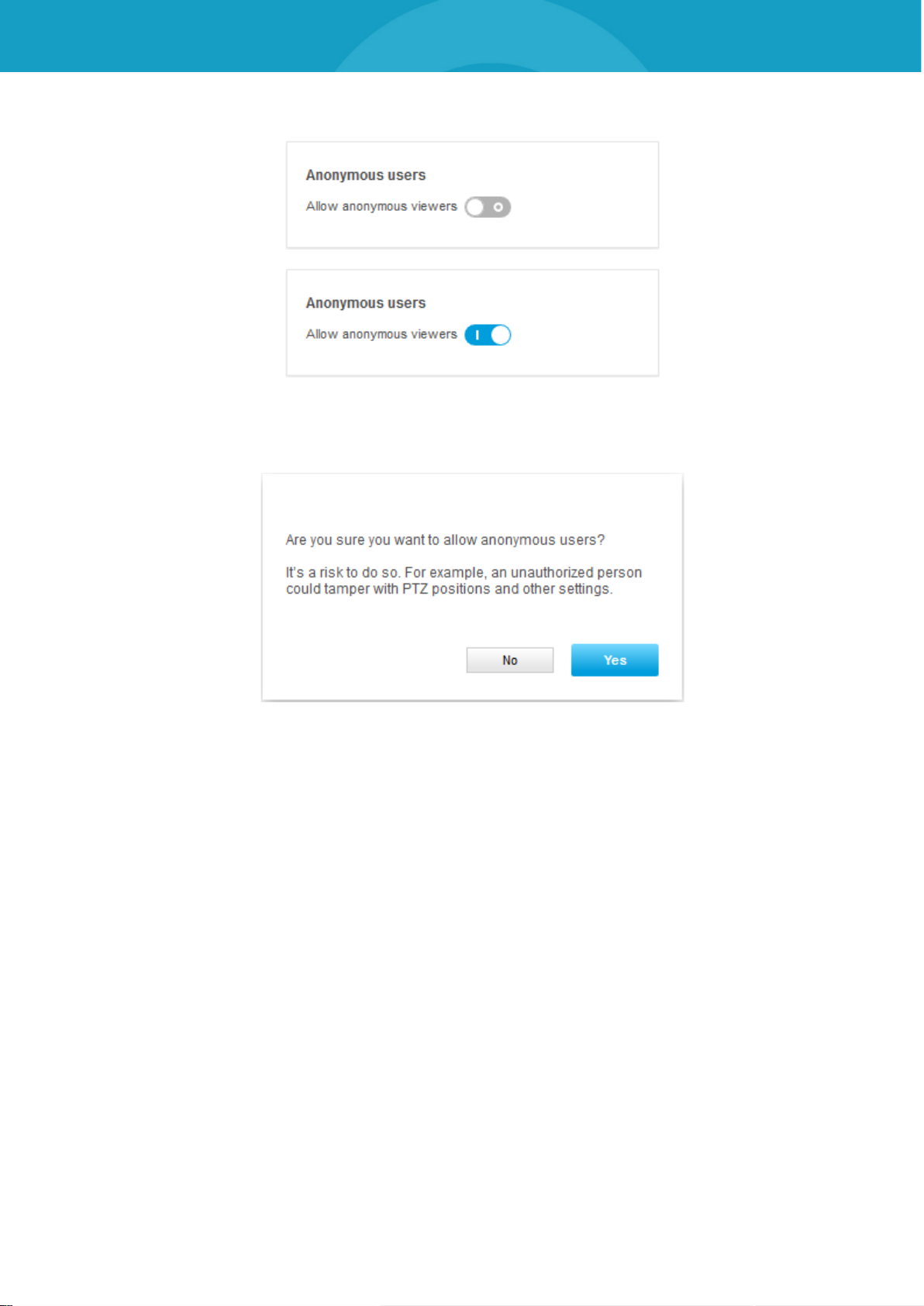

In the Anonymous Users field, move the slider to the right to allow anonymous users.
Figure 5.10 Anonymous Users field
and confirm the note by clicking the [Yes] button.
Figure 5.11 Note Allow anonymous users

BLUEPIRAT SERIES | CAMERA USER GUIDE/ page 18 of 93
5.4 Further system settings
5.4.1 RTSP (Real-Time Streaming Protocol)
Please check that the following setting is set:
On the System tab, click on [Plain config].
Figure 5.12 Selection menu
Click on the [Got it] button in the message that now appears
Figure 5.13 Confirmation query Advanced settings
To check whether the correct settings are set, scroll down in the offered selection menu "Plain-
config" and click in the line [Network]
Figure 5.14 Selection menu Simple Config

BLUEPIRAT SERIES | CAMERA USER GUIDE/ page 19 of 93
In the opened window scroll down almost completely to RTSP. The following settings should be
made there:
Figure 5.15 RTSP Menu
5.4.2 Displaying the date and time in the video image
These settings must be made individually for each camera.
To select a camera, click on the corresponding camera in the Start menu screen.
Figure 5.16 Camera selection Menu
Go to the [Overlay] tab
Figure 5.17 Settings menu
Click on [Create overlay]
Figure 5.18 Select Create Overlay

BLUEPIRAT SERIES | CAMERA USER GUIDE/ page 20 of 93
Select [Create] from the Create Overlay menu
Figure 5.19 Menu Overlay
Click on the date and time to display them in the image.
You can also set the desired formatting here.
Figure 5.20 Text input in the Overlay menu
Finally click on the button [Create].
Attention:
Before you start recording always set the date and time in the data logger first.
It is impossible to change the timestamp at recorded video data. This means, the setup of
a new logger time before downloading does not change the time within the video pic-
tures. In this case, the timestamps of the other channels and the video picture timestamp
could not match.
