Magnavox MM435 User manual

WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK,AND ANNOYING INTERFERENCE, USE
THE RECOMMENDEDACCESSORIES ONLY.

5

6
LOCATION OF CONTROLS

7
1. CD DOOR 14. (Next/Skip For ward) Button
2. LCD Display 15. ■(Stop) Button
(Set) Button
3. AL.SET (Alarm Set) Button 16. 
(Play/Pause) Button
4. TIME 17. TUNING Knob
5. POWER Indicator 18. HOUR (Set) Button
6. DBBS (Dynamic Bass Boost System) Indicator 19. DIMMER Button
7. Remote Receiver 20. AM/FM Button
8. AL. ON/OFF (Alarm On/Off) Button 21. POWER Button
9. TIME-DISP (Time Display) Button
n
22. MIN (Minute Set) Button
10. VOLUME Control Knob 23. MUSIC/BUZZER Button
11. REPEAT Button 24. FUNCTION Button
12. PROG (Program) Button 25. DBBS (Dynamic Bass Boost System) Button
13. (Previous/Skip Backward) Button 26. CD Door OPEN (Close) Area
1. LINE-IN Jack 2. SPEAKER OUT R (Right) Jack
3. SPEAKER OUT L (Left) Jack 4. AC Power Cord
1 2 43

8
1. Battery Door
3
5
2
4
1
6
1.  (Play/Pause) Button 2. (Next/Skip Forward) Button
3. (Previous/Skip Backward) Button 4. ■(Stop) Button
5. REPEAT Button 6. Battery Holder

9
CONNECTION:
Connect the small plug from the Left and Right Speaker Boxes to the SPEAKER OUT
L & R Jacks on the rear of main unit as the illustrated below:
POWER SOURCE:
Main Unit:
Unwind the AC power cord and extend it to its full length. Insert the AC plug of the
cord into any convenient AC 120V~; 60Hz household outlet as the illustrated below:
Right Speaker Box Left Speaker Box

10
Notes:
This unit is equipped with a polarized AC plug which has one blade wider than
the other. This is a safety feature to reduce the like holder of electric shock. This
polarized AC plug will only fit in a polarized AC outlet. If you find that you cannot
insert this plug into your outlet, you may have an obsolete non-polarized outlet.
Please do not try to defeat this safety feature by using a non-polarized adaptor or
by filling the wider blade to make it fit into your outlet. If this plug does not fit into
your outlet, you should contact a qualified licensed electrician to replace your
obsolete outlet.
If the AC power failure, this electronic clock is designed to continue operating
internally (without showing the time on the LCD Display) with two (2) AAA size
batteries (not included).
Install the batteries as follows:
Open the battery door on the bottom of the unit by press the tab and then
lifting it as the illustrated follows:
Insert two (2) AAA size batteries (not included) according to the polarity
diagram inside the battery compartment. (Alkaline batteries are
recommended.)
Replace the battery door.

11
Replacing the button cell when it is drained:
Push and slide out the battery holder as the illustrated below.
Replace the button cell with new CR2025 button cell as the polarity markings on
the rear of the Remote Control.
Close the battery holder.
BATTERY PRECAUTIONS:
Follow these Battery Precaution when using a battery in this device:
1. Use only the size and type of battery specified.
2. Be sure to follow the correct polarity when installing the battery as indicated in the
battery compartment. A reversed battery may cause damage to the device.
3. Do not mix differenttypes of batteries together (e.g. Alkaline and Carbon-zinc) or
old batteries with fresh ones.
4. If the batteries in the device are consumed or the device is not to be used for a
long period of time, remove the batteries to prevent damage or injury from
REMOVE BEFORE OPERATING
REMOTE CONTROL:
First time use:
Remove and discard the insulation film as the illustrated follows:

12
6. Do not dispose of battery in fire. Battery may explodes or leak.
7. Clean the battery contacts and also those of the device prior to battery installation.
8. This product contains a coin/button cell battery. If the coin/button cell
battery is swallowed, it can cause severe internal burn in just 2 hours and can lead
to death.
Keep new and used batteries away from children. If the battery compartment does
not close securely, stop using the product and keep it away from children.
If you think batteries might have been swallowed or placed inside any part of the
body, seek immediate medical attention.

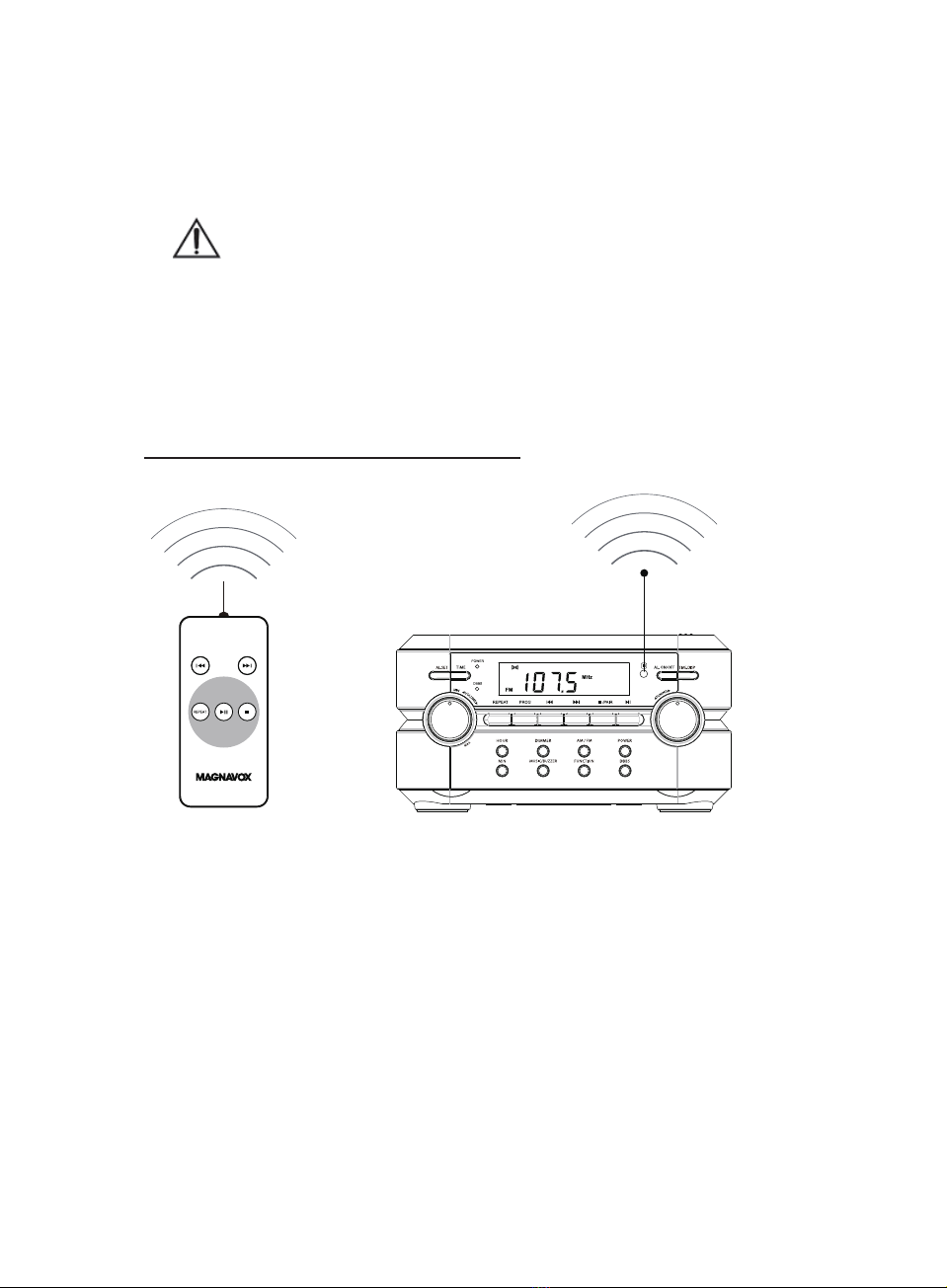

EFFECTIVE DISTANCEOF REMOTE CONTROL
When there is an obstacle blocking between the sensor, the remote may not
work.
When direct sunlight, or any other strong light shines on the remote control, the
remote operation may be unstable.
25 Feet
<±45°
possible battery leakage.
5. Do not try to recharge the battery not intendedto be recharged; it can overheat
and rupture. (Follow battery manufacturer’s instructions.)

13
2. Press the POWER Button on the unit to turn on the unit from standby mode. The
POWER Indicator will illuminate.
3. Press the FUNCTION Button repeatedly to switch to desired playback mode.
The correspondent indicator will appear on the display with your selection (see
list below):
Playback Mode: Indicators:
CD “Cd” will appear on the display
BT (Bluetooth) “bt” will appear on the display
Radio FM Band “FM” will appear on the display
Radio AM Band “AM” will appear on the display
4. During playback,
Turn the VOLUME Control Knob on the unit to adjust volume level as desired.
Press the DBBS Button to turn on the Dynamic Bass Boost System (to
enhance the bass of the sound), the DBBS Indicator will illuminate. Press
again to turn it off.
5. Press the DIMMER Button repeatedly to set the brightness level of
display.
6. When finished listening, press the POWER Button on the unit to turn back to
standby mode.
CLOCK:
To set or reset the actual time:
In Standby mode, press and holding the TIME (Set)Button, time on display will
blinking. Then:
Press the HOUR Button on the unit to set hour.
(Make sure the PM Indicator appearing on the display if the time is PM and
AM Indicator appearing on the display if the time is AM).
Press the MIN (Minute Set)Button on the unit to set minute.
When finished settings, release the TIME Button to save the settings
and exit, time on display will stop blinking.
OPERATION
GENERAL OPERATION:
1. Connect the unit to AC power as previously instructed. The unit will enter to
standby mode automatically and the LCD Display will illuminate.
(Set)
(Set)

14
(Make sure the PM Indicator appearing on the display if the alarm time is PM
and AM Indicator appearing on the display if the alarm time is AM).


When finished settings, release the AL. SET Button to save the settings and
exit. The actual time will appear on the display.
Press the AL. ON/OFF (Alarm On/Off) Button to activate alarm. The “ ”
Indicator will appear on the display.
To set or reset the wake up mode:
In alarm on mode, press and holding the AL. SET Button, alarm time will appear on
the display and blinking. Press the MUSIC/BUZZER Button at the same time
repeatedly to set or reset the wake up mode as desired. The correspondent
indicator(s) will appear on the display with your selection (see list below):
: Wake up by Buzzer
+ CD : Wake up by CD
+♪: Wake up by Radio
Notes:
1. After setting, press the AL. SET Button to read the Alarm time.
2. Alarm will not operation when the unit is in power on mode.
3. If radio wake up mode was selected, received the desired radio station as
previous procedure and also set the desired volume level before activate alarm.
4. If CD wake up mode was selected, make sure you were placed the desired CD
disc in the unit and sound level was set to suitable level. Otherwise, when Alarm
goes off, no sound output from the speaker or sound weak.
Shut off alarm:
When alarm goes off, press the AL.ON/OFF Button on the unit once. Alarm will
turn on again on next day.
To turn off alarm completely (alarm will not turn on next day), press the AL.
ON/OFF Button repeatedly until all the correspondence alarm indicators
disappear on the display.
ALARM SET:
To set or reset the alarm time:
In Standby mode, press and holding the AL. SET (Alarm Set)Button on the unit, alarm
time will appear on the display and blinking. Then:
Press the HOUR (Set) Button on the unit to set hour.
Otherwise, when Alarm goes off, no sound output from the speaker or sound weak.
Press the MIN (Minute Set) Button on the unit to set minute.

15
BT (BLUETOOTH) :
RADIO:
First time use or re-pairing the unit to a new BT Device, pair as follows:
1. Power on the unit and enter to BT mode as previously instructed. “bt” indicator
will appear on the display and blink.
2. Power on the external BT Device and enter to BT searching mode. Start pairing
following the on screen instructions from the external BT Device. After paired, the
“bt” indicator on the display will stop blinking.
3. If pairing is complete you may now play music with your external BT Device.
4. During playback:
Press the 
Play/Pause Button on the unit or Remote Control to pause,
press again to resume normal playback.
Press the  (Next/Skip Forward) or (Previous/Skip Backward) Buttons
on the unit or Remote Control repeatedly to skip tracks.
Notes:
When the external BT Device searched the unit, our model number “MM435” will
appear on the display of external BT Device.
If while pairing you are asked for a code, please try "0000" or "1234".
Normal operation after pairing:
1. Turn on the BT function of the external BT Device.
2. Power on the unit and enter to BT mode as previously instructed. “bt” indicator
will appear on the display and blink.
3. Wait a few seconds until the unit is automatically paired to the external BT
Device. (“bt” indicator on the display will stop blinking).
4. After pairing is complete you may now play music with your external BT Device.
1. Power on the unit and enter to Radio mode as previously instructed. “AM” or “FM”
indicator and the radio frequency will appear on the display.
2. Press the AM/FM Button to select the radio band as desired.
3. Turn the TUNNING Knob to receiving the desired radio station.
4. Press the TIME-DISP (Time-Display) Button repeatedly to read the radio
frequency or actual time.
BT (Bluetooth) pairing

16
Note: If stereo FM radio station is receiving in FM band. The FM stereo indicator “FM”
will appear on the display automatically.
Antennas:
This unit has a built in AM/FM antenna, which provides adequate reception in most
areas. If reception is weak, reassemble the other direction/location to improve
reception.
CD:
1. Open the CD door by press the CD OPEN (Close) area.
2. Place a CD disc on the center spindle, with the printed label side up.
3. Close the CD Door by press the CD OPEN (Close) area
.
4. Power on the unit and enter to CD mode as previously instructed. “Cd” indicator
will appear on the display.
5. Wait a few seconds until the total number of tracks appears on the display. Then
press the 
Play/Pause Button on the unit or Remote Control to start playback.
6. During playback:
Press the


Play/Pause Button on the unit or Remote Control to pause,
press again to resume normal playback.
Press the(Next/Skip Forward) or (Previous/Skip Backward) Buttons on
the unit or Remote Control repeatedly to skip tracks.
Press and holding the(Next/Skip Froward) or (Previous/Skip Backward)
Buttons on the unit or Remote Control repeatedly to fast searching
the specified section.
To stop, press the ■(Stop) Button on the unit or Remote Control.
Repeat Playback:
1. During playback, press the REPEAT Button on the unit or Remote Control once.
“REP 1” indicator will appear on the display. The current track will playback
repeatedly.
2. During playback, press the REPEAT Button twice. “REP ALL” indicator will
appear on the display. All the tracks on the current disc will be playback
repeatedly.
3. To cancel the repeat function, press the REPEAT Button repeatedly until all the
repeat indicators disappear on the display.
CD Playbacky:

17
3. To cancel the repeat function, press the REPEAT Button repeatedly until all the
repeat indicators disappear on the display.
Programmed Playback:
Up to 20 tracks can be programmed playback as follows:
1. In CD stop playing mode, press the PROG (Program) Button. “PROG 01” will
appear on the display and PROG indicator will blink.
2. Select the first specific track to be programmed by pressing the
(Next/Skip
Forward) or (Previous/Skip Backward) Buttons on the unit or Remote Control
repeatedly.
3. Press the PROG Button again to store the selected track into the memory.
4. Repeat steps 2 and 3 until all the specific tracks stored into the memory.
5. Press the

Play/Pause Button on the unit or Remote Control to start program
playback.
6. To stop press the■(Stop) Button on the unit or Remote Contronl once. “PROG”
indicator will remain on the display. Then press the Button to start program
playback again.
7. To stop and cancel the program, press the ■(Stop) Button on the unit or
Remote Control twice. “PROG” indicator on the display will disappear.
1. Connect the external Audio Device with a 3.5mm AUX cable. (Cable not
included).
2. Insert one end of the AUX cable to the Phone; Line Out or AUX Out Jack on the
external Audio player.
3. Power on the unit from Standby mode by press the POWER Button on the unit.
Insert the other end of the AUX cable into the LINE IN Jack on the rear of unit.
The unit will enter to the LINE IN mode automatically. “AU” indicator will appear
on the display.
4. Play the music on the connected Player as usual. (Make sure the volume level of
the connected Audio Player is turned to high level.)
Note:
If the Aux Cable was plugged into the LINE IN Jack, the other function such like
BT; CD and Radio will be auto cut. Unplug the cable from the LINE IN Jack before use
IN Jack before use other functions.

LINE (AUX) IN:

18
TROUBLESHOOTING
Check the following before requesting service:
SYMPTOM POSSIBLE CAUSE POSSIBLE SOLUTION
No power AC Power cord had not connected Plug the AC Cord to any wall
outlet having AC 120V~; 60Hz
No sound or sound weak
V
olume of the unit was set to minimum
position
Increase the volume level by
turning the VOLUME Control
clockwise
Volume level of paired/connected
device is in low level
Rise the volume level of the
paired/connected device
Sound distortion
Volume level too high Reduce the volume level by
turning the VOLUME Control
counterclockwise
Volume level of the connected/paired
device too high
Reduce the volume level of the
connected/paired device
Radio; CD or BT not functioning Audio connection cable was
inserted into the LINE IN jack
Unplug the cable from LINE IN
Jack
BT not functioning
Unit not in BT mode Press the FUNCTION Button
repeatedly until “bt” appear on
the display
The external BT device had NOT
paired to the unit
Pair the external BT Device to
the unit as page 15
The external BT device too far from
the unit
Place the external BT device
close to the unit
CD not play
Unit not in CD mode Press the FUNCTION Button
repeatedly until “Cd” appear on
the display
CD disc incorrect install Place the CD disc on the center
spindle with label side face up
Disc is dirty or scratched Try other discs
Radio not function Unit not in radio mode Press the FUNCTION Button
repeatedly until “AM” or “FM”
indicator appear on the display
Radio reception not good The direction or location no good for
radio reception
Turn the unit to a new direction
or replace the unit to a new
location
Knob
Knob

19
SPECIFICATTIONS
Power Source: AC 120V~; 60Hz; 18W
Clock Back Up: DC 3V; 2 x “AAA” size batteries (Not
included)
BT Version: 4.0
BT Operation Distance: ≧32 Feet in open area
Radio Frequency: AM: 520-1710kHz
FM: 87.5-108MHz
Disc Compatible: CD; CD-R; CD-RW
Impedance of Speakers: 2 x 3W; 4ohm
Audio power: 2 x 2W (Total 4W, RMS)
ACCESSORIES
1 x User’s Manual
1 x Remote Control (Uses 1 x CR2025 Button Cell, Included)
SPECIFICATIONS AND ACCESSORIES ARE SUBJECT TO CHANGE
WITHOUT NOTICE
