MAI M400NT User manual

AI PUMP
AI PUMP
OPERATING INSTRUCTION
OPERATING INSTRUCTION
CERTIFIED

MAI International
GmbH
© Copyright 2003 V20/10/03 Page 2

MAI International
GmbH
LIST OF CONTENTS
List of contents......................................................................................................................................................3
Foreword ................................................................................................................................................................4
User-friendly ..........................................................................................................................................................4
Operating instructions ..........................................................................................................................................4
Potential hazards...................................................................................................................................................4
Warranty and liability ............................................................................................................................................5
Prescribed use of the machine ............................................................................................................................5
Improper use..........................................................................................................................................................5
Personal safety ......................................................................................................................................................5
Safety devices........................................................................................................................................................6
General safety instructions ..................................................................................................................................6
Copyright................................................................................................................................................................6
General ...................................................................................................................................................................7
Training the operating personnel ........................................................................................................................7
Training record ......................................................................................................................................................8
Safety instructions for manual operation ...........................................................................................................8
Hazards of electricity ............................................................................................................................................8
General safety regulations ...................................................................................................................................9
Machine views .....................................................................................................................................................10
Operating panel and indicators .........................................................................................................................11
Plug-in connections ............................................................................................................................................11
Main dimensions .................................................................................................................................................12
Technical data......................................................................................................................................................12
Technical Descripton ..........................................................................................................................................13
Filter parts ............................................................................................................................................................14
Initial settings ......................................................................................................................................................14
Transport weight & dimensions.........................................................................................................................15
Controls................................................................................................................................................................16
Directions before start-up...................................................................................................................................16
Connections before start-up ..............................................................................................................................17
Start-up.................................................................................................................................................................17
Start-up for manual operation............................................................................................................................20
Start-up with remote control ..............................................................................................................................20
Interruptions and downtime ...............................................................................................................................21
Termination of work and cleaning .....................................................................................................................21
Machine maintenance .........................................................................................................................................22
Procedure in the event of frost ..........................................................................................................................22
Transport..............................................................................................................................................................23
Checklist for remedying faults...........................................................................................................................24
Main and control system circuit ........................................................................................................................25
Spare parts...........................................................................................................................................................26
© Copyright 2003 V20/10/03 Page 3

MAI International
GmbH
FOREWORD
Dear MAI customer!
We wish to congratulate you on your purchase of
the MAI m400NT mortar mixing pump. The MAI
pump m400NT is a fully automatic mortar mixing
pump for continuous processing of all kinds of ma-
chine-processable anchor mortar and building site
cement.
The pump is driven by one motor only. A rubber
screw in the mixer transports the dry anchor mortar
to the mixing chamber where it is continually mixed
with water.
The water can either be supplied direct if the pres-
sure is high enough or an optional water pump can
be fitted, if required.
Once the material is thoroughly mixed, the entire
amount is then drawn in and pumped away by the
clampless, maintenance-free screw pump.
The most important features of the MAI pump
m400NT are the high quality of the components
used, the user-friendly layout of the controls and the
rugged design which proves its worth, day in and
day out on demanding building site applications.
User-friendly
oSimple to service and dismantle thanks to the
modular design.
oClearly structured operating elements.
oEconomical.
oThe patented MAI mixing and pumping tech-
nology guarantees continuous blending of dry
material, uniform mixing ratio, constant mixing
quality and therefore adequate processing.
OPERATING INSTRUCTIONS
These operating instructions contain the most im-
portant directions for a safe operation of the ma-
chine. The manual should therefore always be kept
in the tool box so that it is at hand when required.
Please read the operating instructions carefully
before starting the machine to familiarize yourself
with its handling and trouble-free operation of the
machine.
A working knowledge of the basic safety regulations
and instructions is the prerequisite for safe handling
and trouble-free operation of the machine.
Every single person working with the machine must
not only observe the operating instructions and the
safety regulations in particular, but also the applica-
ble rules and regulations governing accident pre-
vention at the location.
POTENTIAL HAZARDS
The MAI pump m400NT is built to the state of the
art and in accordance with recognized safety regu-
lations.
If not used properly, the machine
can however constitute a danger
to life and limb for the operator or
third parties, or adversely affect
the machine or other material re-
sources
!
DANGER
The machine may only be operated for the pre-
scribed use and if it is in perfect condition conform-
ing to the safety regulations. Faults that could affect
safety must be remedied immediately.
© Copyright 2003 V20/10/03 Page 4

MAI International
GmbH
MAI International GmbH shall cancel all obligations
entered into by MAI International GmbH and/or its
dealers, such as guarantees, service agreements
etc., without notice if any other than original MAI
Pump or MAI International spare parts are used for
operation, maintenance or repairs.
WARRANTY AND LIABILITY
O
C
w
p
W
t
e
u
o
a
u
c
c
a
h
m
xc
one or more of the follo
Operation of the machine for any other than the
osembly, start-up, operation and
odefective safety
ons in the operat-
otions to the motor (e. g.
ochine parts that
oges to the ma-
oerly carried out repairs.
sult of external
Ple cturer’s warranty shall
r „General Terms and
nditions of Sale“ apply to
rranty and liability. The
rchaser will have received a
opy on conclusion of the
ontract at the latest. PRESCRIBED USE OF THE
MACHINE
rranty and liability claims in
e event of personal injury or
aterial damage shall be
luded if they are caused by
wing reasons:
The prescribed use of the MAI pump m400NT is for
mixing and pumping commercially pre-mixed, ma-
chine processable dry mortar such as cement or
anchor mortar with a max. grain size of 4 mm.
Please note that the MAI pump m400NT can only
function properly if the mortar or cement used is
indeed machine-processable material (e. g. verified
with a manufacturer’s certificate).
prescribed use:
Improper as
maintenance of the machine.
Operation of the machine with IMPROPER USE
devices or incorrectly fitted or non-functioning
safety and protective devices.
Non-observance of the directio
Any uses for the MAI pump m400NT, other than
those prescribed above are prohibited. The MAI
pump m400NT is not intended for mixing non-
machine processable dry mortar or other materials,
such as inflammable or potentially explosive sub-
stances or from asbestos existing materials used in
the chemical industry.
ing instructions regarding transport, storage as-
sembly, start-up, running, maintenance and set
up of the machine.
Unauthorized altera
power or speed), mixing shaft, rubber screw,
mixing chamber, controls etc.
Inadequate monitoring of ma
In the event of improper use, the operator runs the
risk of jeopardizing life and limb, damaging the ma-
chine and other property, having an unforeseeable
impact on the environment, and impairing efficient
operation of the machine.
are subject to wear and tear (e. g. mixing shaft,
rubber screw or worm pump).
Unauthorized structural chan
chine.
Improp PERSONAL SAFETY
oUnforeseen disasters as a re The machine purchaser must provide the necessary
personal safety equipment.
influence or force major.
ase note that the manufa
All the existing safety devices on the machine must
be inspected at regular intervals and checked to
ensure that they are functioning properly.
expire if your machine is not operated and serviced
in accordance with these operating instructions.
© Copyright 2003 V20/10/03 Page 5

MAI International
GmbH
SAFETY DEVICES COPYRIGHT
Before starting the machine, ensure that all the
safety devices are fitted correctly and functioning
properly.
All parts of this documentation are subject to copy-
right (©).
Photocopying or circulating the documentation, in
part or in whole, is prohibited.Safety devices may only be removed:
oafter a standstill and No part of this documentation may be reproduced,
stored in a retrieval system, transmitted or trans-
lated in any form or by any means without the prior
written permission of MAI International GmbH.
oif the machine is prevented from being re-
started (e.g. padlock on master switch).
When components are replaced, the purchaser
must ensure that the safety devices are fitted again
properly.
Copies of individual parts may be made and passed
onto third parties if they are required for locating
faults.
GENERAL SAFETY IN-
STRUCTIONS
© Copyright 2003, MAI International GmbH. All
rights reserved.
MAI International GmbH
The operating instructions must always be kept on
the machine.
Werkstrasse 17
A-9710 Feistritz/Drau
Company Register No. 93560 p
Klagenfurt Provincial Court
In addition to the operating instructions, the general
and local regulations on accident prevention and
environmental protection must be made available to
the operator and observed.
We reserve the right to alter any technical details of
the machine compared with the specifications and
illustrations in the present manual.
All safety regulations and warnings on the machine
must be legible and replaced as required. No claims against the manufacturer, especially
regarding design and structure of the machine may
be derived from statements made in the operating
instructions.
MAI®und MAI-PUMP®are registered trademarks of
MAI International GmbH.
© Copyright 2003 V20/10/03 Page 6

MAI International
GmbH
Non-observance of these directions can cause
faults on the machine or in the work environment.
GENERAL
NOTE: indicates directions for
preventing faults or tips for eco-
nomical use of the machine.
NOTE
i
In the operating instructions we have listed the most
important directions for correct operation and main-
tenance of the MAI m400NT mortar mixing pump.
The prerequisite for the use of the machine is a
thorough knowledge of the technical documentation
and observation of the instructions and directions,
especially the safety regulations. In addition, the manual contains useful information
to help you to make the most of your machine.
The operating, safety and work instructions are
binding. The special symbols illustrated below indi-
cate important instructions which affect machine
and personal safety:
TRAINING THE OPERATING
PERSONNEL
1. The qualification required by the machine op-
erator are physical and mental aptitude, a
sense of responsibility and reliability in carrying
out the tasks assigned, proof of the necessary
skills and a declaration to the company that
training regarding operation, maintenance and
repair of the machine has been received. The
minimum age for machine operators is 18
years.
DANGER: This symbol means
imminent danger to the life and
health of people.
!
DANGER
Non-observance of these directions will cause seri-
ous damage to health and even lethal injuries.
WARNING: this symbol means a
potential risk to the life and health
of people.
2. In accordance with use as prescribed, the ma-
chine may only be started if the manufacturer’s
operating instructions are observed.
!
WARNING
3. Only trained and instructed personnel may work
with the machine. The responsibilities for set-
up, operation and maintenance must be clearly
defined.
Non-observance of these directions can cause seri-
ous damage to health and even lethal injuries.
4. Trainee personnel may only work on the ma-
chine under the supervision of an experienced
person.
CAUTION: this symbol means a
potentially dangerous situation.
!
CAUTION
5. The machine controls may only be operated by
trained personnel.
6. Training on the machine must, without excep-
tion, be confirmed in writing.
Non-observance of these directions can cause
slight injury or damage to property.
IMPORTANT: this symbol indi-
cates important information for
correct handling of the machine.
© Copyright 2003 V20/10/03 Page 7

MAI International
GmbH
TRAINING RECORD HAZARDS OF ELECTRICITY
PERSON
ACTIVITY
Person
trained
Person
with
techni-
cal
qualifi-
cations
Elec-
trician
Superior
with
techni-
cal
compe-
tence
Start-up
Operation
Trouble-
shooting
Remedying
mechanical
faults
Remedying
electrical
faults
Maintenance
Repair
1. Work on the electrical supply may only be car-
ried out by authorized electricians. Inspect the
machine’s electrical system regularly. Obvious
defects, such as loose connections, singed ca-
bles etc. must be rectified immediately.
Repairs to the electrical system,
especially installation, connection
and opening of control cabinets
which are fed by the power supply
system, may only be carried out by
authorized personnel.
!
DANGER
2. In accordance with use as prescribed, the ma-
chine may only be started if the manufacturer’s
operating instructions are observed.
3. All safety instruction labels and warnings, and
all devices attached to the machine for safety
and accident prevention must always be legi-
ble, and may not be altered or removed.
4. Check that the machine is safe for operation
before every start-up. If any faults occur, pro-
ceed as follows:
Minor faults that do not affect safety:
Shut down the machine at once, remedy the fault
and notify the supervisor if necessary.
SAFETY INSTRUCTIONS FOR
MANUAL OPERATION Faults that affect safety:
The machine may only be operated if all the safety
devices are functioning properly. Stop operation of the machine immediately, notify
the supervisor and have the faults rectified by au-
thorized personnel.
Before switching on the machine, ensure that no-
body is at risk when it starts.
Inspect the machine for visible damage and check
that the safety devices are in proper service condi-
tion at least once a day.
© Copyright 2003 V20/10/03 Page 8

MAI International
GmbH
6. Before cleaning the machine with water, close
all openings where water penetrating could
have a detrimental effect on function or safety
(electric motors, control cabinet and plug-in
connectors). After cleaning, remove the caps
and covers again.
GENERAL SAFETY REGULA-
TIONS
1. Any alterations, additions and conversions to
the machine require prior written permission
from the manufacturer. Failing this, any war-
ranty and liability claims shall expire. We also
wish to point out that only original MAI spare
parts may be used in the machine.
The MAI m400NT mortar mixing
pump conforms to Protection
Class IP44 in accordance with DIN
40050 and may not be cleaned
with water jets.
!
DANGER
2. The machine may
only be operated by
qualified, reliable
personnel selected
by the company,
trained in and
familiar with the
operation,
maintenance and
working of the
machine.
7. If work has to be carried out on live parts, a
second person must be at hand to break the
circuit in case of an emergency.
8. Disconnect the power supply before changing
the location of the machine. Check that it is
connected to the mains again correctly before
starting operation again.
9. The machine must be connected to a proper
power source, e.g. construction site distribution
board with r.c.c.b. (rated fault current I=30mA)
3. Trainee personnel
may only be
instructed in the
handling of the
machine by an
already qualified,
experienced
operator.
10. Set up the machine horizontally with safety
lights in place and safeguarded against acci-
dental movement.
11. Ensure that the mortar hoses are laid without
kinks and not rubbing on any sharp edges to
prevent them from being damaged. Where
there is a change of direction, the bending ra-
dius must not be less than six times the outside
hose diameter.
4. Follow the
operating
instructions with
regard to indicators
and procedures for
machine.
switching on and off the
Screw pumps are high pressure
pumps – only use steel-reinforced
hoses.
!
WARNING
5. The machine must be prevented from acciden-
tal restarting during any maintenance and re-
pair work. To do this, immobilize the master
switch with a padlock. You can also apply a
warning sign to the master switch.
© Copyright 2003 V20/10/03 Page 9

MAI International
GmbH
19. The mixer motor must not be switched on when
it is tilted.
12. Before starting the machine, ensure that ma-
chine-processable, easily workable mortar is
being used, the hose is not leaking anywhere,
especially at the unions, and the inside of the
hose has been sufficiently lubricated.
20. When you fill the dry mortar in the hopper it can
come to strong dust formation. It can be
necesaary to wear a protective mask.
21. The machine may not do in the environment
with danger of explosion which by types of dust,
steams or gases can develop are used.
13. Before undoing the unions and the pump outlet
flange, ensure that they are depressurized by
start the main motor in „REVERSE“ direction.
To prevent eye injuries protective goggles is to
be used.
MACHINE VIEWS
1... Safety screen with bag opener
2... Water system
3... Control cabinet
4... Water injection unit
5... Mixing chamber
6... Worm pump
7... Pump outlet
8... PU lining tube
9... Vibrator
10... Water pump
11... Main motor
12... Charge hopper
14. Wear protective goggles when removing ob-
structions. The person carrying out the task
must be in a position where he cannot be hit by
any material that may be discharged. Other
people must be kept out of the immediate vicin-
ity.
15. The machine must be inspected by a qualified
person at least once a year.
16. The control cabinet may only be opened if the
machine is disconnected from the power sup-
ply.
17. The safety screen must not be removed while
the machine is in operation.
Disconnect the machine from the
power supply before removing the
screen or carrying out any clean-
ing and repair work
!
WARNING
18. The cover on the flange of the mixer motor and
the flange of the pump outlet must not be
opened while the machine is in operation.
© Copyright 2003 V20/10/03 Page 10

MAI International
GmbH

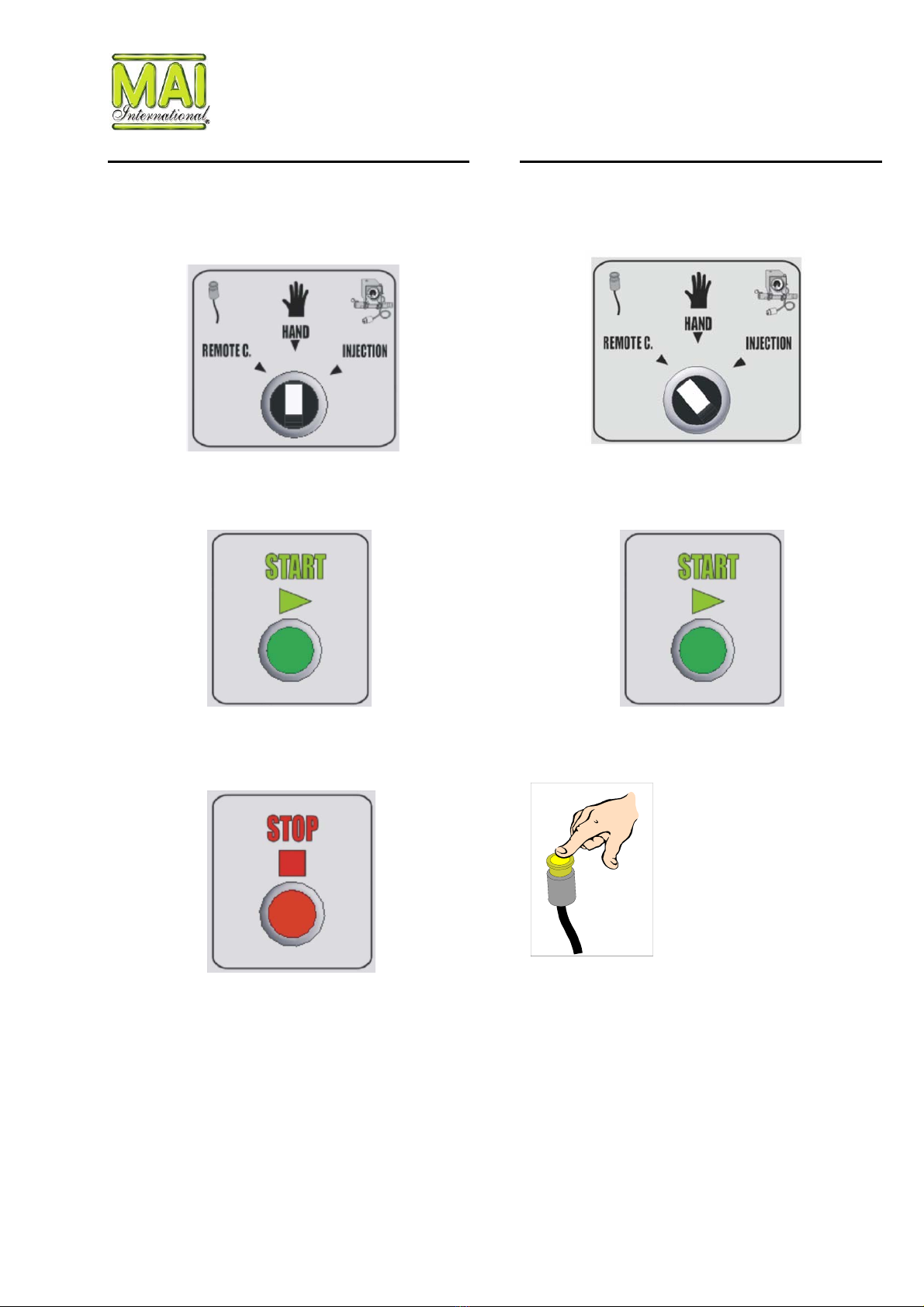

Mode switch:
„REMOTE C– HAND – INJECTION“
Manual operation (setting „HAND“) is the
normal operation mode of the machine.
When on “REMOTE C” the machine can be
operated with the remote control.
When on “Injection” the machine can be
operated with the Mai Injection pressure
switch

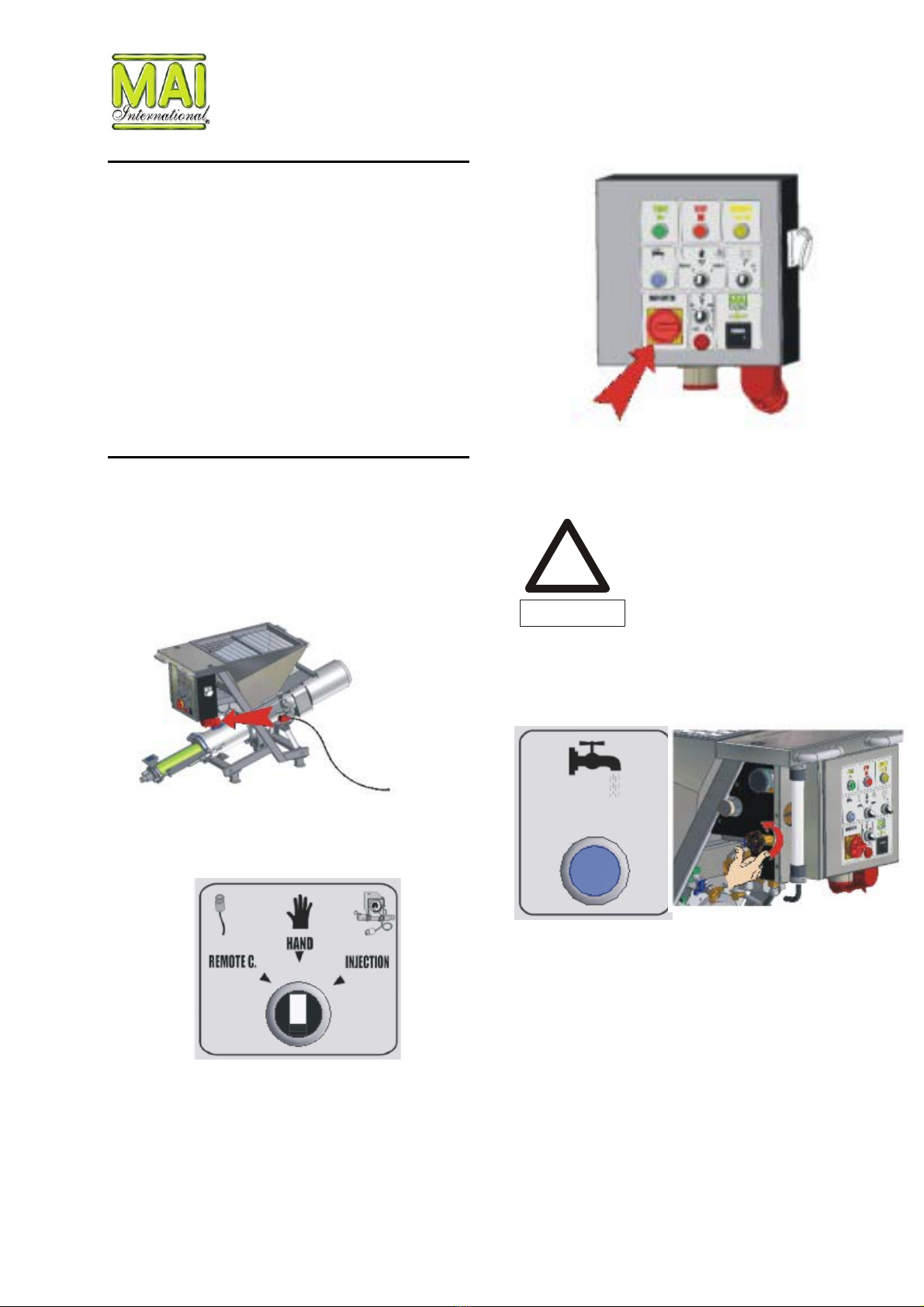

OPERATING PANEL AND IN-
DICATORS
Red button
“STOPS” or shuts-off the machine when
running or ready for operation
Mode switch vibrator: „0FF – ON“
The vibrator, located on the mixing chamber
of the mortar mixing pump, prevents the dry
mortar from bridging.
Green button
„STARTS“ the main motor in forward direc-
tion or for establishing readiness for opera-
tion.
Mode switch water pump (optional)
“ON – OFF-AUTO”
Setting “ON” the Water pump is continuous
running
Setting “AUTO” water pump running with
main motor
Yellow button
Starts the main motor in „REVERSE“ direc-
tion for depressurizing the hoses before
opening the quick-change-coupling (when
needed).
Red indicator or fault display
When illuminated, indicates a “FAULT”
caused by motor overload.
Hour meter
Indicates how long the main motor has been
running.
Blue button Water injection
Water can be injected into the mixing cham-
ber by pressing the blue button.
When illuminated, indicates that enough water
pressure is available.
PLUG-IN CONNECTIONS
1... Socket for remote control or injection pressure switch
2... Socket for main motor 4x32A
3... Main power plug ~3x400V/50Hz/32A/5-poles
Main power plug ~3x200-220V/50-60Hz/32A/5-poles
Main switch „EMERGENY OFF“
System power ON-OFF, lockable with safety
disconnection and short circuit function.
© Copyright 2003 V20/10/03 Page 11

MAI International
GmbH

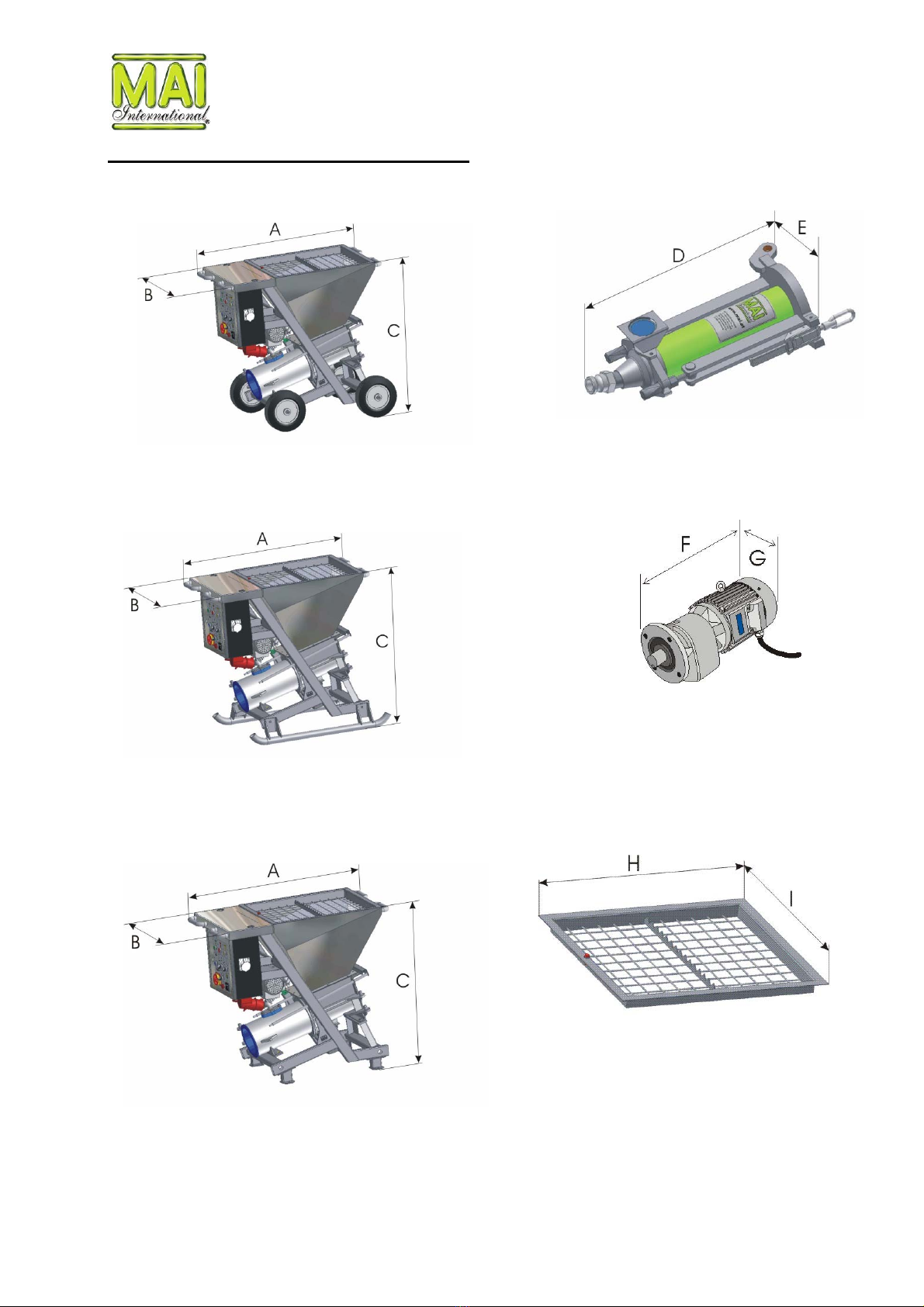

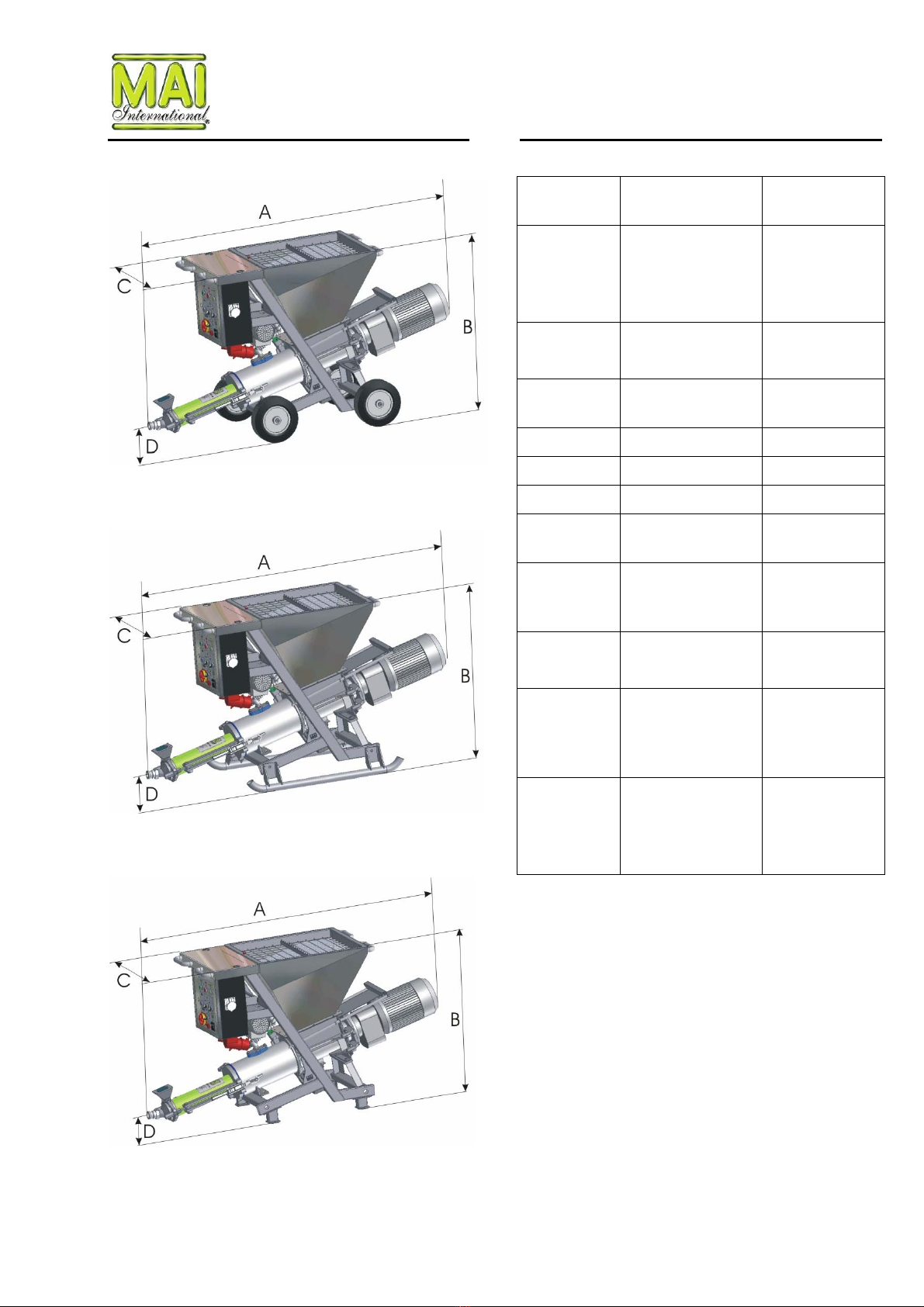

MAIN DIMENSIONS TECHNICAL DATA
Model Mortar mixing and
injection pump
m400NT
Drive Mixer motor ~3x400V/50Hz/
6.0kW 12,1A
~3x220V/60Hz/
6.0kW 23A
Connection Electricity ~3x400V/50Hz
~3x220V/60Hz
Protection Board distribution with
r.c.c.b. only
min. 3x32A
Cable diameter Power supply min. 4x4 mm²
Nominal power Overall system 6,2 kW
Ext. power unit Minimum size 16 kVA
Water connec-
tion
Hose min.3/4” at least 2,5 bar
(dynamic)
Operating
pressure*1
If the hose is chocked,
the pressure can rise to
100 bar).*1
approx. 40 bar*1
Operating
distance*1
with hose NW 25
with hose NW 35
approx. 40-60 m*2
max. 200*3
Mortar hose All the figures quoted
here refer to MAI prod-
ucts and MAI hoses
only.
Steel reinforced
hose NW 25 and
NW 35. Burst pres-
sure = 160 bar *4
Water pump*5 No self priming pump ~3x400V/50Hz/
0,53kW/1,7A
~3x220V/60Hz/
0,53kW/3A
1. In addition to other factors, the operating pressure and
pumping distance depends on the mortar speed, material
quality, consistency, maximum grain and the nominal width
of the pump outlet.
2. Prerequisite for reaching the listed figures is the use of
machine processable dry materials.
3. These figures can only be reached in exceptional cases
with special materials.
4. Only use steel-reinforced hoses.
5. The water pump is not included in the standard scope of
delivery (i. e. available as an optional extra).
A... ca. 173 cm B... ca. 96 cm
C... ca. 57 cm D... ca. 12 cm
A... ca. 173 cm B... ca. 96 cm
C... ca. 57 cm D... ca. 12 cm
A... ca. 173 cm B... ca. 92 cm
C... ca. 57 cm D... ca. 9 cm
© Copyright 2003 V20/10/03 Page 12

MAI International
GmbH

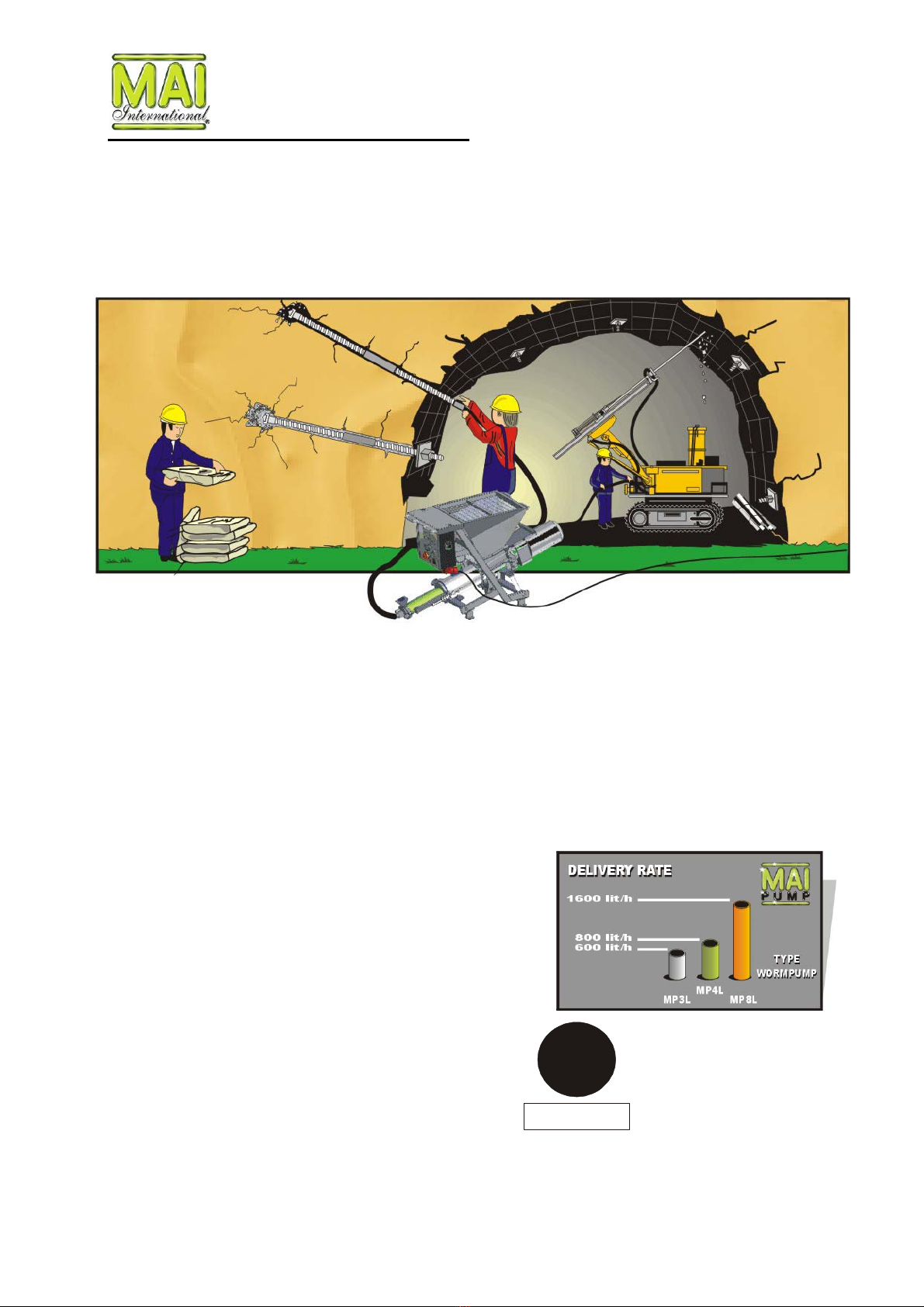

TECHNICAL DESCRIPTON Thanks to careful component selection and combi-
nation, the MAI system provides optimum problem
solutions:
The compact MAI m400NT mortar mixing pump
uses patented, proven MAI mixing and conveying
technology to process various types of machine-
processable anchor mortar and cement.
MAI Pump, MAI anchor mortar and MAI injection
hollow core anchors guarantee unique product and
All MAI International G
application advantages.
mbH products feature di-
bility to faults, low
s-
Function verse application options and MAI’s renowned qual-
ity, making the MAI pump m400NT cost-effective to
purchase and economical to use.
Long service life, minimal suscepti
Only one main motor is required to mix the material
in one pass and to pump the quantity which is re-
quired without any problems.
The volume to be mixed and pumped can be varied
by using different types of worm pumps. maintenance and running costs keep your ex-
penses down and ensure that you benefit from
these efficient, economical solutions.
For particularly large volumes the MAI pump
m400NT can also be fitted with the MP 12 conver-
sion kit.
The MAI pump m400NT is successfully in use all
over the world – in tunneling, engineering and min-
ing applications, and for securing pits and slopes.
The proven mixing and pumping technology is es-
pecially suitable for:
NOTE
i
Pumping volume, distance, pre
oinjection work
ogrouting sure and wear depend on the ma-
terial (type, consistency, grain and
grading curve) and worm pump
used.
ofilling in bore holes
obackfillings
© Copyright 2003 V20/10/03 Page 13

MAI International
GmbH
FILTER PARTS
Pressure reducing valve „water system“
Setting range: 1 – 2 bar
Max. water flow at 1 bar approx. 800 l/h
Max. water flow at 2 bar approx.1300 l/h
Filter for mud
INITIAL SETTINGS
Pressure sensor „water system“
Automatic adaptation to the setting of pressure reducing valve
Thermal relay main motor
Relay setting 400V 6kW: 12,1 A
Relay setting 220V 6kW: 23 A
© Copyright 2003 V20/10/03 Page 14

MAI International
GmbH
TRANSPORT WEIGHT & DI-
MENSIONS Pump unit
D... approx. 500 mm
E... approx. 320 mm
Weight of components approx. 27 kg
A... approx. 1040 mm
B... approx. 570 mm
C... approx. 955 mm
Weight of components approx. 130 kg
A... approx. 1040 mm
B... approx. 570 mm
C... approx. 955 mm
Weight of components approx. 130 kg
A... approx. 1040 mm
B... approx. 570 mm
C... approx. 920 mm
Weight of components approx. 130 kg
Drive unit
F... approx. 600 mm
G... approx. 200 mm
Weight of components approx. 63 kg
Safety screen with bag opener
H... approx. 660 mm
I... approx. 575 mm
Weight of components approx. 5 kg
© Copyright 2003 V20/10/03 Page 15

MAI International
GmbH
CONTROLS
1... Plug for remote control
2... Vibrator switch
3... Switch for Remote Control – Hand – Injec-
tion
4... Hour meter
5... Phase reversal plug for power supply
6... Plug for main motor
7... Fault indicator
8... Switch for water pump ON – OFF – AUTO
(Optional)
9... Main switch
10... Button and indicator for water injection
11... START button
12... STOP button
13... REVERSE button
DIRECTIONS BEFORE
START-UP
To guarantee trouble-free start-up, ensure that all
the components have been cleaned properly and
are in perfect condition. Check that the machine is
horizontal and stable so that it cannot slip if moved
accidentally.
Check that all the cables and safety devices are
functioning correctly.
Ensure that the machine is horizontal and standing
safely.
Check that all the components have been mounted
properly.
© Copyright 2003 V20/10/03 Page 16

MAI International
GmbH
CONNECTIONS BEFORE
START-UP
Connect the main power plug on the control cabinet
with the cable to the construction site distribution
board.
Plug the drive motor into the socket on the control
cabinet.
Connect the water supply hose (use a minimum
diameter of ¾”) to the coupling in the water system.
START-UP Switch on the machine by turning the master switch
to position “I”.
Close all the water supply and drain valves.
The machine may only be con-
nected to a construction site distri-
bution board fitted with a residual
current-operated circuit breaker.
Electrical protection: 3x25 A distri-
bution board, rated fault current
I=30mA
!
DANGER
Connect the water supply hose (minimum diameter
¾” for 4 bar min. dynamic water pressure). Slowly
open the water supply cock.
Connect the ~3X400V/50Hz ~3X220V/60Hz power
supply with the electricity cable (use only 5x4 mm²
H07RN cable).
Press the blue “WATER INJECTION” button and
set the required water volume by turning the knob
on the needle valve.
The water pressure must be at least approximately
2,5 bar when the valve is open (dynamic). If this is
not the case, the machine cannot be started or
stops automatically if already in operation.
Set the mode switch “REMOTE C – HAND - IN-
JECTION” to the “HAND” position. (All controls,
such as switches, indicators, alarms and buttons
are illustrated on page 11 and 16).
© Copyright 2003 V20/10/03 Page 17

MAI International
GmbH

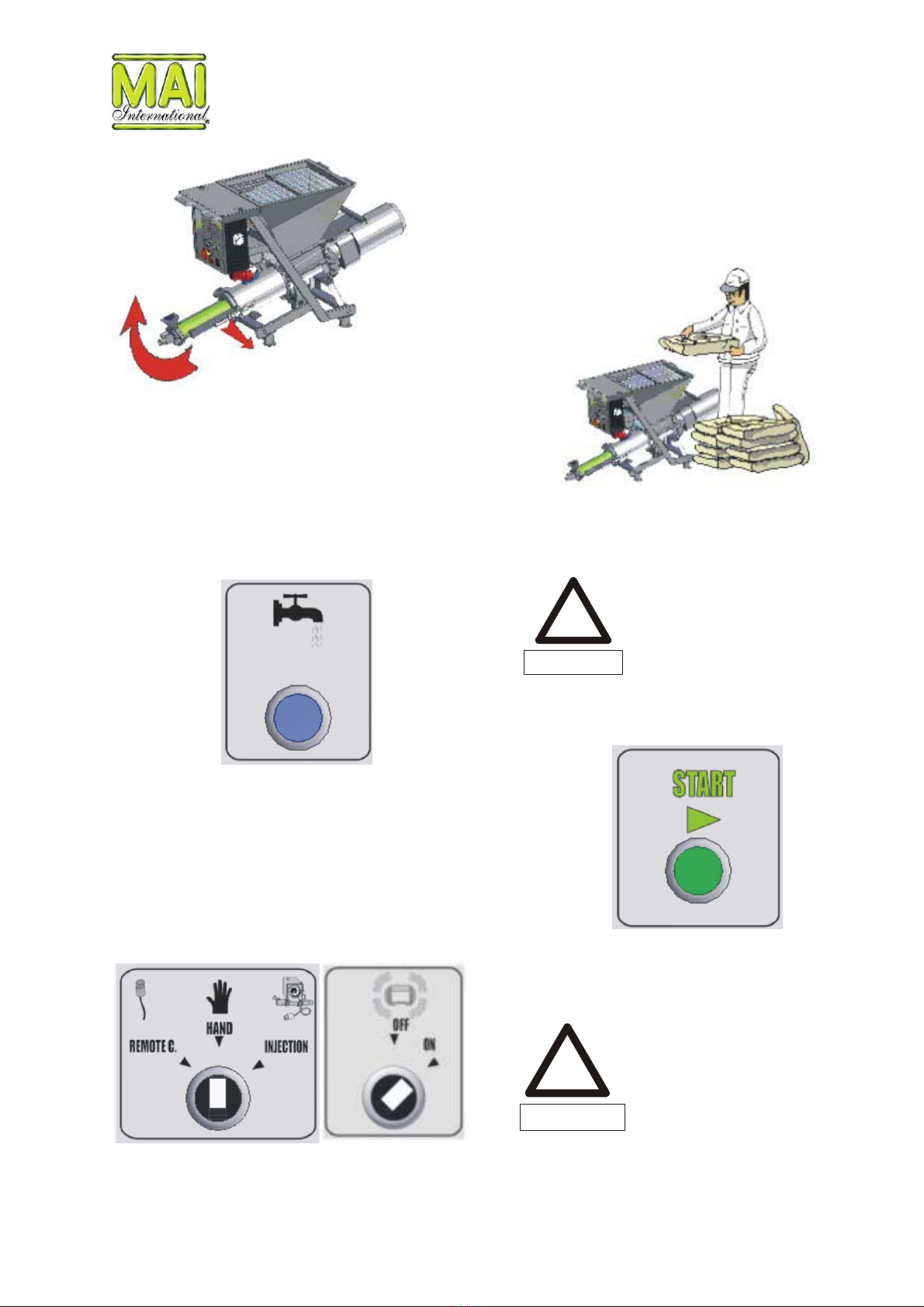

Turn the mode switch “REMOTE-HAND-
INJECTION” to position “HAND”. The vibrator
switch must be set on “ON” to prevent the dry mate-
rial from bridging at the bottom of the material hop-
per.
Undo the eccentric clamp on the mixing chamber.
Open the pump outlet by turning it to the side to
drain the water which was just sprayed into the
mixing chamber.
Place machine processable dry material in the hop-
per.
Close the pump outlet again and lock the eccentric
clamp.
The safety screen must not be
removed when the machine is
running or ready for operation.
!
WARNING
Press the blue “WATER INJECTION” button for
approx. 3 seconds to let a defined water volume
into the mixing chamber of the mortar mixing pump.
This is to prevent the eccentric worm pump from
running dry when the machine starts.
Start the machine by pressing the green “START”
button. Let the mortar mixing pump run until water
starts to come out of the front of the pump outlet.
The mixer motor must not be
opened or tilted when the machine
is running or ready for operation
(as long as the power supply is
connected and/or the master
switch is set to “ON”).
!
DANGER
© Copyright 2003 V20/10/03 Page 18

MAI International
GmbH
While the machine is running, open the slide gate,
located above the motor, slowly and in stages until
it locks into the guide rod notch.
Switch of the machine by pressing the red “STOP”
button.
To prevent chocking, we recommend wetting the
inside walls of the hose with water or preferably
lime or cement slurry.
1.)
2.)
3.)
During the wetting process with
water it is absolutely necessary
that any excess water is com-
pletely drained from the hose oth-
erwise grains could be washed out
when the machine is started, es-
pecially in the case of coarse grain
materials, such as anchor mortar
with 4 mm maximum grain. This
could cause the hose to choke.
After 10 – 15 seconds the mortar consistency
should have adjusted to the value pre-set on the
water flow meter and be coming out of the coupling
on the pump outlet pulsating slightly but uniformly.
The consistency of the mortar can be adjusted to
the required application by changing the water flow
rate.
Lay the mortar hose so that it can be easily con-
nected before the machine is started.
If you are working with unknown
materials, experience has proved
that it is better to start with a rela-
tively fluid consistency and then
slowly reduce the water volume
with the machine running until the
required consistency is reached
(unknown materials: water flow
meter setting: approx. 600 li-
tre/hour).
NOTE
i
Connect the quick release coupling on the mortar
hose to the male union on the pump outlet.
© Copyright 2003 V20/10/03 Page 19

MAI International
GmbH
Start-up for manual operation Start-up with remote control
Proceed as described in the previous section “Start-
up”.
Proceed as described in the previous section “Start-
up”.
Make sure that the mode switch “REMOTE C –
HAND - INJECTION” is set to “HAND”.
Make sure that the mode switch “REMOTE C –
HAND - INJECTION” is set to “REMOTE C”.
Start the machine by pressing the green “START”
button.
Press the green “START” button. The machine is
now ready for operation with the remote control
Start the machine by pressing the button on the
remote control.
To switch off the machine at any time, press the
“STOP” button. You can stop the machine at any time by pressing
the yellow button on the remote control.
© Copyright 2003 V20/10/03 Page 20
