mainnav MG-950d User manual

MG-950d Sport GPS data logger

1
Table of content
A. Quick Use ---------------------------------------------------------------------------- 2-4
B. Introduction ---------------------------------------------------------------------------- 5
C. Feature ---------------------------------------------------------------------------------- 5
D. Specification -------------------------------------------------------------------------- 5
Physical Dimension------------------------------------------------------------------------ 5
Environmental Characteristics---------------------------------------------------------- 6
GPS-------------------------------------------------------------------------------------------- 6
LED Status ---------------------------------------------------------------------------------- 6
Bluetooth ------------------------------------------------------------------------------------ 6
Position accuracy -------------------------------------------------------------------------- 6
Interfaces------------------------------------------------------------------------------------- 7
Connector------------------------------------------------------------------------------------ 7
Battery---------------------------------------------------------------------------------------- 7
Accessory ----------------------------------------------------------------------------------- 7
Certification: -------------------------------------------------------------------------------- 7
Warranty ------------------------------------------------------------------------------------- 7
E. Operational characteristics-------------------------------------------------------- 7
F. Safety Statement----------------------------------------------------------------------- 8
G Earth Datums &output setting ---------------------------------------------------- 9-11

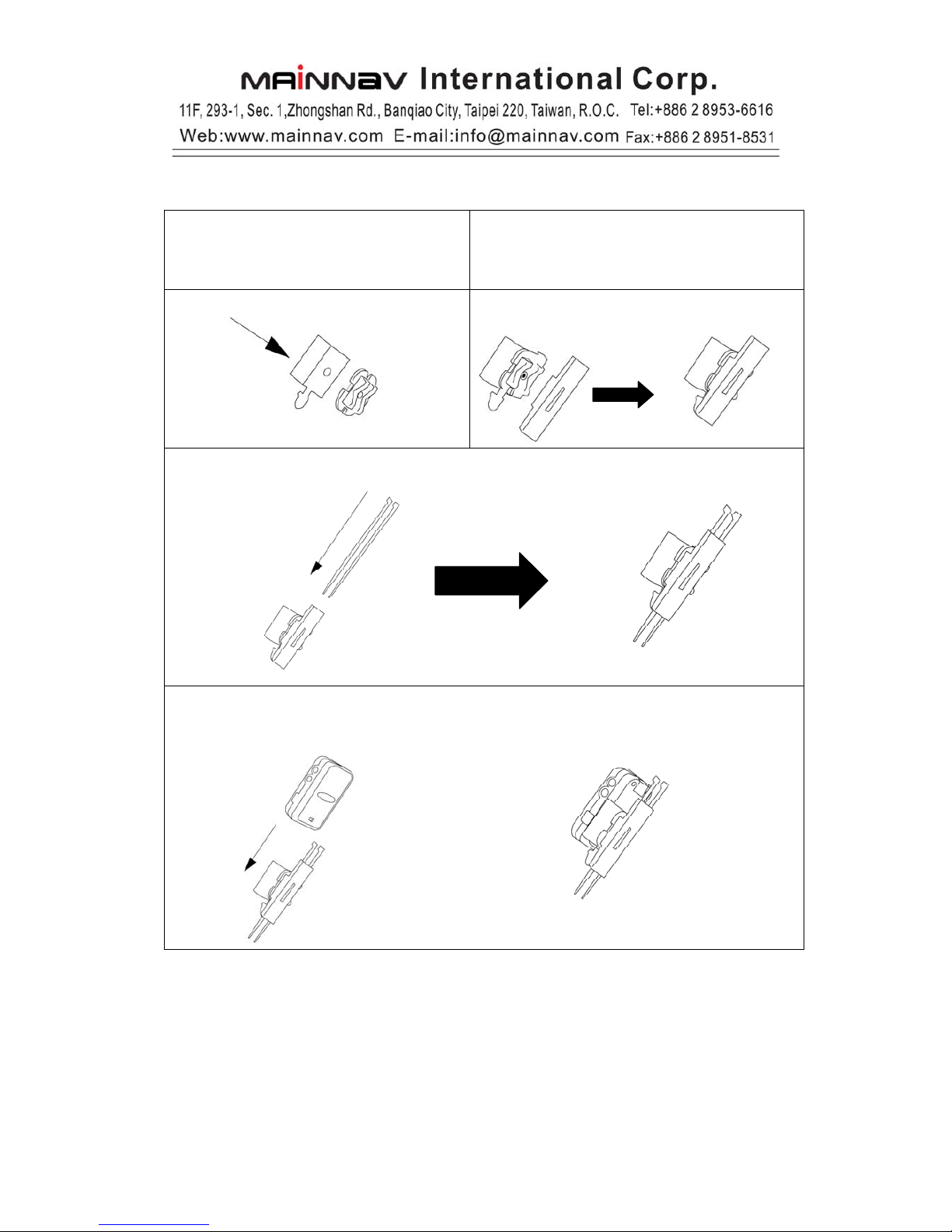

H . Bike mounting installs ------------------------------------------------------------- 12

2
A.Quick use
1.Standard package
GPS Unit +Car charger + travel charger + Li-ion Rechargeable Battery + Document CD +
Warranty Card
2.10 hours full charge is required before using (recommendation)
Fully charge the battery for at least 10 hours before using can last for 8 hours continuously
operation facilitating the low power consumption design at 66 mA .
3.Turn on the Bluetooth function in your PDA or PC
Start up MG-950d receiver for pairing before set off Bluetooth function in PDAor PC.
Moreover, check the device is equipped with Bluetooth function.
If not, you may need to acquire an optional CF or SD Bluetooth card.
4.Found a shortcut automatically in Bluetooth Manager window
The system will automatically set up quick connect device, Mainnav in Bluetooth Manager.
Further step, click the device to connect Bluetooth receiver.
5.Check the Serial Port in Bluetooth Setting and Set up correct Serial Port in your
map software
Click Serial Port to confirm the COM port after pairing with the receiver. Using PDA / PC to
pair the receiver. Start your map function and choose the right serial port and select
“Outbound COM port “. The pass word for paring is “0000”.
6.Switch off the Bluetooth function
Switch off the Bluetooth function before you turn off your PDA/PC, and Switch off receiver
disconnect the GPS function.
7. GPS data logger
Turn on the MG-950d and press Power button then enter data logger recorded system, start
to record your journey. Stop the data logger function, press “Power” button, it will turn off.
Check the GPS data—Using USB cable connect MG-950d to your PC (please install
Mainnav software application), then you could view recorded data on Google Maps. For
detail instruction , please check CD file ( software instruction)

3
8. LCD display
Speed/Elevation Speed/time Speed/total mileage Speed/moved time
Speed/moved distance Speed/average Speed Speed/ Maximum speed Data turns Zero
(time except)
GPS signal Bluetooth on Data logger on Memory full backlight on Power
9.Button intro
Power
Back- lighted
Touch pad—move to next page

4
10. Function switch
Operation display Definition
Press Power button 3 seconds Stay on –GPS and Bluetooth is on
When Power on , press power
button 2 seconds Data logger is on
Press back-lighted button 3
seconds Back-lighted is on
Press back-lighted button 5
seconds
Data turns Zero
Press back-lighted button 12
seconds
Total mileage turns Zero(ODO)
Power on—press two buttons
together
switch to metric and imperial(mph)/(kph)
Power off , press two buttons
together
Adjust time Zone
Touch pad Touch --Move to next page and show different data
Press this button 3 seconds
It will move to next page automatically
When unit is on, press power and back-lighted button together (3 sec) ----you could
switch to metric and imperial.
When unit is off, press two buttons together (3 seconds) ---- you could set the right
time zone.
Press Back-lighted button 5 seconds ----data back to zero.
Touch pad --- move to next page
Press touch pad 3 seconds—it will move to next page automatically

5
B. Introduction
MG-950d is marvelous Sport GPS with data logger. The chip designed based on SiRF Star
III LP which provides the high sensitivity for personal navigation and the wireless Bluetooth
transmission in the world.
This new gadget with LCD monitor is ideal for biking, driving and long journey. User could
easy to view the screen while workout such as total mileage/kilometer, moved time,
elevation and speed. This new device is compact and easy to carry.
MG-950d is a small, robust unit that records NMEA position data from a GPS. It is really
convenient, economical alternative to using a laptop computer especially on long road.
Simply connect the logger to a GPS during your trip then download the track data to a PC.
Also, our photo map part is one of brilliant function, User could match photo in certain
waypoint by their own which show on Google earth.
C. Feature
Store up to 130,000 waypoints
LCD display and Touch pad
Automatically change to next page
Absolutely bike meter upgrading
SiRF Star III Hot start 6 sec, warm start 38sec, cold start 42 sec
Calculates precise speed and distance while you biking
Record track-logs of vehicle movement
User can select among Google earth, Satellite or Hybrid to show the track
Built-in GPS application software, could save as KMZ, CSV, GPX and NMEA
Integrated Photo with Mainnav Software
Transmission data via USB and Bluetooth
Weather Proof IPX6
Bluetooth—pair PDA or smart phone for navigation.
Replay the recorded routes/ time/ speed... point by point
Lightweight and compact --suitable for biking, hiking and traveling.
D. Specification
PhysicalDimension
Size: 73(L)X49(W)x21 (H) (mm)
LCM: 33(mm)X 33(mm)
Weight:70g

6
Environmental Characteristics
1. Working temperature: -20oC to +75oC (internal temperature).
2. storage temperature: -55oC to +90oC.
3. input voltage: 5.5 ± 0.5VDC
4. Backup power: 3.7V Rechargeable Li-ion Battery 700mAh,
GPS
1) Acquisition:20 channel parallel
2) Tracking: up to 12 satellites
3) Update rate: 1 second
4) Acquisition time
Reacquisition 0.1 sec, averaged
Snap start 3 sec, averaged
Hot start 6 sec, averaged
Warm start 38 sec, averaged
Cold start 42 sec, averaged
Bluetooth
1) Transmits up to 10 meters.
2) Version V2.0
Position accuracy:
1.Non DGPS (Differential GPS)
Position: <10 M at 2D RMS
Velocity :0.1 meters/second, with SA off
Time:1 microsecond synchronized GPS time
2. DGPS (Differential GPS) or WAAS / EGNOS ON (Built by demand)
Position: 1 ~ 5 meter, typical
Velocity: 0.05 meters/second, typical
3. Dynamic Conditions:
Altitude: 18,000 meters (60,000 feet) max
Velocity: 515 meters / second (1000 knots) max
Jerk: 20 meters/second, max
Acceleration: 4 G, max

7
Interfaces
1) USB 2.0 Bluetooth 2.0
2) NMEA 0183 Version 2.2 ASCII output (GPGGA, GPGLL, GPGSA, GPGSV, GPRMC,
GPVTG).
3) Real-time Differential Correction input (RTCM SC-104 message types 1, 5 and 9).
(Optional model)
SiRF protocol. (optional)
Connector
Battery recharging connector: Mini USB
Battery
Capacity: 700mAh.
Type: Li-ion rechargeable
Normal use: 17.5 hours
Accessory
1. Rechargeable battery, 700mAh
2. Car charger: Mini USB , IP:10~30V, OP:5V 500mA
3. CD
4. bike mounting
5. USB cable
6. warranty card
7.Travel charger
Certification:
RoHs
CE&FCC
Warranty
All of our GPS products have the one-year warranty and repair policy from the day of
purchase.
The MG-950d is warranted to be free from defects in material and function for one year from
the date of purchase. Any fault product within this period under normal conditions will be
replaced without any charge.
E. Operational characteristics
Initialization
Once the initial self-test is complete, MG-950d start the process of satellite acquisition and
tracking automatically. MG-950D takes about 45 seconds to achieve a position fix in normal

8
circumstances. After a position fix has been calculated, valid position, velocity and time is
transmitted over the output channel.
Also, our MG-950d records NMEA position data from a GPS. It is really convenient,
economical alternative to using a laptop computer, especially on long road. Simply connect
the logger to a GPS during your trip then download the track data to a PC.
Data logger
1. LCD screen which shows speed altitude/latitude
2. Reads NMEA data from GPS
3. Compact size and lightweight
4. Store up to 130,000 waypoints
5. User friendly Windows based Mainnav software
6. Whether proof IPX6
7. With user friendly Windows based Google earth software
8. Replay the recorded routes/ time/ speed... point by point
Navigation
With the acquisition process is completed, the MG-950d sends valid navigation information
over output channels. The data include:
1) Velocity
2) Error estimates
3) Date/time
4) Latitude/longitude/altitude
5) Satellite and receiver status F. Safety Statement
R&TTE / CE
This device complies with ETSI EN 300 328-1, ETSI EN 301 489-1 / 17, EN60950.
FCC
This device complies with Part 15C, Part 15B and ID Application of the FCC rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
BQB

9
G. Earth Datums &output setting
NMEA Transmitted Messages Output Messages NMEA Sentence
GPGGA: Global positioning system fixed data
GPGLL: Geographic position latitude \ longitude
GPGSA: GNSS DOP and active satellites
GPGSV: GNSS satellites in view.
GPRMC: Recommended minimum specific GNSS data
GPVTG: Course over ground and ground speed
Global Positioning System Fix Data
$GPGGA,161229.487,3723.2475,N,12158.3416,W,1,07,1.0,9.0,M, , ,0000*18
Name Example Units Description
Message ID $GPGGA GGA protocol header
UTC Time 161229.487 Hhmmss.sss
Latitude 3723.2475
ddmm.mmmm
N/S Indicator N N=north or S=south
Longitude 12158.3416 dddmm.mmmm
E/W Indicator W E=east or W=west
Position Fix
Indicator 1 See Table 5-3
Satellites Used 07 Range 0 to 12
HDOP 1.0 Horizontal Dilution of Precision
MSLAltitude 9.0 Meters
Units M Meters
GeoidSeparation Meters
Units M Meters
A
ge of Diff. Corr. second Null fields when DGPS is not used
Diff.Ref.StationID 0000
Checksum *18

10
<CR> <LF> End of message termination
Position Fix Indicator
Value Description
0 Fix not available or invalid
1 GPS SPS Mode, fix valid
2 Differential GPS,SPS mode, Fix valid
3 GPS PPS Mode, Fix valid
GNSS Satellites in View
(GSV)$GPGSV,2,1,07,07,79,048,42,02,51,062,43,26,36,256,42,27,27,138,42*71
$GPGSV,2,2,07,09,23,313,42,04,19,159,41,15,12,041,42*41
Name Example Units Description
Message ID $GPGSV GSV protocol header
Number of
Messages 2 Range 1 to 3
Message Number 1 Range 1 to 3
Satellites in View 07 Range 1 to 12
Satellite ID 07 Channel 1 (Range 1 to 32)
Elevation 79
degrees Channel 1 (Maximum 90)
Azimuth 048
degrees Channel 1 (True, Range 0 to 359)
SNR (C/No) 42 dBHz Range 0 to 99, null when not tracking
Satellite ID 27 Channel 4 (Range 1 to 32)
Elevation 27
degrees Channel 4 (Maximum 90)
Azimuth 138
degrees Channel 4 (True, Range 0 to 359)
SNR (C/No) 42 dBHz Range 0 to 99, null when not tracking
Checksum *71
<CR> <LF> End of message termination
Recommended Minimum Specific GNSS Data (RMC)
$GPRMC, 161229.487,A,3723.2475,N,12158.3416,W,0.13,309.62,120598, ,*10
Name Example Unit Description
Message ID $GPRMC RMC protocol header
UTC Time 161229.487 hhmmss.sss
Status A A=data valid or V=data not valid
Latitude 3723.2475 ddmm.mmmm

11
N/S Indicator N N=north or S=south
Longitude 12158.3416 dddmm.mmmm
E/W Indicator W E=east or W=west
Speed Over Ground 0.13 Knots
Course Over
Ground 309.62 Degrees True
Date 120598 ddmmyy
Magnetic Variation (1) Degrees E=east or W=west
Checksum *10
<CR> <LF> End of message termination

12
Bike mounting attachment
Step 1screw the mounting together Step 2 combine rubber with mounting
and fix on bottom, then put string into
the hole.
Step 3 Use string to to pierce through the hole , fix the rubber and mounting
Step4 put the mounting on handle bar and use string fix tightly, slide the
Unit from two side of runner. Finished attachment.
