USER’S MANUAL
LED TV
INSTRUCTION MANUAL
Model:LED322GS

IMPORTANT SAFETY INSTRUCTIONS
Safety Information
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the
manufacture’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding plug. A polarized
plug has two blades with one wider than the other. A grounding plug has two
blades and a third grounding prong. The wide blade or the third prong is provided
for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at the plugs,
convenience receptacles, and at the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart or rack is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
Unplug the apparatus during lightning storms or when unused for long periods of
time.
Refer all servicing to qualified personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus has
been exposed to rain or moisture, does not operate normally, or has been
dropped.
CAUTION: These servicing instructions are for use by qualified service personnel
only. To reduce the risk of electric shock, do not perform any servicing other than
that contained in the operating instructions unless you are qualified to do so.
WARNING To reduce the risk of fire or electric shock do not expose this apparatus to
rain or moisture The apparatus shall not be exposed to dripping or splashing and that
objects filled with liquids such as vases shall not be placed on apparatus
WARNING The mains plug is used as disconnect device the disconnect device shall
remain readily operable
- This lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of non-insulated “dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to constitute a
risk of electric shock.
- Warning: To reduce the risk of electric shock, do not remove cover (or back) as
there are no user-serviceable parts inside. Refer servicing to qualified personnel.
- The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance instructions in the literature
accompanying the appliance.
： ,
.
, , .
: ,
.
Apparatus with class I construction shall be connected to a mains socket
outlet with a protective earthing connection.
1

Important Safety Precautions
Do not place the power cord or other cables
across a walkway in case it is trampled on. Do
not overload the power cord or power socket.
When the power plug is used to disconnect and
connect the device, it should easily go into the
power source.
Do not place the LED TV on an unstable
surface.
Do not disassemble the back cover, as it
contains high voltages inside and will cause
electric shock. Only qualified professionals
sh o u ld co n d uct i n t ern a l a dju s t ment s ,
maintenance, and checks.
The TV set should not be subjected to
water droplets, vapor, or splash. This
equipment should not be placed on objects
filled with liquids. Do not place flame
sources, such as lit candles, on or near the
LED TV. Please, pull out the power plug
and contact after sales support if there are
abnormal objects or water in the TV.
Pull out the power cord and antenna cable
during electrical storms so the LED TV is not
damaged by electrical surges. Keep all
people away from the antenna cable during
electrical storms.
Important Safety Precautions
Please, immediately pull out the AC power
plug
from adapter if there is an abnormal sound or
smell or the LED TV has sound but no picture,
and contact after sales support.
The LED TV should be kept free from rain,
moisture and dust to prevent electrical
shock and
short circuits. Do not cover the ventilation
openings with table clothes, curtains,
newspapers, etc.
The LED TV should be kept from high
temperature heating sources or direct
sunlight. Good ventilation is required.
Allow 10 cm. between the LED TV and
other appliances or built-in cabinet walls.
When you wipe the front cabinet, please
make sure the power plug is pulled out and
use a soft, dry, lint-free cloth and handle it
with care. Do not repeatedly wipe the panel,
nor scrape, tap or strike the panel with a hard
object.
Do not wipe the LED TV with any petrol,
chemical or alcohol based solvents as it
will lead to product damage of the panel
and cabinet.
When the television receiver is not used for an
extended period of time, it is advisable to disconnect
the AC power cord from the AC outlet.
32

Ⅰ. CONTENT
Ⅱ. Important safety Instruction
Ⅲ. Systems Connection incl MMMI
Ⅳ.
Ⅴ. Main Menu User Guide
Source

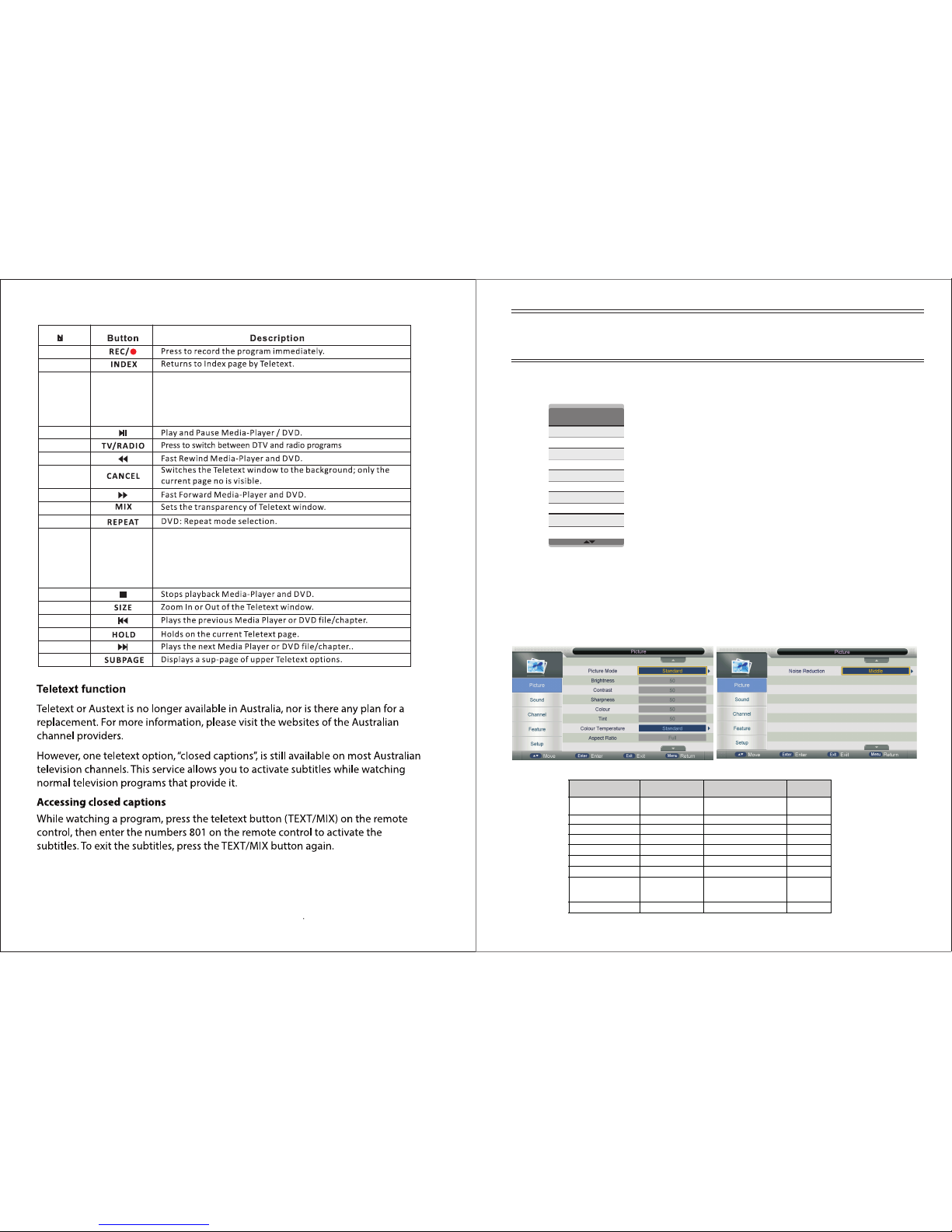

1. Picture menu
1.1 Picture menu
1.2 Function description
1.2.1 Picture Mode
1.2.2 Brightness
1.2.3 Contrast
1.2.4 Sharpness

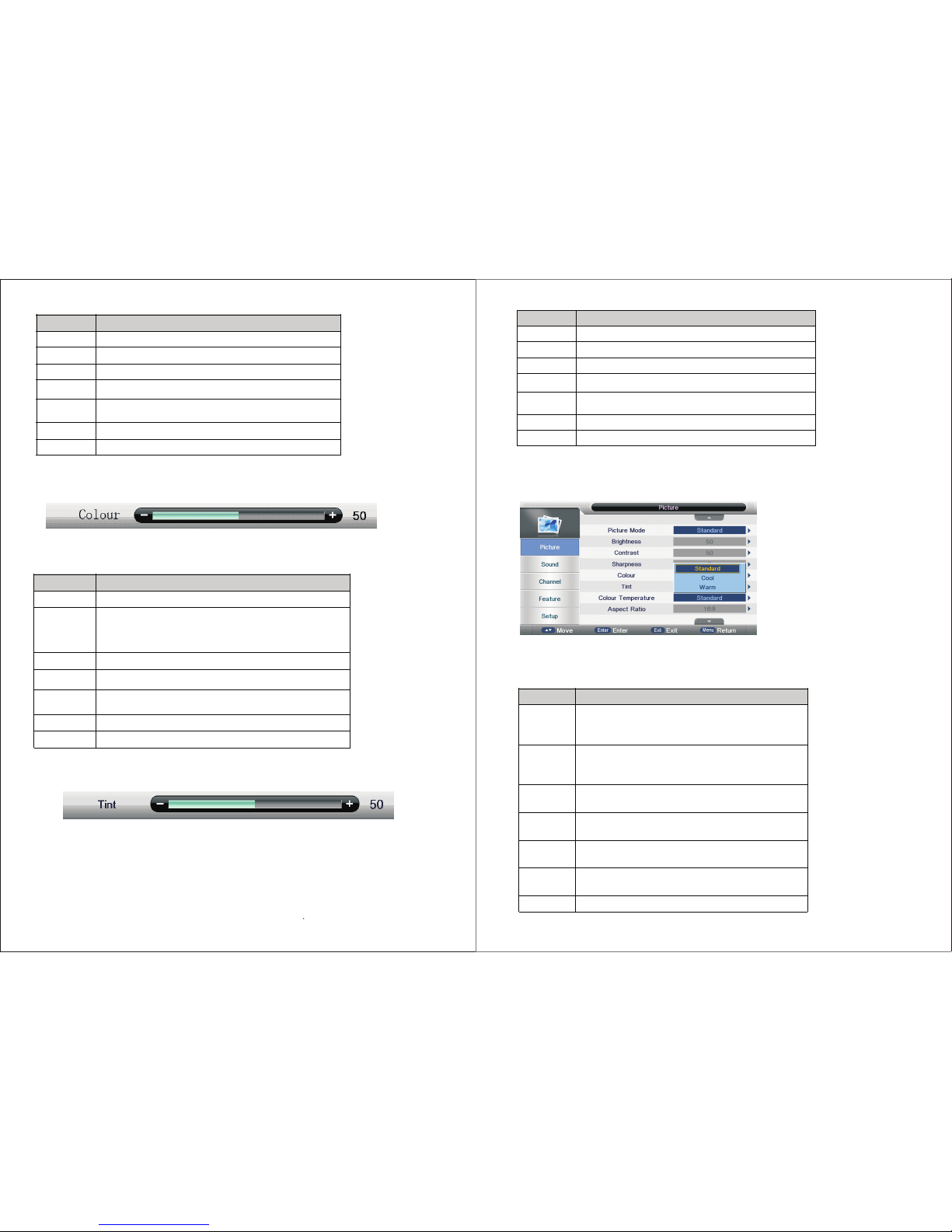

1.2.5 Colour
1.2.6 TINT
1.2.7 Colour Temperature
1.2.8 Aspect Ratio

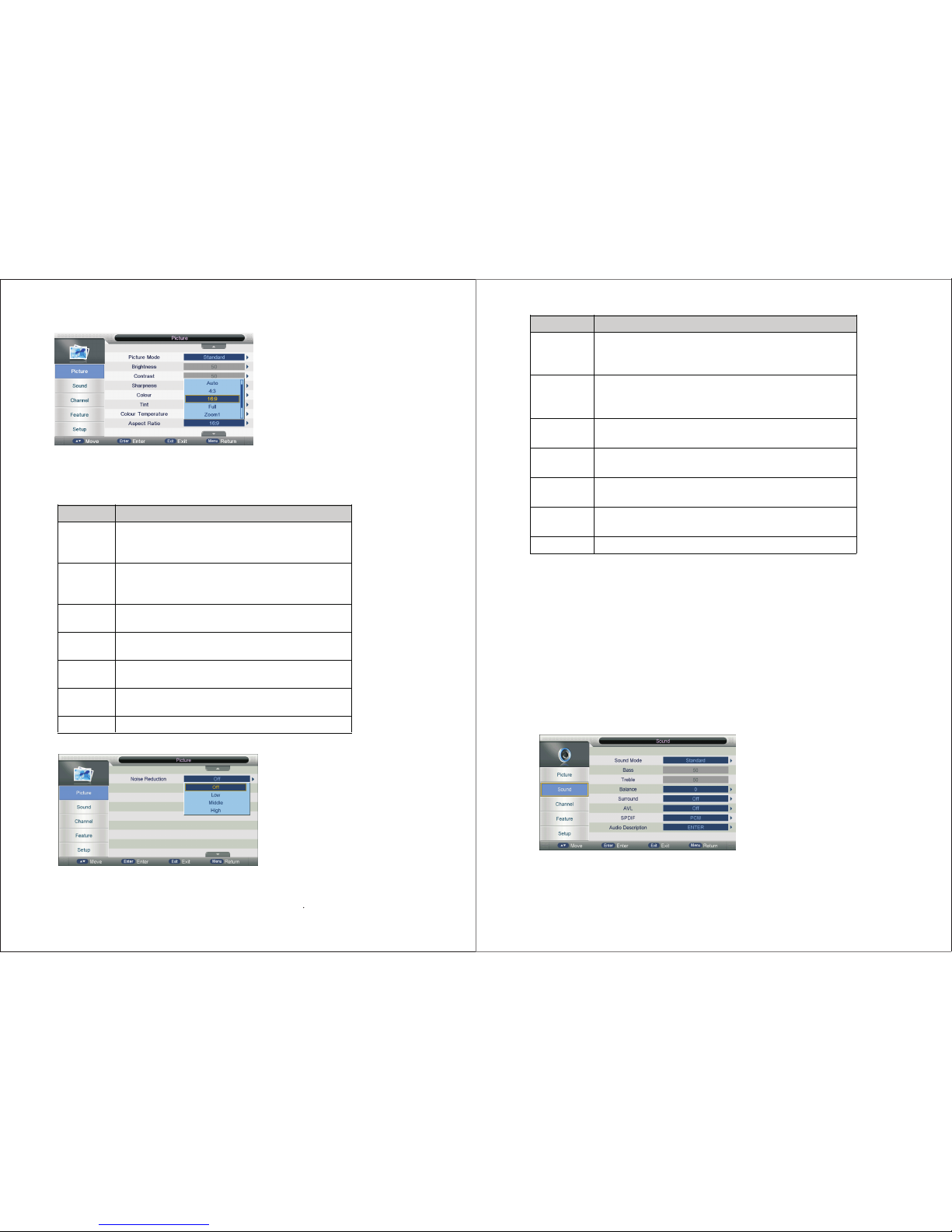

1.2.9 Noise Reduction

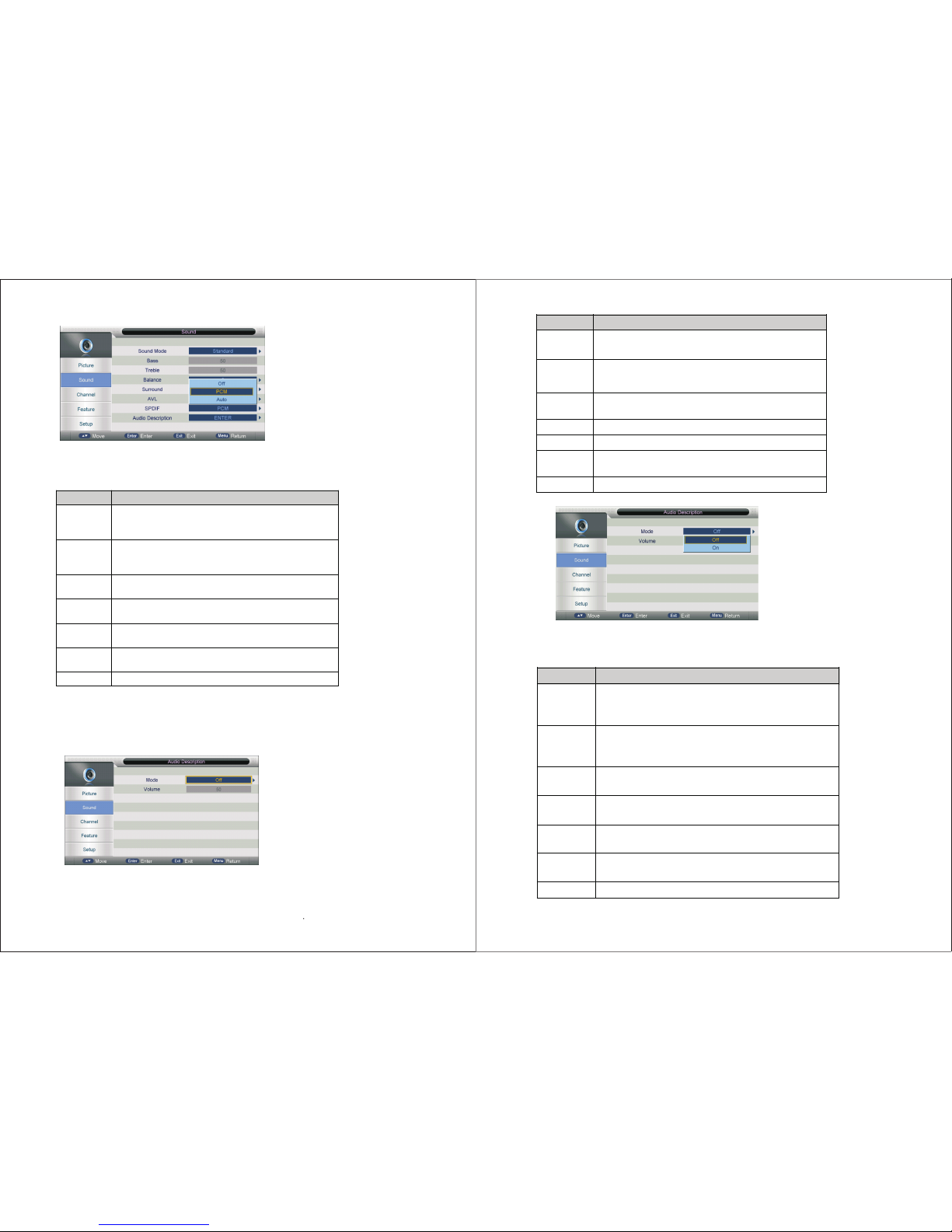

2. Sound menu
2.1 Sound Menu
2.2 Function description
2.2.1 Sound Mode
2.2.2 Bass&Treble
2.2.3 Balance
2.2.4 Surround
2.2.5 AVL
2.2.6 SPDIF
2.2.7 Audio Description
3. TV channel
3.1 Channel user interface
3.2 Function description
3.2.1 Channel Manager
3.2.1.1 Delete/Skip/Lock
3.2.1.2 Swap Channel

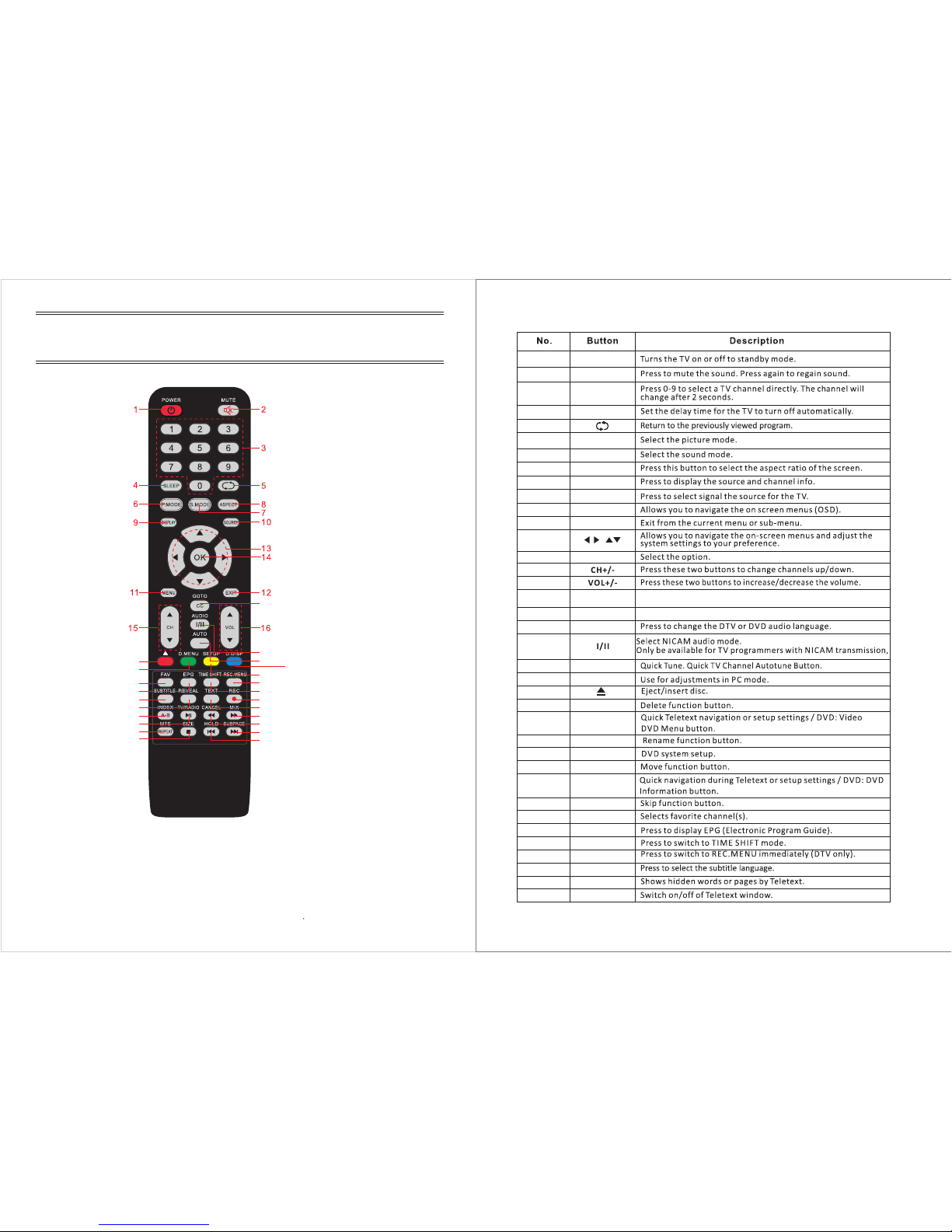

Remote-Control unit
Ⅰ. Content 3.2.2 Favorite Management
3.2.3 Country

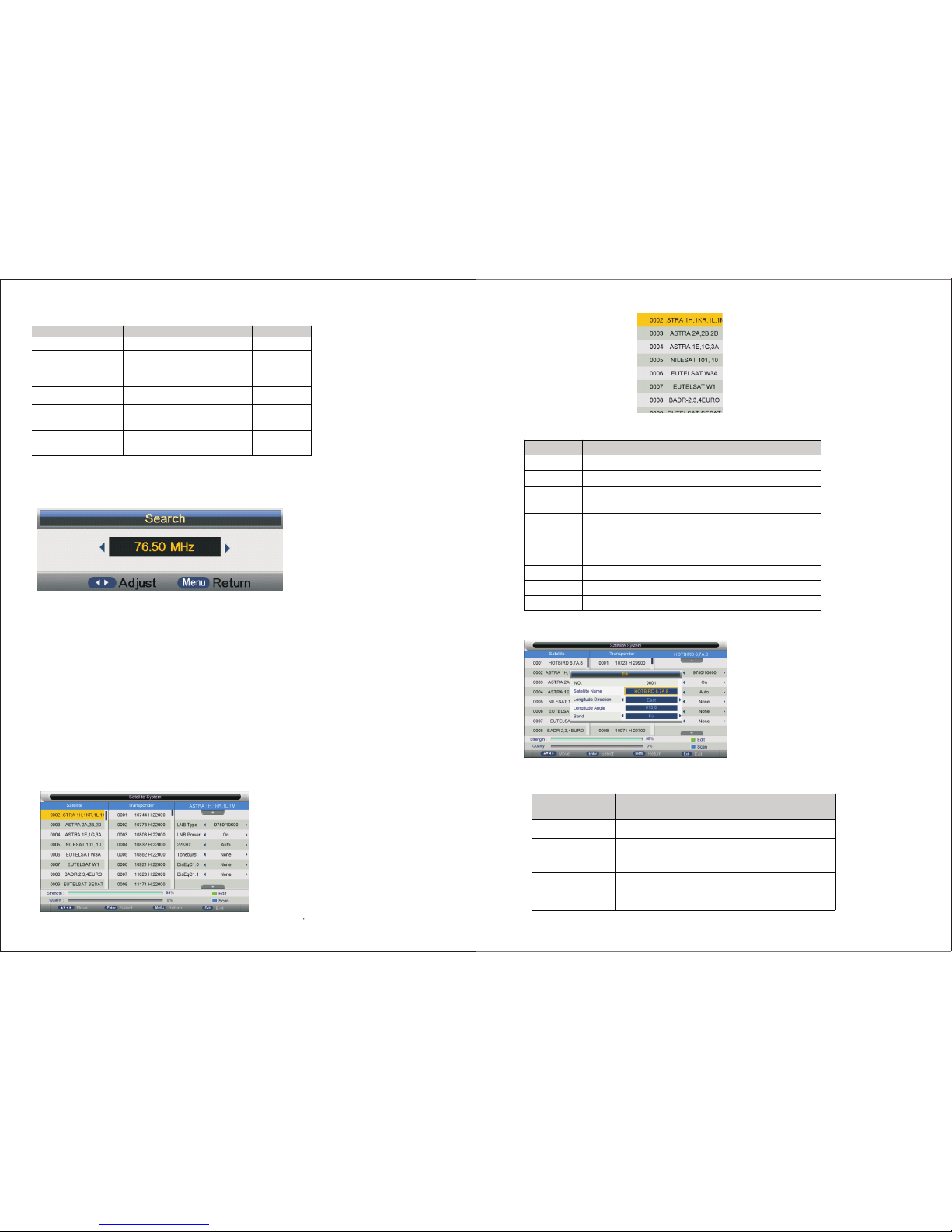

3.2.4 Auto Search
3.2.5 Digital Manual Search
3.2.6 Analog Manual Search
3.2.7 Satellite System
4. Feature menu
4.1 Feature menu
4.2 Function description
4.2.1 Lock
4.2.2 Language
4.2.3 Clock
4.2.4 Sleep Timer
4.2.5 Auto Power Off
4.2.6 Hearing impared
4.2.7 CI Info
4.2.8 PVR/Timeshift
5. Setup menu
5.1 Setup menu
5.2 Function description
5.2.1 OSD Timer
5.2.2 Auto SCART
5.2.3 PC Setup
5.2.4 Blue Screen
5.2.5 Home Mode
5.2.6 Reset to Setting
5.2.7 Software Upgrade
VI.
1. photo
1.1 Format supported
1.2 Function introduction
1.2.1 Playback
1.2.2 Thumbnails
2. MUSIC
2.1 Format Supported
2.2 Function introduction
2.2.1 Playback
3. Movie
3.1 Format supported
3.2 Function introduction
3.2.1 Playback
MULTIMEDIA
Important Safety Precautions
Safety Information
54
4~7
1
3
8~9
10~13
14~16
17
17
18
18
18
19
19
19
20
20
21
22
22
23
23
24
24
25
26
26
27
28
28
30
30
31
31
31
31
32
32
33
36
36
37
43
43
43
45
43
45
46
47
47
46
47
48
48
49
49
49
49
50
50
50
51
52
52
52
52
53
53
54
53
54
55
55
55
56

4. eBOOK
4.1 Format supported
4.2 Function introduction
4.2.1 Playback
VII
1. EPG
1.1 EPG abstract
1.2 Daily mode
1.3 Weekly mode:
1.4 Extended mode:
2. CI setup
2.1 Getting access to scambled channel
2.2 Getting ci information
2.3 Details of ci information
2.3.1 Main Menu
2.3.2 Smart Card Management
2.3.3 Subscription Information
2.3.4 Morality level Setting
2.3.5 Change PIN Code
2.3.6 System Information
2.3.7 Language Setting
2.3.8 Others
3. 3. PVR For Euro DVB T2 C S2 Only
3.1 Pvr involved menus
3.1.1 PVR/Timeshift menu
3.1.2 Partition List menu
3.1.3 Timer menu
3.1.4 Timer Edit menu
3.1.5 Record List menu
3.1.6 REC info menu
3.1.7 Timeshift info menu
3.2 REC
3.2.1 REC
3.2.2 Timer REC
3.2.3 Timeshift
3.3 RCE playback
3.4 Restriction
3.4.1 Device & File System
3.4.2 Power Lost or Device Disconnect
4. Auto installation
5. Channel list menu
6. Fav list menu
. Other UI setup
- / /
7
6
VIII.
X.
IX. Specifications
Built-in DVD Player Operation
Troubleshooting
85
83
77
7 6
7 6
7 4
56
56
56
57
58
58
58
59
60
60
60
61
61
61
62
62
62
62
63
63
63
64
64
64
65
66
67
68
68
69
70
70
71
72
73
73
73
74

SCART
6
HDMI 2
(MMMI)
HDMI 1
(ARC)USA TV
Satel lite Euro T V
CI
MINI
YPbPr
DC
15
Earphone
1.VGA: Connect to a computer VGA output jack
2.PC AUDIO: Connect to the audio output jack on a computer
3.SCART: Connecting for SCART signal
4. HDMI1(ARC):HDMI in
5. HDMI2 (MMMI) : HDMI In
6. USA TV: Connect to an Antenna or Cable (ATSC/NTSC)
7. COAXIAL: Co-axial Digital audio output
8. Satellite: Connect to external Satellite Reciever (Europe & Pacific Region Only)
9. Euro TV: Connect to external Antenna for Analog or Digital TV in ATV/DTV
Mode – (DVB-T2, CATV)
10. USB: USB input
11. Earphone: Connecting for headphone
12.MINI YPbPr: Connecting for the Y/Pb/Pr Input in Component mode
13. MINI AV: Connecting for VIDEO signal input in Composite mode.
14. CI: Used to insert the CI card
15. DC: DC input
14

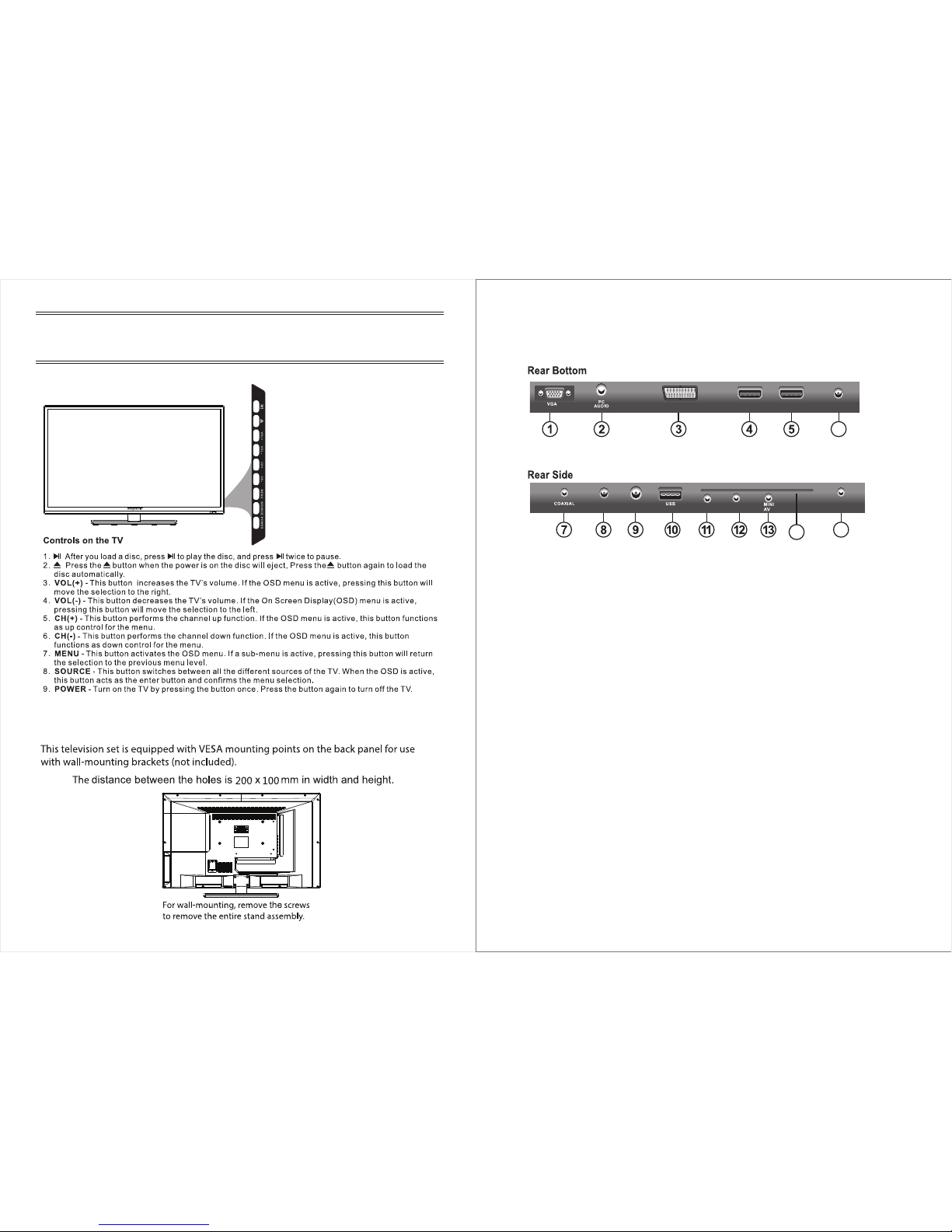

1. TV Controls
3.TV Inputs & Outputs
Ⅱ. Important safety Instruction
2. Installation
Wall-mounting
NOTE:
98

NOTE Please make sure the outputs have firm connections before connecting power.:
1. PC
VGA OUTPUT
DVD VGA
OUTPUT
PC AUDIO
OUTPUT
VGA OUTPUT
2. MINI AV
Audio/video input: Use the SOURCE button to select AV on the
remote control.
3.HDMI
HDMI input: Use the SOURCE button on the remote control to select HDMI
DVD HDMI OUTPUT
HDMI 1
4. MINI YPbPr INPUT
Video component input: Use the SOURCE button on the remote control to select YPbPr.
Ⅲ. Systems Connection
1110
SCA RT HD MI 2
(MMM I)
HDM I 1
(ARC)USA T V
Sat elli te Eu ro TV
CI
MIN I
YPb Pr
DC
Ear pho ne
SCA RT HD MI 2
(MMM I)
HDM I 1
(ARC)USA T V
Sat elli te Eu ro TV
CI
MIN I
YPbPr
DC
Ear pho ne
SCA RT HD MI 2
(MMM I)
HDM I 1
(ARC)USA T V
Sat elli te Eu ro TV
CI
MIN I
YPb Pr
DC
Ear pho ne
SCA RT HD MI 2
(MMM I)
HDM I 1
(ARC)USA T V
Sat elli te Eu ro TV
CI
MIN I
YPbPr
DC
Ear pho ne
(VGA and PC Audio Cable not included)
PC: Use the SOURCE button to select PC.
HDMI Cable Not included)(

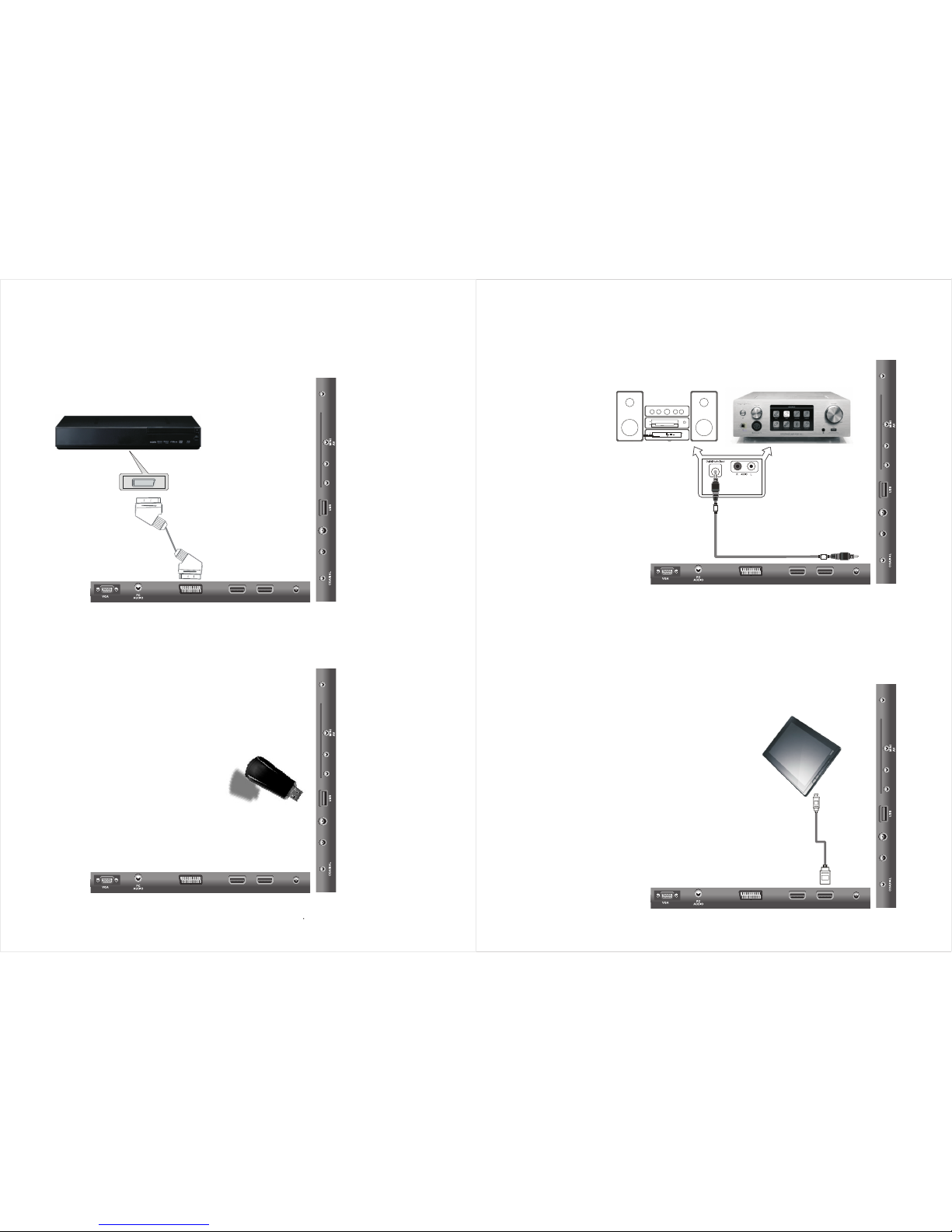

5. SCART INPUT
Use the SOURCE button on the remote controller to select SCART.
DVD or VCR back
DVD or VCR
6. USB INPUT
Use the SOURCE button on the remote controller to select Media.
USB memory
7. COAXIAL OUTPUT
Allows connection of Digital audio systems and Surround Sound.
COAXIAL Cable (Not supplied)
COAXIAL
1312
SCA RT HD MI 2
(MMM I)
HDM I 1
(ARC)USA T V
Sat elli te Eu ro TV
CI
MIN I
YPb Pr
DC
Ear pho ne
SCA RT HD MI 2
(MMM I)
HDM I 1
(ARC)USA T V
Sat elli te Eu ro TV
CI
MIN I YPbPr
DC
Ear pho ne
SCA RT HD MI 2
(MMM I)
HDM I 1
(ARC)USA T V
Sat elli te Eu ro TV
CI
MIN I
YPbPr
DC
Ear pho ne
8. MMMI
Allows you to connect your Android or iOS phone or Tablet to display the mobile
device on the TV Screen.
SCA RT HD MI 2
(MMM I)
HDM I 1
(ARC)USA T V
Sat elli te Eu ro TV
CI
MIN I
YPb Pr
DC
Ear pho ne
SCART Cable Not Included)(
USB Memory Stick not Included)(
HDMI Cable and Adaptor to Phone and Tablet Not Included)(

SCAN
GOTO
17/18
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
CC
SCAN
19/20
21/22
AUDIO
21
22
23
24
20
Press to turn ON/OFF captions
AUTO
23/24
25/26 27/28
29/30
26
27
28
25
30
31
32
33
34
35
36
37
29
31 34
32 33
35
36 37
38
39/40
41/42 43/44
45/46
47/48
49/50 51/52
53/54
Press this button to go to desired position
18
19
17
POWER
MUTE
0-9
SLEEP
P.MODE
S.MODE
ASPECT
DISPLAY
SOURCE
MENU
EXIT
OK
R(DELETE)
D.MENU
G(RENAME)
SETUP
Y(MOVE)
B(SKIP)
D.SISP
FAV
EPG
TEXT
TIME SHIFT
REC.MENU
SUBTITLE
REVEAL
Ⅳ. Remote-Control unit
1514

Ⅴ. Main Menu User Guide
1. Picture Menu
This chapter will describe the function of Picture in mainmenu.
1.1Picture Menu
It will open the mainmenu by pressing down the button “MENU” on the remote. The focus will
move to the sub items in the Picture menu by pressing down the button “RIGHT” and then
functions in the Picture can be set. The Picture menu is shown as follows:
45
46
47
44
MTS
39
38
When stereo program is received, press this button to
switch sound system between mono and stereo.
When SAP program is received, press this button to switch
sound system between mono and SAP. When stereo
and SAP program is received, press this button to switch
among mono, stereo and SAP.
49
50
51
52
53
54
48
Press SOURCE button to display the input source list.
Press ▼/▲ button to select the input source you want
to watch.
Press ENTER button to enter the input source.
INPUT
Euro TV Analog (ATV)
HDMI 1
SCART
AV
Euro TV Digital (DTV)
YPbPr
HDMI 2
USA TV
PC
Media
S e ct i o n P i c t ur e M e n u
I t e m s V al u e D ef au lt
1.2.1 Picture Mode Standard,
Mild,Dyn am ic , User
Standard
1.2.2 Brigh tness 0~100 50
1.2.3 Co n trast 0~100 50
1.2.4 Sh arpn ess 0~100 50
1.2.5 Co lo ur 0~100 50
1.2.6 Tint 0~100 50
1.2.7 Co lo r Tem p Standard, Warm , Cool Stan dard
1.2.8
As pec t Ratio Fu ll;Auto；4:3；16:9；
Zo om 1；Zo om 2；
Panoram a；Just Scan。
Fu ll
1.2.9 Noise Reduction Off,Low,Midd le ,High Mid dle
The range and the default values of every sub items in Picture menu are shown in the following
table:
SOURCE
1716
You can repeatedly play a given portion by operating as follows:
To press this button once to define the portionhead.
To press this button again to define the portion toe.
Then the portion will be played repeatedly.
To press this button again to return to normal playback.
41
42
43
A-B
40

The result of the action pressing down some button when in Picture menu:
Key Stroke Act ion
KEY_UP Highlight the previous sub item. If it is the first button currently,
then highlight the last one in the list.
KEY_DOWN Highlight the next sub item. If it is the last button in the list
currently, then highlight the first one.
KEY_LEFT Back to Main Menu.
KEY_RIGHT
If the current focus sub item is ”Picture Mode” 、”Color
Temperature” 、”Aspect Ratio” or ”Noise Reduction”,a popup
menu will appear for user to make further choice. If not,
mainmenu will be cleaned for new “adjust menu”.
KEY_OK Same as KEY_RIGHT 。
KEY_MENU Back to Main Menu.
KEY_EXIT Exit Main Menu.
1 2 Function Description
1.2.1 Picture Mode
.
Selecting Picture Mode – Standard,Mild,Dynamic or User is the same as the function when
pressing button KEY_PICTURE_MOD on the remote.
Key Operation
KEY_UP
KEY_DOWN
The current focused value will be selected and popup menu will be
cleaned, then back to Picture menu.。
Highlight the previous sub item. If it is the first button currently, then
highlight the last one in the list. Adjust the current value and save it
momentarily.
Highlight the next sub item. If it is the last button in the list currently,
then highlight the first one. Adjust the current value and save it
momentarily.
The current focused value will be selected and popup menu will be
cleaned, then back to Picture menu.
The current focused value will be selected and popup menu will be
cleaned, then back to Picture menu.
The current focused value will be selected and popup menu will be
cleaned, then back to Picture menu.
Exit Main Menu.
Key Action
KEY_LEFT
KEY_RIGHT
KEY_OK
KEY_MENU
KEY_EXIT
1.2.2 Brightness
1) The overall brightness level of the picture. the higher, the brighter.
2) Key Operation
K ey S tr ok e A ct io n
KEY_UP Enter backlight adjusting
KEY_DOWN Enter co ntrast ad justing
KEY_LEFT Decre ase the value of brightness, minimum value is 0
KEY_RIGHT Increase the value of brightness, maximum value is 100
KEY_OK Clo se adjust menu and back to Picture Menu
KEY_MENU Close ad just menu and back to Picture Menu
KEY_EXIT Exit Main Menu.
1.2.3 Contrast
1)The difference in color and light between parts of an image. The higher, the difference
that the user feel stronger.
2)Key Operation
Key Stroke Act ion
KEY_UP Enter brightness adjusting
KEY_DOWN Enter sharpness adjusting
KEY_LEFT Decrease the value of contrast, minimum value is 0
KEY_RIGHT Increase the value of contrast, maximum value is 100
KEY_OK Close adjust menu and back to Picture Menu
KEY_MENU Close adjust menu and back to Picture Menu
KEY_EXIT Exit Main Menu.
1.2.4 Sharpness
1)The sharpness of picture. The higher, the more distinct user feels and there is to be more
sawtooth and burr.
2)Key Operation
1918

Key Stroke Act ion
KEY_UP Enter contrast adjusting
KEY_DOWN Enter colour adjusting
KEY_LEFT Decrease the value of sharpness, minimum value is 0
KEY_RIGHT Increase the value of sharpness, maximum value is 100
KEY_OK Close adjust menu and back to Picture Menu
KEY_MENU Close adjust menu and back to Picture Menu
KEY_EXIT Exit Main Menu.
1.2.5 Colour
1)The vividness of color. The higher, the stronger.
2)Key Operation
Key Stroke Action
KEY_UP Enter sharpness adjusting
KEY_DOWN
Enter tint adjusting only when Picture Mode is User and
current source pattern is NTSC. Otherwise enter brightness
adjusting.
KEY_LEFT Decrease the value of saturation, minimum value is 0
KEY_RIGHT Increase the value of saturation, maximum value is 100
KEY_OK Close adjust menu and back to Picture Menu
KEY_MENU Close adjust menu and back to Picture Menu
KEY_EXIT Exit Main Menu.
1.2.6 TINT
1)TINT adjusting. It is not available unless Picture Mode is set to be user and the current
TV system is NTSC.
1)Key Operation
Key Str oke Act ion
KEY_UP Enter colour adjusting
KEY_DOWN Enter backlight adjusting
KEY_LEFT Decrease the value of tint, minimum value is 0
KEY_RIGHT Increase the value of tint, maximum value is 100
KEY_OK Close adjust menu and back to Picture Menu
KEY_MENU Close adjust menu and back to Picture Menu
KEY_EXIT Exit Main Menu.
1.2.7 Colour Temperature
1) Color temperature adjusting. There are three choices:standard、warm、cool.
2) Key Operation
Key Stroke Action
KEY_UP
Highlight the previous sub item. If it is the first button
currently, then highlight the last one in the list. Adjust the
current value and save it momentarily.
KEY_DOWN
Highlight the next sub item. If it is the last button in the list
currently, then highlight the first one. Adjust the current value
and save it momentarily.
KEY_LEFT The current focused value will be selected and popup menu
will be cleaned, then back to Picture menu.
KEY_RIGHT The current focused value will be selected and popup menu
will be cleaned, then back to Picture menu.
KEY_OK The current focused value will be selected and popup menu
will be cleaned, then back to Picture menu.
KEY_MENU The current focused value will be selected and popup menu
will be cleaned, then back to Picture menu.
KEY_EXIT Exit Main Menu.
2120

1.2.8 Aspect Ratio
1) Aspect Ratio – Auto,4:3,16:9,Zoom1,Zoom2 or Panorama is the same as the function
when pressing button KEY_ASPECT on the remote.
2) Key Operation
K ey A ct io n
KEY_UP
Highlight the previous sub item. If it is the first button
currently, then highlight the last one in the list. Adjust the
current value and save it momentarily.
KEY_DOWN
Highlight the next sub item. If it is the last button in the list
currently, then highlight the first one. Adjust the current
value and save it momentarily.
KEY_LEFT The current focused value will be selected and popup menu
will be cleaned, then back to Picture menu.
KEY_RIGHT The current fo cused value will be selected and popup menu
will be cleaned, then back to Picture menu.
KEY_OK The c urre nt focused value will be selected and popup menu
will be cleaned, then back to Picture menu.。
KEY_MENU The current focused value will be selected and popup menu
will be cleaned, then back to Picture menu.
KEY_EXIT Exit Main Menu.
1.2.9 Noise Reduction
1) Noise reduction of the picture. To reduce noise and improve the appearance of the picture.
No noise reduction operation if it’s ”off”. From Low->Middle->High, noise reduction effects
better but it will cause a blur on picture.
2) Key Operation
K ey S tr o ke A ct io n
KEY_UP
Highlight the previo us sub item. If it is the first b utton
currently, then highlight the last one in the lis t. Adjust the
current value and s ave it m omentarily.
KEY_DOWN
Highlight the next sub item. If it is the last button in the list
currently, then highligh t the first one. Adjust the current value
and save it mom entarily.
KEY_LEFT The curre nt fo cused value will b e se lected an d popup m enu
will be cleaned, then back to Picture m enu.
KEY_RIGHT The curre nt fo cused value will be se lected and popup menu
will be cleaned, then back to Picture m enu.
KEY_OK The curre nt focused value will be selected and popup m enu
will be cleaned, then back to Picture m enu.
KEY_MENU The curre nt focused value will be selected and popup m enu
will be cleaned, then back to Picture m enu.
KEY_EXIT Exit Main Menu.
2. Sound Menu
This chapter will describe the function of Sound in mainmenu.
2.1 Sound Menu
It will open the mainmenu by pressing down the button “MENU” and then press the button
“down” on the remote. The focus will move to the sub items in the Sound menu by pressing
down the button “RIGHT” and then functions in the Sound can be set. The Sound menu is
shown as follows:
2322

The range and the default values of every sub items in Sound menu are shown in the
following table:
The result of the action pressing down some button when in Sound menu:
K e y S t r ok e A c t i o n
KEY_UP Hig h light the previo u s sub item. If it is the first button c urre ntly,
th en highlight the last one in the list.
KEY_DOWN Highlight the next sub item. If it is the las t b utton in th e lis t
curre ntly, then hig hlight the firs t o ne .
KEY_LEFT Bac k to main menu
KEY_RIGHT
If the c urrent focu s sub item is ” Sound Mo de”/” Surro un d” / ”
Stable Sound”,a popup menu will ap p ear fo r user to m ake
further choice. If not, main menu will b e cleaned fo r n ew “adjust
menu”.
KEY_OK Sam e as KEY_RIGHT.
KEY_MENU Bac k to main menu
KEY_EXIT Exit Main Menu.
2.2 Function Description
2.2.1 Sound Mode
Selecting Sound Mode - Standard, Movie, Music, Speech or User is the same as the function
when pressing button KEY_SOUND_MOD on the remote. Default values are as follows：
Sou nd M ode ( Bas s, Tr ebl e)
Standard (50, 50)
Movie (80, 60)
Music (60, 30)
Speech (40 , 60)
User (50, 50)
Key Operation
K e y S t r ok e A c t i o n
KEY_ UP
Hig h lig ht t h e p revio us s ub it e m . I f it is t he firs t b utton
currently, then h ig hlig h t the last one in the lis t. Adjust the
c urre nt va lue an d s ave it m om en tarily.
KEY_ DOWN
Hig h lig ht the n ext s ub item . If it is the last button in the list
c urre nt ly, th en h ighlig h t t he firs t o ne . A dj ust t he c urr e nt
value and save it m om entarily.
KEY_ LEFT Th e c urre nt fo cus ed v alu e w ill b e s ele c ted an d p op up m enu
will be cle an ed, then b ack to So u nd m enu.
KEY_ RIGHT Th e c urre nt fo cus ed v alu e w ill b e s elec ted a nd p op up m e nu
will be cle an ed, then b ack to So u nd m enu.
KEY_ OK T he c urre nt fo cus ed v alu e w ill b e s e lec ted a nd p opup m enu
will be cle an ed, then b ack to So u nd m enu.
KEY_MENU T he c urre nt fo cus ed v alu e w ill b e s e lec ted a nd p op up m e nu
will be cle an ed, then b ack to So u nd m enu.
KE Y_E XIT Exit M ain Me nu .
2.2.2 Bass&Treble
1)Bass: the bass of the output sound; Treble: the treble of the output sound.
2)Key Operation
Key Stroke Action
KEY_UP Enter Bass/Treble/Balance adjusting
KEY_DOWN Enter Bass/Treble/Balance adjusting
KEY_LEFT Decrease the value of Bass/Treble, minimum value is 0
KEY_RIGHT Increase the value of Bass/Treble, maximum value is 100
KEY_OK Close adjust menu and back to Sound Menu
KEY_MENU Close adjust menu and back to Sound Menu
KEY_EXIT Exit Main Menu.
2524
S e ct i o n S o u n d M e n u
I t em s Va lu e Defa u lt
2.2.1 Sound Mode Standard,Movie,Music,
Speech,User
Standard
2.2.2 Bass 0~100 50
2.2.3 Tre ble 0~100 50
2.2.4 Balance -50~50 0
2.2.5 Surround Off,On Off
2.2.6 AVL Off,On Off
2.2.7 SPDIF Off,PCM,Auto Off
2.2.8 Audio D escription “ENTER”

Notes： when changing Sound Mode, if Mute function is on and the UI looks as follows,the
Mute function will be truned off so that the user can feel the difference in different sound mode.
2.2.3 Balance
Balance between the left and right track of the output sound. if balance is negative, the
sound in the left track is louder. If balance is positive, the sound in the right track is louder.
Key Operation:
Key Stroke Act ion
KEY_UP Enter Bass/Treble/Balance adjusting
KEY_DOWN Enter Bass/Treble/Balance adjusting
KEY_LEFT Decrease the value of Balance, minimum value is -50
KEY_RIGHT Increase the value of Balance, maximum value is 50
KEY_OK Close adjust menu and back to Sound Menu
KEY_MENU Close adjust menu and back to Sound Menu
KEY_EXIT Exit Main Menu.
2.4.4 Surround
1) Switch for Surround function
2) Key Operation
K ey S tro k e A ct i o n
KEY_UP
Highlight the previous sub item. If it is the first button
curren tly, then highlight the last one in the list. Ad just the
curren t value and save it m omentarily.
KEY_DOWN
Highlight the next s ub item. If it is the last button in the list
curren tly, then highlight the first one. Adjust the current value
and save it momentarily.
KEY_LEFT The current focused value will be selected and popup menu
will be cleaned, then back to Sound menu.
KEY_RIGHT The current fo cused value will be selected and popup menu
will be cleaned, then back to Sound menu.
KEY_OK The c urrent focused value will be se lected and popup menu
will be cleaned, then back to Sound menu.
KEY_MENU The curre nt focused value will be se lected and popup menu
will be cleaned, then back to Sound menu.
KEY_EXIT Exit Main Menu.
2.4.5 AVL
1) Switch for AVL function
2) Key Operation
K ey S tr ok e A c t ion
KEY_UP
Highlight the previo us sub item. If it is the first button
currently, then highlight the last one in the list. Adjust the
current value and save it mom entarily.
KEY_DOWN
Highlight the next sub item. If it is the last button in the list
currently, then highlight the first one. Ad just the c urre nt value
and save it m omentarily.
KEY_LEFT The current focused value will be se lected and popup menu
will be c leaned, then b ack to So und menu.
KEY_RIGHT The current focused value will be se lected and popup menu
will be c leaned, then b ack to So und menu.
KEY_OK The current focused value will be se lected and popup menu
will be c leaned, then b ack to So und menu.
KEY_MENU The current focused value will be se lected and popup menu
will be c leaned, then b ack to So und menu.
KEY_EXIT Exit Main Me nu.
2726

2.4.6 SPDIF
1) Switch for SPDIF function
2) Key Operation
K e y S t r ok e A c t io n
KE Y_ U P
H ig hlig h t th e p r evio u s s ub it em . I f it is th e fir s t b u tto n
cu r ren t ly, t h en h ig hlig h t t h e la s t on e in t h e lis t . A d ju st t h e
cu rr en t va lu e an d s a ve it m om e n tarily .
KE Y _D OW N
H ig hlig h t t h e n ex t s u b item . I f it is t h e la s t b ut to n in t he lis t
cu rrently, then hig hlig h t the first on e. Adju st th e c urre nt value
an d s av e it m om e n ta rily.
KE Y_ L E FT Th e c urr e nt fo c us ed v alu e w ill b e se le ct ed a n d p op u p m e nu
w ill b e c lea n ed , t h en b ack t o S o un d m e n u .
KE Y_ RIGHT Th e c ur re nt fo c u sed v alu e w ill b e s e lec te d an d p op u p m e nu
w ill b e c lea n ed , t h en b ack t o S o un d m e n u .
KE Y_ OK Th e c ur re nt fo c u sed v alu e w ill b e s e lec te d an d p op u p m e nu
w ill b e c lea n ed , t h en b ack t o S o un d m e n u .
KE Y_ M E N U T h e c ur re nt fo c us ed v alu e w ill b e se le ct ed a n d p op u p m e nu
w ill b e c lea n ed , t h en b ack t o S o un d m e n u .
KE Y_ E XIT Exit M ain M e nu.
2.4.7 Audio Description
This is to facilitate for the disabilities whose eyes are not good.
1) Switch for Audio Description function
2) Key Operation
K ey S tr oke A ct i o n
KEY_UP No Function
KEY_DOWN No Function
KEY_LEFT The current focused value will be se lected and popup menu
will be c leaned, then back to Sound menu.
KEY_RIGHT It will e nter sub menu to swith the mode o f Audio Description.
KEY_OK It will enter sub menu to swith the mod e o f Audio Description.
KEY_MENU The current focused value will be selected and popup menu
will be c leaned, then back to Sound menu.
KEY_EXIT Exit Main Me nu.
1) Switch for Audio Description function
2) Key Operation
Key Stroke Action
KEY_UP
Highlight the previous sub item. If it is the first button
currently,then highlightthe last one in the list. Adjust the
currentvalueand saveit momentarily.
KEY_DOWN
Highlightthe next s ub item.If it i s the l ast butto nin the list
curr ently,then high li ghtthe fi rstone.Adj ustt he c urrentvalue
and sa ve it momen tarily.
KEY_LEFT The c ur ren tf oc us edv al ue w ill be s el ect edand popu p m enu
will b e clean ed ,then back to AudioDescriptionmenu.
KEY_RIGHT Th e c ur ren tf oc us edv al ue w ill be s el ect edand popu p m enu
will b e clean ed ,then back to AudioDescriptionmenu.
KEY_OK T he cur ren tf oc us edv al ue w ill be s el ect edand popu p m enu
will b e clean ed ,then back to AudioDescriptionmenu.
KEY_MENU The c ur re nt fo cu se dva lu e wi ll b e se lec teda nd po pup menu
will b e clean ed ,then back to AudioDescriptionmenu.
KEY_EXIT Exit Main Menu.
2928

1) Switch for Audio Description function
2) Key Operation
Key Str oke Act ion
KEY_UP
Highlight the previous sub item. If it is the first button
currently, then highlight the last one in the list. Adjust the
current value and save it momentarily.
KEY_DOWN
Highlight the next sub item. If it is the last button in the list
currently, then highlight the first one. Adjust the current value
and save it momentarily.
KEY_LEFT The current focused value will be selected and popup menu
will be cleaned, then back to Sound menu.
KEY_RIGHT In mode,it will enter sub menu to swith the mode of Audio
Description.In volume,it will enter sub menu to adjust volume.
KEY_OK In mode,it will enter sub menu to swith the mode of Audio
Description.In volume,it will enter sub menu to adjust volume.
KEY_MENU The current focused value will be selected and popup menu
will be cleaned, then back to Sound menu.
KEY_EXIT Exit Main Menu.
3.TV Channel
3.1 Channel User Interface
Press “Menu” “Down(▼)” “Down(▼)” “Right(►)” to enter channel operation
user interface in ATV/DTV/Radio Source as follows:
There are following functions in this page:
Channel Management: To manage (Delete/Rename/Swap/Lock/Skip) all channels;
Favorite Management: To manage (Add/Delete) Favorite channels;
Country: To select country;
TV connection: To select the DTV signal mode(Air/Cable/Satellite);
Auto Search: To select auto search mode (All/Digital/Analogue);
Digital Manual Search: To search digital channel by entering parameters manually(only for
Air/Cable);
Analogue Manual Search: To search analogue channel by entering parameters manually
(only for ATV);
Satellite System: To enter the satellite system setting menu.
3.2 Function Description
3.2.1 Channel Manager
Press “ENTER” or “RIGHT” key on “Channel management” of “Channel” page in ATV or
DTV source. The operation interface shows as follow:
3.2.1.1 Delete/Skip/Lock
1) Press “UP (▲)” and “DOWN (▼)” key to select the programs to be deleted and press
“RED”, “GREEN” or “YELLOW” key to mark them as following:
2) After marking press “MENU” key to save the result.
3.2.1.2 Swap Channel
Select the program to be swapped and press “BLUE” key, the selected program will Blink
and them select another program and press “BLUE” key to swap them.
3130

3.2.2 Favorite Management
1) Press “ENTER” or “RIGHT” key on “Favorite management” of “Channel” page in ATV or DTV
source. The operation interface shows as follow:
2)Press “UP (▲)” and “DOWN (▼)” key to select the programs to be added into favorite list and
press “RED”,“GREEN”,”YELLOW” or ”BLUE” key to mark them as following:
3) Press “MENU”key to return “Favorite management” page and save the result.
3.2.3 Country
1) Select the country.
2) Key Operation
K e y S t r o k e A c t i o n
KE Y_UP
H ig hlig ht t h e p rev io us s ub ite m . If it is t he fir s t b u tto n
cu rrently, th en highlig h t the las t one in t h e lis t. Adju st th e
cu rr en t v alu e an d s av e it m o m en t arily .
KE Y_DOW N
H ig hlig ht th e n ex t s ub it em . If it is t h e la s t b ut ton in t h e lis t
cu rr en tly, t h en h ig hlig h t th e firs t o n e. A d ju st th e c urre nt v alu e
an d s av e it m o m en tarily .
KE Y_LEFT Th e c urr e nt fo cu se d v alu e w ill b e se le cte d a nd p op up m enu
w ill b e c lea ned , t h en b a ck to C ha n ne l m e nu.
KE Y_RIGH T Th e c ur re nt fo c us ed v alu e w ill b e s e lect ed a nd p opu p m e nu
w ill b e c lea ned , t h en b a ck to C ha n ne l m e nu.
KE Y_OK T he c urre nt fo cu se d v alu e w ill b e se le cte d a nd p o pu p m e nu
w ill b e c lea ned , t h en b a ck to C ha n ne l m e nu.
KE Y_MENU Th e c urr e nt fo cu se d v alu e w ill b e se le cte d a nd p op up m e nu
w ill b e c lea ned , t h en b a ck to C ha n ne l m e nu.
3.2.4 Auto Search
3.2.4.1 Air signal mode
Select “Auto Search” item to enter auto search user operation interface as following:
All Mode: Select “All” item to scan all digital channels carried by current signal mode firstly
and then switch to scan all analog channels in selected country automatically. User can skip
digital search to analog search directly by entering “EXIT” or “MENU” key and can also stop
auto scan directly by entering “EXIT” or “MENU” during analog scanning.
Digital Mode: Select “Digital” item to search all digital channels in selected country carried by
current signal mode. User can stop search directly by entering “EXIT” or “MENU” key.
Analog Mode: Select “Analogue” item to search all digital channels in selected country carried
by current signal mode. User can stop search directly by entering “EXIT” or “MENU” key.
All search mode processing interface display as following:
3332

3.2.4.2 Cable signal mode
Operations in satellite Auto Search menu are shown in the following table
Option Valu e
Scan Mode Full Search,Network Search
Operations in satellite Auto Search menu are shown in the following table
Option Valu e
Mode Default,Network Search,Full Search
Satellite 65 satellite for searching(3 user edit satellite)
Service Type All Services,Free Service
Channel Type All, TV Only
3.2.5 Digital Manual Search
3.2.5.1 Air signal mode
Select “Digital Manual Search” item to enter air channel manual search in DTV source
and the user operation interface as following:
Select channel number by “RIGHT” key or entering number directly. The strength and the
quality shows at the bottom. Press “ENTER” key on “Start” item to start current channel
search. The manual searching UI and the auto searching UI are the same.
3.2.5.2 Cable signal mode
Select channel number by “RIGHT” key or entering number directly. The strength and the
quality shows at the bottom. Press “ENTER” key on “Start” item to start current channel search.
3.2.6 Analog Manual Search
Select “Analogue Manual Search” item to enter analogue manual search in ATV source and
the user operation interface as following:
3534

These parameters in this page show as the following table:
Anal og P a ra me ters Val ue Def au lt
Current Channel 001-100 001
Frequency Show the Frequency when s rech Frequency of the
current channel
Search Press the button “enter” to open the
search sub page.
Fine Tune Press the button “enter” to open the
fine tune sub page.
Color System Auto/PAL/SECAM Color System of
the current
channel
Sound System BG/DK/I/L/L’ Sound System of
the current
channel
Enter these parameters and then select “Search” item to enter analog channel tune. A dialog
popup on left bottom:
Press “Left(◄)” to search channel carried in lower frequency and “Right ►)” key to search
channel carried in higher frequency. Press “MENU” key to return to “Channel-Analogue Manual
Search” page and press “RED” key to save the scanned channel to database.
User also can select “Fine Tune” item to fine tune current channel and the UI shows as the
last picture. Press “Left(◄)”, “Right(►)” key to fine tune current channel. Press “MENU”
key to return to “Channel-Analogue Manual Search” page and press “RED” key to save the tuned
channel to database.
(
3.2.7 Satellite System
Select “Satellite System” item to enter the satellite system setting menu and the user
operation interface as following:
3.2.7.1 Satellite List
Operations in Satellite List Menu are shown in the following table:
Key Stroke Act ion
KEY_UP use cursor to up
KEY_DOWN use cursor to down
KEY_LEFT switch operation to satellite system parameters setting list
KEY_RIGHT switch operation to Transponder list
KEY_MENU Back to Main Menu.
KEY_EXIT Exit Main Menu.
KEY_GREEN Enter satellite edit menu
KEY_BLUE Enter satellite scan menu
satellite edit menu
Operations in satellite edit menu are shown in the following table
Opt ion Valu e
Satellite Enter Satellite Rename edit menu
Longitude
Direction East ,West
Longitude Angle Press num key to set the Angle
Band C,Ku band choose
3736
