MAKin Stakeout Makin' 3D User manual

User guide Stakeout
Version 2.18
Makin' 3D User guide 2.18, 1st edition, May 2022 © Copyright 2021, Makin AS 1

Copyright and disclaimer
All rights reserved. No parts of this manual may be reproduced in any form without the express
written permission of Makin AS (Makin). Makin makes no warranties, express or implied, in
respect of this document or its contents. In addition, the contents of the document are subject to
change without prior notice. Every precaution has been taken in the preparation of this manual.
Nevertheless, Makin assumes no responsibility for errors or omissions or any damages resulting
from the use of the information contained.
Copyright © 2019-2021 by Makin AS.
Contact the manufacturer:
Makin AS
Ingelsrudvegen 350
2324 Vang H.
NORWAY
www.Makin3D.com
E-mail: [e-mail]
Org. no. 920 323 650
Makin' 3D User guide 2.18, 1st edition, May 2022 © Copyright 2021, Makin AS 2

Table of contents
Table of contents 3
1. Introduction 6
1.1. Congratulations on your new product 6
1.2. Maintenance 6
1.3. Storage 6
1.4. Cleaning 6
2. Responsibility 7
2.1. Installation 7
2.2. Limitations 7
2.3. End-user license agreement 7
2.4 Warranty disclaimer 7
2.5. Software update 8
3. Compliance information 9
3.1. EU/Compliance 9
3.2. 2014/30/EU 9
3.4. 2011/65/EU 9
3.5. 2006/42/EC 9
3.6. ISO-13766-2006 9
Tablet buttons and light indicators 10
Controlling basic tablet functionality 11
Programming the physical tablet buttons 12
Tablet Panasonic FZ-A3 connections 12
Tablet Juniper Mesa3 connections 14
4.2. Software 14
How to turn the system on 14
Elements of the runscreen 15
Touch gestures 17
Symbols in the top bar 18
Shortcuts in the quick keys menu 18
5. Menu 20
Project 20
Open or create a project 20
Supported file types 21
References 22
Folders 24
Visible reference 26
Side reference 27
Makin' 3D User guide 2.18, 1st edition, May 2022 © Copyright 2021, Makin AS 3

Height reference 27
Alert reference 27
Lock Reference (line, point, or surface) 27
Dynamic 2D files 29
Stakeout line 29
Create point from coordinate 32
Create line from points 33
Create profile along lines 34
Geodetic systems 34
Extend surface 34
Plane 35
Temporary profile 36
Change offset 36
Project offset 37
Display 38
Display labels 38
Use file color 39
Show maps 40
Show other systems 40
Show logged points 41
Show textures 41
Auto hide quick keys 41
Reverse quick keys 42
Transparent surfaces 42
Dark theme 42
Wireframe 43
Change screen 43
View settings 44
Settings 44
Tolerances 44
Height tolerances 45
Side tolerances 45
Alert tolerances 46
Language 46
Length unit 47
Angle unit 47
Sound Volume 47
Full sync 48
5.4. Logging (As-built) 48
Own log codes 49
Log line 50
Upload your own point code list in the Cloud 51
Makin' 3D User guide 2.18, 1st edition, May 2022 © Copyright 2021, Makin AS 4

Point code information and attributes 54
Sort as-built data 56
GNSS 57
GNSS Device 57
Correction source 57
Radio 57
Ntrip 58
Heading method 58
Bluetooth 59
Connecting and pairing bluetooth 59
Pole 59
Chat 60
Status 61
7. Troubleshooting 63
8. Appendix 64
GNSS limitations 64
Demo mode 65
Network requirements 67
Makin' 3D User guide 2.18, 1st edition, May 2022 © Copyright 2021, Makin AS 5

1. Introduction
1.1. Congratulations on your new product
You are now ready to work more efficiently and keep the precision at an optimum level. Besides
that, you will be more eco-friendly by doing the same amount of work in less time.
The system is designed to show you the information you need on the screen with the greatest
accuracy.
At the construction site, you are the expert - Makin’ 3D is the best work companion the excavator
operator can get.
We at Team Makin wish you all the best with the use of your new system.
1.2. Maintenance
It is recommended to check the system's accuracy regularly. We recommend that the operator of
the machine frequently checks the positioning against a known point on every job site. See
chapter 7, How to check calibration.
1.3. Storage
Keep the equipment safe when it's not installed in the machine. Use of a protective case is
recommended if the tablet and antennas are removed from the machine to secure the devices
from external stresses such as knocks and bumps.
1.4. Cleaning
The equipment must be cleaned regularly to ensure full functionality over time.
Cleaning is done by blowing to remove dust, you can also choose to use a damp cloth to wipe the
tablet.
Under no circumstances should the equipment be high-pressure washed - neither inside nor
outside the engine compartment.
Makin' 3D User guide 2.18, 1st edition, May 2022 © Copyright 2021, Makin AS 6

2. Responsibility
2.1. Installation
All installation and main calibration of the system must be carried out by Makin-approved
technical personnel. Failure caused by unauthorized installation or repair could cause a void of
warranty.
It is important to follow the machine manufacturer's instructions for installing the Makin machine
control system to avoid violating any machine supplier's warranty regulations.
The user is responsible for the product being used in accordance with the given instructions. The
user is also responsible for ensuring that the reference models used are correct and that the
bucket is properly calibrated and controlled.
Broken cables on the system may cause short circuits, system errors, and cause defective
components. Ensure that no cables have external damage, damage must be repaired immediately
before further use.
Errors in measurement results may occur if the equipment has been subject to impact, abuse,
modification, or transport damage. Control of the system after such events is important to ensure
an optimum result.
Warranty: For further details visit www.Makin3D.com for more information.
2.2. Limitations
The product is intended as a control tool for machine operators and any use beyond this is not
permitted. The supplier or manufacturer cannot be held responsible for any use that goes beyond
the given limits.
2.3. End-user license agreement
License: The system is preloaded with software, this can also be downloaded with permission
from Makin. The software is protected by copyright and other laws. The use of the software is
governed by the license agreement entered into the Makin’ 3D system when purchasing the
product.
For further legal terms and conditions, including but not limited to the applicable End User License
Agreement between you and Makin, we refer you to visit Makin website, www.Makin3D.com.
2.4 Warranty disclaimer
Makin provides this documentation without warranty, term, or condition of any kind, either implied
or expressed, including, but not limited to, the implied warranties, terms or conditions of
merchantability, satisfactory quality, and fitness for a particular purpose.
Makin' 3D User guide 2.18, 1st edition, May 2022 © Copyright 2021, Makin AS 7

Makin, its employees, and agents will not be responsible for any loss, however arising, from the
use of, or reliance on this information.
For further legal terms and conditions, including but not limited to the applicable End User License
Agreement between you and Makin, we refer you to visit Makin’s website, www.Makin3D.com.
2.5. Software update
Software will automatically and frequently be updated and users will get a notification on the
screen. Software updates require a valid Maintenance license. To start downloading an updated
software version, users will be asked to agree before the download starts.
Makin' 3D User guide 2.18, 1st edition, May 2022 © Copyright 2021, Makin AS 8

3. Compliance information
3.1. EU/Compliance
Makin hereby declares that the system and its components comply with the essential
requirements and other relevant regulations of the Directives below.
3.2. 2014/30/EU
The EMC Directive limits electromagnetic emissions of equipment in order to ensure that, when
used as intended, such equipment does not disturb radio and telecommunication as well as other
equipment.
The directive also governs the immunity of such equipment to interference and seeks to ensure
that this equipment is not disturbed by radio emissions when used as intended.
3.4. 2011/65/EU
Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the
restriction of the use of certain hazardous substances in electrical and electronic equipment
3.5. 2006/42/EC
Machinery safety (MD)
3.6. ISO-13766-2006
The system has been tested and passed the EMC test. Earthmoving machinery.
Makin' 3D User guide 2.18, 1st edition, May 2022 © Copyright 2021, Makin AS 9

Tablet buttons and light indicators
1.
On/Off button
6.
Volume down
2.
Power indicator
●No light: System is off
●Green light: System is on
●Blinking green light: Tablet
7.
Not in use. Button can be
programmed (more info below).
Makin' 3D User guide 2.18, 1st edition, May 2022 © Copyright 2021, Makin AS 10

in sleep mode
3.
Charging indicator
●No light: External power
source not connected
●Red light: Battery power is
critically low. External power
source not connected.
●Orange light: Tablet is
currently charging
●Green light: Tablet fully
charged
8.
Not in use. Button can be
programmed (more info below).
4.
Auto-rotate screen. Button can be
programmed (more info below).
9.
Basic tablet functionality via the
‘Dashboard’ app. Button can be
programmed (more info below).
5.
Volume up
Additionally, screenshots can be taken by pressing the ‘On/Off button’ and ‘Volume down’
(simultaneously holding down buttons 1 and 6 for about two seconds). This can be useful in the
unfortunate case that assistance is required. Find the screenshots via the ‘Foto’ app.

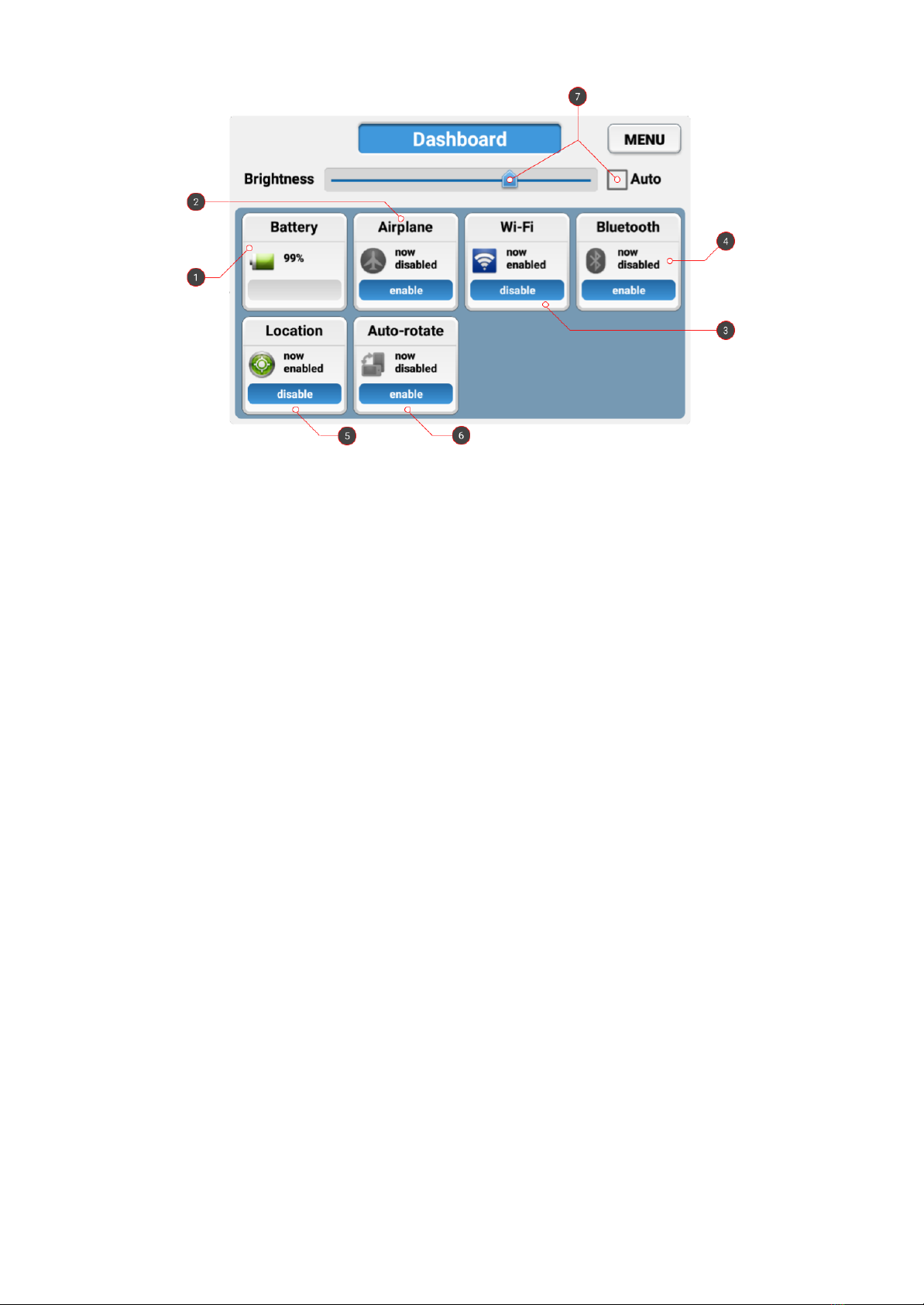

Controlling basic tablet functionality
On the tablet, press the physical button labeled A1 to bring up the ‘Dashboard’ app, from which you
can control the basic functionality of the tablet’s hardware.
Makin' 3D User guide 2.18, 1st edition, May 2022 © Copyright 2021, Makin AS 11

1.
The battery indicator shows the
remaining battery power of the
tablet
5.
Turn on/turn off the location
service
2.
Turn on/turn off Airplane mode
6.
Turn on/turn off automatic screen
rotation
3.
Turn on/turn off WiFi radio
7.
Screen brightness adjustments
4.
Turn on/turn off Bluetooth radio
Programming the physical tablet buttons
Through an app called ‘UserButtonManager’, some of the physical buttons of the tablet can be
easily programmed. These are called A1, A2, A3 and Rotate Lock in the app and correspond
respectively to buttons 9, 8, 7, and 4 mentioned above.
By default, A1 launches the ‘Dashboard’ app and Rotate Lock toggles ‘Auto-rotate’.

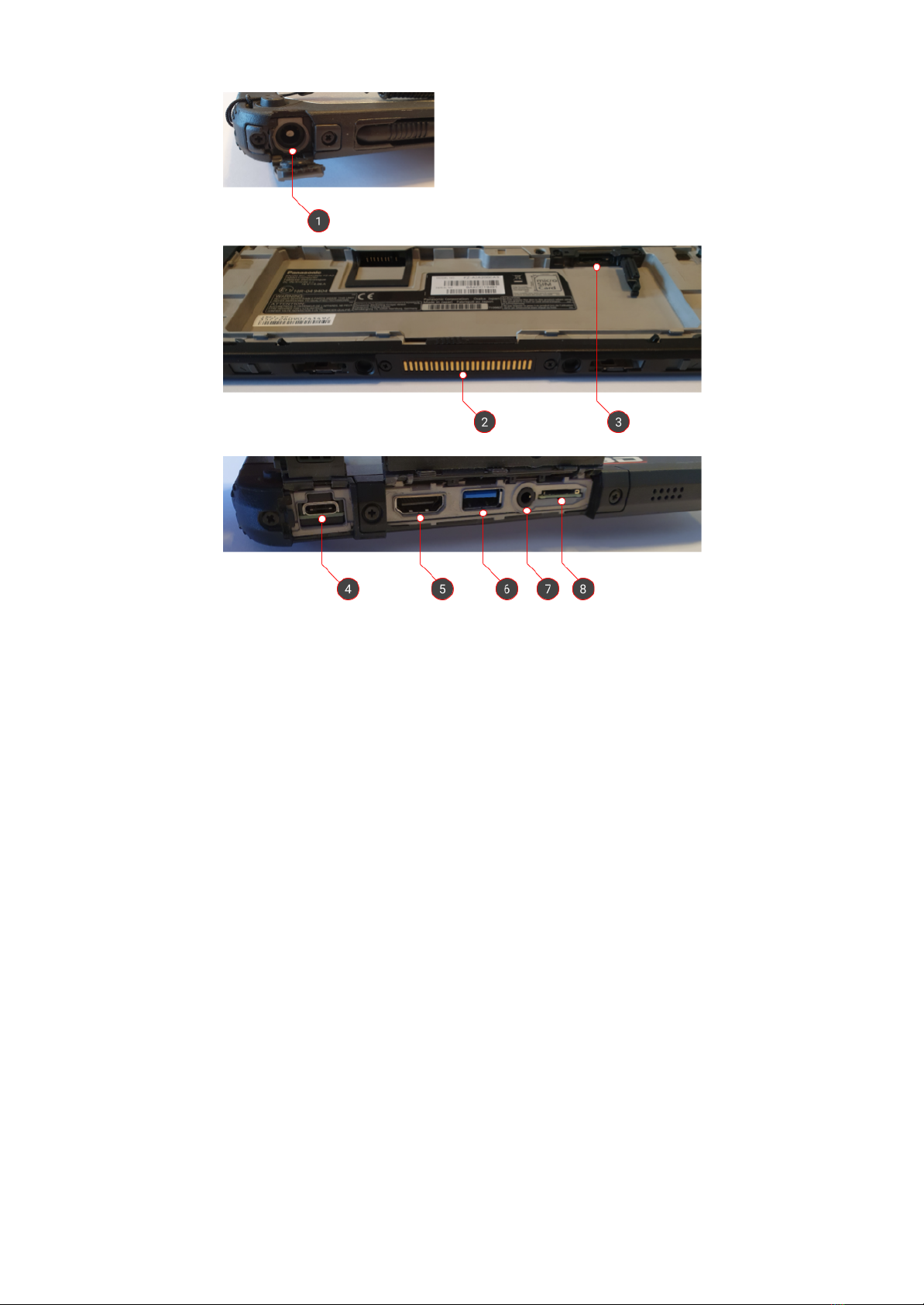

Tablet Panasonic FZ-A3 connections
The Panasonic FZ-A3 has connectors on the top, on the side, inside the battery compartment, and
at the bottom.
Makin' 3D User guide 2.18, 1st edition, May 2022 © Copyright 2021, Makin AS 12

1.
16 V DC input power for external
charger
5.
HDMI output to external screen
2.
Docking station connector for data
and power transmission
6.
SuperSpeed USB-A 3.0
3.
Micro SIM card for broadband
internet on both tablet and GNSS
receiver
7.
Mini-jack audio output
4.
USB-C
8.
Micro SD for extended storage
Makin' 3D User guide 2.18, 1st edition, May 2022 © Copyright 2021, Makin AS 13

Tablet Juniper Mesa3 connections
The tablet Juniper Mesa3 has connectors on the side and at the bottom.
1.
12 V DC input power for external
charger
3.
SuperSpeed USB-A 3.0
2.
Docking station connector for data
and power transmission
4.
USB-C
4.2. Software
How to turn the system on
●Turn on your Makin’ 3D system by pressing the on/off button on the tablet. Android will start
up and present the ‘Lock screen’.
●Swipe upwards with one finger on the touchscreen to access Makin’ 3D.
Makin' 3D User guide 2.18, 1st edition, May 2022 © Copyright 2021, Makin AS 14

●If no project has been previously loaded, you will be prompted to do so. See 5.1. under
‘Open or create a project’.
Elements of the runscreen
Makin’ 3D has many different screens to choose between. Below is an explanation of one that
contains most of the visual features available.
Makin' 3D User guide 2.18, 1st edition, May 2022 © Copyright 2021, Makin AS 15

1.
Top bar with status indicators for
connectivity. It also contains
features for resetting the pan and
zoom level as well as changing
between screens.
6.
Tap the bucket/pole/tablet (also in
the static views) to change or
calibrate the machine’s bucket or
change pole/tablet height.
2.
Indication of the slope in the main
direction of the tool point. The
arrow indicates the vertical
distance to the selected height
reference. The arrow will change
color depending on the distance to
the target. Tap the indicator to
change the height tolerances.
3.
Indication of the slope in the cross
direction of the tool point. The
arrow indicates the horizontal
7.
Station: Indicate where on the
centerline you are located. To the
Makin' 3D User guide 2.18, 1st edition, May 2022 © Copyright 2021, Makin AS 16

distance to the selected side
reference. The arrow will change
color depending on the distance to
the target. Tap the indicator to
change the side distance
tolerances.
right of the Station, you can see the
slope along the road
CL: Distance to centerline. To the
right of the CL, you can see the
slope across the road.
Height: Name of current Height
Reference
Side: Name of the current Side
Reference.
4.
Info bar for Easting, Northing and
Height coordinates.
8.
Change the height offset according
to the current reference - e.g. the
specified plane or the loaded
model file.
5.
Tap any element in the loaded 3D
model to bring up the References
dialog.
9.
Quick keys are shortcuts to
features found in the menu.
Touch gestures
Use one finger to rotate a 3D View.
Use two fingers to pan a Top View or 3D View.
Spread or pinch two fingers to respectively zoom in or out a Top View or 3D
View.
Tap to select.
Sometimes it is possible to long-hold for further options.
Makin' 3D User guide 2.18, 1st edition, May 2022 © Copyright 2021, Makin AS 17

Symbols in the top bar
Indicating connection to the internet. The symbol appears white when
connection is established and grey if no connection.
Indicates the number of visible satellites. The dilution of precision (DOP) as
well as the coordinate quality (CQ) state how errors in measurements will
affect the final estimation. Generally, DOP should be kept under 1.0 and CQ
below 4 to maintain the highest possible confidence level. Tapping the icon
will bring you to the GNSS settings.
Indication of synchronization of data between server and machine.
An indication that you have remote support from Makin.
This will usually be in connection to a remote support case where you will be
notified.
Bring your machine back to the center of your screen after zooming and
panning.
Placed in the upper right corner. Tap for change of screen, depending on the
work you are doing, and what you want to have in focus.
Indicating project offset. The symbol appears when a project
offset is applied to the active project
Shortcuts in the quick keys menu
Tap to access the ‘References’ dialog. Another way to access this dialog is to
select an element in the 3D model. Long hold to access the ‘Project’ menu.
The name of the current point code is shown on the icon’s label. Tap to
quickly log a point, which will be stored alongside general as-built data. Long
hold to access ‘Point codes’. You need to select a point code before logging a
point.
Makin' 3D User guide 2.18, 1st edition, May 2022 © Copyright 2021, Makin AS 18

Both the width and name of the bucket are shown on the icon’s label. Tap to
access the ‘Bucket’ dialog.
Menu, from where you can access all features of the system.
Makin' 3D User guide 2.18, 1st edition, May 2022 © Copyright 2021, Makin AS 19

5. Menu
Project
Menu > Project
Working according to any kind of design is considered a project, whether it being a simple relative
plane or referencing lines and surfaces in more complex 3D models.
Open or create a project
Menu > Project > Open project
To open an existing project:
●In “Project” tap ‘Open project’ to see all the projects stored. This dialog is automatically
opened if no project is loaded.
Makin' 3D User guide 2.18, 1st edition, May 2022 © Copyright 2021, Makin AS 20
