Makita HK0500 User manual
Power Scraper Instruction manual
Mesin Pengikis Petunjuk penggunaan
Máy coTài liu hng dn
HK0500
GB
VI
TH
ID
2
1002885 2002893
3002910 4002911
5002936 6002941
12
3
4
3
4
5
6
7
3
ENGLISH
Explanation of general view
SPECIFICATIONS
•Due to our continuing programme of research and development, the specifications herein are subject to change without
notice.
• Specifications may differ from country to country.
• Weight according to EPTA-Procedure 01/2003
END201-5
Symbols
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.
.... Read instruction manual.
.............. DOUBLE INSULATION
ENE047-1
Intended use
The tool is intended for chiselling work in concrete, brick
and stone as well as for driving and compacting with
appropriate accessories.
ENF002-1
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and can
only be operated on single-phase AC supply. They are
double-insulated in accordance with European Standard
and can, therefore, also be used from sockets without
earth wire.
GEA005-3
General Power Tool Safety
Warnings
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and
instructions for future reference.
The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause you
to lose control.
Electrical safety
4. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
5. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
6. Do not expose power tools to rain or wet
conditions. Water entering a power tool will increase
the risk of electric shock.
7. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
8. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of
electric shock.
9. If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
10. Use of power supply via a RCD with a rated
residual current of 30mA or less is always
recommended.
Model HK0500
Blows per minute (min-1) 2,000 - 3,500
Overall length 468 mm
Net weight 3.2 kg
Safety class /II
1. Switch trigger
2. Adjusting dial
3. Bit
4. Chuck cover
5. Change ring
6. Scaling chisel
7. Tile
4
Personal safety
11. Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools
may result in serious personal injury.
12. Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
13. Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch
on invites accidents.
14. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result
in personal injury.
15. Do not overreach. Keep proper footing and
balance at all times. This enables better control of
the power tool in unexpected situations.
16. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves
away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
17. If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used. Use of dust
collection can reduce dust-related hazards.
Power tool use and care
18. Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
19. Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
20. Disconnect the plug from the power source and/or
the battery pack from the power tool before
making any adjustments, changing accessories,
or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool
accidentally.
21. Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands
of untrained users.
22. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power
tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by
poorly maintained power tools.
23. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
24. Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to
be performed. Use of the power tool for operations
different from those intended could result in a
hazardous situation.
Service
25. Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power tool
is maintained.
26. Follow instruction for lubricating and changing
accessories.
27. Keep handles dry, clean and free from oil and
grease.
GEB004-6
HAMMER SAFETY WARNINGS
1. Wear ear protectors. Exposure to noise can cause
hearing loss.
2. Use auxiliary handle(s), if supplied with the tool.
Loss of control can cause personal injury.
3. Hold power tool by insulated gripping surfaces,
when performing an operation where the cutting
accessory may contact hidden wiring or its own
cord. Cutting accessory contacting a “live” wire may
make exposed metal parts of the power tool “live” and
could give the operator an electric shock.
4. Wear a hard hat (safety helmet), safety glasses
and/or face shield. Ordinary eye or sun glasses
are NOT safety glasses. It is also highly
recommended that you wear a dust mask and
thickly padded gloves.
5. Be sure the bit is secured in place before
operation.
6. Under normal operation, the tool is designed to
produce vibration. The screws can come loose
easily, causing a breakdown or accident. Check
tightness of screws carefully before operation.
7. In cold weather or when the tool has not been
used for a long time, let the tool warm up for a
while by operating it under no load. This will
loosen up the lubrication. Without proper warm-
up, hammering operation is difficult.
8. Always be sure you have a firm footing.
Be sure no one is below when using the tool in
high locations.
9. Hold the tool firmly with both hands.
10. Keep hands away from moving parts.
11. Do not leave the tool running. Operate the tool
only when hand-held.
12. Do not point the tool at any one in the area when
operating. The bit could fly out and injure
someone seriously.
13. Do not touch the bit or parts close to the bit
immediately after operation; they may be
extremely hot and could burn your skin.
14. Do not operate the tool at no-load unnecessarily.
15. Some material contains chemicals which may be
toxic. Take caution to prevent dust inhalation and
skin contact. Follow material supplier safety data.
5
SAVE THESE INSTRUCTIONS.
WARNING:
DO NOT let comfort or familiarity with product (gained
from repeated use) replace strict adherence to safety
rules for the subject product.
MISUSE or failure to follow the safety rules stated in
this instruction manual may cause serious personal
injury.
FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function on the
tool.

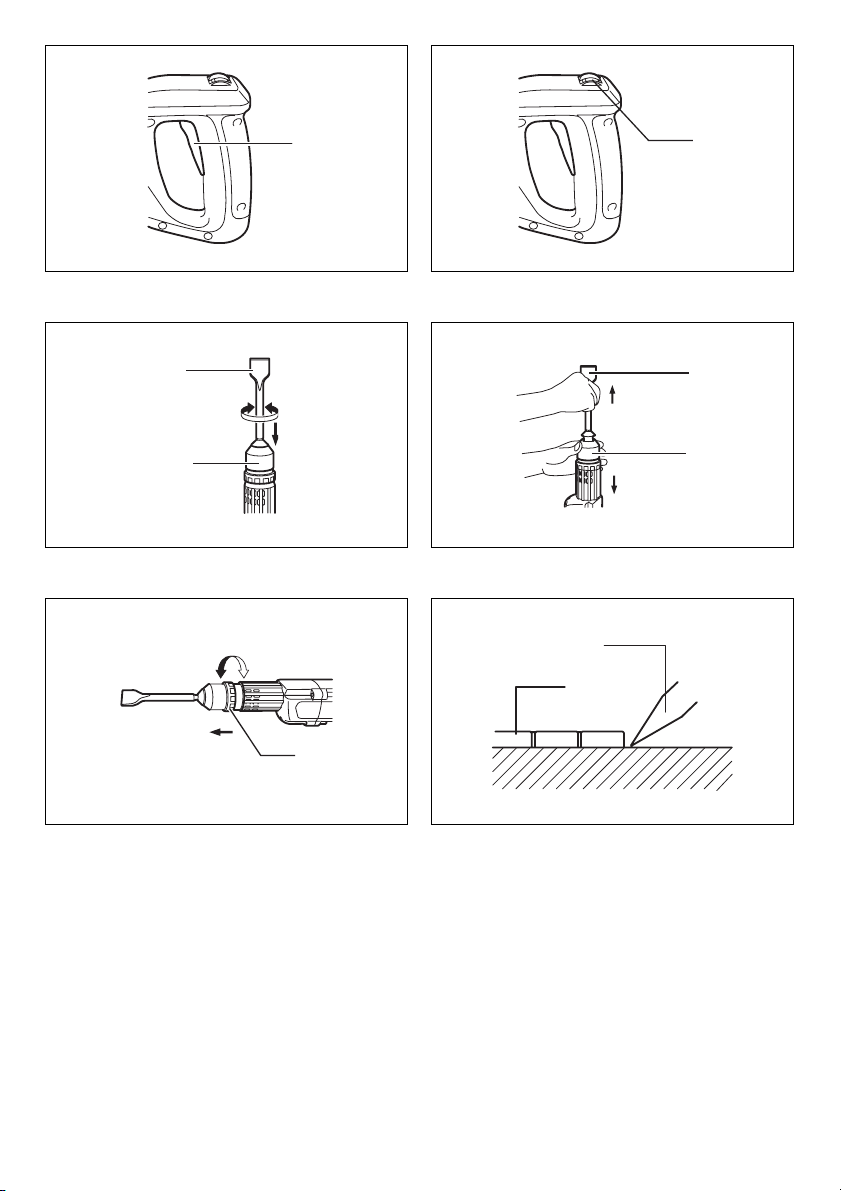

Switch action (Fig. 1)
CAUTION:
•Before plugging in the tool, always check to see that
the switch trigger actuates properly and returns to the
“OFF” position when released.
To start the tool, simply pull the switch trigger. Release the
switch trigger to stop.
Speed change (Fig. 2)
The blows per minute can be adjusted just by turning the
adjusting dial. This can be done even while the tool is
running. The dial is marked 1 (lowest speed) to 6 (full
speed).
Refer to the table below for the relationship between the
number settings on the adjusting dial and the blows per
minute.
002894
CAUTION:
•The speed adjusting dial can be turned only as far as 6
and back to 1. Do not force it past 6 or 1, or the speed
adjusting function may no longer work.
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and
unplugged before carrying out any work on the tool.
Installing or removing the bit
Clean the bit shank before installing the bit.
Insert the bit into the tool. Turn the bit and push it in until it
engages. (Fig. 3)
If the bit cannot be pushed in, remove the bit. Pull the
chuck cover down a couple of times. Then insert the bit
again. Turn the bit and push it in until it engages.
After installing, always make sure that the bit is securely
held in place by trying to pull it out.
To remove the bit, pull the chuck cover down all the way
and pull the bit out. (Fig. 4)
Bit angle (Fig. 5)
The bit can be secured at 12 different angles. To change
the bit angle, slide the change ring forward, then turn the
change ring to change the bit angle. At the desired angle,
slide the change ring back to the original position. The bit
will be secured in place.
OPERATION
Position the bit at the location to be chipped, then pull the
switch trigger. Apply slight pressure on the tool so that the
tool will not bounce around, uncontrolled. Pressing very
hard on the tool will not increase the efficiency. (Fig. 6)
NOTE:
•When removing tiles with a scaling chisel, apply the
chisel to the bottom of tiles as shown in the figure. If
you operate the tool with the chisel applied to the top
surface of tiles, the service life of the chisel will be
shortened.
MAINTENANCE
CAUTION:
•Always be sure that the tool is switched off and
unplugged before attempting to perform inspection or
maintenance.
•Never use gasoline, benzine, thinner, alcohol or the
like. Discoloration, deformation or cracks may result.
To maintain product SAFETY and RELIABILITY, repairs,
carbon brush inspection and replacement, any other
maintenance or adjustment should be performed by
Makita Authorized Service Centers, always using Makita
replacement parts.
OPTIOANL ACCESSORIES
CAUTION:
•These accessories or attachments are recommended
for use with your Makita tool specified in this manual.
The use of any other accessories or attachments might
present a risk of injury to persons. Only use accessory
or attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• Bull point
• Cold chisel
•Scaling chisel
• Safety goggles
NOTE:
•Some items in the list may be included in the tool
package as standard accessories. They may differ from
country to country.
Number on adjusting dial Blows per minute
63,500
53,200
42,900
32,600
22,300
12,000
6
BAHASA INDONESIA
Penjelasan tampilan keseluruhan
SPESIFIKASI
•Karena kesinambungan program penelitian dan pengembangan kami, spesifikasi yang disebutkan di sini dapat
berubah tanpa pemberitahuan.
• Spesifikasi dapat berbeda dari satu negara ke negara lainnya.
•Berat menurut Prosedur EPTA 01/2003
END201-5
Simbol
Berikut ini adalah simbol-simbol yang digunakan pada
peralatan ini.
Pastikan Anda mengerti makna masing-masing simbol
sebelum menggunakan alat.
..... Baca petunjuk penggunaan.
.............. ISOLASI GANDA
ENE047-1
Penggunaan
Mesin ini digunakan untuk memahat beton, batu bata dan
batu serta untuk memasang dan memadatkan dengan
aksesori yang sesuai .
ENF002-1
Pasokan daya
Mesin harus terhubung dengan pasokan daya listrik yang
bervoltase sama dengan yang tertera pada pelat nama,
dan hanya dapat dijalankan dengan listrik AC fase
tunggal. Mesin diisolasi ganda sesuai Standard Eropa dan
oleh sebab itu dapat dihubungkan dengan soket tanpa
arde.
GEA005-3
Peringatan Keselamatan Umum
Mesin Listrik
PERINGATAN! Bacalah semua peringatan
keselamatan dan semua petunjuk. Kelalaian mematuhi
peringatan dan petunjuk dapat menyebabkan sengatan
listrik, kebakaran dan/atau cedera serius.
Simpanlah semua peringatan dan
petunjuk untuk acuan di masa
depan.
Istilah "mesin listrik" dalam semua peringatan mengacu
pada mesin listrik yang dijalankan dengan sumber listrik
jala-jala (berkabel) atau baterai (tanpa kabel).
Keselamatan tempat kerja
1. Jaga tempat kerja selalu bersih dan
berpenerangan cukup. Tempat kerja yang
berantakan dan gelap mengundang kecelakaan.
2. Jangan gunakan mesin listrik dalam lingkungan
yang mudah meledak, misalnya jika ada cairan,
gas, atau debu yang mudah menyala. Mesin listrik
menimbulkan bunga api yang dapat menyalakan debu
atau uap tersebut.
3. Jauhkan anak-anak dan orang lain saat
menggunakan mesin listrik. Bila perhatian terpecah,
anda dapat kehilangan kendali.
Keamanan kelistrikan
4. Steker mesin listrik harus cocok dengan
stopkontak. Jangan sekali-kali mengubah steker
dengan cara apa pun. Jangan menggunakan
steker adaptor dengan mesin listrik berarde
(dibumikan). Steker yang tidak diubah dan
stopkontak yang cocok akan mengurangi risiko
sengatan listrik.
5. Hindari sentuhan tubuh dengan permukaan
berarde atau yang dibumikan seperti pipa,
radiator, kompor, dan kulkas. Risiko sengatan listrik
bertambah jika tubuh Anda terbumikan atau terarde.
6. Jangan membiarkan mesin listrik kehujanan atau
kebasahan. Air yang masuk ke dalam mesin listrik
akan meningkatkan risiko sengatan listrik.

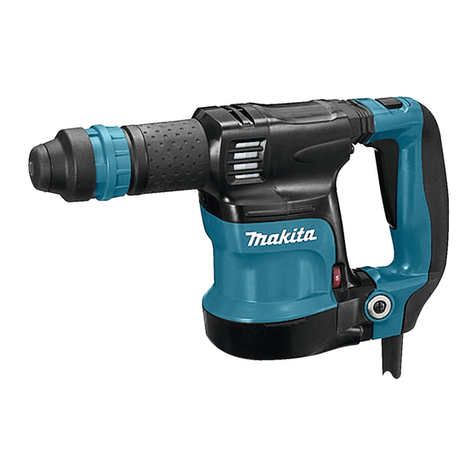

Model HK0500
Hembusan per menit (min-1) 2.000 - 3.500
Panjang keseluruhan 468 mm
Berat bersih 3,2 kg
Kelas keamanan /II
1. Saklar pemicu
2. saklar penyetel
3. Mata mesin
4. Tutup cekam
5. Cincin pengubah
6. Pahat tumbuk
7. Ubin
7
7. Jangan menyalahgunakan kabel. Jangan sekali-
kali menggunakan kabel untuk membawa,
menarik, atau mencabut mesin listrik dari
stopkontak. Jauhkan kabel dari panas, minyak,
tepian tajam, atau bagian yang bergerak. Kabel
yang rusak atau kusut memperbesar risiko sengatan
listrik.
8. Bila menggunakan mesin listrik di luar ruangan,
gunakan kabel ekstensi yang sesuai untuk
penggunaan di luar ruangan. Penggunaan kabel
yang sesuai untuk penggunaan luar ruangan
mengurangi risiko sengatan listrik.
9. Jika mengoperasikan mesin listrik di lokasi
lembap tidak terhindarkan, gunakan pasokan daya
yang dilindungi peranti imbasan arus (residual
current device - RCD). Penggunaan RCD
mengurangi risiko sengatan listrik.
10. Penggunaan pasokan daya melalui RCD dengan
kapasitas arus sisa 30 mA atau kurang selalu
dianjurkan.
Keselamatan diri
11. Jaga kewaspadaan, perhatikan pekerjaan Anda
dan gunakan akal sehat bila menggunakan mesin
listrik. Jangan menggunakan mesin listrik saat
Anda lelah atau di bawah pengaruh obat bius,
alkohol, atau obat. Sekejap saja lalai saat
menggunakan mesin listrik dapat menyebabkan
cedera diri yang serius.
12. Gunakan alat pelindung diri. Selalu gunakan
pelindung mata. Peralatan pelindung seperti masker
debu, sepatu pengaman anti-selip, helm pengaman,
atau pelindung telinga yang digunakan untuk kondisi
yang sesuai akan mengurangi risiko cedera diri.
13. Cegah penyalaan yang tidak disengaja. Pastikan
bahwa sakelar berada dalam posisi mati (off)
sebelum menghubungkan mesin ke sumber daya
dan/atau baterai, atau mengangkat atau
membawanya. Membawa mesin listrik dengan jari
Anda pada sakelarnya atau mengalirkan listrik pada
mesin listrik yang sakelarnya hidup (on) akan
mengundang kecelakaan.
14. Lepaskan kunci-kunci penyetel sebelum
menghidupkan mesin listrik. Kunci-kunci yang
masih terpasang pada bagian mesin listrik yang
berputar dapat menyebabkan cedera.
15. Jangan meraih terlalu jauh. Jagalah pijakan dan
keseimbangan sepanjang waktu. Hal ini
memungkinkan kendali yang lebih baik atas mesin
listrik dalam situasi yang tidak diharapkan.
16. Kenakan pakaian dengan baik. Jangan memakai
pakaian yang kedodoran atau perhiasan. Jaga
jarak antara rambut, pakaian, dan sarung tangan
Anda dengan bagian mesin yang bergerak.
Pakaian kedodoran, perhiasan, atau rambut panjang
dapat tersangkut pada bagian yang bergerak.
17. Jika tersedia fasilitas untuk menghisap dan
mengumpulkan debu, pastikan fasilitas tersebut
terhubung listrik dan digunakan dengan baik.
Penggunaan pembersih debu dapat mengurangi
bahaya yang terkait dengan debu.
Penggunaan dan pemeliharaan mesin listrik
18. Jangan memaksa mesin listrik. Gunakan mesin
listrik yang tepat untuk keperluan Anda. Mesin
listrik yang tepat akan menuntaskan pekerjaan
dengan lebih baik dan aman pada kecepatan sesuai
rancangannya.
19. Jangan gunakan mesin listrik jika sakelar tidak
dapat menyalakan dan mematikannya. Mesin listrik
yang tidak dapat dikendalikan dengan sakelarnya
adalah berbahaya dan harus diperbaiki.
20. Cabut steker dari sumber listrik dan/atau baterai
dari mesin listrik sebelum melakukan penyetelan,
penggantian aksesori, atau menyimpan mesin
listrik. Langkah keselamatan preventif tersebut
mengurangi risiko hidupnya mesin secara tak
sengaja.
21. Simpan mesin listrik jauh dari jangkauan anak-
anak dan jangan biarkan orang yang tidak paham
mengenai mesin listrik tersebut atau petunjuk ini
menggunakan mesin listrik. Mesin listrik sangat
berbahaya di tangan pengguna yang tak terlatih.
22. Rawatlah mesin listrik. Periksa apakah ada bagian
bergerak yang tidak lurus atau macet, bagian yang
pecah dan kondisi lain yang dapat mempengaruhi
penggunaan mesin listrik. Jika rusak, perbaiki
dahulu mesin listrik sebelum digunakan. Banyak
kecelakaan disebabkan oleh kurangnya pemeliharaan
mesin listrik.
23. Jaga agar mesin pemotong tetap tajam dan bersih.
Mesin pemotong yang terawat baik dengan mata
pemotong yang tajam tidak mudah macet dan lebih
mudah dikendalikan.
24. Gunakan mesin listrik, aksesori, dan mata mesin,
dll. sesuai dengan petunjuk ini, dengan
memperhitungkan kondisi kerja dan jenis
pekerjaan yang dilakukan. Penggunaan mesin listrik
untuk penggunaan yang lain dari peruntukan dapat
menimbulkan situasi berbahaya.
Servis
25. Berikan mesin listrik untuk diperbaiki hanya
kepada oleh teknisi yang berkualifikasi dengan
menggunakan hanya suku cadang pengganti yang
serupa. Hal ini akan menjamin terjaganya keamanan
mesin listrik.
26. Patuhi petunjuk pelumasan dan penggantian
aksesori.
27. Jagalah agar gagang kering, bersih, dan bebas
dari minyak dan gemuk.
GEB004-6
PERINGATAN KESELAMATAN
MESIN BOBOK
1. Kenakan pelindung telinga. Terpaan kebisingan
dapat menyebabkan hilangnya pendengaran.
2. Gunakan gagang tambahan, jika disertakan
bersama mesin ini. Kehilangan kendali dapat
menyebabkan cedera.
8
3. Pegang mesin listrik pada permukaan genggam
yang terisolasi saat melakukan pekerjaan bila
mesin pemotong mungkin bersentuhan dengan
kawat tersembunyi atau kabelnya sendiri.
Pengencang yang menyentuh kawat “hidup” dapat
menyebabkan bagian logam pada mesin teraliri arus
listrik dan menyengat pengguna.
4. Kenakan helm pengaman, kaca mata pengaman
dan/atau pelindung muka. Kaca mata biasa atau
kaca mata hitam BUKANLAH kaca mata
pengaman. Anda sangat dianjurkan untuk
mengenakan masker debu dan sarung tangan
tebal.
5. Pastikan mata mesin terpasang pada tempatnya
sebelum penggunaan.
6. Pada penggunaan normal, mesin dirancang untuk
menghasilkan getaran. Sekrup bisa menjadi
longgar dengan mudah, menyebabkan kerusakan
atau kecelakaan. Periksa kekencangan sekrup
sebelum penggunaan.
7. Pada cuaca dingin atau ketika mesin telah lama
tidak digunakan, lakukan pemanasan pada mesin
beberapa saat dengan mengoperasikannya tanpa
beban. Hal ini akan memperlancar pelumasan.
Tanpa pemanasan yang tepat, pengerjaan
pembobokan menjadi sulit.
8. Selalu pastikan Anda berada di atas alas yang
kuat.
Pastikan tidak ada orang di bawahnya bila Anda
menggunakan mesin di tempat yang tinggi.
9. Pegang mesin kuat-kuat dengan kedua tangan.
10. Jauhkan tangan dari bagian yang berputar.
11. Jangan tinggalkan mesin dalam keadaan hidup.
Jalankan mesin hanya ketika digenggam tangan.
12. Jangan mengarahkan mesin pada siapapun di
tempat kerja ketika mengoperasikan. Mata mesin
bisa terlempar dan melukai orang dengan serius.
13. Jangan menyentuh mata mesin atau benda kerja
segera setelah pengoperasian; suhunya mungkin
masih sangat panas dan dapat membakar kulit
Anda.
14. Jangan mengoperasikan mesin tanpa beban
dengan tanpa keperluan.
15. Bahan tertentu mengandung zat kimia yang
mungkin beracun. Hindari menghirup debu dan
persentuhan dengan kulit. Ikuti data keselamatan
bahan dari pemasok.
SIMPAN PETUNJUK INI.
PERINGATAN:
JANGAN biarkan kenyamanan atau terbiasanya Anda
dengan produk (karena penggunaan berulang)
menggantikan kepatuhan yang ketat terhadap aturan
keselamatan untuk produk yang terkait.
PENYALAHGUNAAN atau kelalaian mematuhi kaidah
keselamatan yang tertera dalam petunjuk ini dapat
menyebabkan cedera badan serius.
DESKRIPSI FUNGSI
PERHATIAN:
•Selalu pastikan bahwa mesin dalam keadaan mati dan
steker tercabut sebelum menyetel atau memeriksa
kerja mesin.
Kerja saklar (Gb. 1)
PERHATIAN:
• Sebelum memasukkan steker, selalu periksa apakah
picu saklar berfungsi dengan baik dan kembali ke
posisi “OFF” saat dilepas.
Untuk menjalankan mesin, cukup tarik picu saklarnya.
Lepaskan picu saklar untuk berhenti.
Perubahan kecepatan (Gb. 2)
Hembusan per menit bisa disetel hanya dengan memutar
saklar penyetel. Hal ini dapat dilakukan bahkan ketika
mesin sedang bekerja. Saklar diberi tanda 1 (kecepatan
terrendah) sampai 6 (kecepatan penuh).
Silakan mengacu pada tabel di bawah ini untuk hubungan
antara setelan angka pada saklar penyetel dan hembusan
per menit.
002894
PERHATIAN:
•Saklar penyetel kecepatan dapat diputar hanya sampai
6 dan kembali ke 1. Jangan dipaksa melewati 6 atau 1,
atau penyetel kecepatan bisa tidak berfungsi lagi .
PERAKITAN
PERHATIAN:
•Selalu pastikan bahwa mesin dalam keadaan mati dan
steker tercabut sebelum melakukan pekerjaan apapun
pada mesin.
Memasang atau melepas mata mesin
Bersihkan kepala tirus sebelum memasang mata mesin.
Masukkan mata mesin ke dalam mesin. Putar mata mesin
dan dorong sampai terpasang. (Gb. 3)
Jika mata mesin tidak bisa didorong, lepas mata mesin.
Tarik tutup cekam beberapa kali. Kemudian masukkan
lagi mata mesin. Putar mata mesin dan dorong sampai
terpasang.
Setelah memasang, selalu pastikan bahwa mata mesin
benar-benar terpasang pada tempatnya dengan mencoba
menariknya keluar.
Untuk melepas mata mesin, tarik tutup cekam
sepenuhnya dan tarik mata mesin keluar. (Gb. 4)
Angka pada saklar penyetel Hembusan per menit
63.500
53.200
42.900
32.600
22.300
12.000
9
Sudut mata mesin (Gb. 5)
Mata mesin bisa dipasang pada 12 sudut yang berbeda.
Untuk mengubah sudut, geser maju cincin pengubah,
kemudian putar cincin pengubah untuk mengubah sudut
mata mesin. Pada sudut yang diinginkan, geser kembali
cincin pengubah ke posisi semula. Mata mesin akan
terpasang pada tempatnya.
PENGGUNAAN
Posisikan mata mesin pada lokasi yang akan diserpih,
kemudian tarik picu saklarnya. Beri sedikit tekanan pada
mesin sehingga mesin tidak akan memantul, tidak
terkendali. Terlalu menekan mesin tidak akan
meningkatkan efisiensinya. (Gb. 6)
CATATAN:
•Saat melepas ubin menggunakan pahat tumbuk, tekan
pahat pada bagian bawah ubin seperti ditunjukkan
pada gambar. Jika Anda mengoperasikan mesin
dengan kondisi pahat ditekan pada permukaan atas
ubin, umur pakai pahat akan menjadi lebih pendek.
PERAWATAN
PERHATIAN:
• Selalu pastikan bahwa mesin dimatikan dan steker
dicabut sebelum melakukan pemeriksaan atau
perawatan.
•Jangan sekali-kali menggunakan bensin, tiner, alkohol,
atau bahan sejenisnya. Penggunaan bahan demikian
dapat menyebabkan perubahan warna, perubahan
bentuk atau timbulnya retakan.
Untuk menjaga KEAMANAN dan KEANDALAN mesin,
perbaikan, pemeriksaan dan penggantian sikat karbon,
serta perawatan atau penyetelan lain harus dilakukan
oleh Pusat Layanan Resmi Makita, selalu gunakan suku
cadang pengganti buatan Makita.
PILIHAN AKSESORI
PERHATIAN:
•Dianjurkan untuk menggunakan aksesori atau
perangkat tambahan ini dengan mesin Makita Anda
yang ditentukan dalam petunjuk ini. Penggunaan
aksesori atau perangkat tambahan lain bisa
menyebabkan risiko cedera pada manusia. Hanya
gunakan aksesori atau perangkat tambahan sesuai
dengan peruntukkannya.
Jika Anda memerlukan bantuan lebih rinci berkenaan
dengan aksesori ini, tanyakan pada Pusat Layanan
Makita terdekat.
•Pahat beton
•Pahat besi
•Pahat tumbuk
•Kaca mata pelindung
CATATAN:
•Beberapa item dalam daftar tersebut mungkin sudah
termasuk dalam paket mesin sebagai aksesori standar.
Hal tersebut dapat berbeda dari satu negara ke negara
lainnya.
10
TING VIT
Gii thích v hình v tng th
THÔNG S K THUT
•Do chng trình nghiên cu và phát trin liên tc ca chúng tôi nên các thông s k thut trong ây có th thay i mà
không cn thông báo trc.
• Các thông s k thut có th thay i tùy theo tng quc gia.
•Trng lng tùy theo Quy trình EPTA tháng 01/2003
END201-5
Ký hiu
Phn di ây cho bit các ký hiu c dùng cho thit b.
m bo rng bn hiu rõ ý ngha ca các ký hiu này
trc khi s dng.
..... c tài liu hng dn.
.............. CÁCH IN KÉP
ENE047-1
Mc ích s dng
Dng c c dùng cho công tác khoan c vào bê-tông,
gch á cng nh dùng óng và m nén vi các ph
kin phù hp.
ENF002-1
Ngun cp in
Dng c này ch c ni vi ngun cp in có in áp
ging nh ã ch ra trên bin tên và ch có th c vn
hành trên ngun in AC mt pha. Chúng c cách in
hai lp theo Tiêu chun Châu Âu và do ó cng có th
c s dng t các cm in không có dây tip t.
GEA005-3
Cnh báo An toàn Chung dành
cho Dng c Máy
CNH BÁO! c tt c các cnh báo an toàn và
hng dn. Vic không tuân theo các cnh báo và
hng dn có th dn n in git, ho hon và/hoc
thng tích nghiêm trng.
Lu gi tt c cnh báo và hng
dn tham kho sau này.
Thut ng “dng c máy” trong các cnh báo cp n
dng c máy (có dây) c vn hành bng ngun in
chính hoc dng c máy (không dây) c vn hành
bng pin ca bn.
An toàn ti ni làm vic
1. Gi ni làm vic sch s và có ánh sáng. Ni
làm vic ba bn hoc ti thng d gây ra tai nn.
2. Không vn hành dng c máy trong môi trng
cháy n, ví d nh môi trng có s hin din
ca các cht lng, khí hoc bi d cháy. Các dng
c máy to tia la in có th làm bi hoc khí bc
cháy.
3. Gi tr em và ngi ngoài tránh xa ni làm vic
khi ang vn hành dng c máy. S xao lãng có th
khin bn mt kh nng kim soát.
An toàn v in
4. Phích cm ca dng c máy phi khp vi cm.
Không bao gi c sa i phích cm theo bt
k cách nào. Không s dng bt k phích chuyn
i nào vi các dng c máy c ni t (tip
t). Các phích cm còn nguyên vn và cm phù
hp s gim nguy c in git.
5. Tránh c th tip xúc vi các b mt ni t
hoc tip t nh ng ng, b tn nhit, bp ga
và t lnh. Nguy c b in git s tng lên nu c
th bn c ni t hoc tip t.
6. Không dng c máy tip xúc vi ma hoc
trong iu kin m t. Nc lt vào dng c máy
s làm tng nguy c in git.
7. Không lm dng dây. Không bao gi s dng dây
mang, kéo hoc tháo phích cm dng c máy.
Gi dây tránh xa ngun nhit, du, các mép sc
hoc các b phn chuyn ng. Dây b hng hoc
b ri s làm tng nguy c in git.
KiuHK0500
S nhát mi phút (phút-1)2.000 - 3.500
Chiu dài tng th468 mm
Trng lng tnh 3,2 kg
Cp an toàn /II
1. Cn khi ng công tc
2. a iu chnh
3. Mi vít
4. Np ngàm
5. Vòng chnh
6. Mi c ánh vy
7. Gch
11
8. Khi vn hành dng c máy ngoài tri, hãy s
dng dây kéo dài phù hp cho vic s dng ngoài
tri. Vic dùng dây phù hp cho vic s dng ngoài
tri s gim nguy c in git.
9. Nu bt buc phi vn hành dng c máy ni
m t, hãy s dng ngun cp in c bo v
bng thit b ngt dòng in rò (RCD). Vic s
dng RCD s gim nguy c in git.
10. Chúng tôi luôn khuyên bn s dng ngun cp
in qua thit b RCD có th ngt dòng in d
nh mc 30 mA hoc thp hn.
An toàn cá nhân
11. Luôn tnh táo, quan sát nhng vic bn ang làm
và s dng nhng phán oán theo kinh nghim
khi vn hành dng c máy. Không s dng dng
c máy khi bn ang mt mi hoc chu nh
hng ca ma tuý, ru hay thuc. Ch mt
khonh khc không tp trung khi ang vn hành dng
c máy cng có th dn n thng tích cá nhân
nghiêm trng.
12. S dng thit b bo h cá nhân. Luôn eo thit b
bo v mt. Các thit b bo h nh mt n chng
bi, giày an toàn chng trt, m bo h hay thit b
bo v thính giác c s dng trong các iu kin
thích hp s giúp gim thng tích cá nhân.
13. Tránh vô tình khi ng dng c máy. m bo
công tc v trí off (tt) trc khi ni ngun in
và/hoc b pin, cm hoc mang dng c máy. Vic
mang dng c máy khi ang t ngón tay v trí công
tc hoc cp in cho dng c máy ang bt thng
d gây ra tai nn.
14. Tháo mi khoá hoc chìa vn iu chnh trc khi
bt dng c máy. Vic chìa vn hoc khoá vn còn
gn vào b phn quay ca dng c máy có th dn
n thng tích cá nhân.
15. Không vi quá cao. Luôn gi thng bng tt và có
ch chân phù hp. iu này cho phép iu khin
dng c máy tt hn trong nhng tình hung bt ng.
16.
n mc phù hp. Không mc qun áo rng hay
eo trang sc. Gi tóc, qun áo và gng tay
tránh xa các b phn chuyn ng.
Qun áo rng,
trang sc hay tóc dài có th mc vào các b phn
chuyn ng.
17. Nu các thit b c cung cp kt ni các thit
b thu gom và hút bi, hãy m bo chúng c
kt ni và s dng hp lý. Vic s dng thit b thu
gom bi có th làm gim nhng mi nguy him liên
quan n bi.
S dng và bo qun dng c máy
18. Không dùng lc i vi dng c máy. S dng
úng dng c máy cho công vic ca bn. S
dng úng dng c máy s giúp thc hin công vic
tt hn và an toàn hn theo giá tr nh mc c
thit k ca dng c máy ó.
19. Không s dng dng c máy nu công tc không
bt và tt c dng c máy ó. Mi dng c máy
không th iu khin c bng công tc u rt
nguy him và cn c sa cha.
20. Rút phích cm ra khi ngun in và/hoc ngt
kt ni b pin khi dng c máy trc khi thc
hin bt k công vic iu chnh, thay i ph
tùng hay ct gi dng c máy nào. Nhng bin
pháp an toàn phòng nga này s gim nguy c vô
tình khi ng vô tình dng c máy.
21. Ct gi các dng c máy không s dng ngoài
tm vi ca tr em và không cho bt k ngi nào
không có hiu bit v dng c máy hoc các
hng dn này vn hành dng c máy. Dng c
máy s rt nguy him nu c s dng bi nhng
ngi dùng cha qua ào to.
22. Bo qun dng c máy. Kim tra tình trng lch
trc hoc bó kp ca các b phn chuyn ng,
hin tng nt v ca các b phn và mi tình
trng khác mà có th nh hng n hot ng
ca dng c máy. Nu có hng hóc, hãy sa cha
dng c máy trc khi s dng. Nhiu tai nn xy
ra là do không bo qun tt dng c máy.
23. Luôn gi cho dng c ct c sc bén và sch
s. Nhng dng c ct c bo qun tt có mép ct
sc s ít b kt hn và d iu khin hn.
24. S dng dng c máy, ph tùng và u dng c
ct, v.v... theo các hng dn này, có tính n iu
kin làm vic và công vic c thc hin. Vic s
dng dng c máy cho các công vic khác vi công
vic d nh có th gây nguy him.
Bo dng
25. nhân viên sa cha trình bo dng
dng c máy ca bn và ch s dng các b phn
thay th ng nht. Vic này s m bo duy trì
c an toàn ca dng c máy.
26. Tuân theo hng dn dành cho vic bôi trn và
thay ph tùng.
27. Gi tay cm khô, sch, không dính du và m.
GEB004-6
CNH BÁO AN TOÀN V BÚA
1. eo thit b bo v tai. Vic tai tip xúc vi ting
n có th gây gim thính lc.
2. S dng (các) tay cm ph, nu c cung cp
cùng vi dng c. Vic mt kh nng kim soát có
th dn n thng tích cá nhân.
3. Cm dng c máy bng b mt kp cách in khi
thc hin mt thao tác trong ó b phn ct có th
tip xúc vi dây dn kín hoc dây ca chính nó. B
phn ct tip xúc vi dây dn “có in” có th khin
các b phn kim loi b h ca dng c máy “có in”
và làm cho ngi vn hành b in git.
4. Mang m cng (nón bo h), eo kính an toàn và/
hoc mang tm bo v mt. Các loi kính mt
hoc kính râm thông thng KHÔNG phi là kính
an toàn. Chúng tôi khuyn cáo bn nên mang
khu trang chng bi và mt ôi gng tay m
dày.
5. m bo rng phn mi c gi cht úng v
trí trc khi vn hành.
6. Khi vn hành bình thng, dng c c thit k
có phát sinh ra rung ng. Các c vít có th d
dàng b lng ra làm hng hoc gây tai nn. Kim
tra cht ca các c vít trc khi bt u vn
hành.
12
7. thi tit lnh hoc khi dng c không c s
dng trong thi gian dài, hãy dng c nóng lên
mt chút trc khi vn hành hoc vn hành nó
không ti. iu này s giúp du bôi trn giãn ra.
Nu không làm nóng dng c, thao tác óng búa
s tr nên khó khn.
8. Luôn m bo bn có ch t chân vng chc.
m bo rng không có ai bên di khi s dng
dng c trên cao.
9. Cm chc dng c bng c hai tay.
10. Gi tay tránh xa các b phn quay.
11. Không mc dng c hot ng. Ch vn hành
dng c khi cm trên tay.
12. Không c ch dng c v bt c ai trong khu
vc ang hot ng. u mi có th bay ra và gây
tn thng nghiêm trng cho ngi khác.
13. Không c s vào phn u mi hoc các b
phn gn u mi ngay sau khi hot ng xong;
chúng có th cc nóng và làm bng da bn.
14. Không c vn hành dng c mc không ti
không cn thit.
15. Mt s vt liu có th cha hoá cht c. Hãy cn
thn tránh hít phi bi và tip xúc vi da. Tuân
theo d liu an toàn ca nhà cung cp vt liu.
LU GI CÁC HNG DN NÀY.
CNH BÁO:
KHÔNG c s thoi mái hay quen thuc vi sn
phm (có c do s dng nhiu ln) thay th vic
tuân th nghiêm ngt các quy nh v an toàn dành
cho sn phm này.
VIC DÙNG SAI hoc không tuân theo các quy nh
v an toàn c nêu trong tài liu hng dn này có
th dn n thng tích cá nhân nghiêm trng.
MÔ T CHC NNG
CN TRNG:
•Phi luôn m bo rng dng c ã c tt in và
ngt kt ni trc khi chnh sa hoc kim tra chc
nng ca dng c.
Hot ng công tc (Hình 1)
CN TRNG:
•Trc khi cm in vào dng c, luôn luôn kim tra
xem cn khi ng công tc có hot ng bình thng
hay không và tr v v trí “OFF” (TT) khi nh ra.
khi ng dng c, ch cn kéo cn khi ng công
tc. Nh cn khi ng công tc ra dng.
Thay i tc (Hình 2)
S nhát mi phút có th c iu chnh bng cách xoay
a iu chnh. Có th thc hin vic này ngay c khi
dng c ang hot ng. a xoay c ánh du t 1
(tc thp nht) n 6 (tc cao nht).
Tham kho bng di ây v mi liên quan gia cài t
theo s trên a iu chnh và s nhát mi phút.
002894
CN TRNG:
•a iu chnh tc ch có th c xoay n s 6 và
tr v s 1. Không c c xoay quá s 6 hoc s 1,
nu không chc nng iu chnh tc có th s
không còn hot ng c.
LP RÁP
CN TRNG:
•Luôn luôn m bo rng dng c ã c tt và tháo
phích cm trc khi dùng dng c thc hin bt c
công vic nào.
Vic lp t hoc tháo g u mi
V sinh thân u mi trc khi lp u mi.
Lp u mi và dng c. Xoay u mi và nhn vào cho
n khi nào vào khp. (Hình 3)
Nu không th y u mi vào, hãy tháo u mi ra. Kéo
np ngàm xung mt vài ln. Sau ó lp u mi vào li.
Xoay u mi và nhn vào cho n khi nào vào khp.
Sau khi lp, hãy luôn m bo rng u mi ã c gi
chc chn úng v trí bng cách th kéo ra.
tháo u mi, kéo np ngàm xung ht mc và kéo
u mi ra. (Hình 4)
Góc u mi (Hình 5)
u mi có th c gi 12 góc nghiêng. thay i
góc u mi, hãy trt vòng chuyn v phía trc, sau
ó xoay vòng chuyn thay i góc u mi. n góc
mong mun, hãy trt vòng chuyn v li v trí ban u.
u mi s c gi cht ti ch.
VN HÀNH
nh v u mi vào v trí s c c, sau ó kéo cn
khi ng công tc. Dùng lc nh trên dng c sao cho
dng c không b ny vòng tròn không kim soát c.
Vic n rt mnh lên dng c s không làm tng hiu qu
s dng. (Hình 6)
LU Ý:
•Khi c b gch bng mi c ánh vy, hãy t mi
c vào áy các viên gch nh th hin trong hình.
Nu bn vn hành dng c vi mi c t lên b mt
trên cùng ca các viên gch thì tui th mi c s b
rút ngn.
S trên a iu chnh S nhát mi phút
63.500
53.200
42.900
32.600
22.300
12.000
13
BO TRÌ
CN TRNG:
• Hãy luôn chc chn rng dng c ã c tt và ngt
kt ni trc khi c gng thc hin vic kim tra hay
bo dng.
•Không bao gi dùng xng, ét xng, dung môi, cn
hoc hóa cht tng t. Có th xy ra hin tng mt
màu, bin dng hoc nt v.
m bo AN TOÀN và TIN CY ca sn phm, vic
sa cha hoc bt c thao tác bo trì, iu chnh nào u
phi c thc hin bi các Trung tâm Dch v c y
quyn ca Makita (Makita Authorized Service Center),
luôn s dng các ph tùng thit b thay th ca Makita.
PH KIN TÙY CHN
CN TRNG:
•Các ph kin hoc ph tùng gn thêm này c
khuyn cáo s dng vi dng c Makita ca bn theo
nh quy nh trong hng dn này. Vic s dng bt
c ph kin hoc ph tùng gn thêm nào khác u có
th gây ra ri ro thng tích cho ngi. Ch s dng
ph kin hoc ph tùng gn thêm cho mc ích ã quy
nh sn ca chúng.
Nu bn cn h tr bit thêm chi tit v nhng ph
kin này, hãy liên h vi Trung tâm Dch v ca Makita ti
a phng ca bn.
•u c
•Mi c ngui
•Mi c ánh vy
•Kính bo h
LU Ý:
•Mt vài mc trong danh sách có th c bao gm
trong gói dng c làm ph kin tiêu chun. Các thông
s k thut có th thay i tùy theo tng quc gia.
14
!"#"$%&
'(")*+,"&-)./0//).%123$4
!"#$%&'()*+),
!!"#$%&'())(*+,"+-,(-.'/01234/5"(%06(&
76%!"#$%& 8,%9:2';(!4(3<"!%)=(*>?/?"@A%('
!B2@$0"1B2&CD,ED0C967,%&1',&<F,G*(?26-&F",(
!8,%9:2';(!4(3%('17)76(&)/"CB<"17623B*3!GH
!"A;(F"/)7(98,%?/&+/?8%& EPTA 01/2003
END201-5
!"#$"%&'(
76%CB"@A+#%=/I2/)JKLG@$<M,=;(F*/?%NB)*KL
EB*DHO)J(+-(9F9(08%&=/I2/)JKL<F,!8,(<')6%")(*<M,&("
..... %6("+:69#%)(*<M,&("
................ >"-"=%&M/A"
ENE047-1
!"#$%&'()*+,(-)%./,(0.,
!+*#$%&9#%"@A<M,=;(F*/?&("!'(3=)/D+%")*@7 %.P F." 1230(&937%0
72%D'")(*8/"123)(*%/D1"6"ED0<M,%NB)*KL!=*.9G@$!F9(3=9
ENF002-1
12%!32456
7,%&!M#$%976%!+*#$%&9#%)/?!+*#$%&'6(0CQG@$9@1*&!+2#$%"CQQR(7(9G@$
*3?NC-,<"BR(08,%9:2!+*#$%&9#% 123'37,%&<M,CQQR()*31==2/?
1??!Q=!D@0-!G6("/A" %NB)*KL"@ACD,*/?)(*FN,9>"-"=%&M/A"7(9
9(7*P(" European Standard 123=(9(*S<M,)/?B2/T)CQG@$C969@
=(0D."CD,
GEA005-3
-()*./#01")0-2)$3ְ!#7
*-8/9#7$/#:;;<)=592:3
!"#$%&'(! ')#(!"#$%&'(*+#(!,#-./'*0123/4!"#3(4(5
61789-*
!"#$%&'()*+,),"%-."/,012345-."3252."6+7!4&"81"9:&7;4
<=>/!)6$??@"AB1, $?$=%>345/=#01$6>#+**"6/9B*1C&"7#>"C3#7
*>?@85>A)-()*./#0B&,-()B0,0()=5C7D$1
:2"*3E0!"#$%&#")7#F7G0#0)-.
+;(-6( "!+*#$%&9#%CQQR(#<"+;(!7#%""@A F9(0SO& !+*#$%&9#%CQQR( (9@
=(0) G@$G;(&("ED0<M,)*31=CQQR( F*#%!+*#$%&9#%CQQR( (C*,=(0) G@$
G;(&("ED0<M,1?7!7%*@$
)720$8,#9:4+,(;.<=>?/>@2(2=
1. #AB8;.<=>?/>@2(2=CDE0?)720'&,2#B8&0?B'(56'732( 4#A"G@$
*)*3!)3*3)3F*#%9#DGO?%('";(CB=:6)(*!).D%N?/7.!F7NCD,
2. ,432CFE(2=-)%./,(0.,566G2C='92;>?/,2!-1H#12%%&-IH#
-F3= C='J2=>?/>?/0?+,(-D87 1K2L D%.,M"N=O(>?/0?)"P'0I:QH
5756 !+*#$%&9#%CQQR('3=*,(&B*3)(0CQ!4#$%'NDM"-"
UNV"W&
F*#%)X(YD/&)26(-
3.
*:3/;-)<9+-=$*>?@ 9A&'BC!!/'&D('2:)<(BAE$,F6=D?"#/18<G+
$!A&D'8-&';HHI#
!"#%D:)E7#*!82:%"F)1"9G."<=>-HI:JK/:DC
!"#-8*-H%
*N6" HK0500
%/7*()(*)*31G) (*%?76%"(G@) 2,000 - 3,500
+-(90(-ED0*-9 468 99.
"A;(F"/)=NGZ. 3.2 )).
9(7*P("+-(9B2%D[/0 /II
1. =-.7ML=/$&&("
2. BNV9F9N"B*/?
3. D%)=)/D
4. U(+*%?F/-'/?
5. 1F-"!B2@$0"
6. D%)=)/D1?"<FI6
7. )*3!?#A%&
15
)720$8,#9:4#E2=566G2
4. $8:R1+,(-)%./,(0.,566G2QE,(;,#?1:I-QE2%:I ,432#:#B$8(
$8:R15037321%P?C#S ,432CFE$8:R1,&B#T$-Q,%*1:I
-)%./,(0.,
566G2>?/Q3,'24#H= B2/T)G@$C96S:)D/D1B2&123!7,(*/?CQG@$!8,()/"
4%D@'3M6-02D+-(9!=@$0&8%&)(*!).DCQQR(M\%7
5. %&7:(,432CDE%32(124':0O:'1:I;.<=OH7>?/Q3,'24#H= -F3= >3,
-)%./,(=@2)720%E,= -Q2D"(QE0 B8&QAE-4T= 9@+-(9!=@$0&G@$'3
!).DCQQR(M\%7=:&8OA" F()*6(&)(08%&+NK=/9W/=)/?4#A"
6. ,432CDE-)%./,(0.,566G2JA1=<@2D%.,,4A3C='92;-$U41F.<= "A;(
G@$CF2!8,(CB<"!+*#$%&9#%CQQR('3!4.$9+-(9!=@60&8%&)(*!).D
CQQR(M\%7
7. ,432CFE'2456,432(503-D02&'0 ,432CFE'2456-;./,41 #V(
D%., J,#$8:R1-)%./,(0.,566G2 -1TI'2456CDED32(!21
)720%E,= =<@20:= +,(0?)0 D%.,FH<='37=>?/-)8./,=>?/ =(0G@$
M;(*NDF*#%4/")/"'3!4.$9+-(9!=@$0&8%&)(*!).DCQQR(M\%7
8. +P&>?/CFE(2=-)%./,(0.,566G2=,1,2)2% )7%CFE'24Q3,
;37(>?/-D02&'01:I(2=924=,1,2)2% )(*<M,=(0G@$
!F9(3=9)/?&("[(0"%)%(+(*'32D+-(9!=@$0&8%&)(*!).D
CQQR(M\%7
9. D21QE,(CFE(2=-)%./,(0.,566G2C='J2=>?/-$U41F.<= CDECFE
,"$1%P*$G,(1:=1%&B'56%:/7 (RCD) )(*<M,RCD '32D
+-(9!=@$0&8%&)(*!).DCQQR(M\%7
10. +,B=&=@2CDECFEBD83(!32456O32= RCD >?/0?1%&B'56%:/7
C=,:Q%2503-1H= 30 mA -'0,
)720$8,#9:4'37=I"))8
11. CDE%&0:#%&7:( B8&':(-1Q-'0,732)"P1@28:(>@2'H/(C#,4A3
B8&CFE'20:W'@2=V1C=+P&CFE(2=-)%./,(0.,566G2 ,432CFE
(2=-)%./,(0.,566G2C=+P&>?/)"P1@28:(-D=./,4 D%.,C=
'92;>?/0V=-02!2142-';QH# -)%./,(#./0B,81,X,8*D%.,
12%CFE42 M/$-8K3G@$8(D+-(9*39/D*3-/&!9#$%);(2/&<M,&("
!+*#$%&9#%CQQR(%('G;(<F,+NKCD,*/??(D!'\?%06(&*N"1*&
12. CFE,"$1%P*$G,(1:='37=I"))8 '70B73=Q2$G,(1:=-'0,
%NB)*KLBR%&)/" !M6" F",()())/"UNV" *%&!G,(".*[/0)/"2#$" F9-)
".*[/0 F*#%!+*#$%&BR%&)/")(*CD,0."G@$<M,<"=[(4G@$!F9(3=9'3
M6-02D)(*?(D!'\?
13. $G,(1:=503CDE-$Y#CFE(2=,432(503Q:<(C! Q%7!',I732'7HQF*
,4A3C=Q@2BD=3($Y#13,=-F./,0Q3,1:IBD83(!32456 B8&/D%.,
F"#BIQ-Q,%?/ D%.,13,=12%41D%.,J.,-)%./,(0., )(*=%D
".A-9#%?*.!-K=-.7ML!4#$%S#%!+*#$%&9#%CQQR( F*#%)(*M(*L'CQ
!+*#$%&9#%CQQR(<"8K3G@$!B]D=-.7ML%0:6%('";(CB=:6)(*!).D
%N?/7.!F7N
14. =@21"WB!$%:IBQ3(D%.,$%&B!,,113,=>?/!&-$Y#-)%./,(0.,
566G2 B*31'F*#%)NI1'G@$!=@0?+,(&%0:6<"M.A"=6-"G@$F9N"CD,8%&
!+*#$%&9#%CQQR(%('G;(<F,+NKCD,*/??(D!'\?
15. ,432>@2(2=C=%&4&>?/'"#-,.<,0 !:#>3212%4.=B8&12%
>%(Q:7CDE-D02&'0Q8,#-782 !4*(3'3G;(<F,+-?+N9
!+*#$%&9#%CQQR(CD,D@8OA"<"=S(")(*KLG@$C96+(D+.D
16. BQ3(124CDE-D02&'0 ,432'70-)%./,(BQ3(124>?/D870-1H=
5$ D%.,'70-)%./,($%&#:I #AB8503CDE-'E=O0 -'.<,OE2 B8&
J"(0.,,4A3C18EFH<='37=>?/-)8./,=>?/ !=#A%W,(*N69*6(9 !+*#$%&B*3D/?
F*#%W9G@$9@+-(90(-%('!8,(CB7.D<"M.A"=6-"G@$!+2#$%"G@$
17. D210?12%!:#,"$1%P*'@2D%:I#A#B8&!:#-1TIM"N=57EC=
'J2=>?/ CDEQ%7!',I7325#E-F./,0Q3,B8&CFE(2=,"$1%P*=:<=
,432(-D02&'0 )(*<M,!+*#$%&D:D123'/D!)\?UNV"'3M6-02D
%/"7*(0G@$!).D'()UNV"W&CD,
12%CFEB8&#AB8-)%./,(0.,566G2
18. ,432MZ=CFE-)%./,(0.,566G2 CFE-)%./,(0.,566G2>?/-D02&'0
1:I12%CFE(2=+,()"P !+*#$%&9#%CQQR(G@$!F9(3=9'3G;(<F,CD,
&("G@$9@B*3=.GZ.[(4123B2%D[/0)-6(7(98@D+-(9=(9(*S
8%&!+*#$%&G@$CD,*/?)(*%%)1??9(
19. ,432CFE-)%./,(0.,566G2 D21'7HQF*503'202%J-$Y#$Y#5#E
!+*#$%&9#%CQQR(G@$+-?+N9D,-0=-.7MLC96CD,!B^"=.$&%/"7*(0123
7,%&CD,*/?)(*Y6%91Y9
20. J,#$8:R1!21BD83(!32456 B8&/D%.,F"#BIQ-Q,%?/,,1
!21-)%./,(0.,566G213,=>@212%$%:IBQ3( -$8?/4=,"$1%P*
-'%H0 D%.,!:#-1TI-)%./,(0.,566G2 -.Z@)(*BR%&)/"D,("+-(9
B2%D[/0D/&)26(-'3M6-02D+-(9!=@$0&8%&)(*!B]D<M,&("
!+*#$%&9#%CQQR(%06(&C967/A&<'
21. !:#-1TI-)%./,(0.,566G2>?/5035#ECFE(2=CDED32(!210.,-#T1
B8&,432,="W2QCDEI"))8>?/503)"E=-)41:I-)%./,(0.,566G2
D%.,)@2B=&=@2-D832=?<CFE(2=-)%./,(0.,566G2 !+*#$%&9#%
CQQR('3!B^"%/"7*(0!9#$%%0:6<"9#%8%&W:,G@$C96CD,*/?)(*U_)%?*9
22. 12%#AB8%:1[2-)%./,(0.,566G2 Q%7!',I12%$%&1,I>?/
503JA1QE,(D%.,12%-F./,0Q3,+,(FH<='37=
>?/-)8./,=>?/ 12%
BQ1D:1+,(FH<='37= D%.,'92;,./=S >?/,2!'3(O81%&>I
Q3,12%>@2(2=+,(-)%./,(0.,566G2 D210?)720-'?4D24 CDE
=@2-)%./,(0.,566G25$L3,0BL013,=12%CFE(2= %N?/7.!F7N
';("-"9()!).D'())(*D:12*/)J(!+*#$%&9#%CQQR(%06(&C96
S:)7,%&
23. 8:I)720)0B8&>@2)720'&,2#-)%./,(0.,12%Q:#,4A3-'0,
!+*#$%&9#%)(*7/DG@$9@)(*D:12%06(&S:)7,%&1239@8%?)(*7/D+9
9/)'39@B`IF(7.D8/D",%0123+-?+N9CD,&6(0)-6(
24. CFE-)%./,(0.,566G2 ,"$1%P*-'%H0 B8&7:'#"'H<=-$8.,( \8\
Q20)@2B=&=@2#:(18327 ;H!2%P2'92;12%>@2(2=B8&
(2=>?/!&8(0.,>@2 )(*<M,!+*#$%&9#%CQQR(!4#$%G;(&("%#$""%)
!F"#%'()G@$);(F"DC-,%('G;(<F,!).D%/"7*(0
16
12%I%H12%
25. =@2-)%./,(0.,566G2-+E2%:II%H12%!21F32(L3,0
>?/O32=12%
%:I%,(]#4CFE,&5D83BII-#?471:=->32=:<= !4*(3'3G;(<F,
)(*<M,!+*#$%&9#%CQQR(9@+-(9B2%D[/0
26.
.JEB1%E%#-!"#3(4("#<(?#A9/)'/&D(3/4?#A$./=D2(
'C.?AFK$LAE-
27. #AB80.,!:ICDEBDE( '&,2# B8&5030?=<@20:=B8&!2%&I?
-$Z^,=
GEB004-6
-()*./#01")0-2)$3ְ!#7
*-8/9#7*'),H>51
1. '70C'3,"$1%P*$G,(1:=-'?4( !=@0&G@$D/&!)."8"(D%('G;(<F,
=:I!=@0)(*CD,0."
2. CFE0.,!:I-'%H0 JE20?021:I-)%./,( )(*=:I!=@0+-(9+-?+N9
%('G;(<F,!).D)(*?(D!'\?
3. J.,-)%./,(0.,I%H-7P0.,!:I>?/-$_=`=7= +P&>@2(2=>?/
-)%./,(0.,Q:#,2!':0O:'1:I'2456>?/L3,=,4A3D%.,'2456
+,(-)%./,(-,( !+*#$%&9#%7/DG@$=/9W/=)/?=(0CQG@$ "9@)*31=
CQQR(CF2W6("#%('G;(<F,=6-"G@$!B^"E2F38%&!+*#6%&9#%CQQR(G@$
C969@>"-"FN,9 "9@)*31=CQQR(CF2W6("#123G;(<F,W:,Ba.?/7.&("
S:)CQQR(M\%7CD,
4. '70D071B+T( (D071=H%9:4) B73==H%9:4 B8&/D%.,
D=E2121$G,(1:= B73=Q2$1QHD%.,B73=1:=B##503CF3B73=
=H%9:4 B8&+,B=&=@2,432(4H/(CDE'70D=E21211:=M"3=B8&
J"(0.,D=2S
5. Q%7!',ICDEB=3C!732#,1'732=4V#B=3=-+E2>?/#?B8E713,=
12%CFE(2=
6. 924CQE12%>@2(2=$1QH -)%./,(0.,5#E%:I12%,,1BII02
-;./,'%E2(B%(':/='&->.,= #:(=:<= '1%AQ32(S !&D8705#E
(324 LV/(,2!>@2CDE-)%./,(-'?4D%.,-1H#,"I:QH-DQ"Q%7!',I
CDEB=3C!732+:='1%AB=3=#?B8E713,=12%CFE(2=
7. C='92;,212aD=27D%.,-0./,5030?12%CFE-)%./,(0.,-$_=
%&4&-782=2= QE,(,"3=-)%./,(0.,':1)%A3]#412%-$Y#-)%./,(
>H<(57E-`4S -;./,CDE0?12%D83,8./= D215030?12%,"3=-)%./,(
0.,,432(-D02&'0 12%-!2&'1:#!&>@25#E421
8. Q%7!',II%H-7P>?/4.=CDE0?)7200:/=)(-'0,D21CFE(2=
-)%./,(0.,C=;.<=>?/'A( %&7:(,432CDE0?)=,4A3#E2=832(
9. !:I-)%./,(0.,CDEB=3=#E740.,>:<(',(+E2(
10. %&7:(,432CDE0.,':0O:'1:IFH<='37=>?/-)8./,=>?/
11. ,432$83,4CDE-)%./,(0.,>@2(2=)E2(57ECFE(2=-)%./,(0.,C=
+P&>?/J.,,4A3->32=:<=
12. ,432CFE-)%./,(0.,F?<5$>?/I"))8C#C=;.<=>?/>@2(2=+P&CFE(2=
#,1'732=,2!D8"#,,1B8&>@2CDE5#E%:II2#-!TI%E24B%(
5#E
13. DE20':0O:'1:I#,1'732=D%.,FH<='37=>?/C18E1:I#,1'732=
>:=>?>?/>@2(2=-'%T! -=./,(!21#,1'732=D%.,FH<='37=,2!0?
)720%E,='A(B8&871OH7D=:(+,()"P5#E
14. ,432CFE-)%./,(0.,]#4-$Y#-)%./,(>H<(57E-`4S ]#4503!@2-$_=
15. 7:'#"I2(,432(,2!0?'2%-)0?>?/-$_=;H[ %&7:(,432'A##0M"N=
D%.,CDE'2%-D832=:<=':0O:'1:I%32(124 $bHI:QHQ20+E,0A8
#E2=)720$8,#9:4+,(OAEO8HQ7:'#"
@50=I>-()B0,0()*D&J)0KC
)@2-Q.,=:
,432CDE)720503%&0:#%&7:(D%.,)720)"E=-)41:IO8HQ9:Pc*
(!2112%CFE(2=L<@2D824)%:<() ,4A3-D=.,12%$bHI:QHQ20
1d-1Pc*#E2=)720$8,#9:4C=12%CFE(2=O8HQ9:Pc*,432(
-)%3()%:#
12%$bHI:QH,432(503-D02&'0D%.,12%503$bHI:QHQ201d-1Pc*
#E2=)720$8,#9:4C=)A30.,CFE(2==?<,2!13,CDE-1H#12%
I2#-!TI,432(%"=B%(
-()#LF@)6>)8=()7)0
+E,)7%%&7:(:
!7*-'=%?<F,1"6<'-6(=-.7ML!+*#$%&9#%%0:6<"7;(1F"6&B]D!+*#$%&
123S%DB2/T)!+*#$%&9#%%%))6%"B*/?7/A&F*#%7*-'=%?)(*G;(
&("8%&!+*#$%&9#%
%)*+,)-)./0-!1234((5)6+78 1)
+E,)7%%&7:(:
!)6%"!=@0?B2/T)!+*#$%&9#% <F,7*-'=%?-6(=-.7ML=/$&&("=(9(*SG;(
&("CD,%06(&S:)7,%& 123)2/?CB0/&7;(1F"6& "OFF#!9#$%B26%0
!B]D<M,!+*#$%&9#%ED0DO&=-.7ML=/$&&(" B26%0=-.7ML=/$&&("!4#$%F0NDG;(
&("
%)*9:$78;.*<=">?1)@9*A1 (5)6+78 2)
%/7*(!'(3)*31G)76%"(G@=(9(*SB*/?CD,ED0)(*F9N"BNV9F9N"
B*/? YO$&=(9(*SG;(CD,8K3G@$!+*#$%&9#%);(2/&G;(&("%0:6 BNV9F9N"B*/?
'39@*3D/? 1 (+-(9!*\-7$;(=ND) SO& 6 (+-(9!*\-=:&=ND)
EB*DD:+-(9=/94/"ZL*3F-6(&*3D/?G@$BNV9F9N"B*/?123%/7*()(*F9N"
76%"(G@
002894
7/-!28?"BNV9F9N"B*/?%/7*(!'(3)*31G)76%"(G@
63,500
53,200
42,900
32,600
22,300
12,000
17
+E,)7%%&7:(:
!BNV9F9N"B*/?+-(9!*\-=(9(*SF9N"CB'"=NDG@$F9(0!28 6 123
F9N")2/?'"SO&F9(0!28 1 %06(Ub"F9N"!20F9(0!28 6F*#% 1
C96!M6""/A"Q`&)LM/")(*B*/?+-(9!*\-%('C96=(9(*S<M,&("CD,%@)
76%CB
>)838,>#@
+E,)7%%&7:(:
!7*-'=%?<F,1"6<'-6(=-.7ML!+*#$%&9#%%0:6<"7;(1F"6&B]D!+*#$%&
123S%DB2/T)!+*#$%&9#%%%))6%"D;(!"."&("<Dc )/?!+*#$%&9#%
%)*32=3"B-C*D0E0==0%!%"=
G;(+-(9=3%(D),("D%)=)/D)6%")(*7.D7/A&
<=6D%)=)/D2&<"!+*#$%&9#% F9N"123D/"D%)=)/D'")*3G/$&!8,(G@$
(92;>?/ 3)
S,(C96=(9(*SD/"D%)=)/D!8,(CBCD,<F,S%DD%)=)/D%%) 12,-DO&
U(+*%?F/-'/?2&=%&+*/A& '()"/A"<=6D%)=)/D%@)+*/A& F9N"123D/"
D%)=)/D'")*3G/$&!8,(G@$
F2/&'())(*7.D7/A& 7*-'=%?<F,1"6<'-6(D%)=)/D0OD1"6"!8,(G@$D@
12,-ED02%&40(0(9DO&%%)
!9#$%7,%&)(*S%DD%)=)/D%%) <F,DO&U(+*%?F/-'/?2&'"=ND123DO&
D%)=)/D%%) (92;>?/ 4)
0-F)=0%!%"= (5)6+78 5)
D%)=)/D=(9(*SB*/?9N9CD,12 7;(1F"6& !9#$%7,%&)(*!B2@$0"9N9
D%)=)/D <F,!2#$%"1F-"B*/?9N9CB8,(&F",( 12,-F9N"1F-"B*/?9N9
!4#$%!B2@$0"9N9D%)=-6(" !9#$%CD,9N9G@$7,%&)(*12,- <F,!2#$%"1F-"
B*/?9N9)2/?=:67;(1F"6&!D.9 D%)=)/D'30OD!8,(G@6
>)8GM"7)0
-(&7;(1F"6&D%)=)/DG@$7;(1F"6&G@$7,%&)(*=)/D '()"/A")D=-.7ML
=/$&&(" <M,1*&)D!2\)",%0G@$!+*#$%&9#%!4#$%<F,!+*#$%&9#%C96=3?/DF*#%
=:I!=@0)(*+-?+N9 )(*)D!+*#$%&9#%1*&c '3C96!4.$9B*3=.GZ.[(4
)(*G;(&(" (92;>?/ 6)
D024-DQ":
!!9#$%<M,D%)=)/D1?"<FI6!4#$%=)/D)*3!?#A%& <F,<M,D%)=)/D=)/DG@$
D,("26(&8%&)*3!?#A%&7(9G@$1=D&<"[(4 F()+NK<M,!+*#$%&9#%
=)/DG@$4#A"W.-8%&)*3!?#A%& %(0N)(*<M,&("8%&D%)=)/D'3=/A"2&
>)8@()8N785>A)
+E,)7%%&7:(:
!7*-'=%?<F,1"6<'-6(CD,B]D=-.7ML!+*#$%&9#%123S%DB2/T)%%)
)6%"G;()(*7*-'=%?F*#%?;(*N&*/)J(
!%06(<M,"A;(9/"!M#A%!42.& !?"Y." G."!"%*L 1%2)%d%2LF*#%-/=DN
B*3
18
19
Makita Corporation
Anjo, Aichi, Japan
884215-372 www.makita.com
TRD
Other manuals for HK0500
11
Table of contents
Languages:
Other Makita Power Scraper manuals
