MAKSIWA RBB.4G User manual
1
RBB.4G
INSTRUCTION MANUAL
Edge Trimmer with 4 Groups
ATTENTION: READ THIS MANUAL BEFORE USING THE MACHINE.
2
Greetings,
Congratulations, you just purchased the RBB 4G Maksiwa Edge Trimmer, which
was developed with the Maksiwa’s highest standards of technology and quality.
The RBB 4G Maksiwa Edge Trimmer allows you to have the highest productivity in
woodworking. It should be noted that to use this machine with maximum effi ciency,
you should read and understand the instructions in this manual.
Visit our website to know about our launches and other product lines and Technical
Assitance:
www.maksiwa.com/usa
3
Attention!: The machine must be inspected immediately upon arrival. If the machine has been
damaged during transport, or if any parts are missing, a written record of the problems must be
submitted to the forwarding agent and a damage report compiled. Also be sure to notify your
supplier immediately.
For the safety of all personnel, it is necessary to study this manual thoroughly before assembly
and operation. This manual must be kept in good condition and should be considered as part
of the machine. Furthermore, the manual must be kept to hand and within the vicinity of the
machine so that it is accessible to operators when using, maintaining or repairing the machine.
!
Maksiwa International Inc.
4100 N Powerline Rd, Suite D3 Pompa-
no Beach, FL
Call us free: 844-319-6594
www.maksiwa.com/usa
4
Contents
1.General.....................................................................................................................................................................05
1.1 Symbol legend................................................................................................................................................05
1.2 Information on the operating instructions ..................................................................................................05
1.3 Liability and warranty.....................................................................................................................................05
1.4 Copyright........................................................................................................................................................06
1.5 Spare parts.....................................................................................................................................................06
1.5 Disposal .........................................................................................................................................................06
2. Safety Regulations...............................................................................................................................................07
2.1 Workspace.....................................................................................................................................................07
2.2 Personal Safety.............................................................................................................................................07
2.3 Machine Safety..............................................................................................................................................04
3. Description............................................................................................................................................................10
3.1 Specifi cations ................................................................................................................................................10
4. Installation............................................................................................................................................................11
4.1Electric Installation .........................................................................................................................................11
4.2 Assembly ........................................................................................................................................................11
4.3 Adjustments ..................................................................................................................................................14
5. Operation.............................................................................................................................................................16
5.1 Set Up and Control ..........................................................................................................................................16
5.2 First Tests..........................................................................................................................................................18
5.3 Glue Thickness ..................................................................................................................................................18
6. Maintenance.........................................................................................................................................................21
6.1 Maintanamce Schedule ................................................................................................................................21
7. Explode View ........................................................................................................................................................22
8. Wiring Diagram ....................................................................................................................................................43
9. Warranty Terms ...................................................................................................................................................45
5
1 General
1.1 Symbol legend
Important technical safety instructions in this manual are marked with symbols.
These instructions for work safety must be followed.
In all these particular cases, special attention must be paid in order to avoid accidents, injury to persons or
material damage.
Warning! Risk of injury or death!
This symbol marks instructions that must be followed in order to avoid harm to one’s health, injuries,
permanent impairment or death!
Warning! Danger! Electric current!
This symbol warns of potentially dangerous situations relating to electrical current. Not observing the
safety instructions increases the risk of serious injury or death. All electrical repairs must be carried
out by a qualifi ed electrician!
Attention! Risk of material damage!
This symbol marks instructions which, if not observed, may lead to material damage, functional
failures
and/or machine breakdown!
1.2 Information on the operating instructions
This manual describes how to operate the machine properly and safely. Be sure to follow the safety tips and
instructions stated here as well as any local accident prevention regulations and general safety regulations.
Before beginning any work on the machine, ensure that the manual, in particular the chapter entitled “Safety”
and the respective safety guidelines, has been read in its entirety and fully understood. This manual is an
integral part of the machine and must therefore be kept in the direct vicinity of the machine and be accessible
at all times. If the machine is sold, rented, lent or otherwise transferred to another party, the manual must
accompany the machine.
1.3 Liability and warranty
The contents and instructions in this manual have been compiled in consideration of current regulations and
state-of-the-art technology as well as based on our know-how and experience acquired over many years. This
1 General
!
6
manual must be read carefully before commencing any work on or with this machine. The manufacturer shall
not be liable for damage and/or faults resulting from the disregard of instructions in the manual. The text
and images do not necessarily represent the delivery contents. The images and graphics are not depicted
on a 1:1 scale. The actual delivery contents are dependent on custom-build specifi cations, add-on options
or recent technical modifi cations and may therefore deviate from the descriptions, instructions and images
contained in the manual. Should any questions arise, please contact the manufacturer. We reserve the right
to make technical modifi cations to the product in order to further improve user-friendliness and develop its
functionality.
1.4 Copyright
This manual should be handled confi dentially. It is designated solely for those persons who work on or with the
machine. All descriptions, texts, drawings, photos and other depictions are protected by copyright and other
commercial laws. Illegal use of the materials is punishable by law.
This manual, in its entirety or parts thereof, may not be transferred to third parties or copied in any way or
form, and its contents may not be used or otherwise communicated without the express written consent of
the manufacturer.
Infringement of these rights may lead to a demand for compensation or other applicable claims. We reserve
all rights in exercising commercial protection laws.
1.5 Spare parts
Attention: Non genuine, counterfeit or faulty spare parts may result in damage, cause malfunction or
complete breakdown of the machine.
If unauthorized spare parts are fi tted into the machine, all warranty, service, compensation and liability claims
against the manufacturer and their contractors, dealers and representatives shall be rejected. Use only genuine
spare parts supplied by the manufacturer. Unless, specifi ed by manufactor.
1.6 Disposal
Attention!: Used electrical materials, electronic components, lubricants and other auxiliary substances
must be treated as hazardous waste and may only be disposed of by specialised, licensed fi rms.
If the machine is to be disposed of, separate the components into the various materials groups in order to
allow them to be reused or selectively disposed of. The whole
structure is made of steel and can therefore be dismantled without problem. This material is also easy to
dispose of and does not pollute the environment or jeopardize public health. International environmental
regulations and local disposal laws must always be complied with.
1 General
!
7
2 Safety Regulations
Read all instructions in this manual. Failure to follow all instructions listed below may result in personal injury
and equipment damage. WARNING: When using electrical equipment, always follow the safety precautions to
reduce risk of fi re, electric shock and personal injury. The manufacturer declares that they are not liable for
damages to person(s) or object(s) which may be caused by failure to comply with the safety regulations.
2.1 Workspace
• Keep the work surface clean. Cluttered work areas and surfaces invite accidents.
• Do not use the saw in hazardous environments. Do not use power tools in damp or wet locations, or
exposed to rain, or in the presence of well-lit liquids.
• Keep children away. All visitors must be kept a safe distance from the work area.
• Make the workplace childproof by using padlocks, master keys or removing the ignition key.
2.2 Personal Safety
• Stay alert, pay attention at what you are doing and use common sense when operating the machine. Do not
use the machine when you are tired or under the infl uence of drugs, alcohol, or medication. If distracted,
while operating the machine, it may in result in serious personal injury.
ALWAYS USE PROPER PROTECTION WHEN OPERATING THIS EQUIPMENT.
• Use appropriate equipment. Do not wear loose clothing, gloves, chains, rings, bracelets or other accessories
that could become caught in moving parts.
• It is recommended wearing shoes with non-slip soles. Use protection for the hair in order to hold them.
• Always wear safety glasses. Also use hearing protection.
• Do not overreach on the equipment. Maintain balance and feet in comfortable position at all times.
• Keep all tools in order. Keep tools sharp and clean for better and safer performance. Follow the instructions
for lubricating and changing accessories.
• Unplug the machine before servicing or changing accessories such as scissors, cutters etc.
• Keep hands away from moving or sharp parts.
• Do not use larger or smaller tools than recommended.
2.3 Machine Safety
2 Safety Regulations
8
• The motor of this machine can emit sparks, and can ignite fl ammable gases.
• Extension cables. Make sure your extension cord is in good condition. When using an extension, be sure
of their ability to transmit the electrical current used by your product. An undersized cord will cause drop in
voltage resulting in loss of power and overheating. The following table shows the correct size to be used
depending on the cable diameter and amperage rate. If in doubt, use a cable with a higher level of capacity.
IMPORTANT: Do not use an extension cord with length above 20 meters.
CAUTION: FAILURE TO ATTEND THESE WARNINGS MAY RESULT IN PERSONAL INJURY AND SERIOUS
DAMAGE TO THE MACHINE.
• Protect the electrical power supply line with at least a 20 amp fuse or a circuit breaker switch.
• Make sure that the advance is turning in the right direction.
• Make sure that the knobs and screws are properly tightened and safe before starting any operation.
• Keep sharp tools.
• Keep vents free of chips or dirt engines.
• Turn off the machine and unplug the power cord before maintenance or adjustments of the tool.
• Support long pieces with a clamping device for wood.
• Do not attempt to operate the machine in another voltage beyond designated.
• Do not operate with missing parts of the machine.
• Do not put your hands less than 4in from the shaft.
• Do not use lubricants or cleaners (particularly sprays and aerosols) in the vicinity of the plastic guard. The
polycarbonate material used in the guard is sensitive to certain chemicals.
WARNING: Some dust created by the act of sanding, cutting, grinding, drilling and other construction-
related activities contains chemicals that can cause cancer, birth defects or other reproductive harm.
Some examples of these products are: Lead-based paint; crystal silica bricks, concrete and other
masonry products; and arsenic and chromium from chemically treated wood.
2 Description
Cable 2 wires Cable 3 wires
AWG Amperage Ø AWG Amperage Ø
20 9 20 8
18 13 18 12
16 16.5 16 15
12 23 12 20
9
CAUTION: Do not connect the unit to the power outlet until all instructions have been read and
understood. Always tighten the adjustment tabs before using the machine. Think: “I can prevent
accidents”. Do not operate the machine unless the guards are in their proper places. Always use
protective goggles.
!
10
3 Description
3 Description
the RBB 4G Maksiwa Edge Trimmer are intended perform the cutting, refi ning, scraping and polishing of edge
bands applied to MDF sheets and similar, providing a perfect fi nish to your projects.
3.1 Specifi cations
RBB 4G Maksiwa Edge Trimmer
• Weight: 199 Lbs (90 kg)
• Feed Speed: 56ft/min (17m/min)
• Voltage: 110V 17 Amps
• Total Power: 2100 Watts
• Tape Cutter: Manual
• Work Dimensions (L x W): 31 1/2” - 50” x 15” - 26”
• Max Tape Thickness: .4 mm - 1 mm
• Max Piece Height: 2 3/4” (70 mm)
• Piece Length Mini/Max: 6” x 138” (160 mm x 3500 mm)
NOTE: Pictures and illustrations in this manual are ILLUSTRATIVE only and may not be the actual color, contain
the same labels or accessories, and are intended only to illustrate the technical part.
11
4 Installation
4 Installation
The following sections will deal with the adjustments necessary for the smooth operation of the machine and
shall refer to the term that accompanies the illustrations. For this, you must know the components and know
where they are.
4.1 Electrical Installation
The RBB.4G Trimmer has a single-phase motor with 110V connection. To avoid burning hazards, check the
electrical voltage of your outlet before turning on the machine. If necessary, change your energy with the help
of a specialized technician.
Make sure that your power supply is as designed for the equipment.

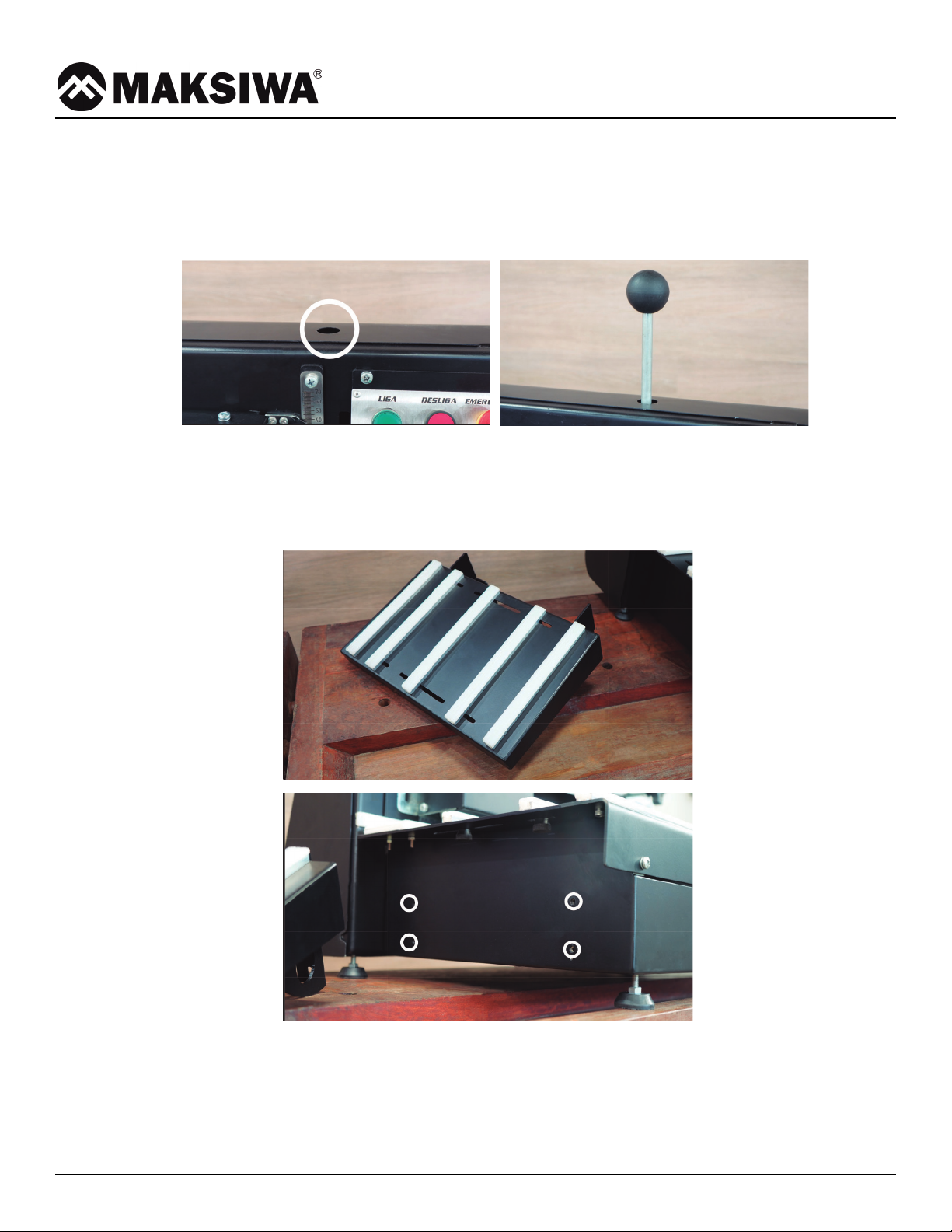

4.2 Assembly
• For ergonomic reasons, this equipment must be carried by at least two people.
• For packaging reasons, the machine is not fully assembled.
• If you notice any shipping damage while opening the package, notify your supplier immediately. Do not
operate the machine.
• The RBB.4G is designed to operate indoors and must be placed on a fi rm, stable and level surface.
1. You will receive your machine crated.
2. Remove the machine from the crate with all the parts and accessories that go with it.
3. Remove the packing materials around the parts.
4. After removing the RBB.4G Maksiwa from the packaging, start assembling using the 4 leveling feet. Remember
to keep the locknut properly tightened along the equipment structure, keeping the feet fi xed, as shown in the
following pictures:
12
4 Installation
5. Then install the ball handle rod. This part must be threaded into the insert that is inside the hole shown below.
Make sure it is fi rmly and securely tightened.
6. Assemble the two side tables. You will receive two auxiliary side tables, as shown in the following
picture:
Each of the tables must be bolted on the threaded holes, indicated in the previous photo. Remember not to fully
tighten before completely aligning the tables, following the next step.
13
4 Installation
To align the tables, use a square or similar tool. Align the side tables along the central table, making sure that
both sides are perfectly aligned.
Adjustment is made by tightening or loosening the screw shown below. Remember that the adjustment must be
made on both sides of the auxiliary table.
7. Connect a dust collector to the output shown below. Using the machine with a dust collector is essential for
its proper functioning, in addition to increasing the life of your equipment.
8. Also make sure to plug in the router, it comes pre-installed. For the machine to work perfectly, the router
Switch must be in position “I”.
14
5 Operation
5 Operation
IMPORTANT: All maintenance or cleaning on the machine must be made with the machine OFF and unplugged
from the outlet to prevent accidental shock.
• Periodic maintenance on your RBB 4G Edge Trimmer will ensure optimum performance. Make it a habit
to inspect your machine every time you use it. This section covers the service adjustments or common
procedures that may need to be made during the life of your machine.
• Verify if the following conditions for repair or replacement are needed:
• Loosen screws.
• Switches or buttons damaged.
• Cables, plugs or sockets worn or damaged.
• Any other condition that could adversely affect the safe
• Operation of the equipment
• The machine must be operated with all protections and security systems. always keep the operator’s
physical integrity as a priority.
Once assembled, your equipment will be ready for use, as it will be delivered pre-adjusted. For correct usage,
follow the steps shown below.
The operations carried out by the RBB.4G Trimmer, as with any other machine, may pose risks to the operator if
the safety and adjustment instructions are not respected. These instructions are written with the understanding
that the operator has the necessary knowledge and skills to operate this equipment.
If at any time you experience diffi culties in carrying out any operation, stop using the machine. If you are an
inexperienced operator, we recommend that you read the manual and operating instructions carefully or seek
the instruction of an experienced operator.
5.1 Setup and control
1. Familiarize yourself with the control panel. In it you will fi nd 3 buttons, marked on the panel itself. Pay
attention to the fact that, if the emergency button is pressed, the machine does not start. This button must
be twisted on for the equipment to work. (Connect the socket previously installed to the 110V single-phase
outlet, In the control panel you will fi nd different commands.)
15
5 Operation
2. Adjust the feed height according to the thickness of the part to be passed, using the scales on both sides.
3. Also use the guides provided x 2 (one for each side) to make the height adjustment, according to the
thickness of the MDF in which the treim will be made.
Remember that both guides must be positioned as shown in the photos below and must not be resting on
any structural bend of the equipment.
x 2
16
5 Operation
4. After turning on the machine, place the piece to be trimmed against the stop. The stop is in the correct
position to cut the ends of the panel, as it is aligned with the blade.
5. Cut the edgebanding by pressing down on the ball handle rod. Always do this before trimming each side of
a piece.
17
5 Operation
6. Slightly lift the part you are using so that it push down on the stop.
7. Guide panel along the equipment extension. Even though it has feed rollers, we recommend that you
support the panel through complete trimming process by hand, especially with panels that exceed the size
of the table.
8. If necessary, you can increase the working area using the front extension table. Just pull or push, per your need.
18
5 Operation
5.2 Adjustments
Your equipment will be pre-adjusted. Still, some adjustments will be necessary on a regular basis, such as blade
adjustments or changing parts.
NOTE: All adjustments must be made with the machine off and the power cord unplugged.
Guillotine Knife adjustment
1. To make the adjustment of the knife square. On the back of the equipment you will need to loosen the 3
screws indicated below to perform the alignment.
2. Also loosen the screws marked in the photos below and align the knife with the stop.
Router Height Adjustment
1. To adjust the router, you must loosen the 4 screws that hold it in place, shown in the photo below.
Remember that there is no need to completely remove them, just loosen them.
19
5 Operation
2. The height will be adjusted by turning the bolt shown below. Turning it clockwise, the router goes up,
counterclockwise, the router goes down. After the height has been set, tighten the router’s fi xing screws
again.
Scraper Adjustment
If you need to make any adjustments to the scraper system, you can follow the instructions below. Pay
attention to each of the screws, checking how to make the correct adjustment of all.
To make the adjustment fi rst lift the feed assembly to its max height (70 mm).
Note that for the adjustment of screws E, F and G, the RBB.4G comes with a wrench with a specifi c size for
this adjustment.
20
5 Operation
Vertical Movement - To move the scraping bit vertically , loosen Bolt D. If you want to LOWER the scraper,
tighten Bolt Aand loosen B. If you want to LIFT the scraper, tighten screw Band loosen A. At the end of the
adjustment, tighten again bolt D. Bolt Cis responsible for the “teeter” of screws Aand Band will hardly need to
be adjusted.
Horizontal Movement - To move the scraping bit horizontally, loosen bolt D. The adjustment is made by
tightening (moves backwards) or loosening (moves forward) bolt E. At the end of the adjustment, tighten bolt
Dagain.
Swap Scraper Bit - On the back of the scraper bit you will fi nd the bolt Fthat secures the knife to the system.
If you need to change the blade, just remove this bolt and replace it. Remember that the scraper bit has two
faces. You can fl ip and use the other side of the blade
Buffi ng Adjustment and Replacement
If you need to adjust the Buffer, be aware of what you need to do. Each screw has its specifi c function. Pay
attention to each adjustment to change or adjust the buffer.
Tilt Movement - As shown in the photo, Bolt A (one on each side) are responsible for tilting the buffi ng motor.
Just loosen bolt Aand Bthen adjust as needed. After adjustment, re-tighten bolt Aand B.
Horizontal Movement - As shown in the photo, bolt B(one on each side) are responsible for holding and
horizontally moving the Buffer. Just loosen bolts Aand Bthen adjust as needed. After adjustment, retighten
bolt Aand B.
Vertical Movement - As shown in the photo, bolt C (two on each side, adding up to 4) are responsible for fi xing
and vertically moving the entire - buffi ng system. Just loosen bolt C, make the necessary adjustment and
retighten bolt Cat the end of the process
If you need to change the buffer, remove the entire system (bolt C). Hold the buffers shaft with a wrench and,
with another wrench, remove the nut that secures the buffer. Remember that this nut has the reverse thread.
Table of contents
Other MAKSIWA Trimmer manuals
