Marposs Easy box u1air User manual

U1Air/U3Air/U4Air

USER MANUAL

- 2 -

EASY BOX U1Air - U3Air - U4Air User Manual

Code: D2EB0004G1

The information in this manual may be subjected to change without prior notice and do

not represent an obligation for MARPOSS S.p.A.

MARPOSS S.p.A. is not responsible for technical faults or other omissions in the

manual and declines any responsibility deriving from its use.

All the brands and products names mentioned in this manual are registered

trademarks of the respective owners.

Marposs S.p.A declares, on its own exclusive responsibility, that the products

described below are in conformity with the safety and EMC requirements as per

directives:

2014/35/EU (LOW VOLTAGE directive)

2014/30/EU (EMC directive)

The products were designed, assembled and tested in conformity with European

standards:

EN61010 - 1 (SAFETY)

EN61326 - 1 (EMC)

This product is intended to operate in industrial locations; it is not intended for

connection to a public mains network but for a power network supplied from a high or

medium-voltage transformer.

The symbol on the product or in its packaging indicates that this product may

not be treated as household waste. Instead it shall be handed over the applicable

collection point for the recycling of electrical and electronic equipment. By ensuring

this product is disposed of correctly, you will help prevent potential negative

consequences for the environment and human health, which could otherwise be

caused by inappropriate waste handling of this product. For more detailed information

about recycling of this product, please contact your local city ofﬁce.

- 3 -

INDEX

PAGE 5

PAGE 6

PAGE 7

PAGE 8

PAGE 9

PAGE 10

PAGE 11

PAGE 12

1 INTRODUCTION...........................................................................................

1.1 EASY BOX U1AIR.......................................................................................

1.2 EASY BOX U3AIR / U4AIR...........................................................................

2 GENERAL DESCRIPTION...........................................................................

2.1 USB OUTPUT.............................................................................................

2.2 DATA TRIGGERING........................................................................................

2.3 SOFTWARTE PACKAGES TO MANAGE EASY BOX..................................................

3 U1AIR / U3AIR / U4AIR APPLICATION RANGE...........................................

3.1 EXAMPLE OF MEASUREMENT WITH AIR-PLUG.......................................................

4 AIR SPECIFICATIONS..................................................................................

5 INSTALLATION.............................................................................................

5.1 SENSITIVITY ADJUSTMENT...............................................................................

5.2 ADJUSTMENT PROCEDURE FOR INNER DIAMETER MEASUREMENT.............................

5.3 ADJUSTMENT PROCEDURE FOR OUTSIDE DIAMETER MEASUREMENT..........................

- 4 -

- 5 -

3

1245

6U1Air

1 INTRODUCTION

1.1 Easy Box U1Air

This manual aims at supporting operators and maintenance personnel with set-up and

calibration of these units.

Pneumatic gauging uses air pressure to resolve measurements. For pneumatic

gauging it is necessary to convert the air pressure signal from the gauge head to an

electronic signal in order to display the measurement data for the user. The device to

do this conversion is called an Air to Electronic Converter, thus A to E or A/E Converter

for short.

The Marposs Easy Boxes U1Air, U3Air, U4Air have been designed to provide accurate

measurement results from a variety of air gauge devices and contain one, three, four

A/E Converters respectively. They have been built to be used in harsh environments.

1.Sensitivity adjustment knob

2.Zero offset adjustment knob

3.Lock nut for sensitivity adjustment and zero offset adjustment

4.Gauge connection

5.Mufﬂer (silencer)

6.Air input

- 6 -

3

1

2

4

5

6

U3Air

U4Air

1.2 Easy Box U3Air / U4Air

1.Sensitivity adjustment knob

2.Zero offset adjustment knob

3.Lock nut for sensitivity adjustment and zero offset adjustment

4.Gauge connection

5.Mufﬂer (silencer)

6.Air input

- 7 -

The Easy Box interface boxes allow easy and economical management via USB port

of air gauges, and can be used with the MARPOSS gauge computers Nemo, Merlin,

Merlin Plus, E9066, or with any commercial Personal Computer.

2.1 USB output

Both Easy Box™ power supply and transmission to a PC of the measuring values of

the connected transducers are realized through the USB port. A single USB cable is

therefore required for both functions.

2.2 Data triggering

The Easy Box™ continuously provides to the PC via USB port the values of the sensors

connected to the box. Whenever a data trigger is necessary, it can be made in two

ways:

• With the external signal of a footswitch connected to the Easy Box™.

• With a data request from the host PC.

2.3 Software packages to manage Easy Box

• MARPOSS DLL drivers library for Windows®operating systems, allowing to interface

Easy Boxes with any Windows 98®(or higher release) compatible application

program with minimum software programming skills.

• Easy AcquisitionTM software package for data acquisition and SPC on Excel®

worksheets: a complete and easy to operate software package to import data,

program measurements, perform data collection and SPC analysis and reporting.

• Quick SPC™ process and quality control software for Windows®, a suite of software

Products designed to comply with any requirement ranging from simple

measurement acquisition to complex gauging applications.

2 GENERAL DESCRIPTION

- 8 -

3 U1AIR / U3AIR / U4AIR APPLICATION RANGE

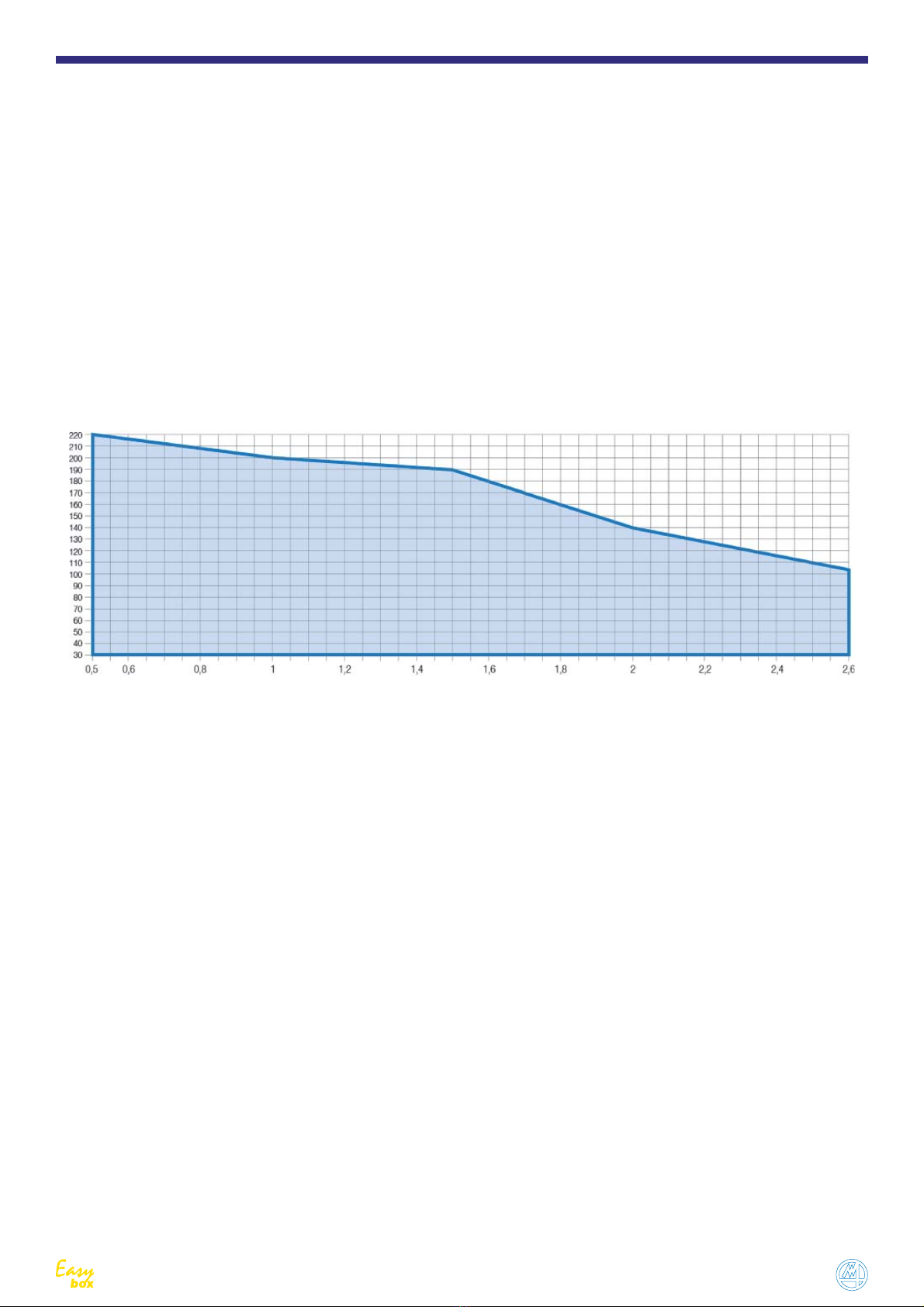

The MARPOSS and/or non-MARPOSS air gauges, with speciﬁcations inside the

blue area of the diagram, can be easily and immediately connected to these models.

The parameters to be considered are the following:

• Air supply pressure.

• Number of air gauge jets.

• Diameter of air gauge jets.

• “Mid-range gap”, as to the difference between the mid-tolerance diameter of the part

to be measured and the distance between the air gauge jets.

3.1 Example of measurement with air-plug

• Air supply pressure: 3 bar ± 0.1.

• Number of jets: 2.

• Diameter of jets: 2mm (.0787”).

• Diameter of the part to be measured = 10 mm ± 0.030 (.3937” ± .0012”).

• Mid tolerance diameter = 10 mm (.3937”).

• Distance between the jets D = 9.90 mm (.3898”).

We obtain:

• “Mid tolerance gap”: (10 - 9.90) = 0.10 mm = 100 μm.

As shown in the diagram the intersection between the value of the “mid-range gap”,

100 μm (.0039”), and the diameter of the jet, 2 mm (.0787”), stays inside the blue area:

the application can be therefore realized.

- 9 -

At air treatment and ﬁltering unit input

• Air supply pressure 5 - 8 bar

• Air ﬁltering 40 μm

At air treatment and ﬁltering unit output (a/e converter input)

• Air operating pressure 3 ± 0,1 bar

Air must be dry and oil-free, passed through a coalescing ﬁlter with

following capability

• Solid content 5 μm

• Dew-point 2- 5°

• Oiled content 0,01 mg/m3

At a/e converter output (air gauge input)

• Air working pressure 1,8 ± 0,1 bar

4 AIR SPECIFICATIONS

- 10 -

+50

0

+11

-11

+50

}

5 INSTALLATION

5.1 Sensitivity adjustment

• Connect the Easy Box to the electronic measuring display unit.

• Connect the air gauge to the Easy Box. Make sure the pipe is free from particles.

The max. pipe length can be 1,5 m.

• Connect the air supply pipe to the air treatment unit and this to the Easy Box.

• Turn on the air supply switch.

• Adjust the pressure at 3 bar.

• Perform the sensitivity adjustment.

For this adjustment both MIN and MAX masters are required.

The difference between the two masters has to be calculated (absolute value):

d = MAX master – MIN master

Example:

Upper tolerance limit = + 20

Lower tolerance limit = 0

and

MAX master = + 21

MIN master = - 1

It results then:

d= Max - Min = 21 - (-1) = 22

d/2= ± 11

By proper adjustment the working range of the A/E converter must be symmetrical

around zero.

According to the above example the result is

Range

- 11 -

5.2 Adjustment procedure for inner diameter measurement

• Specify the Easy Box UxAir in the hardware conﬁguration of your display instrument

(E9066, Merlin, Merlin plus, Nemo, …..).

• Go to the transducer settings and set the sign inversion to YES.

• Unlock the lock nuts (3) and carefully turn the Sensitivity (1) and Zeroing knobs (2)

clockwise until they close. Use a “light touch” (*).

• Open the Sensitivity knob, 6 turns counter clockwise. Open the Zeroing knob, 1/4

turn counter clockwise.

• Put the gauge plug into the MAX master and adjust the Sensitivity Knob until the

display reads the Upper Limit (for example +11 μm, half of the range, see above).

• Next, using the MIN master, adjust the Zero Knob until the display reads the Lower

Limit (for example -11 μm, half of the range, see above).

• Repeat the two previous steps as many times as needed until the readings are within

25% of the total spread between the Upper and Lower Limits.

• Tighten the lock nuts (3) for the Sensitivity and Zero knobs. Check the setup

again to make sure that it has not changed.

(*) NOTE: Tightening strongly the Sensitivity or Zero offset adjustment

knobs may result in damaging the nozzle of the knob.

- 12 -

5.3 Adjustment procedure for outside diameter measurement

• Specify the Easy Box UxAir in the hardware conﬁguration of your display instrument

(E9066, Merlin, Merlin plus, Nemo, …..).

• Go to the transducer settings and set the sign inversion to YES.

• Unlock the lock nuts (3) and carefully turn the Sensitivity (1) and Zeroing knobs (2)

clockwise until they close. Use a “light touch” (*).

• Open the Sensitivity knob, 6 turns counter clockwise. Open the Zeroing knob, 1/4

turn counter clockwise.

• Put the gauge device onto the MIN master and adjust the Sensitivity Knob (upper

knob) until the display reads the Upper Limit (for example +11 μm, half of the range,

see above).

• Next, using the MAX master, adjust the Zero Knob (lower Knob) until the display

reads the Lower Limit (for example -11 μm, half of the range, see above).

• Repeat the two previous steps as many times as needed until the readings are within

25% of the total spread between the Upper and Lower Limits.

• Tighten the lock nuts (3) for the sensitivity and zero knobs. Check the setup again

to make sure that it has not changed.

(*) NOTE: Tightening strongly the Sensitivity or Zero offset adjustment

knobs may result in damaging the nozzle of the knob.

- 13 -

____________________________________________________________________________________________________________

NOTES:

- 14 -

____________________________________________________________________________________________________________

NOTES:

- 15 -

Consult the official site Marposs: www.marposs.com for a full and updated address list

D2EB0004G1 – Issued 10/2016 – These speciﬁcations may be subject to modiﬁcations.

MARPOSS, and any other names/brands associated with MARPOSS products mentioned or indicated in this document

are trademarks or brands that have been registered by MARPOSS in the United States of America and other countries. The

rights of third parties to any registered trademarks mentioned in this documented are granted to their respective owners.

2014/35/EU

2014/30/EU

INFORMATION FOR USERS

concerning the terms of the National Legislation enforcing the Directives

2014/35/EU, 2014/30/EU on the restriction of the use of certain hazardous substances in

electrical and electronic equipment, and the disposal of waste materials

The wheelie bin symbol with a cross through it on the equipment or its packaging indicates that the

product must be disposed of separately from other waste materials at the end of its working life.

If the user wishes to dispose of this equipment, he/she must do so in accordance with the applicable

National regulations governing the separation of the unit into its waste materials at the end of its

working life.

Separating waste materials correctly before submitting the equipment for recycling, treatment and

environmentally compatible disposal can help to prevent potentially negative effects on health and the

environment, as well as making it easier to reuse and/or recycle its constituent materials.

Failure to dispose of this product in accordance with these indications is punishable in accordance

with the applicable laws.
