MartinLogan MLT-1 User manual

MLT-1
HOME THEATER
SPEAKER SYSTEM
THE GREAT AMERICAN SPEAKER COMPANY
5.1 System
MartinLogan Lawrence, Kansas, USA
Thank you for choosing the MartinLogan MLT-1 5.1 Home Theater
Speaker System. Our speakers are the product of countless hours of
comprehensive research and development and will reward you with exceptional
sound for many years.
To ensure proper installation please read this manual and follow all instructions.
If you have further questions contact your Authorized MartinLogan Dealer or
visit the Q&A page on our website at www.martinlogan.com.
USER'S MANUAL
®

UNPACKING YOUR SPEAKERS
Serial Numbers:
Record your serial numbers here for easy reference. You will need this information when
filling out your warranty registration. See page 14 for instructions on how to locate
the serial numbers.
1

2
WARNING: To Reduce Risk Of Fire Or Electric Shock, Do Not Expose This
Product To Rain Or Moisture. Unit May Become Hot. Always Provide Adequate
Ventilation To Allow For Cooling. Do Not Place Near A Heat Source, OR In
Spaces That Can Restrict Ventilation.
CAUTION: To Prevent Electric Shock, Match Wide Blade Of Plug To Wide Slot,
Fully Insert. For Continued Protection Against Risk Of Fire, Replace The Fuse
Only With The Same Amperage And Voltage Type. Refer Replacement To Qualified
Service Personnel.
Unpacking Your Speakers . . . . . . . . . . . 1
Safety Precautions . . . . . . . . . . . . . . . . . . . . 2
Important Safety Instructions . . . . . . . . . 3
Your New Speakers . . . . . . . . . . . . . . . . . . . 5
Power Requirements . . . . . . . . . . . . . . . . . . 5
How to Avoid Speaker Damage . . . . . . 5
Speaker Placement . . . . . . . . . . . . . . . . . . . . 6
Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . 7
Speaker Connection . . . . . . . . . . . . . . . . . . . 8
The Subwoofer . . . . . . . . . . . . . . . . . . . . . . . . . 8
Subwoofer Placement . . . . . . . . . . . . . . . . . 9
Subwoofer Connection . . . . . . . . . . . . . . 10
Setting Subwoofer Controls . . . . . . . . . . 10
FAQ and Troubleshooting . . . . . . . . . . 12
Serial Number & Service . . . . . . . . . . . 14
Dimensional Drawings. . . . . . . . . . . . . 15
Specifications . . . . . . . . . . . . . . . . . . . . 16
Warranty and Registration . . . . . . . . . . 17
TABLE OF CONTENTS
The lightning flash with arrowpoint within an equilateral triangle
warns of the presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle warns users of
the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
Warning: To Reduce The Risk Of Electric Shock, Do Not
Remove Cover (Or Back). No User-Serviceable Parts Inside.
Refer Servicing To Qualified Service Personnel.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
SAFETY PRECAUTIONS
READ THIS SECTION CAREFULLY BEFORE PROCEEDING!

3
1. Read Instructions – All the safety and operating instructions should be read before
the product is operated.
2. Retain Instructions – The safety and operating instructions should be retained for
future reference.
3. Heed Warnings – All warnings on the product and in the operating instructions should
be adhered to.
4. Follow Instructions – All operating and use instructions should be followed.
5. Cleaning – Unplug this product from the wall outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners. Use a damp, soft cloth for cleaning.
6. Water and Moisture – Do not use this product near water—for example, near
a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a
swimming pool; and the like.
7. Accessories – Do not place this product on an unstable cart, stand, tripod, bracket
or table. The product may fall, causing serious injury to a child or adult, and serious
damage to the product. Use only with a cart, stand, tripod, bracket or table
recommended by the manufacturer, or sold with the product. Any mounting of the product
should follow manufacturer’s instructions and should use a mounting accessory
recommended by the manufacturer.
8. Ventilation – Slots and openings in the cabinet are provided for ventilation and
to ensure reliable operation of the product and to protect it from overheating, and
these openings must not be blocked or covered. The openings should never be blocked
by placing the product on a bed, sofa, rug, or other similar surface. This product
should not be placed in a built-in installation such as a bookcase or rack unless proper
ventilation is provided or the manufacturer’s instructions have been adhered to.
9. Power Sources – This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of the type of power supply
to your home, consult your product dealer or local power company. For products intended
to operate from battery power, or other sources, refer to the operating instructions.
10. Grounding and Polarization – This product may be equipped with a polarized
alternating-current line plug (a plug having one blade wider than the other). This
plug will fit into the power outlet only one way. This is a safety feature. If you are unable
to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail
to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety
purpose of the polarized plug.
11. Power-cord Protection – Power supply cords should be routed so that they are
not likely to be walked on or pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience receptacles, and the point where
they exit from the product.
IMPORTANT SAFETY INSTRUCTIONS

4
12. Lightning – For added protection for this product during a lightning storm, or when
it is left unattended and unused for long periods of time, unplug it from the wall outlet
and disconnect the antenna or cable systems. This will prevent damage to the product
due to lightning and power-line surges.
13. Overloading – Do not overload wall outlets, extension cords, or integral convenience
receptacles as this can result in a risk of fire or electric shock.
14. Object and Liquid Entry – Never push objects of any kind into this product through
openings as they may touch dangerous voltage points or short-out parts that could
result in a fire or electric shock. Never spill liquid of any kind on this product.
15. Servicing – Do not attempt to service this product yourself as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer all servicing
to qualified service personnel.
16. Damage Requiring Service – Unplug this product from wall outlet and refer
servicing to qualified personnel under the following conditions:
• When power supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into product.
• If the product has been exposed to rain or water.
• If the product does not operate normally by following the operating instructions.
Adjust only those controls that are covered by the operating instructions as an
improper adjustment of other controls may result in damage and will require extensive
work by a qualified technician to restore the product to its normal operation.
• If the product has been dropped or damaged in any way.
• If the product exhibits a distinct change in performance – this indicates a need
for service.
17. Replacement Parts – When replacement parts are required, be sure the technician
has used replacement parts specified by the manufacturer or have the same characteristics
as the original part. Unauthorized substitutions may result in fire, electric shock, or
other hazards.
18. Safety Check – Upon completion of any service or repairs to this product, ask the
service technician to perform safety checks to determine that the product is in proper
operating condition.
19. Wall or Ceiling Mounting – The product should be mounted to a wall or ceiling
only as recommended by the manufacturer.
20. Heat – The product should be situated away from heat sources such as radiators,
heat registers, stoves, or other products (including amplifiers) that produce heat.
21. Unpacking – Remove your new MartinLogan speakers from its packaging. Retain the
packaging in a safe, dry place for future use.

5
YOUR NEW SPEAKERS
MLT-1 5.1 speakers are magnetically shielded for use near a CRT television or video screen.
Keyhole slots on the rear allow them to be mounted on a wall (hardware not included).
Your speakers can also be placed on a bookshelf or desk.
POWER REQUIREMENTS
The ‘Watts’ (W) rating indicated on the rear panel is the maximum AC power your subwoofer
will draw when producing its maximum power output. However, the actual wattage draw
will vary with the bass content of the program material.
HOW TO AVOID SPEAKER DAMAGE
Use an appropriate amplifier. At high volumes, a very powerful amplifier can
overdrive your speakers and damage them. On the other hand, if your amplifier isn’t
powerful enough, it can produce clipping distortion that can easily damage high-frequency
drivers.
(See your Dealer.)
Don’t be fooled by your amplifier’s volume control. It adjusts listening level—it does
not indicate power output. If your speakers begin to sound harsh or grating, or if you hear
the bass breaking up, turn the volume down immediately or you will damage your speakers!
This type of damage constitutes abuse and is not covered by warranty!
Tone controls and equalizers
can demand even more power from an amplifier, lowering
the point at which it produces clipping distortion. Use them sparingly, if at all, and do not use
them when listening at loud levels.

6
Figure 1 provides a general guideline to help you get the best performance from your
new system.
FRONTS (Left/Right) - MLT-1 Speakers
For the most accurate timbral balance, place your front speakers so that their high-frequency
drivers are approximately ear level (see positioning 1and 2). Measure the distance from
the listening area to your speakers. For optimal imaging, place the speakers approximately
3/4 of that distance from each other. MLT-1 speakers can be placed on a shelf, or wall
mounted (Fig. 2 on page 7)
CENTER SPEAKER - MLT-1 Center Speaker
Place the center speaker (see position 3) above or below your TV, whichever position is
closer to ear level. Position it flush with the front of the TV to minimize unwanted sound
reflections. It should be about the same distance away from the primary listening area
as the front speakers.
(Some Audio/Video receivers and processors can electronically adjust for
differences in distance.)
Your center speaker can be placed on top of a TV, on a shelf, or
wall mounted (see page 7 for Wall Mounting).
SURROUND SPEAKERS
- MLT-1 Speakers
The surround speakers should be kept well away from the listening area for optimal surround
performance.
5.1 Surround Configuration
Position speakers on each side of the listening area, (see position 4and 5in diagram).
SPEAKER PLACEMENT
Fig. 1
1
45
32

7
WALL MOUNTING
If you are not comfortable performing the following mounting procedures, have a professional
perform the installation
(see your Dealer).
FLUSH TO WALL USING KEYHOLES
NOTE: When mounting the MLT-1 center channel, if you run speaker cable down the
face of the wall, apply self-adhesive bumper pads (included) to rear corners of enclosure
to accommodate the cable (see Figure 2).
1. Using #10 screws (not included) screw into the stud. (If model has two key holes,
measure distance apart and use two screws). If you cannot locate a stud, use
appropriate mounting hardware that will hold screws securely
(see your Dealer) .
Do not screw all the way in, head should stand out approximately 3/8 inch (9.5
mm). With the MLT-1 center channel, head should stand out 5/16 inch (8 mm). If
using bumper pads add 1/8 inch (3 mm) to the amount head stands out.
2. Connect speaker cables as outlined in “Speaker Connection” section of this manual.
3. Align keyhole to screw head, and using an “in and down” motion mount speaker to wall.
Fig. 2

8
THE SUBWOOFER
To achieve optimal bass performance for music and home theater, please read through
the guidelines for subwoofer placement that follow.
SIGNAL INPUTS
Low-Level Input
Allows connection from the LFE or Right/Left Output of an A/V receiver, processor or other
suitable low-level source.
CONTROL FACILITIES
Auto On/Standby
The subwoofer will turn on when it receives an input signal and the LED will turn Green. If no
signal is sensed for a period of time, the subwoofer will automatically switch to Standby and
the LED will turn Red.
SPEAKER CONNECTION
Turn your amplifier OFF before connecting speakers.
This will avoid damage which could result from accidental
shorting of speaker cables.
Your speakers are equipped with binding posts that can be used with banana, pin or spade
connectors, as well as with bare wire. Using high-quality speaker cable
(not included, see
your Dealer)
, connect one speaker at a time to your receiver/amplifier. Connect the red
(+) amplifier terminal to the red (+) speaker terminal and the black (–) to the black (–) (Fig. 3).
Tighten the posts firmly by hand, but don’t over-tighten them.
Turn your amplifier on and listen to your speakers. If you notice a complete lack of mid-bass
and a dislocated image, one or more of your speakers may be connected out-of-phase (their
polarity is reversed). Re-check to ensure that each speaker’s cable is connected with correct
polarity: red (+) to red (+) and black (–) to black (–). Make sure wires are firmly fastened.
Fig. 3

9
Control Level
Balances the subwoofer output level to your speaker system’s output.
Low Pass Filter (Hz) Control
Controls the subwoofer’s upper-frequency cut-off to match the low-frequency characteristics
of your speakers.
Phase
Changes the phase of the subwoofer by 180° relative to your speakers.
SUBWOOFER PLACEMENT
We recommend positioning your subwoofer close to the wall, between the front speakers.
Corner placement, Fig. 4 (1) provides the most bass, but sometimes at the expense of
accuracy. A subwoofer placed near a wall (2) usually provides a good balance of quantity
and accuracy.
1
2
Fig. 4

10
SUBWOOFER CONNECTION
SAFETY PRECAUTION: Before proceeding with this section be sure to read
and follow all safety precaution instruction notices at the beginning of this manual.
Turn all components OFF before connecting the subwoofer.
Ensure subwoofer is installed in a location where any rear amplifier
parts (panels, heatsinks, etc.) cannot be accidentally touched.
We recommend the use of high-quality cables and connectors when hooking up your subwoofer
(see your Dealer).
Low-Level Input (Fig. 5)
(For use with a receiver, processor or control unit with a LFE-Out jack.)
Using an RCA-to-RCA interconnect cable connect the subwoofer using the (LFE) Right input.
SETTING SUBWOOFER CONTROLS
When setting up your subwoofer and fine tuning it with your system, use music and video
soundtracks that you know well. They should contain selections with extended bass that is
continuous and repetitive. Set any tone or equalizer controls on your receiver or preamplifier
to flat (zero) and switch any loudness controls off.
Room acoustics vary. Experiment with subwoofer placement to find the best position. Certain
subwoofer positions may cause some bass frequency cancellation—when your speakers
and subwoofer are “out-of-phase” they work against each other through the crossover region
and bass is reduced. If bass sounds “weak” or “dislocated,” change the phase according
to the instructions in point 4, on page 11. When adjusting your subwoofer, remember
that bass should not be overbearing—the subwoofer should not draw attention to itself—but
it shouldn’t be “thin” or difficult to hear, either. Use the following set-up tips to fine-tune
subwoofer bass in your listening room:
Fig. 5

11
SETTING SUBWOOFER CONTROLS (continued)
1. Turn the Low Pass Filter (Hz) Control to the middle of the “Normal” range.
2. Slowly rotate the Level Control until you match the subwoofer output level with
the level of your speakers. Bass should be clearly audible but not intrusive.
3. If the sound is too “thin” set the Low Pass Filter Control higher than the “Normal”
range; if the sound becomes “boomy” set the Low Pass Filter Control lower than
the normal range.
4. If the bass sounds weak or “dislocated” you may have a phase alignment problem.
Your MLT-1 subwoofer has a Phase Switch which is normally set to the 0° position.
Switch it to the 180° position—this will switch the phase of the subwoofer by 180° relative
to your speakers. Listen to determine if you hear more bass. If you don’t hear more bass,
return the Phase Switch to its original position and then experiment with subwoofer
placement to find an area of the room where there is less bass cancellation.

12
(FAQ) FREQUENTLY ASKED QUESTIONS
How do I clean my speakers and subwoofer?
Just use a dust free cloth or a soft brush to remove the dust from your speakers. We recommend
a specialty cloth (available at the Xtatic shop at www.martinlogan.com) that cleans your
speakers better than anything else we have tried.
What size amplifier should I use?
We recommend an amplifier with 50 watts per channel for most applications. Probably less
would be adequate when used in home theater where a subwoofer is employed. The speakers
will perform well with either a tube or transistor amplifier, and will reveal the sonic character
of either type.
Could you suggest a list of suitable electronics and cables ideal for
MartinLogan speakers?
The area of electronics and cable choice is probably the most common type of question
that we receive. It is also the most subjective. We have repeatedly found that brands that
work well in one setup will drive someone else nuts in another. We use many brands with great
success. Again, we have no favorites; we use electronics and cables quite interchangeably. We
would suggest listening to a number of brands—and above all else—trust your ears. Dealers
are always the best source for information when purchasing additional audio equipment.
Is there likely to be any interaction between my speakers and the
television in my A/V system?
No. The MLT-1 and MLT-1 center speakers are shielded and can be used with a CRT television.
Will exposure to sunlight affect the life or performance of my speakers?
We recommend that you not place any loudspeaker in direct sunlight. The ultraviolet (UV)
rays from the sun can cause deterioration of grill cloth, speaker cones, etc. Small exposures
to UV will not cause a problem. In general, the filtering of UV rays through glass will greatly
reduce the negative effects.
Is it safe to set things on my subwoofer?
While your MLT-1 subwoofer is designed with a durable, stain-resistant surface, we advise you
not to set anything on your MLT-1 subwoofer—especially containers holding liquids.
Is there likely to be any interaction between my subwoofer and the
television in my Audio/ Video system?
Yes. The MLT-1 subwoofer doesn’t use a shielded driver. We recommend 3 feet between
the MLT-1 subwoofer and video components that are susceptible to magnetic fields,
such as CRT televisions.

13
Will my electric bill go 'sky high' by leaving my subwoofer plugged
in all the time?
No. The MLT-1 5.1 subwoofer, when the power switch is set to ‘Auto On’, will draw about
12 watts when idle and only 12 watts in standby mode.
Should I unplug my subwoofer during a thunderstorm?
Yes, or before. It's a good idea to disconnect all of your audio/video components during
stormy weather.
TROUBLESHOOTING
SPEAKER
No Output
• Check that all your system components are turned on.
• Check your speaker wires and connections.
• Check all interconnecting cables.
SUBWOOFER
No Output
• Check that all your system components are turned on.
• Check that the power switch is set to 'Auto On'.
• Check your wires and connections.
• Check all interconnecting cables.
• Make sure the level control is not turned down.
• Turn off and unplug the MLT-1 subwoofer and check the fuse near the AC power
cord receptacle on the back. If the fuse has blown, replace the bad fuse with a
matching fuse.
• If the problem persists, contact your dealer.
Muddy Bass
• Check placement. Try moving the subwoofer closer to the front and side walls.
• Decrease the level.
• Check your processor setup.
• If the problem persists, contact your dealer.
Hums or Unusual Sounds
• Turn the MLT-1 subwoofer off, unplug all signal inputs, turn the MLT-1 subwoofer back on and
turn up the level. If the problem disappears, the hum is originating elsewhere in your system.
• Connect the MLT-1 subwoofer AC connection to the same AC circuit as the pre amp.
• If the problem persists, contact your Dealer.

14
SERIAL NUMBER
MLT-1 5.1 speaker serial numbers are located directly beneath the binding posts. On the
MLT-1 subwoofer the serial number is located on the back panel.
SERVICE
Should you be using your MartinLogan product in a country other than the one in which
it was originally purchased, we ask that you note the following:
1 The appointed MartinLogan distributor for any given country is responsible for warranty
servicing only on units distributed by or through it in that country in accordance with its
applicable warranty.
2 Should a MartinLogan product require servicing in a country other than the one in
which it was originally purchased, the end user may seek to have repairs performed
by the nearest MartinLogan distributor, subject to that distributor’s local servicing
policies, but all cost of repairs (parts, labor, transportation) must be borne by the owner
of the MartinLogan product.
3 If, after owning your speaker for six months, you relocate to a country other than the
one in which you purchased your speaker, your warranty may be transferable. Contact
MartinLogan for details.

15
DIMENSIONAL DRAWINGS
5-1/2˝ (13.97 cm)
7˝ (17.78 cm)
4-1/4˝ (10.16 cm)
5-1/2˝ (13.97 cm)
12˝ (30.48 cm)
4-1/4˝ (10.16 cm)
11˝ (27.94 cm)
11˝ (27.94 cm)
14˝ (35.56 cm)
14˝ (35.56 cm)
MLT-1 Subwoofer
MLT-1 Speaker MLT-1 Center Channel

16
SPECIFICATIONS
MLT-1 SPEAKER
System Frequency Response
125–20,000 Hz ± 2db
Sensitivity
87 [email protected] volts/meter
Impedance
8 Ohms compatible
Crossover Frequency
2000Hz
Tweeter Type
1” (2.54 cm) soft dome
Woofer Type
3.5” (8.9cm) high rigidity poly cone
with extended throw drive assembly
Enclosure Type
Non-resonance asymmetrical
chamber format, sealed
Power Handling
40 watts
Weight
3 lbs. (1.3 kg)
Size*
7” h x 4.25” w x 5.5” d
(17.8 h x 10.8 w x 14 d cm)

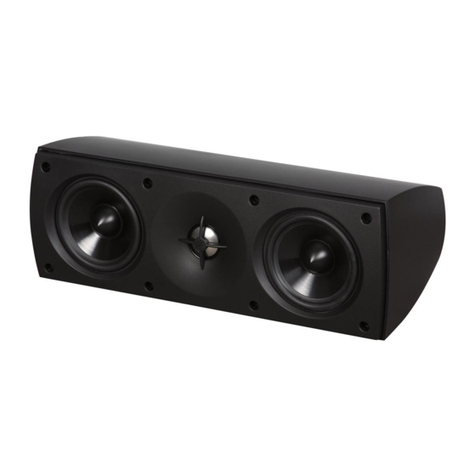

MLT-1 CENTER CHANNEL
System Frequency Response
130–20,000 Hz ± 2db
Sensitivity
89 [email protected] volts/meter
Impedance
8 Ohms Compatible
Crossover Frequency
2200Hz
Tweeter Type
1” (2.54 cm) soft dome
Woofer Type
2 x 3.5” (8.9cm) high rigidity
poly cone with extended throw drive assembly
Enclosure Type
Non-resonance asymmetrical
chamber format, sealed
Power Handling
50 watts
Weight
5 lbs. (2.2 kg)
Size*
4.5” h x 12” w x 5.63” d
(10.8 h x 30.5 w x 14.3 d cm)
MLT-1 SUBWOOFER
System Frequency Response
40–200 Hz ± 3 dB. Anechoic in the LFE mode.
Low Pass Filter Frequencies
50Hz–200Hz
Phase
0°, 180°
Woofer Type
8” (20.3cm) high-excursion, paper cone with
extended throw driver assembly
Enclosure Type
Bass reflex
Amplifier
100 watts RMS (250 watts peak)
Impedance
Left & Right/LFE RCA – 10,000 Ohms
Inputs
Left & Right/LFE RCA Line Level
Mains Power Draw
Standby: 12W
Idle: 12W
Max: 175W
Weight
24.4 lbs. each (11.1 kg)
Size*
14” h x 11” w x 12.5” d
*For detailed dimensional drawings, please see page 15.
Specifications are subject to change without notice.

17
Limited Ninety Day Warranty
Limited Warranty
MartinLogan, Ltd, warrants the product designated herein to be free of manufacturing defects in
material and workmanship, subject to the conditions hereinafter set forth, for a period of ninety (90)
days from the date of purchase by the original purchaser.
Conditions
This warranty is subject to the following conditions and limitations: the warranty is void and inapplicable
if the product has been used or handled other than in accordance with the instructions in the owner’s
manual, abused or misused, damaged by accident or neglect or in being transported, or the defect
is due to the product being repaired or tampered with by anyone other than MartinLogan or an
authorized MartinLogan repair center. If returned, the product must be properly packaged and
shipped to MartinLogan or an authorized MartinLogan repair center by the customer at his or her
sole expense. A returned product must be accompanied by a written description of the defect and
proof of the date of purchase. MartinLogan reserves the right to modify the design of any product
without obligation to purchaser of previously manufactured products and to change the prices or
specifications of any product without notice or obligation to any person.
Exclusions
Any implied warranties relating to the above product shall be limited to the duration of the above
warranty. The warranty does not extend to any incidental or consequential costs or damages to the
purchaser. Some states do not allow limitations on how long an implied warranty lasts or an
exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions
may not apply to you. This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state. This warranty represents a limited warranty as per definition by
the Federal Trade Commission (Magnuson-Moss Warranty Act).
Warrantor
Inquiries regarding the above Limited Ninety Day Warranty may be sent to the address on the next page.
Limited Five Year (Three Year for subwoofers) Warranty Registration (see enclosed)
Automatic Coverage
Thank you for purchasing this MartinLogan product. We have made every effort to ensure that it
represents the highest level of performance, reliability and finish. Your MartinLogan product is covered
by a Limited Ninety Day Warranty whose terms are specified in the Limited Ninety Day Warranty. This
ninety day coverage is automatic upon your acceptance of delivery and no registration is required.
Extended Warranty Coverage
Additionally, you have the option, at no cost to you, to secure extended warranty coverage for a
period of Five (5) years (Three (3) years for subwoofer) from the date of purchase by simply returning
the enclosed completed Warranty Registration Card within thirty (30) days of product delivery.
Online Warranty Registration
For your convenience MartinLogan also offers online warranty registration at www.martinlogan.com.
WARRANTY INFORMATION AND REGISTRATION

18
OPTIONAL LIMITED FIVE YEAR (THREE YEAR FOR SUBWOOFERS) WARRANTY
Upon receipt of the completed Limited Five Year Warranty (Three Year on MLT-1 subwoofer) Registration
Card, the registered product will carry the following warranty coverage:
Limited Warranty
MartinLogan warrants the product designated herein to be free of manufacturing defects in material
and workmanship, subject to the conditions hereinafter set forth, for a period of Five (5) years (Three
(3) years for MLT-1 subwoofer) from the date of purchase by the original purchaser.
Conditions
This warranty is subject to the following conditions and limitations. The warranty is void and
inapplicable if the product has been used or handled other than in accordance with the instructions in
the owner’s manual, abused or misused, damaged by accident or neglect or in being transported, or
the defect is due to the product being repaired or tampered with by anyone other than MartinLogan
or an authorized MartinLogan repair center. Any modification (electrical, mechanical, or cosmetic) may,
at MartinLogan's discretion, void the warranty. If returned, the product must be properly packaged and
shipped to MartinLogan or an authorized MartinLogan repair center by the customer at his or her sole
expense. A returned product must be accompanied by a written description of the defect and a
photocopy of the validated warranty. MartinLogan reserves the right to modify the design of any
product without obligation to purchasers of previously manufactured products and to change the prices
or specifications of any product without notice or obligation to any person.
Remedy
The above Warranty and the above conditions have been met, the purchaser’s sole remedy under this
Limited Warranty shall be to return the product. If you find yourself in this situation, first contact the dealer
from whom you purchased the product. If you purchased your product outside the USA you must work
with your distributor to resolve your issue. If you purchased your product in the USA and your MartinLogan
dealer cannot help you, you may contact MartinLogan directly to resolve your issue. All factory product
return issues must be reviewed and have a Return Authorization approved and issued by the
MartinLogan factory before the product can be returned.
Restriction
This Warranty is for the sole benefit of the original purchaser of the covered product, is restricted to the
original purchaser, and shall not be transferred to a subsequent purchaser of the product.
Duration
This Warranty expires on the fifth anniversary (third anniversary for MLT-1 subwoofer) of the date of
purchase. During the first ninety (90) days following the date of purchase by the original purchaser, the
MartinLogan Limited 90 Day Warranty supersedes this Warranty.
Exclusions
Any implied warranties relating to the above product shall be limited to the duration of the above
warranty. The warranty does not extend to any incidental or consequential costs or damages to the
purchaser. Some states do not allow limitations on how long an implied warranty lasts or an exclusion
or limitation of incidental or consequential damages, so the above limitations or exclusions may not
apply to you. This Warranty gives you specific legal rights, and you may also have other rights which
vary from state to state. This Warranty represents a limited warranty as per definition by the Federal
Trade Commission (Magnuson-Moss Act).
Warrantor
Inquiries regarding the above Limited Warranty may be sent to the following address:
MartinLogan
2101 Delaware
Lawrence, Kansas 66046

© 2010 MartinLogan. All rights reserved. Rev. #082510
®
Lawrence, Kansas. USA tel [phone] fax [phone] www.martinlogan.com
WARNING: Do not use your MLT-1 5.1 loudspeaker system outside of the country of original
sale—voltage requirements vary by country. Improper voltage can cause damage that will be
potentially expensive to repair. The MLT-1 5.1 is shipped to authorized MartinLogan dealers with
the correct power supply for use in the country of intended sale. A list of authorized dealers can
be accessed at www.martinlogan.com or by emailing [email protected].
