Maruzen MREK-045T User manual

Electric Noodle Boiler (Ramen Pot)
【Tabletop Ramen Pot】
●ＭＲＥＫ－０４５Ｔ
●ＭＲＥＫ－０６５Ｔ
【Square Tank Ramen Pot】
●ＭＲＥＫ－０２６
●ＭＲＥＫ－０４４
●ＭＲＥＫ－０４６
●ＭＲＥＫ－０４７
【Auto Noodle Boiler】
●ＭＲＥＫ－Ｌ０３６Ｌ
●ＭＲＥＫ－Ｌ０３６Ｒ
●ＭＲＥＫ－Ｌ０４６
●ＭＲＥＫ－Ｌ０６４
●ＭＲＥＫ－Ｌ０６６
●ＭＲＥＫ－Ｌ０６７
USER’S MANUAL
（Product・Installation）
General commercial kitchen Appliances & Equipment
Maruzen Co.,Ltd.

Contents
１Before Use
１－１ Name and function of each part・・・・・・・・・・・・ １
１－２ Accessories・・・・・・・・・・・・・・・・・・・・ ５
２How to Use
２－１ Preparation for operation・・・・・・・・・・・・・・ ６
２－２ Basic usage・・・・・・・・・・・・・・・・・・・・ ７
２－３ In case of a power outage while in use ・・・・・・・・・１０
３Maintenance, Inspection, etc.
３－１ Inspection and preparation for maintenance・・・・・・１１
３－２ Maintenance・・・・・・・・・・・・・・・・・・・１２

- 1 -
Before Use
１－１ Name and function of each part

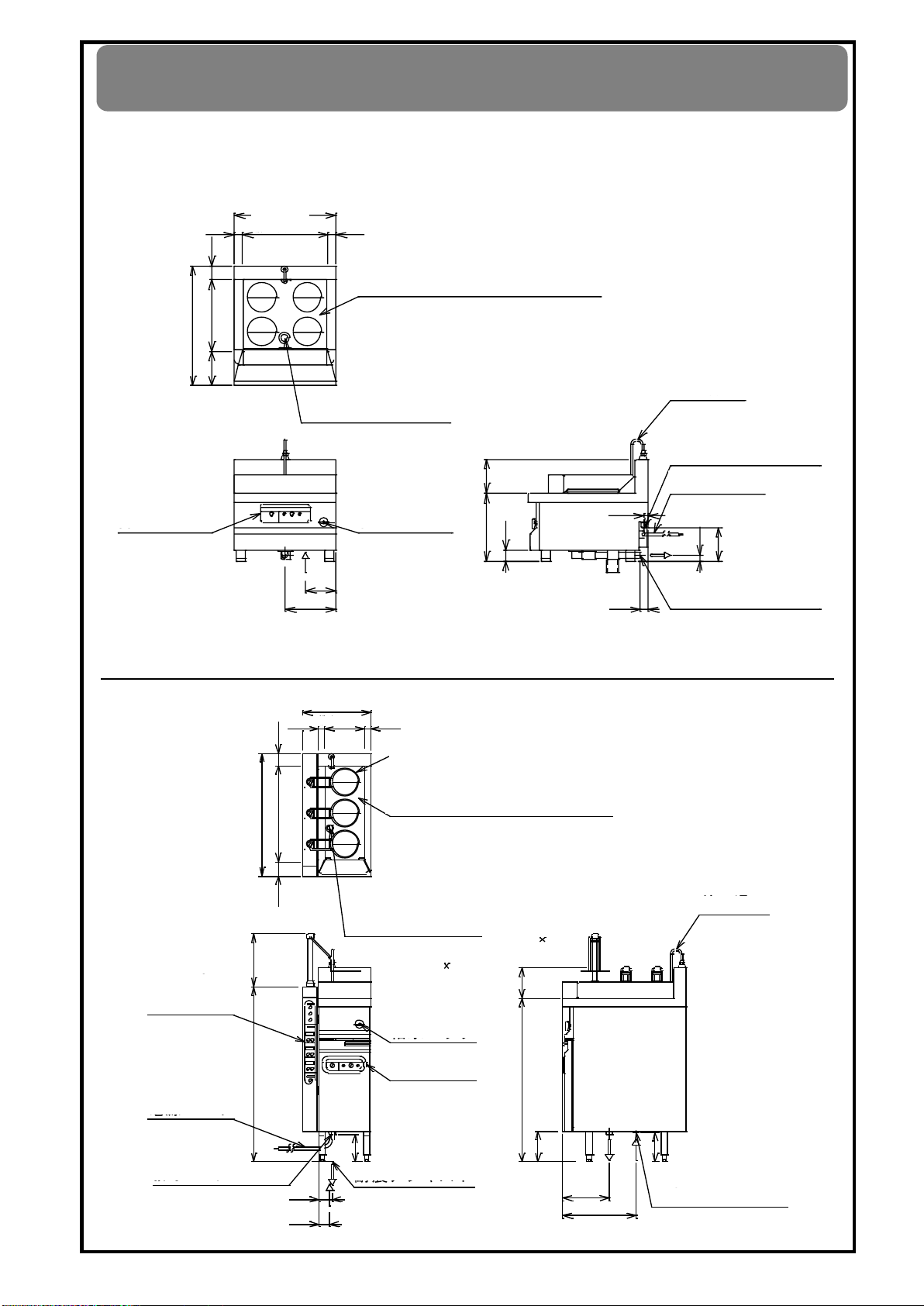

Name of each part
槽 寸 法
３ ８ ０
槽 寸 法
３ １ ７
４ ５ ０
３ ５ ３ ５
１ ３ ５
２ ２ ５
１ ５ ３ ６ ０
５ ３ ０
２ ０
５ ０
３ ０ ０ １ ５ ０
１ ５ ０
２ ５
３ ５
差し湯口
給水コック
オーバーフロー栓
カゴ受（湯気シャッター付）
操作パネル
給水口（１５Ａ）
電源コード
排水口（２０Ａ）
６ ００
８５６ ２ ６０
１３５
３ ０ 槽寸法 １９５ ３０
７ ０ 槽寸法 ４７０ ６０
３３０
６８
６０
１５ ０
８００ １５０
１４５
２２５
３５５
オーバーフロー栓
差し湯口
給水口（１５Ａ）
排水口（２５Ａ）
リフト部
操作パネル
操作パネル
（扉内側）
電源コード
耐震アジャスト
カゴ受（湯気シャッター付）
カゴ受リング
給水コック
ＭＲＥＫ－０４５Ｔ
ＭＲＥＫ－Ｌ０３６Ｔ
Basket holder (w/steam shutter)
Overflow stopper
Feed-water inlet (15A)
Hot water adding port
Feed-water cock
Operation panel
Basket holder ring
Power cord
Drain outlet (20A)
Basket holder (w/steam shutter)
Overflow stopper
Lift part
operation panel
Power cord
Drain outlet (25A)
Earthquake-resistant adjust
Feed-water cock
Operation panel
(Inside the door)
Hot water adding port
Feed-water inlet (15A)
Tank size 380
Tank size
Tank size
Tank size 317

- 2 -
３ ８ ０ 槽 寸 法
４ ７ ０
槽 寸 法
１ １ ０ １ １ ０
６ ０ ０
２ ２ ０ ６ ０
７ ５ ０
１ ３ ５
３００
１ ５ ５
１ ４ ５
８ ５ ６ ２ ６ ０
１ ５ ０
８ ０ ０ １５０
３ ５ ５
３ ７ ５
オ ー バ ー フ ロ ー 栓 差 し 湯 口
給 水 口 （ １ ５ Ａ ）電 源 コ ー ド排 水 口 （ ２ ５ Ａ ）
リ フ ト 部
操 作 パ ネ ル
操 作 パ ネ ル
給 水 コ ッ ク
カ ゴ 受 リ ン グ
カ ゴ 受 （ 湯 気 シ ャ ッ タ ー 付 ）
３８０ 槽 寸 法
４ ７ ０
槽 寸 法
３ ５ ３ ５
４ ５ ０
２ ２ ５
８ ０
７ ０ ６ ０
６ ０ ０
１ ３ ５
１ ４ ５ １ ５ ０
８ ０ ０ １ ５ ０
２ ２ ５
３５５
差 し 湯 口
給 水 口 （ １ ５ Ａ ）
オ ー バ ー フロ ー 栓
電 源 コ ー ド
給 水 コ ッ ク
カ ゴ 受 （ 湯 気 シ ャ ッ タ ー 付 ）
排 水 口 （ ２ ５ Ａ ）
操 作 パ ネ ル
ＭＲＥＫ－Ｌ０６７
ＭＲＥＫ－Ｌ０４６
Basket holder ring
Basket holder (w/steam shutter)
Basket holder (w/steam shutter)
Overflow stopper
Overflow stopper
Operation panel
Lift part
operation panel
Operation panel
Drain outlet (25A)
Drain outlet (25A)
Power cord
Power cord
Hot water adding port
Hot water adding port
Feed-water cock
Feed-water cock
Feed-water inlet (15A)
Feed-water inlet (15A)
Tank size
Tank size
Tank size
Tank size 470

- 3 -

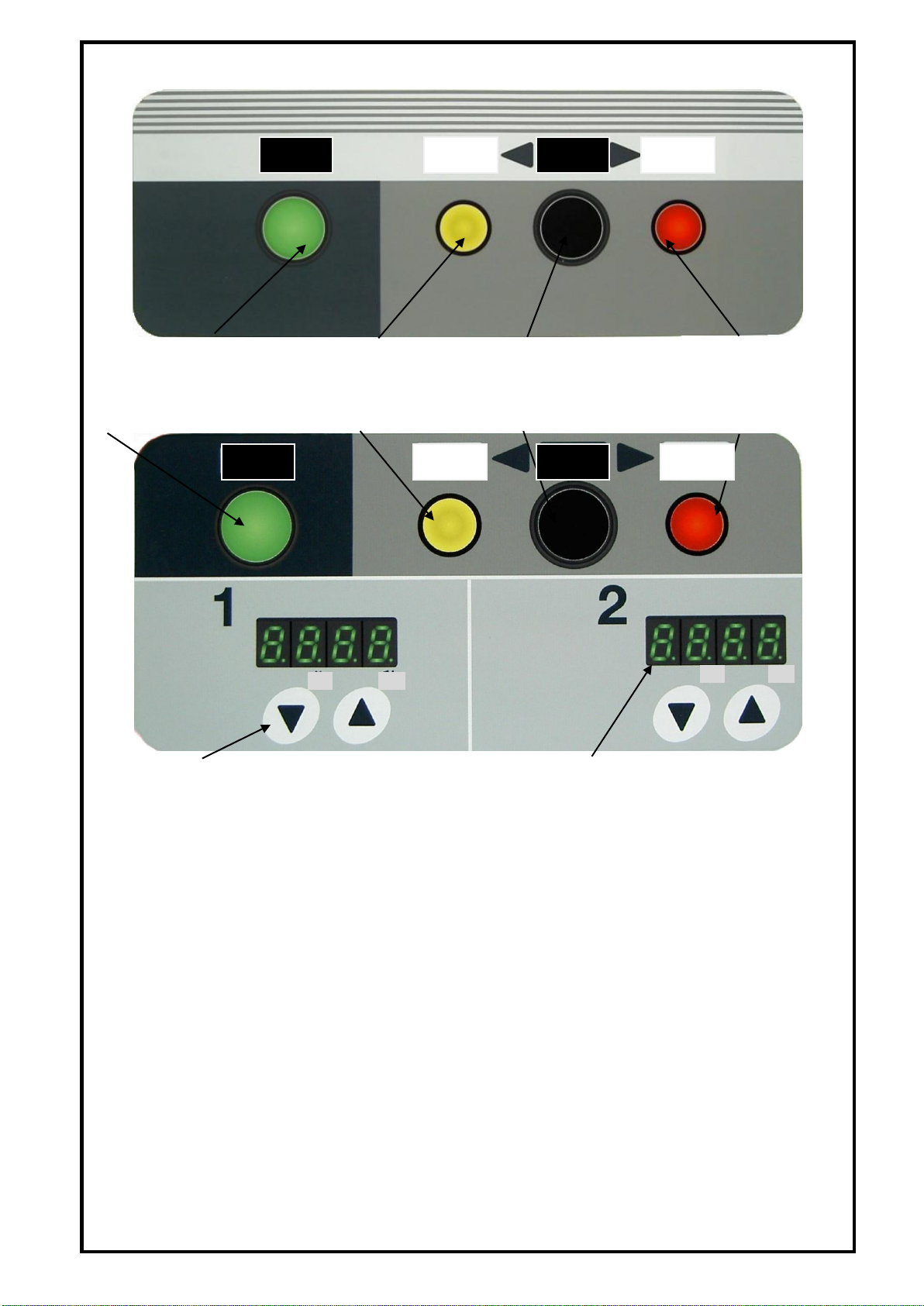

MREK series common operation part
ＭＲＥＫ－Ｌ０４６ Operation part
①Power button (lighted)
・Each press of this button turns the power on and off alternately.
②Select button
・Each press of this button shifts the cooking mode from “Warm”to “Cook”and from
“Cook”to “Warm”alternately.
③Cook lamp
・Lit when Cook mode is set by the select button
④Warm lamp
・Lit when Warm mode is set by the select button (set at 95℃)
①Power button (lighted)
④Warm lamp
②Select button
③Cook lamp
①Power button (lighted)
（照光式）
④Warm lamp
②Select button
③Cook lamp
⑦Preset time display panel
⑥Time setting button
POWER
POWER
SELECT
SELECT
WARM
WARM
COOK
COOK
Min
Min
Sec
Sec

- 4 -
⑤Lift power button
・Each press of this button turns the auto-lift on and off alternately.
⑥Time setting button
・Used to set boiling time.
⑦Preset time display panel
・Displays preset time for boiling. When boiling is started by pressing a shaft select
button, remaining time until boiling is completed is shown.
⑧Shaft select button
・By pressing this button, shaft comes down to start boiling.
・By pressing this button while boiling, shaft can be lifted up during the boiling.
選 択
設 定 時 間
分 秒
分 秒
分 秒
電 源
Ｉ／ Ｏ

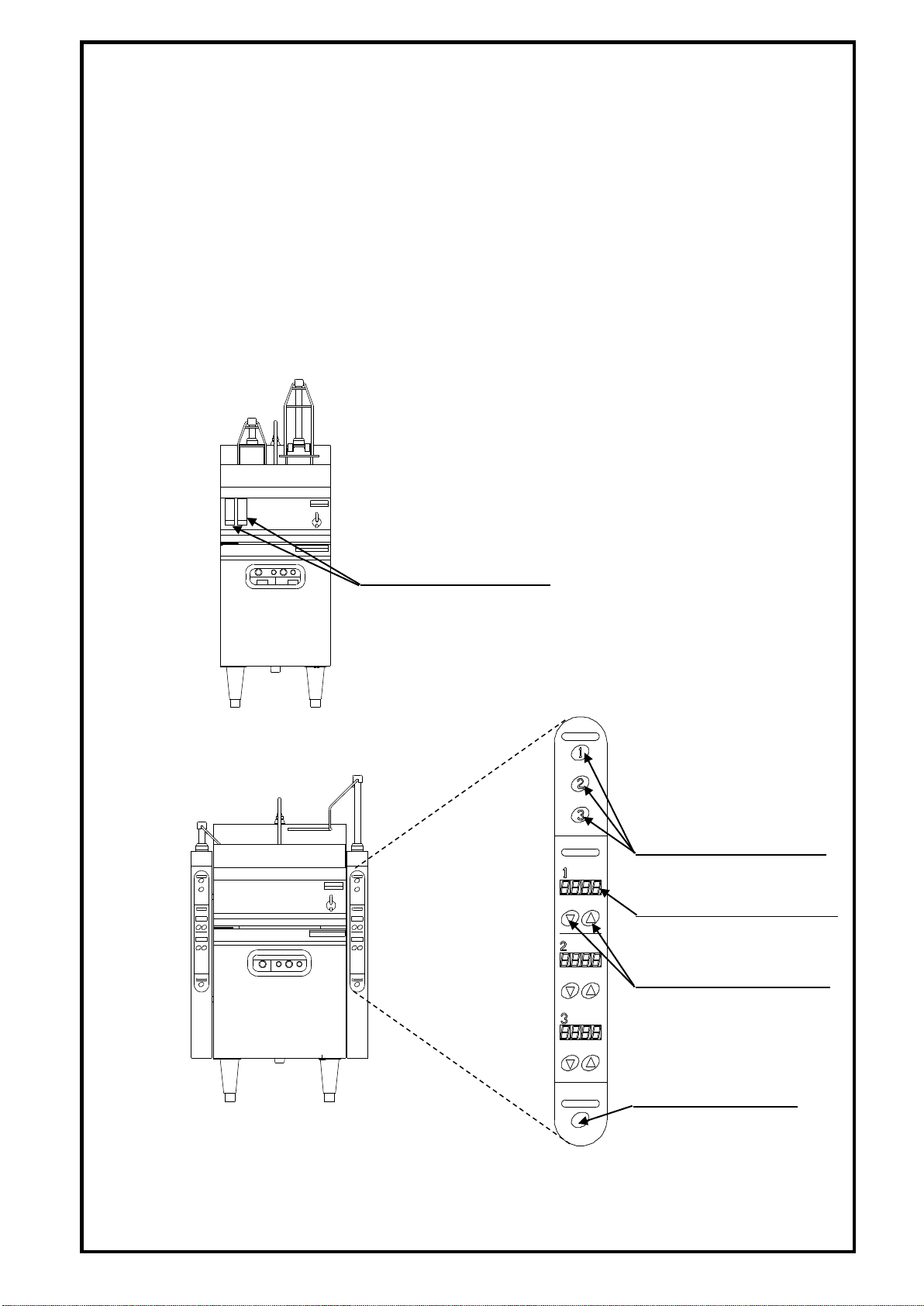

Auto-lift operation panel
ＭＲＥＫ－Ｌ□□□（Ｌ・Ｒ）
⑧Shaft select buttons
⑦Preset time display panel
⑥Time setting buttons
イッチ
⑤Lift power button
① ②
⑧Shaft select buttons
Auto-lift operation panel
ＭＲＥＫ－Ｌ０４６

- 5 -
Before Use

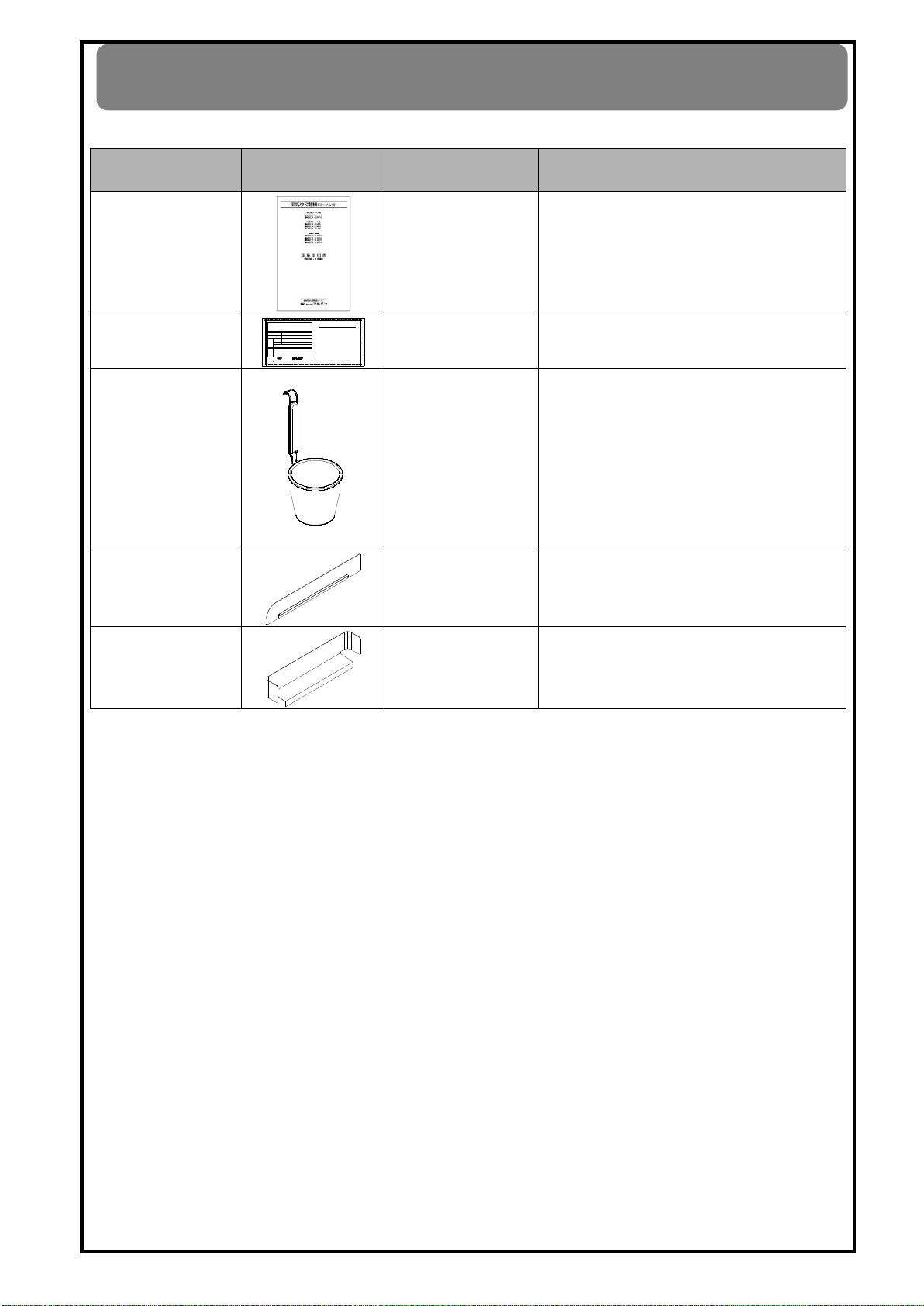

１－２ Accessories
You can purchase extra of the accessories above. For more detail, please contact the
dealer where you purchased your machine or your nearest branch or sales office of our
company.
Name of
Accessory
Shape
Qty
How to Use
User’s manual
１
●Keep carefully in a place to
make it available for reference at
any time.
Warranty
保
製造年月型式
保
お買い 上げ 日
お名前
ご住所
（ＴＥＬ．
店名・住 所
お
客
様
販
売
店
〒 １ １ ０ － ０ ０ ０３ 東 京 都 台 東 区 根岸 ２ － １ ９ － １ ８
こ の 製 品 は 厳 密な る 品 質 管 理 及 び 検査 を 経 て お 届 け
し た も の で す 。本 書 は 、 お 客 様 の 正常 な 使 用 状 態 に
お い て 万 一 故 障し た 場 合 に 、 本 書 記載 内 容 で 無 料 修
理 を 行 な う こ とを お 約 束 す る も の です 。
１ ． お 客 様 の 取扱 説 明 書 な ど の 注 意書 に よ る 正 常 な
２ ． 本 保 証 書 は再 発 行 い た し ま せ んの で 大 切 に 保 管
３ ． 保 証 に つ いて の 規 定 は 裏 面 を ご覧 く だ さ い 。
株式 会 社
Ｍ Ｒ Ａ
Ｕ
Ｚ Ｅ Ｎ
証 書
（ ） ）
証期間
ご 使 用 状 態で 、 保 証 期 間 中 に 故障 し た 場 合 に は
お 買 い 上 げの 販 売 店 ま た は 当 社支 店 、 営 業 所 に
ご 依 頼 く ださ い 。
し て く だ さい 。
Ｔ Ｅ Ｌ ０ ３－ ５ ６ ０ ３ － ７ ７ １１ （ 代 表 ）
お買 い上 げ後 １年 間
１
●Keep it carefully not to lose.
Noodle boiling
basket
０４５Ｔ …４
０６５Ｔ …６
０２６ …３
０４４ …４
０４６ …６
０４７ …６
Ｌ０３６□…３
Ｌ０４６ …４
Ｌ０６４ …４
Ｌ０６６ …６
Ｌ０６７ …６
●Used to boil noodles.
●Basket size
φ１４０×３３０（Ｈ）
Usable dimension
φ１２０×１００（Ｈ）
Side guard
１pair
（Left１、Right１）
※Except ０２６・Ｌ０
３６□
●Prevents hot water from
spattering to the sides.
Front guard
１
●Prevents hot water from
spattering to the front.

- 6 -
How to Use
２－１ Preparation for operation
１）Preparation for operation
①Confirm that the boiling assist plate is properly
set in the tank.
②Make sure that overflow stopper is
securely put in the drain outlet of the tank.
※If the stopper is too tight to put in, apply
vegetable oil to O ring part. It will facilitate
the installation.
③Open water supply valve and feed-water cock
to feed water in the tank.
④When the water surface comes up to the
same level as the drain hole of the overflow
stopper, close the feed-water cock.
Set the basket holder and basket holder
lid in the tank and attach the side guards
and front guard.
⑤Turn on ventilating facilities.
⑥Turn the main power (local switch/plug) on.
⑦Set noodle boiling baskets in the basket holder
ring.(Lift type only)
⑧Turn on the lift power button at the auto-lift
operation panel and set operating time of the lift
(boiling time) by pressing the time setting buttons
(△▽ buttons). (Lift type only)
(Time can be set ranging from 1sec to
Overflow stopper
Front
Front
※Be careful of the directi
on (front/back).
Back
Heater
Drain hole
穴
Boiling assist plate
Notch
Tank
Basket holder lid
Basket holder
●Do not place or use spray cans, or combustible, volatile or inflammable substance
near the machine.
●Turn on ventilating facilities such as exhaust fan while in use.
・WARNING
●Do not place any material weak to heat near the machine.
●Do not touch electrical components such as power plug or operate electric switches
with wet hands.
●In case of any part broken, do not continue to use and replace such part with a new
one.
●In case of any component or accessory broken, do not continue to use.
●Do not use when the machine is dirty.
●Do not use any tools or accessories other than the designated ones.
●Do not dry-heat. ●Do not use for any purpose other than cooking.
CAUTION
Tank side view
Inclined
Notch

- 7 -
99min 59sec by 1 sec.)
How to Use
２－２ Basic usage

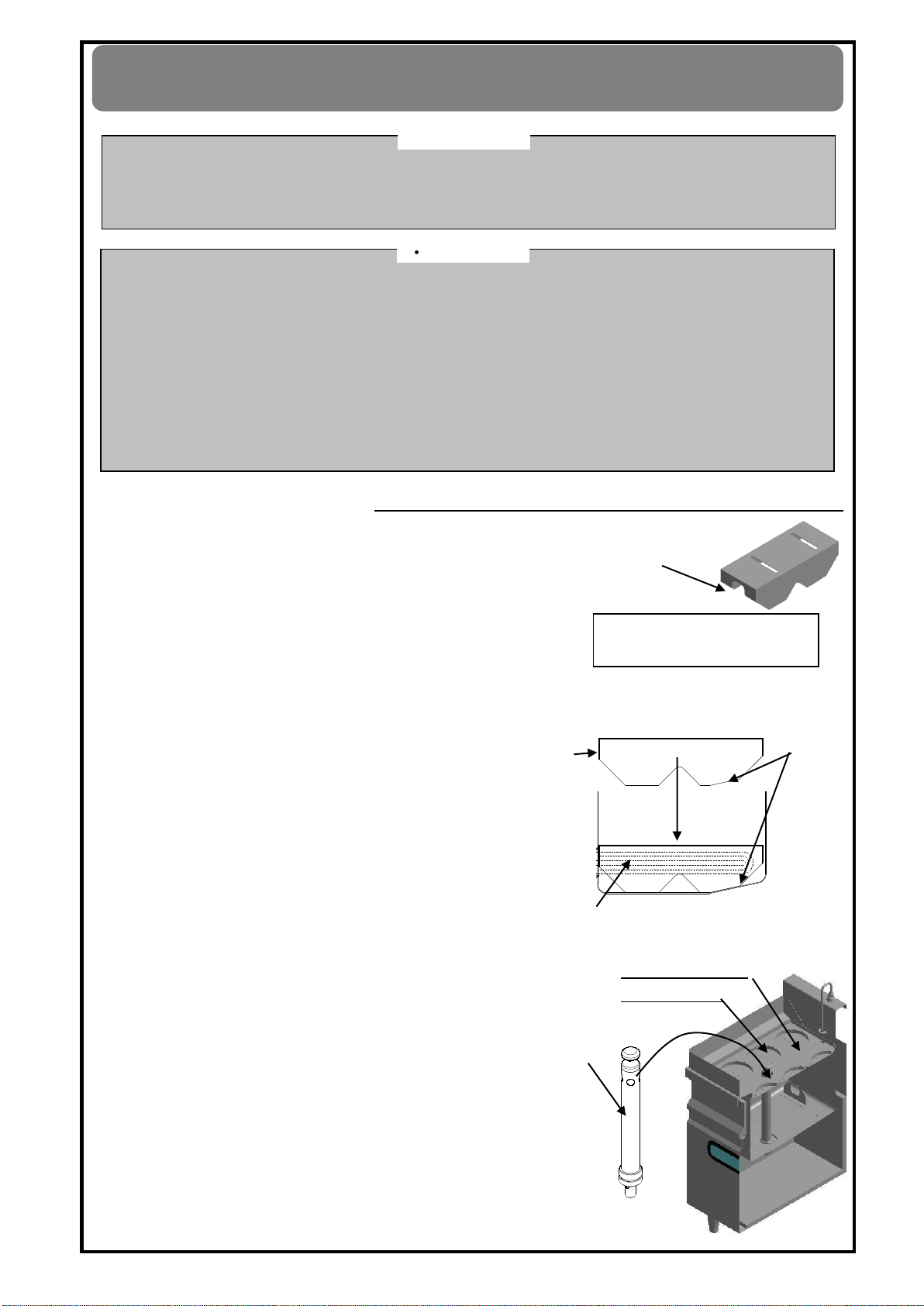

Attach so that the catch comes outside.
○
×
How to attach side guards
●If the steam shutter remains closed, spring is possibly broken.
Perform inspection.
Springs may be deteriorated over age
and small parts of steam shutter may fall
into ingredients. Do not continue to use
and replace with a new one.
湯気シャッター
湯気シャッター湯気シャッター
湯気シャッター
Steam shutter
Steam shutter
CAUTION
●Do not place or use spray cans, or combustible, volatile or inflammable substance
near the machine.
●In case of abnormality, earthquake or fire, stop use and turn the main power (local
switch/plug) off.
●Turn on ventilation facilities such as exhaust fan while in use.
●Do not leave the machine unattended while in use.
●Do not let children operate the machine.
●Turn the main power (local switch/plug) completely off and close water supply valve
after operation.
・WARNING
●Confirm if the overflow stopper is securely set to prevent dry-heating.
●In case the dry-heating prevention device is activated, the machine can be
recovered by waiting until the main body is totally cooled down and then
pressing the reset button. However, as some parts may be damaged, do not
reset by yourself and contact the dealer where you purchased the machine, or
your nearest branch or sales office of our company.
●Do not touch any part other than the operation part while in use and just after
use.
●Do not touch electrical components or operate electric switches with wet
hands.
●Do not dry-heat.
●Do not cool rapidly.
●Do not start/stop the operation by plugging/unplugging.
CAUTION

- 8 -

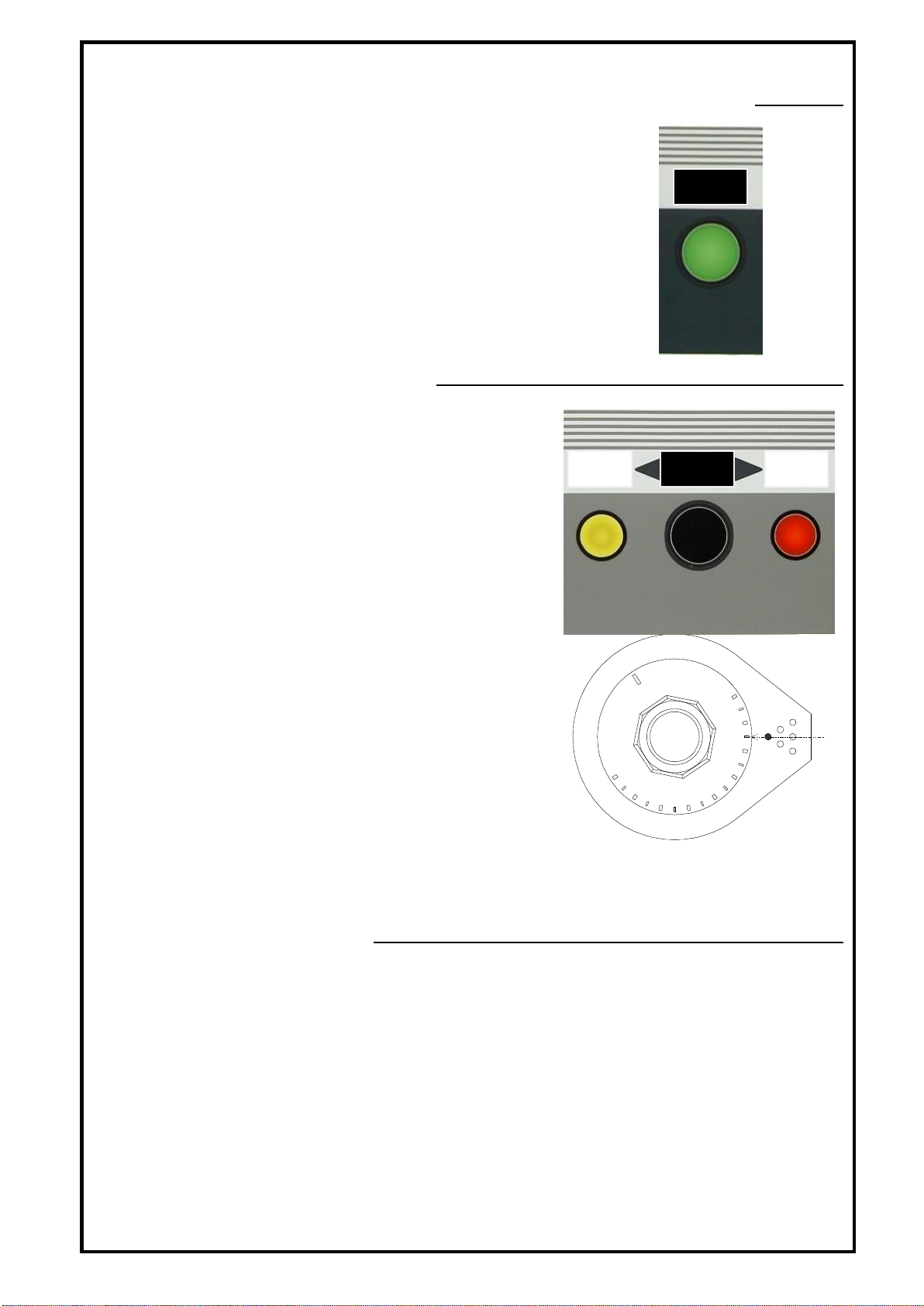

１）Turn on the machine. (Confirm that the tank is full with water.)
○Press the power button to turn the machine on.
・The power button (lighted) lights up and the heater is
heated up.
・In the case of warm mode, the water is heated up to
95 ℃and then controlled to remain at the temperature.
※To prevent dry-heating, confirm if the tank is full
with water before turning the power on.
２）Select Cook or Warm mode.
○Press the select button to switch Cook or
Warm mode.
・To boil up the water in the tank, select Cook
mode.
・After the water in the tank is boiled up,
select the following mode.
・”Cook mode” retains boiling status.
Use this mode to boil noodles.
“Cook lamp” is lit.
・”Warm mode” retains the temperature at 95℃.
This mode is convenient to use as idling
when the restaurant is not so crowded.
”Warm lamp” is lit. Rotate the dial to change
the preset temperature.
※As the analog thermo is used, there might
be some difference between the graduation
of the dial and the actual temperature.
※If boiling does not stop even after changing to
“Warm mode”, adjust by rotating the dial to
reduce the preset temperature.
※Warm setting dial for tabletop type cannot be
adjusted, as it is incorporated in the main body.
３）Start boiling noodles
①Select “Cook” mode by pressing the select button to boil noodles.
※”Warm” mode is not suitable to boil noodles as it does not come to boiling.
②Put noodles in a noodle boiling basket.
③Put the noodle boiling basket in the basket holder.
・For the lift type, press the shaft select button.
The lift is automatically brought down and the timer starts counting down.
３０
４０
５０
６０
７０
８０
１１０
９０
１００
Warm setting dial
POWER
SELECT
WARM
COOK

- 9 -
横置き 斜め前置き 斜め後ろ・後置き
自動ゆで麺機（リフトタイプ）：上面図
カゴ 受け リン グ
オ ート リフ ト
ゆで めん カゴ
取手
※Place the handle of noodle boiling basket pointing to the side or
diagonally in front. Never place them pointing diagonally behind
or to the back.
４）Finish
①After boiling is completed, pull out the noodle boiling basket from the basket
holder.
②For Lift type, just before the preset time is over, the notification lamp of the
selected shaft is lit, followed by the lift coming up. Remove from the basket
holder ring.
５）Drain hot water from noodles
○Drain hot water from the noodles and pour the noodles in a bowl.
６）Turn the power off
①After use of the machine, press the power button to turn the power off.
・The power button (lighted) goes off.
②Turn off the power of the lift. (Lift type)
③Stop adding water (hot water).
●Do not place the noodle basket handle pointing diagonally behind or to the back.
●Boiling power is strong. Be careful with steam heat or boiling water when putting
noodle boiling basket in the basket holder.
●Make sure the water (hot water) is added as the water in the tank becomes less and
less because of the water evaporation while boiling as well as the noodles absorbing
water. Also, if the water (hot water) is not added sufficiently, the water in the tank
becomes dirty and causes boiling over.
※For the capacity of hot water supply apparatus to be connected to the
machine, refer to “4-5 Feed-water and drain piping work”.
CAUTION
The handle may
hit the basket
holder and lead
to malfunction of
the machine.
To the side
Diagonally in the front
Diagonally behind/
to the back

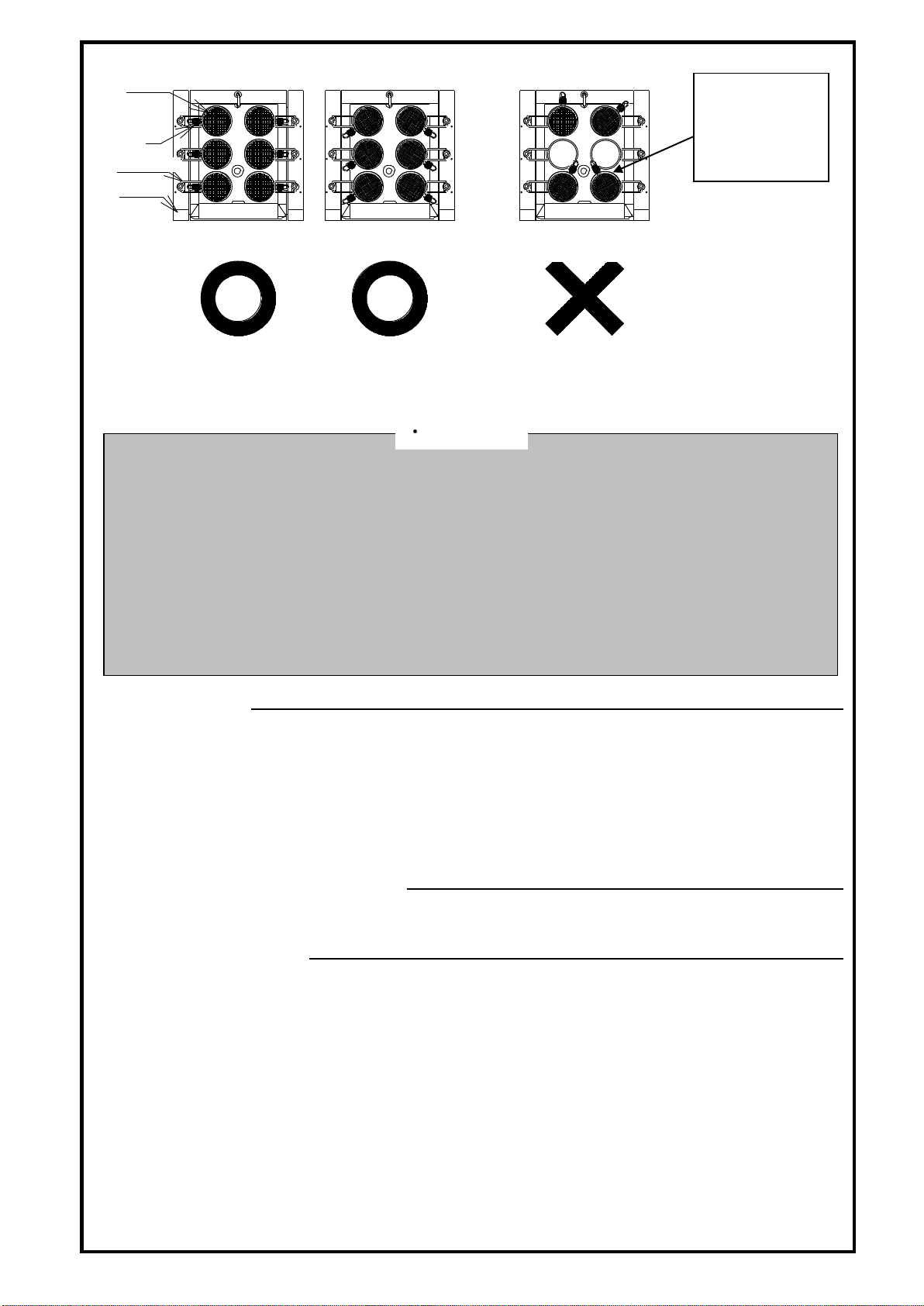

Auto Noodle Boiler (Lift Type): Top View
Auto-lift
Noodle boiling basket
Basket holder ring
Handle

- 10 -
７）Turn the main power off
○Turn off the main power (local switch/plug) and close the water supply valve.
８）Drain water from tank
○After the tank is cooled down (less than 40℃), drain water from the tank.
使いかた
How to Use
２－３ In case of a power outage while in use
In case of a power outage, the machine cannot be used. Wait until power comes back
on.
１）In case of a power outage
①Close feed-water cock and turn the power off by pressing the power button.
②Turn the main power (local switch) off.
③After the power comes back on, turn the main power and the power button on
and add water (hot water) to resume cooking.
２）Recovery of Auto-lift part (Lift type)
①After the power comes back on, press the lift power button.
・Setting before the power outage is displayed.
・If the lift remains down, lift it up by pressing the shaft select button.
●When continuing cooking after power recovery, check the state of the noodles under
cooking and set the boiling time again. (Lift type)
CAUTION
●To avoid burn-injury, be careful with steam heat and boiling water when taking
the baskets out from the basket holder.
●When draining hot water from noodles, do not shake hard but just light. Otherwise,
hot water spatters and may cause burn injury.
CAUTION

- 11 -
Inspection, maintenance, etc.
３－１ Inspectionandpreparationformaintenance
１）Inspection
●Whether there is combustibles nearby・・・・・・ Remove such combustibles.
●Whether any article is placed on the exhaust outlet・・・・・・・Remove such article.
●Whether the drain outlet is clogged・・・・・・・Take out drain net and remove garbage.
●Whether power cord is damaged・・・・・・
●Whether heating is normal・・・・・・・・・ Contact our branch, sales
●Whether any part is broken・・・・・・・・ office or dealer.
●Whether there is any abnormal noise・・・・
２）Recommendation for periodical inspection
Please request the dealer where you purchased the machine, or your nearest branch
or sales office of our company for inspection with charge at least two times a year.
(Please use inspection and maintenance contract.)
３）Preparation for maintenance
①Wear rubber gloves.
・Working without gloves may cause injury by the corners of the machine, etc.
②Make sure that main body of the machine has been cooled down.
・If the machine is not cooled down enough, it may cause burn injury.
③Turn the main power (local switch/plug) connecting to the machine completely off.
・In order to prevent electrical shock hazard, do not “plug/unplug” the machine
with a wet hand.
・To plug/unplug, do not pull the cord forcibly but pull by holding the plug at the end.
④Use neutral detergent for dish wash to clean cooking tools that touch food directly
such as noodle boiling baskets.
●When performing maintenance or inspection, turn the main power (local switch/
plug) completely off and wait until the machine is completely cooled down.
●Do not splash water onto the machine.
●Do not touch electrical components such as power plug or operate electric switches
with wet hands.
・WARNING
●終業後の掃除は必ず実施してください。残滓やスケールのこびりつき、さびの原因
となります
《お願い 》
●If you find an electrical leak, stop use immediately and turn the main power (local
switch/plug) off. Contact the dealer where you purchased the machine, or your nearest
branch or sales office of our company.
●Do not put anything into switch holes or chinks.
DANGER
●Always wear rubber gloves when performing maintenance. ●Do not cool rapidly.
●Do not use polishing powder (cleanser). The machine gets scratches.
●Do not use benzene, thinner, and other similar products. There is a fear of ignition.
●Do not splash water onto the operation part and electric components. It may cause
malfunction (especially electrical leak).
CAUTION
●Make sure to clean the machine every time after work. Or the residue or scale sticks
to the machine or the machine gets rusty.
《ADVICE 》

- 12 -
Inspection, maintenance, etc.
３－２ Maintenance
Proper after-use maintenance enables longer life of the machine.
１）Cleaning inside the tank
①Turn off the main power.
②Remove the basket holder, basket holder lid, front guard and side guards.
③Pull out the overflow stopper to drain water.
※Drain water after the water in the tank is cooled down (less than 40 ℃).
※The overflow stopper becomes hot due to the boiling water.
Be careful not to get burn injury.
④Remove the boiling assist plate and wash with neutral detergent.
⑤Wash the interior of the tank with neutral detergent.
・If the dirt is not washed away sufficiently, it may stick to the tank or cause rust.
⑥Wipe off water with a cloth.
２）Maintenance of the exterior
①If the exterior is dirty, wipe off with a soft cloth.
②If the dirt cannot be wiped away, rub with a cloth soaked with neutral detergent and
then wipe the detergent completely off with a dry cloth or well squeezed wet cloth.
③The power plug may cause fire by dirt or dust accumulated, even in a short period,
depending on the place where the machine is installed or how the machine is used.
Clean periodically.
３）Attachment of accessories
Refer to “2-1 Preparation for operation” to attach the accessories in their given place.
●Perform maintenance after the main body is completely cooled down to prevent burn
injury.
●Reinstall parts in their respective place after removing. Check if they are installed
properly.
●The basket holder consists of 2 parts (main body and lid). Clean them separately.
●Boiling assist plate has its direction to attach to the tank. Check if it is attached
properly after cleaning. Refer to “2-1 Preparation for Operation”.
●Clean the machine carefully using neutral detergent more than once a day.
After rinsing, wipe off water with towel or cloth and dry sufficiently.
Even a product made of stainless steel may rust depending on the surrounding
environment or condition of use, or due to causes such as failure to clean the tank.
※Causes for rust can be:
- Salt, acid, or scum sticking to the product
- Iron or its rust sticking to the product
- Medicine such as chlorine or ozone water used
●Always wear rubber gloves while cleaning not to get hurt with the corners or
burrs of the machine.
CAUTION

- 13 -
General commercial kitchen Appliances & Equipment
Maruzen Co.,Ltd.
Head Office 2-19-18, Negishi, Taito-ku, Tokyo, Japan
TEL [phone]
FAX [phone]
台湾丸善股份有限公司
台北縣台北市延平北路二段２０２號１２樓之３
TEL [phone]
FAX [phone]
Maruzen (Thailand) Co.,Ltd
Room184/193 Floor29-C3 ForumTower Rachadaphisek Rd.
Huai Khwang, Huai Khwang, Bangkok 10310 Thailand.
TEL [phone]
FAX [phone]
