  9. Marvel 66BWM-BD User manual

Marvel 66BWM-BD User manual

Overall depth NOT including
panel or handle:
Depth NOT including door:
Height at full leg adjustment:
Height at 0" leg adjustment:
Height without legs installed:
Width:
Toe Kick height:
Door swing at 90°:
Recommended opening width:
Recommended opening depth:
Recommended opening height:
23 3/8"
22"
69 1/8"
68 3/8"
68 1/8"
24 1/8"
3"
25 1/2"
24 1/4"
24"
68 3/4"

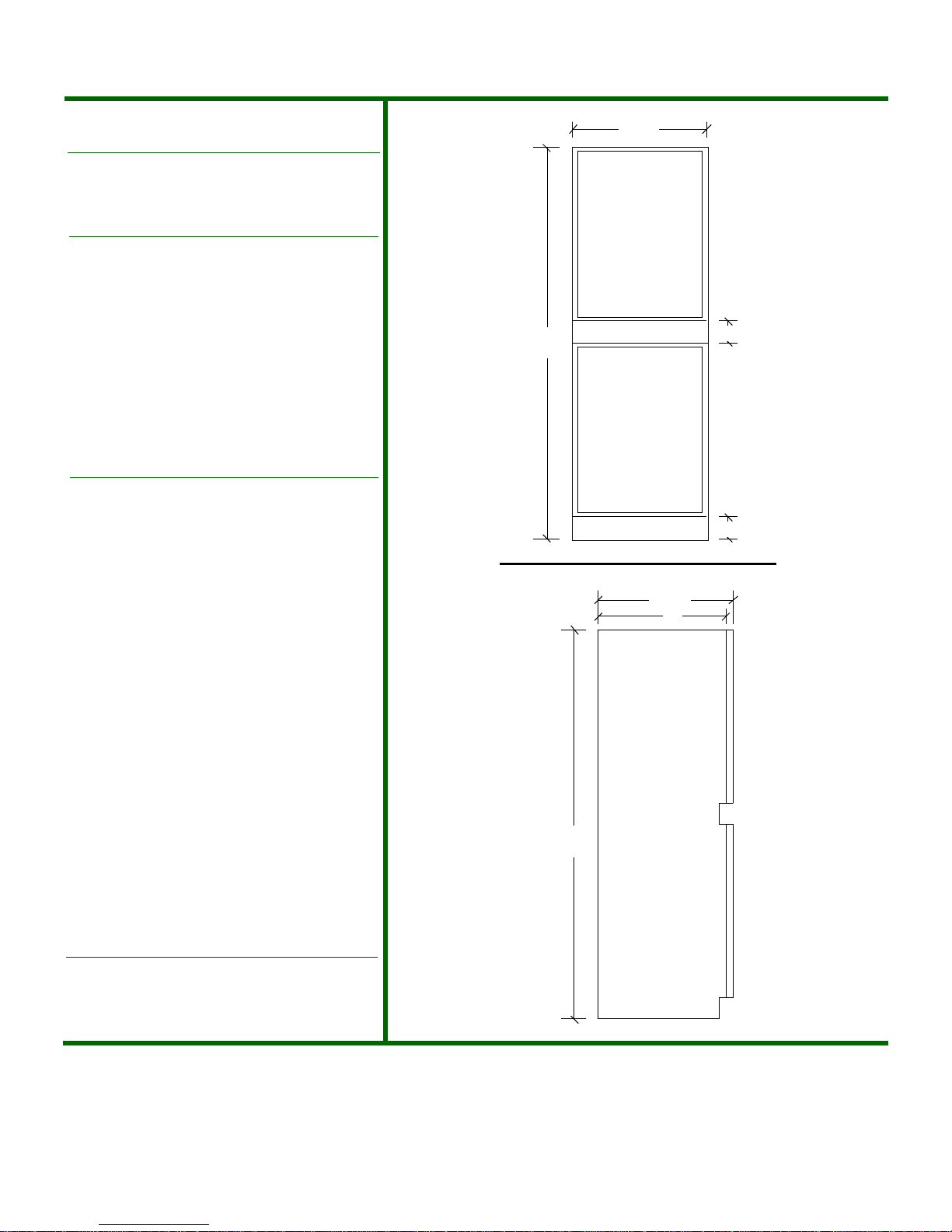

Front View
(not to scale)
Side View
(not to scale)
3"
69 1/8" Max
68 1/8" Min
24 1/8"
23 3/8"
22"
3"
69 1/8" Max
68 1/8" Min
• Electrical requirements: 120 volts, 6 amps running
max. 20 amp circuit required.
• Locate a 3-prong grounded receptacle in one of three
locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 1" to the overall depth of the unit to
accommodate the thickness of the plug). 3) Recessed
1" into the back wall of the refrigerator opening.
• When recessed, unit does not require additional air
space for top, sides or rear
• MicroSentryTM refrigeration monitor controls
refrigeration system's performance to maintain a
constant and precise temperature
• Each section (upper and lower) has its own cooling
system and MicroSentry TM monitor to ensure wines
and beverages are kept at proper storage temperature
• Lighted and inclined display rack for 4 bottles,with
storage for 3 more in back
• Wine racks and beverage shelves may be extended
at 90° door opening
See page 2 for additional information
www.dexpress.com DIMENSION EXPRESS Fax on Demand (925) 284-3558
• Dimensions (Actual Size) •
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at (800) 940-2059 •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
Luxury Series Beverage and Wine Refrigerator
with Overlay Frame Glass Door:
66BWM-BD
• Product Model Number (s): •
Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of deter-
mining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2007.
This Data Sheet Includes Information On
BN • A318B149 • • 070511 • 132112 • 48359
• Additional Information •
318
Marvel
• Racks have front trim of clear, solid maple (unfinished)
• Lower section has lighted and inclined display shelf for up to four
wine bottles , with storage for 3 more in back
• Capacity: 59 wine bottles, including magnums, and 133 twelve-ounce
canned beverages
• Door is reversible in field if model does NOT include -LL or -LR.
• Door lock (when -LL, left hand hinge or -LR, right hand hinge is added
to the model number), top center of door. Door with lock is not field
reversible.
• 66BWM-BD: Beverage refrigerator upper/Wine cellar lower: Black
cabinet, overlay frame glass doors.
• Accepts custom frame. Custom frame and handle must be supplied
by customer, see page 2. REQUIRES 2 DOOR FRAMES.
• Shipping weight: 356 pounds.
• U.L. Listed.
1 3/4" min
1 3/4" min
1 3/4"
min
1 3/4" min
Front View
Custom Overlay Glass Door Frame Dimensions
(not to scale)
30 5/16" for
3 1/2" toe kick
29 13/16" for
4" toe kick
23 7/16"
For doors with locks installed (-LR or -LL
included in model number). It will be necessary
to drill a hole in the overlay door frame,
corresponding to the lock location, prior to
assembly. Hole diameter through overlay frame
should be 15/32" with a 13/16" counterbore from
back side of panel, 7/16" deep.
Min. thickness of rails and stiles: 5/8"
Max. thickness of rails and stiles: 3/4"
Optional
Lock
Location
11 23/32"
15/32"
Additional Information:
Subject to change without notice. This system is designed to be updated daily if necessary. Dimension Express is not responsible for use of superseded, voided, or
outdated data sheets. Because of the difficulty or impracticability of determining actual damages, liability of Dimension Express shall not exceed $50.00.
Copyright © Dimension Express, 2007.
www.dexpress.com
DIMENSION EXPRESS
Fax on Demand (925) 284-3558
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at (800) 940-2059 •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
Luxury Series Beverage and Wine Refrigerator
with Overlay Frame Glass Door:
66BWM-BD
• Product Model Number (s): •
This Data Sheet Includes Information On
BN • A318B149 • • 070511 • 132112 • 48359
149
Page 2
Marvel
