Marvel 6ORGD-SS-F User manual

Overall depth including handle:
Overall depth NOT including handle:
Depth NOT including door:
Height at full leg adjustment:
Height at 0" leg adjustment:
Height without legs installed:
Width:
Toe Kick height:
Door swing at 90°:
Recommended opening width:
Recommended opening depth:
Recommended opening height:
26 3/8"
24 1/4"
22"
35"
34 1/4"
34"
23 7/8"
3"
25 1/2"
24"
24"
34 1/2"

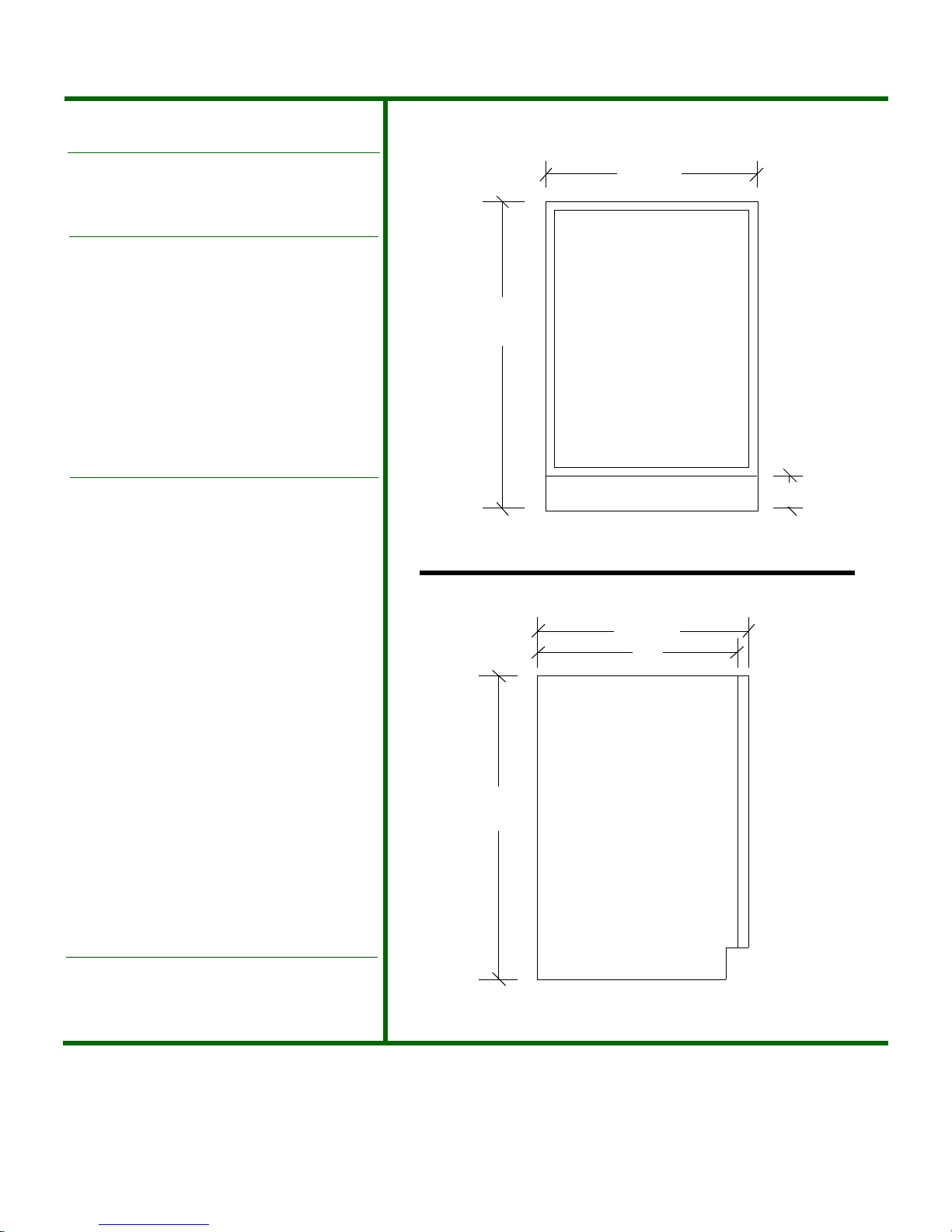

Front View
(not to scale)
Side View
(not to scale)
3"
35" max
34" min
23 7/8"
24 1/4"
35" max
34" min
22"
• Electrical requirements: 120 volts, 3 amps running
max. 15 amp circuit required.
• Locate a 3-prong grounded receptacle in one of three
locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 1" to the overall depth of the unit to
accommodate the thickness of the plug). 3) Recessed
1" into the back wall of the refrigerator opening.
• Door is reversible in field.
• Shipping weight: 120 pounds.
• U.L. Listed suitable for outdoor use.
• Does not accept custom panels.
• 6ORGD-SS-F : Stainless Cabinet and Door Exterior.
Accessories:
• Casters: P/N 42244041.
• Protective Cover: P/N 42243156.
